Project Management and Embedded Systems Christopher Brooks Center

Project Management and Embedded Systems Christopher Brooks Center for Hybrid and Embedded Software Systems (CHESS) Executive Director UC Berkeley EECS 124 March 6 & 10, 2008

Christopher Brooks • I’m a release engineer, training electrical engineers in the art of software engineering. • I’ve worked with Professor Edward A. Lee since 1992, first on Ptolemy Classic (C++) and now on Ptolemy II (Java). • I’ve taken undergrad CS classes at Berkeley • I’m taking classes from UC Extension in Project Management – Software Project Management Sequence – 7 Classes – mostly in the Business Division Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 2

Project Management • Project management is? • The art of managing projects to a successful completion. • The Project Management Triple Constraint: Scope Quality Cost Christopher Brooks: Project Management and Embedded Systems Time Mar. 6 & 10, 2008 3

PMI: Project Management Institute • “A Guide to the Project Management Body of Knowledge “ (aka PMBOK) • PMI Certification – Certified Associate in Project Management (CAPM) – Project Management Professional (PMP) – Program Management Professional (Pg. MP) Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 4

How to have an unsuccessful project • • Copyright © Garry Trudeau What happened? Team dynamics: team mate is crashed out Scheduling: only an hour left? Overambitious: dual drive? AI Chip? Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 5

Solving Alex’s Problems • Team dynamics: team mate is crashed out – Scheduling Problem • Scheduling: only an hour left? – Scheduling Problem • Overambitious: dual drive? AI Chip? – Vague requirements – Goldplating Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 6

• What’s the problem? Copyright © Garry Trudeau – Gold plating Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 7

How I’ve messed up • • LED T-Shirt: 8 x 10 led’s Tansy sewed the 80 surface mount LEDs I worked on the Ptolemy Software Problems – Missed deadline – bad planning – Data size too large for chip! • Could have avoided with – Better planning: avoid surprises Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 8

Project Management/Embedded Systems Problems • Hardware and software designs affect each other • But you don’t know about problems until too late. • Solutions include – Software Simulation – Hardware Prototyping Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 9

How to successfully manage a project • Develop a one page project charter – Get your sponsor to sign off • Develop a time line with milestones – Work backwards – Describe deliverables • Monitor progress – If you don’t look at the plan, then why bother? – Status reports can be email messages or meetings Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 10

EECS 124 Deliverables • Due one week from today • One page Project Charter • One page Schedule Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 11

Project Charter • Formalize the project with the sponsor • Sections: – – – Project Overview Project Approach Project Objectives Major Deliverables Constraints Risks and Feasibility • In one page – Most people, especially busy people, will not read more. In fact, it has been shown that most people don’t even read (hi mom!) slides. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 12

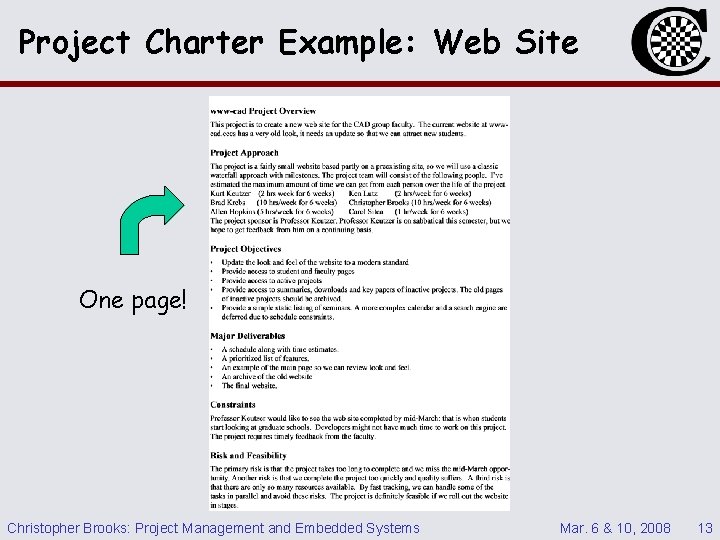

Project Charter Example: Web Site One page! Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 13

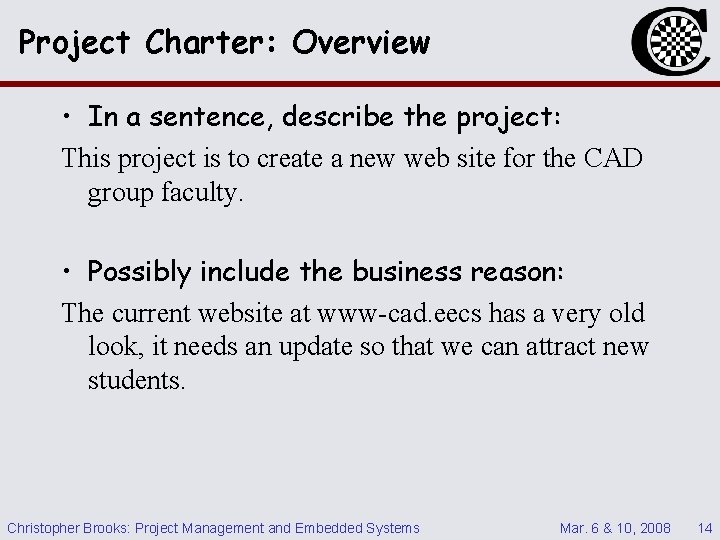

Project Charter: Overview • In a sentence, describe the project: This project is to create a new web site for the CAD group faculty. • Possibly include the business reason: The current website at www-cad. eecs has a very old look, it needs an update so that we can attract new students. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 14

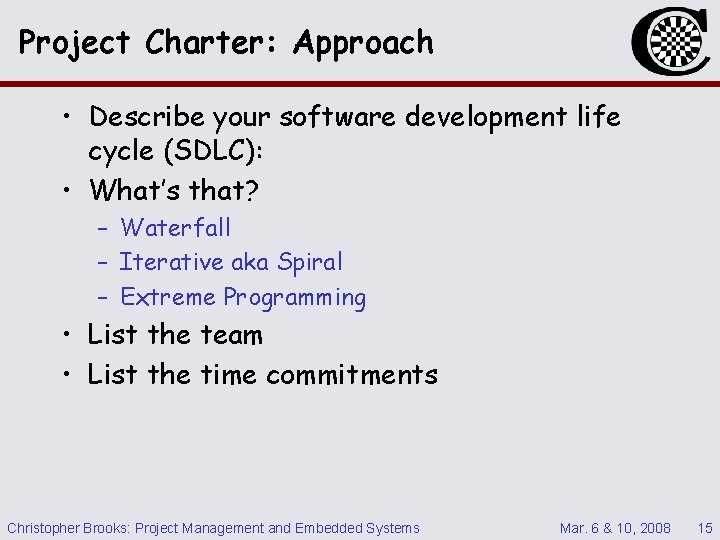

Project Charter: Approach • Describe your software development life cycle (SDLC): • What’s that? – Waterfall – Iterative aka Spiral – Extreme Programming • List the team • List the time commitments Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 15

Waterfall Method • Complete one phase before going on to the next [Royce, 1970] Requirements Design Implementation Validation Maintenance Time Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 16

Microsoft Project Gantt Chart Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 17

Spiral Model [Boehm, ’ 88] • Christopher Brooks: Project Management and Embedded Systems Source: B. W Boehm, “A spiral model of software development and enhancement, ” Mar. 6 & 10, 2008 18

Extreme Programming • Planning – Release planning – Frequent Releases • Coding – Standards – Unit tests first – Pair Programming – Late Optimization • Designing – Simplicity – System Metaphor – Refactoring • Testing – Unit Tests – Bugs need Tests – Acceptance Tests Based on http: //www. extremeprogramming. org/rules. html Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 19

Project Charter: Approach (again) • Describe your software development life cycle (SDLC): • What’s that? – Waterfall – Iterative aka Spiral – Extreme Programming • List the team • List the time commitments Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 20

Project Charter: Approach Example The project is a fairly small website based partly on a preexisting site, so we will use a classic waterfall approach with milestones. The project team will consist of the following people. I’ve estimated the maximum amount of time we can get from each person over the life of the project. Kurt Keutzer (2 hrs week for 6 weeks) Ken Lutz (2 hrs/week for 6 weeks) Brad Krebs (10 hrs/week for 6 weeks) Christopher Brooks (10 hrs/week for 6 weeks) Allen Hopkins (5 hrs/week for 6 weeks) Carol Sitea (1 hr/week for 6 weeks) The project sponsor is Professor Keutzer is on sabbatical this semester, but we hope to get feedback from him on a continuing basis. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 21

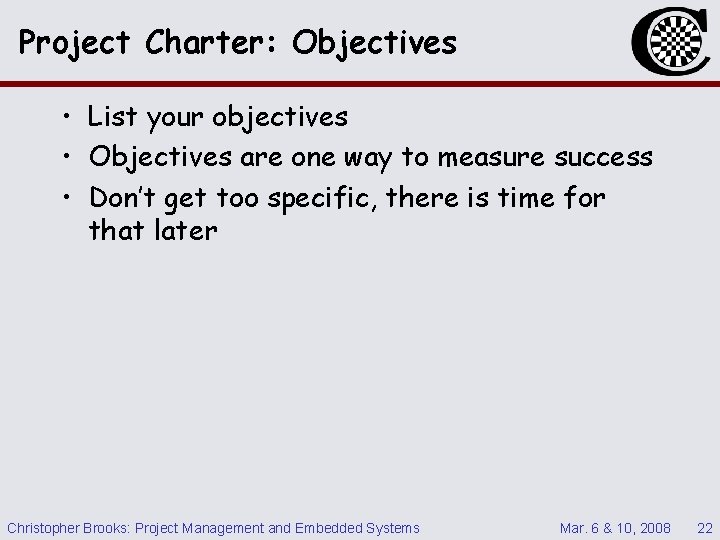

Project Charter: Objectives • List your objectives • Objectives are one way to measure success • Don’t get too specific, there is time for that later Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 22

Project Charter: Objectives Example • Update the look and feel of the website to a modern standard • Provide access to student and faculty pages • Provide access to active projects • Provide access to summaries, downloads and key papers of inactive projects. The old pages of inactive projects should be archived. • Provide a simple static listing of seminars. A more complex calendar and a search engine are deferred due to schedule constraints. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 23

Project Charter: Deliverables • What’s a deliverable? • Physical artifacts which describe your progress and include your product • Deliverables should include: – A description (Scope) – A date (Time) – A person or persons who are responsible (Cost) Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 24

Project Charter: Deliverables Example • A schedule along with time estimates. • A prioritized list of features. • An example of the main page so we can review look and feel. • An archive of the old website • The final website. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 25

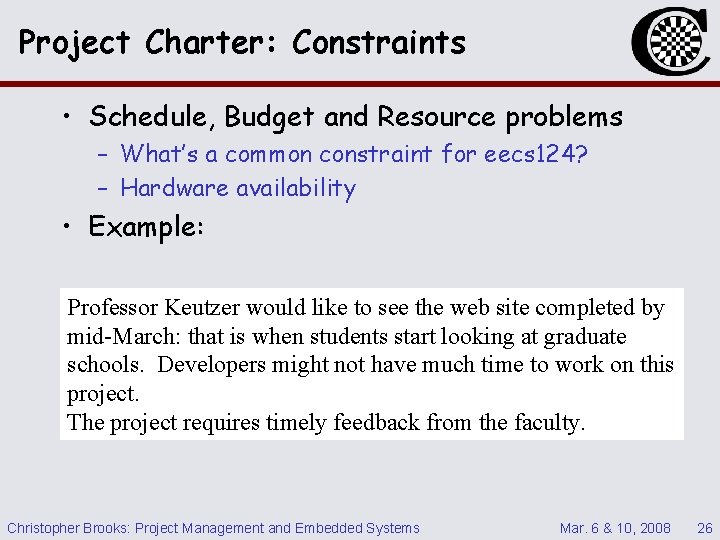

Project Charter: Constraints • Schedule, Budget and Resource problems – What’s a common constraint for eecs 124? – Hardware availability • Example: Professor Keutzer would like to see the web site completed by mid-March: that is when students start looking at graduate schools. Developers might not have much time to work on this project. The project requires timely feedback from the faculty. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 26

Project Charter: Risks • List things that could go wrong and how you will avoid them • Don’t skip the risks. • Example: The primary risk is that the project takes too long to complete and we miss the mid-March opportunity. Another risk is that we complete the project too quickly and quality suffers. A third risk is that there are only so many resources available. By fast tracking, we can handle some of the tasks in parallel and avoid these risks. The project is definitely feasible if we roll out the website in stages. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 27

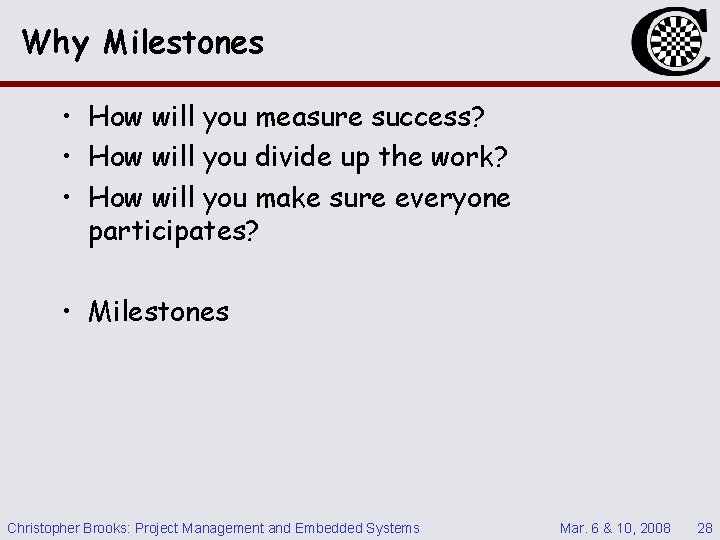

Why Milestones • How will you measure success? • How will you divide up the work? • How will you make sure everyone participates? • Milestones Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 28

What is a milestone? • A milestone is a checkpoint in the project – A milestone has • A description of the point • A date • A person or persons who are responsible • A milestone may or may not have a deliverable associated with it. – A deliverable has • A description of a deliverable (scope) • A date (time) • A person or persons who are responsible (cost) Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 29

Work Breakdown Structure (WBS) • A work breakdown structure is an outline that describes the deliverables. • Each level of the outline describes 100% of the work below it (the 100% Rule) Scope • A WBS should include: What (Scope) When (Time) Who (Cost) Cost Christopher Brooks: Project Management and Embedded Systems Time Mar. 6 & 10, 2008 30

Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 31

WBS for the LED T-Shirt • LED T-Shirt (Tansy and Christopher) due on 5/10 – Hardware (Tansy) • • • Obtain Electronics (Christopher) (3/15) Obtain Fabric Materials (Tansy) (3/15) Design Schematic (Christopher) (3/10) Solder LEDs (Christopher) (3/20) Sew Schematic (Tansy) (4/15) Test Circuit (Christopher) (4/20) – Software (Christopher) • • Build Code Generation Environment (Christopher) (3/15) Develop algorithm in simulation (Christopher) (3/15) Breadboard Circuit (Christopher) (3/20) Provide Software requirements for Schematic (Christopher) (3/10) • Download Software onto Chip (Christopher) (4/20) – Integration (Tansy and Christopher) (4/25) – Testing (Tansy and Christopher) (5/1) Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 32

The Critical Path • What’s the Critical Path? • The longest path through the project, which determines the shortest time to completion. • Solutions during Planning: – Do things in parallel – Add more resources – Prune deliverables • Solutions during Operation: – Replan – Panic Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 33

11 Steps to successfully completing a software project 1. Create a one page charter 2. Separation of concerns: MVC: gui vs backend 3. Start writing tests early, use a code coverage tool 4. Use a nightly build 5. Use a consistent coding style and use a tool to enforce the style 6. Use tools: memory leaks, warnings, spelling errors, performance problems, other compilers, other operating systems. 7. Document your code. Writing documentation first can prevent hours of wasted time. 8. Don’t debug for more than an hour by yourself – get help. 9. Design Review and Code Review (or at least desk check) 10. Expect the unexpected: wacky user input, wacky user interaction, problems with threads. 11. Don’t be afraid to throw away code and start over. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 34

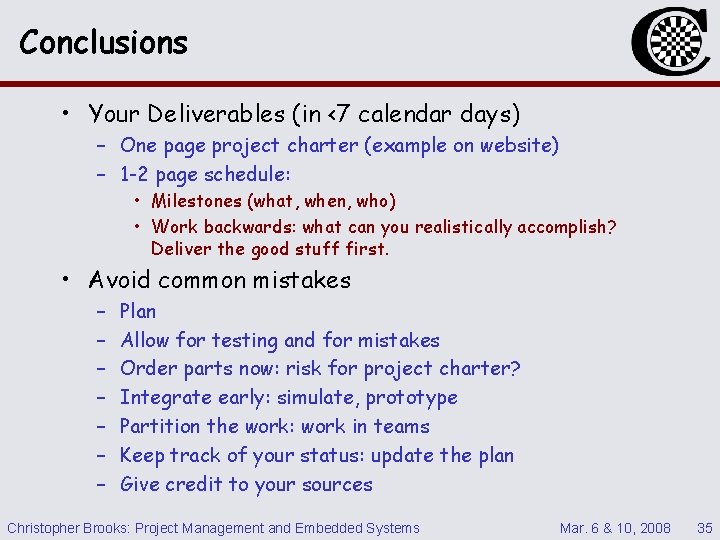

Conclusions • Your Deliverables (in <7 calendar days) – One page project charter (example on website) – 1 -2 page schedule: • Milestones (what, when, who) • Work backwards: what can you realistically accomplish? Deliver the good stuff first. • Avoid common mistakes – – – – Plan Allow for testing and for mistakes Order parts now: risk for project charter? Integrate early: simulate, prototype Partition the work: work in teams Keep track of your status: update the plan Give credit to your sources Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 35

Questions? Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 36

Ptolemy Software Practice • • • Study Groups Common Off the Shelf Tools Version Control Coding Style Nightly Builds Testing Code Cleaning Design and code reviews, Code Rating Regular releases with excellent docs Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 37

Tools • Emacs, make – older tools, available everywhere – know how to use make • autoconf – older configuration system. - know how to run configure • Cygwin under Windows • Ant – a build system, – but not a configuration system. • Eclipse – Common for Java • JUnit – Well integrated with Ant and Eclipse • Microsoft Visual Studio – better than it was Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 38

Automatic Testing Tools • Static code checkers – gcc –Wall – Build and test under different chip architectures (x 86, Sparc) or OS’s – Coverity – not Free – Fortify – not Free – Java tools like Find. Bugs, PMD • Memory checkers – Electric Fence (for C) – Purify – not Free – Valgrind – Linux only Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 39

Version Control • Used to ship tar files around • Provide a way to back out changes and look at history • SCCS and RCS • • – older and non-networked CVS is commonly used Clearcase costs $$ Source. Safe is MS Only Subversion is the tool of choice Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 40

CVS • Concurrent development by multiple users on the same file • Read only and read/write access over the network. • CVS tree is backed up and replicated. • Platform independence • Freely available and fairly common • Graphical and web interfaces available Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 41

Coding Style • Common style helps when looking at the code of others. • It does not matter what the style is, as long as it is consistent and documented. • Everyone but Chief Scientists and Professors will need to follow a coding standard – so get used to it. • The style must be mandatory • Automated tools are a big help • The style can slowly evolve. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 42

Coding Style Features • Document using complete sentences with good grammar – Be nice to yourself and others that use your code. • Identifiers use complete words (Camel. Case) – This aids in readability and accessibility – the developer knows that the variable or method is number. Of. Espressos, not num. Esp or n. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 43

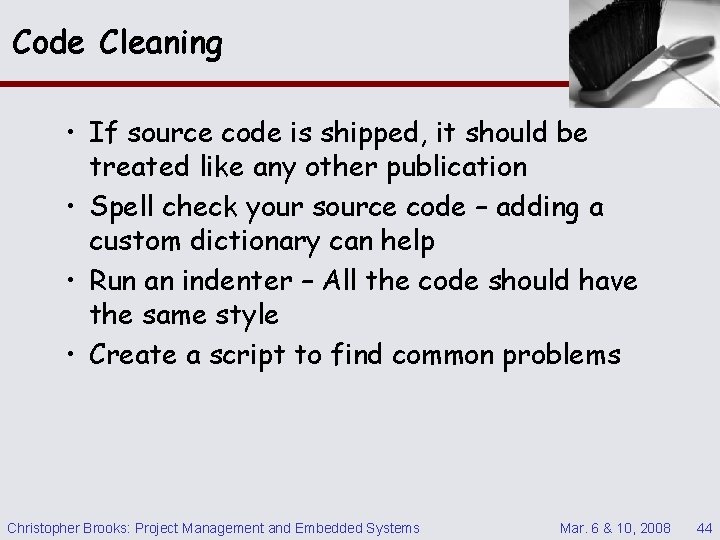

Code Cleaning • If source code is shipped, it should be treated like any other publication • Spell check your source code – adding a custom dictionary can help • Run an indenter – All the code should have the same style • Create a script to find common problems Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 44

Copyrights © • Get buy in from the faculty or manager • Ptolemy has a liberal copyright that permits commercial use. • UC Office of Technology Licensing (OTL) copyright policy is different. • Corporate sponsors may flee if subjected to copyleft. • Each file really should have the copyright. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 45

If you copy code into a project • Make sure it is permitted – Copyright violation – Plagiarism for class work – Work rules • Be sure to credit the source • Be aware of different Open Source copyrights – BSD (Commercial use ok, credit us, don’t sue us) – GPL Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 46

Build Culture • Mc. Carthy - “If you build it, it will ship” • “If you don't build it, it will never ship” • “Don't break the build” - prompts developers to test changes before checking them in • Developers see problems immediately. . . And sometimes wear a silly hat Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 47

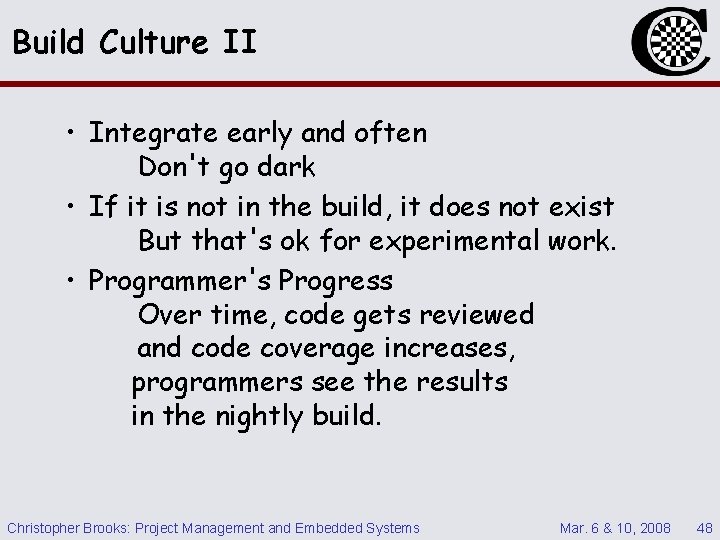

Build Culture II • Integrate early and often Don't go dark • If it is not in the build, it does not exist But that's ok for experimental work. • Programmer's Progress Over time, code gets reviewed and code coverage increases, programmers see the results in the nightly build. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 48

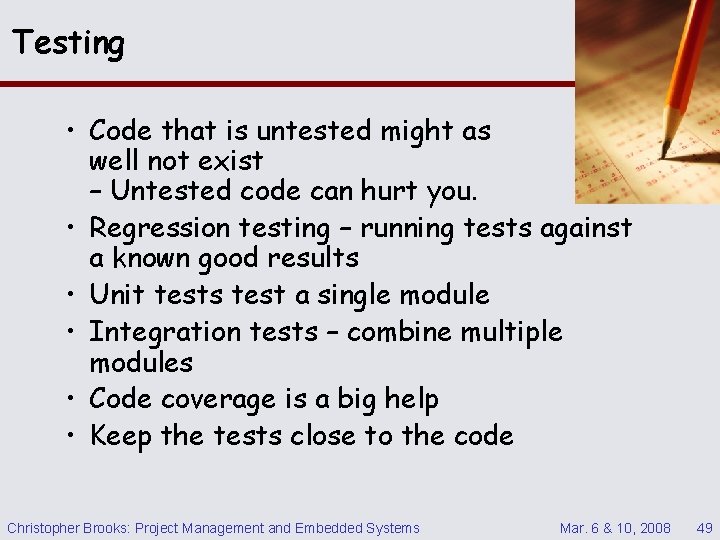

Testing • Code that is untested might as well not exist – Untested code can hurt you. • Regression testing – running tests against a known good results • Unit tests test a single module • Integration tests – combine multiple modules • Code coverage is a big help • Keep the tests close to the code Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 49

Testing Ptolemy • Unit Tests: Scripting (Ptolemy: ~10 k) • Integration/System tests (Ptolemy: ~1. 1 k) – Run test models with known good results • Built in sanity tests (Ptolemy: ~10) – Open all the models – Check all the links • UI Testing (Ptolemy: Users ) – not automated (hard/expensive) Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 50

Ptolemy Unit Testing • Scripting languages: well suited for test suite development because of the iterative nature of test suites. • We use Jacl, a 100% Java implementation of a subset of Tcl that permits access to Java. • Jython might be a better choice today. • JUnit, x. Unit – Common, but not scriptable – If you are using Java, use JUnit. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 51

Jacl • Instantiate a new Foo: set a [java: : new ptolemy. kernel. Foo] • Call a method: $a my. Method • Simple Test: test Foo-1. 1 {Test my. Method} { set a [java: : new ptolemy. kernel. Foo] $a my. Method } {You invoked my. Method!} Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 52

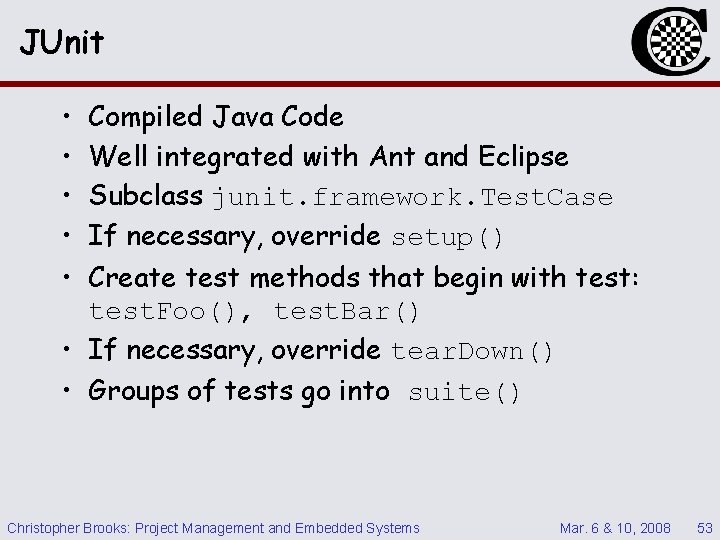

JUnit • • • Compiled Java Code Well integrated with Ant and Eclipse Subclass junit. framework. Test. Case If necessary, override setup() Create test methods that begin with test: test. Foo(), test. Bar() • If necessary, override tear. Down() • Groups of tests go into suite() Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 53

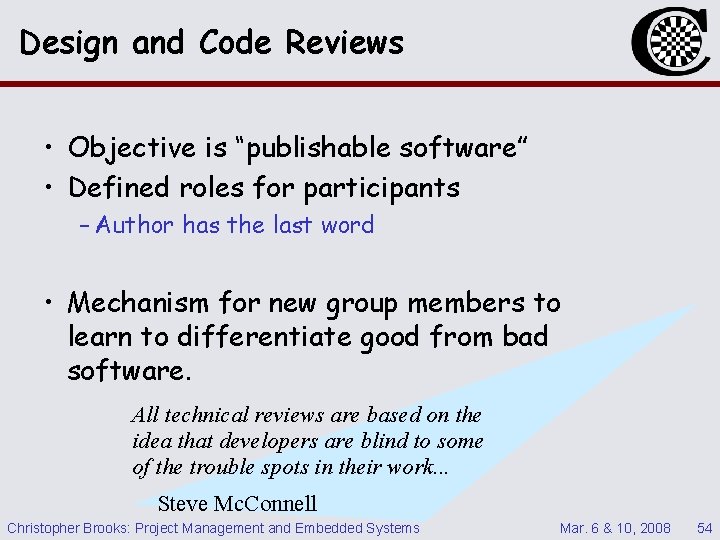

Design and Code Reviews • Objective is “publishable software” • Defined roles for participants – Author has the last word • Mechanism for new group members to learn to differentiate good from bad software. All technical reviews are based on the idea that developers are blind to some of the trouble spots in their work. . . Steve Mc. Connell Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 54

Code rating • A simple framework for – – • quality improvement by peer review change control by improved visibility • What is this about Four confidence levels – – Red. No confidence at all. Yellow. Passed design review. Soundness of the APIs. Green. Passed code review. Quality of implementation. Blue. Passed final review. Backwards-compatibility assurance. really? – Confidence in quality – Commitment to stability Source: John Reekie Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 55

How we do a review • Top level – – • The author announces that the package is ready for review The moderator organizes and moderates the review The author responds to the issues raised in the review, redesigning or reworking as necessary The author announces the new rating. In the review – – – The moderator runs the meeting and keeps the discussion on track; and acts as reader (in our process). The reviewers raise issues and defects The author answers questions Roles define and The scribe notes raised issues and defects clarify responsibility Nobody attempts to find solutions! Source: John Reekie Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 56

What were the review benefits? • Students – – – – • better design and more confidence. good feedback about documentation and naming issues revealed quite a few flaws an affirmation that your architecture is sound encourage other people in the group to reuse code forcing function to get documentation in order my coding style changed Staff – – exposed quite a few design flaws caught lots of minor errors, and quite a few insidious errors Source: John Reekie Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 57

Small Released: Nightly Build • Build and test the system regularly – Every night • Why? Because it is easier to fix problems earlier than later – Easier to find the cause after one change than after 1, 000 changes – Avoids new code from building on the buggy code • Aiken: Test is usually subset of full regression test – “smoke test” – Just make sure there is nothing horribly wrong Keutzer: I disagree with this point. Typical case should be to run entire regression test Jim Mc. Carthy (Director of MSVC++ Group): “If you build it, it will ship” Build a release every night, run tests – makes integration easier. • • • Source: Alex Aiken Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 58

Ptolemy II Nightly Build – Ptolemy II has ~11, 000 tests for ~2300 Java files contain 675, 000 lines of code. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 59

Code Coverage • The fire. One. Round() method is not covered Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 60

Testing Documentation: doccheck Doccheck is a javadoc plug-in from Sun that points out common problems. Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 61

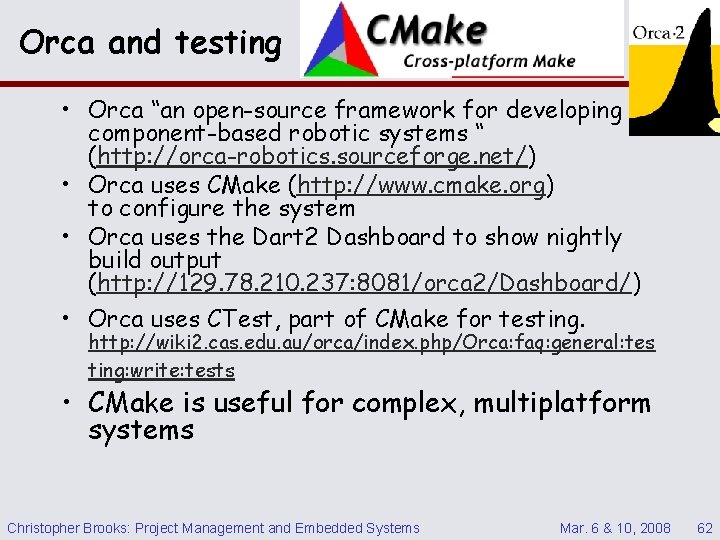

Orca and testing • Orca “an open-source framework for developing component-based robotic systems “ (http: //orca-robotics. sourceforge. net/) • Orca uses CMake (http: //www. cmake. org) to configure the system • Orca uses the Dart 2 Dashboard to show nightly build output (http: //129. 78. 210. 237: 8081/orca 2/Dashboard/) • Orca uses CTest, part of CMake for testing. http: //wiki 2. cas. edu. au/orca/index. php/Orca: faq: general: tes ting: write: tests • CMake is useful for complex, multiplatform systems Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 62

Orca Dashboard http: //129. 78. 210. 237: 8081/orca 2/Dashboard/ Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 63

Orca Dashboard Coverage Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 64

Orca Dashboard Coverage Detail Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 65

Orca Dashboard Coverage Detail Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 66

How is Ptolemy II released • Decide a rough ship date • Decide on features • Look over • • Decide on a schedule, review it with the group Nag Let the date slip “Showstopper” (sic) bugs appear New features are inserted despite everyone knowing better Stay up late, work hard Ship Drink beer – Conferences, Contracts, Holidays – Who is graduating? – What’s ready or not ready? – Features are worked on and some are reviewed – Bug system reports – Code Coverage – Code Ratings from Reviews Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 67

Developer Problems • A Ph. D. student refused to check their source into the tree • “It’s not ready” • Q: What sort of design methodology is this? • A: Waterfall: no feedback from customer • When the code went in, a serious fundamental design flaw was found. • The flaw could have been easily fixed earlier • Results: Lower impact Thesis. • Correction: Change the culture Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 68

Release Problems • Last minute changes causes most of the bugs and most of the incremental releases • Release does not include all files – Ship only what is needed is overapplied – Testing did not catch it • Platform issues – We don’t have that platform in house. • Releases are late – No specification – Research software Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 69

Lessons not learned: Review Process Problems • What sort of problems can happen with the review process? • Review process decayed • No read-ahead – This is a walkthrough, not a review • No follow up Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 70

How Should Ptolemy II Be Released? • What software methodology should be used? – Waterfall – no – this is research – Spiral – would be nice – Modified XP works ok • What changes could we make? – Requirements docs – Walkthroughs are separate – More thourough design reviews Christopher Brooks: Project Management and Embedded Systems Mar. 6 & 10, 2008 71
