Embedded System Digital Still Camera Digital TV I
嵌入式系統應用(Embedded System): Digital Still Camera Digital TV I- video phone O N DVD PDA Cameras Video Phone Set-top box Digital Video Recorder/ Home Video Server Cable SND v Digital Camcorder v 1 2 3 4 7 5 8 6 9 * 0 # Cellular Video Phone Network Cameras (source:Texas Instrument)
甚麼是晶片系統(SOC)? § An So. C contains: • Portable /Reusable IPs • Embedded CPU • Embedded Memory • Real World Interfaces (USB, PCI, Ethernet) • Software (both on-chip and off) • Mixed-signal Blocks • Programmable HW (FPGAs) Embedded Systems Design • > 500 K gates § Technology: 0. 25 m and below P/C µ § Not an ASIC ! Memory Embedded Software Analog SOC Firmware CORE 國立中正大學 晶片系統研究中心
Why CS students need SOC? u SOC 領域在資訊系的發展 èSystem on chip + IC design èCover areas: Architecture, Embedded system, VLSI design, Real-time systems u 產業面 m. IC設計為國家目前重點發展產業 m. System-on-chip (SOC) 造就資訊背景人才很大的發展空 間 m. SOC對 IP core 設計的大量需求 CPU core, DSP, network processor, video/audio processor, Security m. IA 的發展需要System 與Hardware密切的整合 國立中正大學 晶片系統研究中心

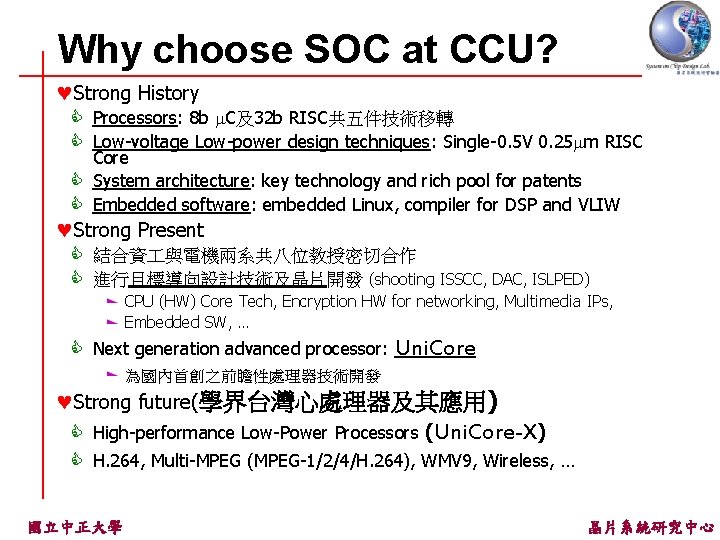

Why choose SOC at CCU? ©Strong History C Processors: 8 b C及32 b RISC共五件技術移轉 C Low-voltage Low-power design techniques: Single-0. 5 V 0. 25 m RISC Core C System architecture: key technology and rich pool for patents C Embedded software: embedded Linux, compiler for DSP and VLIW ©Strong Present C 結合資 與電機兩系共八位教授密切合作 C 進行目標導向設計技術及晶片開發 (shooting ISSCC, DAC, ISLPED) CPU (HW) Core Tech, Encryption HW for networking, Multimedia IPs, Embedded SW, … C Next generation advanced processor: Uni. Core 為國內首創之前瞻性處理器技術開發 ©Strong future(學界台灣心處理器及其應用) C High-performance Low-Power Processors (Uni. Core-X) C H. 264, Multi-MPEG (MPEG-1/2/4/H. 264), WMV 9, Wireless, … 國立中正大學 晶片系統研究中心

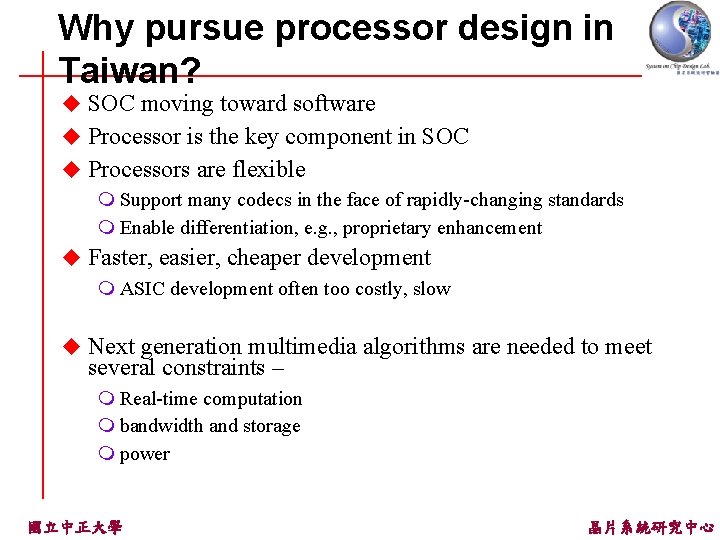

Why pursue processor design in Taiwan? u SOC moving toward software u Processor is the key component in SOC u Processors are flexible m Support many codecs in the face of rapidly-changing standards m Enable differentiation, e. g. , proprietary enhancement u Faster, easier, cheaper development m ASIC development often too costly, slow u Next generation multimedia algorithms are needed to meet several constraints – m Real-time computation m bandwidth and storage m power 國立中正大學 晶片系統研究中心
Team work – the only way to succeed!! 國立中正大學 晶片系統研究中心
