Chapter 10: PIC 18 Serial Port Programming in Assembly. PIC Microcontroller and Embedded Systems Muhammad Ali Mazidi, Rolin Mc. Kinlay and Danny Causey, February 2007. The PIC u. Cs 10 -2

Objective r Explain serial communication protocol r Describe data transfer rate and bps rate r Interface the PIC 18 with an RS 232 connector r Describe the main registers used by serial communication of the PIC 18 r Program the PIC 18 serial port in Assembly The PIC u. Cs 10 -3

Outlines r Programming timers 0 and 1 r Counter Programming The PIC u. Cs 10 -4

Introduction r Computers transfer data in two ways: Parallel and Serial. r Parallel: Eight or more data lines, few feet only, short time r Serial: Single data line, long distance r The PIC 18 has serial communication capability built into it. The PIC u. Cs 10 -5

Basics of Serial Communication r The byte of data must be converted to serial bits using a parallel-in-serial-out shift register The PIC u. Cs Serial versus Parallel Data Transfer 10 -6

Basics of Serial Communication (cont’d) r The receiving end must be a serial-in- parallel-out shift register and pack them into a byte. r Two methods of serial data communication: Asynchronous and Synchronous Transfers a single byte at a time The PIC u. Cs Transfers a block of data at a time 10 -7

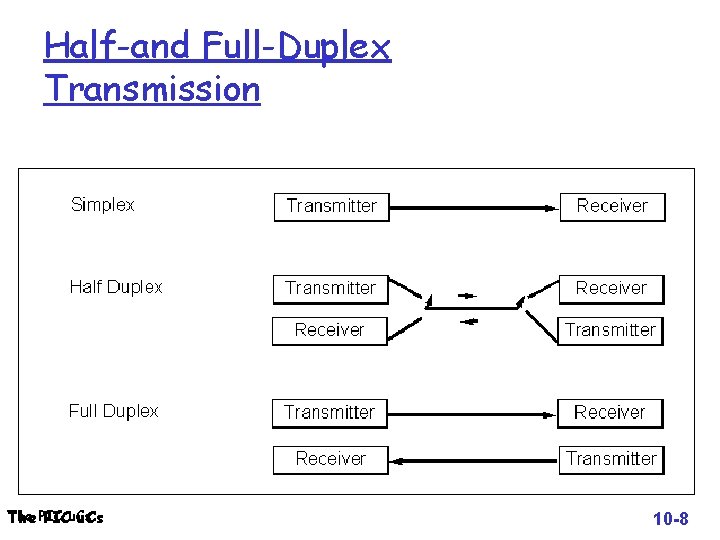

Half-and Full-Duplex Transmission The PICu. Cs 10 -8

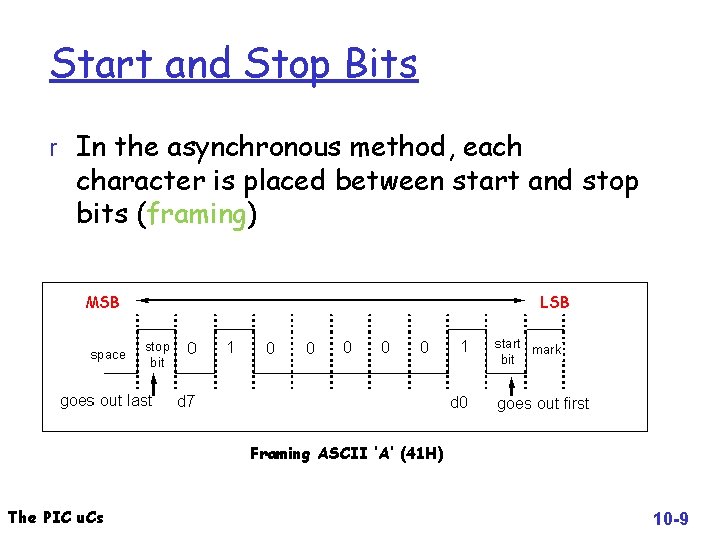

Start and Stop Bits r In the asynchronous method, each character is placed between start and stop bits (framing) MSB LSB Framing ASCII ‘A’ (41 H) The PIC u. Cs 10 -9

Data Transfer Rate of data transfer: bps (bits per second) r Another widely used terminology for bps is baud rate r For Asynchronous serial data communication, the baud rate is generally limited to 100, 000 bps The PIC u. Cs 10 -10

RS 232 Standard r Standard for serial comm (COM port) 1: -3 V to -25 V; 0: +3 V to +25 V m Reason: for long distance wired line r Input-output voltage are not TTL compatible r So, we need MAX 232/233 for voltage converter. Commonly known as line drivers The PIC u. Cs 10 -11

RS 232 Pins Connectors: Minimally, 3 wires: Rx. D, Tx. D, GND Could have 9 -pin or 25 -pin The PICu. Cs DB-25 DB-9 25 -Pin Connector 9 -Pin Connector 10 -12

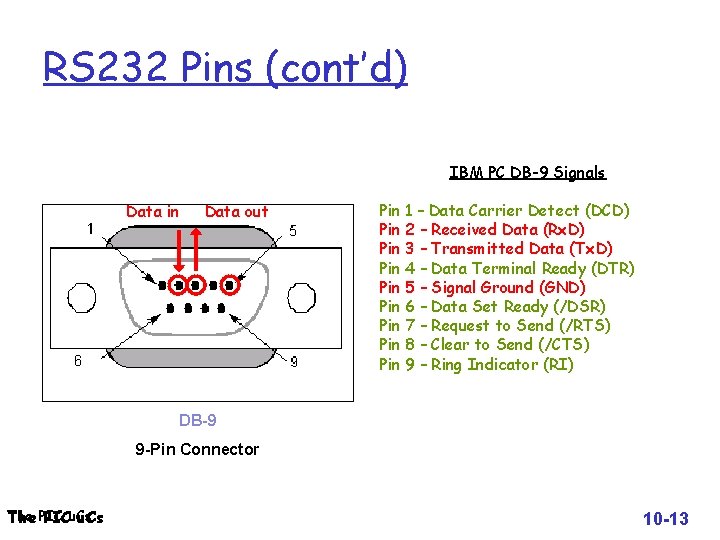

RS 232 Pins (cont’d) IBM PC DB-9 Signals Data in Data out Pin 1 – Data Carrier Detect (DCD) Pin 2 – Received Data (Rx. D) Pin 3 – Transmitted Data (Tx. D) Pin 4 – Data Terminal Ready (DTR) Pin 5 – Signal Ground (GND) Pin 6 – Data Set Ready (/DSR) Pin 7 – Request to Send (/RTS) Pin 8 – Clear to Send (/CTS) Pin 9 – Ring Indicator (RI) DB-9 9 -Pin Connector The PICu. Cs 10 -13

PIC 18 Connection to RS 232 Line driver (a) Inside MAX 232 The PICu. Cs (b) its Connection to the PIC 18 10 -14

Figure 10 -6. Null Modem Connection r Null modem is a communication method to connect two DTEs (computer, terminal, printer etc. ) directly using a RS-232 serial cable. r With a null modem connection the transmit and receive lines are crosslinked. r Depending on the purpose, sometimes also one or more handshake lines are crosslinked. The PIC u. Cs 10 -15

PIC 18 Connection to RS 232 Line driver (a) Inside MAX 232 The PICu. Cs (b) its Connection to the PIC 18 10 -16

PIC 18 Connection to RS 232 (Cont’d) Line driver (a) Inside MAX 233 The PICu. Cs (b) Its Connection to the PIC 18 10 -17

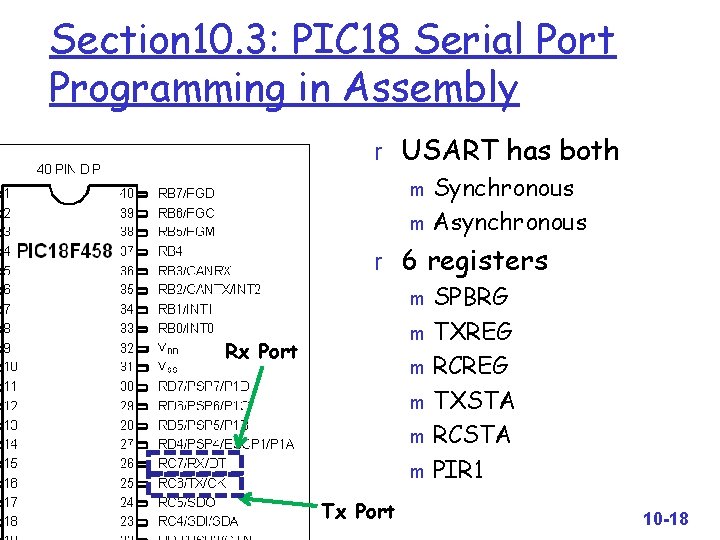

Section 10. 3: PIC 18 Serial Port Programming in Assembly r USART has both m Synchronous m Asynchronous Rx Port The PIC u. Cs r 6 registers m SPBRG m TXREG m RCREG m TXSTA m RCSTA m PIR 1 Tx Port 10 -18

SPBRG Register and Baud Rate in the PIC 18 r The baud rate in is programmable r loaded into the SPBRG decides the baud rate r Depend on crystal frequency m BR = The PIC u. Cs F Fosc 4*16*(X+1)) Baud Rate SPBRG (Hex Value) 38400 19200 9600 4800 2400 1200 3 7 F 20 40 81 *For XTAL = 10 MHz only! 10 -19

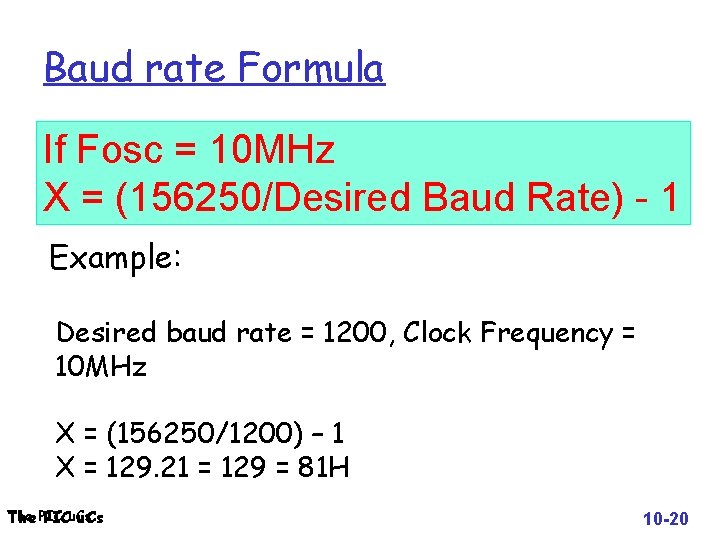

Baud rate Formula If Fosc = 10 MHz X = (156250/Desired Baud Rate) - 1 Example: Desired baud rate = 1200, Clock Frequency = 10 MHz X = (156250/1200) – 1 X = 129. 21 = 129 = 81 H The PICu. Cs 10 -20

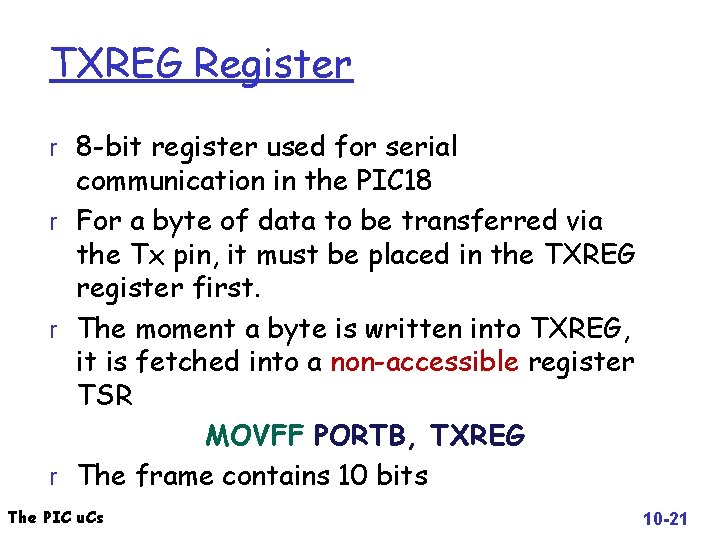

TXREG Register r 8 -bit register used for serial communication in the PIC 18 r For a byte of data to be transferred via the Tx pin, it must be placed in the TXREG register first. r The moment a byte is written into TXREG, it is fetched into a non-accessible register TSR MOVFF PORTB, TXREG r The frame contains 10 bits The PIC u. Cs 10 -21

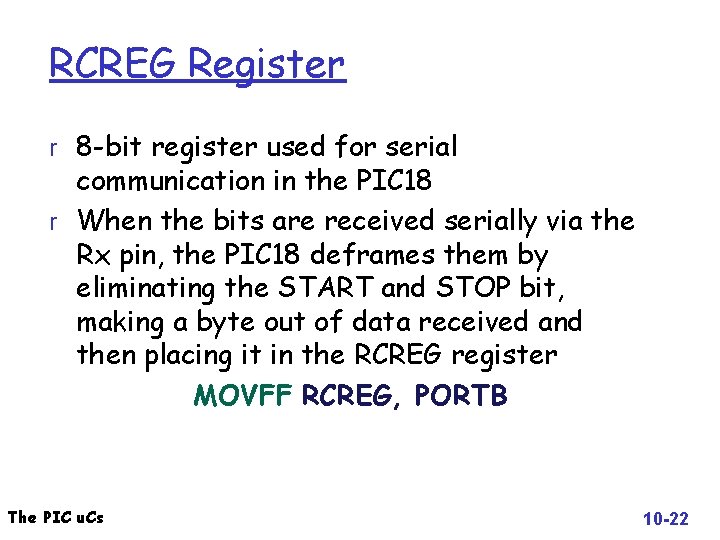

RCREG Register r 8 -bit register used for serial communication in the PIC 18 r When the bits are received serially via the Rx pin, the PIC 18 deframes them by eliminating the START and STOP bit, making a byte out of data received and then placing it in the RCREG register MOVFF RCREG, PORTB The PIC u. Cs 10 -22

TXSTA (Transmit Status and Control Register) The PICu. Cs 10 -23

TXSTA (Transmit Status and Control Register) (Cont’d) The PICu. Cs 10 -24

RCSTA (Receive Status and Control Register) The PICu. Cs 10 -25

RCSTA (Receive Status and Control Register) (Cont’d) The PICu. Cs 10 -26

PIR 1 (Peripheral Interrupt Request Register 1) The PICu. Cs 10 -27

Programming the PIC 18 to Transfer Data Serially 1. TXSTA register = 20 H: Indicating asynchronous mode with 8 -bit data frame, low baud rate and transmit enabled 2. Set Tx pin an output (RC 6) 3. Loaded SPBRG for baud rate 4. Enabled the serial port (SPEN = 1 in RCSTA) 5. The character byte to transmit must be written into TXREG 6. Keep Monitor TXIF bit 7. To transmit next character, go to step 5 The PIC u. Cs 10 -28

Example 10. 2 ; Write a program for the PIC 18 to transfer the letter 'G' serially ; at 9600 baud continuously. Assume XTAL = 10 MHz OVER S 1 The PICu. Cs MOVLW MOVWF BCF BSF MOVLW BTFSS PIR 1, BRA MOVWF BRA B'00100000' TXSTA D'15'; 9600 bps SPBRG TRISC, TX RCSTA, SPEN A'G' TXIF S 1 TXREG OVER 10 -29

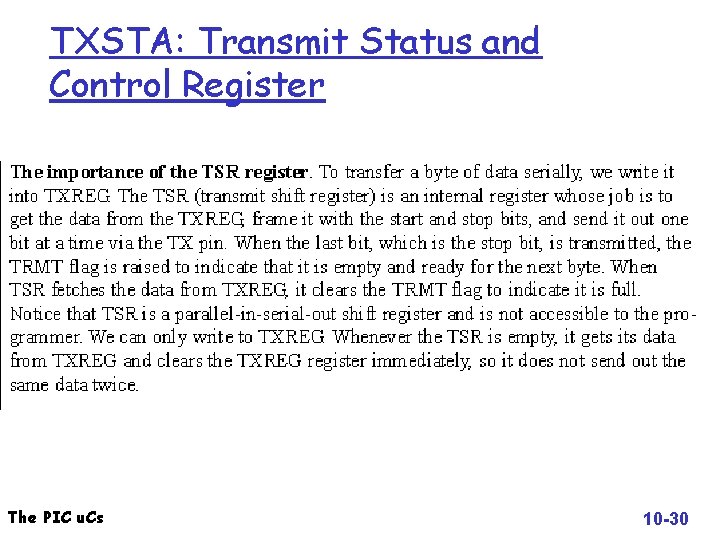

TXSTA: Transmit Status and Control Register The PIC u. Cs 10 -30

Programming the PIC 18 to Receive Data Serially 1. RCSTA register = 90 H: To enable the continuous receive in addition to the 8 -bit data size option 2. The TXSTA register = 00 H: To choose the low baud rate option 3. Loaded SPBRG for baud rate 4. Set Rx pin an input 5. Keep Monitor RCIF bit 6. Move RCREG into a safe place 7. To receive next character, go to step 5 The PIC u. Cs 10 -31

Example 10. 4 ; Write a program for the PIC 18 to receive data serially and ; put them on PORTB. Set the baud rate at 9600, 8 -bit data ; and 1 stop bit R 1 The PICu. Cs MOVLW MOVWF BSF CLRF BTFSS PIR 1, BRA MOVFF BRA B'10010000' RCSTA D'15' SPBRG TRISC, RX TRISB RCIF R 1 RCREG, PORTB R 1 10 -32

Increasing the Baud Rate r Faster Crystal m May not be able to change crystal r TXSTA. BRGH bit m Normally used low m Can be set high m Quadruples rate when set high The PIC u. Cs

Baud Rate Error Calculation r ? ? ? Errors in the baud rate? Yep! m Caused by using integer division in rate generator The PIC u. Cs

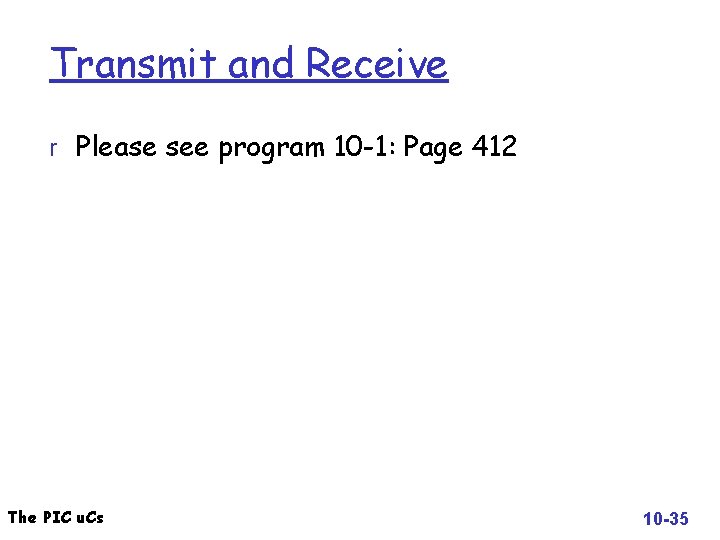

Transmit and Receive r Please see program 10 -1: Page 412 The PIC u. Cs 10 -35

Figure 10 -12. Simplified USART Transmit Block Diagram The PIC u. Cs 10 -36

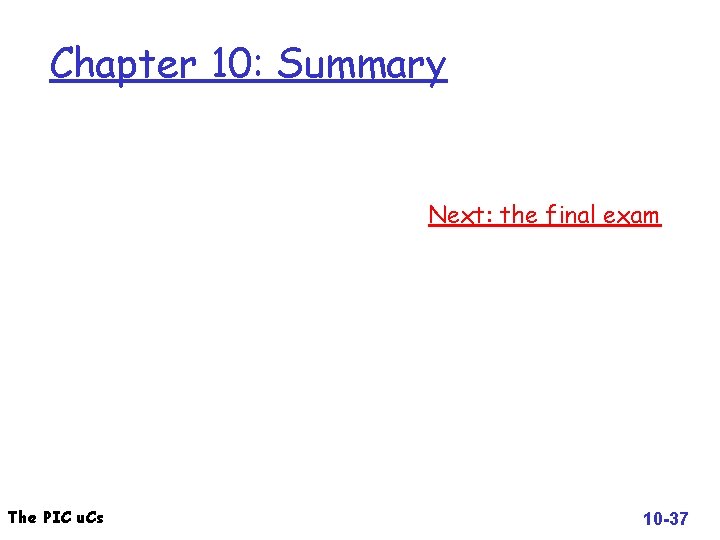

Chapter 10: Summary Next: the final exam The PIC u. Cs 10 -37
