02 IAT 102 Graphic Design 02 Typography origin

02 IAT 102 Graphic Design

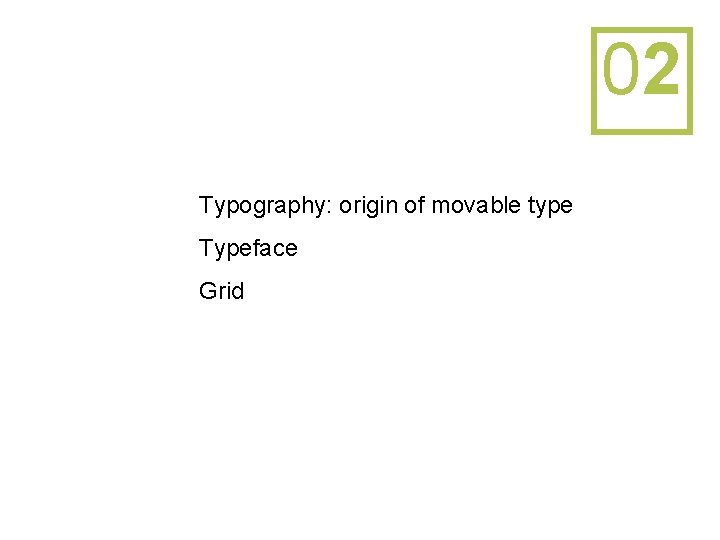

02 Typography: origin of movable type Typeface Grid

Design elements essential to good visual communication: § Shape and Form § Spatial Awareness (layout and grid systems) § Typography: understanding what type is + how to work with it § Dynamics, Emphasis and Contrast § Using Colour for emphasis, orientation or decoration

Typography Content and images taken from: Lupton’s Thinking with Type, Megg’s History of Graphic Design and Jubert’s Typography and Graphic Design

Psalter-Hours English, 13 th Century A. D. Walters Art Museum, Baltimore, MD. Before the invention of the printing press, handwritten documents were riddled with errors. Scribes invented visual, artistic ways to salvage these laboriously crafted objects.

Illuminated Manuscripts (1342 A. D. ) Celtic, 12 th century, Hungary

Early European block printing (1466 A. D. ) - book design

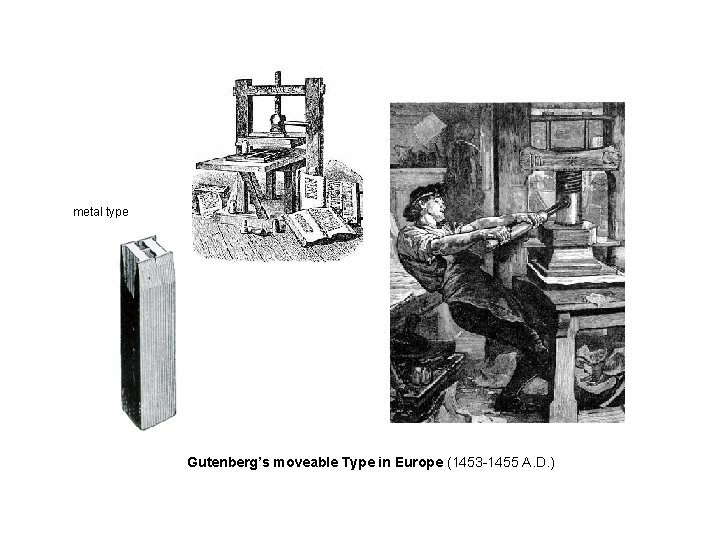

metal type Gutenberg’s moveable Type in Europe (1453 -1455 A. D. )

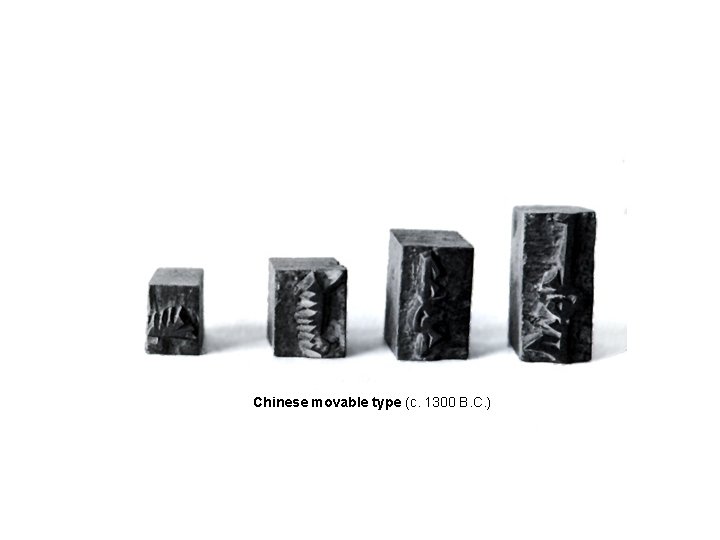

Chinese movable type (c. 1300 B. C. )

Typographic design is not only an act of mark making, but also of spacing. Letterpress technology a classic typographic page

Typographic design with white space Emil Ruder, 1967

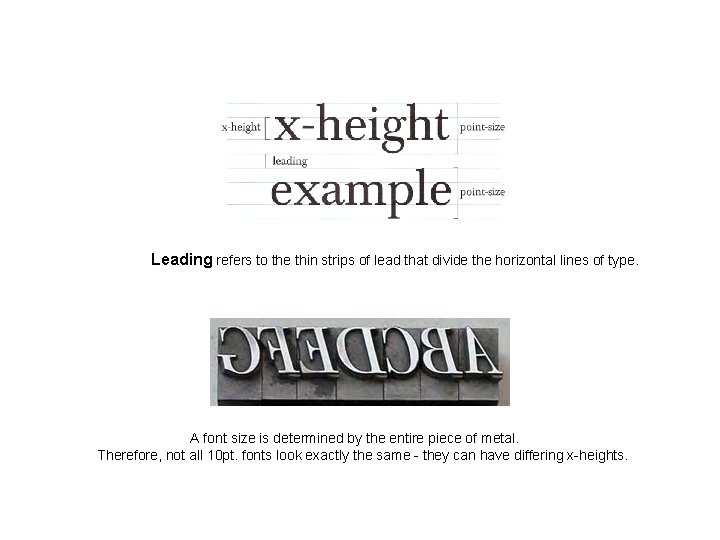

Leading refers to the thin strips of lead that divide the horizontal lines of type. A font size is determined by the entire piece of metal. Therefore, not all 10 pt. fonts look exactly the same - they can have differing x-heights.

origin

Letter anatomy

Typeface Content and images taken from: Craig’s Designing with Type and Saffer’s Designing for Interaction

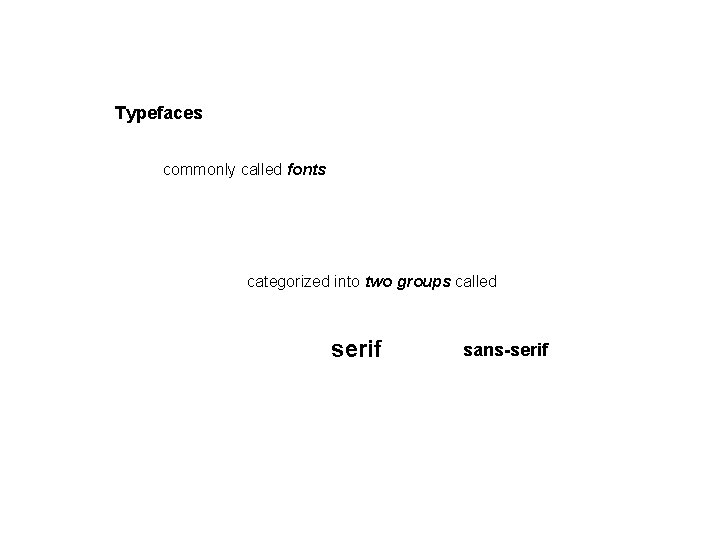

Typefaces commonly called fonts categorized into two groups called serif sans-serif

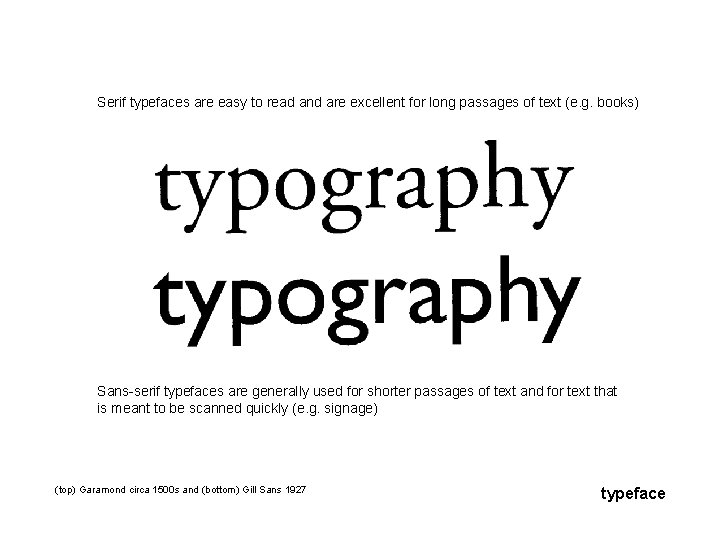

Serif typefaces are easy to read and are excellent for long passages of text (e. g. books) Sans-serif typefaces are generally used for shorter passages of text and for text that is meant to be scanned quickly (e. g. signage) (top) Garamond circa 1500 s and (bottom) Gill Sans 1927 typeface

Typeface, serif + sans serif

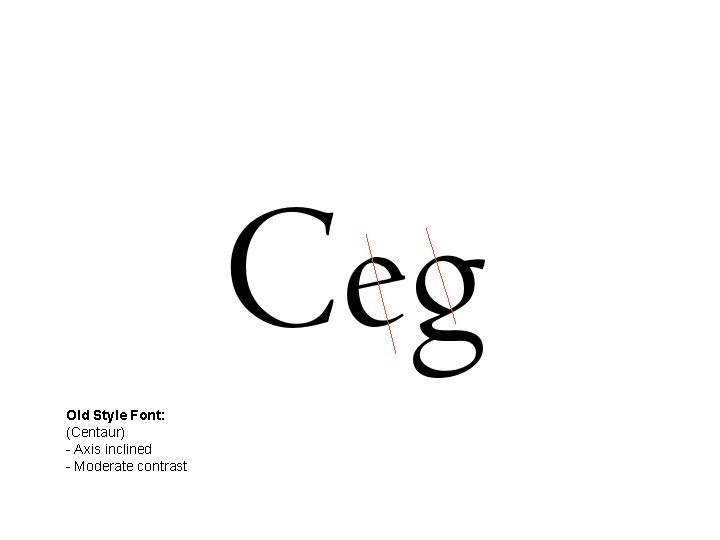

Old Style Font: (Centaur) - Axis inclined - Moderate contrast

Transitional Font: (Baskerville) - Axis vertical - Moderate contrast

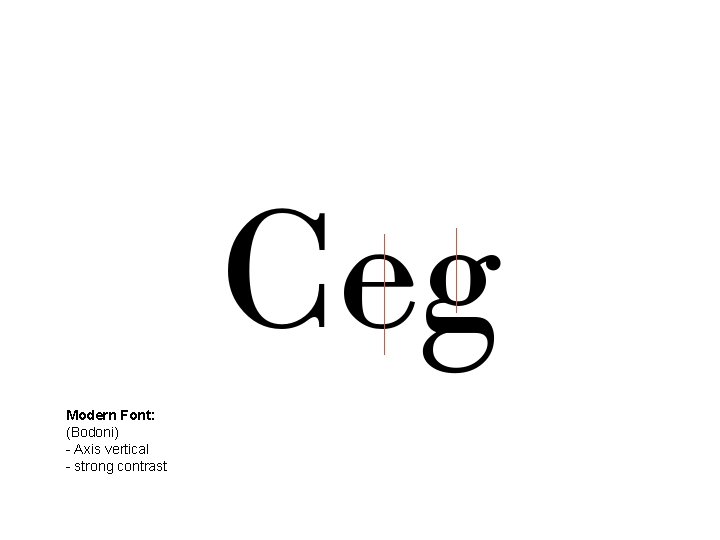

Modern Font: (Bodoni) - Axis vertical - strong contrast

Egyptian Font: (Rockwell) - low contrast - strong serifs

Sans Serif Font (Grotesque): (Helvetica) - no serifs

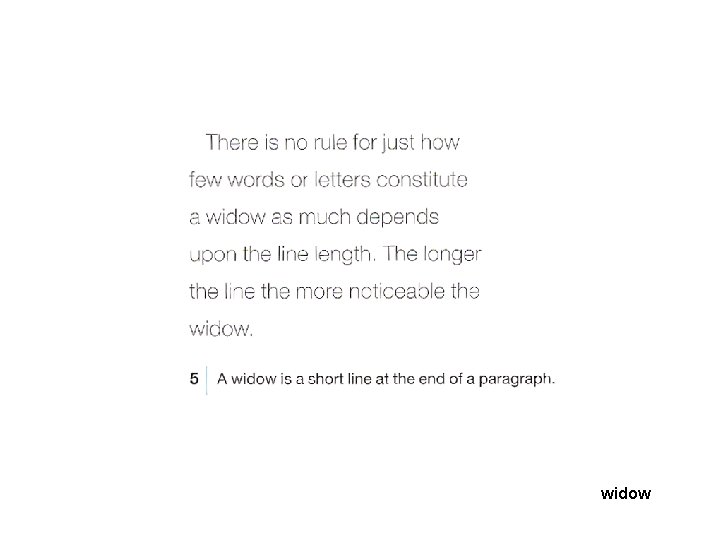

widow

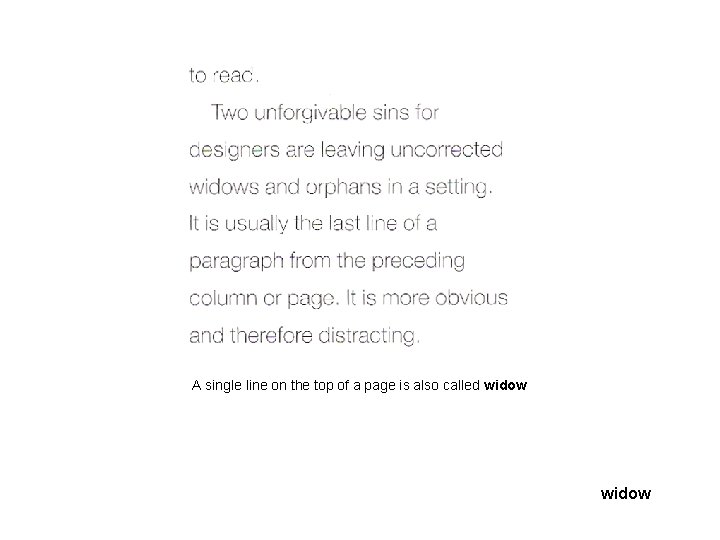

A single line on the top of a page is also called widow

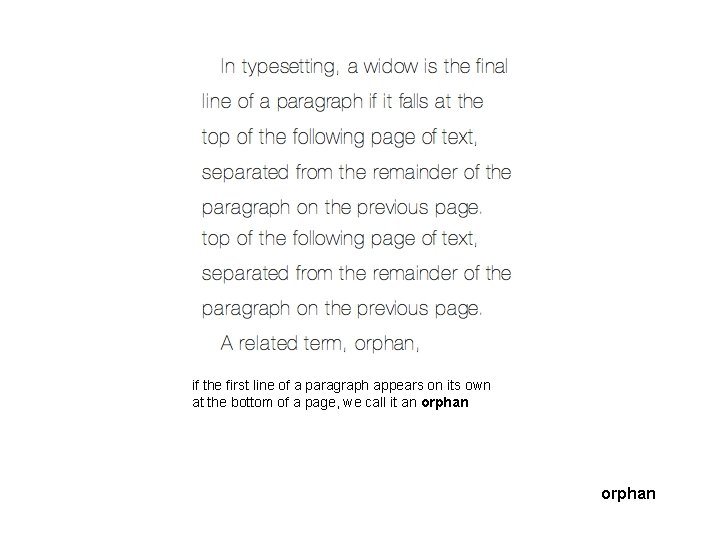

if the first line of a paragraph appears on its own at the bottom of a page, we call it an orphan

widows and orphans

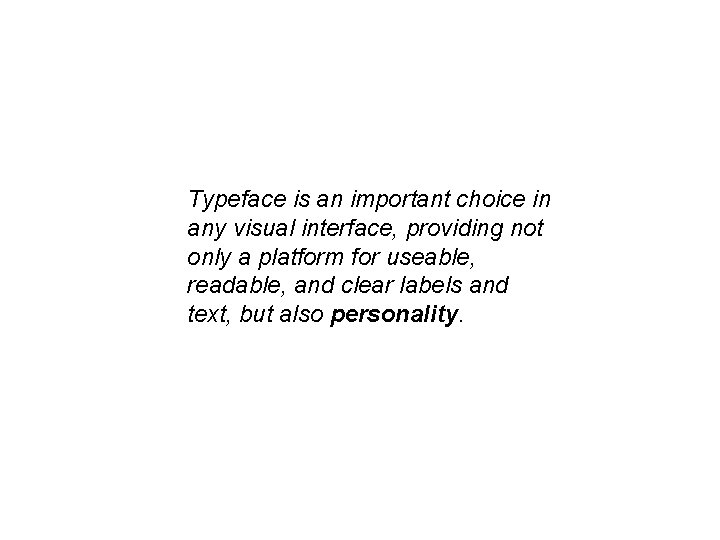

Typeface is an important choice in any visual interface, providing not only a platform for useable, readable, and clear labels and text, but also personality.

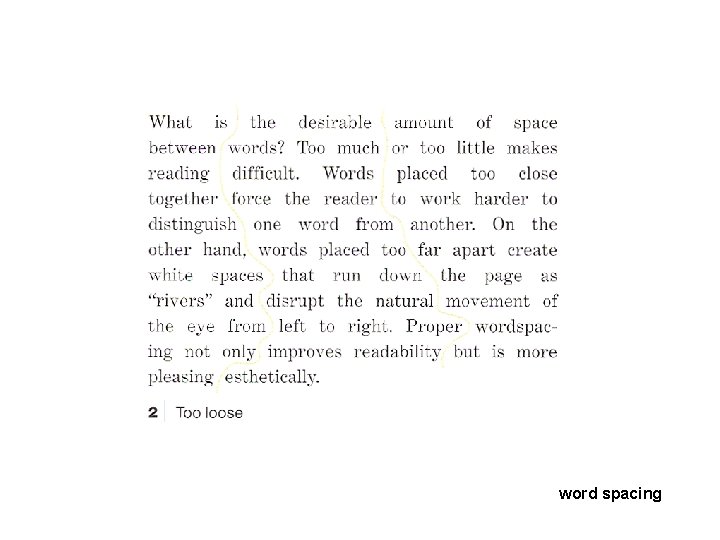

word spacing

word spacing

word spacing

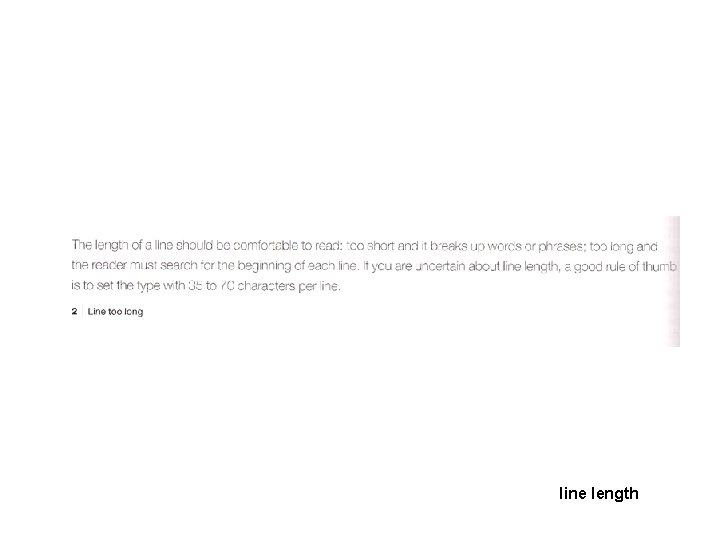

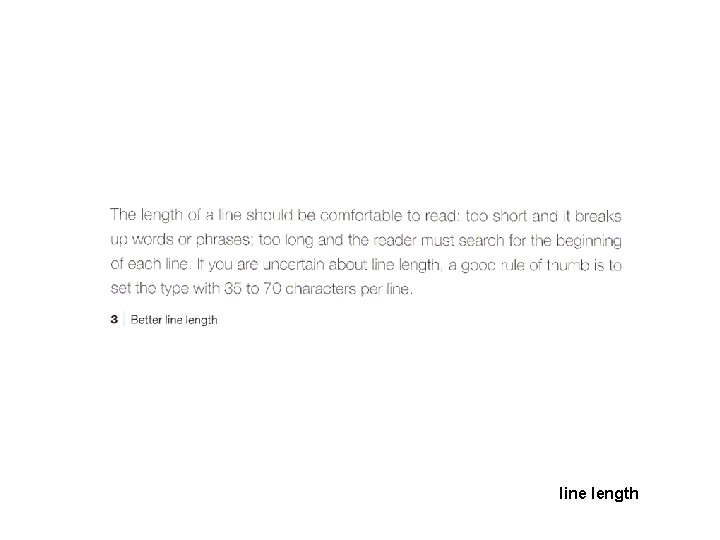

line length

line length

line length

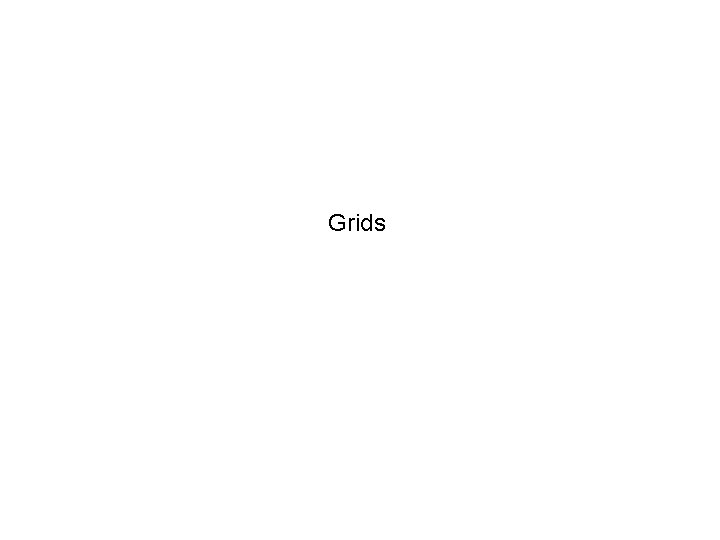

Grids

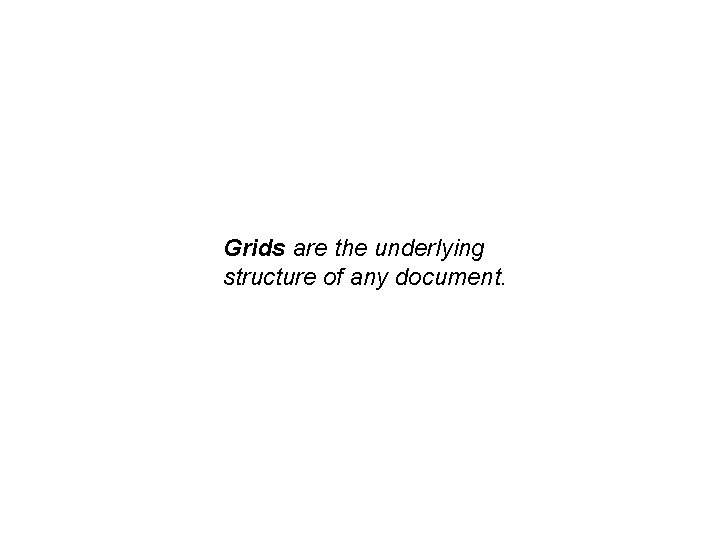

Grids are the underlying structure of any document.

A grid system helps designers organize information into a coherent pattern.

A grid is a reusable system for multi-page and/or multi-issue publications.

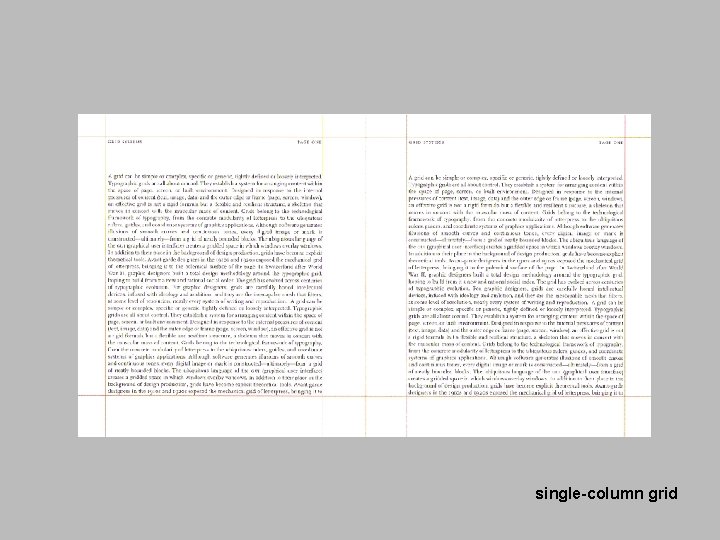

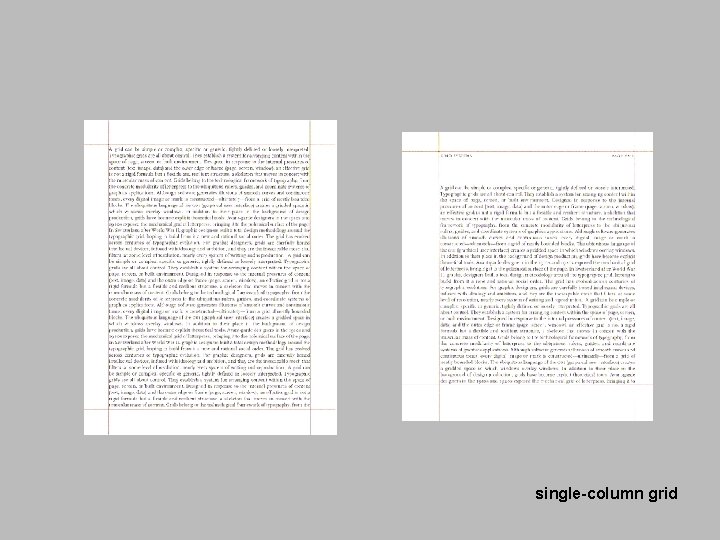

single-column grid

single-column grid

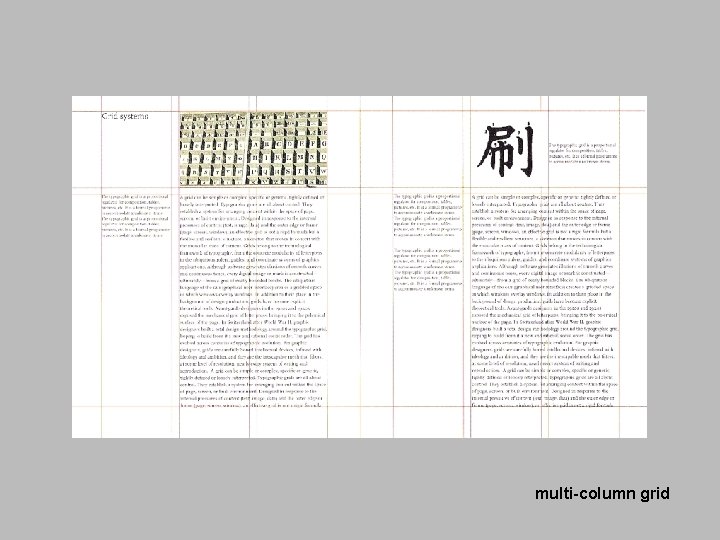

multi-column grid

multi-column grid

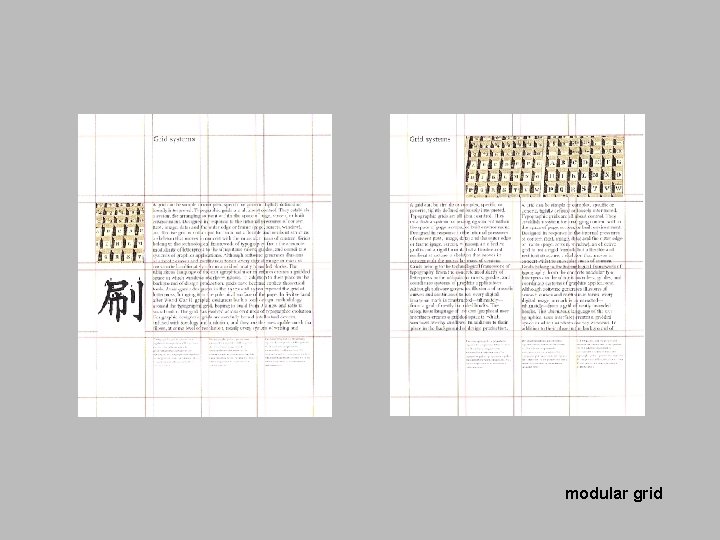

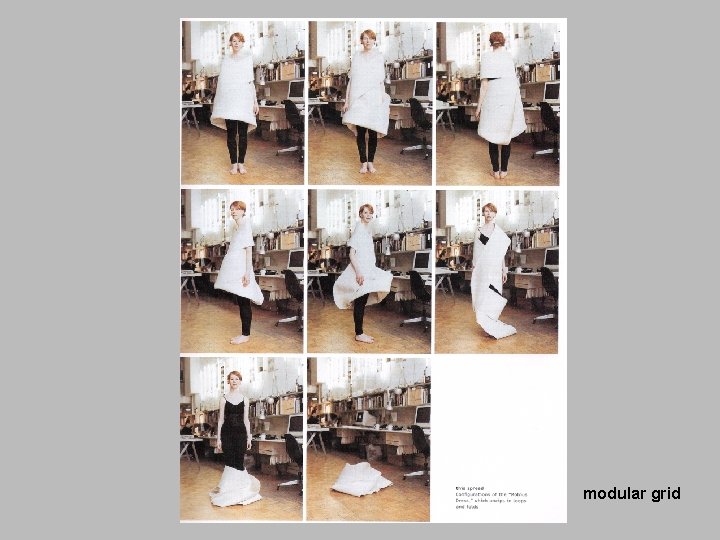

modular grid

modular grid

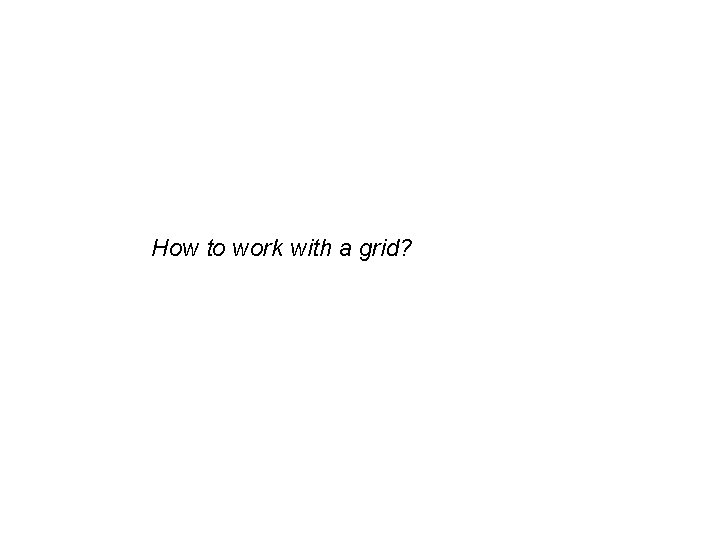

How to work with a grid?

1. Select a page format and a type area

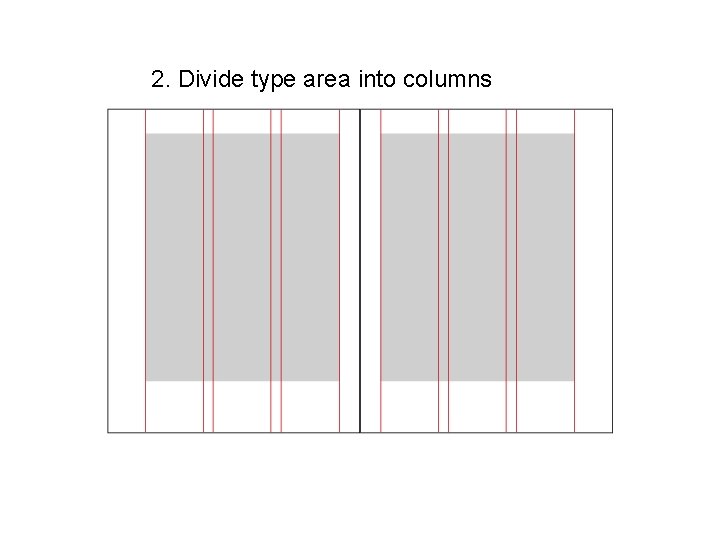

2. Divide type area into columns

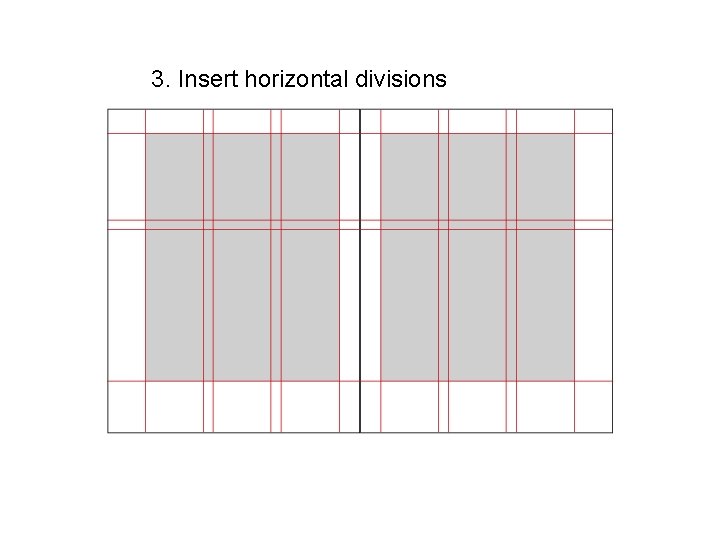

3. Insert horizontal divisions

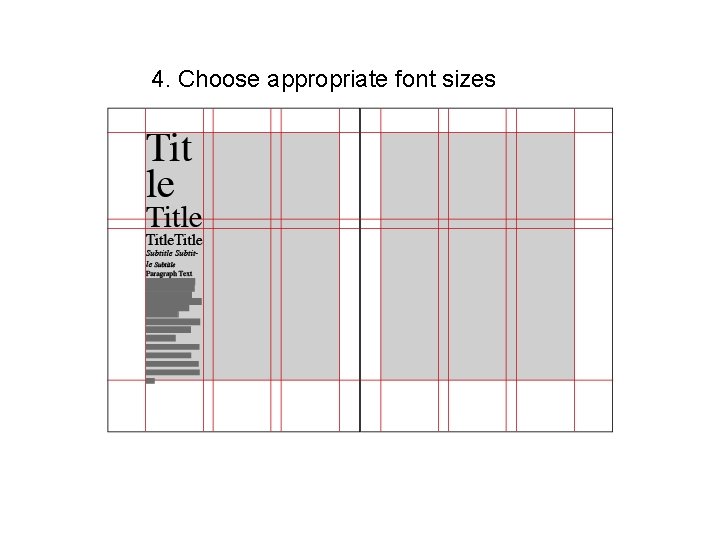

4. Choose appropriate font sizes

Josef Müller-Brockmann

Grid systems in graphic design, Josef Müller-Brockmann, Niggli, 1981, Zurich Josef Müller-Brockmann

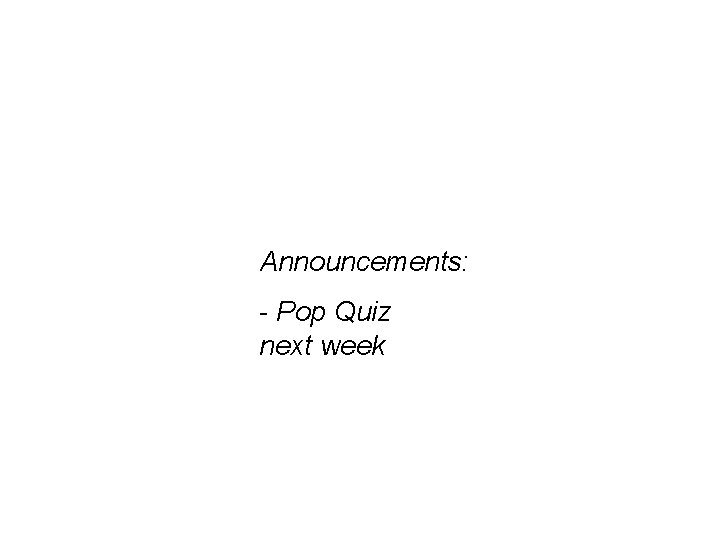

Announcements: - Pop Quiz next week

fin
