Views and Viewports Sacramento City College EDT 310
- Slides: 91
Views and Viewports Sacramento City College EDT 310 Views and Viewports 1
Creating Your Own Working Views and Viewports 2
Views and Viewports u Zooming and panning can be time consuming. u Being able to quickly specify and recall a certain part of the drawing is much easier than zooming or panning. Views and Viewports 3
Creating Views u VIEW command allows you to create named views which can then quickly be recalled. u. A view can be any portion of the drawing. Views and Viewports 4
Creating Views u Think of a view as a previously zoomed display that you can recall at any time. u Benefits u Magnification is the “right size”. u Text is legible. Views and Viewports 5
Creating Views u Access VIEWS by: u Picking Named Views button in the Viewpoint toolbar. u Select Named Views from the View pull-down menu. u Enter DDVIEW or V at the Command: prompt. Views and Viewports 6
Creating Views u The View Manager is where new views are defined. u Four Choices u Current u Model Views u Layout Views u Preset Views and Viewports 7
Creating Views u Model u. A Views list of currently defined views is shown u Layout u. A Views list of currently defined views is shown u Preset Views u Orthographic u Views Top, Bottom, Left, right, Front, Back u SW Isometric u SE Isometric u NW Isometric Views and Viewports 8
Model Views and Viewports 9
Layout Views and Viewports 10
Create A New View u Create u Type a new view VIEW or V u Click New u Give a name for the new view Views and Viewports 11
Views and Viewports 12
Views and Viewports 13
Views and Viewports 14
Views and Viewports 15
Views and Viewports 16
Views and Viewports 17
Views and Viewports 18
Creating Views u To make a view current: u Click on the view and then click “Set Current. ” u Or u Double-click u Fastest on the view, then hit ENTER way Views and Viewports 19
Orthographic & Isometric Views and Viewports 20
Views and Viewports 21
Bottom Views and Viewports 22
Views and Viewports 23
Front Views and Viewports 24
Southwest Isometric Views and Viewports 25
Southeast Isometric Views and Viewports 26
Tiled Viewports Views and Viewports 27

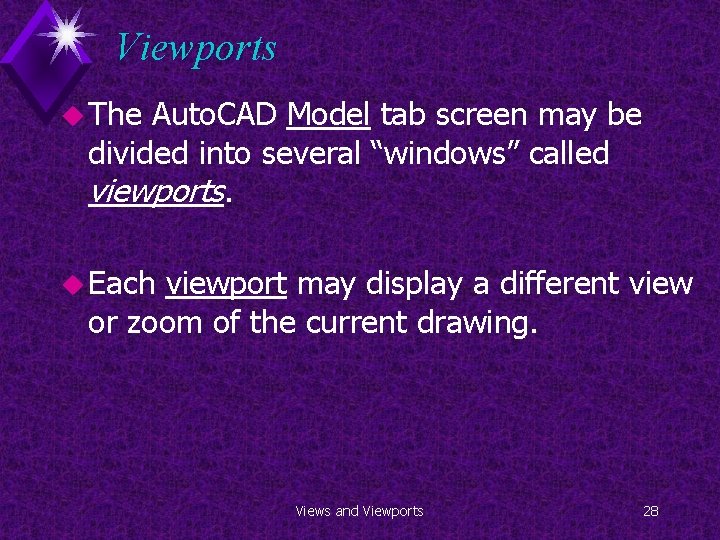

Viewports u The Auto. CAD Model tab screen may be divided into several “windows” called viewports. u Each viewport may display a different view or zoom of the current drawing. Views and Viewports 28
Viewports u Another type of viewport called “floating viewports” can be created in the Layout tab. u Tiled viewports - model space u Floating viewports - paper space. Views and Viewports 29
Viewports u Only one viewport is active at any one time in Model Space. u To activate another viewport, click on it. u When active, the viewport border is “thickened”. Views and Viewports 30
Viewports u You can draw between viewports. u You can start a line in one viewport and complete the line in another viewport. Views and Viewports 31
Viewports u To access Preset Viewports u Pick the Display Viewports Dialog button from the Standard, Layouts, or Viewports toolbars. u Enter VPORTS at the Command: prompt. u Select New Viewports from the Viewports cascading menu in the View pull-down menu. Views and Viewports 32
Views and Viewports 33
Views and Viewports 34
Views and Viewports 35
Views and Viewports 36
Views and Viewports 37
Views and Viewports 38
Views and Viewports 39
Views and Viewports 40
Views and Viewports 41
Views and Viewports 42
Views and Viewports 43
Views and Viewports 44
Views and Viewports 45
Views and Viewports 46
Views and Viewports 47
Views and Viewports 48
Views and Viewports 49
Views and Viewports 50
Views and Viewports 51
Views and Viewports 52
Creating Tiled Viewports u Model Space: u Tiled viewports u Created with the VPORTS command. u 48 max u Only one viewport contains the cross hairs at any one time. u Preset tiled viewports can be selected Views and Viewports 53
Uses of Tiled Viewports u Model Space: u Each viewport is a separate screen u REDRAW or REGEN separately u REDRAWALL redraws all viewports Views and Viewports 54
Creating Floating Viewports The VPORTS Command Views and Viewports 55
Creating Floating Viewports u Creating floating viewports in Paper Space is very similar to creating Tiled Viewports in Model Space. Views and Viewports 56
Creating Floating Viewports u. A view port configuration can be selected from the Viewports dialog box. u Use the VPORTS command. u The MVIEW command can also be used. Views and Viewports 57
Creating Floating Viewports u When Model Space is active u The Viewports dialog box creates tiled viewports. u When paper space is active u The Viewports dialog box creates floating viewports. Views and Viewports 58
Views and Viewports 59
Views and Viewports 60
Views and Viewports 61
Creating Floating Viewports u Use Spacing to set the space around the edges of the floating viewports. Views and Viewports 62
Views and Viewports 63
Views and Viewports 64
The MVIEW Command Options Views and Viewports 65
Creating Floating Viewports u MV, MVIEW or -VPORTS options: u ON u OFF u Fit u Hideplot u Lock u Object u Polygonal Views and Viewports 66
Views and Viewports 67
Creating Floating Viewports u ON u Activates the model space display within a view port. u OFF u Deactivates a model space display within a view port. Views and Viewports 68
Creating Floating Viewports u Fit u Default option. u Creates a single rectangular floating viewport that fills the entire printable area on the sheet. u The sub options 2, 3, 4 can be used to create multiple viewports. Views and Viewports 69
Views and Viewports 70
Views and Viewports 71
Views and Viewports 72
Creating Floating Viewports u Hideplot u Prevents hidden lines in a 3 D model from being plotted. Views and Viewports 73
Creating Floating Viewports u Locks the view in one or more viewports. u When a viewport is locked, objects in the view port can be edited and new objects added u but: u Display commands like Zoom and Pan are disabled. Views and Viewports 74
Creating Floating Viewports u Object u Use to change a closed object drawn in paper space into a floating viewport. u Existing u Circles u Ellipses u Polygons and u other closed shapes u can be used as floating viewport outlines. Views and Viewports 75
Views and Viewports 76
Creating Floating Viewports u Polygonal u Draw a floating viewport outline using a polyline. u Any shape can be used. Views and Viewports 77
Creating Floating Viewports u OR u Draw the shape in paper space using the POLYGON command. u Use MVIEW command u Select Object sub-menu option to make the object a viewport. Views and Viewports 78
Views and Viewports 79
Views and Viewports 80
Zoom to Paper Space Views and Viewports 81
Zoom To Paper Space u. A viewport in Paper Space must be zoomed to the correct magnification if it is to be plotted to scale. u The Zoom Command is used to zoom a viewport. Views and Viewports 82
Zoom To Paper Space u Zoom Scale has two options: u n. X u And u n. XP u n. X scales the display relative to the current display Views and Viewports 83
Zoom To Paper Space u “Zoom xp” is the common term used when describing zooming a viewport to the correct magnification. u Zoom 1/n. XP u Scales the drawing in Model Space relative to Paper Space. u Is used primarily in the layout of scaled multivew drawings. u THIS IS THE MOST IMPORTANT ZOOM COMMAND YOU WILL LEARN ! Views and Viewports 84
Zoom To Paper Space u Examples: u To zoom a viewport to 1: 4 u Zoom u To zoom a viewport to 1: 16 u Zoom u To 1/16 XP zoom a viewport to 1: 48 u Zoom u To 1/4 XP 1/48 XP zoom a viewport to 1: 96 u Zoom 1/96 XP Views and Viewports 85
Creating New Paper Space Layouts Views and Viewports 86
New Paper Space Layouts u Create New Paper Space layouts by rightclicking the Layout Tab at the bottom of the screen. u Select “New Layout”. Views and Viewports 87
Views and Viewports 88
Views and Viewports 89
New Paper Space Layouts u The new layout will be created. Views and Viewports 90
Views and Viewports 91
