West Sacramento Area Flood Control Agency November 10, 2011 Update on Current Levee Construction Projects and on the Southport Sacramento River Levee Early Implementation Project

Program History and Milestones • Problem Identification Report completed for entire perimeter levee system (2008) • Alternatives Analysis Report completed for entire perimeter levee system (2009) • Construction of I-Street EIP (2008) • Construction of CHP Academy and Rivers EIP’s (2011) • Initiation of Southport EIP Project (2010)

Program History and Milestones (cont) • USACE Construction of Yolo Bypass Slip Repairs (2009, 2011, new south slip) • USACE Sacramento Bank Protection Project Setback Levee Improvement Project (2011/12) • USACE General Reevaluation Report initiated in 2009, estimated completion (2015)

Goals for Southport EIP • Summary of Project Goals and Criteria – Protect safety and public health of residents within the City while minimizing impacts to community as much as possible – Selected Southport EIP project based on repairing highest risk sites – Select least cost alternative that achieves public safety goals and complies w/Federal and State regulations

Federal and State Levee Design Criteria • Engineering design standards established by U. S. Army Corps of Engineers, Central Valley Flood Protection Board, and CA Department of Water Resources and include: – Freeboard – Erosion – Geotechnical Stability – Under-seepage – Vegetation – Geometry

State Cost-Share Formulas • State cost share ranges from 50% to 90% • Base state cost share is 50% • Objectives that increase state cost share: – Habitat, open-space and/or recreation from 5% to 20% – State facilities from 5% to 20% – Setback levee from 20% to 40% – Disadvantaged area up to 40% *State cost share is limited at 70% except for disadvantaged areas and setback levees which can achieve up to a 90% state cost share.

WSAFCA Role in EIPs • Select Early Implementation Projects that utilize available funds to improve the highest risk reaches of levee in advance of USACE construction • Provide local share of funds necessary for design and construction of projects to meet the 200 -year level of protection mandated by the State Plan of Flood Control • Design projects that provide the maximum reduction in flood risk for the local funds invested, while considering project impacts on the community and local landowners • Provide a forum for public information and engagement in the decision-making process

An “Inside Look” at a Levee

Typical Levee Deficiencies

Key Factors Limiting Use of In-Place Measures • Local conditions like soil layer thickness, type and depth can determine whether cutoff walls or relief wells will correct a seepage deficiency. • Cutoff wall depth depends on soil type over depth of wall and soil type at the bottom of the wall. • Large particles - like gravels, cobbles and boulders - can limit the cutoff wall depth due to alignment and mixing problems. • Sacramento District Corps of Engineers recently shut down a deep cutoff wall project for these reasons.

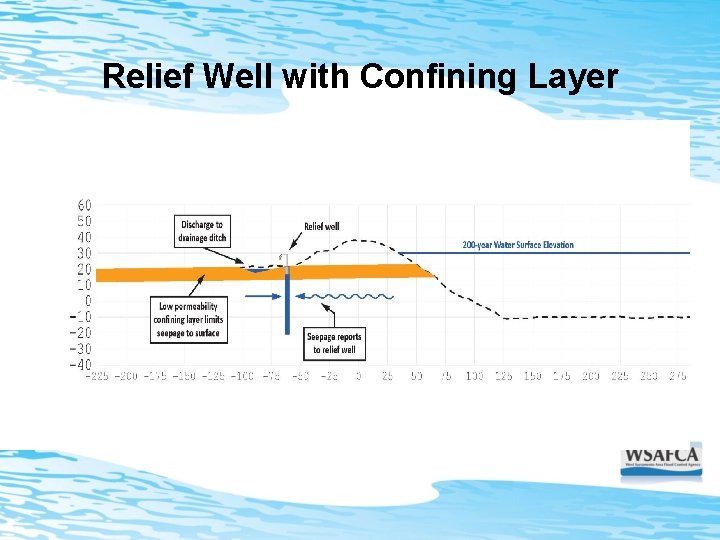

Relief Well with Confining Layer

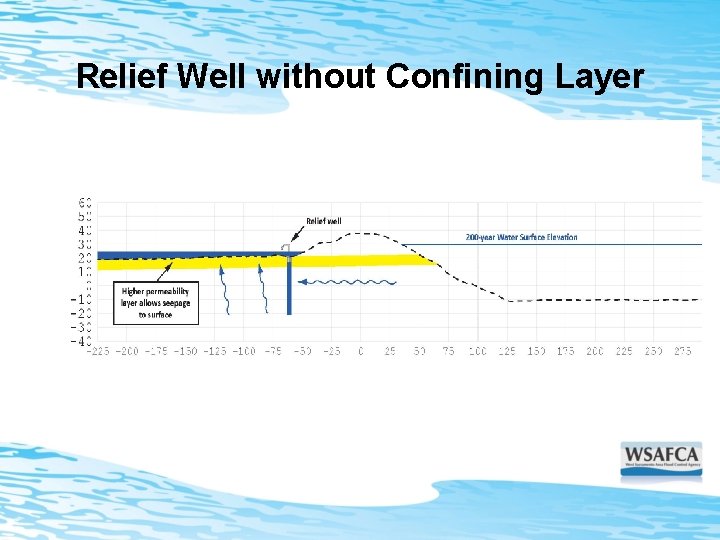

Relief Well without Confining Layer

What Factors Can Require a Landward Shift of the Levee Template? • Steep waterside slope with evidence of erosion or potential for erosion • Rapid drawdown instability • Vegetation encroaching into Corps ‘vegetation free’ zone

Steep Slope with Erosion

Shifted Template

Rapid Drawdown Failure Plane Intruding into Levee Template

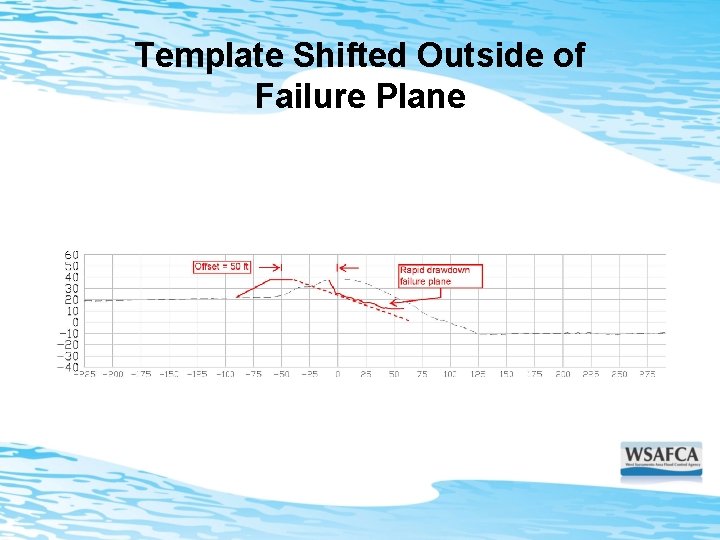

Template Shifted Outside of Failure Plane

Task Order No. 3 Scope and Status • Scope items include: Hydrologic and hydraulic analysis, geotechnical and groundwater investigations, civil engineering analysis, environmental documentation, and geomorphic investigations • Develop 15% design for two project alternatives with cost opinions • Complete Administrative Draft Environmental Impact Statement/Environmental Impact Report • WSAFCA staff and consultant team present Task Order No. 3 analysis at December board meeting.

Projected Milestone Overview • December 2011: Presentation of Task Order No. 3 Analysis • January 2012: – Presentation of 15% design with cost opinions and consideration of approval of Task Order No. 4 – Public Workshop on preferred alternative (January 26) • February 2012: WSAFCA Board selects preferred alternative and provides direction on 60% design • April 2012: – 60% design complete – Appraisal process initiated

Projected Milestone Overview (cont) • January 2013: Certify EIR – 100% design completed • March-August 2013: Federal and state regulatory approvals received • September 2013: WSAFCA Board consideration of approval of construction contract

Public Outreach Opportunities • Monthly JPA Meetings (2 nd Thursday of every month at 10: 30 a. m. ) • Public Meeting: January 26, 2012 (evening time TBD) • One-on-one meetings w/WSAFCA staff on request

Questions?
