STORAGE ARCHITECTURE GETTING STARTED SAN SCHOOL 101 Marc
- Slides: 71
STORAGE ARCHITECTURE/ GETTING STARTED: SAN SCHOOL 101 Marc Farley President of Building Storage, Inc Author, Building Storage Networks, Inc.

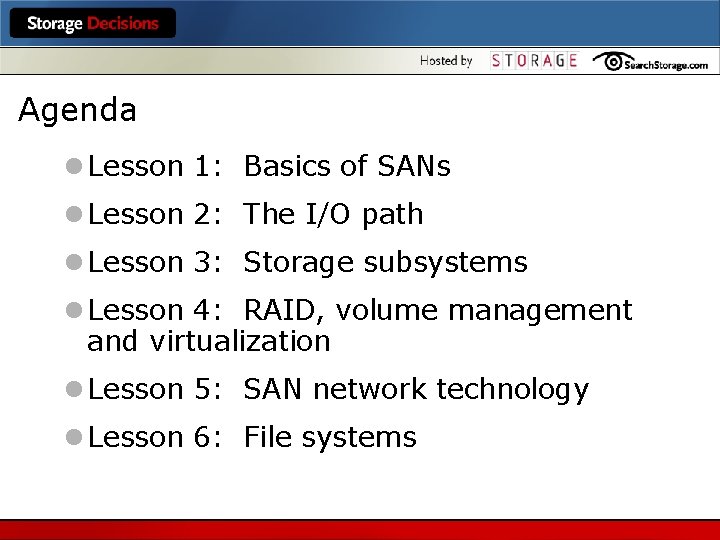

Agenda l Lesson 1: Basics of SANs l Lesson 2: The I/O path l Lesson 3: Storage subsystems l Lesson 4: RAID, volume management and virtualization l Lesson 5: SAN network technology l Lesson 6: File systems
Lesson #1 Basics of storage networking
Connecting
Connecting l Networking or bus technology l Cables + connectors l System adapters + network device drivers l Network devices such as hubs, switches, routers l Virtual networking l Flow control l Network security
Storing
Storing l Device (target) command control § Drives, subsystems, device emulation l Block storage address space manipulation (partition management) § Mirroring § RAID § Striping § Virtualization § Concatentation
Filing
Filing l Namespace presents data to end users and applications as files and directories (folders) l Manages use of storage address spaces l Metadata for identifying data § file name § owner § dates
Connecting, storing and filing as a complete storage system Connecting
NAS and SAN analysis NAS is filing over a network SAN is storing over a network NAS and SAN are independent technologies They can be implemented independently They can co-exist in the same environment They can both operate and provide services to the same users/applications

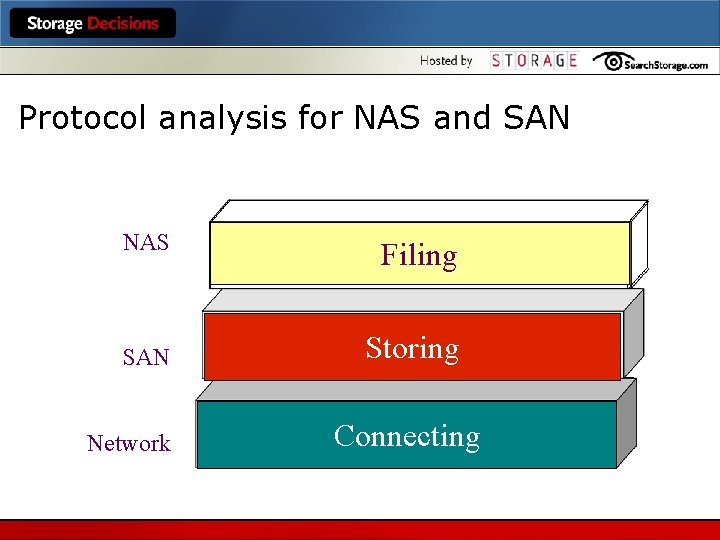

Protocol analysis for NAS and SAN NAS SAN Network Filing Storing Connecting
Integrated SAN/NAS environment NAS Server + SAN Initiator “NAS Head” Filing Storing Connecting
Common wiring with NAS and SAN NAS Head Filing Storing Connecting
Lesson #2 The I/O path

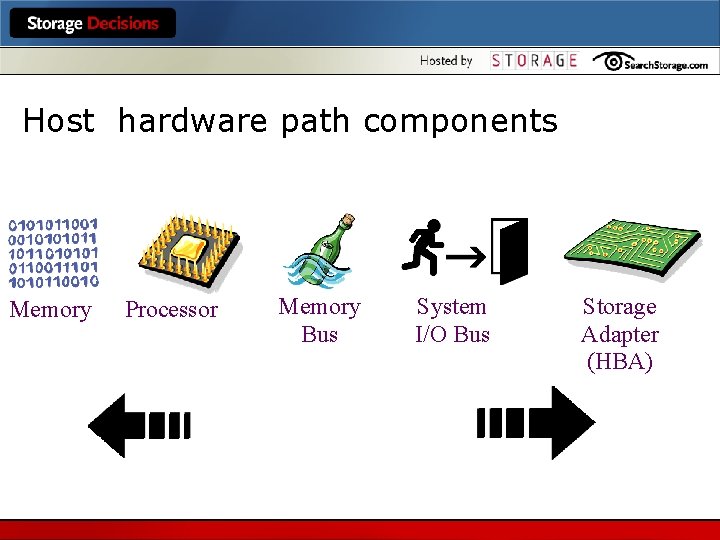

Host hardware path components Memory Processor Memory Bus System I/O Bus Storage Adapter (HBA)
Host software path components Application Operating Filing Cache Volume System Manager Multi. Pathing Device Driver

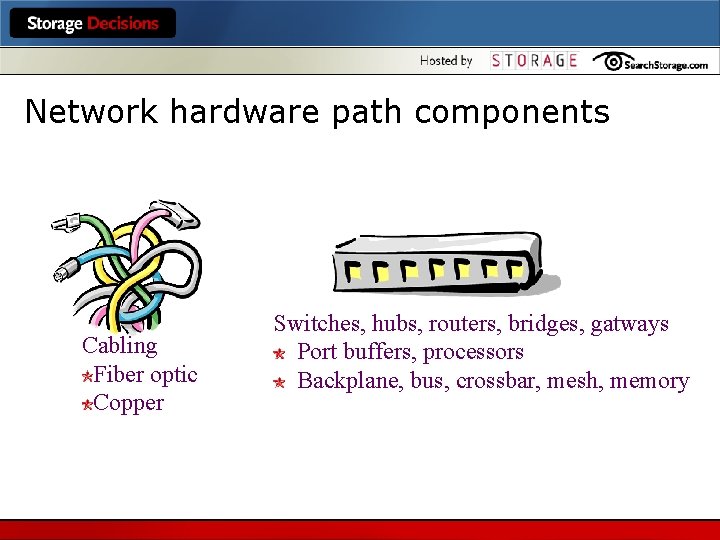

Network hardware path components Cabling Fiber optic Copper Switches, hubs, routers, bridges, gatways Port buffers, processors Backplane, bus, crossbar, mesh, memory
Network software path components Access and Security Fabric Services Routing Flow Control Virtual Networking
Subsystem path components Network Ports Access and Security Cache Resource Manager Internal Bus or Network
Device and media path components Disk drives Tape Media Solid state devices
The end to end I/O path picture App Memory Processor Operating System Cabling Cache Volume Multi. Filing System Manager Pathing Network Systems Subsystem Network Poirt Access and Security Cache Fabric Services Resource Manager Memory System I/O Bus Routing Internal Bus or Network Device Storage Driver Adapter (HBA) Flow Control Virtual Networking Disk drives Tape drives
Lesson #3 Storage subsystems

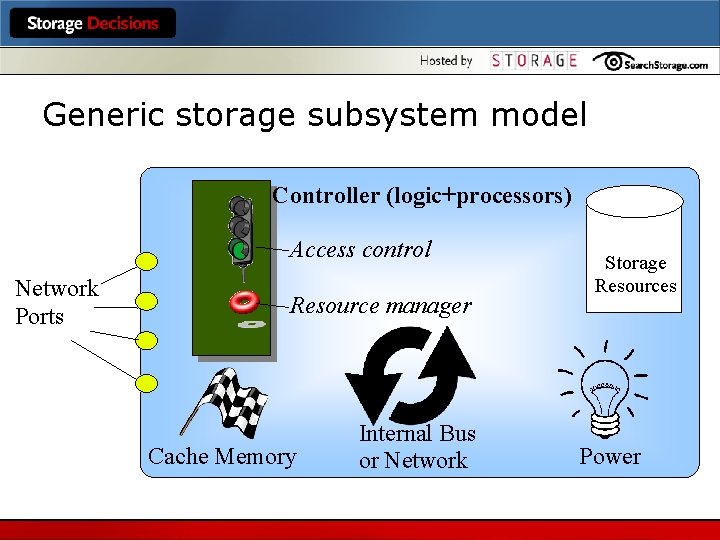

Generic storage subsystem model Controller (logic+processors) Access control Network Ports Resource manager Cache Memory Internal Bus or Network Storage Resources Power
Redundancy for high availability l Multiple hot swappable power supplies l Hot swappable cooling fans l Data redundancy via RAID l Multi-path support § Network ports to storage resources

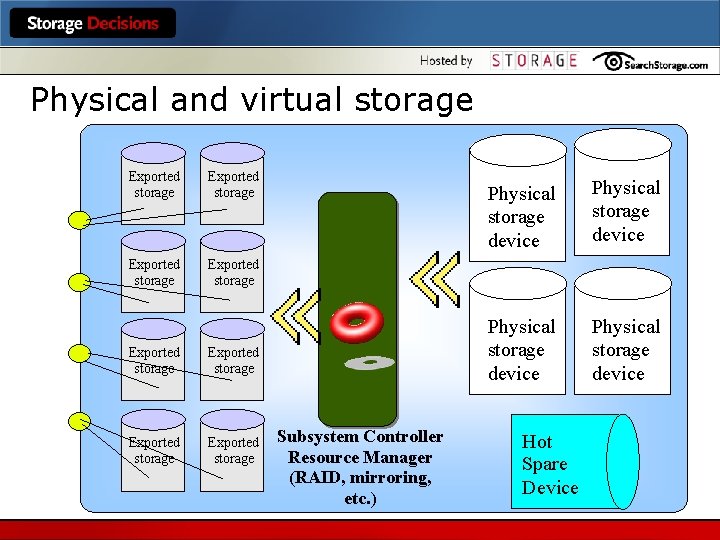

Physical and virtual storage Exported storage Exported storage Subsystem Controller Resource Manager (RAID, mirroring, etc. ) Physical storage device Hot Spare Device
SCSI communications architectures determine SAN operations l SCSI communications are independent of connectivity l SCSI initiators (HBAs) generate I/O activity l They communicate with targets • Targets have communications addresses • Targets can have many storage resources • Each resource is a single SCSI logical unit (LU) with a universal • • unique ID (UUID) - sometimes referred to as a serial number An LU can be represented by multiple logical unit numbers (LUNs) Provisioning associates LUNs with LUs & subsystem ports l A storage resource is not a LUN, it’s an LU

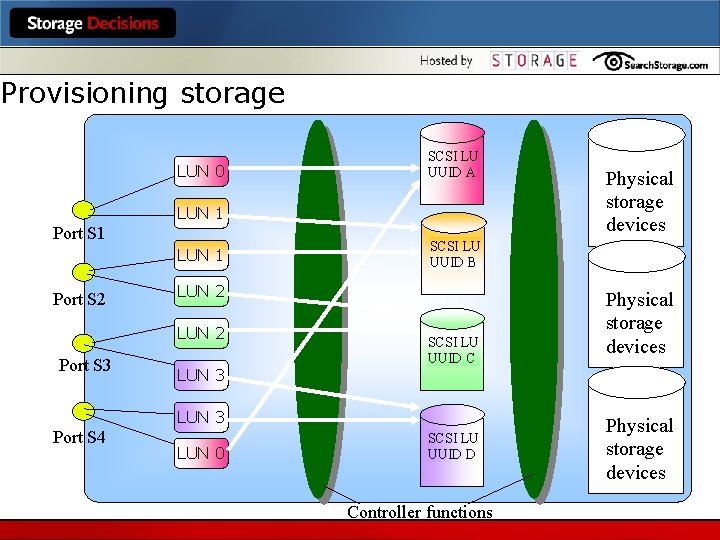

Provisioning storage LUN 0 Port S 1 LUN 1 Port S 2 Port S 4 LUN 3 SCSI LU UUID C LUN 3 LUN 0 Physical storage devices SCSI LU UUID B LUN 2 Port S 3 SCSI LU UUID A SCSI LU UUID D Controller functions Physical storage devices
Multipathing LUN X Path 1 SCSI LU UUID A MP SW LUN X Path 2
Caching Exported Volume Controller Cache Manager Read Caches Write Caches 1. Recently Used 2. Read Ahead 1. Write Through (to disk) 2. Write Back (from cache)
Tape subsystems Tape Drive Tape Subsystem Controller Tape Drive Tape Slots Robot Tape Drive

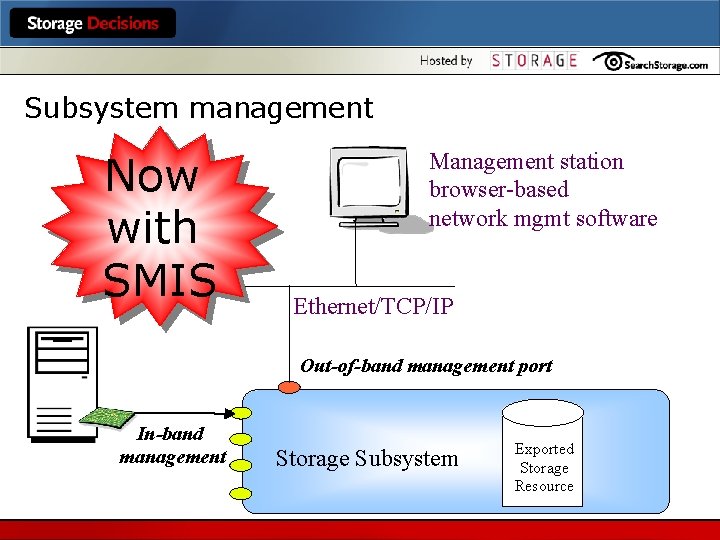

Subsystem management Now with SMIS Management station browser-based network mgmt software Ethernet/TCP/IP Out-of-band management port In-band management Storage Subsystem Exported Storage Resource
Data redundancy 2 n Duplication Parity n+1 Difference -1 d(x) = f(x) – f(x-1)

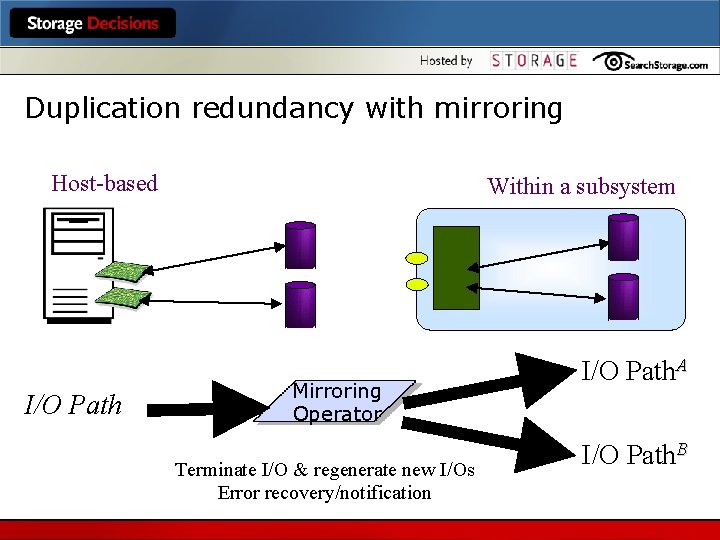

Duplication redundancy with mirroring Host-based I/O Path Within a subsystem Mirroring Operator Terminate I/O & regenerate new I/Os Error recovery/notification I/O Path. A I/O Path. B
Duplication redundancy with remote copy Host Uni-directional (writes only) A B
Point-in-time snapshot Subsystem Snapshot Host A B C
Lesson #4 RAID, volume management and virtualization
RAID = parity redundancy 2 n Duplication Parity n+1 Difference -1 d(x) = f(x) – f(x-1)
History of RAID l Late 1980 s R&D project at UC Berkeley § David Patterson § Garth Gibson (independent) l Redundant array of inexpensive disks • Striping without redundancy was not defined (RAID 0) l Original goals were to reduce the cost and increase the capacity of large disk storage

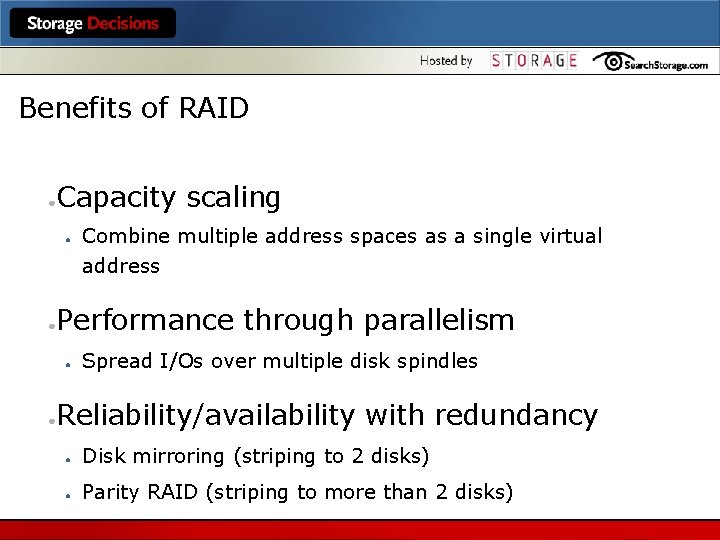

Benefits of RAID Capacity scaling ● ● Combine multiple address spaces as a single virtual address Performance through parallelism ● ● Spread I/Os over multiple disk spindles Reliability/availability with redundancy ● ● Disk mirroring (striping to 2 disks) ● Parity RAID (striping to more than 2 disks)
Capacity scaling Combined extents 1 - 12 Exported RAID disk volume (1 address) RAID Controller (resource manager) Storage extent 1 Storage extent 2 Storage extent 3 Storage extent 4 Storage extent 5 Storage extent 6 Storage extent 7 Storage extent 8 Storage extent 9 extent 10 Storage extent 11 Storage extent 12

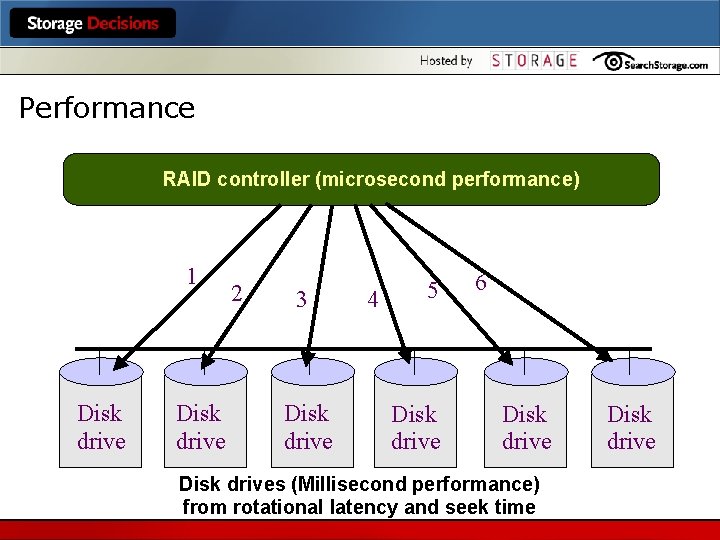

Performance RAID controller (microsecond performance) 1 Disk drive 2 3 Disk drive 4 5 Disk drive 6 Disk drives (Millisecond performance) from rotational latency and seek time Disk drive
Parity redundancy l RAID arrays use XOR for calculating parity Operand 1 False True Operand 2 False True XOR Result False True False l XOR is the inverse of itself § Apply XOR in the table above from right to left § Apply XOR to any two columns to get the third
Reduced mode operations l When a member is missing, data that is accessed must be reconstructed with xor l An array that is reconstructing data is said to be operating in reduced mode l System performance during reduced mode operations can be significantly reduced XOR {M 1&M 2&M 3&P}
Parity rebuild RAID Parity Rebuild l The process of recreating data on a replacement member is called a parity rebuild l Parity rebuilds are often scheduled for non-production hours because performance disruptions can be so severe XOR {M 1&M 2&M 3&P}

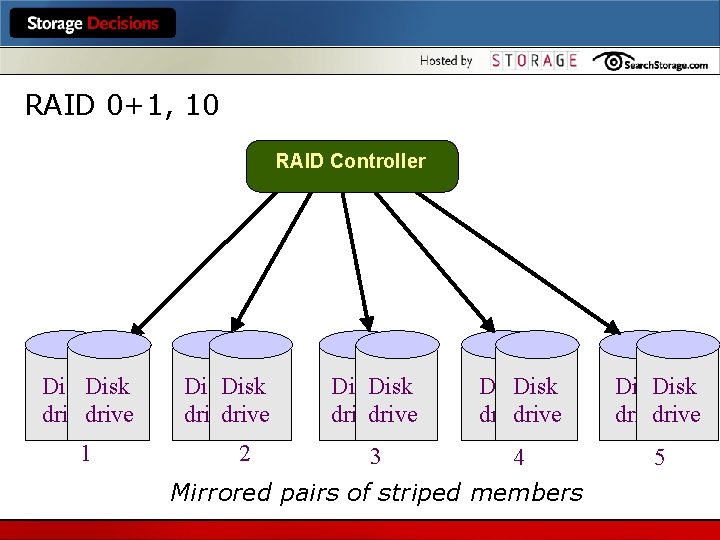

RAID 0+1, 10 RAID Controller Hybrid RAID: 0+1 Disk drive 2 Disk drive Disk drive 3 4 5 Mirrored pairs of striped members
Volume management and virtualization l Storing level functions l Provide RAID-like functionality in host systems and SAN network systems l Aggregation of storage resources for: § scalability § availability § cost / efficiency § manageability
OS kernel File system Volume management l RAID & partition management l Device driver layer between the kernel and storage I/O drivers Volume Manager HBA drivers HBAs

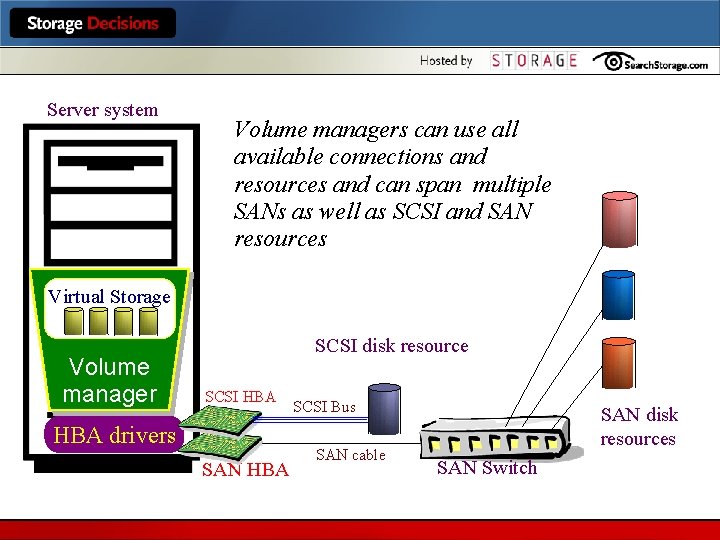

Server system Volume managers can use all available connections and resources and can span multiple SANs as well as SCSI and SAN resources Virtual Storage Volume manager SCSI disk resource SCSI HBA drivers SAN HBA SCSI Bus SAN cable SAN disk resources SAN Switch
SAN storage virtualization l RAID and partition management in SAN systems l Two architectures: • • In-band virtualization (synchronous) Out-of-band virtualization (asynchronous)

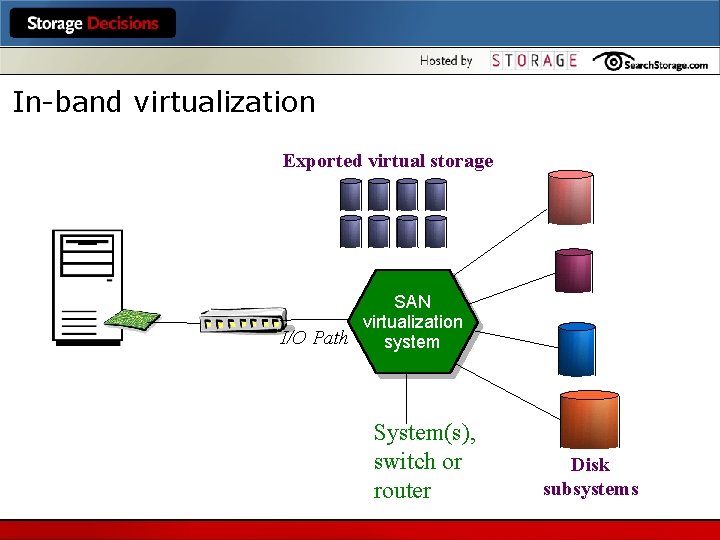

In-band virtualization Exported virtual storage SAN virtualization I/O Path system System(s), switch or router Disk subsystems
Out-of-band virtualization l Distributed volume management Virtualization management system Virtualization agents l Virtualization agents are managed from a central system in the SAN Disk subsystems
Lesson #5 SAN networks

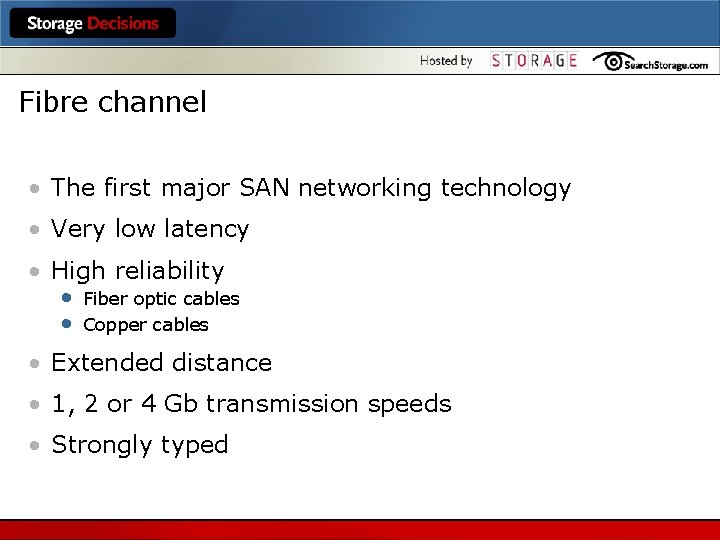

Fibre channel • The first major SAN networking technology • Very low latency • High reliability • Fiber optic cables • Copper cables • Extended distance • 1, 2 or 4 Gb transmission speeds • Strongly typed
Fibre channel A Fibre Channel fabric presents a consistent interface and set of services across all switches in a network Host and subsystems all 'see' the same resources Storage Subsystem
Fibre channel port definitions ● FC ports are defined by their network role ● N-ports: end node ports connecting to fabrics ● L-ports: end node ports connecting to loops ● NL-ports: end node ports connecting to fabrics or loops ● F-ports: switch ports connecting to N ports ● FL-ports: switch ports connecting to N ports or NL ports in a loop ● E-ports: switch ports connecting to other switch ports ● G ports: generic switch ports that can be F, FL or E ports
Ethernet / TCP / IP SAN technologies l Leveraging the install base of Ethernet and TCP/IP networks l i. SCSI – native SAN over IP l FC/IP – FC SAN extensions over IP

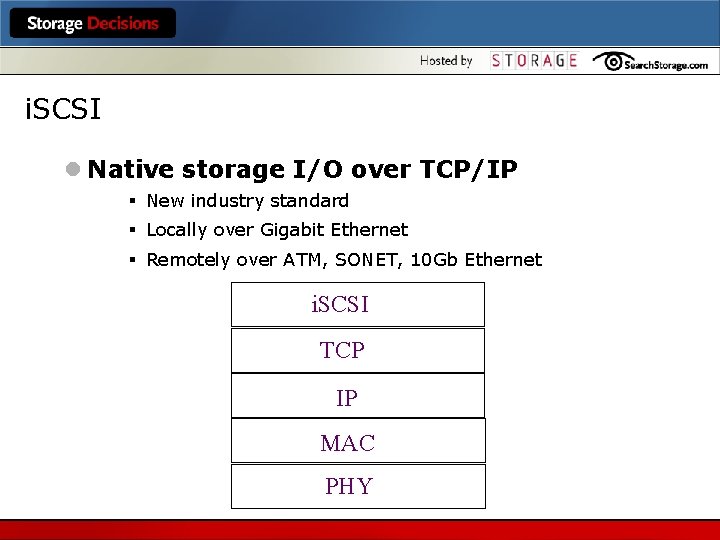

i. SCSI l Native storage I/O over TCP/IP § New industry standard § Locally over Gigabit Ethernet § Remotely over ATM, SONET, 10 Gb Ethernet i. SCSI TCP IP MAC PHY
i. SCSI equipment l Storage NICs (HBAs) § SCSI drivers l Cables § Copper and fiber l Network systems § Switches/routers § Firewalls

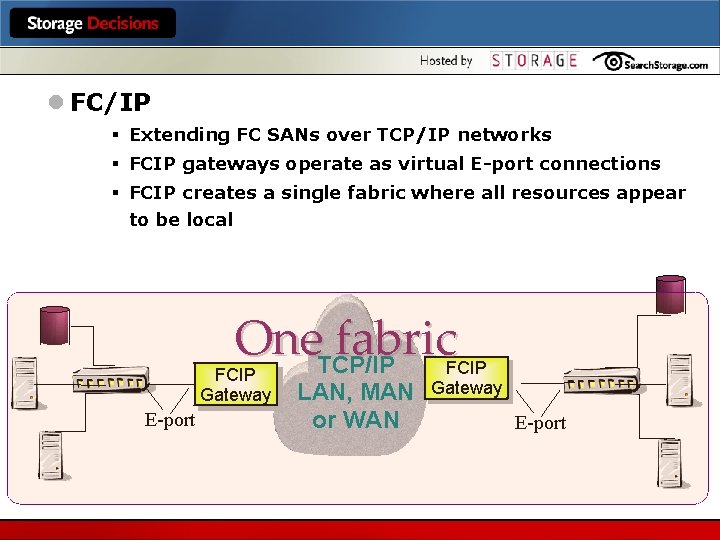

l FC/IP § Extending FC SANs over TCP/IP networks § FCIP gateways operate as virtual E-port connections § FCIP creates a single fabric where all resources appear to be local One. TCP/IP fabric FCIP Gateway E-port LAN, MAN or WAN FCIP Gateway E-port
SAN switching & fabrics l High-end SAN switches have latencies of 1 - 3 µsec l Transaction processing requires lowest latency § Most other applications do not l Transaction processing requires non-blocking switches § No internal delays preventing data transfers
Switches and directors l Switches § 8 – 48 ports § Redundant power supplies § Single system supervisor l Directors § 64+ ports § HA redundancy § Dual system supervisor § Live SW upgrades
SAN topologies l Star • • Simplest single hop l Dual star • Simple network + redundancy • • Single hop Independent or integrated fabric(s)
SAN topologies l N-wide star • • • Scalable Single hop Independent or integrated fabric(s) l Core - edge • Scalable • 1 – 3 hops • integrated fabric
SAN topologies l Ring • • • Scalable integrated fabric 1 to N÷ 2 hops l Ring + Star • Scalable • integrated fabric • 1 to 3 hops
Lesson #6 File systems
File system functions Name space Access control Metadata Locking Address space management
Filing Storing
Think of the storage address space as a sequence of storage locations (a flat address space)
l Superblocks are known addresses used to find Superblocks file system roots (and mount the file system)
l File systems must have a known and Filing and Scaling dependable address space § The fine print in scalability - How does the filing function know about the new storing address space? Filing Storing
