Getting Started with Lua Presented By: Dan Garlen Rinstrum smart weighing solutions

Getting Started with Lua Downloading and Installation of Lua Software Development Environment

Getting Started with Lua Prerequisites: 1. Rinstrum R 420 or R 423 indicator with a M 4223 Lua module installed 2. PC Internet access 3. R 42 X indicator on same network as PC

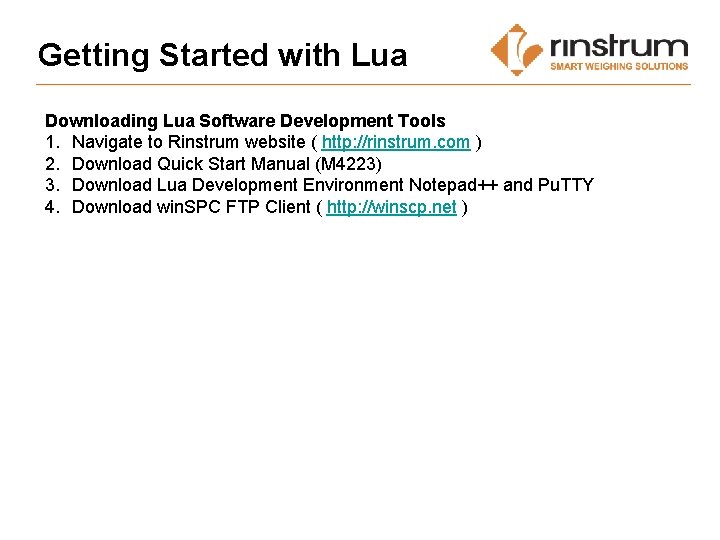

Getting Started with Lua Downloading Lua Software Development Tools 1. Navigate to Rinstrum website ( http: //rinstrum. com ) 2. Download Quick Start Manual (M 4223) 3. Download Lua Development Environment Notepad++ and Pu. TTY 4. Download win. SPC FTP Client ( http: //winscp. net )

Getting Started with Lua Software Development Environment Installation Procedure: 1. Install Notepad++ 2. Install Pu. TTY 3. Install win. SPC FTP Client

Getting Started with Lua Navigate web browser to Rinstrum website ie http: //rinstrum. com Americas (ENGLISH)

Installing Lua Development Environment Using the menus, navigate to: Products|Indicators|R 400 Series Indicators|R 400 Lua Programmable Indicators L 001 -60 X-XXX 9

Installing Lua Development Environment Scroll to bottom of page then select link to download L 001 -506 - 24 Dec 13 - 13724 KB (ZIP) file - Lua Development Environment Notepad++ and Pu. TTY L 001 -601 - 16 Dec 13 - 559 KB (PDF) file - Quick Start Manual L 001 -60 X-XXX 10

Installing Lua Development Environment Save files: • L 001 -506 -100 -M 01. zip (Lua Development Environment) • L 001 -601 -100. pdf (Lua Module Quick Start) L 001 -60 X-XXX 11

Installing Lua Development Environment L 001 -60 X-XXX 12

Installing Lua Development Environment L 001 -60 X-XXX 13
