STF 374 Assessment of Quality of Service Qo
- Slides: 52
STF 374 Assessment of Quality of Service (Qo. S) via audits and surveys including the Customer Relationship Stages other than utilization of the service Qostic #35 October 29 th 2009 Pierre-Yves Hébert © ETSI 2009. All rights reserved
World Class Standards Introduction q Two deliverables to improve EG 202 009 "User Group; Quality of Telecom Services; Part 2: User related parameters on a service specific basis“ Ø DEG 202 843 "Method for testing the Qo. S parameters of the Customer Relationship Stages other than utilization" (on-going work) Define in detail a set of parameters and associated methods of testing which may be implemented by any stakeholder (Regulator, Service provider, consumers' organization …) Ø DTS 102 844 “Customer Relationship; Quality of Service (Qo. S) parameters assessment process; Requirements for bodies providing Conformity Assessment” (just starting) q A third one to define generic test suites Ø DTS 102 852 : User Group; Quality of Telecom Services; Assessment process of the Qo. S parameters of the customer relationship stages; Define a common set of test sequences that are applicable in order to provide results that are objective, reproducible and comparable INC - 2009 2
World Class Standards DEG 202 843 User Group; Quality of ICT Services; Definitions and Methods for assessing the Qo. S parameters of the Customer Relationship Stages other than utilization INC - 2009 3
World Class Standards Stages of the Service Customer Relationship Course q List of the stages of the Service Customer Relationship course Ø More than 80 parameters in total. Ø The intention is not to measure all of them continuously but to provide a methodology to ensure that when different stakeholders carry out Qo. S assessments according to this methodology, the results of these Qo. S measurements are fully reproducible, statistically valid and can be used to assess and compare the delivered Qo. S performance of Service Providers (SP). Ø The Guide does not cover the Qo. S of the telecommunication services themselves (already defined by other ETSI documents, e. g. EG 202 057 series, EG 201 765 series). Ø Thus the results could be used to compare the providers' performances over time or for benchmark. INC - 2009 4
World Class Standards Stages of the Service Customer Relationship Course q List of the stages of the Service Customer Relationship course (A timeline of these stages is available in annex) Ø Ø Ø Ø Preliminary information (PI) P 1 yz Contract establishment P 2 yz Service provisioning P 3 yz Service utilization (out of scope see EG 202 057 and EG 201 765 series) Service alteration P 4 yz Technical upgrade P 5 yz Service support, complaint management P 6 yz • • Ø Ø Documentation Technical support Commercial support Complaint management P 61 z P 621 -31 P 641 -52 P 661 -72 Repair services Metering, Charging, Billing Network/service Management by the customer Cessation INC - 2009 P 7 yz P 8 yz P 9 yz P 10 yz 5
World Class Standards Stages of the Service Customer Relationship Course q 4 Metrics: • Rate (%), e. g. • Time (t) e. g. P 104 = Time of PI delivery - Time of requesting PI • Number (N) e. g. where N=Number of potentially available modes of documentation; i=Index of each documentation mode; m= Actually available documentation modes • Opinion Rating (OR), mainly based on bipolar scales using seven steps • • • i = Index of expert N= Number of experts in the panel Where OR is the mean opinion rating, with ORi (i = 1…N) being the individual opinion ratings for the N members of the audit team. q General statement Ø Clause 4 provides the general statistical principles applying for this EG (this section refers also to TS 102 250 -6 published by STQ Mobile) Ø The assessments will make use of data from service providers, from surveys and assessments by experts. INC - 2009 6
World Class Standards Document structure (1/3) q Clause 5: Parameter Definitions Ø This part of the deliverable describes the definition of the parameters including parameter name, abstract definition and abstract equation. Ø It includes also a figure describing the timeline illustrating the relation between customer' point of view and the parameters • Note that in the figures diffferent boxes (and colours) are provided (see next slide) 5. 1 Customer Relationship Course: Preliminary information Ø 5. 1. 1 Parameter Name • 5. 1. 1. 1 Definition of parameter • It may include subclauses explaining in more details the parameter. • 5. 1. 1. 2 Equation • e. g. : • 5. 1. 1. 3 Measure • E. g. : Opinion Rating (OR) using a bipolar 7 point scale INC - 2009 7
World Class Standards Customer‘s point of view Parameter Legend q Blue boxes show what happens from the customer‘s perspective q No internal knowledge of operator processes available ● Green boxes show from which point of time to which point of time a certain action endures ● Here the according parameter number is mentioned (Pxxx) ● Dotted lines show the exact time reference for the specific parameter Parameter ● Boxes in dark green show provider centric parameters Parameter ● Already defined parameters (e. g. in EG 202 057 -1) STF 374 - Timelines 13. 07. 2009 INC - 2009 8 8
World Class Standards Document structure (2/3) q Clause 6: Evaluation Specific methodology/system • This part of the deliverable/document describes the methodology or the system which can be used to assess the parameter. Ø 6. 1 Customer Relationship Course: PI 6. 1. 1 Parameter Name (and metric) • 6. 1. 1. 1 Evaluation Specific description • Describe here the methodology or system which is used to assess the parameter (eg through a panel • 6. 1. 1. 2 Trigger Point Comparison • Trigger point from customer’s point of view The rating is carried out whenever a new service is being marketed and/or when significant changes are made to an existing service. • 6. 1. 1. 3 Accuracy of indicator (metric of the measure) • 6. 1. 1. 4 Representativeness • 6. 1. 1. 5 Presentation of parameter values INC - 2009 9
World Class Standards WP for future q For the time being each section includes the complete list of parameters as listed in EG 202 009 -2, including those whose assessment method is already defined in other standards; Ø However, some parameters have been modified (to be more correlated with the metric that may be measured Ø Some others could also be reviewed but this was considered out of the STF scope they are not detailled in the EG q Volunteers are invited to validate the Qo. S parameter testing (SPs, regulators) Ø Some positive answers have already been received, but the list is still open. INC - 2009 10
World Class Standards Document structure (3/3) q Annex A: Aggregate rating of a customer relationship stage (or performance category) from a set of individual performance parameter ratings Ø A first set of proposals have been included Ø EG 202 765 -1 shows that care should be taken when using an aggregate rating and is more in favour of displays as defined in ITU-T Recommendation P 505 INC - 2009 11
World Class Standards DTS 102 845 User Group; Customer Relationship; Quality of Service (Qo. S) parameters assessment process; Requirements for bodies providing Conformity Assessment INC - 2009 12
World Class Standards Draft content of the DTS 102 844 q DTS 102 844 “Customer Relationship; Quality of Service (Qo. S) parameters assessment process; Requirements for bodies providing Conformity Assessment” : Ø Conformity Assessment types Ø Certification type Ø Certification body • Certification Committee Ø Certification body staff • Auditor qualification criteria and competences Ø Application for certification • Information on the procedure • Preparation for audit Ø Audit • Audit report • Audit time • Monitoring INC - 2009 13
World Class Standards DTS 102 852 : User Group; Quality of ICT Services; Assessment process of the Qo. S parameters of the customer relationship stages INC - 2009 14
World Class Standards Scope of the DTS 102 852 q DTS 102 852 : User Group; Quality of ICT Services; Assessment process of the Qo. S parameters of the customer relationship stages : Ø This document will detail the test sequences based on the definition and test methods defined in DEG 202 043. The deliverable will define the generic test sequences for the 4 types of parameters, Time, percentage, number and Opinion Ratings. As an example it will also provide a set of dedicated test sequence for parameters of selected stages of the customer relationship course (Qo. S Assessment process). Ø The intention of this document is to define a common set of test sequences that are applicable by any stakeholder in order to provide results that are objective, reproducible and comparable. INC - 2009 15
World Class Standards Further plans q DEG 202 843 is posted on STF 374 docbox: Ø http: //portal. etsi. org/docbox/STF 374_USER_Qo. S_Assessment/Pu blic/DEG_202843 v 010101_clean. docx q STQ members have been invited to provide comments q DEG 202 843 has been reviewed by the User Group and approved as a stable draft, waiting for the results of the validation tests q Validation tests to start before the end of the year until end of March q At the same time extended consultation of stakeholders q Drafting of TS 102 844 and TS 102 852 starting soon q Final drafts for User Group review: April 2010 q Final drafts for UG approval by June 2010 q Workshop for presentation of the deliverables: Sept 2010 INC - 2009 16
World Class Standards Thanks Annex Detailled stages INC - 2009 17
World Class Standards Stage 1: Preliminary Information (PI) Customer‘s point of view Request for PI is sent PI is delivered Expected period of delivery (Timeout T 11) t 0 Parameter t 2 t 1 t 3 P 104: Response time P 101: Integrity P 103: Availability P 102: Pricing Transparency INC - 2009 18
World Class Standards Stage 2: Contract establishment (Version A) No customisation before contract, but option to customise after contract Optionally: Changed Change request contract (after received signature) sent Timeout T 22 Contract is received, signature of contract without changes 0 t 3 P 201: Integrity of contract information P 202: Compliance of contract with PI t 4 t t 5 P 204: Ease and flexibility to amend terms after formal contract INC - 2009 P 201: Integrity P 202: Compliance of contract with PI 19
World Class Standards Stage 2: Contract establishment (Version B) Customistation before contract, but option to customize after contract Contract proposal received 0 t 1 Custom. Final contract is ised received, contract signature of sent contract Timeout T 21 t 2 P 203: Flexibility of contract customization Optionally: Changed Change request contract (after signature) received sent Timeout T 22 t 4 t 3 P 201: Integrity of contract information P 202: Compliance of contract with PI INC - 2009 t 5 P 204: Ease and flexibility to amend terms after formal contract t P 201: Integrity P 202: Compliance of contract with PI 20
World Class Standards Stage 3: Service provisioning (fixed date) Provisioning date received 0 Provisioning Promised Datedone t 2 t 1 P 306: Punctuality of appointment t P 301: Rate of meeting promised provisioning date P 304: Rate of contract cancelled due to non-fulfillment of contract P 302: Time for provisioning P 305: Complet. of fulfilment of contractatual specification in prov. of service P 308: Provisioning not complete and correct first time INC - 2009 21
World Class Standards Stage 3: Service provisioning (period) Provisioning period received Appointment Provisioning done Provisioning period (Timeout T 31) 0 t 1 t 2 t t 3 t 4 P 306: Punctuality of appointm. P 302: Time for provisioning P 303: Rate of successful prov. within specified period INC - 2009 P 304: Rate of contract cancelled due to nonfulfillment of contract P 305: Completion of fulfilment of contractatual specification in prov. of service P 308: Provisioning not complete and correct first time 22
World Class Standards Stage 3: Service provisioning (punctuality) Appointment made OR equipment delivery announced 0 t 1 Too early In time Too late Appointed date/time Scheduled equipment delivery t 2‘‘ or • t P 306: Punctuality of appointments P 307: Punctuality of equipment delivery P 306 and P 307 calculates the relative delay between the announced point of time for equipment delivery or provisioning and the effective point of time INC - 2009 23
World Class Standards Stage 4: Service alteration Alteration period received Appointment Alteration done Alteration period (Timeout T 41) 0 t 1 t 2 t 3 P 404/P 405 Punctuality of appointm. Reliability period (Timeout T 42) t 4 t t 5 P 408: Technical reliability of serv. within an agreed period after alt. P 403: Completeness of fulfilment of contractual. specification P 406: Alteration not complete and correct first time P 402: Rate of successful service P 407: Conformity and success rate of alteration within specified period service alteration P 412: Organisational efficiency of the SP to carry out service alteration P 401: Time for alteration INC - 2009 24
World Class Standards Stage 4: Service alteration (punctuality) Appointment made OR equipment delivery announced 0 t 2 Too early In time Too late Appointed date/time Scheduled equipment delivery t 3‘‘ or • Same concept as in Stage 3 INC - 2009 t P 404: Punctuality of appointments P 405: Punctuality of equipment delivery 25
World Class Standards Stage 5: Technical upgrade I Upgrade period received Outage begins Appointment Upgrade done Upgrade period (Timeout T 51) 0 t 1 t 2 Outage ends Outage t 3 P 504: Punctuality of appointm. P 501: Time for upgrade of a service P 502: Rate of successful upgrade within specified period t 4 Reliability period (Timeout T 52) t 5 t 6 t P 505: Outage time due to upgrade P 503: Completeness of fulfillment of specification P 512: Organisational efficiency P 513: Competence and preparedness INC - 2009 26
World Class Standards Stage 5: Technical upgrade II Upgrade period received Appointment Outage begins Upgrade done Upgrade period (Timeout T 51) 0 t 1 t 2 t 3 Outage t 4 Outage ends Reliability period (Timeout T 52) t 5 t 6 t P 508: Technical reliability of service P 506: Technical upgrade not complete and correct first time P 507: Conformity and success rate of technical upgrade P 512: Organisational efficiency P 513: Competence and preparedness INC - 2009 27
World Class Standards Stage 5: Service upgrade (punctuality) Appointment made OR equipment delivery announced 0 t 2 Too early In time Too late Appointed date/time Scheduled equipment delivery t 3‘ t 3 t t 3‘‘ P 504: Punctuality of appointments • Same concept as in Stage 3 INC - 2009 28
World Class Standards Stage 6 a: Service Support – Documentation Service provisioned Documentation received A) Initial provisioning Service changed Adapted doc. received B) Update procedure Documentation delivery period (Timeout T 61) 0 t 1 t 2 t t 3 P 611: Documentation delivery time P 613: Integrity of documentation P 612: Availability of documentation within specified period P 615: Legibility of documentation P 614: Modes of documentation P 616: Overall reliability INC - 2009 29
World Class Standards Stage 6 b: Service Support – Technical Support Problem occurred, try to contact support Contact established Solution proposal applied Reliability checked Problem description given Timeout T 62 0 t 1 P 621: Rate of accessibil. to technical support Solution proposal received Stability period (Timeout T 64) Solution period (Timeout T 63) t 2 P 627: Rate of recognition of costumer request t 3 t 4 t 2‘ P 628: Response time of tech. support P 622: Solutions resolved within specified period t 2 can be equal to t 3, e. g. for mail exchange or web access INC - 2009 t t 5 t 6 P 625: Rate of reliability P 623: Number of attempts before successful solution P 624: Integrity of solution P 626: Modes of tech. support 30
World Class Standards Stage 6 c: Service Support – Commercial Support Need for change occurred Timeout T 65 Contact established Solution proposal received Need for change described Solution period (Timeout T 66) t 0 t 1 t 2 t 3 ‘ P 642: Solution delivery time t 4 P 641: Rate of accessibility to comm. support P 643: Rate of solutions P 647: Response delivered within specified time of the comm. period support P 652: Organisational efficiency INC - 2009 t 5 P 644: Integrity of solution P 645: Modes of commercial support 31
World Class Standards Stage 6 d: Complaint Management (CM) Complaint reason occurred CM contacted Timeout T 67 t 2 0 t 1 t 2 P 661: Rate of ‘ accessibi-lity to CM Complaint accepted Complaint filed Timeout T 68 Solution delivered Solution period (Timeout T 69) t 3 t 4 t 6 t 5 P 665: Integrity of P 662: Rate of P 669: Customer complaint resolution complaint recognit. P 666: Customer resolution time P 663: perception of CM Solution not P 664: Rate of complete and solutions delivered within specified period correct first time t P 668: Response time of CM desk P 667: Overall Quality of the CM process P 672: Organisational efficiency INC - 2009 32
World Class Standards Repair request sent Stage 7: Repair Services (RS) Request accepted Repair period announced Timeout T 72 Repair period (Timeout T 73) Timeout T 71 0 t 1 P 701: Accessibility to RS t 2‘ Repair done t 3 Reliability period (Timeout T 74) t 4 P 702: Successfull repairs caried out within a specified period P 706: Fault repair time P 704: Punctuality t 5 t 6 t P 703: Rate of successful first time repairs P 705: Efficiency of the repair service P 707: Frequency of customer complaints related to RS P 708: Prof. / P 709: Ability SP P 710: User friendliness of RS P 711: Organisational efficiency INC - 2009 33
World Class Standards Stage 8: Metering, Charging, Billing Access to documents enabling for expense control Access to expense control information in chosen mode Document found Timeout T 81 0 t 1 t 2 t P 801: Rate of accessibility to tariff information INC - 2009 34
World Class Standards Stage 8: Metering, Charging, Billing Expense overrun notification Billing budget overrun notification received Billing budget overrun occurred Timeout T 82 0 t 3 P 802: Rate of successful notification of exceeding billing budget t 4 t P 803: Notification delay of exceeding billing budget INC - 2009 35
World Class Standards Stage 8: Metering, Charging, Billing Real-time access to expense information Access to account information Real-time account information received Timeout T 83 0 t 5 P 804: Rate of accessibility to the account management P 805: Time delay of the charging information t 6 INC - 2009 t 36
World Class Standards Stage 8: Metering, Charging, Billing Bill production and delivery Bill expected Bill received Timeout T 84 t 0 t 7 t 8 P 809: Modes of P 806: Rate of received billing information bills transfer P 807: Bill delivery delay P 815: Organisational efficiency of billing service INC - 2009 37
World Class Standards Stage 8: Metering, Charging, Billing Bill production and delivery after direct debit Direct debit Bill expected Bill received applied Timeout T 85 0 t 9 t t 11 t 10 Definitions: P 808: Rate of bill P 809: Modes of availability after direct billing information debit transfer P 815: Organisational efficiency of billing service INC - 2009 A) Direct debit: Variable amount B) Standing order: Fixed amount 38
World Class Standards Stage 9: Network/Service Management by the customer Access outages: Access to network mgmt facilities is not possible Access outage begins 0 t 1 tout 1 Access outage ends Access outage begins toutn tout 2 Access outage ends toutn+1 t 2 t P 901: Outage duration P 902: Frequency of outages • P 901: Time parameter INC - 2009 39
World Class Standards Stage 9: Network/Service Management by the customer Customer request sent Reaction to customer request observed Timeout T 91 0 t 1 P 903: Response time for reply to requests P 904: Request response rate t t 2 P 906: Rate of accessibility to N/S management facility P 907: Response time of P 908: Access time the operator of N/S mgmt. P 910: Overall quality of the N/S management process P 911: Provider ability match customer wishes P 905: Overall reliability of network/service management P 913: Organisational efficiency of the network/service management service P 909: Frequency of customer complaints P 912: User friendliness INC - 2009 40
World Class Standards Stage 10: Cessation request sent Acknowledgement to cessation request observed Timeout T 101 Cessation is completed Timeout T 102 t 0 t 1 t 2‘ t 3 P 1001: Cessation acknowledgement time P 1002: Cessation acknowledgement rate P 1003: Rate of accessibility to cessation facility P 1004: Rate of contractual cessations achieved INC - 2009 41
World Class Standards Examples of graphic display of the Qo. S assessments INC - 2009 42
World Class Standards Complaints Internet SP A V 1 Preliminary information 5. 2 Contract establishment Cessation 15 12. 9 16 40 80 11 9 31 27 60 7 42. 6 40 22 Service provisioning 3 15. 260 40 30. 4 13 20 0 0 10 4 40 53. 1 70 7 40 9. 7 Service operation 6. 1 7 100 17. 7 Repair services 11. 5 16 10 8018. 2 46. 1 60 40 10 -2 19. 4 20 30 20 -11 -1 0 -10 -20 1 0 Metering-Charging-Billing 20 25 3. 5 Commercial support 6. 9 Technical support INC - 2009 43
World Class Standards Complaints Internet SP A V 2 Preliminary information 5. 2 Contract establishment Cessation 0 12. 9 16 0 9 18 28 12 27 42. 6 56 36 Service provisioning 15. 2 0 0 6 18 54 20 30. 4 40 60 84 39 0 18. 2 31 62 46. 1 93 112 80 24 72 140 16 105 12 26 Metering-Charging-Billing 24 70 19. 4 13 53. 1 35 16 8 0 9. 7 Service operation 6. 1 0 17. 7 Repair services 11. 5 8 4 0 0 3. 5 Commercial support 6. 9 Technical support INC - 2009 44
World Class Standards Complaints Internet SP B V 1 Preliminary information 13. 7 Contract establishment Cessation 15 36. 5 74. 1 40 80 11 9 31 60 7 27 42. 6 40 22 Service provisioning 58. 360 13 40 30. 4 20 0 0 -11 -1 -10 -20 1 0 10 Metering-Charging-Billing 20 3 20 0 10 -2 40 19. 4 20 53. 1 70 4 30 7 40 34. 3 Service operation 6. 1 7 10 8079. 6 60 4046. 1 100 91. 7 Repair services 11. 5 16 25 8. 5 21. 8 Commercial support Technical support INC - 2009 45
World Class Standards Complaints Internet SP B V 2 Preliminary information 13. 7 Contract establishment Cessation 0 36. 5 74. 1 0 9 18 28 12 27 42. 6 56 36 Service provisioning 58. 3 0 6 18 84 54 0 20 30. 4 40 60 39 0 31 62 46. 1 93 112 80 24 72 140 16 79. 6 105 12 26 Metering-Charging-Billing 24 70 19. 4 53. 1 13 35 16 8 0 34. 3 Service operation 6. 1 0 91. 7 Repair services 11. 5 8 4 0 0 8. 5 Commercial support 21. 8 Technical support INC - 2009 46

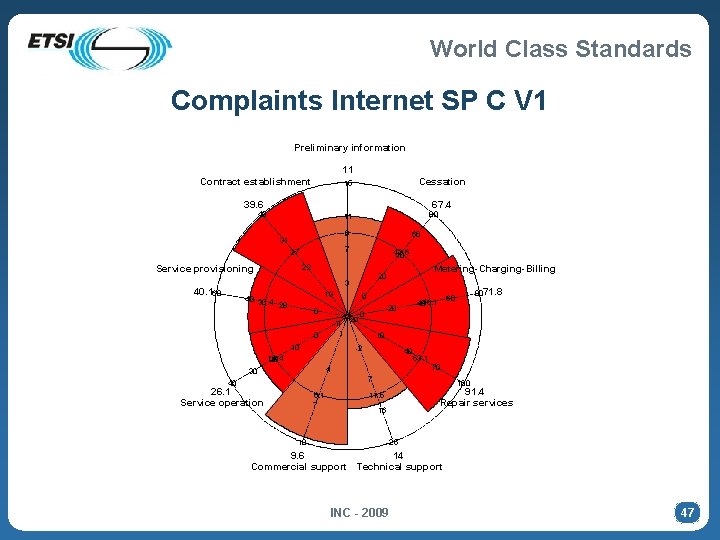

World Class Standards Complaints Internet SP C V 1 Preliminary information 11 Contract establishment Cessation 15 39. 6 67. 4 40 80 11 9 31 60 7 27 42. 6 40 22 Service provisioning 3 40. 160 13 40 30. 4 20 0 10 -2 40 19. 4 20 53. 1 70 4 30 7 40 26. 1 Service operation 6. 1 7 8071. 8 60 4046. 1 20 -11 -1 0 -10 -20 1 10 Metering-Charging-Billing 20 100 91. 4 Repair services 11. 5 16 10 25 9. 6 14 Commercial support Technical support INC - 2009 47
World Class Standards Complaints Internet SP C V 2 INC - 2009 48
World Class Standards Complaints Internet SP D V 1 Preliminary information 4. 4 Contract establishment Cessation 15 21. 1 52. 2 40 80 11 9 31 60 7 27 42. 6 40 22 Service provisioning 13. 360 13 40 30. 4 20 0 0 -11 -1 -10 -20 1 0 10 Metering-Charging-Billing 20 3 20 0 10 -2 40 19. 4 20 53. 1 70 4 30 7 40 16. 7 Service operation 6. 1 7 8046. 7 60 4046. 1 100 40 Repair services 11. 5 16 10 25 5. 6 3. 3 Commercial support Technical support INC - 2009 49

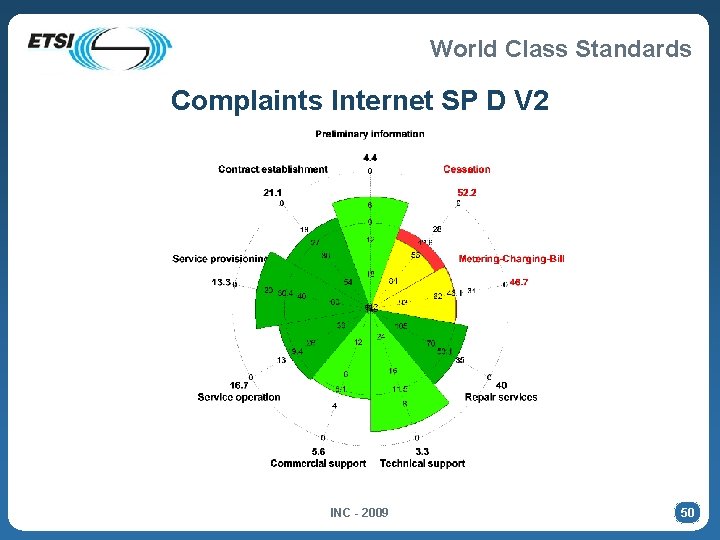

World Class Standards Complaints Internet SP D V 2 INC - 2009 50
World Class Standards Provisioning P 301 60 P 302 100 8 90 15 10 9 97 20 10 7 70 6 80 100 8 30 80 12 P 303 P 309 0 P 308 -10 60 -20 95 94 3 50 88 -20 -30 91 -1 -10 1 10 20 99 10 -2 5 10 P 304 20 10 -7 98 0 5 0 8 0 0. 15 100 3 1 P 307 1 95 P 305 0. 2 P 306 INC - 2009 51
World Class Standards Thanks again … INC - 2009 52
