Status of Micro. TCA LLRF Development Zheqiao Geng On behalf of the LLRF AIP team 6/4/2012
Outline l l l l History of LLRF at SLAC Micro. TCA Based LLRF System Overview FPGA Firmware Design EPICS Software Design Applications for Operation System Tests Summary 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 2
History of LLRF at SLAC 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 3
SLAC Linac 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 4
Existing RF System of Linac l l l 30 Sectors (LCLS uses the last 10 of them) Each sector contains of 8 klystrons and 1 sub-booster Every RF station has 2 racks for controls 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 5
SLED WG & Cable Penetration to Tunnel RACKS MAGNET TANK
Existing Linac Klystron Station RF Control, Monitoring, and Interlocking System IPA Chassis Controls RF Phase and Amplitude PIOP CAMAC Module Controls IPA, PAD, and MKSU. Interface to control system PAD Chassis Measures RF Phase and Amplitude MKSU Chassis Interlock and Control for Klystron SLED Support Systems Existing Controls Racks 7
PIOPs (4) Controls Upgrade Implementation PDU Timing 12 -01 -10 8
Controls Upgrade Implementation 12 -01 -10 9
LLRF for LCLS l l Several critical RF stations were upgraded for LCLS with newly designed Phase and Amplitude Detector (PAD), Phase and Amplitude Controller (PAC) and VME running EPICS The old IPA, MKSU and CAMAC system is kept (not shown in the diagram below) 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 10
LLRF for LCLS (cont. ) l l PAD : Custom chassis with 4 channels of down mixers and ADCs PAC : Custom chassis with a DAC board an I/Q modulator 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 11
Some Limitations of PAD/PAC l l A feedback control loop has to follow the chain of PAD-VME-PAC connected with Ethernet, the real-time performance is limited. It is not possible to do intra-pulse control (pulse width ~ 3 µs) Computation power of the Coldfire MCU used in PAD/PAC chassis is quite limited. One more Channel Access client connected to the EPICS software in the Coldfire MCU can significantly degrade its real-time performance One PAD chassis (2 U or 3 U) only contains 4 ADC channels. The density is too low to efficiently use the rack space Custom designed chassis is difficult to maintain The Micro. TCA based LLRF system presented in this talk tends to upgrade the PAD/PAC system to be more compact, flexible, maintainable and reliable… 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 12
Overview of the Micro. TCA Based LLRF System 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 13
PAD/PAC LLRF VS Micro. TCA LLRF 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 14
RF Support Chassis 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 15
Micro. TCA Crate 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 16
AMC Carrier + PMC EVR 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 17
AMC ADC Board – SIS 8300 l Struck SIS 8300 Board l 4 lane PCI Express l 10 Channels 125 MS/s 16 -bit ADC l Two 16 -bit DACs for Fast Feedback Implementation l Twin SFP Card Cage for High Speed System Interconnects l Virtex 5 FPGA The board is equivalent to the digital parts of 2. 5 PADs + 1 PAC! 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 18
Summary of Hardware Architecture l Compared to the PAD/PAC chassis, the Micro. TCA based LLRF system uses commercial digital boards to reduce the R&D time l Micro. TCA system has much higher density of ADC/DAC channels. The system is more compact l Compared to the PAD/PAC chassis, the digital hardware of the new design is installed in the Micro. TCA crate. The boards are hot-swappable and easy to maintain l To be improved (nice to have): l An AMC EVR board will be introduced to route trigger signals via the backplane. ADC boards will take triggers from backplane to remove the trigger cables l The RTM with S-band down mixers from DESY will be evaluated. The system can be more compact by moving the down mixers and up converter to the RTM board from the RF support chassis l The klystron beam voltage conditioner board will be improved to directly measure the flattop of the voltage pulse by adding offset to the klystron beam voltage signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 19
FPGA Firmware (for SIS 8300) Design 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 20
Major Requirements to the Firmware l l Intra-pulse phase feedback control Provide 64 K sampling buffer for each ADC channel (10 channels) DAC can be used as an arbitrary waveform generator Exception detection and handling 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 21
Overview of the Firmware 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 22
Algorithm for Intra-pulse Phase Control Q Vector Rotation Demodulation l Q I I l Correction Q I Align the vector along the I axis so that Q components will be proportional to the phase jitter Phase error is estimated at the first part of the RF pulse and the correction is applied at the second part of the RF pulse (latency < 1 µs) 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 23
ADC Data Acquisition Spectrum by FFT 64 K samples from ADC 2 (SNR = 77 d. BFS) l Allow up to 64 K point data acquisition for ADC SNR calculation 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 24
DAC Waveform Generation Waveforms Generated by 2048 point Buffers (triggered output) l l l Waveforms Generated by 2048 point Buffers (CW output) Specify arbitrary I/Q waveforms in two 2048 -point buffers for two DACs Allow CW output regardless of trigger Example: In-phase and Quadrature waveforms for single side band modulation 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 25
RF System Simulator Simulated Klystron Output (25. 5 MHz IF) Input to the RF System Simulator l l Simulate the klystron output and SLED output The simulator can be used to test most of the functions in the lab Simulated SLED Output (25. 5 MHz IF) 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 26
EDM Panel for Firmware Control 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 27
Summary of Firmware Design l Micro. TCA based LLRF system connects ADCs and DACs to the same FPGA to enable the intra-pulse control l The powerful FPGA is used to implement most of the complex real-time functions to relax the CPU load. 360 Hz operation or multi-bunches operation can be well supported l PCI Express links the FPGA and CPU to enable faster data transfer which improves the data acquisition capability l To be improved (basic): l The firmware will be extended to be general and configurable for all RF stations (CW control, Laser control, RF Gun control, X-band S-band klystron control) l Intra-pulse phase feedback will be upgraded for both amplitude and phase control. I/Q control scheme will be used To be Improved (nice to have): l l Improve the intra-pulse control refer to the klystron high voltage jitters if they have stronger correlations l Improve the up conversion algorithm to reduce the non-linearity of the phase and amplitude actuation 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 28
EPICS Software Design 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 29
Software Architecture 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 30
EDM Panels – RF Station Top 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 31
EDM Panels – Pulse-pulse Phase Control 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 32
EDM Panels – LLRF Timing Settings 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 33
EDM Panels – RF Synchronous DAQ l l 2020/11/29 Save all phase and amplitude values of the RF signals for the same RF pulse synchronously up to 65536 pulses Save all waveforms for the same RF pulse synchronously up to 2048 pulses Zheqiao Geng, Micro. TCA LLRF 34
EDM Panels – RF Waveforms 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 35
Summary of Software Design l PAD/PAC based LLRF system has software pieces in PAD CPU, PAC CPU and VME CPU, they communicate with each other via UDP. The architecture is complex and difficult to maintain. The computation power of these CPUs are quite limited l Micro. TCA based LLRF system has one much more powerful CPU. Real-time Linux OS will be used and it is much more flexible to be adapted to the newest multi-core CPUs l Micro. TCA software is compiled to a single IOC process so the number of maintenance points is reduced l Data and waveforms can be saved at 120 Hz for diagnostics. Later this function can be synchronized by Timing System for all RF stations so that the behavior of the entire machine can be analyzed within one RF pulse l Software architecture is more modular and understandable l To be improved (basic): l Software should be improved to fit the extended firmware l Micro. TCA infrastructure (such as software development tools, EPICS base, boot up tools) needs to be improved. This topic will be covered by Charlie Xu’s talk 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 36
LLRF Applications 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 37
LLRF Applications l l l l l Examples of Applications for A RF Station Measure the klystron energy no-load Measure klystron saturation curve Measure the beam phase with beam induced signal Calibration of the imbalance of the I/Q modulator and DAC offset Loop phase correction for intra-pulse feedback control Intra-pulse feedback gain optimization DAC waveform generation for single side band up-conversion Set klystron mode to ACC or standby Most of the applications already exist for the old RF stations. The new LLRF software will inherit the existing algorithms and codes 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 38
System Test 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 39
ADC Noise Measurement Signal to Noise Ratio (d. BFS) ADC 0 ADC 1 ADC 2 ADC 3 ADC 4 ADC 5 ADC 6 ADC 7 ADC 8 ADC 9 At Lab 77. 4 78. 6 78. 2 79. 4 78. 2 78. 8 77. 0 78. 8 79. 1 79. 2 At 28 -2 76. 1 76. 7 77. 2 76. 5 77. 4 76. 7 77. 6 77. 4 Crosstalk Matrix (d. B) ADC 0 ADC 1 ADC 2 ADC 3 ADC 4 ADC 5 ADC 6 ADC 7 ADC 8 ADC 9 ADC 0 0 88. 9 87 97. 3 95. 2 111. 6 106. 2 112. 2 103. 5 112. 3 ADC 1 82. 7 0 87. 1 98. 5 97 105 108. 5 112. 9 104. 6 108. 9 ADC 2 82. 3 84. 1 0 86. 1 87 98. 6 96. 8 113 104. 4 112. 2 ADC 3 95. 8 94. 7 81. 2 0 97. 1 98. 5 98. 9 109. 8 103. 9 111. 5 ADC 4 91. 5 93. 4 83. 8 97. 7 0 85. 5 85. 1 98. 6 109. 9 ADC 5 99. 2 101. 1 95. 1 94. 9 81. 3 0 92. 5 101. 1 100. 4 111. 8 ADC 6 100. 2 101. 4 94. 3 93. 6 81 88. 5 0 87. 2 88. 9 107. 3 ADC 7 98. 9 102. 4 103. 5 102. 4 94. 9 97. 8 81. 7 0 84. 7 109. 7 ADC 8 100. 5 102. 1 105. 4 104. 6 96 94. 7 84. 3 81. 1 0 95. 2 ADC 9 99. 3 102. 3 104. 8 100. 9 106. 4 106. 5 101. 5 92. 4 0 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 40
Phase and Amplitude Measurement Noise With a -1 d. BFS 25. 5 MHz IF input and 257 fs clock jitter, the measurement noises (in full bandwidth of ADC) are expected to be: l 119 MHz clock jitter: 257 fs integrated from 10 Hz to 40 MHz l l l 2020/11/29 Zheqiao Geng, Micro. TCA LLRF Phase : 0. 01 deg RMS Amplitude: 0. 02 % RMS Considering the bandwidth of the RF system in the view of the beam (~1. 2 MHz), the measurement noises will meet the LCLS-II requirements (0. 07 deg RMS phase jitter and 0. 06 % RMS amplitude jitter for the most critical RF station of L 1 S) 41
Installation at LI 28 -2 SSSB RF Support Chassis Micro. TCA Crate MKSUII 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 42
System Test at LCLS Linac (LI 28 -2) - RF Signal Measurement 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 43
RF Reference Signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 44
I/Q Modulator Output Signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 45
Klystron Drive Signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 46
Klystron Output Signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 47
SLED Output Signal 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 48
System Test at LCLS Linac (LI 28 -2) - Reference Tracking 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 49
Reference Tracking l l l Subtract the phase of the reference signal from other RF signal phases Remove the common mode error caused by the RF detectors experiencing the same temperature fluctuations Remove the phase jump caused by the clock re-synchronization Reference Phase Klystron Output Phase SLED Output Phase 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 50
System Test at LCLS Linac (LI 28 -2) - Pulse-pulse Feedback 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 51
Long Term Stability with Feedback 2 -hour phase measurement 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 52
System Test at LCLS Linac (LI 28 -2) - Intra-pulse Feedback 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 53
Intra-pulse Feedback Phase error is estimated at the first part of the RF pulse and the correction is applied at the second part of the RF pulse l l l Loop delay should < 1 µs Phase jitter of different parts of the RF pulse should be correlated The entire loop delay is ~ 600 ns, quite promising for intrapulse feedback. 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 54
Phase Jitter Correlation coefficient of the phase jitter between different parts of the RF pulse ~ 0. 3 -0. 4 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 55

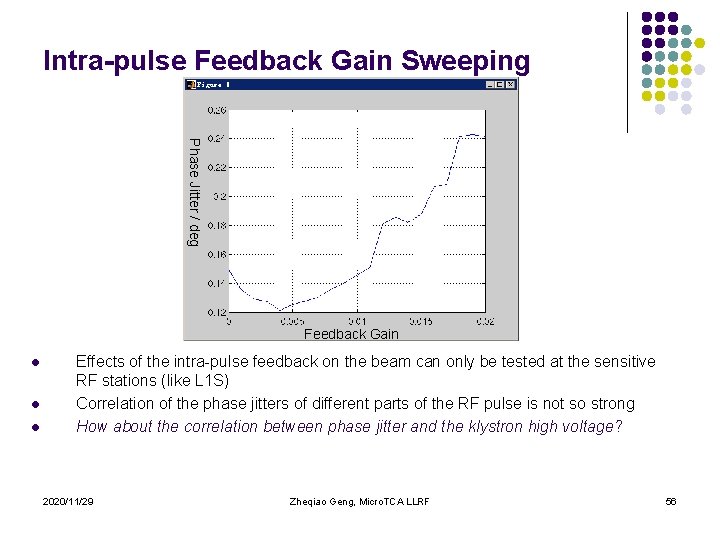

Intra-pulse Feedback Gain Sweeping Phase Jitter / deg Feedback Gain l l l Effects of the intra-pulse feedback on the beam can only be tested at the sensitive RF stations (like L 1 S) Correlation of the phase jitters of different parts of the RF pulse is not so strong How about the correlation between phase jitter and the klystron high voltage? 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 56
System Test at LCLS Linac (LI 28 -2) - Intra-pulse phase slope compensation 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 57
Motivations l l l 2020/11/29 At rising edge of the klystron signal, the phase changes > 100 deg, which will lower the efficiency to fill the SLED cavities Klystron signal after PSK has a phase change > 60 degree, which will lower the integrated E field seen by the beam Idea: Remove the phase slope with feed forward to possibly increase the energy gain from the klystron Zheqiao Geng, Micro. TCA LLRF 58
Phase Slope Compensation with Feed Forward 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 59

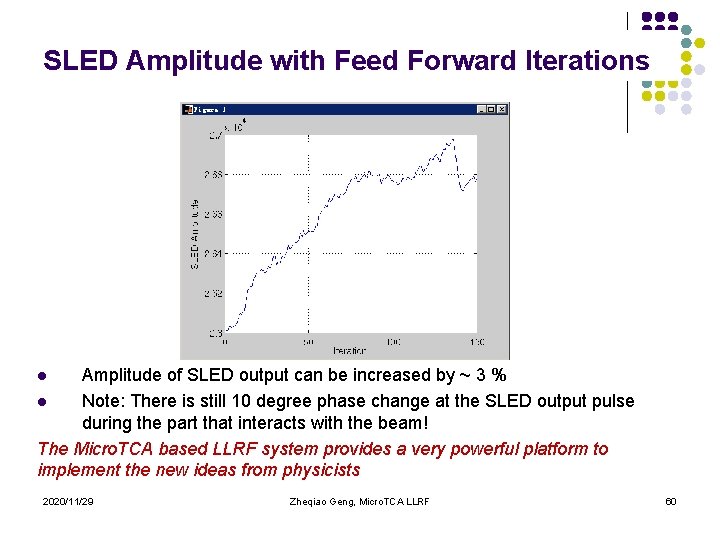

SLED Amplitude with Feed Forward Iterations Amplitude of SLED output can be increased by ~ 3 % l Note: There is still 10 degree phase change at the SLED output pulse during the part that interacts with the beam! The Micro. TCA based LLRF system provides a very powerful platform to implement the new ideas from physicists l 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 60
System Test at LCLS Linac (LI 28 -2) - Phasing the klystron 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 61
Phasing the Klystron with Matlab Without phase feed forward control l With 50 iterations of phase feed forward control Need further measurement to clarify if we can really increase the energy gain or not! 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 62
More Tests Need to be Done l l 2020/11/29 Intra-pulse I/Q control need to be tested at critical RF stations like L 1 S before the first bunch compressor. The effects of the intra-pulse control can be examined by monitoring the beam stability Measurement of beam induced signal need to be done at LI 28 -2. To do this test, the klystron need to be in standby state Correlation between RF amplitude/phase jitters and klystron high voltage jitter need to be tested. This will tell us if we can use the klystron high voltage jitter for intra-pulse feedback. As mentioned before, a new klystron beam voltage conditioner board need to be designed More tests need to be done to check if the intra-pulse phase slope compensation can increase the energy gain or not Zheqiao Geng, Micro. TCA LLRF 63
Summary 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 64
Summary of Micro. TCA System l l l 2020/11/29 Micro. TCA introduces intra-pulse control to reduce fast jitters Micro. TCA system uses PCI express for faster data acquisition which enables to save the RF waveforms at 120 Hz or even at 360 Hz Micro. TCA system uses more powerful FPGA and CPU which enables to upgrade the system for 360 Hz or multi-bunch operation without changing the hardware Micro. TCA system contains more ADC channels in a single board which enables to implement the reference tracking to remove the phase jump problem in digital I/Q demodulation algorithm The PAD/PAC system uses Coldfire MCU which is a bottleneck for real-time performance. The PAD-VME-PAC chain is connected with Ethernet and it is not possible to perform intra-pulse control. 120 Hz waveform saving is poorly supported as well Zheqiao Geng, Micro. TCA LLRF 65
Summary of Micro. TCA System (cont’d) l l l 2020/11/29 Micro. TCA has better upgradability: overhead in data transfer speed (PCI Express) and computation power (FPGA + multi-core CPU) Micro. TCA has better maintainability: hot-swappable – reducing repair time – more availability Micro. TCA has better reliability – simpler and more compact system structure; redundant MCH and power supply Micro. TCA has better platform management – IPMI Micro. TCA is a new platform which needs more development efforts Cost is relatively high due to small market Zheqiao Geng, Micro. TCA LLRF 66
Thank you! 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 67
Backup Slides 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 68
Phase and Amplitude Actuation Noise l l l I/Q modulator Input Jitters: Phase 0. 083 deg RMS, Amplitude 0. 01% I/Q modulator Output Jitters: Phase 0. 074 deg RMS, Amplitude 0. 03% The phase and amplitude actuation does not introduce extra noise (or at least neglectable) 2020/11/29 Zheqiao Geng, Micro. TCA LLRF 69
