Software Design Main issues decompose system into parts

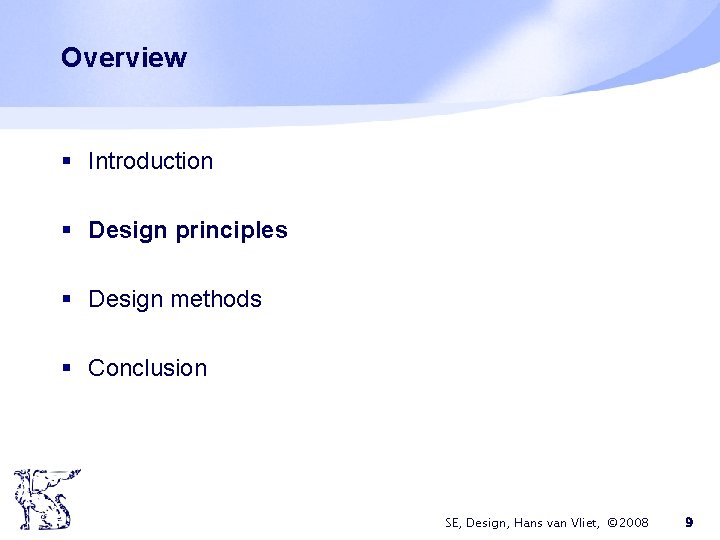

Overview § Introduction § Design principles § Design methods § Conclusion SE, Design, Hans

Programmer’s Approach to Software Engineering Skip requirements engineering and design phases; start writing code

Point to ponder Is this the same as e. Xtreme Programming? Or is there

Why this programmer’s approach? § Design is a waste of time § We need

However, . . . The longer you postpone coding, the sooner you’ll be finished

Up front remarks § Design is a trial-and-error process § The process is not

Software design as a “wicked” problem § There is no definite formulation § There

Design principles § § § Abstraction Modularity, coupling and cohesion Information hiding Limit complexity

Abstraction § procedural abstraction: natural consequence of stepwise refinement: name of procedure denotes sequence

Abstraction § data abstraction: aimed at finding a hierarchy in the data application-oriented data

Modularity § structural criteria which tell us something about individual modules and their interconnections

Types of cohesion § § § § coincidental cohesion logical cohesion temporal cohesion procedural

How to determine the cohesion type? § describe the purpose of the module in

Types of coupling § § § content coupling common coupling external coupling control coupling

Coupling levels are technology dependent § Data coupling assumes scalars or arrays, not records

strong cohesion & weak coupling simple interfaces § § § simpler communication simpler correctness

Information hiding § each module has a secret § design involves a series of

Point to ponder § How many lines of code is this: #include <stdio. h>

Complexity § measure certain aspects of the software (lines of code, # of if-statements,

intra-modular § attributes of a single module § two classes: § measures based on

Sized-based complexity measures § counting lines of code § differences in verbosity § differences

Software science basic entities § § n 1: number of unique operators n 2:

Example program public static void sort(int x []) { for (int i=0; i <

operator public sort() int [] {} for {; ; } if () = <

operand x length i j save 0 1 n 2 = 7 # of

Other software science formulas § § § § size of vocabulary: n = n

Software science § empirical studies: reasonably good fit § critique: § explanations are not

Structure-based measures § based on § control structures § data structures § or both

1 Example program 2 public static void sort(int x []) { for (int i=0;

1 Cyclomatic complexity 2 3 e = number of edges (13) n = number

Note: CV = e-n+p+1, CV e-n+2 p e-n+p+1 = 13 -13+3+1 = 4 e-n+2

Intra-modular complexity measures, summary § for small programs, the various measures correlate well with

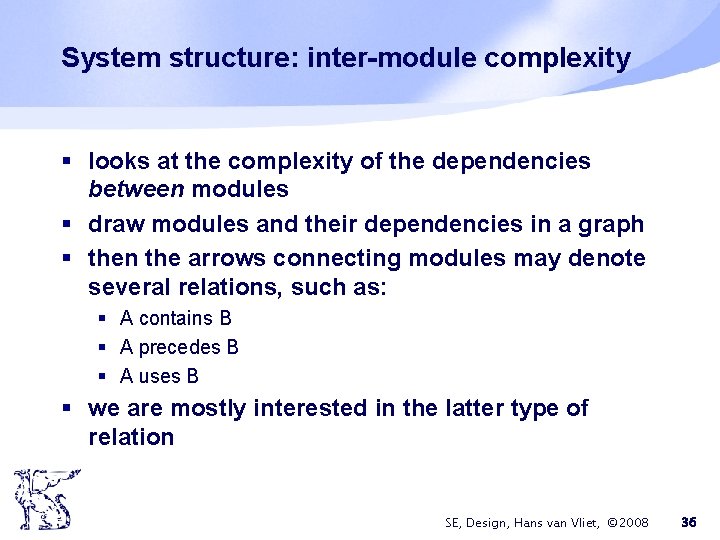

System structure: inter-module complexity § looks at the complexity of the dependencies between modules

The uses relation § In a well-structured piece of software, the dependencies show up

In a picture: chaos strict hierarchy tree SE, Design, Hans van Vliet, © 2008

Measurements width height } size # nodes # edges SE, Design, Hans van Vliet,

Deviation from a tree hierarchy strict hierarchy tree SE, Design, Hans van Vliet, ©

Tree impurity metric § complete graph with n nodes has n(n-1)/2 edges § a

Desirable properties of any tree impurity metric § m(G) = 0 if and only

Information flow metric § tree impurity metrics only consider the number of edges, not

Shepperd’s variant of information flow metric § there is a local flow from A

Point to ponder: What does this program do? procedure X(A: array [1. . n]

The role of previously acquired knowledge during design § programming plans, beacons § chunks

Object-oriented metrics § § § WMC: Weighted Methods per Class DIT: Depth of Inheritance

Weighted Methods per Class § measure for size of class § WMC = c(i),

Depth of Class in Inheritance Tree § DIT = distance of class to root

Number Of Children § NOC: counts immediate descendants § higher values NOC are considered

Coupling Between Object Classes § two classes are coupled if a method of one

Response For a Class § RFC measures the “immediate surroundings” of a class §

Lack of Cohesion of a Method § cohesion = glue that keeps the module

OO metrics § WMC, CBO, RFC, LCOM most useful § Predict fault proneness during

Design methods § Functional decomposition § Data Flow Design (SA/SD) § Design based on

Sample of design methods § § § § § Decision tables E-R Flowcharts FSM

Functional decomposition bottom-up top-down SE, Design, Hans van Vliet, © 2008 58

Functional decomposition (cnt’d) § Extremes: bottom-up and top-down § Not used as such; design

Data flow design § Yourdon and Constantine (early 70 s) § nowadays version: two-step

Entities in a data flow diagram § external entities § processes § data flows

Top-level DFD: context diagram direction management report library system request client ack’ment SE, Design,

First-level decomposition client management acknowledgement request log data prelim. doc borrow request return request

Second-level decomposition for “preliminary processing” data base request log file client info check client

Example minispec Identification: Process request Description: 1 Enter type of request 1. 1 If

Data dictionary entries borrow-request = client-id + book-id return-request = client-id + book-id log-data

From data flow diagrams to structure charts § result of SA: logical model, consisting

Transform-centered design A B D E F G C H K Do job C

Design based on data structures (JSP & JSD) § JSP = Jackson Structured Programming

JSP § basic idea: good program reflects structure of its input and output §

Compound components in JSP B sequence iteration A A C D B* selection A

A JSP example input line output * line * until EOF loop read line

Another JSP example input file article mutation addition removal SE, Design, Hans van Vliet,

Another JSP example (cnt’d) output heading body net mutation SE, Design, Hans van Vliet,

Another JSP example (cnt’d) program heading contents do article and do article make row

Structure clash unsorted mutations sorting program sorted mutations process mutations SE, Design, Hans van

Inversion unsorted mutations sorting program write mutation sorted mutations process mutations read mutation SE,

Fundamental issues in JSP § Model input and output using structure diagrams § Merge

Difference between JSP and other methods § Functional decomposition, data flow design: Problem structure

JSD: Jackson Structured Design § Problem with JSP: how to obtain a mapping from

JSD’s modeling stage § JSD models the Uo. D as a set of entities

OOAD methods § three major steps: 1 identify the objects 2 determine their attributes

(Part of) problem statement Design the software to support the operation of a public

Candidate objects § § § software library system station customer transaction book library employee

Carefully consider candidate list § eliminate implementation constructs, such as “software” § replace or

Relationships § From the problem statement: § employee operates station § station has bar

Result: initial class diagram SE, Design, Hans van Vliet, © 2008 87

Usage scenario sequence diagram SE, Design, Hans van Vliet, © 2008 88

OO as middle-out design § First set of objects becomes middle level § To

OO design methods § Booch: early, new and rich set of notations § Fusion:

Booch’ method identify classes and objects identify semantics of classes and objects identify relationships

Fusion Analysis object model interface model Design object interaction graphs visibility graphs class descriptions

RUP § Nine workflows, a. o. requirements, analysis and design § Four phases: inception,

Classification of design methods § Simple model with two dimensions: § Orientation dimension: §

Classification of design methods (cnt’d) problem-oriented product-oriented conceptual I ER modeling Structured analysis II

Characteristics of these classes § I: understand the problem § II: transform to implementation

Caveats when choosing a particular design method § Familiarity with the problem domain §

Object-orientation: does it work? § do object-oriented methods adequately capture requirements engineering? § do

Design pattern § Provides solution to a recurring problem § Balances set of opposing

Example design pattern: Proxy § Context: § Client needs services from other component, direct

Example design pattern: Command Processor § Context: § User interface that must be flexible

Antipatterns § Patterns describe desirable behavior § Antipatterns describe situations one had better avoid

Example antipatterns § God class: class that holds most responsibilities § Lava flow: dead

Conclusion § Essence of the design process: decompose system into parts § Desirable properties
