Sensitivity Analysis A Saltelli European Commission Joint Research

Sensitivity Analysis A. Saltelli European Commission, Joint Research Centre of Ispra, Italy andrea. saltelli@jrc. it Toulouse, February 3, 2006 http: //www. jrc. cec. eu. int/uasa 1

Outline • Definitions and requirements • Suggested practices http: //www. jrc. cec. eu. int/uasa 2

Why uncertainty and sensitivity analyses? http: //www. jrc. cec. eu. int/uasa 3

Why sensitivity analysis? Would you go to an orthopaedist who did not use X-rays? (J. M. Furbinger) http: //www. jrc. cec. eu. int/uasa 4

Why sensitivity analysis? Sometime scientific theories compete as to which best describe the evidence. This competition takes place in the space of uncertainties (otherwise there would be no competition). Sensitivity analysis can help make the overall appreciation of the merits of each theory clearer, by mapping a theory’s assumptions onto its inferences. This may even lead to the falsification of one of theories. http: //www. jrc. cec. eu. int/uasa 5

Why sensitivity analysis? Sometime scientific information feeds into the policy process. When this is the case, all parties manipulate uncertainty. Uncertainty cannot be resolved into certitude in most instances. Instead, transparency can be offered by sensitivity analysis. Transparency is what is needed to ensure that the negotiating parties do retain science as an ingredient of decision making. http: //www. jrc. cec. eu. int/uasa 6

• A Definition [Global*] sensitivity analysis: “The study of how the uncertainty in the output of a model (numerical or otherwise) can be apportioned to different sources of uncertainty in the model input” *Global could be an unnecessary specification, were it not for the fact that most analysis met in the literature are local or one-factor-at-a-time … but not at this workshop! http: //www. jrc. cec. eu. int/uasa 7

OAT methods One factor at a time methods are those whereby each input variable is varied or perturbed in turn and the effect on the output measured. http: //www. jrc. cec. eu. int/uasa 8

OAT methods – derivatives Effect on Y of perturbing xj around its nominal value Relative effect on Y of perturbing xj by a fixed fraction of its standard deviation http: //www. jrc. cec. eu. int/uasa 9

OAT methods Derivatives can be computed efficiently using an array of different analytic, numeric or coding techniques (Turanyi and Rabitz 2000). When coding methods are used, computer programmes are modified (e. g. inserting lines of code and coupling with libraries) so that derivatives of large set of variables can be automatically computed at runtime (Grievank, 2000; Cacuci, 2005). http: //www. jrc. cec. eu. int/uasa 10

OAT methods While derivatives are valuable for an array of estimation, calibration, inverse problem solving, and related settings, their use in sensitivity analysis proper is modest in the presence of finite factors uncertainty and non linear models. http: //www. jrc. cec. eu. int/uasa 11

OAT methods A search was made on January 2004 on Science Online, a companion web side of Science magazine (impact factor above 20!). All articles having “sensitivity analysis” as a keyword (23 in number) were reviewed. All articles either presented what we would call an uncertainty analysis (assessing the uncertainty in Y) or performed an OAT type of sensitivity analysis. http: //www. jrc. cec. eu. int/uasa 12

OAT methods Among practitioners of sensitivity analysis this is a known problem – non OAT approaches are considered too complex to be implemented by the majority of investigators. Among the global methods used by informed practitioners are: • variance based methods, already described, • the method of Morris, • various types of Monte Carlo filtering. http: //www. jrc. cec. eu. int/uasa 13

Uncertainty analysis = Mapping assumptions onto inferences Sensitivity analysis = The reverse process Simplified diagram - fixed model 14

Sensitivity analysis can be used to gauge what difference a policy (or a treatment) makes given the uncertainties. An application to policy 15

Sources: A compilation of practices (2000), a ‘primer’ (2005). A third book, for students, is being written again for Wiley. SIMLAB can be freely downloaded from the web. http: //www. jrc. cec. eu. int/uasa 16

The critique of models <-> Uncertainty <<I have proposed a form of organised sensitivity analysis that I call “global sensitivity analysis” in which a neighborhood of alternative assumptions is selected and the corresponding interval of inferences is identified. Conclusions are judged to be sturdy only if the neighborhood of assumptions is wide enough to be credible and the corresponding interval of inferences is narrow enough to be useful. >> Edward E. Leamer, 1990 See http: //sensitivity-analysis. jrc. cec. eu. int/ for all references quoted in this talk. http: //www. jrc. cec. eu. int/uasa 17

Our suggestions on useful requirements Requirement 1. Focus About the output Y of interest. The target of interest should not be the model output per se, but the question that the model has been called to answer. To make an example, if a model predicts contaminant distribution over space and time, it is the total area where a given threshold is exceeded at a given time which would play as output of interest, or the total health effects per time unit. http: //www. jrc. cec. eu. int/uasa 18

Requirement 1 - Focus … about the output Y of interest (continued) One should seek from the analyses conclusions of relevance to the question put to the model, as opposed to relevant to the model, e. g. • Uncertainty in emission inventories [in transport] are driven by variability in driving habits more than from uncertainty in engine emission data. • In transport with chemical reaction problems, uncertainty in the chemistry dominates over uncertainty in the inventories. http: //www. jrc. cec. eu. int/uasa 19

Requirement 1 - Focus A few words about the output Y of interest (continued) • Engineered barrier count less than geological barriers in radioactive waste migration. http: //www. jrc. cec. eu. int/uasa 20

Requirement 1 - Focus On the output Y of interest (continued) An implication of what just said is that models must change as the question put to them changes. The optimality of a model must be weighted with respect to the task. According to Beck et al. 1997, a model is “relevant” when its input factors actually cause variation in the model response that is the object of the analysis. http: //www. jrc. cec. eu. int/uasa 21

Requirement 1 - Focus Bruce Beck’s thought, continued Model “un-relevance” could flag a bad model, or a model unnecessarily complex, used to fend off criticism from stakeholders (e. g. in environmental assessment studies). As an alternative, empirical model adequacy should be sought, especially when the model must be audited. http: //www. jrc. cec. eu. int/uasa 22

Requirements Requirement 2. Multidimensional averaging. In a sensitivity analysis all known sources of uncertainty should be explored simultaneously, to ensure that the space of the input uncertainties is thoroughly explored and that possible interactions are captured by the analysis. (as in EPA’s guidelines). http: //www. jrc. cec. eu. int/uasa 23

Requirement 2 – Multidimensional Averaging Some of the uncertainties might be the result of a parametric estimation, but others may be linked to alternative formulations of the problems, or different framing assumptions which might reflect different views of reality, as well as different value judgements posed on it. http: //www. jrc. cec. eu. int/uasa 24

Requirement 2 – Multidimensional Averaging Most models will be linear if one or few factors are changed in turn, and/or the range of variation is modest. Most models will be non linear and/or non additive otherwise. http: //www. jrc. cec. eu. int/uasa 25

Requirement 2 – Multidimensional Averaging Typical non linear problems are multi-compartment or phase, multi process models involving transfer of mass and/or energy, coupled with chemical reaction or transformation (e. g. filtration, decay…). Our second requirement can also be formulated as: sensitivity analysis should work regardless of the properties of the model. It should be “model free”. http: //www. jrc. cec. eu. int/uasa 26

Requirement 2 – Multidimensional Averaging across models. When there are observations available to compute posterior probabilities on different plausible models, then sensitivity analysis should plug into a Bayesian model averaging. http: //www. jrc. cec. eu. int/uasa 27

Requirements Requirement 3. Important how? . Another way for a sensitivity analysis to become irrelevant is to have different tests thrown at a problem, and different factors importance rankings produced without clue as to what to believe. To avoid this, a third requirement for sensitivity analysis is that the concept of importance be defined rigorously before the analysis. http: //www. jrc. cec. eu. int/uasa 28

Requirements Requirement 4. Pareto. Most often input factors importance is distributed as wealth in nations, with few factors making all the uncertainty and most factors making a negligible contribution to it. A good method should do more than rank the factors, so that this Pareto effect, if present, can be revealed. Requirement 5. Groups. When factors can be logically grouped in subsets, it is handy if the sensitivity measure can be computed for the group, with the same meaning as for the individual factor (as done by all speakers at this workshop when discussing variance based methods). http: //www. jrc. cec. eu. int/uasa 29

Incentives for sensitivity analysis Sensitivity analysis can • surprise the analyst, • find technical errors, • gauge model adequacy and relevance, • identify critical regions in the space of the inputs (including interactions), • establish priorities for research, • simplify models, • verify if policy options (or treatments) make a difference or can be distinguished. • anticipate (prepare against) falsifications of the analysis • … http: //www. jrc. cec. eu. int/uasa 30

Incentives for sensitivity analysis … there can be infinite applications as modelling setting are infinite. A model can be: • Prognostic or diagnostic • Exploratory or consolidative (see Steven C. Bankes – ranging from an accurate predictor to a wild speculation) • Data driven (P. Young) or first-principle, i. e. parsimonious (usually to describe the past) or overparametrised (to allow features of the future to emerge) • Disciplinary (physics, genetics, chemistry…) or statistical • Concerned with risk, control, optimisation, management, discovery, benchmark, didactic, … http: //www. jrc. cec. eu. int/uasa 31

Incentives for sensitivity analysis What methods would meet these promises and fulfil our requirements? The next section will try to introduce the methods, and some of their properties, using a very simple example. http: //www. jrc. cec. eu. int/uasa 32

Practices We try to build a case for the use of a set of methods which in our experience met the requirements illustrated thus far. These are • Variance Based Methods • Morris method • Monte Carlo filtering and related measures http: //www. jrc. cec. eu. int/uasa 33

The first example introduces the variance based measures and the method of Morris. http: //www. jrc. cec. eu. int/uasa 34

• A self-evident problem, to understand the methods applied to it. A simple linear form: Y is the output of interest (a scalar), j are fixed coefficients Zj are uncertain input factors distributed as: 35

Given the model Y will also be normally distributed with parameters: 36

Additional assumptions for 37

According to most of the existing literature, SA is: which would give for our model of Y: =For Our Model FOM http: //www. jrc. cec. eu. int/uasa 38

Hence the factors’ ordering by importance would be based on although … we don’t go far with 39

A better measure could be (IPCC suggestion): which, applied to our model, gives: FOM http: //www. jrc. cec. eu. int/uasa 40

Comparing : The variance of Y decomposed! with we get: … but only because our model is linear! 41

We have to move into “exploration”, e. g. via Monte Carlo by generating a sample and estimating Y to get: 42

Regressing the y’ s on the zi’s we obtain a regression model where asymptotically Most regression packages will already provide the regression in terms of standardised regression coefficients FOM http: //www. jrc. cec. eu. int/uasa 43

Comparing with we conclude that for linear models http: //www. jrc. cec. eu. int/uasa 44

Summarising our results so far: The variance of Y decomposed (again!) for linear models … but something is in the bag also for non linear models. http: //www. jrc. cec. eu. int/uasa 45

For non linear models but: 1) At least we know how much non linear the model is, and can decompose the fraction of the model variance that comes from linear effects: http: //www. jrc. cec. eu. int/uasa 46

2) The coefficients offer a measure of sensitivity that is multi-dimensionally averaged, unlike the . For linear model this does not matter but it does, and a lot for non linear ones. The drawback is when ; typically can be zero or near it for non monotonic models. http: //www. jrc. cec. eu. int/uasa 47

Wrapping up the results so far obtained. We like the idea of decomposing the variance of the model output of interest according to source (the input factors), but would like to do this for all models, independently from their degree of linearity or monotonicity. We would like a model-free approach. http: //www. jrc. cec. eu. int/uasa 48

How do we get there? … a different path is needed. If I could determine the value of an uncertain factor, e. g. one of our and thus fix it, how much would the variance of the output decrease? E. g. imagine the true value is and hence we fix it obtaining a “reduced” conditional variance: http: //www. jrc. cec. eu. int/uasa 49

is a weak measure to rank the input factors, as (i) I do not know where to fix the factor, and (ii) for non-linear model one could have but this difficulty can be overcome by averaging this over the distribution of the uncertain factor http: //www. jrc. cec. eu. int/uasa 50

This gives the measure Average over factor Zi Variance over all other factors for fixed value of Zi http: //www. jrc. cec. eu. int/uasa 51

This has nice properties The highest this, the more influent Zi (=main effect) as in fact: The smallest this the more influent Zi (=residual) http: //www. jrc. cec. eu. int/uasa 52

Another nice property: For linear models! http: //www. jrc. cec. eu. int/uasa 53

But while holds only for linear models, holds for a much larger class of models: that of additive models. E. g. non-linear, additive E. g. non-linear, non- additive http: //www. jrc. cec. eu. int/uasa 54

For non additive models which is also the way to define non additive models. Yet the measure is very useful for ALL models, as it provides a rigorous answer to a precise sensitivity analysis setting. Setting FP, for factors prioritisation. http: //www. jrc. cec. eu. int/uasa 55

Factors’ Prioritisation (FP) Setting. I must bet on a factor that, once “discovered” in its true value and fixed, would reduce the most V(Y). Of course I do not know where the true values are for the factors. The best choice I can make is, by definition, the factor with the highest whether the model is additive or not. Note: also holds when input is correlates, Saltelli and Tarantola, JASA 2002. 56

To complete all this, we must say something about non additive model treatment, so let us complicate our model by allowing both the j and Zj to be uncertain, i. e. as before and http: //www. jrc. cec. eu. int/uasa 57

Our set of uncertain input factors is now and we start crunching number estimating the sensitivity measures. Results are as follows: All are zero. All are > zero http: //www. jrc. cec. eu. int/uasa 58

is zero because the distribution of Zi is centred in zero, and hence for any fixed value of and a fortiori Given that where is the remaining variance? http: //www. jrc. cec. eu. int/uasa 59

To find it out we must compute sensitivity indices on more than one factor. If we do that, we find that Variance over factors Zi and Zj Mean over all other factors m and (Zn with n i, j) http: //www. jrc. cec. eu. int/uasa 60

Quiz: While instead: Why? 61

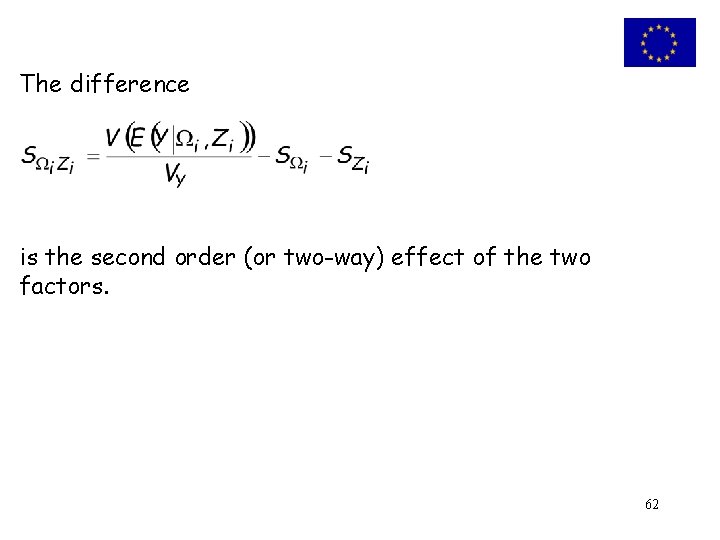

The difference is the second order (or two-way) effect of the two factors. 62

Adding all the non zero first order terms and all the nonzero second order terms gives back 1, i. e. 100% of the variance of Y is accounted for. I. e. FOM For our model, as all other terms of whatever order (1, 2, 3… 2 r) is zero. In general, if k is the total number of independent factors, then http: //www. jrc. cec. eu. int/uasa 63

It is quite rare that in practical applications one compute all terms in (number of terms grows exponentially with k). We are customarily happy with computing all the Si plus a full set of synthetic terms called STi, which give for each factor Xi, the effect of all terms including that factor. http: //www. jrc. cec. eu. int/uasa 64

What are the total effect terms Sti and why do we need them: we have taken factor i as an example; by definition the above is the [first order] effect of all-but- i , and hence is the effect of all terms [any order] that include i ; for our model this is simply 65

Note that for the same relation mentioned before: 66

There is a considerable symmetry between the Si and STi: but accelerated procedures have been developed Both indices can be computed in a single shot at the cost of about N(k+2) simulations, N (100 1000) http: //www. jrc. cec. eu. int/uasa 67

Further: Ideal for factor prioritisation setting, already described Ideal for “factors fixing” setting (more in a moment). http: //www. jrc. cec. eu. int/uasa 68

Further: If your are desperate for less expensive simulations, a rough estimate of these can be obtained via the method of Morris, at about 1/10 of the cost. http: //www. jrc. cec. eu. int/uasa 69

Finally one last useful property of variance based methods: application by groups. Cost = 3 N where or Cost = r. N where (all terms http: //www. jrc. cec. eu. int/uasa or higher are zero) 70

Hints about Morris We mentioned the method of Morris – how does it work? In brief, Morris is simply a derivative (in the form of an incremental ratios) computed at different point in the space of the input and averaged over the same space. http: //www. jrc. cec. eu. int/uasa 71

Two dimensional grid for Morris http: //www. jrc. cec. eu. int/uasa 72

Hints about Morris We compute modulus elementary effects |(Y(X)-Y(X-i, Xi+Delta)| (increment only one factor by one step keeping the others fixed) We do this at different points in the grid and take their average. This is not the original version of the test but it is the one proven by practice to be the most effective. http: //www. jrc. cec. eu. int/uasa 73

Hints about Monte Carlo filtering The next example offers an illustration of Monte Carlo filtering. The idea behind MC filtering is straightforward and has been used extensively by hydro-geologists. Its history can be tracked back to …. In MC filtering one runs a Monte Carlo experiment producing realisations of the output of interests corresponding to different sampled points in the input factors space. http: //www. jrc. cec. eu. int/uasa 74

Hints about Monte Carlo filtering Done this, one can ‘filter’ the realisations, e. g. elements of the Y vector, by for instance comparing them with some sort of evidence or plausibility (e. g. one may have a good reason to reject all negatives values of Y). This will partition the vector Y into two subsets: that of the well behaved Yi and that of the misbehaving Yi. The same will apply to the (marginal) distributions of each of the input factors. http: //www. jrc. cec. eu. int/uasa 75

Hints about Monte Carlo filtering The input vector of each of the generic factors Xj explored in our experiments will result in a behaving subset Xij and a misbehaving Xij. If the factor Xj is non influential in producing the [un] desired behaviour, than the two sub-samples will resample the original unfiltered sample of Xj. Vice-versa, if the factor Xj is influential, than the two sub-samples will be different form one another as well as from the original unfiltered sample of Xj. http: //www. jrc. cec. eu. int/uasa 76

Monte Carlo filtering Summary of MC filtering, step by step: • Define a range for k input factors Xi [1 < i < k], reflecting uncertainties in the model and make a number of Monte Carlo simulations. Each Monte Carlo simulation is associated to a vector of values of the input factors. • Classify model outputs, according to the specification of the ‘acceptable’ model behaviour, [qualify a simulation as behaviour if the model output lies within constraints, non-behaviour otherwise] http: //www. jrc. cec. eu. int/uasa 77

Monte Carlo filtering Step by step: Classifying simulations as either or , a set of binary elements is defined allowing to distinguish two sub-sets for each Xi: of m elements and of n elements [where n+m=N, the total number of Monte Carlo runs performed]. The Smirnov two-sample test (two-sided version) is performed for each factor independently, analyzing the maximum distance between the cumulative distributions of the and sets. http: //www. jrc. cec. eu. int/uasa 78

Monte Carlo filtering http: //www. jrc. cec. eu. int/uasa 79

Monte Carlo filtering – mapping instabilities http: //www. jrc. cec. eu. int/uasa 80

Monte Carlo filtering http: //www. jrc. cec. eu. int/uasa 81

Another example – stability analysis prior to estimation http: //www. jrc. cec. eu. int/uasa 82

No time for any of the above? Maybe I have no time to code any of the methods described so far. Is there a quick and robust (as opposed to quick and dirty) way to obtain a good understanding of the input – output relationship using simply input and output values? In fact for models with non too many factors to be looked at, a simple X-Y scatterplot can tell most of the story. http: //www. jrc. cec. eu. int/uasa 83

Scatterplots a-la-Young, after Young 1997: 84

Scatterplots If you look at the clouds, it will be intuitive that clouds with shapes (features) will be those of influential factors. Clouds with no shape will be those of non influential ones. Another way of looking at those plots is to imagine to cut a vertical slice though each plot. Averaging all points on the slice will tell you the average value of Y at a fixed value of the point Xi. If this average changes moving about the Xi axis, then that factor is doing something. http: //www. jrc. cec. eu. int/uasa 85

Scatterplots - averages by slices, to recover the mono-dimensional functions http: //www. jrc. cec. eu. int/uasa 86

Another example of the mono-dimensional terms in the Sobol’ decomposition http: //www. jrc. cec. eu. int/uasa 87

Scatterplots If V(E(Y|Xi) is high (over the slices), then Xi is doing something. We have re-discovered the first order effect. http: //www. jrc. cec. eu. int/uasa 88

Scatterplots In fact, instead of looking at the clouds, I can look at theses moving averages instead. This was done by practitioners such as Sacks, Welch and co-authors in the late 80’s - early 90’s. Sacks et al. , 1989, suggest a method of sensitivity analysis that is based on decomposing Y into terms (functions) of increasing dimensionality, and look at these as measure of sensitivity (see also an application in Welch et al. , 1992). http: //www. jrc. cec. eu. int/uasa 89

Scatterplots – regression Even better, if we manage to interpolate across these data clouds to yield robust estimates of E(Y|Xi). In fact today we do just that using modern interpolation methods derived by time series analysis (state dependent methods). We then used a ‘rich’ sample of estimated E(Y|Xi) to compute the first order indices, i. e. V(E(Y|Xi))/V(Y). http: //www. jrc. cec. eu. int/uasa 90

Scatterplots – MC filtering Scatterplots and Monte Carlo filtering can also be used in tandem – I can look at filtered plus unfiltered scatterplot of Y versus Xi to gain insight on the effect of Xi on Y in the behavioural runs (also in 2 D). Instead of filtering, I can also take a measure Z of the agreement between Y and observations (e. g. a likelihood) and compute V(E(Z|Xi)) , Sensitivity analysis for calibration. http: //www. jrc. cec. eu. int/uasa 91

• Suggested practices More about the settings: • Factors prioritisation • Factors fixing: Can I fix a factor [or a subset of input factors] at any given value over their range of uncertainty without reducing significantly the output variance? http: //www. jrc. cec. eu. int/uasa 92

More about the settings (continued): • Factors mapping: Which factor is mostly responsible for producing realisations of Y in the region of interest? Monte Carlo Filtering and related tools (Ratto et al. , 2000, 2005) • Variance cutting: Reducing the variance of the output of a prescribed amount fixing the smallest number of factors… a combination of Si and Sti. http: //www. jrc. cec. eu. int/uasa 93

Why do we need settings? • One way in which a SA can go wrong is because its purpose is left unspecified or vague (find the most important factors…). One throws different statistical tests and measures to the problem and obtains different factors rankings … then? • Models can be audited and settings for sensitivity analysis can be audited as well. Importance must be defined beforehand (Requirement Important how ) http: //www. jrc. cec. eu. int/uasa 94

What else can go wrong in a sensitivity analysis? • Too many outputs of interest - our initial discussion. What is the question? Is the model relevant to the question? See Beck et al. 1997 (Requirement Focus) • Piecewise sensitivity (by sub-model, or one possible model at a time, or one factor at a time). Not only conflicts with the previous requirement but leads to a dangerously incomplete exploration of the uncertainties; interactions are overlooked. Plug all uncertainties is one shot (Requirement multidimensional averaging) http: //www. jrc. cec. eu. int/uasa 95

What else can go wrong in a sensitivity analysis? • A posteriori sensitivity. Once an analysis has been produced, its revision via sensitivity analysis by a third party is not something most modellers willingly submit to use SA in the process of model development, prior and within model use in analysis. SA might falsify the analysis. . . 96

Conclusions • Increased need, scope and prescription for quantitative uncertainty and sensitivity analyses. • Methods are mature for use, e. g. in terms of literature, software, computational cost, tested practice, ease of communication. • Accelerated estimation procedures based on simulators, meta-models (RSM), such as those presented at this workshop appear very promising. http: //www. jrc. cec. eu. int/uasa 97

An set of presentations given at a recent school on SA, plus downloadable recent publications and software, can be found at: http: //sensitivity-analysis. jrc. cec. eu. int/ Saltelli, A. , M. Ratto, S. Tarantola and F. Campolongo (2005) Sensitivity Analysis for Chemical Models, Chemical Reviews, 105(7) pp 2811 – 2828. Free summer school in Venice, September 11 -13 2006. … and next SAMO will likely be in June 2007 in Budapest. http: //www. jrc. cec. eu. int/uasa 98

Petroleum System Modelling (viewgraphs are courtesy of ENI-AGIP, group of Paolo Ruffo, see Ruffo et al. 2004) http: //www. jrc. cec. eu. int/uasa 99

Petroleum system modelling (PSM) Deterministic Simulation 3 D Geological Model - f(t) Basement Heat Flow - f(t) Pressure & Temperature 3 D Modelling Generation & Expulsion 3 D Modelling Secondary HC migration HC accumulations http: //www. jrc. cec. eu. int/uasa 100

Schematic Source Rock Model HC GAS OIL SAND AYS W H PAT N TIO A R MIG SHALE SOURCE http: //www. jrc. cec. eu. int/uasa 101

Sensitivity Analysis Flow 1 D Geological Model - f(t) Basement Heat Flow - f(t) Pressure & Temperature 1 D Modelling Well A Generation & Expulsion 1 D Modelling Well B Generation & Expulsion 1 D Modelling http: //www. jrc. cec. eu. int/uasa Well C Generation & Expulsion 1 D Modelling 102

Sensitivity Analysis for Model reduction: relative importance of uncertain variables in the simulation model for generation and expulsion of hydrocarbons OIL GAS t. p. c s z t. i b. . s w u m c e a C o F e d a l / r e m /st TO at F Con rf. T omp erm Ke phi P C Su He Th. Threshold 11, 5 t. p. act. z ess b. . w c i a o u m l F e p r e d OC at F m/ hi/st on rf. T Com T e erm e C P K p. H Su Th Time steps mybp 8, 5 http: //www. jrc. cec. eu. int/uasa 4, 8 1, 9 0, 0 103

Uncertainty Analysis Flow 3 D Geological Model - f(t) Basement Heat Flow - f(t) Pressure & Temperature 3 D Modelling Generation & Expulsion 3 D Modelling Secondary HC migration HC accumulations Statistics http: //www. jrc. cec. eu. int/uasa 104

Uncertainty Analysis results: Oil volumes estimated in traps TRAPS 90 90 50 50 25 25 0 0 400 0 800 GAS 0 400 0 800 0 OIL 1000 0 2000 GAS 60 90 90 30 30 50 50 0 6000 12000 0 0 6000 0 12000 http: //www. jrc. cec. eu. int/uasa 0 200 1000 2000 OIL 60 0 0 400 0 0 200 105 400

Conclusions • The evaluation of the geological risk through a Probabilistic Petroleum System Modelling approach can be done combining Sensitivity and Uncertainty analyses. • Sensitivity Analysis helps in reducing the number of parameters and particularly of scenarios. • Uncertainty Analysis is usually based on a Monte Carlo approach: a sampling scheme can be used to reduce the number of runs. • Calibration to experimental data, when available, can also help in reducing uncertainty ranges or even parameters/scenarios. http: //www. jrc. cec. eu. int/uasa 106
