p Neuton Transport Ventilator Model S Self Guided

p. Neuton Transport Ventilator Model S Self Guided Tour

p. Neuton Transport Ventilator The p. Neuton model S Ventilator provides Critical Care Ventilation with CPAP z Invasive ventilation (ET-Tube) y Volume controlled with CPAP y Bi-Level Pressure ventilation z Non-invasive ventilation (mask) y CPAP y Bi-Level Pressure ventilation

Program Objectives This program is a self guided tour of the p. Neuton Model S Ventilator At the end of this tour you will be able to: z z z Describe the main operating features of the ventilator Identify the controls and connections Describe the patient breathing circuit Set-up the ventilator for patient operation Define various clinical environments for ventilator / CPAP application z Clean and maintain the ventilator

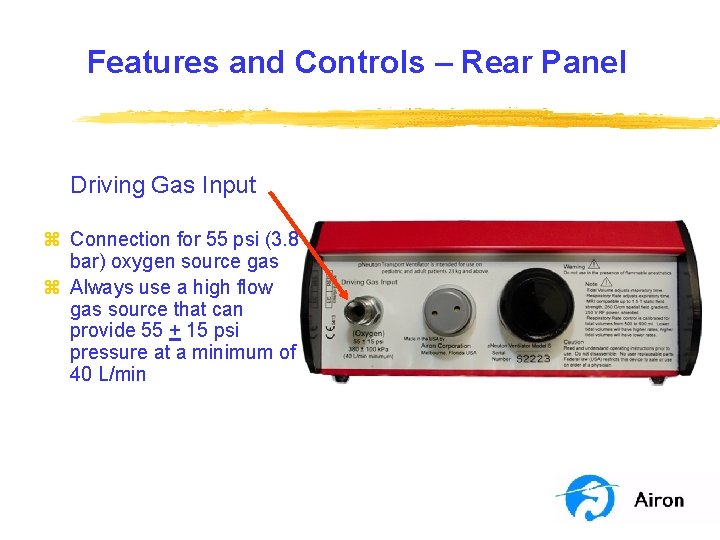

Features and Controls – Rear Panel Driving Gas Input z Connection for 55 psi (3. 8 bar) oxygen source gas z Always use a high flow gas source that can provide 55 + 15 psi pressure at a minimum of 40 L/min

Features and Controls – Rear Panel Alarm z Audible alarm sound generator z Factory preset alarm y Do NOT put tape over the holes, push sharp objects into the alarm or, interfere, in any way, with the alarm. y The alarm is for patient protection and, if, for any reason, you suspect the alarm is not operating properly, have the unit serviced immediately.

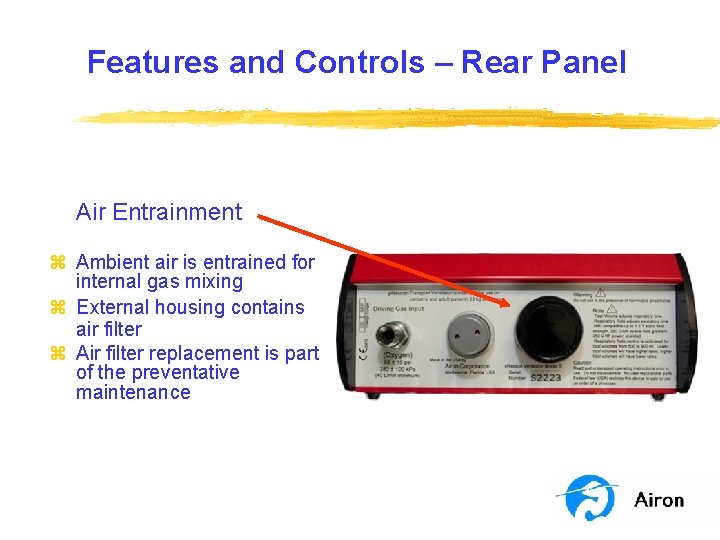

Features and Controls – Rear Panel Air Entrainment z Ambient air is entrained for internal gas mixing z External housing contains air filter z Air filter replacement is part of the preventative maintenance

Features and Controls – Front Panel PEEP / CPAP Control z Adjusts the PEEP/CPAP from 0 to 20 cm H 2 O z Automatic sensitivity z Flow adjusts automatically to meet patient demand up to 140 L/min z Oxygen concentration is maintained at set % Oxygen control

Features and Controls – Front Panel Peak Pressure Control z Limits peak airway pressure from 10 to 75 cm H 2 O for mandatory breaths z Alert with “honking” noise when delivered pressure rapidly exceeds set pressure (e. g. cough) z Used to set the pressure of mandatory breaths for Bi. Level Pressure ventilation

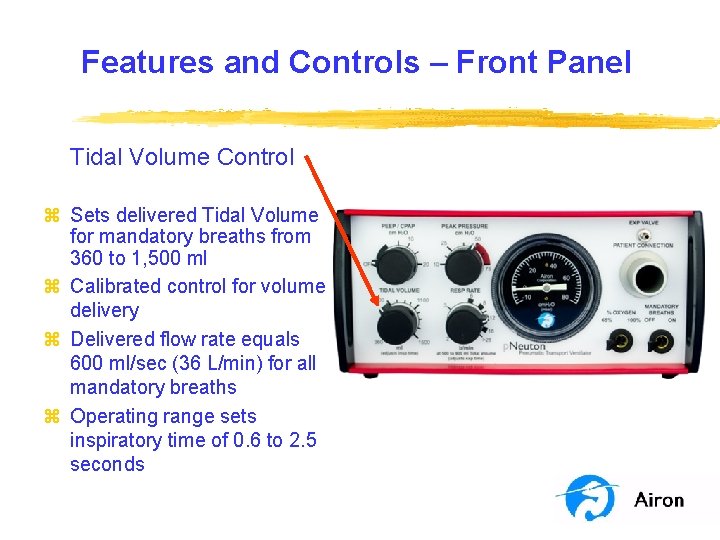

Features and Controls – Front Panel Tidal Volume Control z Sets delivered Tidal Volume for mandatory breaths from 360 to 1, 500 ml z Calibrated control for volume delivery z Delivered flow rate equals 600 ml/sec (36 L/min) for all mandatory breaths z Operating range sets inspiratory time of 0. 6 to 2. 5 seconds

Features and Controls – Front Panel Respiratory Rate Control z Sets mandatory breath Respiratory Rate from 2 to >28 breaths/min z Control adjusts expiratory time with a range of 0. 6 to 30 seconds z Calibrated control is accurate for tidal volumes from 500 to 950 ml. Lower volumes will have faster rates, higher volumes will have slower rates. z Respiratory Rate may vary slightly as the Tidal Volume (inspiratory time) is changed

Features and Controls – Front Panel % Oxygen Control z Delivered oxygen choice y 65% y 100% z Sets both mandatory breath and spontaneous breath oxygen concentration

Features and Controls – Front Panel Mandatory Breath Control z Activates ventilation mode z Switch for mandatory breaths y On or Off z Ventilator operates in CPAP mode with switch in “OFF” position

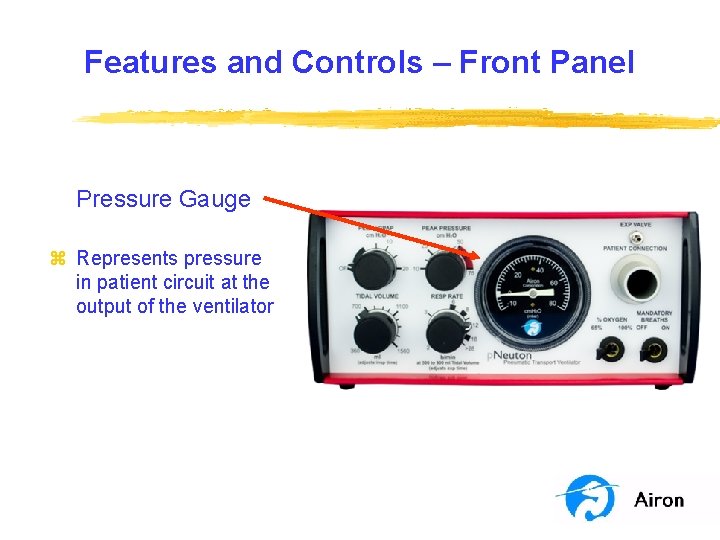

Features and Controls – Front Panel Pressure Gauge z Represents pressure in patient circuit at the output of the ventilator

Features and Controls – Front Panel Patient Connection z Connection for the large bore hose of the patient circuit

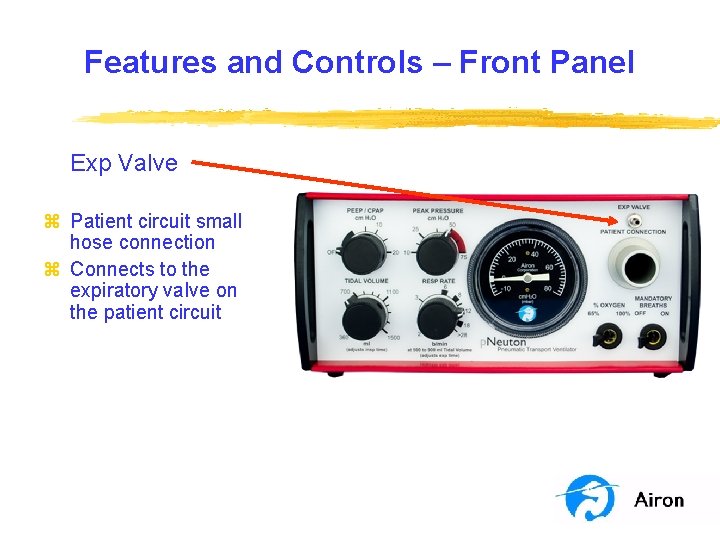

Features and Controls – Front Panel Exp Valve z Patient circuit small hose connection z Connects to the expiratory valve on the patient circuit

Patient Breathing Circuit Patient circuit is a single limb system z Both hoses attach to the front of the ventilator z Patient end connects for clinical intervention y Directly to an endotracheal tube (invasive) y Face mask (noninvasive)

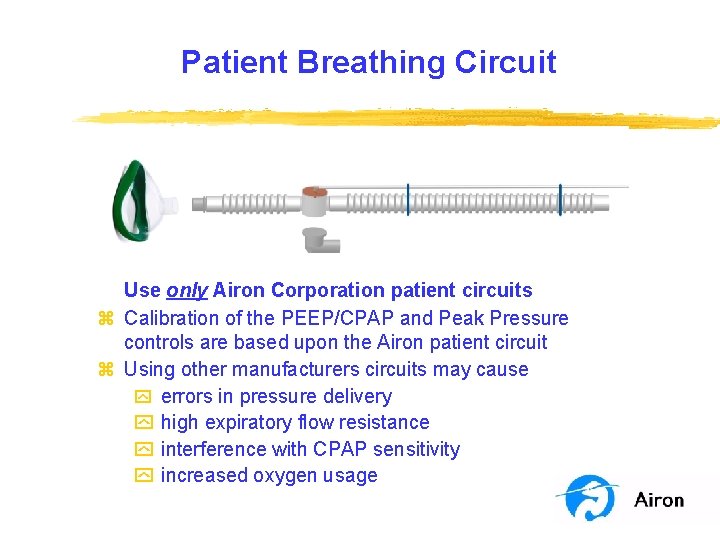

Patient Breathing Circuit Use only Airon Corporation patient circuits z Calibration of the PEEP/CPAP and Peak Pressure controls are based upon the Airon patient circuit z Using other manufacturers circuits may cause y errors in pressure delivery y high expiratory flow resistance y interference with CPAP sensitivity y increased oxygen usage

Patient Breathing Circuit Accessories to optimize patient care z Airon in-line medication nebulizer y Fits between the mask and patient circuit y Nebulizer can be removed to add medication while maintaining pressure z CO 2 monitoring y For In-line sampling place the Tee between the mask and patient circuit y Or use the nasal prongs under the mask z Airon expiratory bacteria / viral filter can be added using the 90 degree elbow

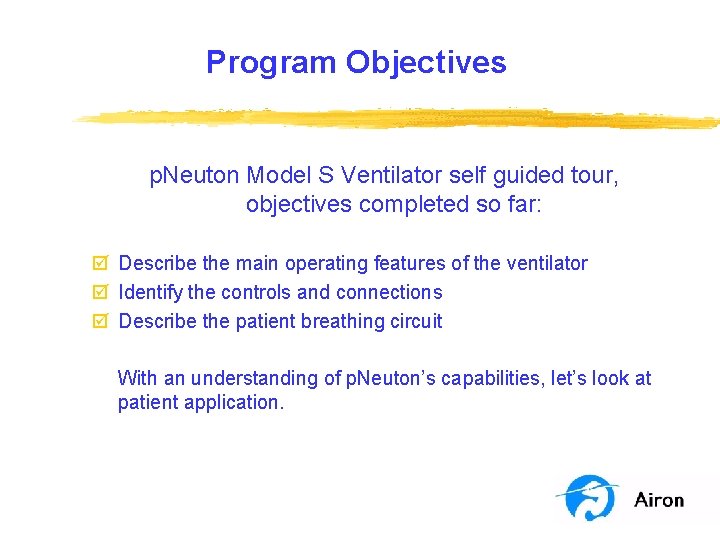

Program Objectives p. Neuton Model S Ventilator self guided tour, objectives completed so far: þ Describe the main operating features of the ventilator þ Identify the controls and connections þ Describe the patient breathing circuit With an understanding of p. Neuton’s capabilities, let’s look at patient application.

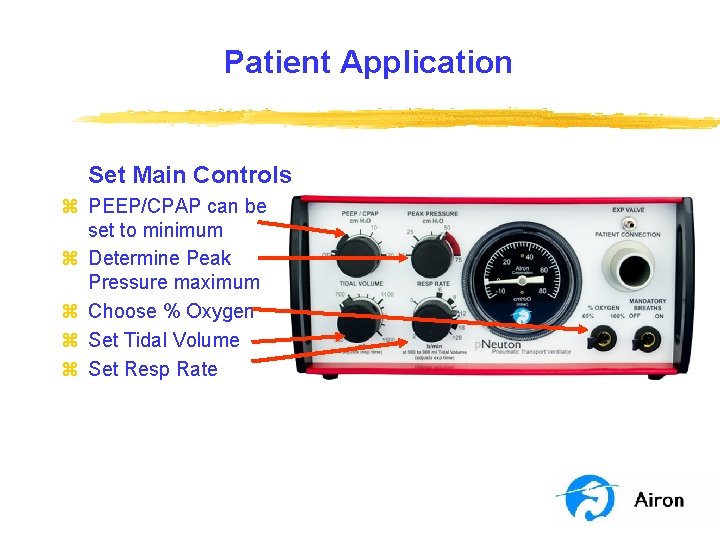

Patient Application Set Main Controls z PEEP/CPAP can be set to minimum z Determine Peak Pressure maximum z Choose % Oxygen z Set Tidal Volume z Set Resp Rate

Patient Application Initial Set-up z Attach Airon patient circuit to ventilator z Attach a high pressure oxygen hose to the rear of the ventilator z Attach the other end of the high pressure hose to the oxygen source

Patient Application Begin Ventilation z Turn ON oxygen supply z For ventilation, turn Mandatory Breaths control “ON” z Ventilator will start to provide breaths at the settings on the controls

Patient Application Set PEEP / CPAP z Adjust the PEEP/CPAP control to the level desired z If a test lung or patient is not attached to the circuit, a high flow of gas will occur z With Mandatory Breaths control “OFF”, set at least 4 cm H 2 O to optimize performance in CPAP mode

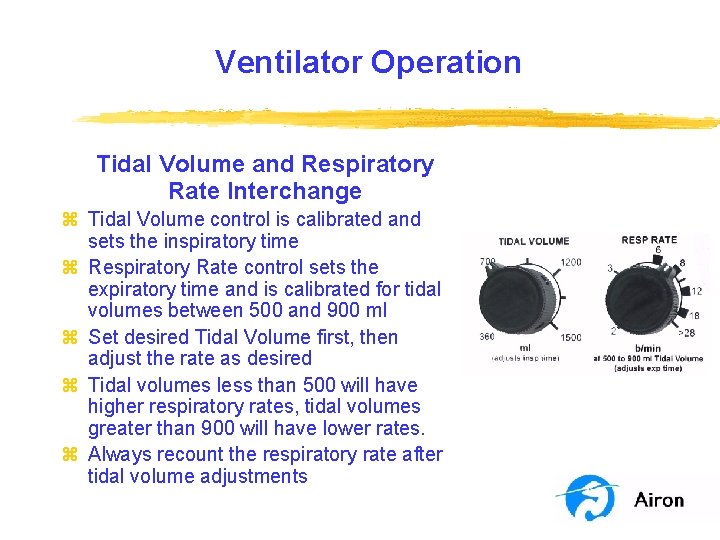

Ventilator Operation Tidal Volume and Respiratory Rate Interchange z Tidal Volume control is calibrated and sets the inspiratory time z Respiratory Rate control sets the expiratory time and is calibrated for tidal volumes between 500 and 900 ml z Set desired Tidal Volume first, then adjust the rate as desired z Tidal volumes less than 500 will have higher respiratory rates, tidal volumes greater than 900 will have lower rates. z Always recount the respiratory rate after tidal volume adjustments

Ventilator Operation Peak Pressure Limit z Operates to limit the peak airway pressure during mandatory breaths z For volume ventilation, set the Peak Pressure 10 cm H 2 O above the pressure needed to deliver the set Tidal Volume z Peak Pressure control is not an alarm y During rapid patient exhalation, as seen during coughs, the expiratory valve will make a “honking” noise to alert you that the patient is reaching the peak pressure setting

Ventilator Operation % Oxygen Control z Set % Oxygen control to the desired oxygen level z Both mandatory breaths and spontaneous breaths receive set oxygen level z Oxygen tank time almost doubles with 65% setting z Caution - with rapid, large tidal volumes on 100% oxygen, the actual delivered percentage for spontaneous breaths may be less than 100%

Clinical Issues Let’s look at various clinical environments for ventilator / CPAP application z z z z Using CPAP by itself Pediatric ventilation Bi-Level Pressure ventilation MRI operation Medication nebulization CO 2 monitoring Altitude operation Hazmat operation

Clinical Issues Using CPAP by itself z Used on spontaneous breathing patients in respiratory failure including y Congestive Heart Failure (CHF) y COPD and Asthma y Near Drowning y CO poisoning z Turn Mandatory Breath switch off z Set CPAP level as needed z Can be used with mask or ET-Tube

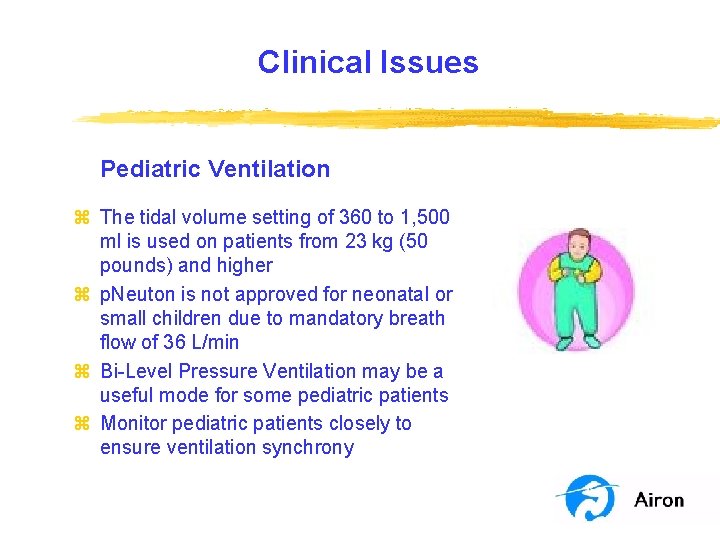

Clinical Issues Pediatric Ventilation z The tidal volume setting of 360 to 1, 500 ml is used on patients from 23 kg (50 pounds) and higher z p. Neuton is not approved for neonatal or small children due to mandatory breath flow of 36 L/min z Bi-Level Pressure Ventilation may be a useful mode for some pediatric patients z Monitor pediatric patients closely to ensure ventilation synchrony

Clinical Issues Bi-Level Pressure Ventilation z Used to mimic Bi. PAP® type ventilation z Set the Peak Pressure to the desired pressure level z Adjust Tidal Volume control to increase or decrease inspiratory time z Adjust PEEP/CPAP to established baseline pressure

Clinical Issues MRI Operation z p. Neuton is compatible with MRI scanners up to 3 Tesla in strength, maximum spatial gradient magnetic field of 720 gauss/cm or less with no gauss line restriction z While tests show that p. Neuton functions at the bore of the MRI unit, a minimum proximity of 12 inches (0. 3 meter) from the bore is recommended z Safe MRI practice calls for all devices used in the proximity of a MRI scanner, including p. Neuton, be anchored to prevent inadvertent movement

Clinical Issues Providing nebulized medications z A medication nebulizer may be placed between the patient connection and the patient z Patient will inhale medication during every breath and exhale back out through patient circuit z Expiratory filter may be added for personnel safety

Clinical Issues CO 2 Monitoring z Any type of CO 2 analyzer may be used z With in-line style analyzers place the sensor Tee between the patient circuit connection and the patient z With sidestream analyzers place the nasal prong sampling tube under the face mask

Clinical Issues Altitude Operation z Ventilator can be used for air transports in unpressurized cabins up to 15, 000 feet z Delivered Tidal Volume will increase and Respiratory Rate will decrease as altitude increases z Pressure settings will not change as altitude changes z Always use an external spirometer to check the delivered tidal volume z Do not use the ventilator in hyperbaric chambers – the delivered Tidal Volume will drop rapidly as pressure increases

Clinical Issues Hazmat Operations z Ventilator can be used in hazardous breathing areas contaminated with nuclear, biological or chemical (NBC) agents z Attach proper NBC filter to rear of ventilator at the air entrainment port using adapter z All functions of the ventilator and CPAP system will operate normally providing filtered air and oxygen to the patient

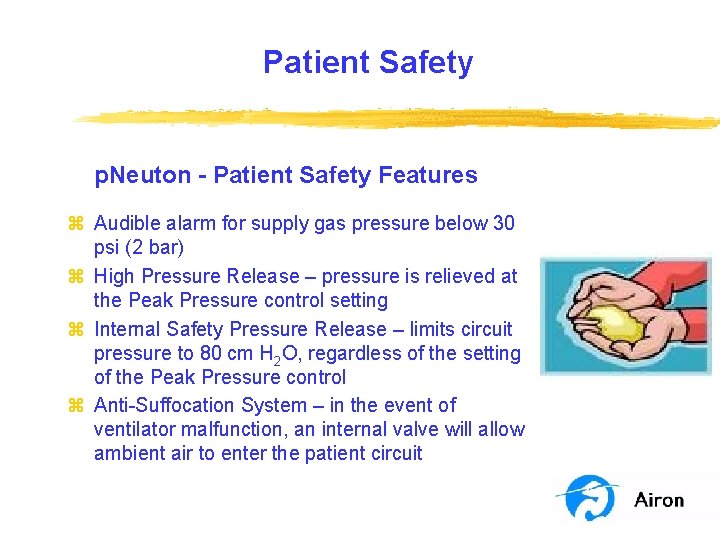

Patient Safety p. Neuton - Patient Safety Features z Audible alarm for supply gas pressure below 30 psi (2 bar) z High Pressure Release – pressure is relieved at the Peak Pressure control setting z Internal Safety Pressure Release – limits circuit pressure to 80 cm H 2 O, regardless of the setting of the Peak Pressure control z Anti-Suffocation System – in the event of ventilator malfunction, an internal valve will allow ambient air to enter the patient circuit

Cleaning and Maintenance z Clean ventilator between patient use applications using a soft cloth and a mild detergent/disinfectant z Do not immerse the ventilator in water z Disposable patient circuit is for single use application and should not be cleaned, disinfected or reused z Ventilator should receive preventative maintenance every 2 years

Program Objectives p. Neuton Model S Ventilator self guided tour completed; you should now be able to: þ þ þ Describe the main operating features of the ventilator Identify the controls and connections Describe the patient circuit Set-up the ventilator for patient operation Define various clinical environments for ventilator / CPAP application þ Clean and maintain the ventilator Next Step – consider reviewing the p. Neuton Case Study and completing the competency evaluation

Contact Information Thank you for you interest in the p. Neuton Transport Ventilator For more information visit www. Airon. USA. com or call Airon Corporation at: 1 -321 -821 -9433 1 -888 -448 -1238 (toll free North America) CD-S-017 Rev C
