Modes of Mechanical Ventilation POINTS OF DISCUSSIONS Advanced

  • Slides: 37
Download presentation
Modes of Mechanical Ventilation

Modes of Mechanical Ventilation

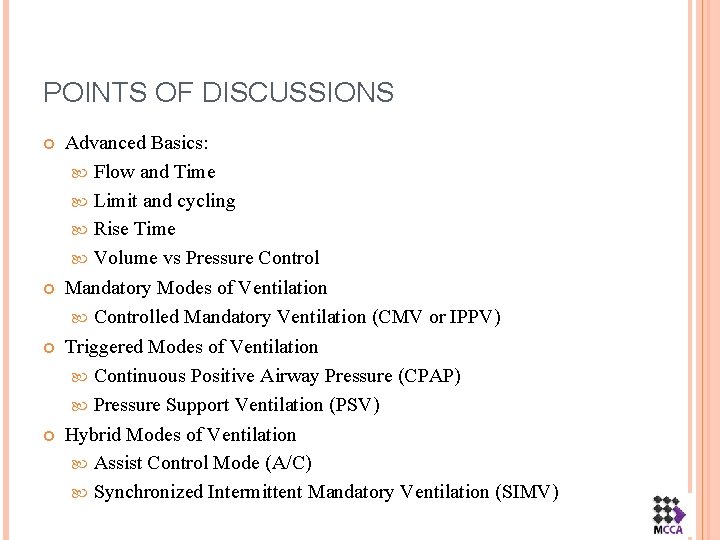

POINTS OF DISCUSSIONS Advanced Basics: Flow and Time Limit and cycling Rise Time Volume

POINTS OF DISCUSSIONS Advanced Basics: Flow and Time Limit and cycling Rise Time Volume vs Pressure Control Mandatory Modes of Ventilation Controlled Mandatory Ventilation (CMV or IPPV) Triggered Modes of Ventilation Continuous Positive Airway Pressure (CPAP) Pressure Support Ventilation (PSV) Hybrid Modes of Ventilation Assist Control Mode (A/C) Synchronized Intermittent Mandatory Ventilation (SIMV)

RESPIRATORY CYCLE ycling ng cli Cy Transitio n=Inspir atory C ry to ra pi

RESPIRATORY CYCLE ycling ng cli Cy Transitio n=Inspir atory C ry to ra pi Ex n= io sit an Tr Inspiration Expiration

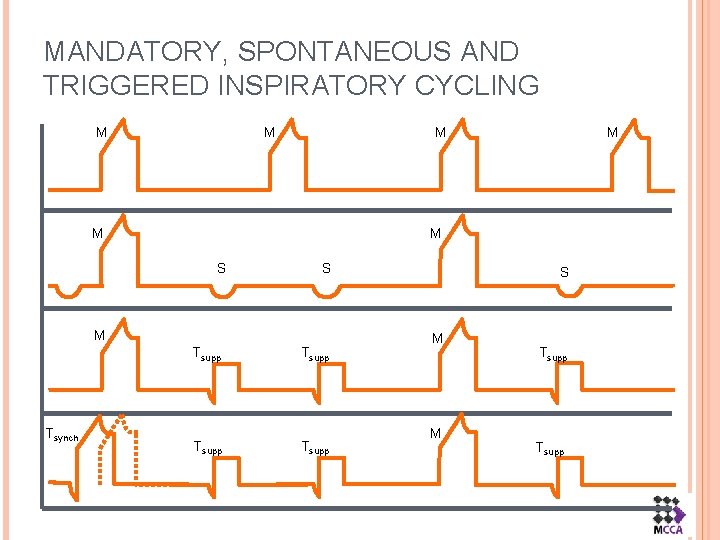

MANDATORY, SPONTANEOUS AND TRIGGERED INSPIRATORY CYCLING M M S S M Tsynch M M

MANDATORY, SPONTANEOUS AND TRIGGERED INSPIRATORY CYCLING M M S S M Tsynch M M Tsupp S M M Tsupp

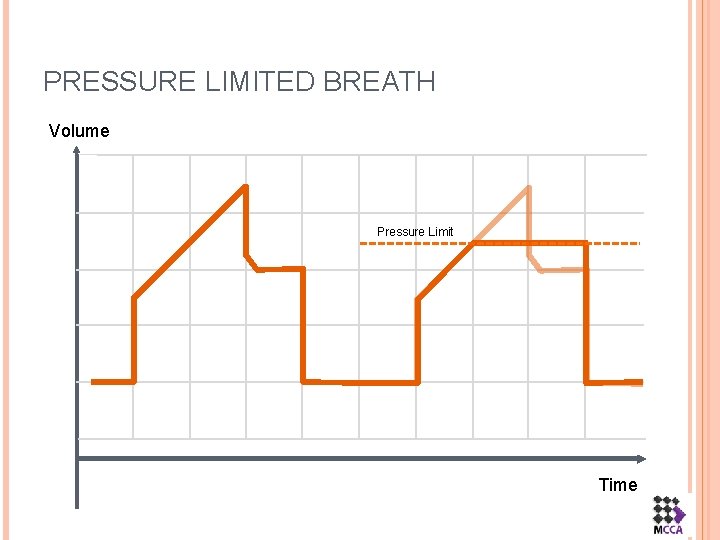

PRESSURE LIMITED BREATH Volume Pressure Limit Time

PRESSURE LIMITED BREATH Volume Pressure Limit Time

EXPIRATORY FLOW CYCLING Flow 100% Flow Cycling 50% Time

EXPIRATORY FLOW CYCLING Flow 100% Flow Cycling 50% Time

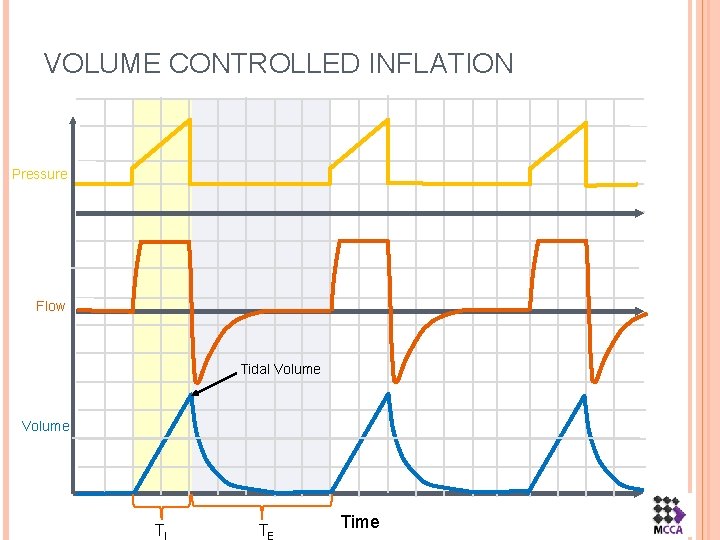

VOLUME CONTROLLED INFLATION Pressure Flow Tidal Volume TI TE Time

VOLUME CONTROLLED INFLATION Pressure Flow Tidal Volume TI TE Time

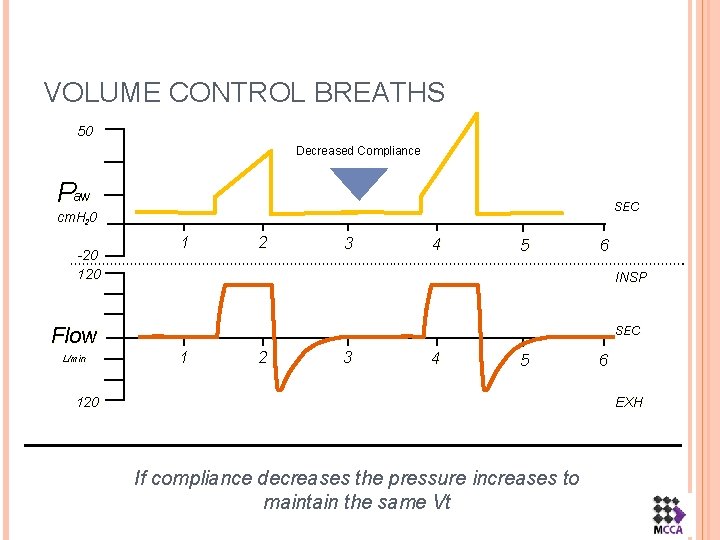

VOLUME CONTROL BREATHS 50 Decreased Compliance Paw SEC cm. H 20 -20 120 Flow

VOLUME CONTROL BREATHS 50 Decreased Compliance Paw SEC cm. H 20 -20 120 Flow L/min 1 2 3 4 5 6 INSP SEC 1 2 3 4 5 120 6 EXH If compliance decreases the pressure increases to maintain the same Vt

PRESSURE CONTROLLED INFLATION Rise Time Pressure Peak Inspiratory Flow Tidal Volume TI TE Time

PRESSURE CONTROLLED INFLATION Rise Time Pressure Peak Inspiratory Flow Tidal Volume TI TE Time

Volume/Flow Control Inspiration Pressure Control Expiration 20 Inspiration Expiration 20 Paw Pressure Paw 0

Volume/Flow Control Inspiration Pressure Control Expiration 20 Inspiration Expiration 20 Paw Pressure Paw 0 1 0 2 20 0 1 2 20 Volume 0 0 1 0 2 3 Flow 0 -3 3 Time (s) 0 -3 Time (s)

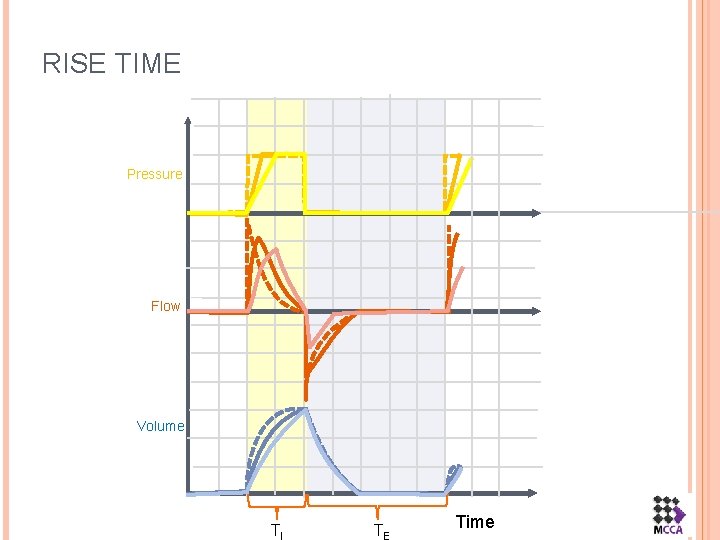

RISE TIME Pressure Flow Volume TI TE Time

RISE TIME Pressure Flow Volume TI TE Time

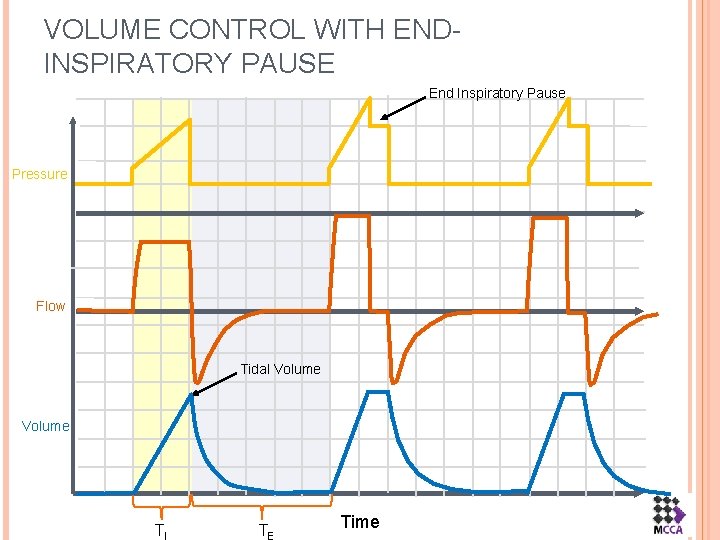

VOLUME CONTROL WITH ENDINSPIRATORY PAUSE End Inspiratory Pause Pressure Flow Tidal Volume TI TE

VOLUME CONTROL WITH ENDINSPIRATORY PAUSE End Inspiratory Pause Pressure Flow Tidal Volume TI TE Time

RELATIONSHIP BETWEEN TIDAL VOLUME, INSPIRATORY TIME AND FLOW Volume VT 3 Flow= 37. 5

RELATIONSHIP BETWEEN TIDAL VOLUME, INSPIRATORY TIME AND FLOW Volume VT 3 Flow= 37. 5 L/min VT 1 Flow= 30 L/min Insp VT 2 Exp Flow= 15 L/min Ti a Time

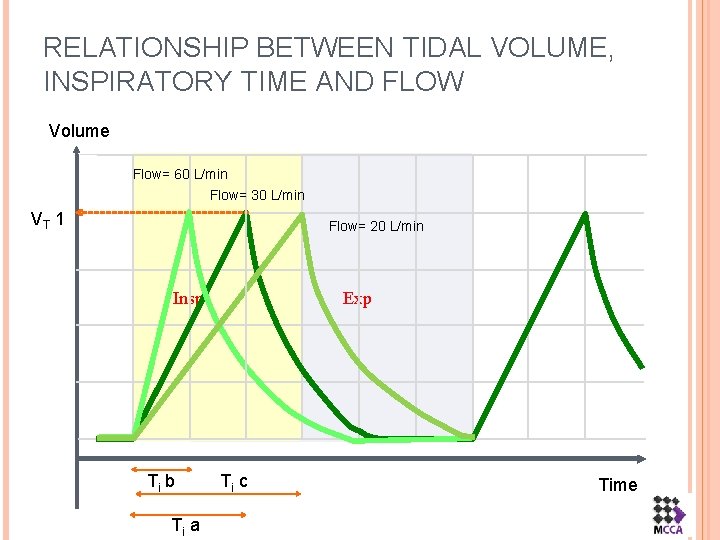

RELATIONSHIP BETWEEN TIDAL VOLUME, INSPIRATORY TIME AND FLOW Volume Flow= 60 L/min Flow= 30

RELATIONSHIP BETWEEN TIDAL VOLUME, INSPIRATORY TIME AND FLOW Volume Flow= 60 L/min Flow= 30 L/min VT 1 Flow= 20 L/min Insp Ti b Ti a Ti c Exp Time

CPAP and PSVV TRIGGERED MODES OF VENTILATION

CPAP and PSVV TRIGGERED MODES OF VENTILATION

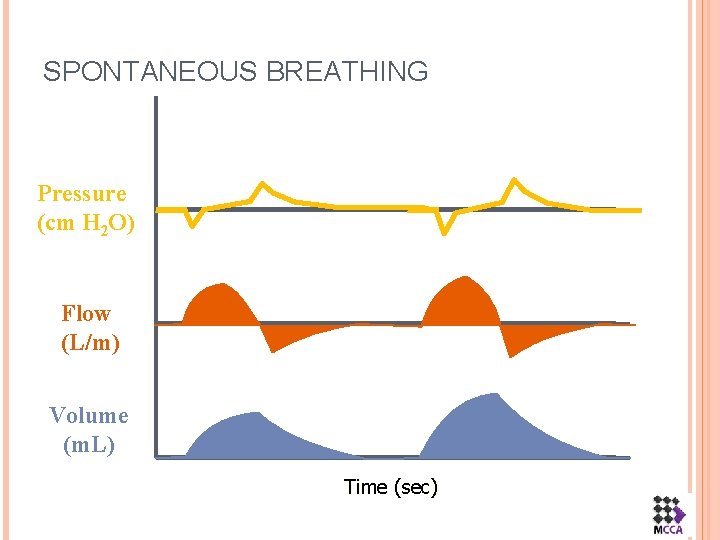

SPONTANEOUS BREATHING Pressure (cm H 2 O) Flow (L/m) Volume (m. L) Time (sec)

SPONTANEOUS BREATHING Pressure (cm H 2 O) Flow (L/m) Volume (m. L) Time (sec)

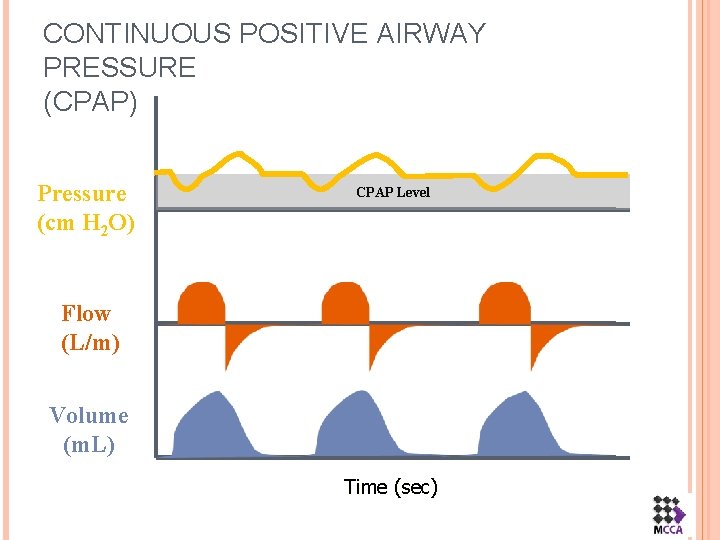

CONTINUOUS POSITIVE AIRWAY PRESSURE (CPAP) Pressure (cm H 2 O) CPAP Level Flow (L/m)

CONTINUOUS POSITIVE AIRWAY PRESSURE (CPAP) Pressure (cm H 2 O) CPAP Level Flow (L/m) Volume (m. L) Time (sec)

PRESSURE SUPPORT VENTILATION (PSV) Longer Inspiration Pressure (cm H 2 O) Set PS Level

PRESSURE SUPPORT VENTILATION (PSV) Longer Inspiration Pressure (cm H 2 O) Set PS Level Better Efforts Flow Cycling Flow (L/m) Volume (m. L) Time (sec) Patient Triggered, Flow Cycled, Pressure limited Mode

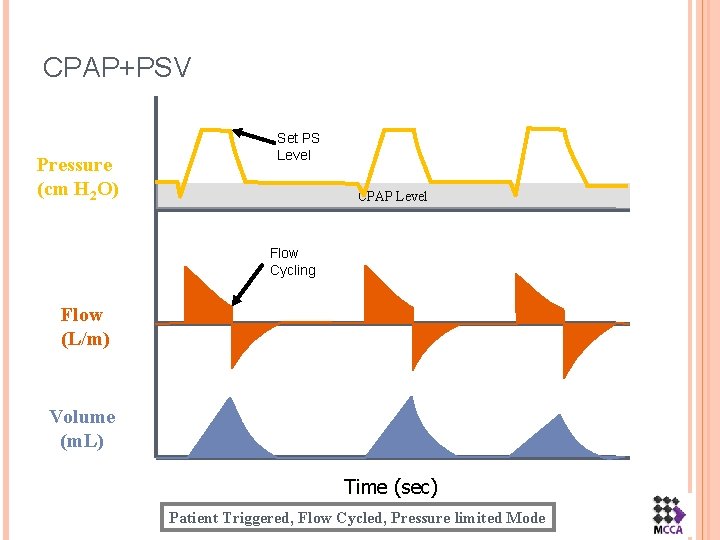

CPAP+PSV Pressure (cm H 2 O) Set PS Level CPAP Level Flow Cycling Flow

CPAP+PSV Pressure (cm H 2 O) Set PS Level CPAP Level Flow Cycling Flow (L/m) Volume (m. L) Time (sec) Patient Triggered, Flow Cycled, Pressure limited Mode

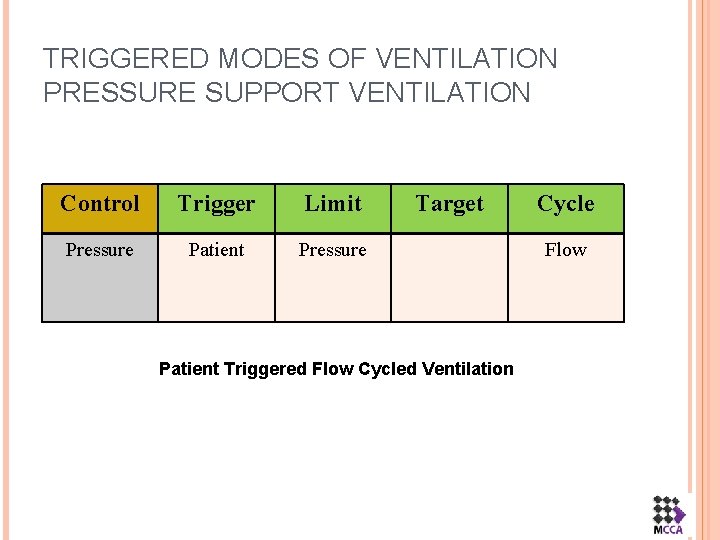

TRIGGERED MODES OF VENTILATION PRESSURE SUPPORT VENTILATION Control Trigger Limit Pressure Patient Pressure Target

TRIGGERED MODES OF VENTILATION PRESSURE SUPPORT VENTILATION Control Trigger Limit Pressure Patient Pressure Target Patient Triggered Flow Cycled Ventilation Cycle Flow

CMV or IPPV MANDATORY MODES OF VENTILATION

CMV or IPPV MANDATORY MODES OF VENTILATION

MANDATORY MODES OF VENTILATION CMV Control Trigger Pressure Or Volume Time Limit Target Time

MANDATORY MODES OF VENTILATION CMV Control Trigger Pressure Or Volume Time Limit Target Time Triggered Time Cycled Ventilation Cycle Time

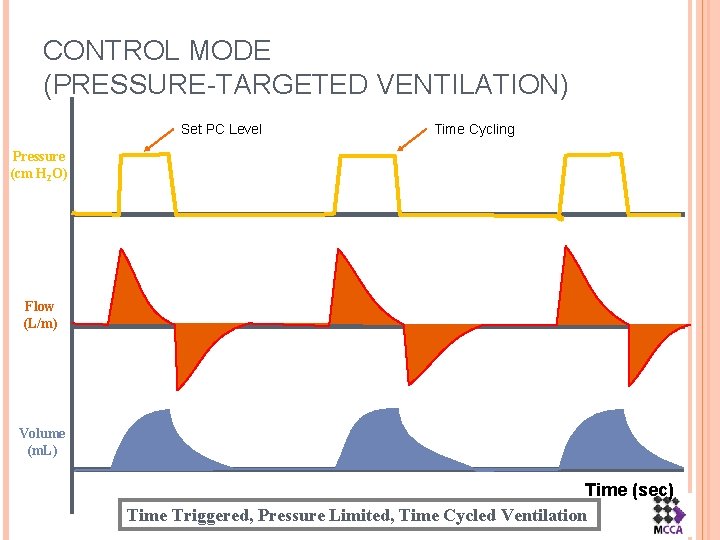

CONTROL MODE (PRESSURE-TARGETED VENTILATION) Set PC Level Time Cycling Pressure (cm H 2 O)

CONTROL MODE (PRESSURE-TARGETED VENTILATION) Set PC Level Time Cycling Pressure (cm H 2 O) Flow (L/m) Volume (m. L) Time (sec) Time Triggered, Pressure Limited, Time Cycled Ventilation

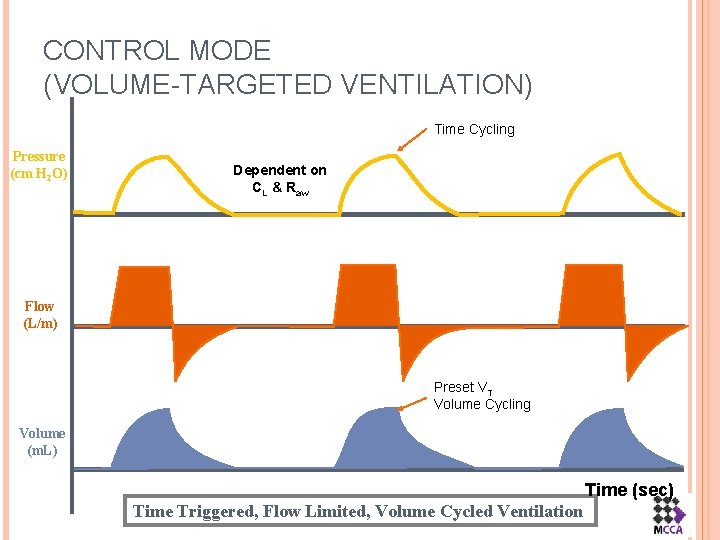

CONTROL MODE (VOLUME-TARGETED VENTILATION) Time Cycling Pressure (cm H 2 O) Dependent on CL

CONTROL MODE (VOLUME-TARGETED VENTILATION) Time Cycling Pressure (cm H 2 O) Dependent on CL & Raw Flow (L/m) Preset VT Volume Cycling Volume (m. L) Time (sec) Time Triggered, Flow Limited, Volume Cycled Ventilation

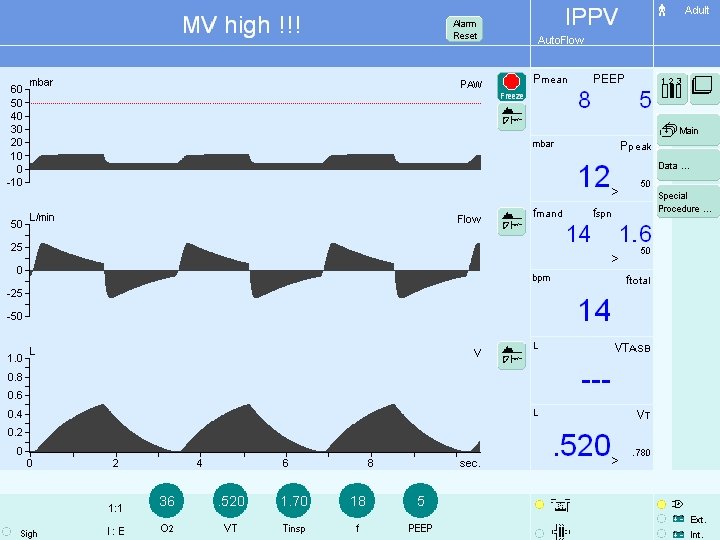

SIMV and A/C HYBRID MODES OF VENTILATION

SIMV and A/C HYBRID MODES OF VENTILATION

HYBRID MODES OF VENTILATION A/C Control Trigger Pressure Or Volume Time Or Patient Limit

HYBRID MODES OF VENTILATION A/C Control Trigger Pressure Or Volume Time Or Patient Limit Target Time or Patient. Triggered Time Cycled Ventilation Cycle Time

ASSISTED MODE (VOLUME-TARGETED VENTILATION) Time Cycling Pressure (cm H 2 O) Preset peak Flow

ASSISTED MODE (VOLUME-TARGETED VENTILATION) Time Cycling Pressure (cm H 2 O) Preset peak Flow (L/m) Volume (m. L) Time (sec) Patient Triggered, Flow limited, Volume Cycled Ventilation

ASSISTED MODE (PRESSURE-TARGETED VENTILATION) Set PC Level Time Cycling Pressure (cm H 2 O)

ASSISTED MODE (PRESSURE-TARGETED VENTILATION) Set PC Level Time Cycling Pressure (cm H 2 O) Flow (L/m) Volume (m. L) Time (sec) Patient Triggered, Pressure Limited, Time Cycled Ventilation

HYBRID MODES OF VENTILATION SIMV/PS Breath Type Control Trigger Mandatory Pressure Or Volume Time

HYBRID MODES OF VENTILATION SIMV/PS Breath Type Control Trigger Mandatory Pressure Or Volume Time Or Patient Spontaneous Pressure Patient Limit Cycle Time Pressure Flow

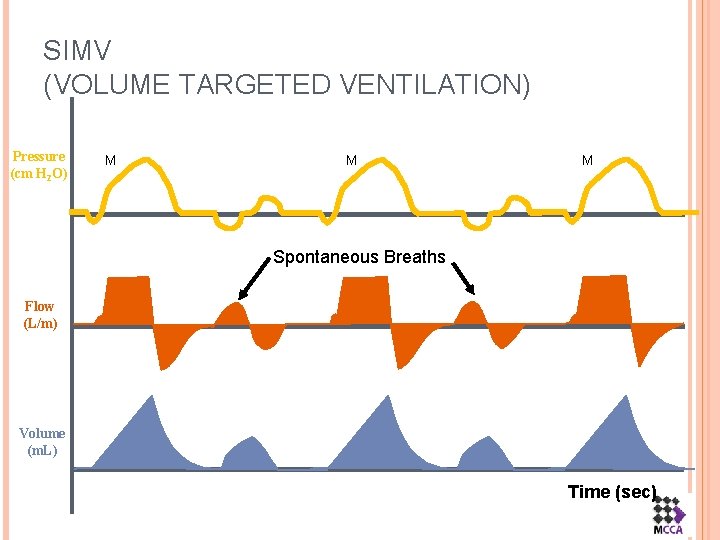

SIMV (VOLUME TARGETED VENTILATION) Pressure (cm H 2 O) M M M Spontaneous Breaths

SIMV (VOLUME TARGETED VENTILATION) Pressure (cm H 2 O) M M M Spontaneous Breaths Flow (L/m) Volume (m. L) Time (sec)

SIMV+PS (VOLUME TARGETED VENTILATION) Set PS Level Pressure (cm H 2 O) Tsynch Tsupp

SIMV+PS (VOLUME TARGETED VENTILATION) Set PS Level Pressure (cm H 2 O) Tsynch Tsupp M Flow-cycled Flow (L/m) Volume (m. L) Time (sec)

SIMV + PS (PRESSURE-TARGETED VENTILATION) Tsynch Pressure (cm H 2 O) Tsynch Tsupp Set

SIMV + PS (PRESSURE-TARGETED VENTILATION) Tsynch Pressure (cm H 2 O) Tsynch Tsupp Set PC Level Time Cycled Set PS Level Flow-cycled Flow (L/m) Volume (m. L) Time (sec)

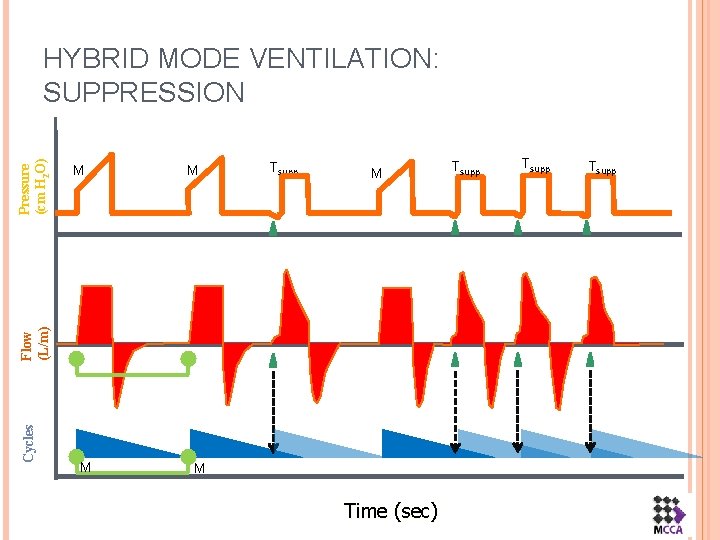

M M Tsupp M Cycles Flow (L/m) Pressure (cm H 2 O) HYBRID MODE

M M Tsupp M Cycles Flow (L/m) Pressure (cm H 2 O) HYBRID MODE VENTILATION: SUPPRESSION M M Time (sec) Tsupp

HYBRID MODE VENTILATION: SYNCHRONIZATION (SIMV+PSV) M Tsupp Tsynch Pressure (cm H 2 O) Flow

HYBRID MODE VENTILATION: SYNCHRONIZATION (SIMV+PSV) M Tsupp Tsynch Pressure (cm H 2 O) Flow (L/m) Cycles Mandatory Cycle Time Triggered window for supported breaths synchronized breaths Time (sec) M Tsynch Tsupp

ALL MODES TABLES

ALL MODES TABLES

THANK YOU

THANK YOU
