Network Management Tools if Config UNIX Used to
- Slides: 55
Network Management Tools
if. Config (UNIX) • • • Used to assign/read an address to/of an interface Option -a is to display all interfaces Notice two interface loop-back (lo 0) and Ethernet (hme 0) [/home/staff/ycchen]ifconfig -a lo 0: flags=849<UP, LOOPBACK, RUNNING, MULTICAST> mtu 8232 inet 127. 0. 0. 1 netmask ff 000000 hme 0: flags=863<UP, BROADCAST, NOTRAILERS, RUNNING, MULTIC AST> mtu 1500 inet 163. 22. 20. 16 netmask ffffff 00 broadcast 163. 22. 20. 255 ifconfig le 0 down ifconfig le 0 163. 22. 20. 16 netmask 255. 0 broadcast 163. 22. 20. 255

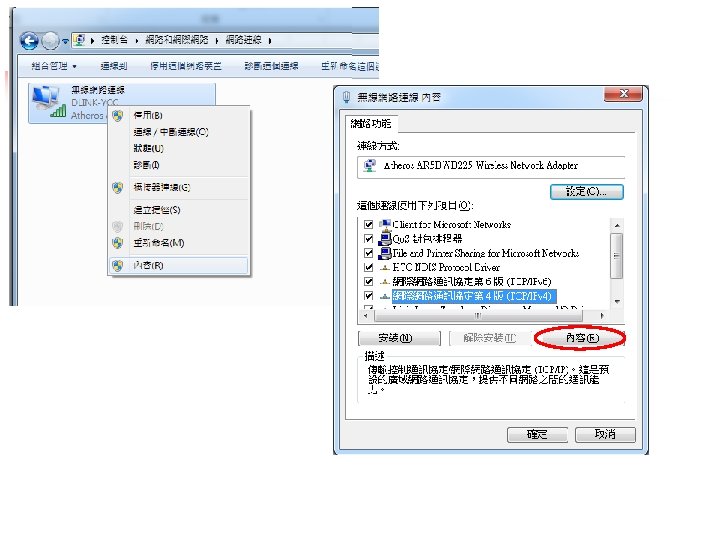

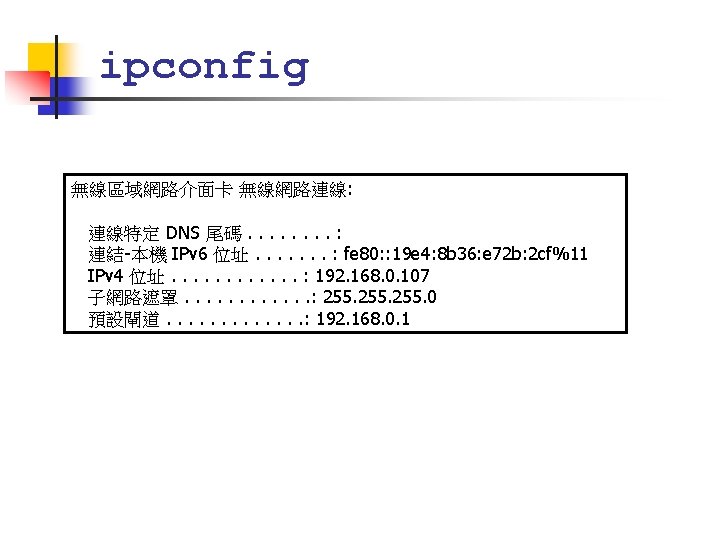

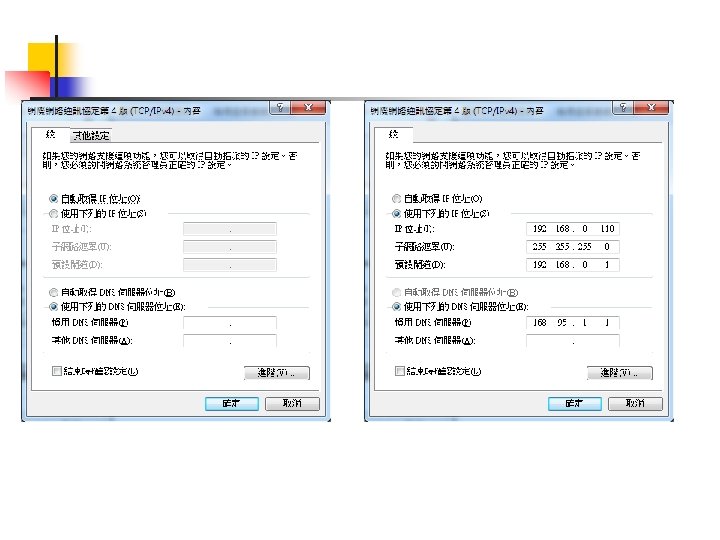

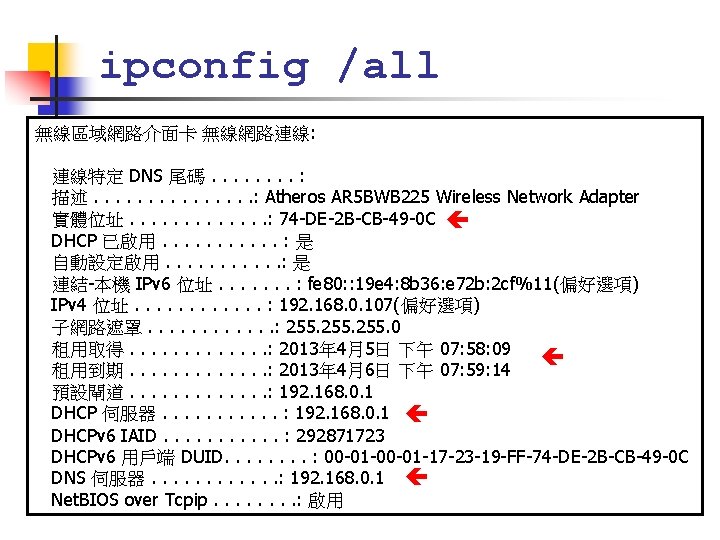

ipconfig (Windows) n ipconfig (internet protocol configuration) ipconfig /? /? /all /release 6 /renew 6 /flushdns /registerdns /displaydns help 顯示完整設定資訊 釋放 IPv 4 位址 釋放IPv 6 位址 更新 IPv 4 位址 更新Pv 6 位址 清除 DNS 解析快取 重新整理 DHCP 租用並重新登錄 DNS 顯示 DNS 解析快取內容
NAT - Network Address Translation © 2011 Pearson Education, Inc. Publishing as Prentice Hall 9
http: //www. whatismyip. com/

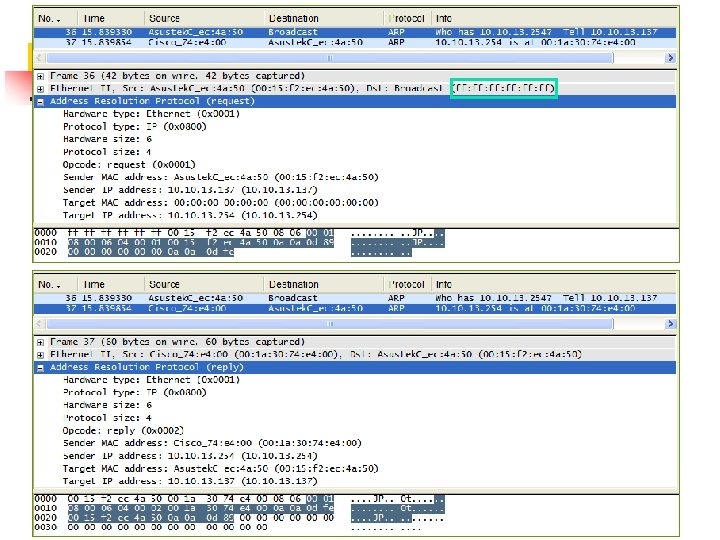

Address Resolution Protocol n n n RFC 826 To map network addresses to the hardware addresses used by a data link protocol To translate IP addresses to Ethernet MAC addresses Use data-link broadcast ARP Request, ARP Reply
ARP Announcement Gratuitous ARP
ARP Spoofing (ARP Poisoning) n n Send fake, or 'spoofed', ARP messages to an Ethernet LAN. Generally, to associate the attacker's MAC address with the IP address of another node (such as the default gateway). Passive sniffing, Man-in-the-middle attack, Denial -of-service attack http: //www. oxid. it/downloads/apr-intro. swf
ARP Cache Default cache time-outs: arp arp -a -d 10. 34. 235 -d * –s 157. 55. 85. 212 C: >arp -a Interface: 10. 34. 169 Internet Address 10. 34. 231 10. 34. 234 10. 34. 235 10. 34. 254 Two-minute (unused entries) Ten-minute (used entries) 00 -aa-00 -62 -c 6 -09 --- 0 x 2 Physical Address 00 -12 -cf-28 -cd-20 00 -12 -cf-29 -c 6 -80 00 -12 -cf-28 -1 e-20 00 -08 -e 3 -dd-b 3 -1 f Type dynamic C: >arp -s 10. 34. 235 00 -12 -cf-28 -1 e-20 C: >arp –a Interface: 10. 34. 169 Internet Address 10. 34. 235 10. 34. 254 --- 0 x 2 Physical Address 00 -12 -cf-28 -1 e-20 00 -08 -e 3 -dd-b 3 -1 f Type static dynamic

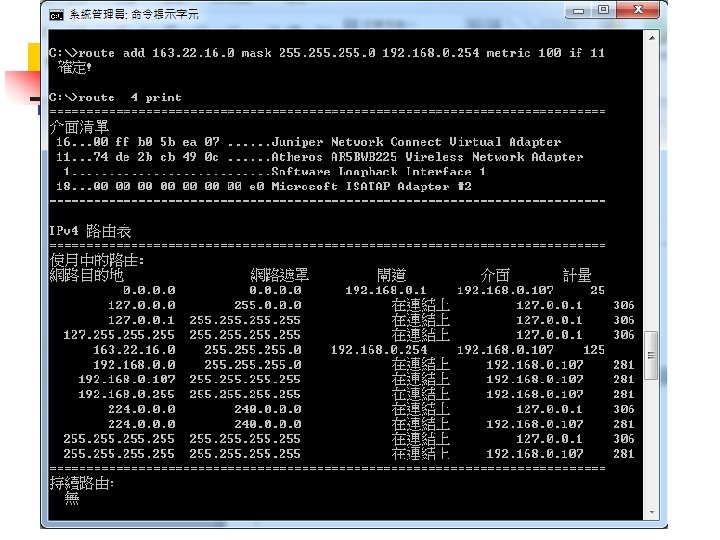

Routing information route print route -4 print route -6 print route add 163. 22. 16. 0 mask 255. 0 192. 168. 0. 254 metric 100 if 11 route add 163. 22. 16. 0 mask 255. 0 192. 168. 0. 254 metric 100 route change 163. 22. 16. 0 mask 255. 0 192. 168. 0. 254 metric 130 route delete 163. 22. 16. 0 netstat -r
領域名稱系統(DNS) n n n 提供主機名稱與IP位址之轉換 www. im. ncnu. edu. tw 163. 22. 20. 16 由DNS伺服器提供 RR-DNS (Round Robin DNS) n n n www. yahoo. com: (8台伺服器) 66. 218. 71. 90, 66. 218. 71. 80, 66. 218. 71. 95, … DDNS (Dynamic DNS) n 主機名稱 浮動IP位址
ipconfig /displaydns ipconfig /flushdns nslookup C: >nslookup Default Server: academic. ncnu. edu. tw Address: 163. 22. 2. 1 > www. cnn. com Server: academic. ncnu. edu. tw Address: 163. 22. 2. 1 Non-authoritative answer: Name: www. cnn. com Addresses: 64. 236. 29. 120, 64. 236. 91. 21, 64. 236. 16. 20, 64. 236. 16. 52 64. 236. 16. 84, 64. 236. 24. 12, 64. 236. 24. 20, 64. 236. 24. 28 > 163. 22. 20. 16 Server: academic. ncnu. edu. tw Address: 163. 22. 2. 1 Name: euler. im. ncnu. edu. tw Address: 163. 22. 20. 16 Aliases: 16. 20. 22. 163. in-addr. arpa >
nslookup • • An interactive program for querying Internet Domain Name System servers Converts a hostname into an IP address and vice versa querying DNS Useful to identify the subnet a host or node belongs to Lists contents of a domain, displaying DNS record
DNS Lookup
Ping n Most basic tool for internet management n Based on ICMP ECHO_REQUEST message n Available on all TCP/IP stacks n Useful for measuring n • Connectivity • Packet Loss • Round Trip Time Can do auto-discovery of TCP/IP equipped stations on single segment
ping Usage: ping [-t] [-a] [-n count] [-l size] [-f] [-i TTL] [-v TOS] [-r count] [-s count] [[-j host-list] | [-k host-list]] [-w timeout] destination-list Options: -t -a -n -l -f -i -v -r -s -j -k -w count size TTL TOS count host-list timeout Ping the specified host until stopped. To see statistics and continue - type Control-Break; To stop - type Control-C. Resolve addresses to hostnames. Number of echo requests to send. Send buffer size. Set Don't Fragment flag in packet. Time To Live. Type Of Service. Record route for count hops. Timestamp for count hops. Loose source route along host-list. Strict source route along host-list. Timeout in milliseconds to wait for each reply.
Example C: >ping -n 10 -l 256 www. im. ncnu. edu. tw Pinging euler. im. ncnu. edu. tw [163. 22. 20. 16] with 256 bytes of data: Reply Reply Reply from from from 163. 22. 20. 16: 163. 22. 20. 16: bytes=256 bytes=256 bytes=256 time=1 ms time=1 ms time=1 ms TTL=253 TTL=253 TTL=253 Ping statistics for 163. 22. 20. 16: Packets: Sent = 10, Received = 10, Lost = 0 (0% loss), loss Approximate round trip times in milli-seconds: Minimum = 1 ms, Maximum = 1 ms, Average = 1 ms
traceroute/tracert www. hinet. net Usage: tracert [-d] [-h maximum_hops] [-j host-list] [-w timeout] target_name Options: -d Do not resolve addresses to hostnames. -h maximum_hops Maximum number of hops to search for target. -j host-list Loose source route along host-list. -w timeout Wait timeout milliseconds for each reply.
C: >tracert www. facebook. com 在上限 30 個躍點上 追蹤 star. c 10 r. facebook. com [31. 13. 82. 1] 的路由: 1 2 3 4 5 6 7 8 9 10 11 12 8 ms 9 ms 11 ms 16 ms 11 ms 12 ms 96 ms 97 ms 99 ms 8 ms h 254. s 98. ts. hinet. net [168. 95. 98. 254] 8 ms 168. 95. 220. 98 8 ms NTNK-3101. hinet. net [220. 128. 21. 110] 11 ms tchn-3011. hinet. net [220. 128. 16. 98] 14 ms TPDT-3011. hinet. net [220. 128. 16. 6] 12 ms 11 ms r 4103 -s 2. tp. hinet. net [220. 128. 7. 29] 13 ms 12 ms r 4003 -s 2. tp. hinet. net [220. 128. 7. 229] 96 ms 211 -72 -233 -77. HINET-IP. hinet. net [211. 72. 233. 77] 97 ms ae-5. r 00. tokyjp 03. jp. bb. gin. ntt. net [129. 250. 5. 29] 98 ms 97 ms ae-0. facebook. tokyjp 03. jp. bb. gin. ntt. net [61. 213. 145. 74] 97 ms po 126. msw 01. nrt 1. tfbnw. net [31. 13. 27. 221] 99 ms edge-star-ecmp-01 -nrt 1. facebook. com [31. 13. 82. 1]
http: //www. visualroute. com/
netstat C: >netstat -n -a Active Connections Proto Local Address Foreign Address State TCP 0. 0: 21 0. 0: 0 LISTENING TCP 0. 0: 135 0. 0: 0 LISTENING TCP 0. 0: 445 0. 0: 0 LISTENING TCP 0. 0: 1234 0. 0: 0 LISTENING TCP 0. 0: 1235 0. 0: 0 LISTENING TCP 0. 0: 1236 0. 0: 0 LISTENING TCP 163. 31. 153. 68: 1234 163. 22. 3. 4: 80 ESTABLISHED TCP 163. 31. 153. 68: 1235 163. 22. 4. 67: 80 ESTABLISHED TCP 163. 31. 153. 68: 1236 163. 22. 4. 67: 80 SYN_SENT UDP 0. 0: 135 *: * UDP 0. 0: 445 *: * UDP 0. 0: 38037 *: * UDP 127. 0. 0. 1: 1230 *: * UDP 163. 31. 153. 68: 500 *: *
NETSTAT [-a] [-e] [-n] [-s] [-p proto] [-r] [interval] -a -e Displays all connections and listening ports. Displays Ethernet statistics. This may be combined with the -s option. -n Displays addresses and port numbers in numerical form. -p proto Shows connections for the protocol specified by proto; proto may be TCP or UDP. If used with the -s option to display per-protocol statistics, proto may be TCP, UDP, or IP. -r Displays the routing table. -s Displays per-protocol statistics. By default, statistics are shown for TCP, UDP and IP; the -p option may be used to specify a subset of the default. interval Redisplays selected statistics, pausing interval seconds between each display. Press CTRL+C to stop redisplaying statistics. If omitted, netstat will print the current configuration information once.
TCP Connection Monitoring netstat –p TCP
netstat –b –p TCP
netstat -e
Network Management Tools • SNMP command tools • MIB Walk • MIB Browser
SNMP Command Tools • snmptest • snmpgetnext • snmpset • snmptrap • snmpwalk • snmpnetstat
Network Status • Command: snmpnetstat host community • Useful for finding status of network connections % snmpnetstat noc 5 public Active Internet Connections Proto Recv-Q Send-Q Local Address Foreign Address (state) tcp 0 0 *. * CLOSED tcp 0 0 localhost. 46626 localhost. 3456 ESTABLISHED tcp 0 0 localhost. 46626 localhost. 3712 ESTABLISHED tcp 0 0 localhost. 46626 localhost. 3968 ESTABLISHED tcp 0 0 localhost. 46626 localhost. 4224 ESTABLISHED tcp 0 0 localhost. 3456 localhost. 46626 ESTABLISHED tcp 0 0 localhost. 3712 localhost. 46626 ESTABLISHED tcp 0 0 localhost. 3968 localhost. 46626 ESTABLISHED tcp 0 0 localhost. 4224 localhost. 46626 ESTABLISHED tcp 0 0 noc 5. 41472 noc 5. 4480 ESTABLISHED tcp 0 0 noc 5. 41472 noc 5. 4736 ESTABLISHED tcp 0 0 noc 5. 4480 noc 5. 41472 ESTABLISHED tcp 0 0 noc 5. 4736 noc 5. 41472 ESTABLISHED
SNMP Browser • Command: snmpwalk host community [variable name] • Uses Get Next Command • Presents MIB Tree
Protocol Analyzer • Analyzes data packets on any transmission line including LAN • Measurements made locally or remotely • Probe (data capture device) captures data and transfers to the protocol analyzer (no storage) • Data link between probe and protocol analyzer either dial-up or dedicated link or LAN • Protocol analyzer analyzes data at all protocol levels
RMON Probe n • • Communication between probe and analyzer is using SNMP Data gathered and stored for an extended period of time and analyzed later Used for gathering traffic statistics and used for configuration management for performance tuning
Network Monitoring with RMON Probe
Network Statistics • • Protocol Analyzers RMON Probe / Protocol analyzer MRTG (Multi router traffic grouper) Home-grown program using tcpdump
Traffic Load: Source
Traffic Load: Source/Destination
Protocol Distribution
Network Monitoring • • • By polling By traps (notifications) Failure indicated by pinging or traps Ping frequency optimized for network load vs. quickness of detection trap messages: linkdown, link. Up, cold. Start, warm. Start, etc. Network topology discovered by auto-discovery

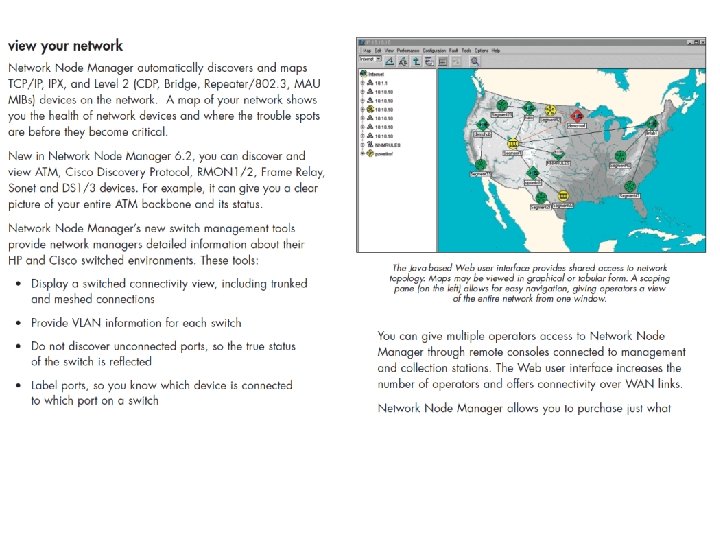

Global View
Domain View
Segment View
Node Discovery In a Network n Node Discovery n n Given an IP Address with its subnet mask, find the nodes in the same network. Two Major Approaches: n n Use ICMP ECHO to query all the possible IP addresses. Use SNMP to query the ARP Cache of a node known
Use ICMP ECHO n n Eg: IP address: 163. 25. 147. 12 Subnet mask: 255. 0 All possible addresses: n n n 163. 25. 147. 1 ~ 163. 25. 147. 254 For each of the above addresses, use ICMP ECHO to inquire the address If a node replies (ICMP ECHO Reply), then it is found.
Use SNMP n Find a node which supports SNMP n n n The given node, default gateway, or router Or try a node arbitrarily Query the ip. Net. To. Media. Table in MIB-II IP group ip. Net. To. Media. Phys. Address ip. Net. To. Media. Type ip. Net. To. Media. If. Index ip. Net. To. Media. Net. Address 1 2 00: 80: 43: 5 F: 12: 9 A 00: 80: 51: F 3: 11: DE 163. 25. 147. 10 163. 25. 147. 11 dynamic(3)
Network Discovery n n n n Find the networks to be managed with their interconnections Given a network, find the networks which directly connect with it. Recall that networks are connected via routers. Major Approach n Use SNMP
Discovering Networks 163. 25. 145. 0 163. 25. 146. 0 140. 112. 8. 0 140. 112. 6. 0 163. 25. 148. 0 163. 25. 147. 0 140. 112. 5. 0 192. 168. 13. 0 192. 168. 12. 0
A Network Discovery Algorithm 1. First use a node discovery algorithm to find all the nodes in the network. 2. For each discovered node, use SNMP to query the ip. Addr. Table of MIB-II IP group ip. Ad. Ent. If. Index ip. Ad. Ent. Bcast. Addr ip. Ad. Ent. Net. Mask 163. 25. 145. 254 1 255. 0 163. 25. 145. 255 … 162. 25. 146. 254 2 255. 0 163. 25. 146. 255 … 162. 25. 147. 254 3 255. 0 163. 25. 147. 255 … 3. Query the corresponding entries in ip. Route. Table to verify the above addresses
ip. Route. Table
