HP Storage Works X 1000 and X 3000

HP Storage. Works X 1000 and X 3000 Network Storage Systems Sales Training Presented by HP & Micro. Age September 8 th, 2009

Agenda National Marketing Campaign Presented by: Maria Fiore Business Development Manager, Hartco Michèle Parent Marketing Director, Hartco HP Storage. Works X 1000 and X 3000 Network Storage Systems Presented by: Michael D’Andrea Storage Sales Specialist, HP © 2006 Micro. Age

Storage Solutions September National Campaign

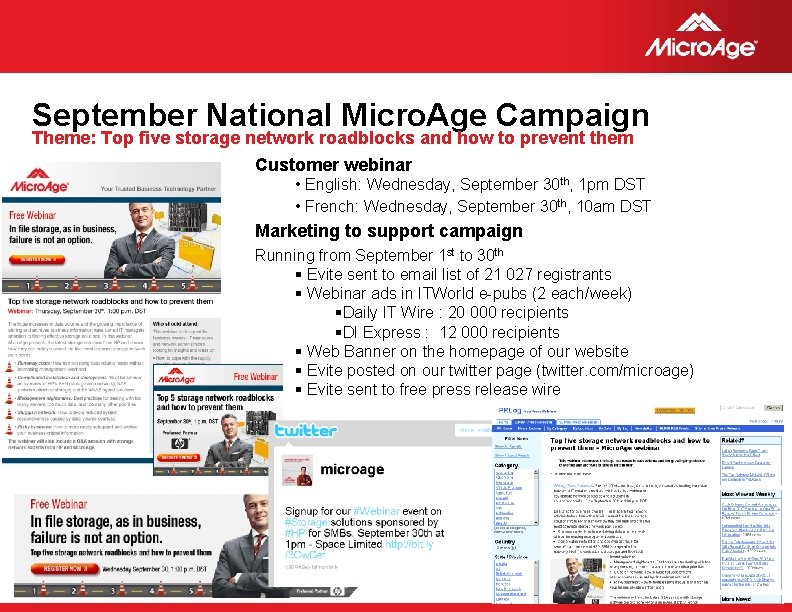

September National Micro. Age Campaign Theme: Top five storage network roadblocks and how to prevent them Customer webinar • English: Wednesday, September 30 th, 1 pm DST • French: Wednesday, September 30 th, 10 am DST Marketing to support campaign Running from September 1 st to 30 th § Evite sent to email list of 21 027 registrants § Webinar ads in ITWorld e-pubs (2 each/week) §Daily IT Wire : 20 000 recipients §DI Express : 12 000 recipients § Web Banner on the homepage of our website § Evite posted on our twitter page (twitter. com/microage) § Evite sent to free press release wire © 2006 Micro. Age

Campaign Success To get clients to either attend the webinar or book an appointment – – Sales calls Personalized emails After the webinar is presented – – Survey including general webinar feedback and storage specific questions will be sent to all attendants Send thank you to attendants/registrants including link to view the webinar Follow-up – – Follow-up on list of attendants/registrants, including answers to survey Provide feedback on accounts to measure ROI and campaign effectiveness © 2006 Micro. Age

The IT challenge… Simplify growth Datamarts 762+ Servers 21, 700 Cut costs IT % of revenue 4% Reduce complexity Data Centers 85+ in 29 countries Active projects 1, 240 Networking 420, 000 Ports 18, 500 Switches 566 TB/mo Countries >160 HP Sites 854 58. 7 M Sq. Ft. IT professionals ~19, 000 HP IT Sites 100+ in 53 countries Applications 3, 500 Storage 5 PB Plus Snapfish Shadow IT 10%+ of spend Leased Line Partner Connections 1, 210 Virtualize © 2006 Micro. Age

The storage challenge: Rapid, continuous growth Research shows that file growth is exceeding that of database and email – – Productivity: Word, Excel, PDFs, Power. Point Media & animation: security, digital film production, video, audio Imaging: photographs, cheque images, scanned images, x-rays, geo/satellite images, etc. Manufacturing: CAD/CAM, source code, EDA © 2006 Micro. Age

Your customer’s mission • Reduce infrastructure requirements (and costs) instead of adding to them • Reduce or eliminate the need for more IT resource time © 2006 Micro. Age

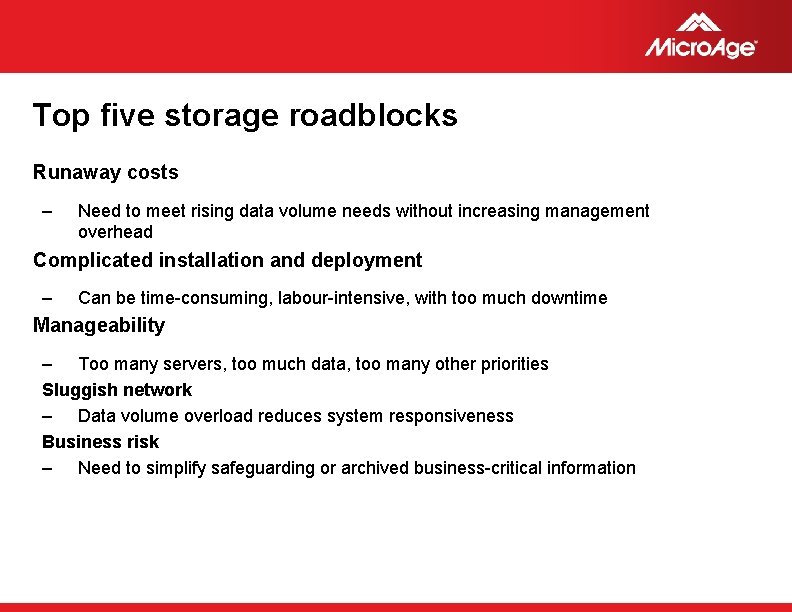

Top five storage roadblocks Runaway costs – Need to meet rising data volume needs without increasing management overhead Complicated installation and deployment – Can be time-consuming, labour-intensive, with too much downtime Manageability – Too many servers, too much data, too many other priorities Sluggish network – Data volume overload reduces system responsiveness Business risk – Need to simplify safeguarding or archived business-critical information © 2006 Micro. Age

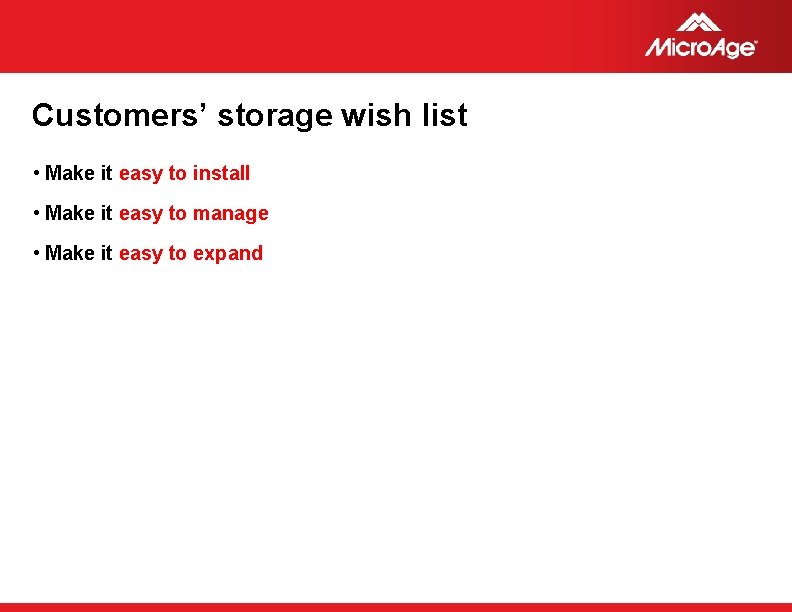

Customers’ storage wish list • Make it easy to install • Make it easy to manage • Make it easy to expand © 2006 Micro. Age

HP Storage Options – – – HP Storage. Works X 1000 network storage systems HP Storage. Works X 3000 network storage systems HP Storage. Works MSA storage array technology © 2006 Micro. Age

HP Storage. Works X 1000 and X 3000 Network Storage Systems © 2006 Micro. Age

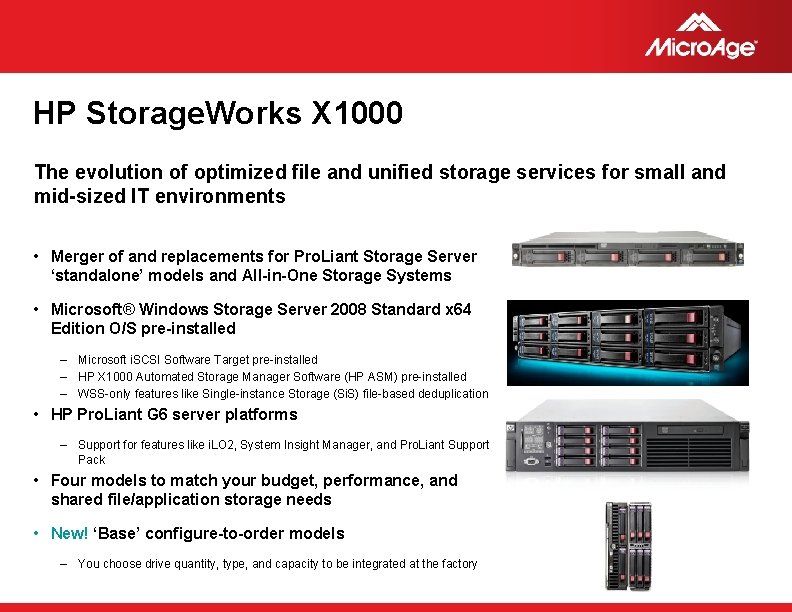

HP Storage. Works X 1000 The evolution of optimized file and unified storage services for small and mid-sized IT environments • Merger of and replacements for Pro. Liant Storage Server ‘standalone’ models and All-in-One Storage Systems • Microsoft® Windows Storage Server 2008 Standard x 64 Edition O/S pre-installed – Microsoft i. SCSI Software Target pre-installed – HP X 1000 Automated Storage Manager Software (HP ASM) pre-installed – WSS-only features like Single-instance Storage (Si. S) file-based deduplication • HP Pro. Liant G 6 server platforms – Support for features like i. LO 2, System Insight Manager, and Pro. Liant Support Pack • Four models to match your budget, performance, and shared file/application storage needs • New! ‘Base’ configure-to-order models – You choose drive quantity, type, and capacity to be integrated at the factory © 2006 Micro. Age

HP Storage. Works X 3000 IP-based gateway services for arrays/SANs and highly available shared storage solutions • Replacement for Pro. Liant Storage Server SAN Gateway models • Microsoft® Windows Storage Server 2008 Enterprise x 64 Edition O/S pre-installed – Microsoft i. SCSI Software Target pre-installed – Microsoft Cluster Server (MSCS) license included – WSS-only features like Single-instance Storage (Si. S) file-based deduplication • HP Pro. Liant G 6 server platforms – Support for features like i. LO 2, System Insight Manager, and Pro. Liant Support Pack • Three models to match your budget, performance, and form factor needs • New! 1 U rack gateway – Cluster-able gateway services (file, i. SCSI, SAN management) for arrays and SANs are now more affordable than ever before © 2006 Micro. Age

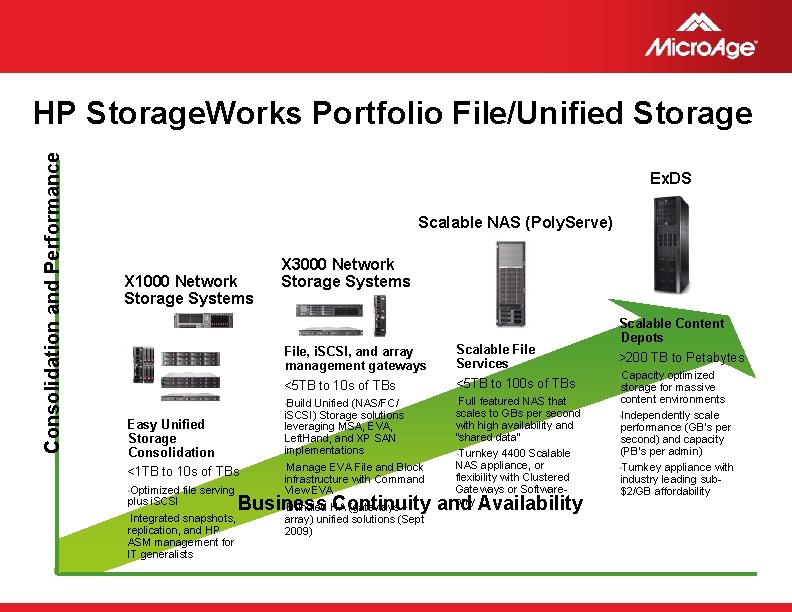

Consolidation and Performance HP Storage. Works Portfolio File/Unified Storage Ex. DS Scalable NAS (Poly. Serve) X 1000 Network Storage Systems Easy Unified Storage Consolidation <1 TB to 10 s of TBs • Optimized file serving plus i. SCSI • Integrated snapshots, replication, and HP ASM management for IT generalists X 3000 Network Storage Systems File, i. SCSI, and array management gateways <5 TB to 10 s of TBs Scalable File Services • Build Unified (NAS/FC/ • Full featured NAS that <5 TB to 100 s of TBs i. SCSI) Storage solutions leveraging MSA, EVA, Left. Hand, and XP SAN implementations scales to GBs per second with high availability and “shared data” • Manage EVA File and Block NAS appliance, or flexibility with Clustered Gateways or Softwareonly infrastructure with Command View EVA • Bundled HA (gateways + array) unified solutions (Sept 2009) • Turnkey 4400 Scalable Business Continuity and Availability Scalable Content Depots >200 TB to Petabytes • Capacity optimized storage for massive content environments • Independently scale performance (GB’s per second) and capacity (PB’s per admin) • Turnkey appliance with industry leading sub$2/GB affordability © 2006 Micro. Age

What are HP Network Storage Systems? • Unified (file/block) network storage solutions pre-configured with Microsoft Windows Storage Server 2008 Optimized appliances that work over Ethernet networks and provide support for heterogeneous file serving—a. k. a. Network Attached Storage (NAS) − Microsoft i. SCSI Software Target included at no extra charge for block services − NAS isn’t just about sharing files any more—it’s about sharing and protecting information − © 2006 Micro. Age

HP X 1000 and X 3000 Network Storage Systems Building blocks Proliant G 6 Server Platforms Microsoft Windows Industry-leading server technology • Integrated Lights-Out 2 remote management • HP Systems Insight Manager control • Smart Array controllers • • 300 Series DL • + • 300 Series BL • • Preloaded and preconfigured with Microsoft Windows Storage Server 2008 (variant of Server 2008) Optimized for storage and ready to deploy Fully tested to ensure functionality, performance and compatibility Microsoft i. SCSI Software Target included Microsoft Cluster Server license (X 3000 only) + HP Storage HP Management • Internal SAS or • HP-enhanced SATA drives • Modular Smart Array and D 2000 SAS enclosures • HP MSA, EVA, XP, and Left. Hand arrays Microsoft Management Console (MMC) UI • HP Rapid Startup • HP X 1000 Automated Storage Manager (X 1000 only) + © 2006 Micro. Age

Why HP? • Most complete line of Windows-powered file serving products − HP has the broadest range of Windows-based network storage devices on the market today with products ranging from entry-level SATA-based solutions to SASattached and SAN gateway solutions. In fact, HP is one of the first companies to partner with Microsoft to incorporate Windows Storage Server 2008 across its entry unified network storage portfolio • Industry-standard hardware and software components − HP Storage Server solutions are built on industry standard HP Pro. Liant servers and are fully tested to ensure functionality, performance and compatibility • Core Innovation − X 1000 and X 3000 Network Storage Systems include unique tools and wizards for quick installation, easy setup, and disaster recovery • HP Global Services − HP has a worldwide services organization that offers the most reliable service and support for HP networked storage products • Full IT solutions − HP is able to provide customers the end-to-end solution for their IT environment, including servers, storage, services and financing © 2006 Micro. Age

Systems product portfolio © 2006 Micro. Age

Renaming the portfolio Formerly… − HP Pro. Liant Storage Servers − HP Storage. Works All-in-One Storage Systems NEW! HP Storage. Works X 1000 and X 3000 Network Storage Systems − Two families: • X 1000 = Standalone (i. e. appliances) • X 3000 = Gateways and HA solutions − 100 s indicate server platform differentiation (X 1400 vs. X 1600) ; 10 s indicate number of nodes in HA bundles (X 3410 vs. X 3420) © 2006 Micro. Age

Renaming the portfolio (cont’d) HP Storage. Works X 1000 Network Storage Systems – – Common features: Microsoft Windows Storage Server 2008 Standard Edition O/S, Microsoft i. SCSI Software Target v 3. 2, HP ASM (X 1000 Automated Storage Manager Software) X 1400 (1 U/4 d platform) X 1600 (2 U/12 d platform) X 1800 (2 U expandable platform) HP Storage. Works X 3000 Network Storage Systems – – – Common features: Microsoft Windows Storage Server 2008 Enterprise Edition O/S (including MS Cluster Server), Microsoft i. SCSI Software Target v 3. 2 X 3400 Gateway (1 U platform) X 3800 Gateway (2 U platform) X 3410 1 -node System (1 x X 3400 Gateway plus MSA 2312 sa array) X 3420 2 -node System (2 x X 3400 Gateways plus MSA 2312 sa array) X 3820 2 -node System (2 x X 3800 Gateways plus MSA 2312 fc array) © 2006 Micro. Age

HP Storage. Works X 1000/X 3000 Network Storage Systems Small/Remote/Departmental Large SM/Small Enterprise Large SMB/Enterprise Standalone Unified Systems Integrated HA Solutions XP/EVA/MSA/LHN Gateways X 1800 X 3820 2 -node X 1800 sb X 3800 sb Gateway WSS 2008 Standard Edition WSS 2008 Enterprise Edition X 3800 Gateway X 3420 2 -node X 1400 X 1600 Include HP ASM X 3410 1 -node X 3400 Gateway Clustering standard X 1000 X 3000 © 2006 Micro. Age

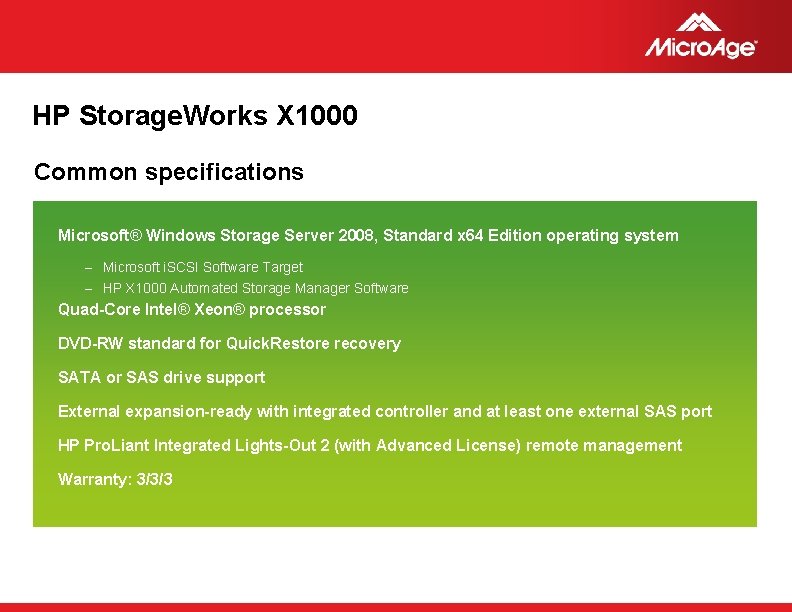

HP Storage. Works X 1000 Common specifications Microsoft® Windows Storage Server 2008, Standard x 64 Edition operating system – Microsoft i. SCSI Software Target – HP X 1000 Automated Storage Manager Software Quad-Core Intel® Xeon® processor DVD-RW standard for Quick. Restore recovery SATA or SAS drive support External expansion-ready with integrated controller and at least one external SAS port HP Pro. Liant Integrated Lights-Out 2 (with Advanced License) remote management Warranty: 3/3/3 © 2006 Micro. Age

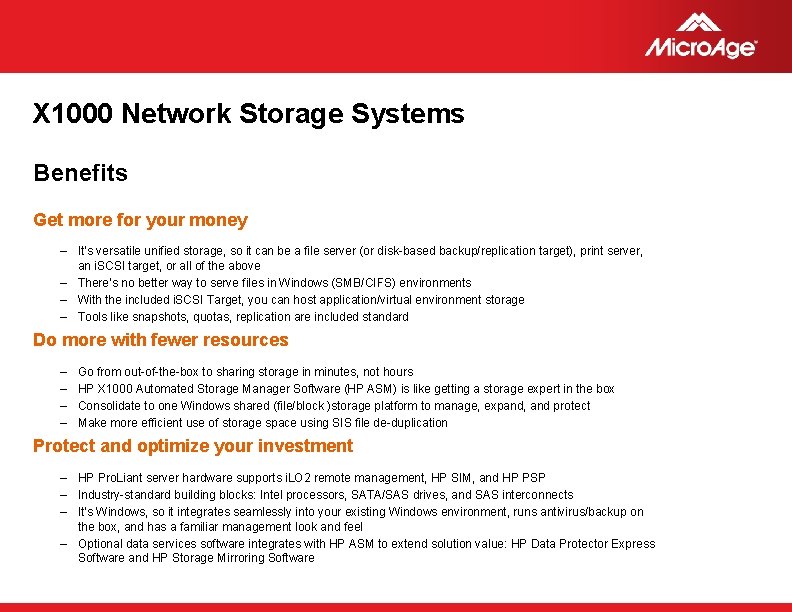

X 1000 Network Storage Systems Benefits Get more for your money – It’s versatile unified storage, so it can be a file server (or disk-based backup/replication target), print server, an i. SCSI target, or all of the above – There’s no better way to serve files in Windows (SMB/CIFS) environments – With the included i. SCSI Target, you can host application/virtual environment storage – Tools like snapshots, quotas, replication are included standard Do more with fewer resources – – Go from out-of-the-box to sharing storage in minutes, not hours HP X 1000 Automated Storage Manager Software (HP ASM) is like getting a storage expert in the box Consolidate to one Windows shared (file/block )storage platform to manage, expand, and protect Make more efficient use of storage space using SIS file de-duplication Protect and optimize your investment – HP Pro. Liant server hardware supports i. LO 2 remote management, HP SIM, and HP PSP – Industry-standard building blocks: Intel processors, SATA/SAS drives, and SAS interconnects – It’s Windows, so it integrates seamlessly into your existing Windows environment, runs antivirus/backup on the box, and has a familiar management look and feel – Optional data services software integrates with HP ASM to extend solution value: HP Data Protector Express Software and HP Storage Mirroring Software © 2006 Micro. Age

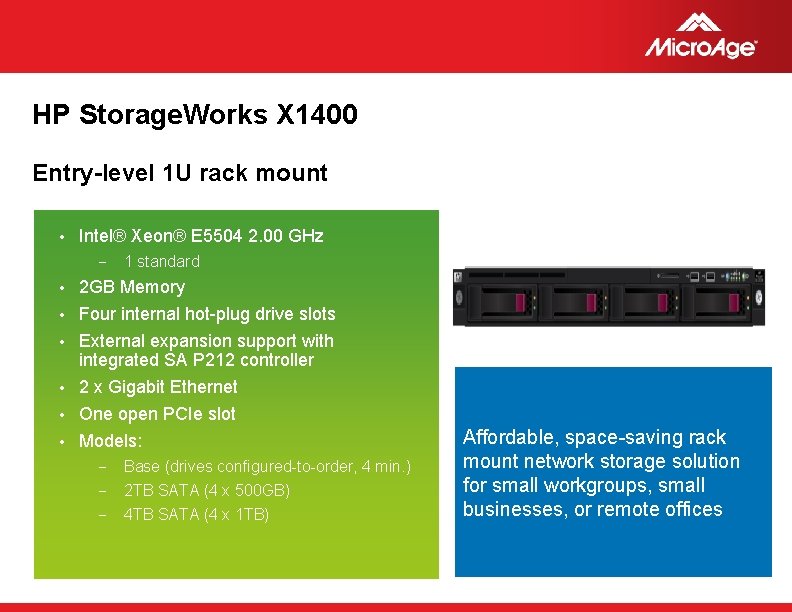

HP Storage. Works X 1400 Entry-level 1 U rack mount • Intel® Xeon® E 5504 2. 00 GHz − • • • 1 standard 2 GB Memory Four internal hot-plug drive slots External expansion support with integrated SA P 212 controller 2 x Gigabit Ethernet One open PCIe slot Models: − − − Base (drives configured-to-order, 4 min. ) 2 TB SATA (4 x 500 GB) 4 TB SATA (4 x 1 TB) Affordable, space-saving rack mount network storage solution for small workgroups, small businesses, or remote offices © 2006 Micro. Age

HP Storage. Works X 1600 High-density 2 U rack mount • Intel® Xeon® E 5520 2. 26 GHz − • • • 1 standard, up to 2 supported 6 GB Memory Twelve internal hot plug drive slots External expansion support with integrated SA P 212 controller 2 x Gigabit Ethernet One open PCIe slot Models: − Base (drives configured-to-order, 2 min. ) − 6 TB SATA (6 x 1 TB) 12 TB SATA (12 x 1 TB) 5. 4 TB SAS (12 x 450 GB) − − Highly integrated design with enterprise-level features at affordable prices per GB for remote office and departmental environments © 2006 Micro. Age

HP Storage. Works X 1800 Powerful, flexible 2 U rack mount • Intel® Xeon® E 5530 2. 4 GHz • • 1 standard, up to 2 supported 6 GB Memory Eight internal (SFF) hot plug drive slots External expansion support with integrated SA P 411 controller 4 x Gigabit Ethernet Five open PCIe slots Models: – Base (drives configured-to-order, 2 min. ) – 2. 4 TB SAS (8 x 300 GB internal) 6 TB SATA (6 x 1 TB in included MSA 60 enclosure) 3. 6 TB SAS (12 x 300 GB in included MSA 70 enclosure) – – Enterprise-class performance, expandability and flexibility for workgroup and small enterprise environments © 2006 Micro. Age

HP Storage. Works X 1800 sb Powerful, flexible blade shared storage solution • Intel® Xeon® L 5506 2. 13 GHz − 1 standard, up to 2 supported 4 GB Memory • Six (SFF) hot-plug drive slots in attached drive enclosure • 2 x 10 Gig. E Ethernet • Models: • − Base (drives configured-to-order) The simplicity of the integrated solution allows customers to efficiently add storage capacity for clients and servers to an HP Blade System environment © 2006 Micro. Age

X 3000 common specifications Microsoft Windows Storage Server 2008, Enterprise x 64 Edition – Microsoft i. SCSI Software Target – Microsoft Cluster Server (MSCS) license Quad-Core Intel® Xeon® processors DVD-RW standard for Quick Restore recovery HP Pro. Liant Integrated Lights-Out 2 (with Advanced License) remote management Gateways are designed for attach to Fibre Channel (HBA required), SAS (HBA required), or i. SCSI (Microsoft i. SCSI initiator included) arrays – Add file, print, i. SCSI, and management hosting services in a cluster-able package Gateway/array combinations (Sept. 2009) are affordable and highly-available unified storage solutions Warranty: 3/3/3 © 2006 Micro. Age

X 3000 Network Storage Systems Benefits Add value to your array or SAN investment – Use your array/SAN to host IP-based data services, including file serving and i. SCSI – X 3000 file serving optimizations ideal for serving files in Windows (SMB/CIFS) environments – Once you add a gateway for file/i. SCSI services, it’s like getting an array or SAN manager (Command. View EVA host ) for free – Create highly-available unified solutions combining X 3000 Gateway nodes with an MSA or other entry array Do more with fewer resources – – The O/S is pre-installed, so go from out-of-the-box to sharing storage quickly Tier block access with i. SCSI Target to connect server islands still not on your SAN Consolidate file and multi-protocol block storage to one array/SAN to expand protect Make more efficient use of storage space using SIS file de-duplication Protect and optimize your investment – HP Pro. Liant server hardware supports i. LO 2 remote management, HP SIM, and HP PSP – Industry-standard building blocks: Intel processors, SAS drives, and support for multi-vendor HBAs – It’s Windows, so it integrates seamlessly into your existing Windows environment, runs antivirus/backup on the box, and has a familiar management look and feel – With the included Microsoft Cluster Server (MSCS) license, you can cluster X 3000 Gateways to enable high availability and reduce down time © 2006 Micro. Age

HP Storage. Works X 3400 Network Storage Gateway 1 U rack mount • Intel® Xeon® E 5504 2. 00 GHz − • • • 1 standard 2 GB Memory 2 internal drives for O/S mirror 2 x Gigabit Ethernet One open PCIe slot for FC or SAS HBA A perfect companion for an HP MSA or EVA array, or Left. Hand Storage System Adding gateway services to an array or SAN is now more affordable than ever before © 2006 Micro. Age

HP Storage. Works X 3800 Network Storage Gateway 2 U rack mount • Intel® Xeon® E 5530 2. 4 GHz − 2 standard 12 GB Memory • 2 internal drives for O/S mirror • 4 x Gigabit Ethernet • Six open PCIe slots for FC or SAS HBA(s), extra NIC(s), or backup HBA(s) • For datacenter environments with HP EVA and XP arrays • Sets the standard for performance and expandability in gateway services for your array or Fibre Channel SAN © 2006 Micro. Age

HP Storage. Works X 3800 sb Network Storage Gateway Blade High-performance Blade. System • Intel® Xeon® L 5506 2. 13 GHz − 2 standard 8 GB Memory • 2 internal drives for O/S mirror • 2 x 10 Gig. E Ethernet • Bridge internal Blade. System servers to external array storage • A ready-to-deploy NAS/SAN gateway built on the BL 460 c G 6 Blade. System server, providing consolidated fileserving access as well as cost-saving i. SCSI connectivity © 2006 Micro. Age

HP Storage. Works X 3410/X 3420/X 3820 Highly-available unified systems combining X 3000 Gateway nodes with MSA arrays September 2009 • X 3410 1 -node Network Storage System − • X 3420 2 -node Network Storage System − • HA ‘starter kit’ with one X 3400 Gateway node, an MSA 2312 sa array, SAS HBA, and cables HA solution with two X 3400 Gateway nodes, a dual-controller MSA 2312 sa array, SAS HBAs, and cables X 3820 2 -node Network Storage System − High-performance expandable HA solution with two X 3800 Gateway nodes, a dual-controller MSA 2312 fc array, 8 Gbit FC HBAs, and cables Single-SKU unified solutions offering highly-available file and block services to SMB environments who thought HA was out of their price range © 2006 Micro. Age

HP X 1000/X 3000 Network Models & SKUs SKU Model List (US) AP 803 A X 1400 Network Storage System (no drives, CTO 4 drives min. ) $3, 399 AP 786 A X 1400 2 TB SATA Network Storage System $4, 399 AP 787 A X 1400 4 TB SATA Network Storage System $5, 499 AP 804 A X 1600 Network Storage System (no drives, CTO 2 drives min. ) $4, 799 AP 788 A X 1600 6 TB SATA Network Storage System $8, 199 AP 789 A X 1600 12 TB SATA Network Storage System $11, 799 AP 790 A X 1600 5. 4 TB SAS Network Storage System $14, 799 AP 791 A X 1800 Network Storage System (no drives, CTO 2 drives min. ) $5, 499 AP 792 A X 1800 2. 4 TB SAS Network Storage System $10, 399 AP 794 A X 1800 6 TB SATA Network Storage System (incl. MSA 60 enclosure) $11, 999 AP 795 A X 1800 3. 6 TB SAS Network Storage System (incl. MSA 70 enclosure) $16, 499 AP 796 A X 3400 Network Storage Gateway $6, 199 AP 797 A X 3800 Network Storage Gateway $9, 499 AP 798 A X 3410 1 -node Network Storage System Coming Sept. 2009 AP 799 A X 3420 2 -node Network Storage System Coming Sept. 2009 AP 800 A X 3820 2 -node Network Storage System Coming Sept. 2009 © 2006 Micro. Age

Pro. Liant Storage Servers and Ai. O Storage Systems Model transitions and end-of-life Current Models Form Factor Available until… Replacement Model Form Factor ML 110 G 5 Storage Server & Ai. O 400 t Tower Sept 30, 2009 X 1400 1 U/4 LFF rack DL 160 G 5 Storage Server & Ai. O 400 r 1 U/4 LFF rack Sept 30, 2009 X 1400 1 U/4 LFF rack DL 185 G 5 Storage Server & Ai. O 1200 r 2 U/12 LFF rack Sept 30, 2009 X 1600 2 U/12 LFF rack DL 380 G 5 Storage Server 2 U/8 SFF rack Sept 30, 2009 X 1800 2 U/8 SFF rack DL 380 G 5 SAN Gateway Storage Server 2 U/8 SFF rack Sept 30, 2009 X 3800 Gateway 2 U/8 SFF rack DL 380 G 5 Integrated HA Storage Server 2 x DL 380 G 5 SAN Nov 30, 2009 GW + MSAsa X 3820 (September ’ 09) 2 x X 3800 + MSAfc X 3400 Gateway 1 U/4 LFF rack X 3410 (September ’ 09) 1 x X 3400 + MSAsa X 3420 (September ’ 09) 2 x X 3400 + MSAsa © 2006 Micro. Age

X 1000/X 3000 Network Storage Systems Software support examples • Backup − • Host-based Replication − • Qi. Netix Data. Archiver Anti-Virus − • HP Storage. Works Storage Mirroring Email Archiving − • HP Data Protector Express, HP Data Protector, Comm. Vault Qi. Netix Galaxy, Veritas Backup Exec, CA Brightstor ARCserve, Legato Networker Network Associates Mc. Afee Virus Scan, Symantec Antivirus, Trend Micro Server Protect Storage Migration HP File System Extender and File Migration Agent Software − Microsoft’s File Migration Tool − Quest Software Consolidator − For more information: http: //h 18006. www 1. hp. com/storage/NASsupportedsolutions. html © 2006 Micro. Age

HP X 1000 Automated Storage Manager Software Included with all X 1000 Network Storage Systems! © 2006 Micro. Age

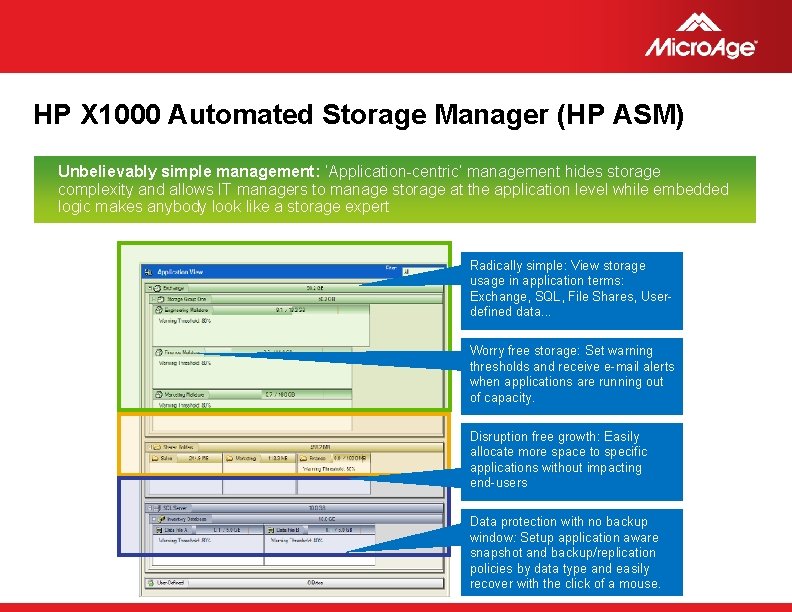

HP X 1000 Automated Storage Manager (HP ASM) Unbelievably simple management: ‘Application-centric’ management hides storage complexity and allows IT managers to manage storage at the application level while embedded logic makes anybody look like a storage expert Radically simple: View storage usage in application terms: Exchange, SQL, File Shares, Userdefined data. . . Worry free storage: Set warning thresholds and receive e-mail alerts when applications are running out of capacity. Disruption free growth: Easily allocate more space to specific applications without impacting end-users Data protection with no backup window: Setup application aware snapshot and backup/replication policies by data type and easily recover with the click of a mouse. © 2006 Micro. Age

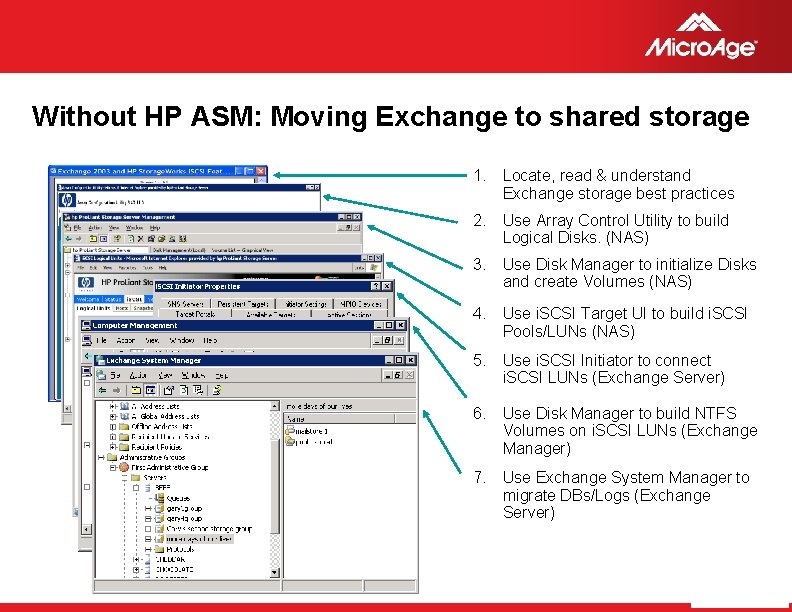

Without HP ASM: Moving Exchange to shared storage 1. Locate, read & understand Exchange storage best practices 2. Use Array Control Utility to build Logical Disks. (NAS) 3. Use Disk Manager to initialize Disks and create Volumes (NAS) 4. Use i. SCSI Target UI to build i. SCSI Pools/LUNs (NAS) 5. Use i. SCSI Initiator to connect i. SCSI LUNs (Exchange Server) 6. Use Disk Manager to build NTFS Volumes on i. SCSI LUNs (Exchange Manager) 7. Use Exchange System Manager to migrate DBs/Logs (Exchange Server) © 2006 Micro. Age

HP X 1000 Automated Storage Manager “Its like having a storage expert in the box” – Automated data migration and setup wizards make the move to network storage a quick and painless experience. ‘Best practice’ logic ensures that storage is setup for optimal performance 1) Launch Exchange Migration Tool and select an Exchange Server 2) Select the storage group and mail stores to migrate 3) “Best Practice” configuration is automatically created 4) Set snapshot and backup/ replication data protection policies 5) Press “Finish” - All storage tasks are executed behind the scenes © 2006 Micro. Age

Use cases © 2006 Micro. Age

Why use an HP X 1000/X 3000 Network Storage System for dedicated File Sharing? • Achieve 15 -20% faster file serving than general purpose Windows Server − • Increases disk utilization by >35% with file based de-duplication − • ”…quickly and efficiently locate what they store… Users search the content of their files from the convenience of their desktops “ Provide shared storage (i. e. , flexible storage capacity) for application servers − • SIS Deduplication: “store only one instance on the disk although several copies of the same file might exist… shown to save more than 35% disk space and reduce storage management costs” Find data quickly from the user’s desk top. What tools are available? − • Microsoft datasheet: ”Due to file server optimization, Windows Storage Server is 15 -20% faster than a general purpose Windows Server in file serving…Windows Storage Server is designed (and optimized) as a dedicated file and print serving appliance. ” Email, business application data (e. g. ERP, CRM) via Microsoft i. SCSI Software Target–cannot be installed on general purpose Windows servers Standalone models feature HP X 1000 Automated Storage Manager (HP ASM) interface on X 1000 models − ‘Application-centric’ management hides storage complexity and allows IT managers to manage storage at the application level while embedded logic makes anybody look like a storage expert X 1000 and X 3000 Network Storage Systems not only consolidate file shares, but can also store i. SCSI data, consolidate printer management, and host data management applications © 2006 Micro. Age

X 1000 Unified Storage for small and mid-sized environments HP X 1000 Network Storage Systems Clients Public LAN Application data storage (i. SCSI SAN) File serving for clients (NAS) Data protection (HP DPX)/Replication (DFS-R or HP SWSM) Radically simple management (HP X 1000 Automated Storage Manager) • • File IP Storage Network Sh ari Application Servers (Exchange, SQL, Hyper- V, VMware, etc. ) Blo ck Acc ng (CI FS or NF S) WAN X 1600 Network Storage System ess Simplification Wizards (i. S CS CIFS/NFS File Shares Windows Server i. SCSI (2 k 3, 2 k 8) User- Defined i. SCSI- NFS VMware Exchange Wizard (2 k 3, 2 k 7) SQL Wizard (2 k, 2 k 5, 2 k 8) Certifications/Validation VMware Certified (3. 0, 3 i/3. 5) Hyper-V Certified IS AN ) Ta pe b up k c a Sn aps hot s © 2006 Micro. Age

X 3000 Gateways: Adding value to a Fibre Channel array Workstation clients Pain Points − Underutilized SAN/array storage resources per investment − Expensive to attach (FC HBA) low cost servers/clients to SAN for file services LAN Tier 2 Application Servers Tier 1 Applicatio n Servers FC Switch Storage Server as a Fibre Channel gateway X 3800 Gateway MSA 2000 fc or EVA array Tier 1 appl storage Tier 2 appl storage Client file shares − Exposes FC array storage via low cost Ethernet connections − Adds file and i. SCSI services to a FC/SAS array or FC SAN − Provides more clients and servers access to central, easily scalable storage − Can host management tools (Command. View EVA) on X 3000 Gateway as well − Enables file management features of WSS 2008: file de-duplication, share management, quotas, and reporting © 2006 Micro. Age

Services and solutions © 2006 Micro. Age

Warranty terms All X 1000 and X 3000 Network Storage Systems come with the same standard warranty: − 3 -3 -3 (3 year parts exchange, 3 year labor and 3 year onsite, next business day response) • Also included: one year of HP Software Support, standard 9 x 5 business hours (software technical support and software product and documentation updates) • HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery • * Note: Support Plus provides same-day hardware and software support during standard business hours, Monday to Friday. Support Plus 24 provides hardware and software support 24 hours a day, every day of the week © 2006 Micro. Age

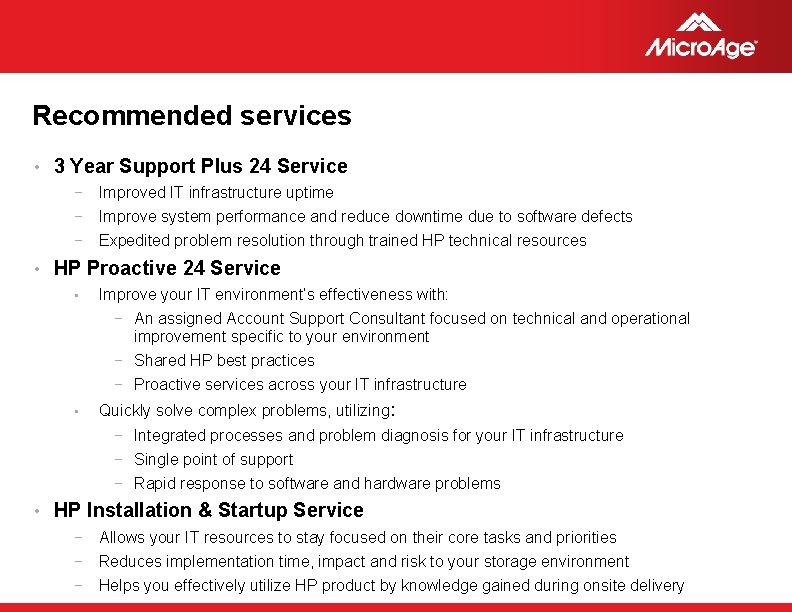

Recommended services • 3 Year Support Plus 24 Service − Improved IT infrastructure uptime − Improve system performance and reduce downtime due to software defects − Expedited problem resolution through trained HP technical resources • HP Proactive 24 Service • Improve your IT environment’s effectiveness with: − An assigned Account Support Consultant focused on technical and operational improvement specific to your environment − Shared HP best practices − Proactive services across your IT infrastructure • Quickly solve complex problems, utilizing: − Integrated processes and problem diagnosis for your IT infrastructure − Single point of support − Rapid response to software and hardware problems • HP Installation & Startup Service − Allows your IT resources to stay focused on their core tasks and priorities − Reduces implementation time, impact and risk to your storage environment − Helps you effectively utilize HP product by knowledge gained during onsite delivery © 2006 Micro. Age

Additional information • HP Storage. Works X 1000 Network Storage Systems: http: //www. hp. com/go/x 1000 • HP Storage. Works X 3000 Network Storage Systems: http: //www. hp. com/go/x 3000 • HP Storage. Works X 1000 Automated Storage Manager Software: http: //www. hp. com/go/simplestorage • HP Storage. Works file services home page: http: //www. hp. com/go/nas • HP Storage. Works NAS white papers: http: //h 18006. www 1. hp. com/storage/naswhitepapers. html © 2006 Micro. Age

HP Storage. Works MSA 2000 sa and MSA 2000 i G 2 NDA © 2006 Micro. Age

“Twice the number of drives, twice the performance, four times the number of snapshots, and support for small form factor drives with Integrity and Pro. Liant servers” Introducing the New MSA 2000 G 2 © 2006 Micro. Age

HP Storage. Works MSA 2000 sa G 2 Direct-attach SAS array brings all the benefits of shared storage to Pro. Liant customers, while lowering the cost and eliminating the complexity of shared storage in small to medium-size deployments or remote offices Key features: New 4 -port 3 Gb SAS Controller • Support for Pro. Liant SFF drives and MSA 70 • Capability of using Small or LFF SAS or SATA drives with in the same enclosure • • Max drives support – 60 LFF or 99 SFF • Maximum Capacity − Up to 29. 2 TB (using 300 GB SAS SFF drives) TWO ARRAY HEAD MODELS SFF LFF − Up to 60 TB (using 1 TB SATA LFF drives) Increased Snapshot capabilities – 255 snaps • Attach to Pro. Liant and Integrity (blades only) • Supports Windows, Linux, VMware, Solaris and HP-UX • 52 © 2006 Micro. Age

HP Storage. Works MSA 2000 i G 2 Delivers affordable, high performance, consolidated storage array technology to entrylevel customers with an i. SCSI solutions matched with the newest SAS and SATA drives Key features: New 2 -port 1 Gb. E Ethernet SAS Controller • Support for Pro. Liant SFF drives and MSA 70 • Capability of using Small or LFF SAS or SATA drives with in the same enclosure • • Max drives support – 60 LFF or 99 SFF • Maximum Capacity TWO ARRAY HEAD MODELS SFF LFF − Up to 29. 2 TB (using 300 GB SAS SFF drives) − Up to 60 TB (using 1 TB SATA LFF drives) Increased Snapshot capabilities – 255 snaps • Attach to Pro. Liant Servers • Supports Windows, Linux, VMware & Solaris • 53 © 2006 Micro. Age

What’s new MSA 2000 Drives (SAS & SATA) • MSA 2 Large Form Factor LFF Max drives • 48 LFF NEW MSA 2000 G 2 • MSA 2 3. 5 -in Large Form Factor LFF • Pro. Liant 2. 5 -in Small Form Factor SFF • 60 LFF • 99 SFF Servers • x 86 • X 86 • Integrity c-class Blades Operating Systems • Windows • Linux • VMware • HP-UX (for MSA 2000 sa G 2 Only) • Solaris Software • Snapshot (max 64 snaps) • Snapshot (max 255 snaps) Max LUNs • 256 • 512 © 2006 Micro. Age

MSA 2000 G 2 benefits New MSA 2000 G 2 features ADDED Customer benefits Support for 2. 5 -in. drives Common with Pro. Liant: potential performance gain Support for MSA 70 enclosure Common with Pro. Liant (plus legacy ROI support) New MSA 2300 high-speed controller Faster processor, higher performance Increased scalability & 512 LUN support Up to 60 LFF 3. 5 -in drives; up to 99 SFF 2. 5 -in drives HP-UX and Open. VMS support and Integrity servers Entry-level SAN support for HP’s most powerful OSes Enhanced point-in-time copy with space-efficient snapshot 255 Snapshot capability New DC power options Opportunities in TELO and related industries Current MSA 2000 details • 3 Gb SAS four-port & 1 Gb. E i. SCSI two-port arrays • Support for concurrent use of SAS and SATA • 256 LUNs with 16 TB LUNs supported • Brower-based management • 1 GB Transportable cache per controller • Windows, Linux, VMware, Hyper-V, Xen • RAID 0, 1, 3, 5, 6, 10, 50 • Non-disruptive on-line controller code update • Controller-based snapshot and clone capability • Pro. Liant and most industry standard x 86 support • Direct or switch attach, boot from SAN where possible • Support expansion to additional drive enclosures © 2006 Micro. Age

Customer Impact of the MSA 2000 family Customer Problem What they do today Business/IT • A: Buy more servers to have more DAS Storage needs growing exponentially How the MSA 2000 solves the problem & adds business value • A: Provides a choice of highperformance reasonably priced shared storage/SAN solutions • B: Poor return on investment with stranded capacity and high management costs of DAS • B: Gives the choice of Fibre Channel, i. SCSI, or SAS for attaching to hosts • C: Expensive outsourcing sometimes sought as an answer • C: Allows the user to start with a very small configuration and grow modularly as they need. The new MSA 2000 G 2 supports even more total storage than before • D: Contrary to good business practices, risky deletion of older files to make space • D: Built on a long term relationship with products from a single source that the customer can count on being available for extended periods Why now with HP? Differentiators… • A: One source – servers and storage together, one support organization • B: Thousands of trained and certified resellers • C: Economies of scale allow for an extremely competitive low cost • D: More experience in the entry-level SAN segment translates to HP being able to provide the most suitable products for these needs Position the MSA 2000 family as the ideal family of Arrays for the entry-level storage due to its unsurpassed flexibility of host connect choices, appropriate drive types, scalability, and ease of use – all at highly affordable total costs © 2006 Micro. Age

Product overview New Features Storage Controllers MSA 2000 sa G 2 Dual Active/Active hot swap (Single Controller Option available) MSA 2000 fc G 2 Dual Active/Active hot swap (Single Controller Option available) MSA 2000 i G 2 Dual Active/Active hot swap (Single Controller Option available) 4 Gb FC 2 -port/Controller 3 Gb SAS 4 -port/Controller Technology Cache Enclosure Form Factor Max. Drives per Enclosure Drives Supported 1 GB Standard 2 U 2 U 2 U 12 12 12 2. 5 -in SAS & SATA 3. 5 -in SAS & SATA 3. 5 -in. SAS & SATA (Supports SAS and SATA drives in the same enclosure) • 7. 2 TB base capacity up to 29. 2 TB using 300 GB SFF SAS drives Max. Storage Capacity • 12 TB base capacity –up to 60 TB using 1 TB LFF SATA drives Power Supply& Fan RAID 1 Gb. E 2 -port/Controller • 12 TB base capacity –up to 60 TB using 1 TB LFF SATA drives Hot swap, Redundant 0, 1, 5, 6, 10, 50 © 2006 Micro. Age

Product overview (cont’d) New Features Connectivity & Availability # of LUNSs LUN Size MSA 2000 sa G 2 MSA 2000 fc G 2 511 512 16 TB SC 08 GE Emulex and QLogic Industry standard 1 GB Ethernet 1+4 enclosures (LFF) 1+3 enclosures (SFF) 64 64 32 • 2. 5 -in SAS – 72, 146 15 K & 300 GB 10 K • 3. 5 -in SAS – 146 GB 15 K, 300 GB 15 K, 450 GB • SATA – 750 GB, I TB • 2. 5 -in SAS – 72, 146 15 K & 300 GB 10 K • 3. 5 -in SAS – 146 GB 15 K, 300 GB 15 K, 450 GB • SATA – 750 GB, I TB • 2. 5 -in SAS – 72 & 146 GB 15 K& 300 GB 10 K • 3. 5 -in SAS – 146 GB 15 K, 300 GB 15 K, 450 GB • SATA – 750 GB, I TB 8 -nodes (Microsoft) 8 -nodes (Linux) 16 nodes (Linux) coming 8 -nodes (Linux) HBAs Expansion MSA 2000 i G 2 Host Supported Drives # of Cluster Node © 2006 Micro. Age

Product overview (cont’d) Array Management and Optional Software New Features OS Support Management Software Multipath Support Snapshot Server Support MSA 2000 fc G 2 MSA 2000 i G 2 Windows 2008, Windows 2003, RH and Su. SE Linux RH Linux VMware Out-of-band CLI & Web-based interface (WBI) MPIO DSM Controller based snapshot and clone Pro. Liant servers Pro. Liant & Integrity servers Pro. Liant servers Pro. Liant & Integrity Blades (cclass) Pro. Liant Blades servers 3 rd Party x 86 Non-disruptive 3. 0. 0 3 rd Party x 86 Firmware Upgrade Value MSA 2000 sa G 2 New Warranty © 2006 Micro. Age

MSA 2000 G 2 Supported Configurations MSA 2312 Array w/12 LFF drive bays MSA 2000 3. 5 -in 12 LFF Disk Enclosure MSA 2324 Array w/24 SFF drive bays MSA 70 2. 5 -in 25 SFF Disk Enclosure 60 Max configuration with sixty Large Form Factor (LFF) MSA 2 drives • Twelve-drive LFF array head with one or two MSA 2300 G 2 controllers • Up to four twelve-drive MSA 2000 3. 5 -in Drive Enclosures • 3. 5 -in MSA 2 DP SAS and/or SATA drives Max configuration with ninety-nine Small Form Factor (SFF) drives • Twenty-four SFF drive array head with one or two MSA 2300 G 2 controllers • Up to three twenty-five drive MSA 70 JBODs • 2. 5 -in DP Pro. Liant SAS and/or SATA drives © 2006 Micro. Age

MSA 2000 G 2 Supported Configurations MSA 2324 Array w/24 SFF drive bays MSA 2000 3. 5 -in 12 LFF Disk Enclosure Max configuration with MIXED LFF and SFF drives • Twenty-four SFF drive array head with one or two MSA 2300 G 2 controllers • Up to three 12 -drive MSA 2000 3. 5 -in Drive Enclosures • 2. 5 -in DP Pro. Liant SAS and/or SATA drives • 3. 5 -in MSA 2 DP SAS and/or SATA drives New MSA 2324 Array w/24 SFF drive bays MSA 70 2. 5 -in 25 SFF Disk Enclosure MSA 2000 3. 5 -in 12 LFF Disk Enclosure 61 Max configuration with MIXED LFF and SFF drives • Twenty-four SFF drive array head with one or two MSA 2300 G 2 controllers • Up to two 25 -drive MSA 70 JBODS • 2. 5 -in DP Pro. Liant SAS and/or SATA drives • Up to two 12 -drive MSA 2000 3. 5 -in Drive Enclosures • 3. 5 -in MSA 2 DP SAS and/or SATA drives © 2006 Micro. Age

MSA 2000 G 2 Array SKUs being introduced MSA 2000 sa G 2 Configured Units MSA 2312 sa G 2 Dual Controller (LFF) MSA 2324 sa G 2 Dual Controller (LFF) HP 2312 sa G 2 Dual Controller Modular Smart Array Controller (Unit ships with 2 controllers) AJ 805 A HP 2324 sa G 2 Dual Controller Modular Smart Array Controller (Unit ships with 2 controllers) AJ 807 A MSA 2000 i G 2 Configured Units MSA 2312 i G 2 Dual Controller (LFF) MSA 2324 i G 2 Dual Controller (LFF) 62 HP 2312 i G 2 Dual Controller Modular Smart Array Controller (Unit ships with 2 controllers) AJ 800 A HP 2324 i G 2 Dual Controller Modular Smart Array Controller (Unit ships with 2 controllers) AJ 802 A © 2006 Micro. Age

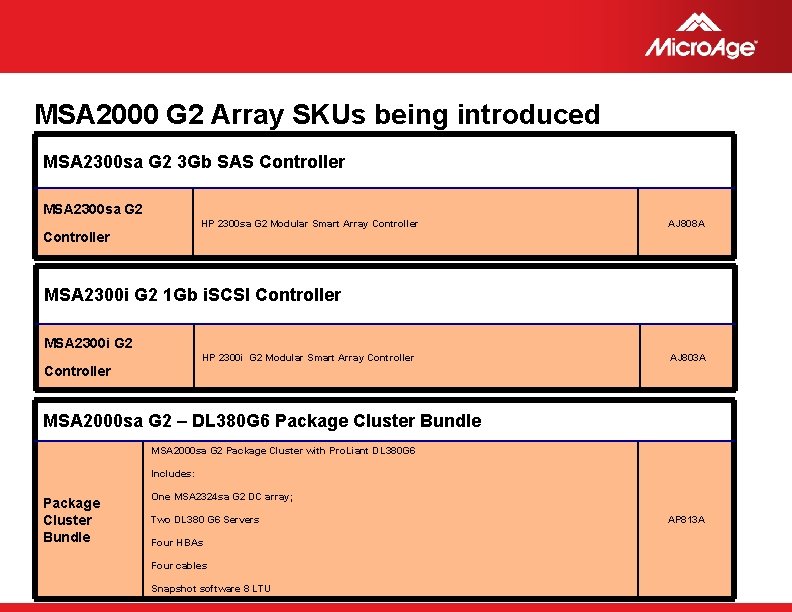

MSA 2000 G 2 Array SKUs being introduced MSA 2300 sa G 2 3 Gb SAS Controller MSA 2300 sa G 2 HP 2300 sa G 2 Modular Smart Array Controller AJ 808 A Controller MSA 2300 i G 2 1 Gb i. SCSI Controller MSA 2300 i G 2 HP 2300 i G 2 Modular Smart Array Controller AJ 803 A Controller MSA 2000 sa G 2 – DL 380 G 6 Package Cluster Bundle MSA 2000 sa G 2 Package Cluster with Pro. Liant DL 380 G 6 Includes: Package Cluster Bundle One MSA 2324 sa G 2 DC array; Two DL 380 G 6 Servers AP 813 A Four HBAs Four cables 63 Snapshot software 8 LTU © 2006 Micro. Age

MSA 2000 sa G 2 Package Cluster with Pro. Liant DL 380 G 6 AP 813 A HP Pro. Liant Server HP MSA 2000 sa G 2 Highly available MSA 2000 sa G 2 Cluster Solution with Redundant Paths © 2006 Micro. Age

A la carte: the Channel’s dream for fast delivery and inventory turn • 2 Chassis – LFF & SFF • 3 controllers: FC, SAS, i. SCSI • 1 JBOD I/O Module • SAS & SATA Drives - Large and Small Form Factor (Pro. Liant!) • MSA 70 JBOD (Pro. Liant!) © 2006 Micro. Age

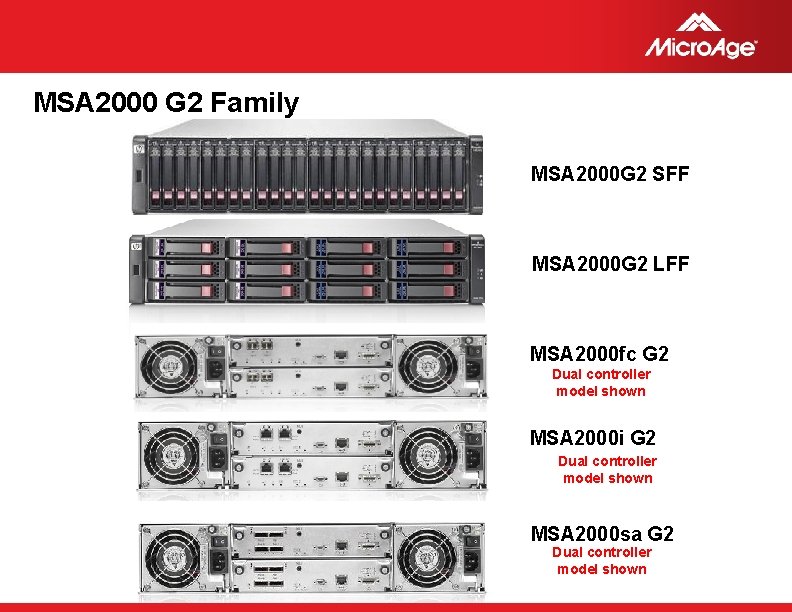

MSA 2000 G 2 Family MSA 2000 G 2 SFF MSA 2000 G 2 LFF MSA 2000 fc G 2 Dual controller model shown MSA 2000 i G 2 Dual controller model shown MSA 2000 sa G 2 Dual controller model shown © 2006 Micro. Age

The MSA Family Direct Attached Storage SAS Arrays i. SCSI Arrays Fibre Channel Arrays MSA 50/60/70 MSA 2000 sa G 2 MSA 2000 i G 2 MSA 2000 fc G 2 Extending your servers’ storage Leverage server storage know how into shared storage SAN capabilities with lower infrastructure expense Highly available, scalable FC SAN at an entry-level price • SAS connected DAS • SAS / SATA drives • Scalable • SAS host connected • Direct attached • Blade support • SAN consolidation over Ethernet network • Perfect for tiered storage • Fibre Channel host connect • SAS based back-end storage © 2006 Micro. Age

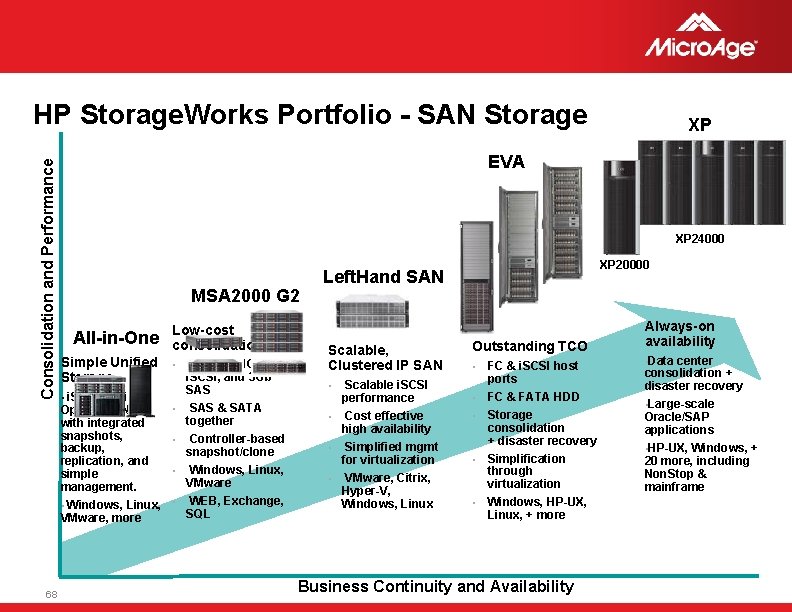

Consolidation and Performance HP Storage. Works Portfolio - SAN Storage EVA XP 24000 MSA 2000 G 2 All-in-One Simple Unified Storage • i. SCSI SAN and Optimized NAS with integrated snapshots, backup, replication, and simple management. • Windows, Linux, VMware, more 68 XP Low-cost consolidation • • • 4 GB FC, 1 Gb. E i. SCSI, and 3 Gb SAS & SATA together Controller-based snapshot/clone Windows, Linux, VMware WEB, Exchange, SQL XP 20000 Left. Hand SAN Scalable, Clustered IP SAN Scalable i. SCSI performance • Cost effective high availability • Simplified mgmt for virtualization • VMware, Citrix, Hyper-V, Windows, Linux Outstanding TCO • • • FC & i. SCSI host ports FC & FATA HDD Storage consolidation + disaster recovery Simplification through virtualization Windows, HP-UX, Linux, + more Business Continuity and Availability Always-on availability • Data center consolidation + disaster recovery • Large-scale Oracle/SAP applications • HP-UX, Windows, + 20 more, including Non. Stop & mainframe © 2006 Micro. Age

HP beats the competition HP-specific Features 2. 5 -in SAS Drives 8 -node Clustering (single-path) 4 -node Clustering (dual-path) Superior cache Technology Software Support 1 GB Cache Standard RAID (6) Benefits • More spindles – greater I/O performance • Smaller size – reduce power and cooling • • 70% less space and 50% less power than 3. 5 -in drives Most number of nodes per storage device in the market without using a switch • Provides high-availability for critical application such as Exchange or SQL • Super Capacitors – superior advantage over conventional battery backed up cache protection • Ensures cache data is stored safely when power fails • System enters write-back mode in minutes vs. hours with batteries • Up to 10 year life span – eliminates periodic battery replacement down time • Environmentally friendly – corresponds with our global responsibility spirit • All configuration, management, partitioning, and licensing software come standard with no extra charge • Lowers the total cost of ownership • No need to pay extra for upgrading cache for performance gain • 1 GB Standard – transportable for single controller configuration • Larger disk drives exposes customer to: – – LUN Size, max 16 TB 69 Extended rebuild times Chance of a second disk drive failure and therefore data loss during rebuild • Best fault tolerance because any two drives can fail without affecting data integrity • Superior data protection • Minimal performance penalty • > 2 TB compliments larger drive size, databases and applications © 2006 Micro. Age

Competitive data at a glance – MSA 2000 sa G 2 Dell MD 3000 SUN ST 2530 IBM DS 3200 Single or Dual 4 x 3 Gbps SAS port/controller 2 x 3 Gbps SAS port/controller 3 x 3 Gbps SAS port/controller Memory per Controller 1 GB Standard 512 MB 512 upgradeable to 1 GB Form Factor 2 U 3 U 2 U 2 U 45 (1+2) 36 (1+2) 48 (1+3) SAS & SATA SAS, SATA 0, 1, 3, 5, 6, 10, 50 0, 1, 5, 10 1/0, 3, 5 0, 1, 3, 5, 6, 10 512 256 256 16 TB 2 TB Controllers Host Interface Max disk drives Disk type RAID Levels Max LUNs LUN size limit 70 99 Small Form Factor 60 Large Form Factor © 2006 Micro. Age

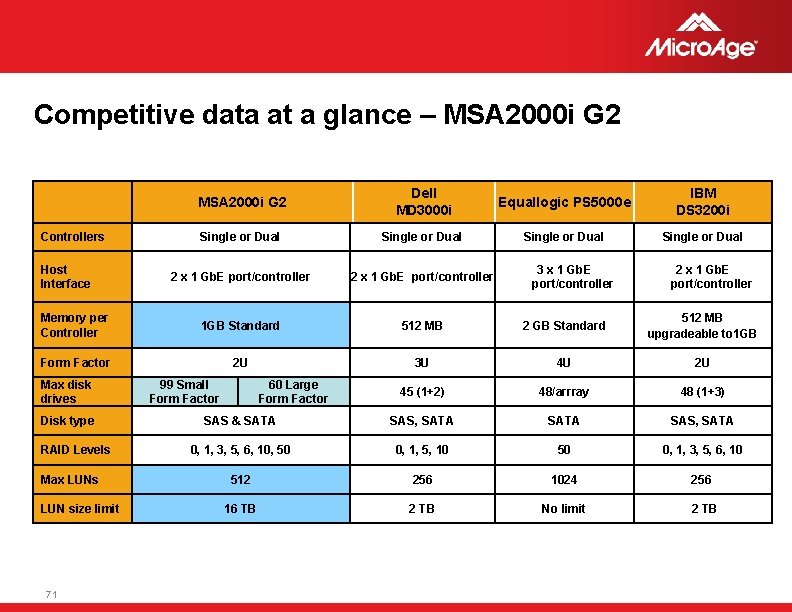

Competitive data at a glance – MSA 2000 i G 2 Dell MD 3000 i Equallogic PS 5000 e IBM DS 3200 i Controllers Single or Dual 2 x 1 Gb. E port/controller Memory per Controller 1 GB Standard 512 MB 2 GB Standard 512 MB upgradeable to 1 GB Form Factor 2 U 3 U 4 U 2 U 45 (1+2) 48/arrray 48 (1+3) SAS & SATA SAS, SATA 0, 1, 3, 5, 6, 10, 50 0, 1, 5, 10 50 0, 1, 3, 5, 6, 10 512 256 1024 256 16 TB 2 TB No limit 2 TB Host Interface Max disk drives Disk type RAID Levels Max LUNs LUN size limit 71 99 Small Form Factor 60 Large Form Factor 3 x 1 Gb. E port/controller 2 x 1 Gb. E port/controller © 2006 Micro. Age

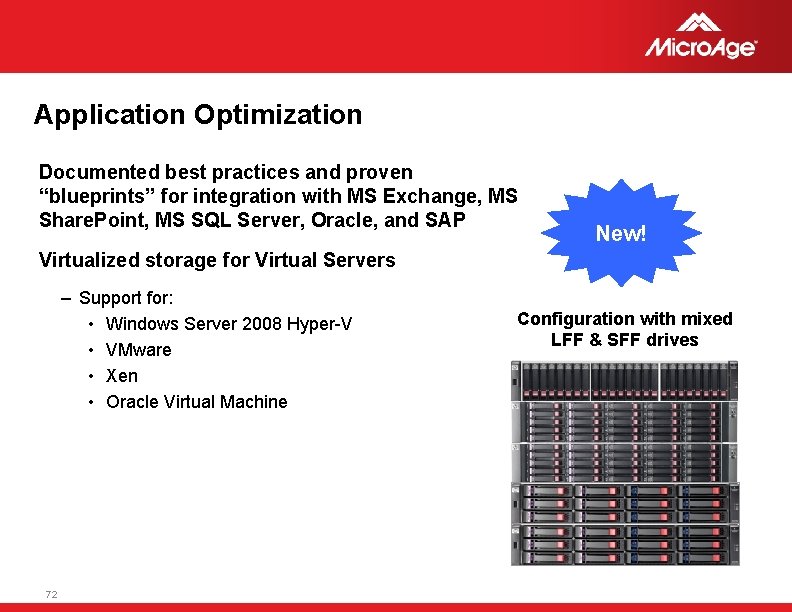

Application Optimization Documented best practices and proven “blueprints” for integration with MS Exchange, MS Share. Point, MS SQL Server, Oracle, and SAP New! Virtualized storage for Virtual Servers – Support for: • Windows Server 2008 Hyper-V • VMware • Xen • Oracle Virtual Machine 72 Configuration with mixed LFF & SFF drives © 2006 Micro. Age

Useful Customer Links • MSA 2000 sa G 2 home page www. hp. com/go/msa 2000 sa • MSA 2000 i G 2 home page www. hp. com/go/msa 2000 i • Best Practices for Optimizing the MSA 2000 Whitepaper: http: //h 20195. www 2. hp. com/V 2/Get. PDF. aspx/4 AA 2 -5019 ENW. pdf • How to Upgrade your MSA 2000 from G 1 to G 2: http: //h 20195. www 2. hp. com/v 2/Get. PDF. aspx/4 AA 2 -5207 ENW. pdf • Step-by-step Technical Guide to set up your SAN with MSA 2000 (MSA 2000 Technical Cookbook): http: //h 20195. www 2. hp. com/V 2/Get. PDF. aspx/4 AA 2 -5505 ENW. pdf © 2006 Micro. Age

Product Pricing © 2006 Micro. Age

Questions? © 2006 Micro. Age

Thank You
