Definition SCT 3000 The Smartline Configuration Toolkit is

Definition – SCT 3000 • The Smartline Configuration Toolkit is a PC Windows based engineering and maintenance tool designed specifically for use with Honeywell’s Smartline® family of DE Devices - Supported devices: w ST 3000 Pressure Transmitters w STT 3000 Temperature Transmitters, which includes the STT 150, STT 25 D, STT 25 M and STT 350 Series w SMV 3000 Multivariable Transmitters w Magne. W 3000 PLUS Electromagnetic Flowmeters - Configuration support: w Online Configuration w Offline Configuration 1 HONEYWELL - CONFIDENTIAL File Number

Redesign Needs • PCMCIA Card and the Captive Cable (Connector between PCMCIA and the Line Interface Module) on the current SCT 3000 product are obsolete • Current SCT 3000 is not compatible with the newer Operating Systems (ex: PCMCIA Card is not recognized by some XP machines) • Cannot configure STT 150 devices (Serial port settings) 2 HONEYWELL - CONFIDENTIAL File Number

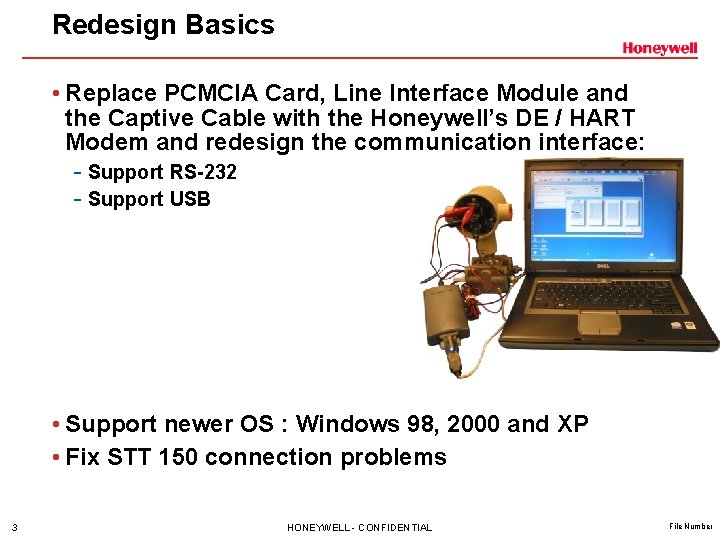

Redesign Basics • Replace PCMCIA Card, Line Interface Module and the Captive Cable with the Honeywell’s DE / HART Modem and redesign the communication interface: - Support RS-232 - Support USB • Support newer OS : Windows 98, 2000 and XP • Fix STT 150 connection problems 3 HONEYWELL - CONFIDENTIAL File Number

Communication Interface - Serial Interface w Components • DE / HART Modem • RS-232 Pass Thru Cable • Adapter cable with stereo phone jack connector w Driver Requirements • NONE To PC / Laptop - USB Interface w Components • DE / HART Modem • USB to RS-232 Converter • USB Extension Cable • Adapter cable with stereo Phone jack connector w Driver Requirements • Install RS-232 to USB Converter • Installation Instructions – 34 -ST-33 -61 4 To PC / Laptop HONEYWELL - CONFIDENTIAL File Number

Product Installation – Option 1 • Complete SCT 3000 Product Package - Items w SCT 3000 Software Installation CD w DE / HART Modem w RS-232 Pass Thru Cable w USB Cable Kit and Installation Guide (34 -ST-33 -61) w Adapter Cables w User Manual 5 HONEYWELL - CONFIDENTIAL File Number

Product Installation – Option 2 • Software upgrade using Web Download and Replacement Kit - Web Download link: w http: //hpsweb. honeywell. com/Cultures/en- US/Products/Instrumentation/configtools/sct/Software. Downloads/doc uments. htm - Download Items w SCT 3000 Software Installation Setup - Replacement Kit Parts w DE / HART Modem w SCT 3000 Cable Kit and Installation Instructions (34 -ST-33 -61) 6 HONEYWELL - CONFIDENTIAL File Number

HPS Software Download Site - Navigation SCT 3000 User Manual SCT 3000 Software Installation Setup 7 HONEYWELL - CONFIDENTIAL File Number
