Geotechnology Fundamental Theories of Rock and Soil Mechanics
- Slides: 88
Geotechnology Fundamental Theories of Rock and Soil Mechanics
Geotechnology I. Theory of Rock and Soil Mechanics A. Stress 1. Concept Stress = Pressure = ? ? ?
Geotechnology I. Theory of Rock and Soil Mechanics A. Stress 1. Concept Stress = Pressure = Force Area
Geotechnology I. Theory of Rock and Soil Mechanics A. Stress 1. Concept Stress = Pressure = Force Area versus
A. Stress 2. Primary Forces (natural)
A. Stress 2. Primary Forces (natural) a. Gravitational Forces (overlying materials and upslope activity)
A. Stress 2. Primary Forces (natural) b. Tectonic Forces “Important for Virginia and the Eastern Seaboard? ”
A. Stress 2. Primary Forces (natural) c. Fluid Pressures (‘quick conditions’)
Geotechnology I. Theory of Rock and Soil Mechanics A. Stress 3. Secondary Forces (Human Induced)
Geotechnology 3. Secondary Forces (Human Induced) a. Excavation and Mining
Geotechnology 3. Secondary Forces (Human Induced) b. Loading
Geotechnology 3. Secondary Forces (Human Induced) c. Other * Blasting * Tunneling * Pumping of Fluids
4. Stress (σn ) on a plane normal to Force σn = Force / Area Where n = ‘normal’, or stress perpendicular To the cross sectional area

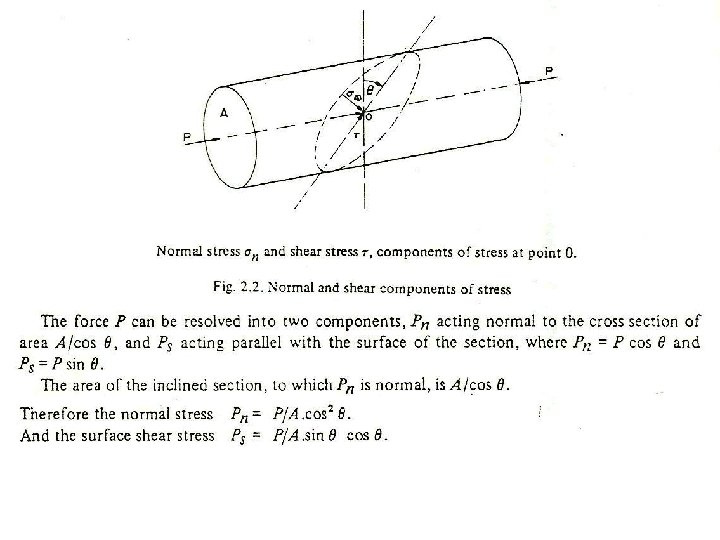

5. Stress on an inclined plane to Force σ = Force / Area Where inclined area = An/cos Θ Θ = angle to normal
5. Stress on an inclined plane to Force σ = Force / Area Where is 1)Normal Force and 2)Shear Force = ? ?
5. Stress on an inclined plane to Force σ = Force / Area Where Normal Force and Shear Force = ? ? cos Θ = a h sin Θ = o h
5. Stress on an inclined plane to Force σ = Force / Area Where Normal Force and Shear Force = ? ? cos Θ = a = Fn h=F sin Θ = o = Fs h=F
5. Stress on an inclined plane to Force σ = Force / Area Where Normal Force and Shear Force = ? ? cos Θ = a = Fn h=F sin Θ = o = Fs h=F Fn = F cos Θ Fs = F sin Θ
5. Stress on an inclined plane to Force A reminder… Fn = F cos Θ Fs = F sin Θ A = An/cos Θ
5. Stress on an inclined plane to Force A reminder… Fn = F cos Θ Fs = F sin Θ A = An/cos Θ Stress Normal = Force Normal / Area σn = {F cos Θ} / {An/cos Θ} Stress Shear = Force Shear / Area τ = {F sin Θ} / {An/cos Θ}
5. Limits: (max) σn when Θ = 0 (min) σn when Θ = 90 (max) τ when Θ = 45 (min) τ when Θ = 0 or 90
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, Θ = 30°, Θ = 45°, and Θ = 60°
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 30° σn = {F cos Θ} / {An/cos Θ} = (10 lbs * cos 0)/(5 in 2/cos 0) = τ = {F sin Θ} / {An/cos Θ} = (10 lbs * sin 0)/(5 in 2/cos 0) =
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 30° σn = {F cos Θ} / {An/cos Θ} = (10 lbs * cos 0)/(5 in 2/cos 0) = 2 lbs/in 2 τ = {F sin Θ} / {An/cos Θ} = (10 lbs * sin 0)/(5 in 2/cos 0) = 0 lbs/in 2
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 30° σn = {F cos Θ} / {An/cos Θ} τ = {F sin Θ} / {An/cos Θ} = (10 lbs * cos 30)/(5 in 2/cos 30) = (10 lbs * sin 30)/(5 in 2/cos 30) = lbs/in 2
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 30° σn = {F cos Θ} / {An/cos Θ} τ = {F sin Θ} / {An/cos Θ} = (10 lbs * cos 30)/(5 in 2/cos 30) = (10 lbs * sin 30)/(5 in 2/cos 30) = 1. 50 lbs/in 2 = 0. 87 lbs/in 2
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 45° σn = {F cos Θ} / {An/cos Θ} τ = {F sin Θ} / {An/cos Θ} = (10 lbs * cos 45)/(5 in 2/cos 45) = (10 lbs * sin 45)/(5 in 2/cos 45) = =
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 45° σn = {F cos Θ} / {An/cos Θ} τ = {F sin Θ} / {An/cos Θ} = (10 lbs * cos 45)/(5 in 2/cos 45) = (10 lbs * sin 45)/(5 in 2/cos 45) = 1. 00 lbs/in 2
Example Problem Given: Force = 10 lbs, Area (normal) = 5 in 2 Determine σn and τ when Θ = 0 °, and Θ = 60° σn = {F cos Θ} / {An/cos Θ} τ = {F sin Θ} / {An/cos Θ} = (10 lbs * cos 60)/(5 in 2/cos 60) = (10 lbs * sin 60)/(5 in 2/cos 60) = 0. 5 lbs/in 2 = 0. 87 lbs/in 2
5. Limits: (max) σn when Θ = 0 (min) σn when Θ = 90 (max) τ when Θ = 45 (min) τ when Θ = 0 or 90 Do your answers conform to the trends shown here?
6. Stress (σ) in 3 dimensions Stress at any point can be ‘resolved’ via 3 mutually perpendicular stresses: σ1 , σ2 , σ3 Where σ1 > σ2 > σ3
B. Strain “your ideas? ? ”
B. Strain 1. Strain Effects
B. Strain 1. Strain Effects a. Stress produces deformation Strain = d. L L
B. Strain 1. Strain Effects a. Stress produces deformation “phi”
B. Strain 1. Strain Effects a. Strain Ellipse Maximum Shear Stress: Where σ1 - σ3 2
2. Stress – Strain Diagrams σ “which material is stronger? ” ε
II. Elastic Response A. Young’s Modulus (E) “best shown in rocks” E = stress σ strain ε “The greater E is, ……? “elastic limit”
II. Elastic Response A. Young’s Modulus (E) “best shown in rocks” E = stress σ strain ε “The greater E is, the less deformation per unit stress OR “the stronger the material”
An Example:
II. Elastic Response B. Poisson’s Ratio (ν) ν = lateral strain length strain In compression In tension
II. Elastic Response C. Ideal Elastic Behavior
II. Elastic Response D. Non-Ideal Elastic Behavior Strain hardening
II. Elastic Response E. Hysteresis ‘delayed feedback’ “under repeated loads” Hard Rock Soft Rock
II. Elastic Response F. Stress-Strain in Soils Limits of Proportionality (how much of the strain is Elastic? ) Assumes OM, MD
II. Elastic Response G. Repeated Loading of Soils (when rolled) “under repeated loads” Increment of permanent strain decreases (densification)
III. Time-Dependent Behavior – Strain A. Creep – under static loads Elastic response occurs instantaneously
Collapsed Culvert, Cincinnati, OH
III. Time-Dependent Behavior – Strain A. Creep – under static loads
III. Time-Dependent Behavior – Strain B. Specific Rocks
III. Time-Dependent Behavior – Strain C. Griggs Relationship
III. Time-Dependent Behavior – Strain D 1. Pavements “The Benkelman Beam measures the deflection of a flexible pavement under moving wheel loads. ”
III. Time-Dependent Behavior – Strain D 2. Mines Steel is strong in tension; Transfer Load to more confined (stronger) rocks. compression tension
III. Time-Dependent Behavior – Strain D. Mines Steel is strong in tension; Transfer Load to more confined (stronger) rocks. compression tension
IV. Shearing Resistance and Strength A. Introduction • Internal Friction • Cohesion “One of the most important engineering properties of soil is their shearing strength, or its ability to resist sliding along internal surfaces within a mass. ”
IV. Shearing Resistance and Strength A. Introduction • Internal Friction • Cohesion “One of the most important engineering properties of soil is their shearing strength, or its ability to resist sliding along internal surfaces within a mass. ”
An example of basic principles of friction between two bodies…. Φ Φ
An example of basic principles of friction between two bodies…. Φ Φ Φ
An example of basic principles of friction between two bodies…. tan Φ = τ / σnormal Φ Φ Φ

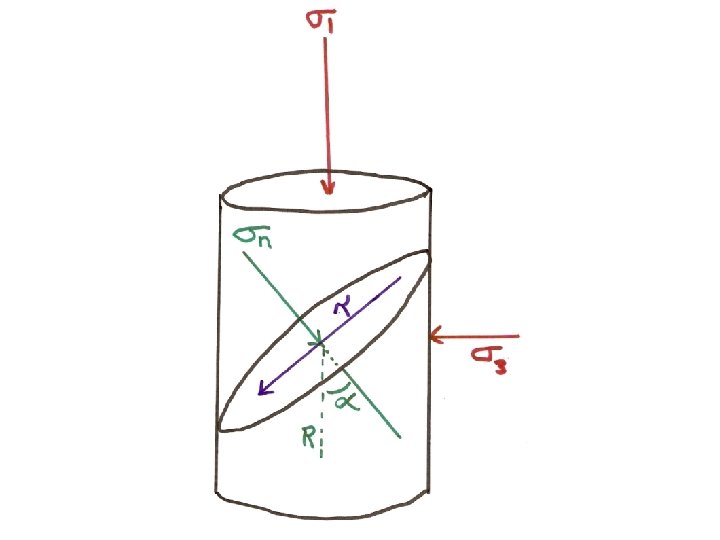

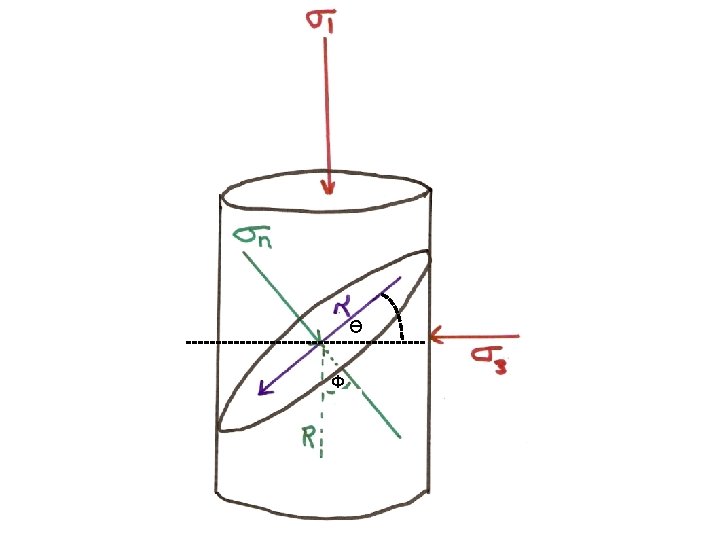

Our governing equations…. . Φ ϴ Φ

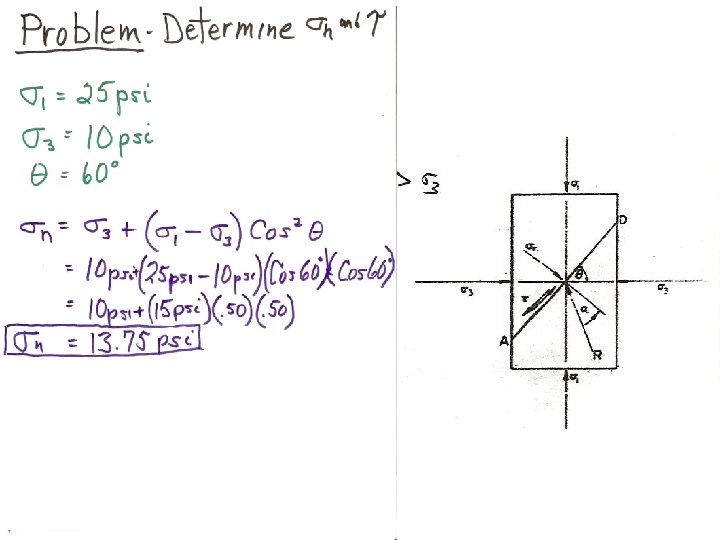

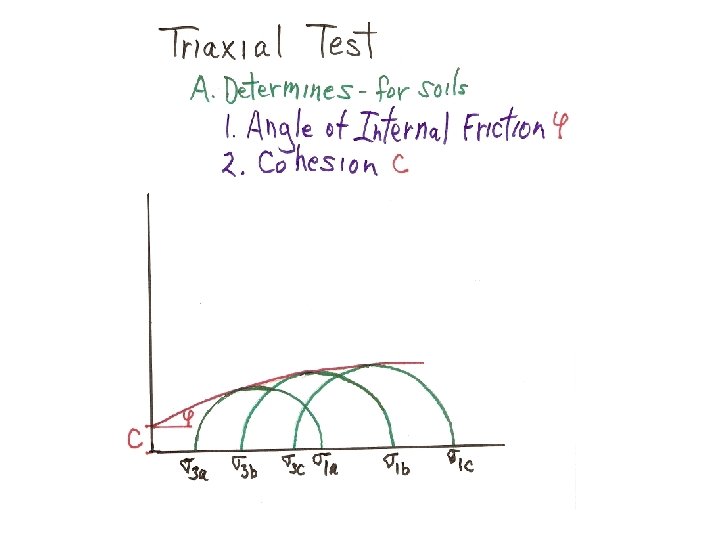

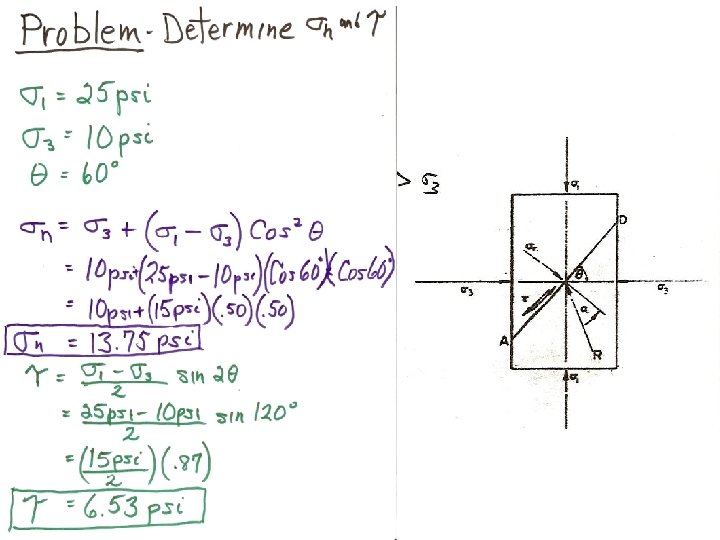

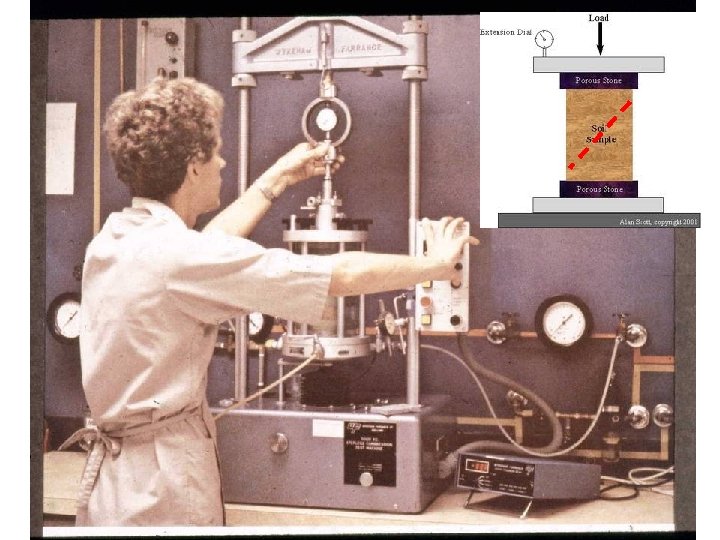

IV. Shearing Resistance and Strength B. Triaxial Test for Soils & Mohrs Circles “Strength of material ~ cohesion and angle of internal friction” τ = c + σnormal * tanΦ τ = shear stress on failure plane c = cohesion σnormal = stress normal on failure plane Φ = angle of internal friction

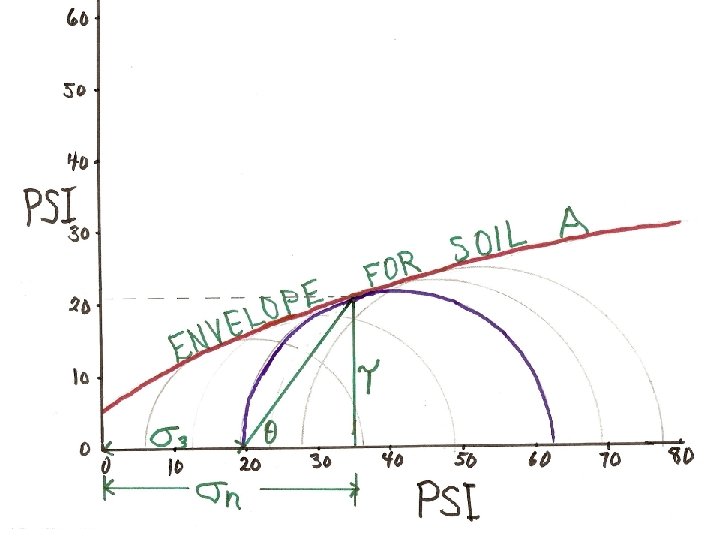

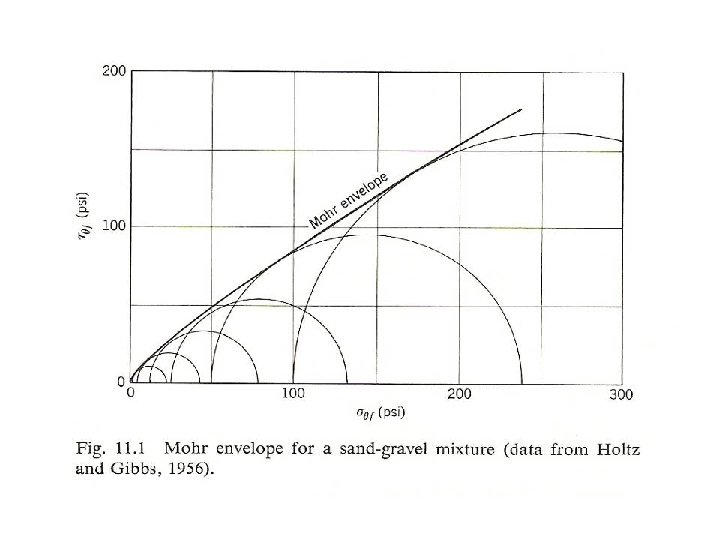

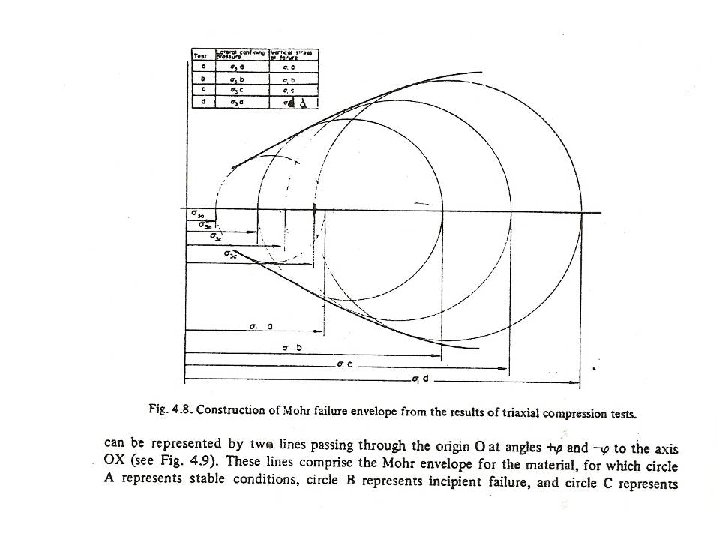

Mohrs Circles σ3 σ1 8 lbs/in 2 33 lbs/in 2

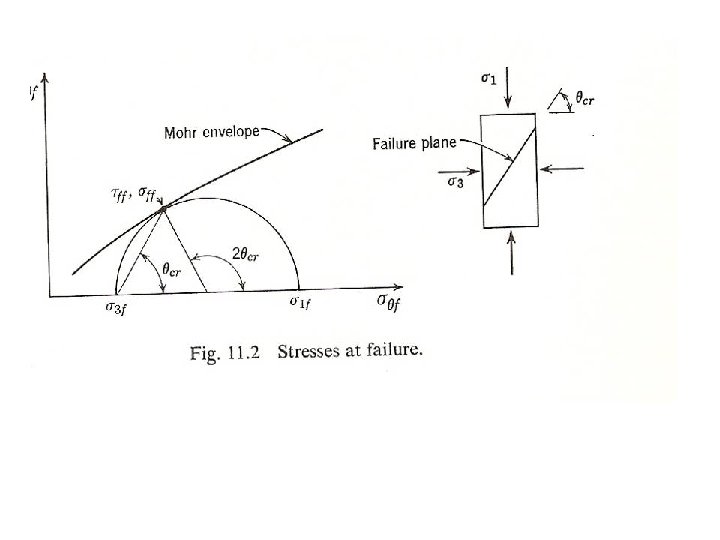

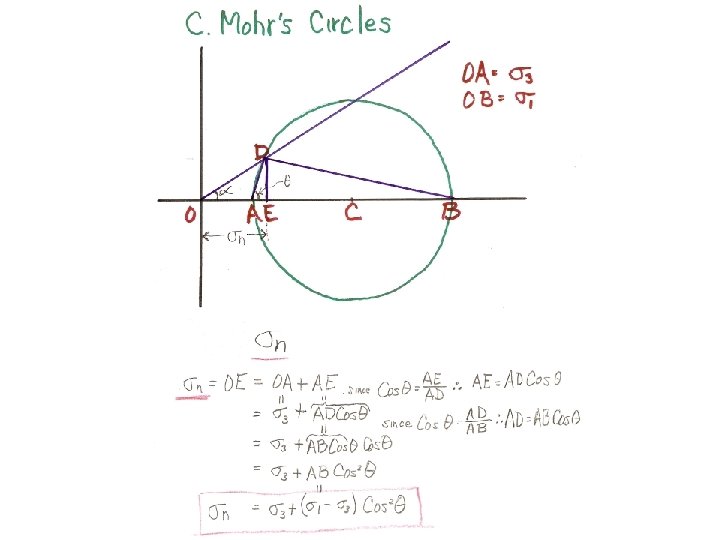

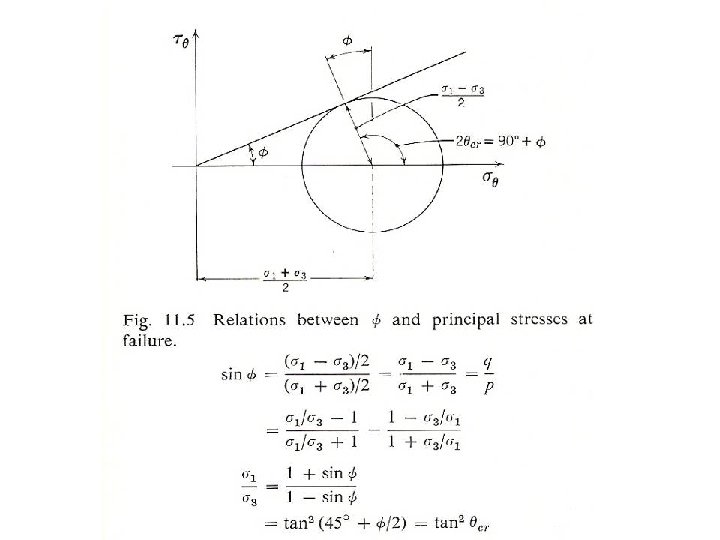

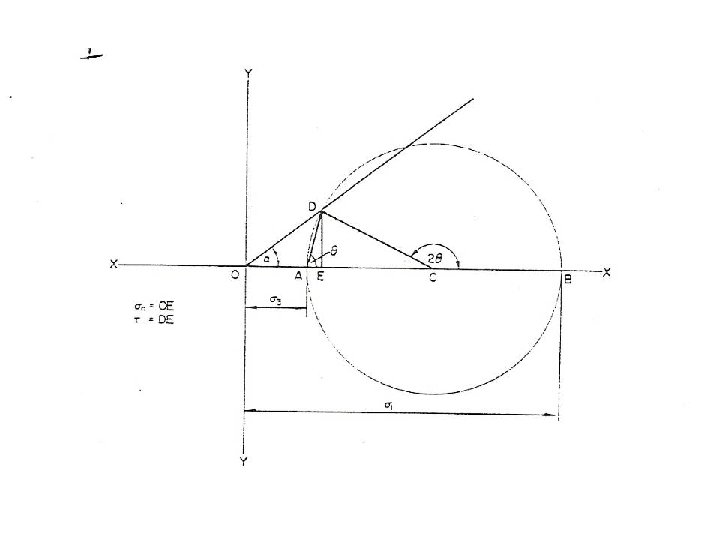

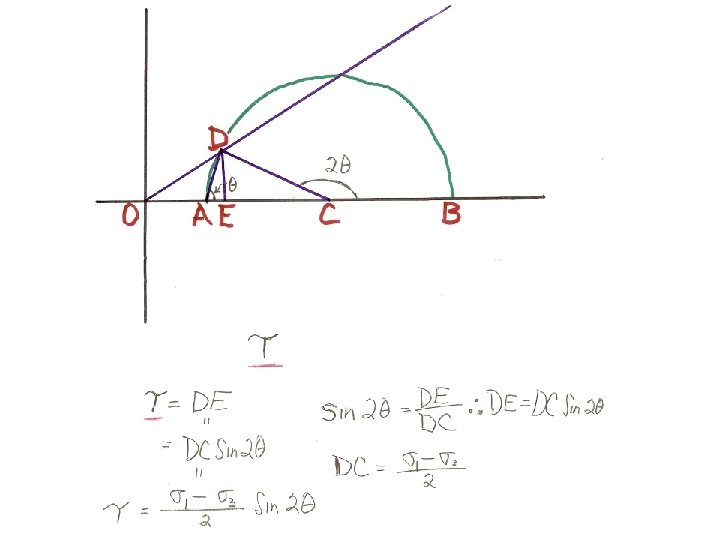

τ (shear stress) Φ = angle of internal friction ϴ = angle between σ3 and horizontal plane OB = σ1 OA = σ3 OE = σnormal DE = τ (shear stress) ϕ ϴ σ3 σ1 Φ
An example……

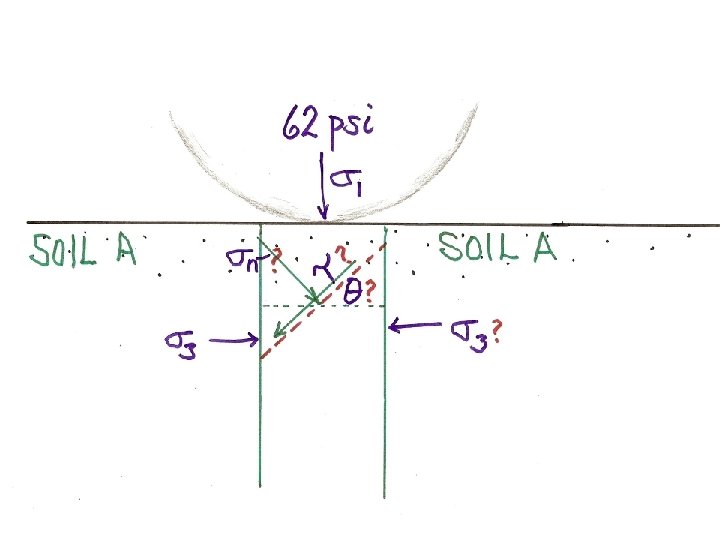

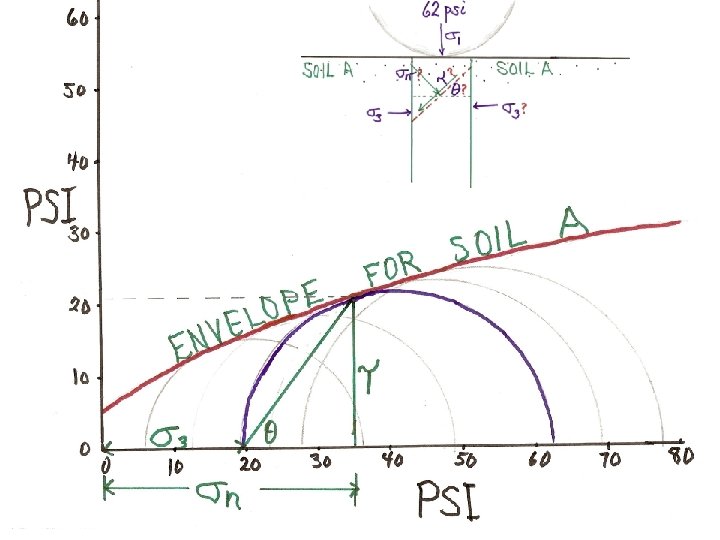

An Example Problem: The following Triaxial tests were performed on multiple samples of the same soil: Test A B C D σ3 (psi) 7 17 23 31 σ1 (psi) 32 61 76 92 IF: A minimum confining load (σ3) is required to stabilize a vertical load of 70 psi DETERMINE: • σn • τ • angle of internal friction • cohesion An example to get you started…
