Erosion Erosion The removal and transport of weathered

Erosion • Erosion – The removal and transport of weathered materials by natural agents such as – Caused by 1. 2. 3. 4. 5. Glaciers Running water Gravity Wind Waves

Glaciers • Mass of compacted ice and snow that moves under its own weight

Glaciers • Friction at the base of the glacier is reduced by a thin film of melt water. • Glaciers account for about 75% of the fresh water on Earth

• Glaciers can leave behind large boulders that are known as an erratic

Glaciers • Glaciers can move lots of sediment that can carve striations (grooves) into rocks These Striations show glaciers moved

Glacial Deposits • Drift or Till - all sediment that is deposited by glacial activity – Loess: fine powder, pulverized rock, that blankets much of the northern mid-west – Moraine: ridge or pile of boulders, gravel, sand, and silt left at the end of a glacier Esker: type of outwash that accumulates in the channels and tunnels of a glacier

Glacial Landforms • Cirque – Steep-walled bowlshaped depression • Horne: a pyramid shaped peak where 3 or more cirques meet

Glacial Landforms • Trough – U-shaped valley, Glaciers carve U shaped valleys

Glacial Landforms • Hanging valley • Arete – Straight drop-off at the – Narrow flat-topped ridge that forms between end of a trough two parallel troughs or cirques

Glacial Landforms • Moraine: Pile of mixed sediments that have been carried and dropped by the glacier

Glacial Landforms • Eskers -Mounds of rock from melt tunnels

Streams and Rivers • Velocity - How fast the water moves • Gradient - The steepness, the slope that a river or stream travels • Discharge - The amount of water that moves past a certain point in a river in a given amount of time • If there is a steep gradient, high velocity, and a large discharge, then Erosion will be severe! • Rivers have energy to move lots of sediment, and even large boulders.

River stages affect: Velocity, Gradient, & discharge which cause Erosion

Seven Bends of the Shenandoah River meanders Bends in the river, shows how mature a river is. Is the Shenandoah and old river or a young river?

Erosion-Mass Movement • The downward transportation of weathered materials by gravity Massive Landslide

Erosion-Mass Movement • • Creep Slump Mudflow/Earthflow Landslide/Rockslide

Erosion-Mass Movement: A large mass of sediment drops down!

Erosion-Mass Movement • Creep – Very slow movement of earth material. – Caused by repeated freezing and thawing. Sediments are loosened by expanding frost and contracting thaw. Leaning fence posts and telephone poles are a sign of Creep.

Fence posts leaning due to creep

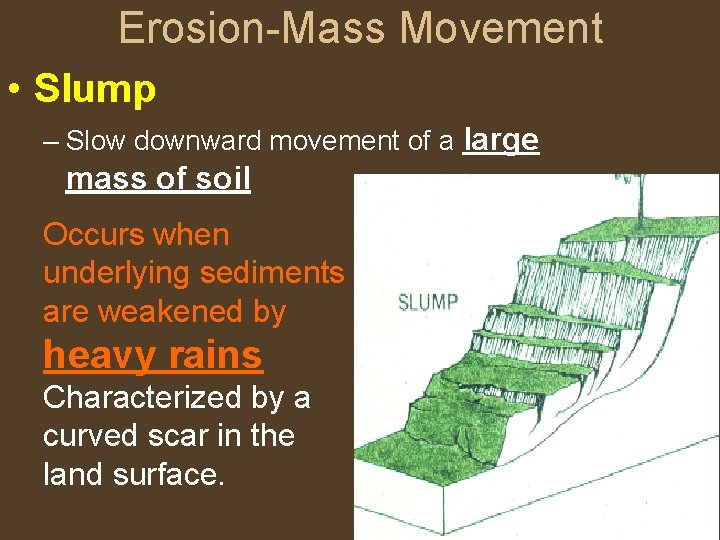

Erosion-Mass Movement • Slump – Slow downward movement of a large mass of soil Occurs when underlying sediments are weakened by heavy rains Characterized by a curved scar in the land surface.

Slump can cause road hazards

Erosion-Mass Movement • Mudflow/Earthflow – Thick pastes of sediments that travel downhill at great speeds Usually occur in dry areas that get a large quantity of rain all at once Leaves a cone shaped deposit

Mudflow in the Blue Ridge Mooreman’s Gap near Charlottesville

Erosion-Mass Movement • Landslide/Rockslide – Fast movement of large blocks of rock Occurs in very steep vertical cliffs Accelerated by ice wedging

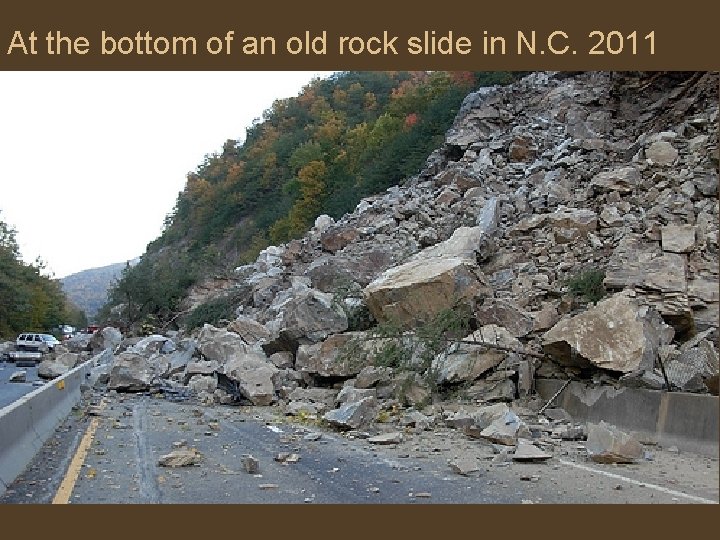

At the bottom of an old rock slide in N. C. 2011

Wave Erosion • The crashing of waves on a shoreline combined with storms continually shape the beach. This is a shoreline with erosion.

Wind and Waves • Wind moves sand dunes at the beach and in the deserts.

Wind and Waves • Wind can carve out landscapes as it carries sediment

Wind and Waves • Many storms combine water and wind to cause significant erosion on landforms. • Strong winds are capable of moving large amounts of sediment

Deposition: The process of dropping or depositing soil and sediments.

Soil (dirt) • Soil includes loose weathered rock, and organic material in which plant roots can grow

Soil Composition Use this pie chart to answer the questions in your notes.

Soil Composition What do the arrows mean?

Where soil forms • Residual soil – The parent rock is the bedrock beneath the soil (the soil has not moved) • Transported soil – Soil forms from parent material left by winds, rivers, glaciers, or soil that was moved from its original location. This soil has been transported by erosion and deposition

Factors that affect Soil Composition • Parent material: What bedrock is it from? • Time: How long has it had to decompose? • Plants and animals: How have roots and animals helped break up the rocks? Were there acid producing mosses that help break down the rocks (chemical weathering)? • Topography: What is the shape of the landscape? • Climate: Is it warm & wet? Were there glaciers present? Was there acid rain?

Soil Profile • Cross section of soil layers revealing all soil horizons

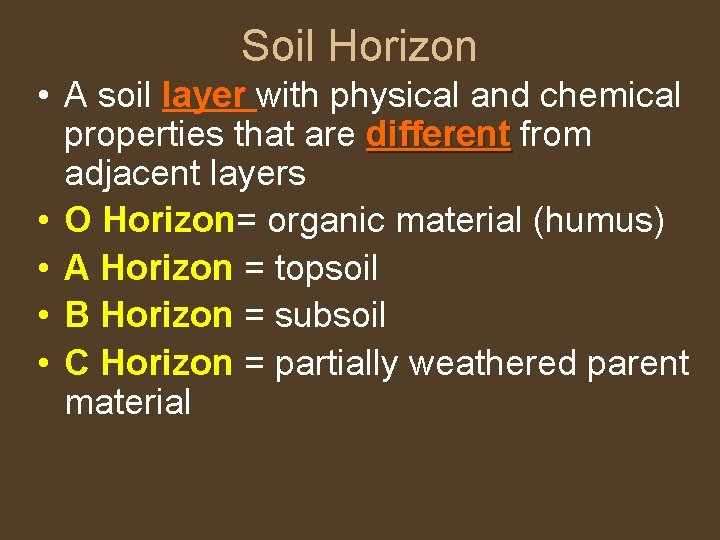

Soil Horizon • A soil layer with physical and chemical properties that are different from adjacent layers • O Horizon= organic material (humus) • A Horizon = topsoil • B Horizon = subsoil • C Horizon = partially weathered parent material

Idealized Soil Profile Humus: Dark organic matter in soil that is rich in nutrients.

Leaching: The removal of nutrients or toxins in soil as water passes through the layers.

Soil Texture • The size of soil particles

Particle size ranges for sand, silt and clay Type of Mineral Particle Sand Size Range 2. 0 - 0. 06 millimeters Large/ Coarse Silt 0. 06 - 0. 002 millimeters Clay less than 0. 002 millimeters Medium Small/ Fine

erosio n EROSION

Weathering

Deposition

Sedimentation to “settle”
