International Journal of Rock Mechanics & Mining Sciences 39 (2002) 429 -442 A MODELING APPROACH FOR ANALYSIS OF COUPLED MULTIPHASE FLUID FLOW , HEAT TRANSFER, AND DEFORMATION IN FRACTURED POROUS ROCK J. Rutqvist , Y. -S. Wu , C. -F Tsang , G. Bodvarsson 指導教授: 陳瑞昇、董家鈞 老師 學生: 楊慶中 日期: 99. 12. 30 1
Outline Introduction FLAC 3 D TOUGH 2 Coupling module Examples Results Conclusion 2
Introduction Coupled thermal–hydrologic–mechanical processes under multiphase flow conditions are prevalent in geoscientific applications. A few of the most important include nuclear waste disposal in geological media, deep underground injection of hazardous waste and underground storage of carbon dioxide into permeable aquifers. 3
Introduction However, there is no single computer code that handles general coupled thermal–hydrologic– mechanical processes. The two codes—TOUGH 2 and FLAC 3 D are linked using sequential execution and data transfer through nonlinear coupling functions. 4
FLAC 3 D 5
FLAC 3 D FALC (Fast Lagrangian Analysis of Continua ), the finite difference code is developed by the United States Itasca Consulting Group Inc in 1986 , and FLAC 3 D developed in 1994. Code is developed for rock and soil mechanics and can also handle thermomechanical and hydromechanical problem for single-phase fluid flow. 6
3 D FLAC Motion equations Cauchy’s fomula 7
FLAC 3 D 8
TOUGH 2 9
TOUGH 2 TOUGH(Transport of Unsaturanted Groundwater and Heat) developed in the Earth Sciences Division of Lawrence Berkeley National Laboratory in 1987. TOUGH 2 is a simulator for multiphase, multicomponent , non-isothermal flows in fracturedporous media. 10
TOUGH 2 Governing equations 11

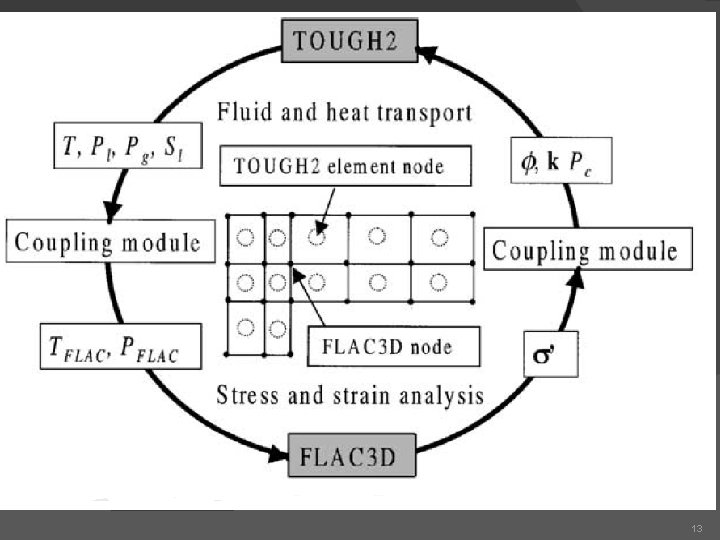

Coupling module 12
13

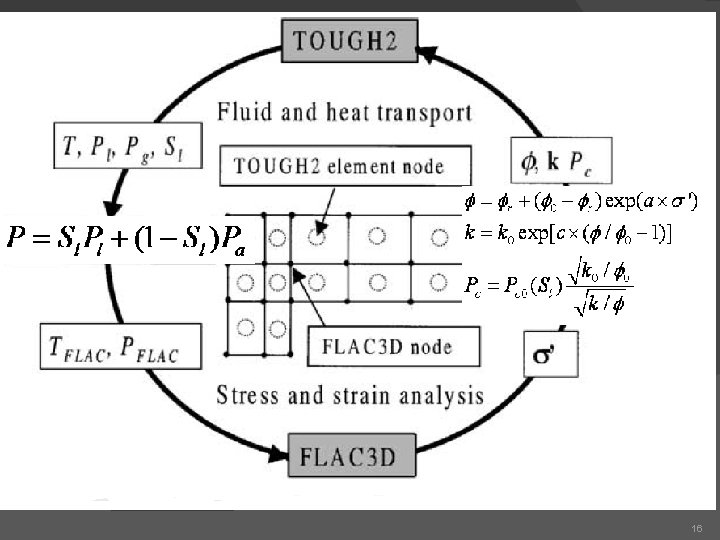

Coupling module 14
Coupling module 15
16

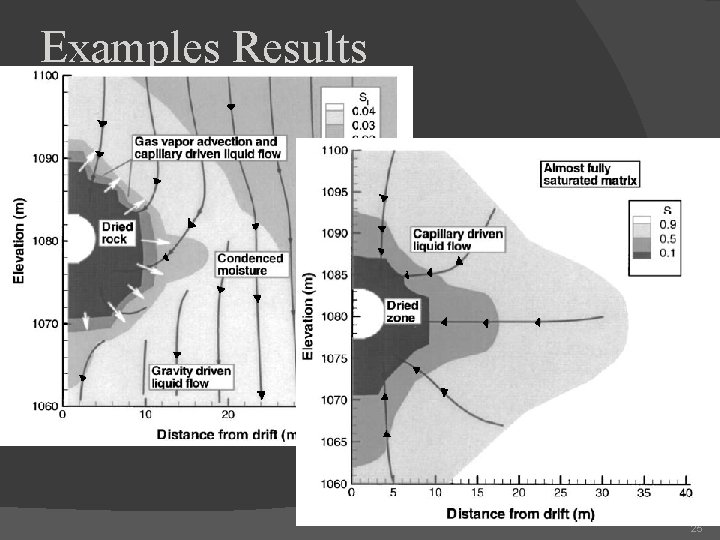

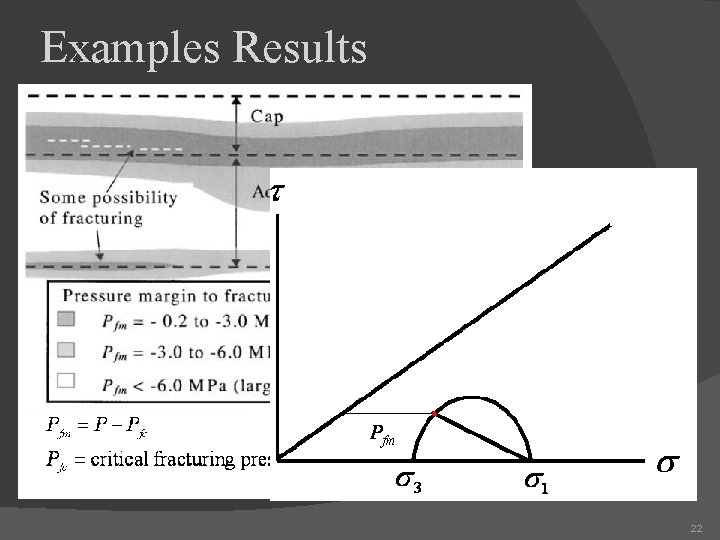

Examples Results 17
Examples Results 18
Examples Results 19
Examples Results 20
Examples Results 21
Examples Results 22
Examples Results 23
Examples Results 24
Examples Results 25
Conclusion 26
Conclusion We have linked two codes—TOUGH 2 and FLAC 3 D—for analysis of coupled thermalhydrologic-mechanical processes. The coupling modules contain nonlinear stress versus permeability functions. 27
Conclusion In both these examples, the hydromechanical changes are relatively slow, which is most suitable for the sequentially explicit solution. Problems with higher strain rates relative to fluid mobility may require the sequential implicit approach or ultimately a fully implicit coupled approach.
Thank for your attention 29
