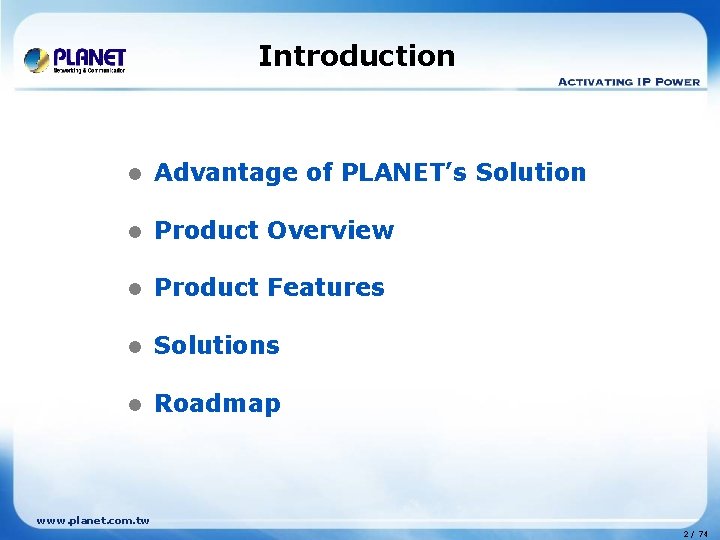

Introduction l Advantage of PLANET’s Solution l Product Overview l Product Features l Solutions l Roadmap www. planet. com. tw 2 / 74

PLANET Advantages n Total Ethernet Switch Solution § From Fast Ethernet to Gigabit Ethernet Switches § From managed Web/ SNMP, Web Smart Switches to L 2, L 3 Switches n High Scalability, support up to 416 nodes over one single IP n Modular design for flexible network deployment www. planet. com. tw 3 / 74

Product Overview Multiple Layer 33 Multiple Layer Managed Switch Model Description Application WGS 3 -24000 24 G L 3 ISP/ Telco Core / Backbone L 3 Switch WGS 3 -24240 24 G SFP L 3 ISP/ Telco Core / Backbone L 3 Switch WGS 3 -2820 24 + 4 G TP/2 SFP L 3 Core / Backbone L 3 Switch Standard Switch WGS 3 -5220 48 + 4 G TP/2 SFP L 3 Core / Backbone L 3 Switch SOHO Switch WGS 3 -2840 24 + 4 G TP/SFP L 3 Enterprise/ SMB Core L 3 Switch Layer 2 Managed Switch Web Smart / Smart Switch Industrial Switch www. planet. com. tw 4 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart / Smart Switch Standard Switch SOHO Switch Industrial Switch Model Description Application WGSW-48000 48 G with 4 shared SFP Backbone SGSW-24040 R 24 G Management Stackable Backbone SGSW-24240 R 24 G Management Stackable Fiber Switch Backbone SGSW-24040 P 4 24 G Management Stackable / 24 Po. E Dept. Switch WGSW-24040 R 24 G Management Backbone SGSW-2840 R 24 + 4 G / IP Stackable Dept. / Edge Switch SGSW-2840 P 4 24 + 4 G / IP Stackable / 24 Po. E Dept. Switch WGSW-2840 24 + 4 G Dept. Switch WGSW-5240 48 + 4 G Dept. Switch FGSW-2620 VM 24+ 2 G Dept. or Workgroup FGSW-2624 SF 24 FX + 2 G Core or Dept. Switch www. planet. com. tw 5 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart / Smart Switch Standard Switch SOHO Switch Industrial Switch Model Description Application SGSD-1022 8 + 2 G Management + Security / IP Stackable Dept. or Edge Switch SGSD-1022 P 8 + 2 G / IP Stackable / 8 Po. E Dept. Switch WGSD-910 WGSD-1022 C 8 + 1 G Management / IP Stackable 8 + 2 G Management / IP Stackable Dept. or Workgroup FGSW-2620 PVM 24 + 2 G / 24 Po. E Dept. Switch WSD-800 8 -Port Management / IP Stackable Workgroup WSW-2401 A 24 -Port Management Workgroup VC-810 S 48 8 -Port VDSL 2 CO + 1 G TP/SFP Combo Management Switch FTTx Edge Switch VC-2400 MR 24 -Port VDSL 2 + 2 -Gigabit Ethernet Managed CO Switches FTTx Edge Switch www. planet. com. tw 6 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart // Smart Switch Standard Switch SOHO Switch Industrial Switch Model Description Application GSW-4804 SF 48 G Web Smart with 4 SFP Backbone GSW-2416 SF GSW-2404 SF 24 G Web Smart with 16/ 4 SFP Backbone GSW-1602 SF 16 G Web Smart with 2 SFP Backbone GSD-802 PS 8 G Web Smart with 8 Po. E Backbone GSD-802 S 8 G Web Smart with 2 SFP Backbone GSD-800 S 8 G Web Smart Backbone FGSW-4840 S 48 + 4 G Web Smart Dept. Switch FGSW-2402 VS / FGSW-2620 VSF 24 + 2 G Web Smart + Security Dept. Switch FGSW-1820 CS / FGSW-2620 CS 16/ 24 + 2 G Web Smart Dept. Switch FGSW-2620 PVS / FGSW-2612 PVS 24 + 2 G Web Smart + Security with 24/ 12 Po. E Dept. Switch FGSW-1828 PS 16 + 2 G Web Smart with 8 Po. E Dept. Switch FNSW-1608 PS 16 -Port Web Smart with 8 Po. E Workgroup FSD-804 PS 8 -Port Web Smart with 4 Po. E Workgroup FSD-624 SF 4 -Port POF + 2 G Web Smart Workgroup www. planet. com. tw 7 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart / Smart Switch Standard Switch SOHO Switch Industrial Switch Model Description Application GSW-2401 24 G Backbone GSW-1601 16 G Backbone GSD-800 8 G Backbone FGSW-2620 24 + 2 G Dept. Switch FSD-1600/1601 Sxx 10 -inch 16 -Port Dept. Switch FNSW-1601 FNSW-2401 FNSW-4800 16/ 24/ 48 -Port Workgroup FSD-800/801 Sxx 10 -inch 8 -Port Workgroup FSD-804 P 8 -Port with 4 -Port Po. E injector built-in Workgroup FSD-1605 FSD-2405 16/ 24 -Port Workgroup / Desktop www. planet. com. tw 8 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart / Smart Switch Model Description Application GSD-803 / 804 8 G, Metal / Plastic Backbone GSD-503 / 504 5 G, Metal / Plastic Backbone GSD-805 8 G, Metal, Internal Power Backbone FSD-1603 16 -Port, Metal Workgroup FSD-805 / FSD-805 SC 8 -Port, Metal, Internal Power Workgroup SW-804 / FSD-803 8 -Port, Plastic / Metal Workgroup SW-504 / FSD-503 5 -Port, Plastic / Metal Workgroup Standard Switch SOHO Industrial Switch www. planet. com. tw 9 / 74

Product Overview Multiple Layer 3 Managed Switch Layer 2 Managed Switch Web Smart / Smart Switch Standard Switch SOHO Switch Industrial Switch www. planet. com. tw Model Description Application ISW-500 5 -Port 10/100 Entry node for industrial ISW-800 8 -Port 10/100 Entry node for industrial ISW-800 M 8 -Port with management Back link with fast ring support ISW-802 M / ISW-802 M 15 8 -Port Management with 2 FX Fast fail-over redundancy Fiber back link with ring support ISW-1022 M 8 -Port 10/100 + 2 G TP/SFP Fast Fail-over redundancy Fiber back link with ring support ISW-511 S 15 4 -Port 10/100 + 1 FX Entry node for industrial with Fiber extension ISW-621 S 15 4 -Port 10/100 + 2 FX Entry node for industrial with Fiber extension IFT-802 / IFT-802 S 30 TP/FX Industrial Converter (Multi-Mode/Single Mode) Fiber extension for tough environment IGS-501 IGS-801 5/8 -Port 10/1000 Entry node for industrial IGS-501 T IGS-801 T 5/8 -Port 10/1000 Wide Temperature industrial IGT-90 x Gigabit TP/FX Industrial Converter Fiber extension for tough environment Remark: More details introduced in the Industrial Switch Sales Guide. 10 / 74

Features Layer 3 Managed Switch www. planet. com. tw

Features L 3 Managed Switch Backbone Switch Model WGS 3 -24000 Item Description Ports 24 G L 3 10/1000 T Mini-GBIC Switch Fabric Bandwidth 4 (Shared) 24 48 G 24/48 G Department Switch WGS 3 -2820 Description 10/100 TX Ports 10/1000 T Mini-GBIC Switch Fabric Bandwidth 24 G L 3 24 Model Item WGS 3 -24240 24 + 4 G L 3 WGS 3 -5220 48 + 4 G L 3 WGS 3 -2840 24 + 4 G L 3 24 48 24 4 2 (Shared) 4 (Shared) 12. 8 G 17. 6 G 12. 8 G www. planet. com. tw 12 / 74

Features WGS 3 -24000 24 -Port L 3 Gigabit Backbone Switch l IEEE • • • standard compliant: 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x full-duplex flow control Backbone Managed IP L 3 802. 1 p four priority / 802. 1 Q VLAN 802. 3 ad LACP Link aggregation, port mirroring support 802. 1 x port-based authentication 802. 1 D, 802. 1 w, 802. 1 s classic Spanning Tree Algorithm, Rapid or multiple Spanning Tree support l Double Tagged VLAN (Q-in-Q) l Up to 4 K VLAN groups l 4 SFP mini-GBIC interfaces l Wire-speed Layer 3 IP routing, RIP 1/2, OSPF l Routing interface provides Per-Port routing and VLAN routing mode l Multicast Routing Protocol: IGMP, DVMRP, PIM-DM/SM l VRRP protocol for redundant routing deploy l Policy-Based Diff. Serv Qo. S, classified by TCP/UDP, IP Address, VLAN and DSCP/TOS l SNMP v 1, v 2 c, and v 3 switch management l SSH and SSL security management l Access Control List and Port-Security for Network security control WGS 3 -24000 www. planet. com. tw 13 / 74

Features WGS 3 -24240 24 -Port SFP L 3 Gigabit Backbone Switch l IEEE • • • standard compliant: 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x full-duplex flow control Backbone Managed IP L 3 802. 1 p four priority / 802. 1 Q VLAN 802. 3 ad LACP Link aggregation, port mirroring support 802. 1 x port-based authentication 802. 1 D, 802. 1 w, 802. 1 s classic Spanning Tree Algorithm, Rapid or multiple Spanning Tree support l Double Tagged VLAN (Q-in-Q) l Up to 4 K VLAN groups l 24 SFP mini-GBIC interfaces l Wire-speed Layer 3 IP routing, RIP 1/2, OSPF l Routing interface provides Per-Port routing and VLAN routing mode l Multicast Routing Protocol: IGMP, DVMRP, PIM-DM/SM l VRRP protocol for redundant routing deploy l Policy-Based Diff. Serv Qo. S, classified by TCP/UDP, IP Address, VLAN and DSCP/TOS l SNMP v 1, v 2 c, and v 3 switch management l SSH and SSL security management l Access Control List and Port-Security for Network security control WGS 3 -24240 www. planet. com. tw 14 / 74

Comparison WGS 3 -24000 Brand PLANET D-Link SMC Model WGS 3 -24000 DGS-3324 SR/SRi DXS-3326 GSR 8724 ML 3 Description Layer 3 / Full SNMP / Stackable Layer 3 / Full SNMP Network Ports 24 -Port 10/1000 Base TP 4 Shared SFP 24 -Port 10/1000 Base TP 4 -Combo 1000/SFP 24 -Port 10/100/1000 Base TP 4 Shared SFP optional 2 10 Gb. E uplinks IP Routing Protocol RIP v 1/2, OSPFv 2, VRRP, IRDP VLAN routing, Port-based routing RIP v 1/2, OSPF, VRRP, RIP v 1/2, OSPF, Multicast Routing Protocol DVMRP, PIM-DM, PIMSM, IGMPv 3 DVMRP, PIM-DM, PIM-SM*, IGMPv 3 DVMRP, PIM-DM, IGMP Security L 2/L 3/L 4 ACLs; Port Security; 802. 1 X Classification ACLs; Port Security; 802. 1 X, IP/MAC ACL L 4 Feature Policy-Based Diff. Serv, Classification Qo. S/DSCP Port-Based DSCP www. planet. com. tw 15 / 74

Comparison WGS 3 -24000 Brand PLANET 3 COM Extreme Model WGS 3 -24000 5500 G-EI-24 -Port Summit 400 -24 T Description Layer 3 / Full SNMP / Stackable Network Ports 24 -Port 10/1000 Base TP 4 Shared SFP 24 -Port 10/1000 Base TP 4 – Gigabit SFP 10 -Gigabit Ethernet modules available 24 -Port 10/1000 Base TP 4– Gigabit SFP IP Routing Protocol RIP v 1/2, OSPFv 2, VRRP, IRDP VLAN routing, Port-based routing ·RIP v 1/2, OSPF, VRRP, ECMP RIP v 1/v 2, OSPF, VRRP, ESRP Multicast Routing Protocol DVMRP, PIM-DM, PIMSM, IGMPv 3 PIM-DM, PIM-SM, DVMRP, IGMP Security L 2/L 3/L 4 ACLs; Port Security; 802. 1 X ACL(Time Base), 802. 1 X, IP/MAC ACL L 4 Feature Policy-Based Diff. Serv, Classification Qo. S/DSCP Port-Base DSCP Policy-Base DSCP www. planet. com. tw 16 / 74

Features WGS 3 -2820 24 + 4 G L 3 managed Switch l IEEE • • • standard compliant: 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z Department Managed IP L 3 802. 3 x full-duplex flow control 802. 1 p four priority / 802. 1 Q VLAN 802. 3 ad LACP Link aggregation, port mirroring support 802. 1 x port-based authentication 802. 1 D, 802. 1 w, 802. 1 s classic Spanning Tree Algorithm, Rapid or multiple Spanning Tree support l Double Tagged VLAN (Q-in-Q) l Up to 4 K VLAN groups l 4 -Port Gigabit / 2 Shared SFP mini-GBIC interfaces l Wire-speed Layer 3 IP routing, RIP 1/2, OSPF l Routing interface provides Per-Port routing and VLAN routing mode l Multicast Routing Protocol: IGMP, DVMRP, PIM-DM/SM l VRRP protocol for redundant routing deploy l Policy-Based Diff. Serv Qo. S, classified by TCP/UDP, IP Address, VLAN and DSCP/TOS l SNMP v 1, v 2 c, and v 3 switch management l SSH and SSL security management l Access Control List and Port-Security for Network security control WGS 3 -2820 www. planet. com. tw 17 / 74

Features WGS 3 -5220 48 + 4 G L 3 Managed Switch l IEEE • • • standard compliant: 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x full-duplex flow control 802. 1 p four priority / 802. 1 Q VLAN 802. 3 ad LACP Link aggregation, port mirroring support 802. 1 x port-based authentication Department Managed IP L 3 802. 1 D, 802. 1 w, 802. 1 s classic Spanning Tree Algorithm, Rapid or multiple Spanning Tree support l Double Tagged VLAN (Q-in-Q) l Up to 4 K VLAN groups l 4 -Port Gigabit / 2 Shared SFP mini-GBIC interfaces l Wire-speed Layer 3 IP routing, RIP 1/2, OSPF l Routing interface provides Per-Port routing and VLAN routing mode l Multicast Routing Protocol: IGMP, DVMRP, PIM-DM/SM l VRRP protocol for redundant routing deploy l Policy-Based Diff. Serv Qo. S, classified by TCP/UDP, IP Address, VLAN and DSCP/TOS l SNMP v 1, v 2 c, and v 3 switch management l SSH and SSL security management l Access Control List and Port-Security for Network security control WGS 3 -5220 www. planet. com. tw 18 / 74

Features WGS 3 -2840 24 + 4 G L 3 Intelligent Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x flow control and backpressure for half duplex operation • 802. 1 p dual priority with Weight Round Robins • 802. 1 Q VLAN, up to 256 VLANs • Port mirroring support • 802. 1 D, 802. 1 w classic Spanning Tree Algorithm or Rapid Spanning Tree support l 4 Gigabit TP/SFP Mini-GBIC Combo interfaces l 8 K MAC address table, automatic source address l Port Priority provides strict priority, Co. S polices and 802. 1 p priority l IGMP snooping and DHCP client support l Wire-speed Layer 3 IP routing, RIP 1/2, OSPF l Access Control List for Network security control Department Managed IP L 3 WGS 3 -2840 www. planet. com. tw 19 / 74

Features Layer 2 Managed Switch www. planet. com. tw

Features L 2 Managed Switch Backbone Switch Model SGSW-24040 R Item Description Ports WGSW-24040 R 24 G Mgt. Stackable 24 G Mgt. 48 G Mgt. 24 48 4 24 4 4 Hardware Stack, up to 16 units - - 68 G 48 G 96 G Mini-GBIC Switch Fabric Bandwidth Department Security Switch Model Item SGSW-24040 P 4 SGSW-2840 P 4 SGSW-2840 R SGSD-1022 P Description 24 G / 24 Po. E Mgt. Stackable 24 + 4 G / 24 Po. E IP Stackable 24 + 4 G Mgt. IP Stackable 8 + 2 G Mgt. IP Stackable - 24 24 24 4 4 Hardware Stack, up to 16 units 68 G 10/100 TX Ports WGSW-48000 24 G Mgt. Stackable 10/1000 T Stack Capability SGSW-24240 R 10/1000 T Mini-GBIC Stack Capability Switch Fabric Bandwidth www. planet. com. tw FGSW-2620 VM FGSW-2624 SF 24 + 2 G Mgt. 24 24 SFP FX 2 2 2 4 2 2 2 IP Stack, up to 36 units - - 12. 6 G 12. 8 G 5. 6 G 8. 8 G 8 (SGSD-1022 P with 8 Po. E) 21 / 74

Features L 2 Managed Switch Workgroup Switch Model WGSW 2840 Item Description WGSW 5240 24 + 4 G Mgt. 48 + 4 G Mgt. IP Stackable WSW 2401 A WGSD 1022 C WGSD-910 WSD-800 FGSW 2620 PVM 24 -Port Mgt. Stackable 8 + 2 G Mgt. Stackable 8 + 1 G Mgt. Stackable 8 -Port Mgt. Stackable 24 + 2 G 24 Po. E 24 48 24 8 8 8 24 10/100/ 1000 T 4 4 - 2 1 - 2 Mini-GBIC 4 4 - 2 1 - 2 Module Slots - - 1 - - Switch Fabric Bandwidth 12. 8 G 17. 6 G 5. 0 G 3. 6 G 1. 6 G 8. 8 G 10/100 TX Ports www. planet. com. tw 22 / 74

Features SGSW-24040 / SGSW-24040 R 24 -Port Gigabit L 2 Managed Stackable Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z Backbone Managed Security • 802. 1 p eight priority queue • 802. 1 Q VLAN Tagging, up to 256 VLANs • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w Rapid Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) SGSW-24040 R l Hardware Stack up to 16 units via single IP management l 4 SFP Mini-GBIC interface for 1000 Base-SX/LX fiber-optic with connection varied by media and extension distance Rear Panel • Stack Switches connection l Q-in-Q Tunneling, Private VLAN application l IGMP Snooping and Broadcast Storm control support l Layer 2 / 3 /4 Access Control List (ACL) and Policy-Based Qo. S l SNMP V 1/V 2 c/V 3 l Redundant Model : 100~240 V AC / 48 V DC Power Redundant www. planet. com. tw 23 / 74

Features SGSW-24240 / SGSW-24240 R 24 -Port Gigabit L 2 Managed Stackable Switch l IEEE standard compliant: Backbone Managed Security • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 1 p eight priority queue • 802. 1 Q VLAN Tagging, up to 256 VLAN IDs • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w Rapid Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) SGSW-24240 R l Hardware Stack up to 16 units via single IP management l 24 SFP slots for 1000 Base-SX/LX and 100 Base-FX fiber-optic with connection varied by media and extension distance Rear Panel • Stack Switches connection l 8 10/1000 T combo copper ports l Q-in-Q Tunneling, Private VLAN application l IGMP Snooping and Broadcast Storm control support l Layer 2 / 3 /4 Access Control List (ACL) and Policy-Based Qo. S l SNMP V 1/V 2 c/V 3 l Redundant Model : 100~240 V AC / 48 V DC Power Redundant www. planet. com. tw 24 / 74

Features WGSW-24040 / WGSW-24040 R 24 -Port Gigabit L 2 Managed Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z Backbone Managed Security • 802. 1 p eight priority queue • 802. 1 Q VLAN Tagging, up to 4 K VLANs • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w Rapid Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) l 4 SFP Mini-GBIC interface for 1000 Base-SX/LX fiber-optic with WGSW-24040 connection varied by media and extension distance l Q-in-Q Tunneling, Private VLAN application l IGMP Snooping and Broadcast Storm control support l Layer 2 / 3 /4 Access Control List (ACL) and Policy-Based Qo. S l SNMP V 1/V 2 c/V 3 l Port-Security for Network Security control l Redundant Model : 100~240 V AC / 48 V DC Power Redundant www. planet. com. tw 25 / 74

Features WGSW-48000 48 -Port L 2 Managed Gigabit Ethernet Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x full-duplex flow control • 802. 1 p four priority queue • 802. 1 Q VLAN Tagging, up to 256 VLANs • 802. 3 ad LACP Link aggregation, port mirroring support • 802. 1 D, 802. 1 w, 802. 1 s classic Spanning Tree Algorithm, Rapid or multiple Spanning Tree support l 4 SFP Mini-GBIC interface for 1000 Base-SX/LX fiber-optic with connection varied by media and extension distance l GVRP protocol for dynamic VLAN Management l IGMP Snooping and Broadcast Storm control support l Co. S, Diff. Srv priority, WRR (weighted round robin) support l SNMP V 1/V 2/V 3, RMON Group 1, 2, 3, 9 support l MAC/IP Access Control List and Port-Security for Network Security control l Green Networking Backbone Managed Security WGSW-48000 www. planet. com. tw 26 / 74

Features SGSW-24040 P / SGSW-24040 P 4 24 -Port Gigabit Po. E Managed Stackable Switch l IEEE standard compliant: Backbone Managed Security • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 af Power over Ethernet End-Span PSE • 802. 1 Q VLAN Tagging, up to 256 VLANs • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w Rapid Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) SGSW-24040 P l 220 / 380 Watts Po. E Budget, up to 24 Po. E powered devices l Remote Po. E power management and monitor l Hardware Stack up to 16 units via single IP management Rear Panel • Stack Switches connection l 4 SFP Mini-GBIC interface for 1000 Base-SX/LX fiber-optic with connection varied by media and extension distance l Q-in-Q Tunneling, Private VLAN application l IGMP Snooping and Broadcast Storm control support l Layer 2 / 3 /4 Access Control List (ACL) and Policy-Based Qo. S l SNMP V 1/V 2 c/V 3 www. planet. com. tw 27 / 74

Features SGSW-2840/SGSW-2840 R 24+4 G L 2 Managed Security Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 1 p four priority queue • 802. 1 Q VLAN Tagging, up to 256 VLANs • 802. 1 v Protocol VLAN • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w 802. 1 s Rapid or multiple Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) l Single IP management, up to 36 units l GVRP / Q-in-Q VLAN Management l IGMP Snooping and Broadcast Storm control support l Policy-Base Diff. Srv and Voice Traffic Control l SNMP V 1/V 2 c/V 3, RMON Group 1, 2, 3, 9 support l MAC/IP Access Control List and Port-Security l SSH / SSL secure switch management l 4 SFP Mini-GBIC interface l Redundant Model : 100~240 V AC / 48 V DC Power Redundant Department Managed Security SGSW-2840 R Rear Panel of SGSW-2840 R Dual Power System AC / DC power redundant www. planet. com. tw 28 / 74

Features SGSW-2840 P/SGSW-2840 P 4 24+4 G L 2/L 4 Managed Po. E Switch l Department IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 af Power over Ethernet End-Span PSE • 802. 1 p four priority queue • 802. 1 Q VLAN Tagging, up to 256 VLANs • 802. 1 v Protocol VLAN • 802. 3 ad LACP Link aggregation, port mirroring • 802. 1 w 802. 1 s Rapid or multiple Spanning Tree • 802. 1 x Network Access Control • 802. 1 ab Link Layer Discovery Protocol (LLDP) l 220 / 380 Watts Po. E Budget, up to 24 Po. E powered devices l Remote Po. E power management and monitor l Single IP management, up to 36 units / 864 Po. E PDs l IGMP Snooping and Broadcast Storm control support l Policy-Base Diff. Srv and Voice Traffic Control l SNMP V 1/V 2 c/V 3, RMON Group 1, 2, 3, 9 support l MAC/IP Access Control List and Port-Security Managed Security SGSW-2840 P 4 220 Watts 380 Watts No. of PD @ 7. 3 Watts 24 24 No. of PD @ 15. 4 Watts 14 24 Po. E Budget Po. E Ability www. planet. com. tw 29 / 74

Features WGSW-2840 24 + 4 G Intelligent Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x full-duplex flow control and backpressure for half duplex operation • 802. 1 p 4 priorities with Weight Round Robins • 802. 1 Q VLAN, up to 256 VLANs • 802. 1 x port-based authentication • 802. 1 D, 802. 1 w classic Spanning Tree Algorithm or Rapid Spanning Tree support l 4 -Port SFP Mini-GBIC interface for fiber extension l Web/Console/Telnet/SNMP management l Configuration backup & recovery l Per port 64 Kbps~8 Mbps Ingress/Egress bandwidth Restricting l Traffic Classification and Prioritization, based on 802. 1 p/ports/ MAC address l Static Link aggregation, 12 aggregation groups, per group up to 8 ports l 4 Priority queues, support strict priority/Weighted Round Robin l Support IGMP Snooping v 1, v 2 for multicast l MAC address binding/filtering/learning, configurable aging time l Broadcast, Multicast and DLF storm control l Stack up to 8 units and manageable by single IP l SNMP v 1, v 2 c, MIB II, RMON group 1. 2. 3. 9 Department Managed WGSW-2840 (24 Fast Ethernet ports + 4 Gigabit ports) www. planet. com. tw 30 / 74

Features WGSW-5240 48 + 4 G Intelligent Stackable Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x flow control • 802. 1 p 4 priorities with Weight Round Robins • 802. 1 Q VLAN, up to 256 VLANs • 802. 1 x port-based authentication • 802. 1 D, 802. 1 w classic Spanning Tree Algorithm or Rapid Spanning Tree support l 4 -Port SFP Mini-GBIC interface l Web/Console/Telnet/SNMP management l Configuration backup & recovery l Per port 64 Kbps~8 Mbps Ingress/Egress bandwidth Restricting l Traffic Classification and Prioritization, based on 802. 1 p/ports/ MAC address l LACP Link aggregation, 12 aggregation groups, per group up to 8 ports l 4 Priority queues, support strict priority/Weighted Round Robin l Support IGMP Snooping v 1, v 2 for multicast l MAC address binding/filtering/learning, configurable aging time l Broadcast, Multicast and DLF storm control l Stack up to 8 units and manageable by single IP l SNMP v 1, v 2 c, MIB II, RMON group 1. 2. 3. 9 Department Managed WGSW-5240 (48 Fast Ethernet ports + 4 Gigabit ports) www. planet. com. tw 31 / 74

Features FGSW-2620 VM / FGSW-2624 SF 24 + 2 G Standalone Managed Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x Flow Control • 802. 1 p 4 priorities with Weight Round Robins • 802. 1 Q VLAN, up to 256 VLANs • 802. 3 ad LACP Link aggregation • 802. 1 x Port-based authentication • 802. 1 w Rapid Spanning Tree l 2 -Port SFP Mini-GBIC interface for fiber extension l Management • Web/SNMP/Telnet management • SNMP v 1/v 2 c and RMON Group 1, 2, 3, 9 l Layer 2 Features • 802. 1 Q / Port-Based / Q-in-Q VLAN Management • IGMP Snooping v 1, v 2 and Query mode support • Traffic Classification and Prioritization, based on 802. 1 p/port/DSCP • Per Port In/Out rate limit control l Security • MAC address binding / filtering and Port Security • L 2 / L 3 /L 4 Access Control List for Network Security control • SSL secure switch management Department Managed FGSW-2620 VM 24 -Port 10/100 Base-TX + 2 G TP/SFP Combo Backbone Managed FGSW-2624 SF 24 100 Base-FX SFP Slots + 2 G TP/SFP Combo www. planet. com. tw 32 / 74

Features FGSW-2620 PVM 24 + 2 G Standalone Managed l Po. E Switch IEEE standard compliant: • • 802. 3 af Power over Ethernet End-Span PSE 802. 3 x Flow Control 802. 1 p 4 priorities with Weight Round Robins 802. 1 Q VLAN, up to 256 VLANs 802. 3 ad LACP Link aggregation 802. 1 x Port-based authentication 802. 1 w Rapid Spanning Tree Department Managed l 2 -Port SFP Mini-GBIC interface for fiber extension FGSW-2620 PVM l Power over Ethernet 24 -Port 10/100 Base-TX Po. E + 2 G TP/SFP Combo • 190 Watts Po. E Budget, up to 24 Po. E powered devices • Remote Po. E power management and monitor l Management • Web/SNMP/Telnet / Console management • SNMP v 1/v 2 c and RMON Group 1, 2, 3, 9 l Layer 2 Features • • l 802. 1 Q / Port-Based / Q-in-Q VLAN Management IGMP Snooping v 1, v 2 and Query mode support Traffic Classification and Prioritization, based on 802. 1 p/port/DSCP Per Port In/Out rate limit control Security • MAC address binding / filtering and Port Security • L 2 / L 3 /L 4 Access Control List for Network Security control • SSL secure switch management www. planet. com. tw 33 / 74

Features SGSD-1022 / SGSD-1022 P 8+2 G L 2/L 4 Managed Security/Stackable Switch l IEEE standard compliant: • • • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 1 p four priority queue 802. 1 Q VLAN Tagging, up to 256 VLANs 802. 1 v Protocol VLAN 802. 3 ad LACP Link aggregation, port mirroring 802. 3 af Power over Ethernet End-Span PSE (SGSD-1022 P) 802. 1 w, 802. 1 s Rapid or multiple Spanning Tree 802. 1 x Network Access Control 802. 1 ab Link Layer Discovery Protocol (LLDP) l Single IP management, up to 36 units l GVRP / Q-in-Q VLAN Management l IGMP Snooping and Broadcast Storm control support l Policy-Base Diff. Srv and Voice Traffic Control l SNMP V 1/V 2 c/V 3, RMON Group 1, 2, 3, 9 support l MAC/IP Access Control List and Port-Security l SSH / SSL secure switch management l 2 SFP Mini-GBIC interface l Desktop Size / Rack Mountable Department Managed Security SGSD-1022 P www. planet. com. tw 34 / 74

Features WSD-800 / WGSD-910 / WGSD-1022 C 8 -Port Intelligent Switch l IEEE standard compliant: • • • 802. 3, 802. 3 u 802. 3 x full-duplex flow control and backpressure for half duplex operation 802. 1 p 4 priorities with Weight Round Robins 802. 1 Q VLAN, up to 256 VLANs 802. 1 x port-based authentication 802. 1 D, 802. 1 w classic Spanning Tree Algorithm or Rapid Spanning Tree support l Web/Console/Telnet/SNMP management l Configuration backup & recovery l Per port 500 Kbps~80 Mbps Ingress/Egress bandwidth Restricting l Traffic Classification and Prioritization, based on 802. 1 p/ports/ MAC address l Static Link aggregation, 4 aggregation groups, per group up to 4 ports l 4 Priority queues, support strict priority/Weighted Round Robin l Support IGMP Snooping v 1, v 2 for multicast l MAC address binding/filtering/learning, configurable aging time l Broadcast, Multicast and DLF storm control l Multi-Language, Stack up to 8 units and manageable by single IP l SNMP v 1, v 2 c, MIB II, RMON group 1. 2. 3. 9 Workgroup Managed WSD-800 (8 Fast Ethernet ports) WGSD-910 (8 Fast Ethernet ports + 1 Gb. E Combo) WGSD-1022 C (8 Fast Ethernet ports + 2 Gb. E Combo) www. planet. com. tw 35 / 74

Features WSW-2401 A 24 + 1 Fiber Intelligent Switch l IEEE standard compliant: • 802. 3, 802. 3 u • 802. 3 x full-duplex flow control and backpressure for half duplex operation • 802. 1 p 4 priorities with Weight Round Robins • 802. 1 Q VLAN, up to 256 VLANs • 802. 1 x port-based authentication • 802. 1 D, 802. 1 w classic Spanning Tree Algorithm or Rapid Spanning Tree Workgroup Managed support l 1 -Port 100 Base Fiber Slot interface for fiber extension l Web/Console/Telnet/SNMP management l Configuration backup & recovery l Per port 500 Kbps~80 Mbps Ingress/Egress bandwidth Restricting l Traffic Classification and Prioritization, based on 802. 1 p/ports/ MAC address l 4 Priority queues, support strict priority/Weighted Round Robin l Static Link aggregation, 12 aggregation groups, per group up to 8 ports l Support IGMP Snooping v 1, v 2 for multicast l MAC address binding/filtering/learning, configurable aging time l Broadcast, Multicast and DLF storm control l SNMP v 1, v 2 c, MIB II, RMON group 1. 2. 3. 9 l Multi-Language, Stack up to 8 units and manageable by single IP WSW-2401 A (24 Fast Ethernet ports + 1 100 Base Fiber) www. planet. com. tw 36 / 74

Features VC-810 S / VC-810 S 48 8 -Port VDSL 2 + 1 -Gigabit Ethernet Manageable CO Switches l IEEE standard compliant: • • l Web Smart VDSL 2 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x flow control 802. 1 Q Tagged VLAN 802. 1 p Class of Service DSL standard: • • • Department ITU-T G. 993. 1 (VDSL) ITU-T G. 997. 1 ITU-T G. 993. 2 VDSL 2 (Profile 12 a Support), Annex A VC-810 S / VC-810 S 48 (8 -Port VDSL 2 + 1 Gigabit Ethernet) l 8/24 full-duplex VDSL links via spring terminal block connectors l 8/24 corresponding POTS lines via spring terminal block connectors l 1/2 -Port Gigabit TP/SFP combo interface for uplink, support for distance extension up to 120 km l Support 8 K absolute MAC addresses; Automatic address learning and address aging l Port-based/802. 1 Q VLAN, Trunk l Rate control per port for TX/RX bandwidth control l Support 802. 1 p Qo. S, IGMP snooping l VC-810 S 48 supports 48 V DC power www. planet. com. tw 37 / 74

Features VC-2400 M / VC-2400 MR 24 -Port VDSL 2 + 2 -Gigabit Ethernet Managed CO Switches l l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x flow control • 802. 1 Q Tagged VLAN • 802. 1 p Class of Service • 802. 1 w Rapid Spanning Tree • 802. 1 x Port-Based network access control DSL standard: • ITU-T G. 993. 1 (VDSL) • ITU-T G. 997. 1 • ITU-T G. 993. 2 VDSL 2 (Profile 12 a / 17 a / 30 a Support), Annex A l Data rate: up to 100/100 Mbps @ 1000 ft l 24 Full-duplex VDSL links via RJ-21 connectors l 24 corresponding POTS lines via RJ-21 connectors l 2 -Port Gigabit TP/SFP combo interface for uplink, up to 120 km l Port-based/802. 1 Q/Q-in-Q VLAN, LACP Trunk l Rate control per port for TX/RX bandwidth control l Support 802. 1 p / IP DSCP/TOS Qo. S, IGMP snooping l SNMP v 1, v 2 c, v 3 / RMON 1, 2, 3, 9 / SNMP Trap l SSL for secure HTTPs login l L 2/L 3/L 4 ACL, Port Security and 802. 1 x with RADIUS authentication l VC-2400 MR supports 48 V DC redundant power www. planet. com. tw 38 / 74

Features Web Smart / Smart Switch www. planet. com. tw

Features Web Smart/Smart Switch Backbone Switch Model GSW-4804 SF Item 48 G (w/ 4 SFP) Web Smart Description 10/1000 T Ports Mini-GBIC Switch Fabric Bandwidth GSW-2416 SF GSW-2404 SF GSW-1602 SF 24 G (w/ 16 SFP) Web Smart 24 G (w/ 4 SFP) Web Smart 16 G (w/ 2 SFP) Web Smart 48 24 24 16 4 2 96 G 48 G 32 G Backbone Switch Model GSD-802 PS GSD-802 S GSD-800 S 8 G Web Smart w/ Po. E 8 G (w/ 2 SFP) Web Smart 8 G Web Smart 10/1000 T 8 8 8 Mini-GBIC 2 2 - 16 G 16 G Item Description Ports Switch Fabric Bandwidth www. planet. com. tw 40 / 74

Features Web Smart Switch Department Switch Model FGSW-4840 S FGSW-2402 VS FGSW-2620 VSF 48 + 4 G Web Smart 24 + 2 G Web Smart 48 24 24 10/1000 T 2 - 2 Mini-GBIC 2 - 2 (shared) - 2 - 17. 6 G 8. 8 G Item Description 10/100 TX Ports Module Slots Switch Fabric Bandwidth Department Switch Model FGSW-1820 CS FGSW-2620 PVS FGSW-2612 PVS 16 + 2 G Web Smart 24 + 2 G Web Smart w/Po. E 16 24 24 (w/ 24 Po. E) 24 (w/ 12 Po. E) 10/1000 T 2 2 Mini-GBIC 2 2 2 (shared) - - 8. 8 G Item Description 10/100 TX Ports Module Slots Switch Fabric Bandwidth www. planet. com. tw 41 / 74

Features Web Smart Switch Model Item Description 10/100 TX Ports 10/1000 T Mini-GBIC Switch Fabric Bandwidth Workgroup Switch FSD-624 SF FGSW-1828 PS FNSW-1608 PS FSD-804 PS 4 -Port POF + 2 G Web Smart 16 + 2 G Web Smart w/Po. E 16 -Port Web Smart w/Po. E 8 -Port Web Smart w/Po. E 4 x POF 16 (w 8 Po. E) 8 (w 4 Po. E) 1 2 - - 1 (Optional) 2 (Shared) - - 4. 8 G 7. 2 G 3. 2 G 1. 6 G www. planet. com. tw 42 / 74

Features GSW-4804 SF 48 -Port Gigabit Ethernet Web-Smart Switch l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab and 802. 3 z • 802. 3 x full-duplex flow control and backpressure for half duplex operation • 802. 1 p 4 priorities • 802. 1 Q VLAN, up 512 VLANs l High performance Store-and-Forward architecture, broadcast storm control, runt/CRC filtering l 4 -SFP for Gigabit Fiber-optic connection l 16 K MAC address table, automatic source address learning and ageing l Support Port-based VLAN groups or 802. 1 q VLAN l Support Static port trunking, port mirroring and rate limiting l Support 802. 1 p Qo. S, IGMP snooping l IP Filter and Static MAC for security l 9 k Jumbo frame l Firmware upgrade, IP setting through Web management l IP-Based Access Control List(ACL) l Security Defense / ARP Defense Backbone Web Smart GSW-4804 SF www. planet. com. tw 43 / 74

Features GSW-2416 SF 24 -Port Gigabit Ethernet Web-Smart Switch l IEEE standard compliant: • • • 802. 3, 802. 3 u, 802. 3 ab and 802. 3 z 802. 3 x full-duplex flow control and backpressure for half duplex operation 802. 1 p 4 priorities 802. 1 Q VLAN, up 64 VLANs 802. 3 ad LACP Link aggregation 8 aggregation groups, per group up to 8 ports 802. 1 x port-based authentication • 802. 1 D, 802. 1 w, classic Spanning Tree Algorithm, Rapid Spanning Tree support l High performance Store-and-Forward architecture, broadcast storm control, runt/CRC filtering l 16 -SFP for Gigabit Fiber-optic connection l 8 K MAC address table, automatic source address learning and ageing l Support Port-based VLAN groups or 802. 1 q VLAN l Support LACP port trunking, port mirroring and rate limiting l Support 802. 1 p Qo. S, IGMP snooping l IP Filter and Static MAC for security l 9 k Jumbo frame l Firmware upgrade, IP setting through Web management utility l SNMP Monitor and trap management l Green Ethernet Switch Backbone Web Smart GSW-2416 SF www. planet. com. tw 44 / 74

Features GSW-2404 SF/ 1602 SF 10/1000 Mbps Web Smart Backbone Switches l IEEE standard compliant: • • 802. 3, 802. 3 u, 802. 3 ab and 802. 3 z 802. 3 x full-duplex flow control 802. 1 p Class of Service 802. 1 Q VLAN, up 64 VLANs 802. 3 ad LACP Link aggregation 8 aggregation groups, per group up to 8 ports 802. 1 x port-based authentication 802. 1 D, 802. 1 w, classic Spanning Tree Algorithm, Rapid Spanning Tree support l High performance Store-and-Forward architecture, broadcast storm control, runt/CRC filtering 4/2 -SFP for Gigabit Fiber-optic connection 8 K MAC address table, automatic source address learning and ageing Support Port-based VLAN groups or 802. 1 q VLAN Support LACP port trunking, port mirroring and rate limiting Support 802. 1 p Qo. S, IGMP snooping v 1/v 2 9 k Jumbo frame Firmware upgrade, IP setting through Web management utility SNMP Monitor and trap management l Green Networking Switch – Power Efficiency l l l l Backbone Web Smart GSW-2404 SF (24 Gigabit ports Smart Backbone) GSW-1602 SF (16 Gigabit ports Smart Backbone) –Link down power saving –Intelligent scales power based on cable length www. planet. com. tw 45 / 74

Features GSD-800 S / 802 S 10/1000 Mbps Web Smart Backbone Switches l IEEE standard compliant: • • l l l l 802. 3, 802. 3 u, 802. 3 ab and 802. 3 z 802. 3 x full-duplex flow control 802. 1 p 4 priorities 802. 1 Q VLAN, up 64 VLANs 802. 3 ad LACP Link aggregation 4 aggregation groups, per group up to 8 ports 802. 1 x port-based authentication 802. 1 D, 802. 1 w, classic Spanning Tree Algorithm, Rapid Spanning Tree support 2 -SFP for Gigabit Fiber-optic connection (GSD-802 S) 8 K MAC address table, automatic source address learning and ageing Support Port-based VLAN groups or 802. 1 q VLAN Support LACP port trunking, port mirroring and rate limiting Support 802. 1 p Qo. S, IGMP snooping v 1/v 2 9 k Jumbo frame SNMP Monitor and trap management Green Networking Switch – Power Efficiency § § Backbone Web Smart Desktop GSD-800 S (8 Gigabit ports Web Smart) GSD-802 S (8 Gigabit ports with 2 SFP Web Smart) Link down power saving Intelligent scales power based on cable length www. planet. com. tw 46 / 74

Features FGSW-4840 S 48 -10/100 Mbps + 4 G Ethernet Web Smart Switch l 2 SFP Mini-GBIC interface l IEEE standard compliant: • • • Department Web Smart 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x PAUSE frame flow control (full-duplex) 802. 1 Q Tagged VLAN l Store-and-Forward architecture l Broadcast storm control & Runt/CRC filtering l 8 K MAC addresses l System log, view trap, firmware upgrade, IP setting through Web management utility l Port-based/802. 1 Q VLAN, Trunk, Qo. S support l Port mirroring and rate limiting l Backup and restore current configuration FGSW-4840 S www. planet. com. tw 47 / 74

Features FGSW-2402 VS/ 2620 VSF 24 -Port 10/100 Mbps + 2 -Gigabit Ethernet Web Smart Switch l Department Web Smart IEEE standard compliant: • • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z FGSW-2620 VSF 802. 3 x PAUSE frame flow control (full-duplex) 802. 1 Q Tagged VLAN 802. 1 p Class of Service l 8. 8 Gbps switching fabric, Store-and-Forward architecture, wire-speed filtering and forwarding rates l 2 Gigabit interfaces with module support for Gigabit TP, SFP, SX/LX, LX WDM , and Fast Ethernet TP, FX (FGSW-2402 VS) l Support 8 K absolute MAC addresses, Automatic address learning and address aging l Port-based/802. 1 Q VLAN, Trunk, port mirroring, Qo. S support l Rate control per port for TX/RX bandwidth control l Support Auto MDI/MDI-X function l Access Control List for Network Security control FGSW-2402 VS (2 Gigabit interface with module support) Available Module: • MII-GT / MII-SFP 1 -Port Gigabit TP / TP + SFP • MII-SX/LX 1 -Port 1000 Base-SX/LX, SC • MII-LA 15 / LB 15 1 -Port 1000 Base-LX, WDM (Bidi) SC 15 km • MII-VSC/ VST/ VSA 20/ VSB 20 1 -Port 100 Base-FX SC/ST / WDM (Bidi) 20 km www. planet. com. tw 48 / 74

Features FGSW-1820 CS/2620 CS 16/24 -Port + 2 -Gigabit Ethernet Web Smart Department Switches l IEEE • • • standard compliant: 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z Department Web Smart 802. 3 x flow control 802. 1 Q Tagged VLAN l 7. 2 G/8. 8 Gbps switching fabric, Store-and-Forward mode with wire-speed filtering and forwarding rates l Hardware based 10/100 Mbps, half / full-duplex, flow control and auto-negotiation l 2 Gigabit interfaces with module support for Gigabit TP, SFP, SX/LX, LX WDM l Integrated address look-up engine, support 4 K absolute MAC addresses l Port-based/802. 1 Q VLAN, Trunk, Port Mirroring support l Rate control per port for TX/RX bandwidth control l Support 802. 1 p Qo. S, IGMP snooping l Automatic address learning and address aging l Supports Auto MDI/MDI-X function FGSW-1820 CS FGSW-2620 CS www. planet. com. tw 49 / 74

Features FGSW-2620 PVS/2612 PVS 24 -Port 10/100 Mbps + 2 -Gigabit Web Smart Ethernet Switch (w 24/12 Po. E) l IEEE standard compliant: • • 802. 3, 802. 3 u, 802. 3 ab 802. 3 af Power over Ethernet Department Web Smart Po. E 802. 1 p Class of Service 802. 1 Q Tagged VLAN l 24 ports 10/100 Mbps with 48 V DC power over Ethernet (FGSW-2612 PVS with 12 Po. E) l Store-and-Forward architecture l 260/130 watts sufficient power for 24/12 IP phones or POE devices l Support up to 26 port-based/802. 1 Q VLAN groups and up to 7 Trunk groups, each trunk for up to maximum 4 port with 800 Mbps bandwidth l Port mirroring support, Qo. S and rate control on each port l Power feeding setup like disable/enable/priority, power usage like current, watts information through management interface l Access Control List for Network Security control FGSW-2620 PVS FGSW-2612 PVS www. planet. com. tw 50 / 74

Features FGSW-1828 PS 16 -Port 10/100 Mbps + 2 -Gigabit Web Smart Ethernet Switch (w 8 Po. E) l IEEE standard compliant: • • • 802. 3, 802. 3 u, 802. 3 ab 802. 3 x flow control 802. 3 af Power over Ethernet 802. 1 p Class of Service 802. 1 Q Tagged VLAN l 8 ports 10/100 Mbps with 48 V DC power over Ethernet Store-and-Forward architecture l 2 Gigabit interfaces with module support for Gigabit TP, SFP, SX/LX, LX WDM l 18 port-based/802. 1 Q VLAN groups and up to 2 Trunk groups, each trunk for up to maximum 4 port with 800 Mbps bandwidth l Port mirroring support, Qo. S and rate control on each port l 130 watts sufficient power for 8 IP phones or POE devices l Power feeding setup like disable/enable/priority, power usage like current, watts information through management interface Department Web Smart Po. E FGSW-1828 PS www. planet. com. tw 51 / 74

Features FNSW-1608 PS 16 -Port Fast Ethernet Switches with 8 -Port 802. 3 af injector built-in l 16 -Port 10/1000 Mbps RJ-45 ports, auto-MDI, auto-negotiation l 3. 2 G non-blocking switch fabric l Port #1 to #8 with 802. 3 af injector built-in l Support 48 VDC, 15. 4 watts Po. E power output to 8 IEEE 802. 3 af compliant Powered Devices l Up to 8 K MAC address table and high performance Store-and-Forward architecture l Port-Based VLAN, Trunk, Port Priority supports l LED indicators for easy network diagnostic l Power feeding setup like disable/enable/priority, power usage like current, watts information through management interface Workgroup Web Smart Po. E FNSW-1608 PS www. planet. com. tw 52 / 74

Features FSD-804 PS 8 -Port Fast Ethernet Switches with 4 -Port 802. 3 af injector built-in l 8 -Port 10/1000 Mbps RJ-45 ports, auto-MDI, auto-negotiation l 1. 6 G non-blocking switch fabric l Port #1 to #4 with 802. 3 af injector built-in l Support 48 VDC, 15. 4 watts Po. E power output to 4 IEEE 802. 3 af compliant Powered Devices l Up to 1 K MAC address table and high performance Store-and-Forward architecture l Port-Based/802. 1 Q VLAN, Trunk, Port Priority supports l LED indicators for easy network diagnostic l Power feeding setup like disable/enable/priority, power usage like current, watts information through management interface Workgroup Web Smart Po. E FSD-804 PS www. planet. com. tw 53 / 74

Features FSD-624 SF 4 -Port POF + 2 -Gigabit Web Smart Ethernet Switch l Workgroup Web Smart POF IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z • 802. 3 x flow control for full duplex operation and backpressure for half duplex operation • 802. 1 Q Tagged VLAN l 4. 8 Gbps switching fabric, Store-and-Forward mode with wire -speed filtering and forwarding rates l Hardware based 10/100 Mbps, half / full-duplex, flow control and auto-negotiation l 4 SMI POF (Plastic Optical Fiber) interface l 2 Gigabit interfaces with module support for Gigabit TP, SFP, SX/LX, LX WDM l Integrated address look-up engine, support 4 K absolute MAC addresses. l Port-based/802. 1 Q VLAN, Trunk, Port Mirroring support l Support 802. 1 p Qo. S, IGMP snooping l Rate control per port for TX/RX bandwidth control l Supports Auto MDI/MDI-X function on TP port FSD-624 SF Rear Panel OPT Interface SMI Interface www. planet. com. tw 54 / 74

Features Standard Switch www. planet. com. tw

Features Standard Switch Backbone Switch Model Item Description 10/100 T Ports 10/1000 T Switch Fabric Bandwidth Model Item Description 10/100 TX GSW-2401 GSW-1601 GSD-800 24 G 16 G 8 G - - - 24 16 8 48 G 32 G 16 G Department Switch Workgroup Switch Desktop FGSW-2620 FNSW-1601/2401/4800 FSD-1605/2405 24 + 2 G 16/24/48 -Port 16/24 -Port 24 16/24/48 16/24 2 - - 8. 8 G 3. 2 /4. 8 / 8. 8 G 7. 2 G/ 8. 8 G Ports 10/1000 T Switch Fabric Bandwidth www. planet. com. tw 56 / 74

Features GSW-1601/ 2401 10/1000 Mbps Gigabit Backbone Switches l IEEE standard compliant: • 802. 3, 802. 3 u, 802. 3 ab • 802. 3 x PAUSE frame flow control l 16/24 -Port 10/1000 Mbps RJ-45 ports l 4 K/8 K MAC address table l 32 Gbps/48 Gbps switch fabric l Store-and-Forward switch architecture Backbone Standard GSW-2401 GSW-1601 www. planet. com. tw 57 / 74

Features FGSW-2620 24 -Port 10/100 + 2 -Gigabit Ethernet Department Switches l IEEE standard compliant: • • l Department Standard 802. 3, 802. 3 u, 802. 3 ab, 802. 3 z 802. 3 x full duplex flow control Features 8. 8 Gbps switching fabric, Store-and-Forward mode with wire-speed filtering and forwarding rates l Hardware based 10/100 Mbps, half/ full-duplex flow control and auto-negotiation l 4 K MAC address table l Supports Auto MDI/MDI-X function FGSW-2620 (24+ 2 GT) www. planet. com. tw 58 / 74

Features FNSW-1601/2401/4800 16/24/48 -Port Fast Ethernet Workgroup Switch l Workgroup Standard IEEE standard compliant: • 802. 3, 802. 3 u • 802. 3 x full duplex flow control l Features 3. 2/4. 8/8. 8 Gbps switching fabric, Store-and-Forward mode with wire-speed filtering and forwarding rates l Hardware based 10/100 Mbps, half/ fullduplex flow control and auto-negotiation l 8/4 K MAC addresses table l Supports Auto MDI/MDI-X function FNSW-1601 FNSW-2401 FNSW-4800 www. planet. com. tw 59 / 74

Features FSD-1605/ 2405 16/24 -Port Fast Ethernet Desktop Switch l Standard IEEE standard compliant: • • l Desktop 802. 3, 802. 3 u 802. 3 x full duplex flow control Features 3. 2/4. 8 Gbps switching fabric, Store-and-Forward mode with wire-speed filtering and forwarding rates l Hardware-based 10/100 Mbps, half/ fullduplex flow control and auto-negotiation l 8 K MAC addresses table l Supports Auto MDI/MDI-X function l 13” desktop, 19” rack mountable l FAN less FSD-1605 FSD-2405 www. planet. com. tw 60 / 74

Features FSD-800/1600 FSD-801 Sxx/1601 Sxx 8/16 -Port Fast Ethernet Switches l 8/16 -Port 10/1000 Mbps RJ-45 ports, auto-MDI, auto-negotiation l 1. 6 G/3. 2 G non-blocking switch fabric l Model FSD-801 Sxx/1601 Sxx (SC/ST/S 15) is equipped with one 100 Base-FX port for longdistance connection l Up to 1 K/8 K MAC address table and high performance Store-and-Forward architecture l Workgroup Standard 10/19 -inch FSD-1601 (ST) 1 U 10 -inch or 19 -inch rack mountable with universal internal power supply www. planet. com. tw 61 / 74

Features SOHO Switch www. planet. com. tw

Features SOHO Switch Backbone Switch Model Item GSD-805 GSD-803 / GSD-804 GSD-503 / GSD-504 8 G, Metal, Internal Power 8 G, Metal / Plastic 5 G, Metal / Plastic 10/100 T - - - 10/1000 T 8 8 5 16 G 10 G Description Ports Switch Fabric Bandwidth Workgroup Switch Model Item Description 10/100 TX FSD-1603 FSD-805 / FSD-805 SC SW-804 / FSD-803 SW-502 / FSD-503 16 -Port, Metal 8 -Port, Metal, Internal Power 8 -Port, Plastic / Metal 5 -Port, Plastic / Metal 16 8 8 5 - 100 Base-FX - - 3. 2 G 1. 6 G 1. 0 G Ports 10/1000 T Switch Fabric Bandwidth (FSD-805 SC) www. planet. com. tw 63 / 74

Features GSD-800 8 -Port Gigabit Ethernet Backbone Switches l 8 -Port 10/1000 Mbps RJ-45 ports l 16 G non-blocking switch fabric l 8 K MAC address table l High performance Store-and-Forward architecture l 9 K Jumbo frame support l 1 U 10 -inch or 19 -inch rack mountable l Metal / FAN Less Design Backbone SOHO 10/19 -inch GSD-800 www. planet. com. tw 64 / 74

Features GSD-805 8 -Port Gigabit Ethernet Backbone Switches l 8 -Port 10/1000 Mbps RJ-45 ports l 16 G non-blocking switch fabric l 8 K MAC address table l High performance Store-and-Forward architecture l 9 K Jumbo frame support l Compact size Metal / FAN Less / Wall-mountable Design l Internal power l Green Networking Switch – Power Efficiency Backbone SOHO 10/19 -inch GSD-805 –Link down power saving –Intelligent scales power based on cable length www. planet. com. tw 65 / 74

Features GSD-503/504 GSD-803/804 5/8 -Port Gigabit Ethernet Backbone Switches l 5/8 -Port 10/1000 Mbps RJ-45 ports l 10 G/16 G non-blocking switch fabric l GSD-503 / 803 Metal housing l GSD-504 / 804 Plastic housing l 4 K MAC address table l High performance Store-and-Forward architecture l 9 K Jumbo Frame support l Palm size design l Green Networking Switch – Power Efficiency Backbone SOHO Desktop GSD-503/803 –Link down power saving –Intelligent scales power based on cable length GSD-504/804 www. planet. com. tw 66 / 74

Features FSD-503/803 SW-504/804 5/8 -Port Fast Ethernet Desktop Switches l 5/8 -Port 10/100 Mbps RJ-45 ports l 1 G/1. 6 G non-blocking switch fabric l FSD-503 / 803 Metal housing l SW-502 / 802 Plastic housing l 1 K/2 K MAC address table l High performance Store-and-Forward architecture l Palm size design Backbone SOHO Desktop FSD-503/803 SW-504/804 www. planet. com. tw 67 / 74

Features FSD-805/ 805 SC 8 -Port Fast Ethernet Desktop Switch with internal power l IEEE standard compliant: • • 802. 3, 802. 3 u 802. 3 x full duplex flow control l Features 1. 6 Gbps switching fabric, Store-and -Forward mode with wire-speed filtering and forwarding rates l Hardware-based 10/100 Mbps, half/ fullduplex flow control and auto-negotiation l 1 100 Base-FX SC interface (FSD-805 SC) l 2 K MAC addresses table l Supports Auto MDI/MDI-X function l Compact Desktop size / Wall mountable l FAN less Desktop SOHO FSD-805 SC www. planet. com. tw 68 / 74
