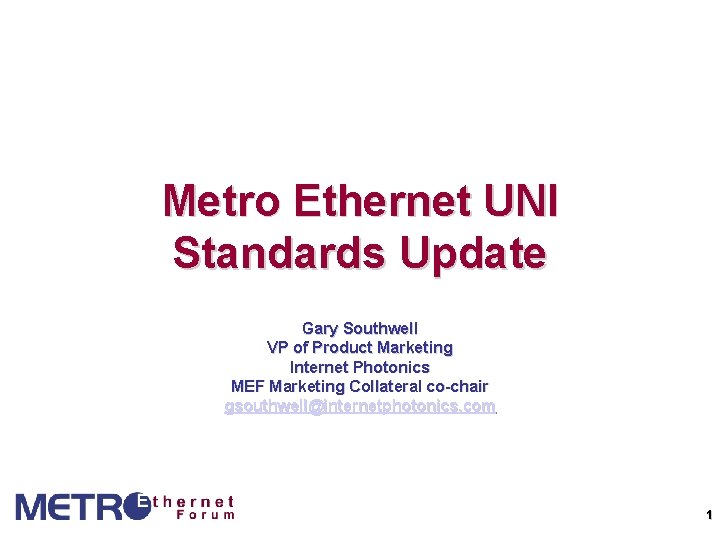

Metro Ethernet UNI Standards Update Gary Southwell VP of Product Marketing Internet Photonics MEF Marketing Collateral co-chair gsouthwell@internetphotonics. com 1

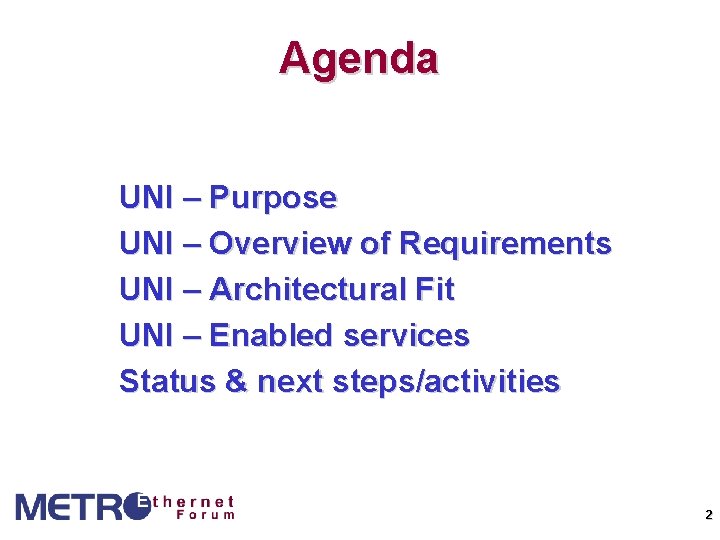

Agenda UNI – Purpose UNI – Overview of Requirements UNI – Architectural Fit UNI – Enabled services Status & next steps/activities 2
Ethernet Services Standardization UNI Services Metro Ethernet Forum Network Implementation IEEE 802. 1 and IETF PPVPN OA&M Metro Ethernet Forum 3
Metro Ethernet UNI • Purpose – Provides a network subscriber edge demarcation point for a MEN • Requirements Define demarcation for service – connectivity, – signaling, – Provisioning – Fault detection/resolution – Monitoring and management 4
Ethernet Services Model, Phase 1 Customer User Network Edge Interface (CE) (UNI) User Network Customer Interface Edge (UNI) (CE) Metro Ethernet Network Service Attributes A service is what the CE sees (UNI-to-UNI). The technology used inside the MEN is not visible. 5
User Network Interface (UNI) The demarcation point between Service Provider and Subscriber Responsibilities • Dedicated to a single Subscriber • Standard Ethernet (IEEE 802. 3 – 2002) – More than 100 million devices available as CE • Examples: – RJ 45 Socket on Service Provider owned Ethernet switch – RJ 45 plug on Service Provider owned cable 6
Service Definitions • Ethernet Line Service (E-Line) – Point-to-Point EVC – Any valid set of other service attributes • Ethernet LAN Service (E-LAN) – Multipoint-to-Multipoint EVC – Any valid set of other service attributes • Examples for typical scenarios, e. g. , LAN Extension, Internet Access, Headquarters to Branch Offices 7
E-Line Service Point-to-Point Ethernet Virtual Circuits Servers UNI IP Phone IP PBX Data Metro Ethernet Network CE CE 1 or more UNIs Video UNI CE 8
E-LAN Service Multipoint-to-Multipoint Ethernet Virtual Circuit Servers IP Phone UNI Data IP PBX CE CE Metro Ethernet Network UNI CE 9

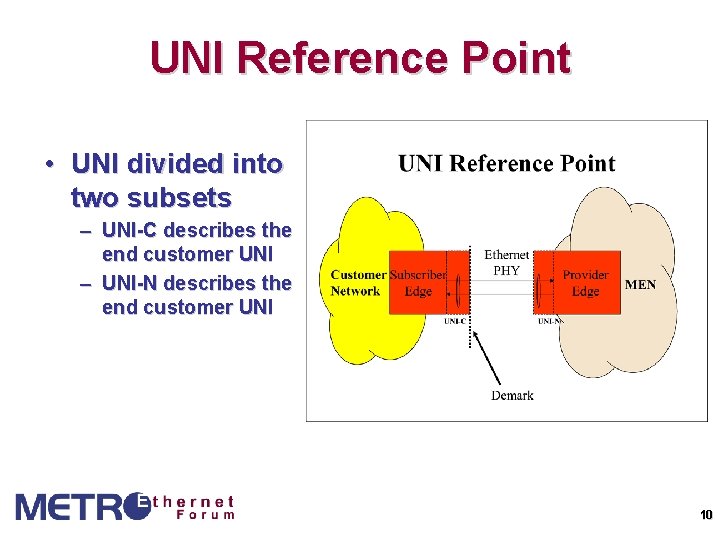

UNI Reference Point • UNI divided into two subsets – UNI-C describes the end customer UNI – UNI-N describes the end customer UNI 10
UNI Reference Model • UNI data plane – defines the means of transporting information across the UNI reference point • UNI control plane – defines the means for the customer and the MEN provider to make use of the UNI data plane • UNI management plane – controls the operation of the UNI data and control plane 11
UNI Data Plane • Ethernet frame flow – IEEE 802. 3 frames (only) • Tagging – Allows customer equipment (CE) to send 802. 1 q tagged frames across the UNI for segmentation purposes • Traffic Mgmt – Binds the subscriber transmissions to traffic policies as set by an SLA 12
UNI Control Plane • a static service discovery function that allows no or auto-configuration of the CE (PVC mode) • a dynamic connection setup function that allows dynamic establishment of Ethernet services (SVC mode). 13

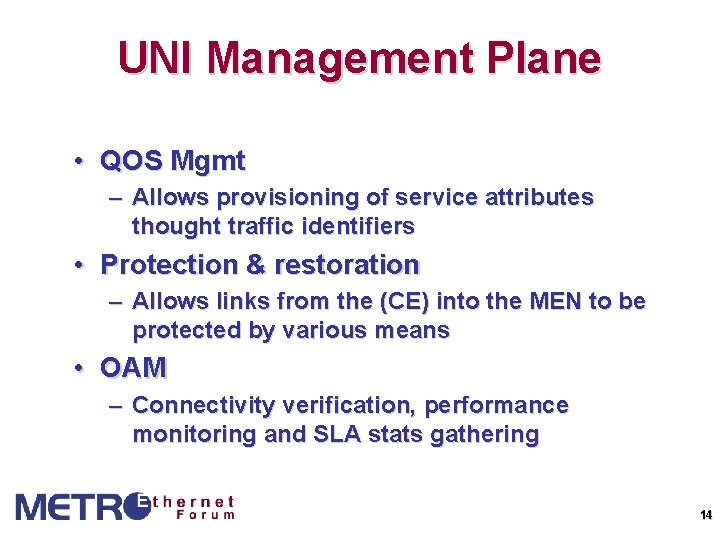

UNI Management Plane • QOS Mgmt – Allows provisioning of service attributes thought traffic identifiers • Protection & restoration – Allows links from the (CE) into the MEN to be protected by various means • OAM – Connectivity verification, performance monitoring and SLA stats gathering 14
Ethernet Services Control Function • • A UNI-N - Demarc Component (ESCF) ESCF – SP’s network equipment that provides the functional element required to meter, police and shape the flow to and from the SP’s Demarc • 1 st point where policy is enforced in the MEN 15

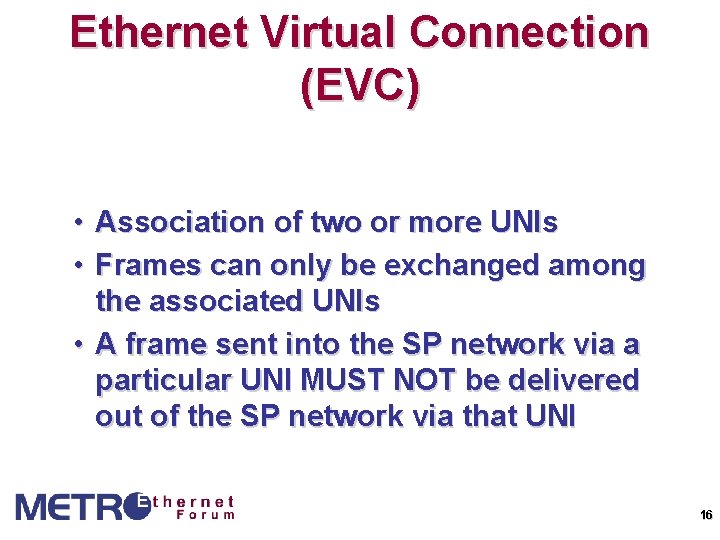

Ethernet Virtual Connection (EVC) • • Association of two or more UNIs Frames can only be exchanged among the associated UNIs • A frame sent into the SP network via a particular UNI MUST NOT be delivered out of the SP network via that UNI 16
EVCS & Closed User Groups • EVCS can form closed user groups (CUGS) – Marked by VLANs or other means of identification • Frames can only be exchanged among the associated UNIs • Note UNIs can support multiple CUGs 17
Point-to-Point EVC Exactly two UNIs are associated. 18

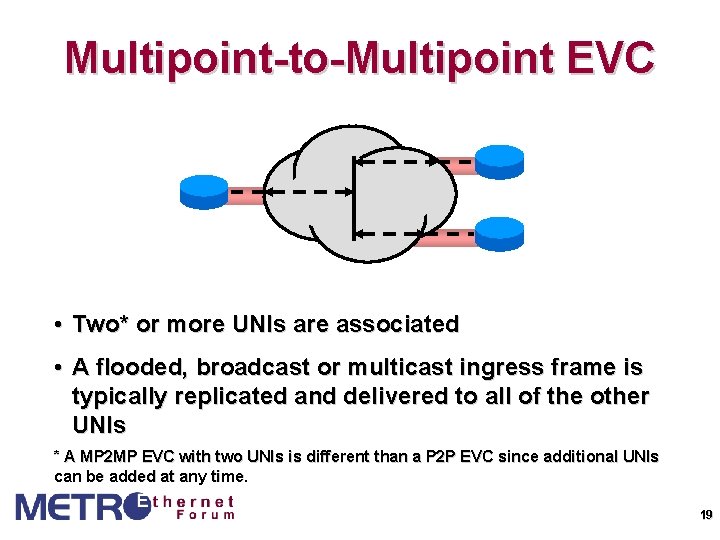

Multipoint-to-Multipoint EVC • Two* or more UNIs are associated • A flooded, broadcast or multicast ingress frame is typically replicated and delivered to all of the other UNIs * A MP 2 MP EVC with two UNIs is different than a P 2 P EVC since additional UNIs can be added at any time. 19
Service Multiplexing B Service Multiplexing A C EVC 1 EVC 2 EVC 3 • Multiple EVCs at a UNI D • Efficient use of CE port • Multiple revenue streams per SP UNI 20
UNI Service Model 21
UNI Traffic and Performance Control examples • Ingress policing based on a two rate, three color Token Bucket model – Similar to the CIR, Bc, Be of Frame Relay – Allows Subscriber to buy bandwidth with high granularity • Performance parameters, e. g. , Frame Delay, Frame Loss, Availability – Definitions for the basis of a Service Level Specification in a Service Level Agreement 22

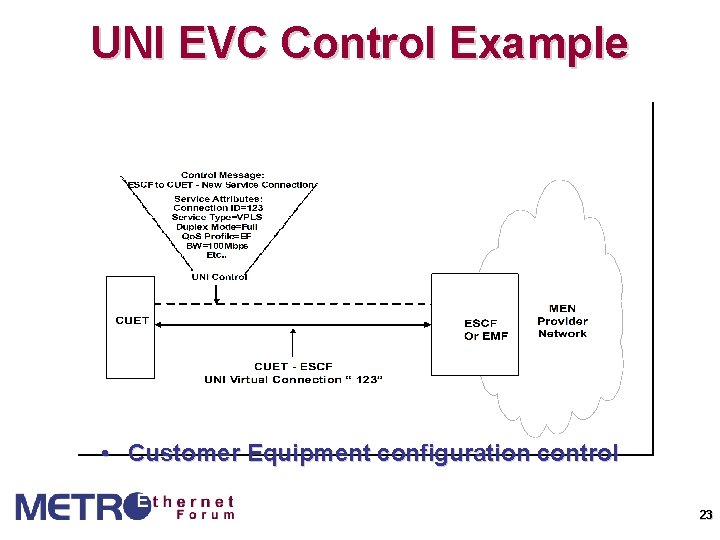

UNI EVC Control Example • Customer Equipment configuration control 23

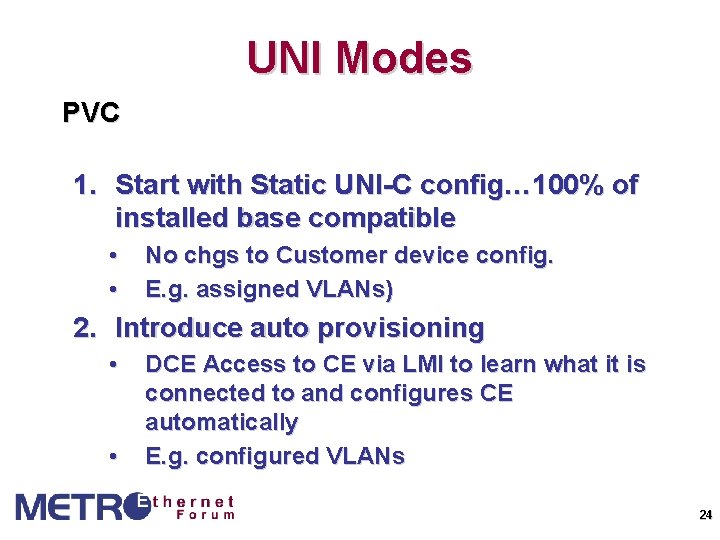

UNI Modes PVC 1. Start with Static UNI-C config… 100% of installed base compatible • • No chgs to Customer device config. E. g. assigned VLANs) 2. Introduce auto provisioning • • DCE Access to CE via LMI to learn what it is connected to and configures CE automatically E. g. configured VLANs 24
UNI Modes SVC (Full Definition still pending) 1. UNI-C requests via signaling what EVCs it desires connectivity with 2. Negotiates the service parameters if applicable 3. Provides for backward comaptibility 25

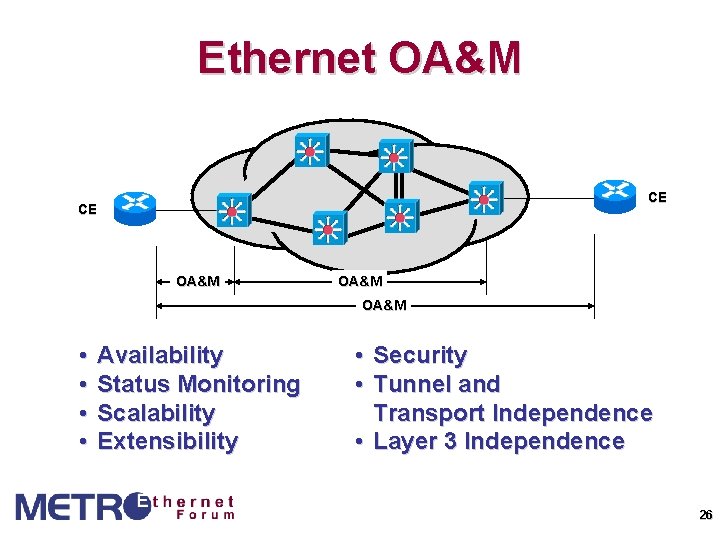

Ethernet OA&M CE CE OA&M • • Availability Status Monitoring Scalability Extensibility • Security • Tunnel and Transport Independence • Layer 3 Independence 26

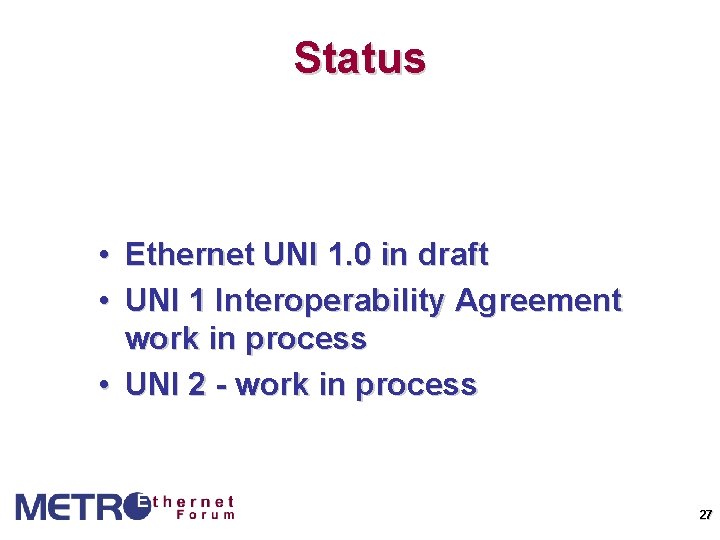

Status • Ethernet UNI 1. 0 in draft • UNI 1 Interoperability Agreement work in process • UNI 2 - work in process 27
Thank You 28
