DMOR Linear Programming 2 Solving LPs general case

DMOR Linear Programming 2

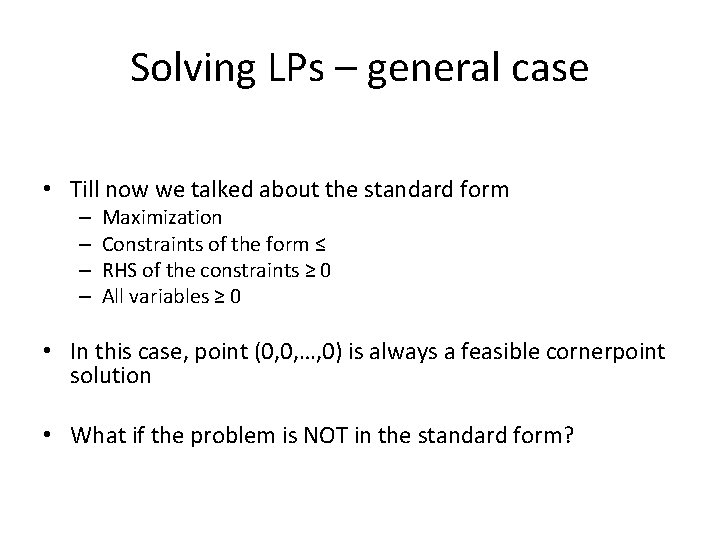

Solving LPs – general case • Till now we talked about the standard form – – Maximization Constraints of the form ≤ RHS of the constraints ≥ 0 All variables ≥ 0 • In this case, point (0, 0, …, 0) is always a feasible cornerpoint solution • What if the problem is NOT in the standard form?

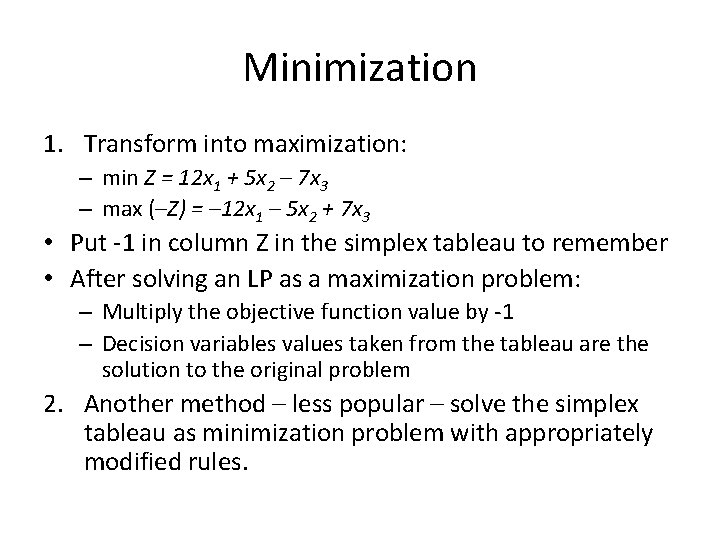

Minimization 1. Transform into maximization: – min Z = 12 x 1 + 5 x 2 – 7 x 3 – max (–Z) = – 12 x 1 – 5 x 2 + 7 x 3 • Put -1 in column Z in the simplex tableau to remember • After solving an LP as a maximization problem: – Multiply the objective function value by -1 – Decision variables values taken from the tableau are the solution to the original problem 2. Another method – less popular – solve the simplex tableau as minimization problem with appropriately modified rules.

Equality constraints • Bicycle company problem: • Introduce an artificial variable a 1 [artificial variable] • An artificial variable differs from a slack variable – we have to make it zero, because point (x 1, x 2, s 1, s 2, a 1) = (0, 0, 2, 3, 4) is not feasible.

2 -phase simplex algorithm • To do it we use 2 -phase simplex algorithm – Phase 1: minimize all artificial variables (we only have one: a 1); if the minimum is zero, then we have a feasible cornerpoint solution… – Phase 2: … from which we start to search for the optimal solution the same way as in basic simplex algorithm introduced in the last lecture

Phase 1 • Transform – min W = a 1 + a 2 + a 3 + … – max –W + a 1 + a 2 + a 3 + … = 0 • The original objective function is written along with the objective function used in phase 1 of the algorithm • The first simplex tableau in phase 1 is never in the proper form, because artificial variables, which are basic variables first „appear” two times in the given column. • We need some preliminary transformation

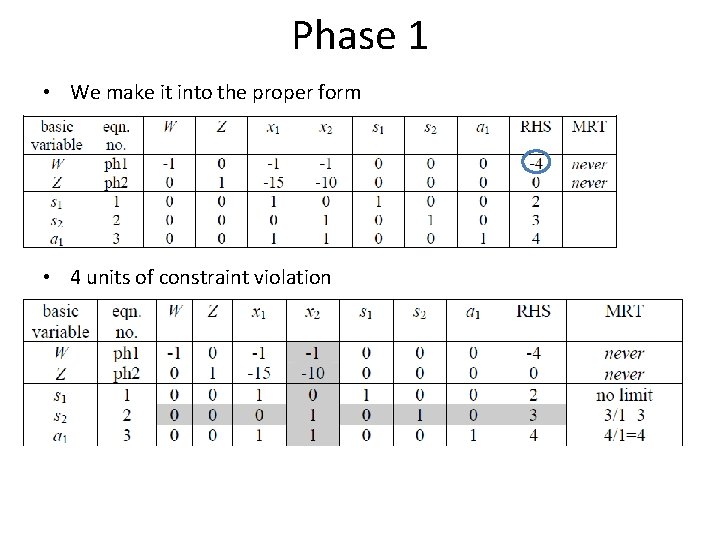

Phase 1 • We make it into the proper form • 4 units of constraint violation • d

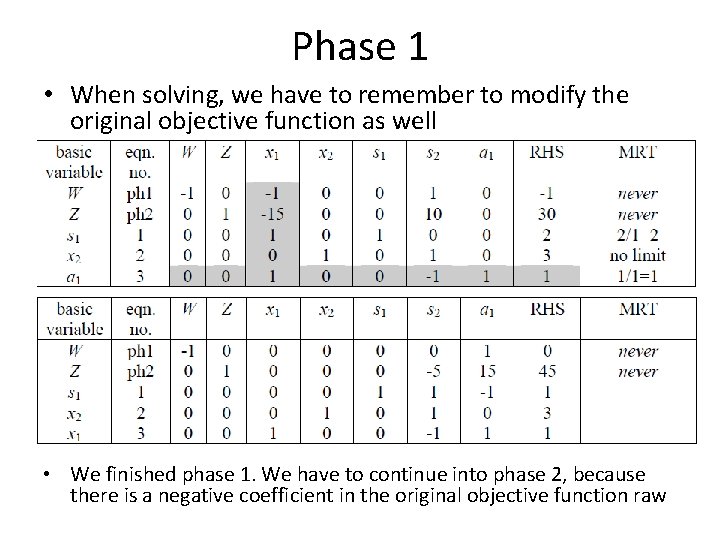

Phase 1 • When solving, we have to remember to modify the original objective function as well • We finished phase 1. We have to continue into phase 2, because there is a negative coefficient in the original objective function raw

Phase 2 • Solution: (x 1, x 2, s 1, s 2) = (2, 2, 0, 1); Z=50

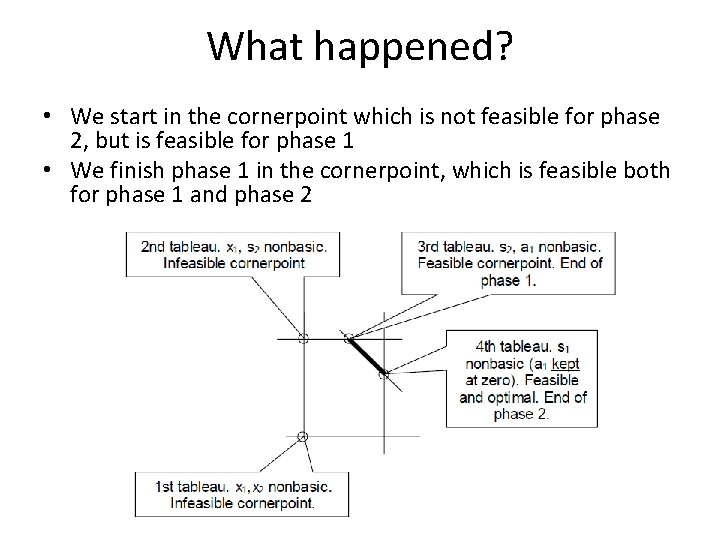

What happened? • We start in the cornerpoint which is not feasible for phase 2, but is feasible for phase 1 • We finish phase 1 in the cornerpoint, which is feasible both for phase 1 and phase 2

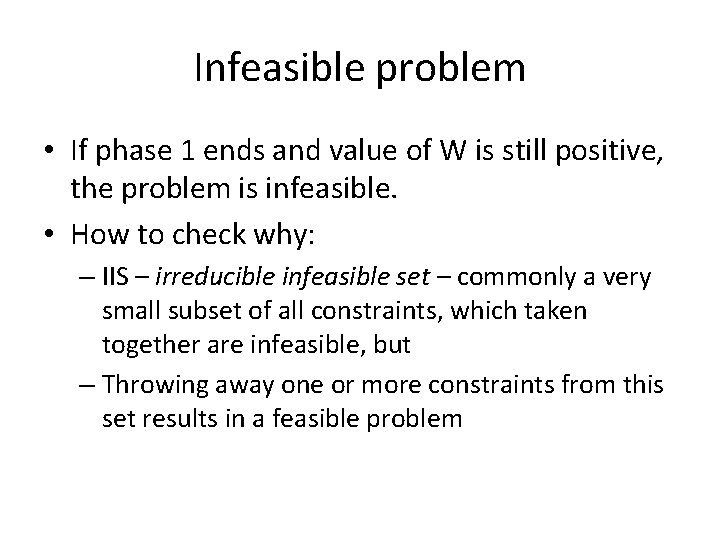

Infeasible problem • If phase 1 ends and value of W is still positive, the problem is infeasible. • How to check why: – IIS – irreducible infeasible set – commonly a very small subset of all constraints, which taken together are infeasible, but – Throwing away one or more constraints from this set results in a feasible problem

Constraints of the type ≥ with positive RHS • These constraints mean that the origin of the coordinate system is infeasible • We cannot simply multiply eveything by -1, because the RHS will then be negative. • Solution: we introduce a surplus variable 3 x 1 + 5 x 2 ≥ 20 ⇒ 3 x 1 + 5 x 2 − s 1 = 20. • Surplus variable may not be used as a basic variable for the constraint, in which it occurs, because it has a coefficient -1 instead of +1 • But the constraint is now the equality constraint, so we can treat it the same way as other equality constraints: 3 x 1 + 5 x 2 − s 1 + a 1 = 20

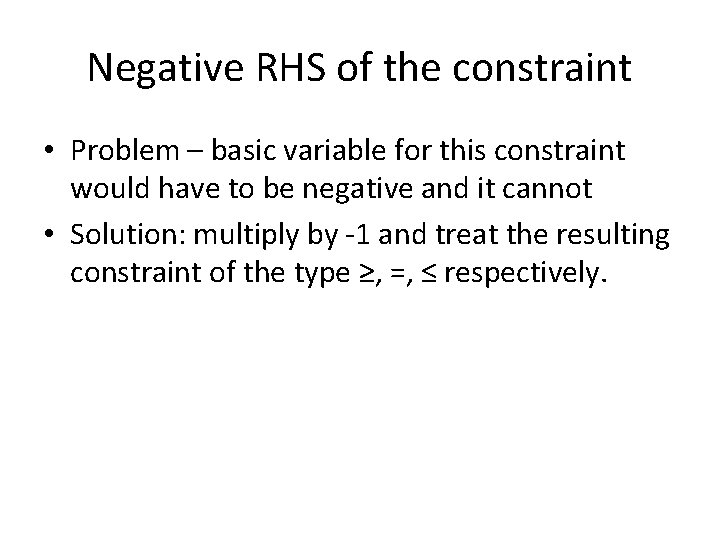

Negative RHS of the constraint • Problem – basic variable for this constraint would have to be negative and it cannot • Solution: multiply by -1 and treat the resulting constraint of the type ≥, =, ≤ respectively.

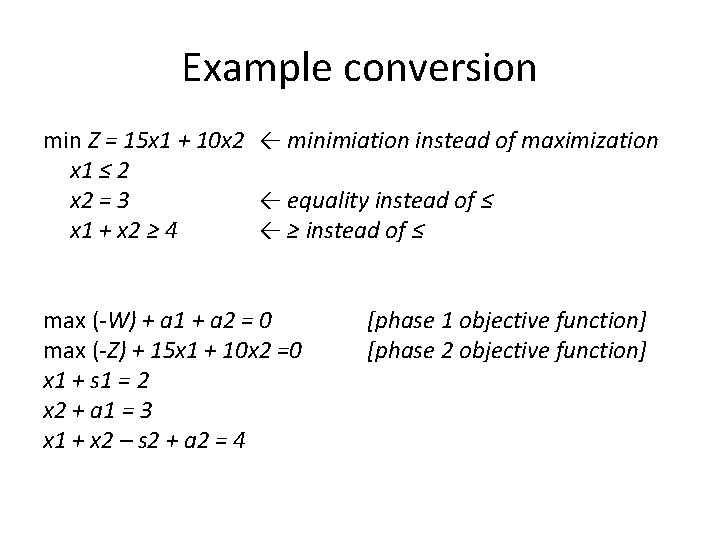

Example conversion min Z = 15 x 1 + 10 x 2 ← minimiation instead of maximization x 1 ≤ 2 x 2 = 3 ← equality instead of ≤ x 1 + x 2 ≥ 4 ← ≥ instead of ≤ max (-W) + a 1 + a 2 = 0 max (-Z) + 15 x 1 + 10 x 2 =0 x 1 + s 1 = 2 x 2 + a 1 = 3 x 1 + x 2 – s 2 + a 2 = 4 [phase 1 objective function] [phase 2 objective function]

Variables that may be negative • Two possibilities: 1. Lower bound • • E. g. production level can fall no more than Lj from the present level xj ≥ Lj Solution – change of variables xj = xj′ + Lj 2. No bounds at all: next slide

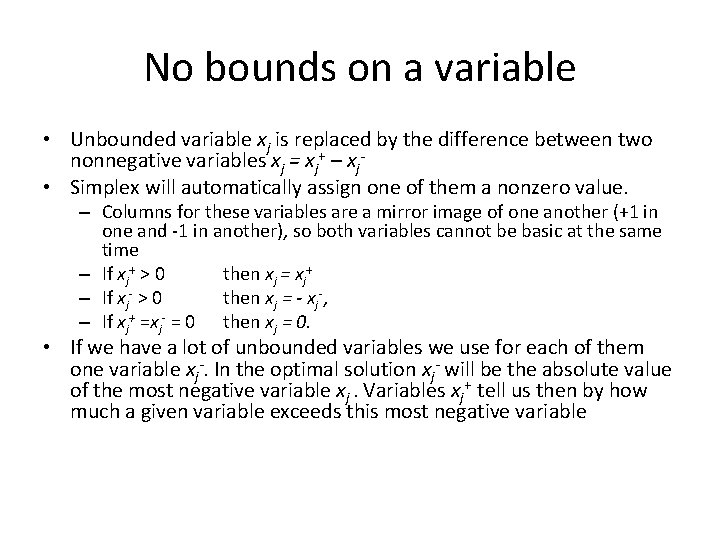

No bounds on a variable • Unbounded variable xj is replaced by the difference between two nonnegative variables xj = xj+ – xj • Simplex will automatically assign one of them a nonzero value. – Columns for these variables are a mirror image of one another (+1 in one and -1 in another), so both variables cannot be basic at the same time – If xj+ > 0 then xj = xj+ – If xj- > 0 then xj = - xj-, – If xj+ =xj- = 0 then xj = 0. • If we have a lot of unbounded variables we use for each of them one variable xj-. In the optimal solution xj- will be the absolute value of the most negative variable xj. Variables xj+ tell us then by how much a given variable exceeds this most negative variable

Tropical Treats Kissable Lip shine– Jessica Simpson & Urban Chic Boutique • Dear Students of DMOR class at WSE, My name is Jessica Simpson. I have been going through some tough times recently and am having a real problem with one of my cosmetic lines. The info for the line is on the next page. Recently though costs are changing based on market demand in addition to highly fluctuating resource costs. My problem is this we currently have an LP that we solve to find the optimal amount to produce of each product. However, every time a parameter changes, I am always forced to resolve the LP and this takes too long. I was hoping you guys could find a better way. Lately I have just been out of it. For example, Nick and I decided to split our Hummer in half, and now I need to buy a new one. Oh yeah, about the LP it seems to have been misplaced when I was moving out of my Malibu house. Please Help! -Jessica http: //www. urbanchic-boutique. com/dhop/jessica-simpsondessert-treats/jessica-simpson-tropical-treats-kissable-lipshine/prod_89. html

Problem data • • • Peach Pineapple Orange Mango Raw material 2 3 4 7 Hours of labor 3 4 5 6 Sale price ($) 4 6 7 8 Jessica sells 4 kinds of tropical lip shine. Exactly 950 total units must be produced. Customers demand that at least 400 units of Mango lip shine be produced. Formulate an LP to maximize profit. Raw Materials Available <=4600 Labor Available <=5000

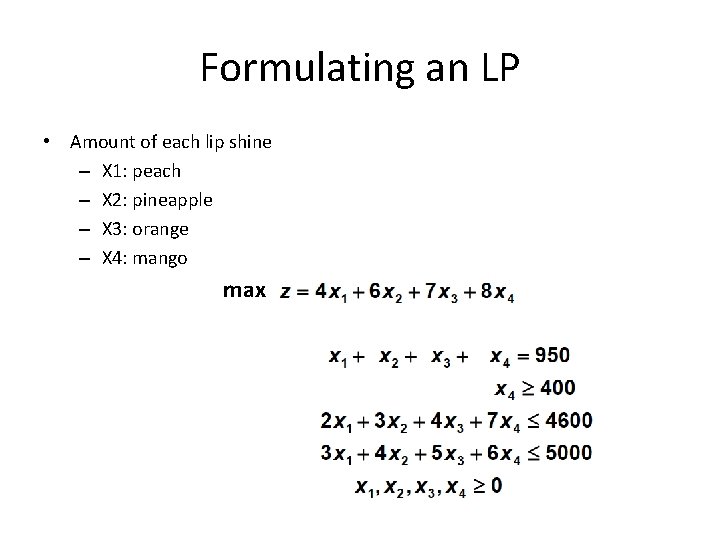

Formulating an LP • Amount of each lip shine – X 1: peach – X 2: pineapple – X 3: orange – X 4: mango max

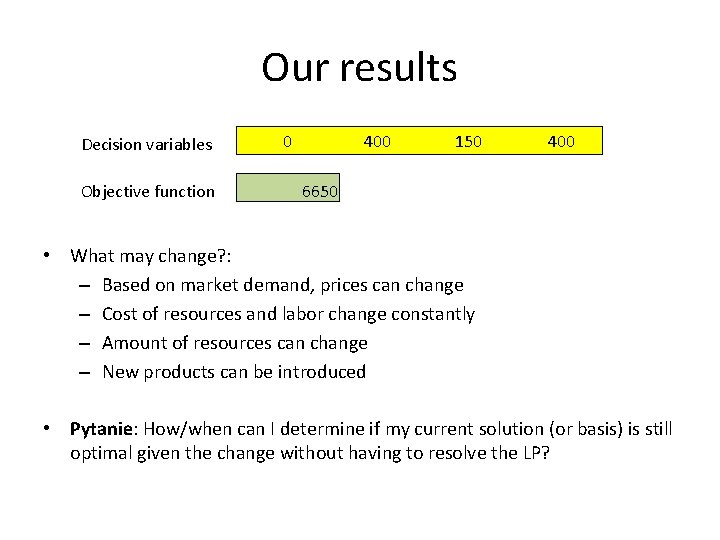

Our results Decision variables Objective function 0 400 150 400 6650 • What may change? : – Based on market demand, prices can change – Cost of resources and labor change constantly – Amount of resources can change – New products can be introduced • Pytanie: How/when can I determine if my current solution (or basis) is still optimal given the change without having to resolve the LP?

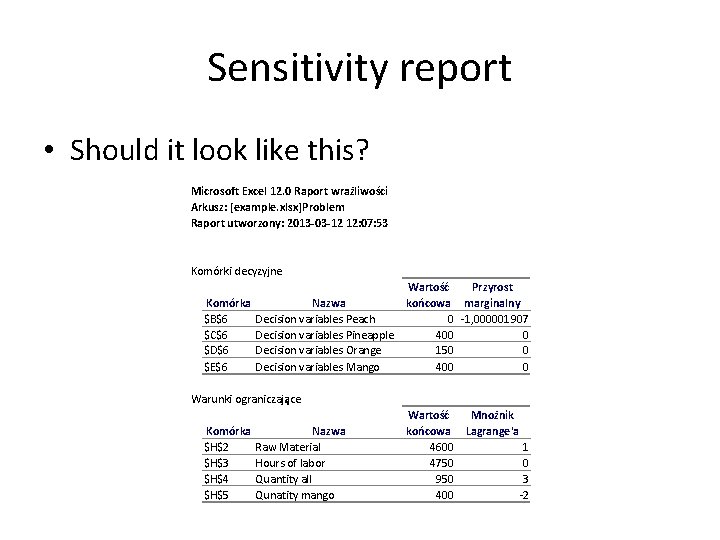

Sensitivity report • Should it look like this? Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 53 Komórki decyzyjne Komórka $B$6 $C$6 $D$6 $E$6 Nazwa Decision variables Peach Decision variables Pineapple Decision variables Orange Decision variables Mango Wartość Przyrost końcowa marginalny 0 -1, 000001907 400 0 150 0 400 0 Warunki ograniczające Komórka $H$2 $H$3 $H$4 $H$5 Nazwa Raw Material Hours of labor Quantity all Qunatity mango Wartość Mnożnik końcowa Lagrange'a 4600 1 4750 0 950 3 400 -2

Common errors Forgetting to Check • Assume Non-Negativity • Forgetting to Check Assume Linear Model • We will assume for all conditions derived that degeneracy is not present • At the end of the lecture we will show to modify the conditions when degeneracy is present.

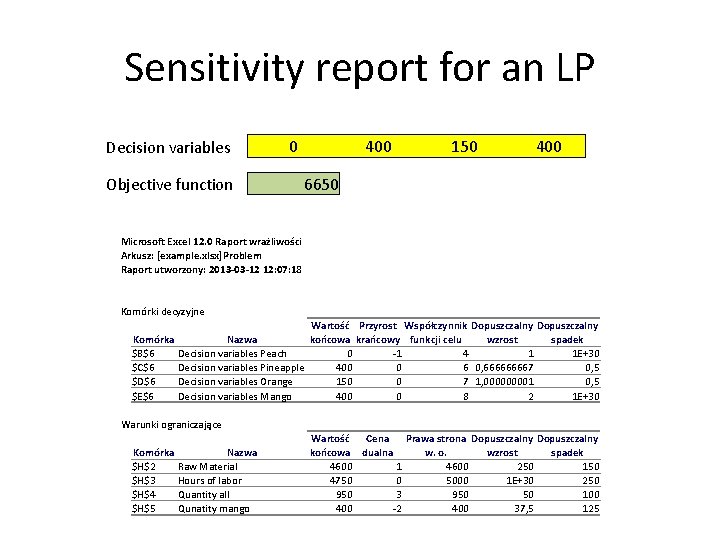

Sensitivity report for an LP Decision variables 0 Objective function 400 150 400 6650 Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

Type of Change 1: Changing the Cost Coefficient of a Basic Variable “Hi guys I was at the market and noticed the price of pineapple went up by 50 cents. That means if I raise the price of the pineapple lip shine by 50 cents I will make more money. Right? ” Jessica Solution: Be careful!! The next steps applies only to basic variables. Steps to Take: • Step 1: Check if the change of the objective coefficient is within the allowable range? • Step 2: If so, the optimal basic feasible solution will not change. Calculate the change in profit.

Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

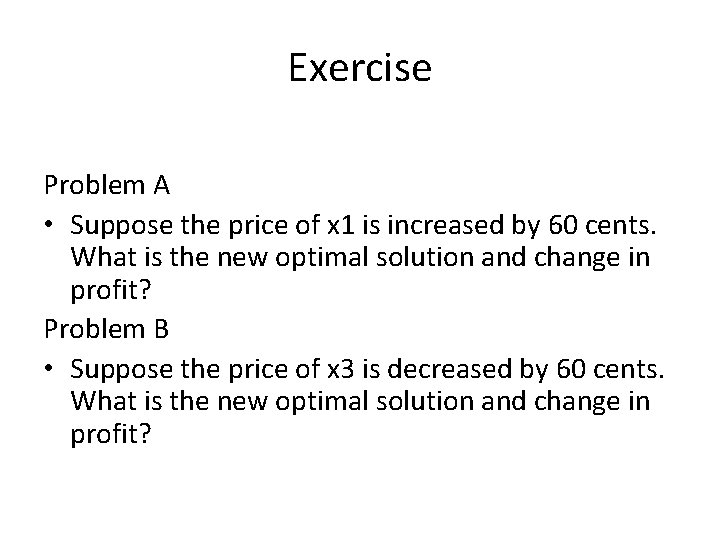

Exercise Problem A • Suppose the price of x 1 is increased by 60 cents. What is the new optimal solution and change in profit? Problem B • Suppose the price of x 3 is decreased by 60 cents. What is the new optimal solution and change in profit?

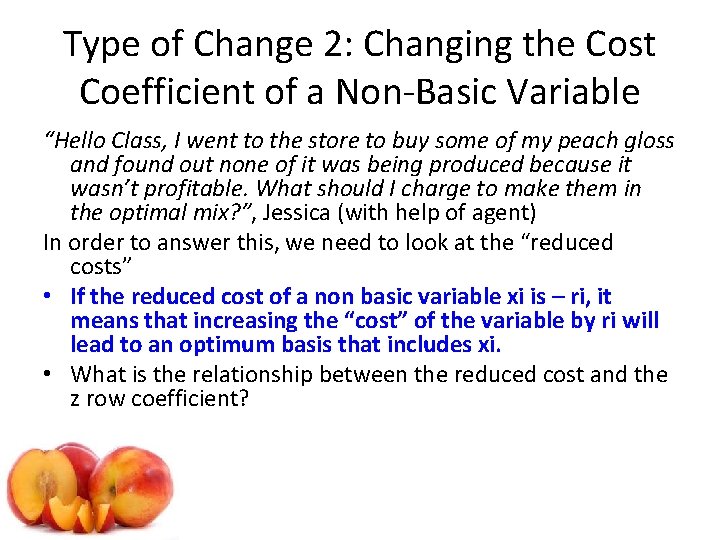

Type of Change 2: Changing the Cost Coefficient of a Non-Basic Variable “Hello Class, I went to the store to buy some of my peach gloss and found out none of it was being produced because it wasn’t profitable. What should I charge to make them in the optimal mix? ”, Jessica (with help of agent) In order to answer this, we need to look at the “reduced costs” • If the reduced cost of a non basic variable xi is – ri, it means that increasing the “cost” of the variable by ri will lead to an optimum basis that includes xi. • What is the relationship between the reduced cost and the z row coefficient?

Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

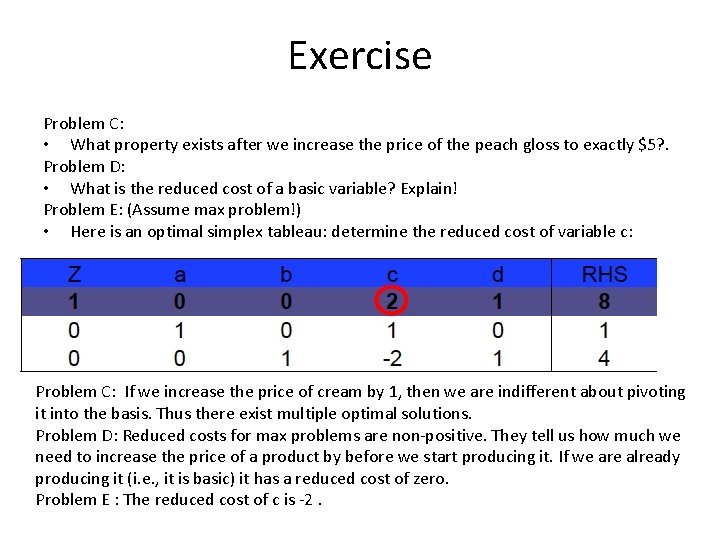

Exercise Problem C: • What property exists after we increase the price of the peach gloss to exactly $5? . Problem D: • What is the reduced cost of a basic variable? Explain! Problem E: (Assume max problem!) • Here is an optimal simplex tableau: determine the reduced cost of variable c: Problem C: If we increase the price of cream by 1, then we are indifferent about pivoting it into the basis. Thus there exist multiple optimal solutions. Problem D: Reduced costs for max problems are non-positive. They tell us how much we need to increase the price of a product by before we start producing it. If we are already producing it (i. e. , it is basic) it has a reduced cost of zero. Problem E : The reduced cost of c is -2.

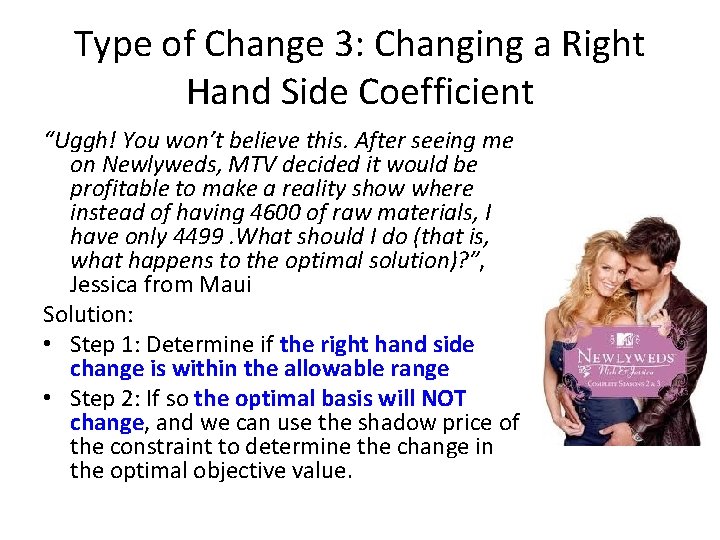

Type of Change 3: Changing a Right Hand Side Coefficient “Uggh! You won’t believe this. After seeing me on Newlyweds, MTV decided it would be profitable to make a reality show where instead of having 4600 of raw materials, I have only 4499. What should I do (that is, what happens to the optimal solution)? ”, Jessica from Maui Solution: • Step 1: Determine if the right hand side change is within the allowable range • Step 2: If so the optimal basis will NOT change, and we can use the shadow price of the constraint to determine the change in the optimal objective value.

Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

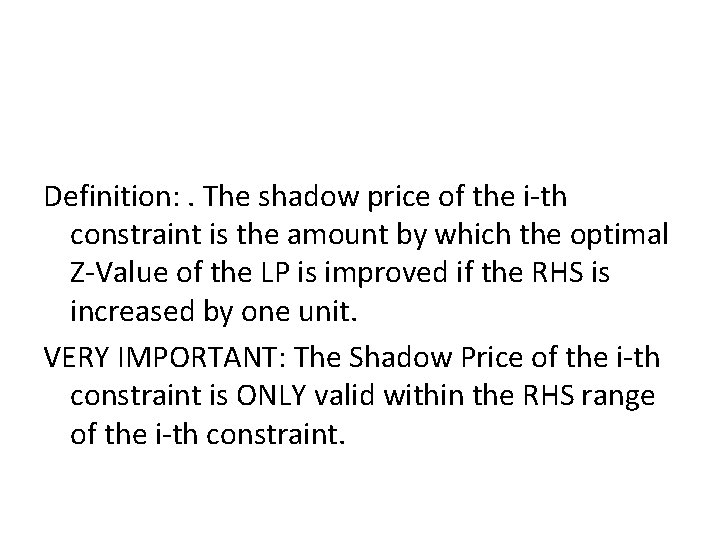

Definition: . The shadow price of the i-th constraint is the amount by which the optimal Z-Value of the LP is improved if the RHS is increased by one unit. VERY IMPORTANT: The Shadow Price of the i-th constraint is ONLY valid within the RHS range of the i-th constraint.

Exercise Problem F: What is the change in the objective function if the number of available labor hours changes to 4800? What if this number is 4700? Problem G: . What can you tell me about the shadow price of a “≥ constraint”? How about an “= constraint”? Problem F: Step 1: If the number is 4800, then the change is within the allowable decrease of 250, and the current basis remains optimal. Step 2: The shadow price of the labor constraint is zero. Why? Thus the change in the objective is 0 × 200 = 0. If the number if 4700, this is a decrease of 300 and we are outside the allowable range. Can you say anything about this case? Problem G: A “≥ constraint” for a maximization problem always has a nonpositive shadow price. Intuitively, if we increase the RHS, then we further restrict the feasible region, which can not make us better off! We can say nothing about the sign of an “= constraint”. It could be positive, negative, or 0.

Type of Change 4: Purchasing Extra Resources “Guys, My sister Ashlee just lost her recording contract. I know, it’s shocking. Anyway, she needs a job; she is willing to work for 1 hour. She also said she could convert her unit of talent into a unit of raw material, whatever that means. What is the most I should pay for the unit of raw materials and for her? ”, Jessica Solution: Each increases is within the range. So, we can use the shadow prices to determine the change in objective if either change takes place. But we cannot assume that changing both is OK. • The Raw Material SP is 1, corresponding to a revenue increase of $1 if we accept the offer. Thus to breakeven or profit we should pay no more then $1 for the unit • The Labor SP is 0, resulting in no additional revenue if we hire Ashley. And you say our models don’t reflect reality!!!

Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

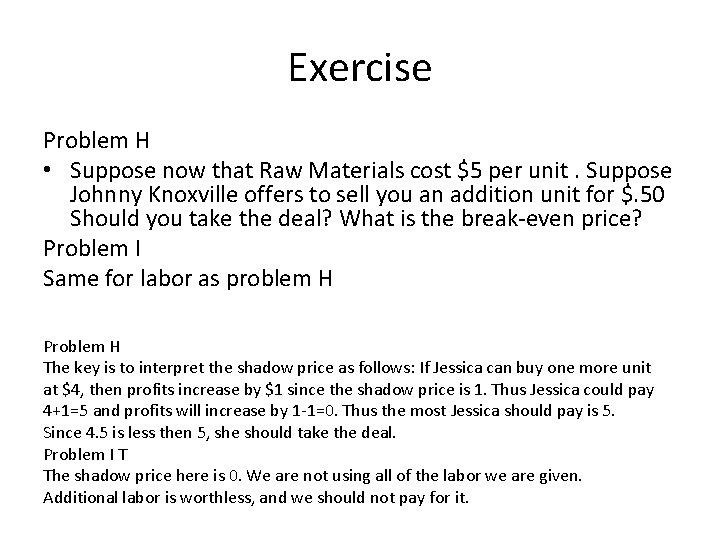

Exercise Problem H • Suppose now that Raw Materials cost $5 per unit. Suppose Johnny Knoxville offers to sell you an addition unit for $. 50 Should you take the deal? What is the break-even price? Problem I Same for labor as problem H Problem H The key is to interpret the shadow price as follows: If Jessica can buy one more unit at $4, then profits increase by $1 since the shadow price is 1. Thus Jessica could pay 4+1=5 and profits will increase by 1 -1=0. Thus the most Jessica should pay is 5. Since 4. 5 is less then 5, she should take the deal. Problem I T The shadow price here is 0. We are not using all of the labor we are given. Additional labor is worthless, and we should not pay for it.

Type of Change 5: A New Product “Hey Yall, I just got the best idea for a new flavor of Lip Gloss called Limonette. To make some, 8 units of raw material are needed and 7 hours of labor are needed. If I sell it for $7, will any be produced? ”, Jessica Solution: • Step 1: Determine if the right hand side change is within the allowable range. • Step 2: Price out to calculate the reduced cost. •

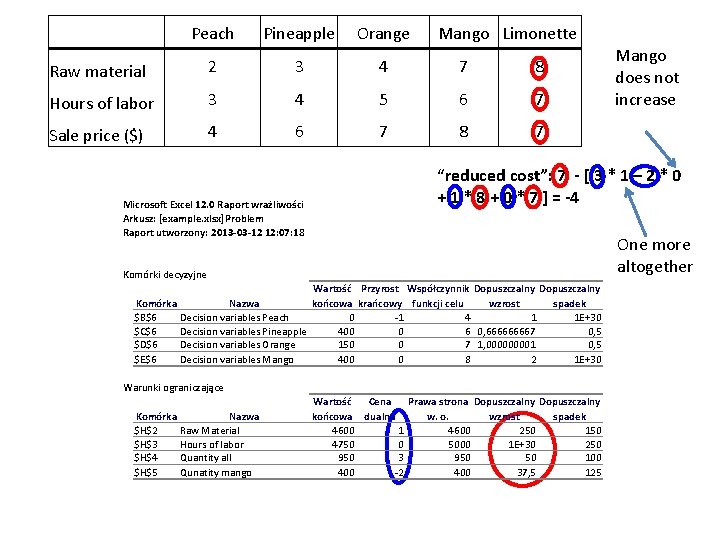

Peach Pineapple Orange Raw material 2 3 4 7 8 Hours of labor 3 4 5 6 7 Sale price ($) 4 6 7 8 7 Microsoft Excel 12. 0 Raport wrażliwości Arkusz: [example. xlsx]Problem Raport utworzony: 2013 -03 -12 12: 07: 18 Mango Limonette “reduced cost”: 7 - [ 3 * 1 – 2 * 0 + 1 * 8 + 0 * 7 ] = -4 One more altogether Komórki decyzyjne Wartość Przyrost Współczynnik Dopuszczalny Komórka Nazwa końcowa krańcowy funkcji celu wzrost spadek $B$6 Decision variables Peach 0 -1 4 1 1 E+30 $C$6 Decision variables Pineapple 400 0 6 0, 66667 0, 5 $D$6 Decision variables Orange 150 0 7 1, 00001 0, 5 $E$6 Decision variables Mango 400 0 8 2 1 E+30 Warunki ograniczające Komórka Nazwa $H$2 Raw Material $H$3 Hours of labor $H$4 Quantity all $H$5 Qunatity mango Mango does not increase Wartość Cena Prawa strona Dopuszczalny końcowa dualna w. o. wzrost spadek 4600 1 4600 250 150 4750 0 5000 1 E+30 250 950 3 950 50 100 400 -2 400 37, 5 125

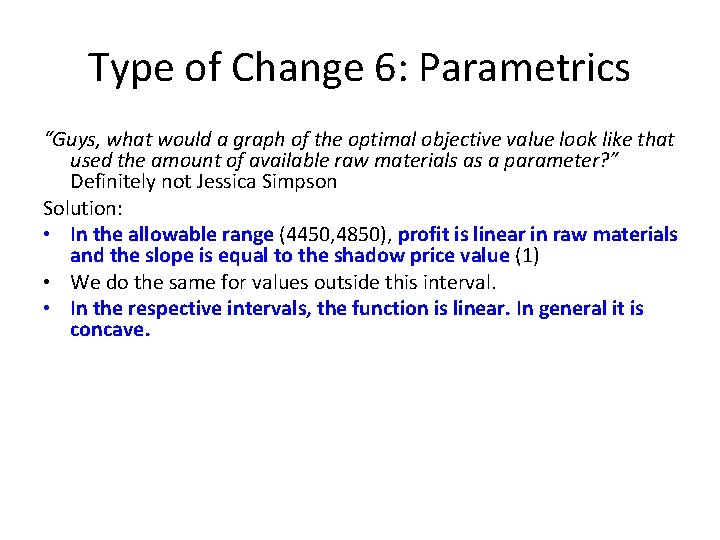

Type of Change 6: Parametrics “Guys, what would a graph of the optimal objective value look like that used the amount of available raw materials as a parameter? ” Definitely not Jessica Simpson Solution: • In the allowable range (4450, 4850), profit is linear in raw materials and the slope is equal to the shadow price value (1) • We do the same for values outside this interval. • In the respective intervals, the function is linear. In general it is concave.

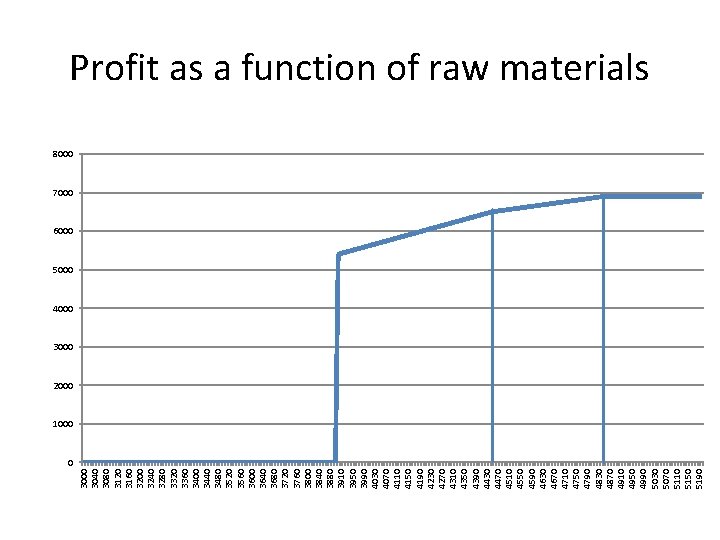

3000 3040 3080 3120 3160 3200 3240 3280 3320 3360 3400 3440 3480 3520 3560 3600 3640 3680 3720 3760 3800 3840 3880 3910 3950 3990 4030 4070 4110 4150 4190 4230 4270 4310 4350 4390 4430 4470 4510 4550 4590 4630 4670 4710 4750 4790 4830 4870 4910 4950 4990 5030 5070 5110 5150 5190 Profit as a function of raw materials 8000 7000 6000 5000 4000 3000 2000 1000 0

Exercise Problem I • What type of function is our graph? Problem J • Is it possible for an optimal BFS to have more than one shadow price correspond to a constraint? Problem N: It is a piecewise linear concave graph Problem O: Yes it is. When an LP has multiple optimal solutions multiple shadow prices are possible. This occurred at the breakpoints of our graph

Degenerate solutions Up until now we have assumed all BFS’s were non degenerate. What happens if a basis is degenerate? Three Oddities Occur When a BFS is degenerate • Oddity 1: In the RANGE IN WHICH THE BASIS IS UNCHANGED at least one constraint will have a 0 AI or AD. This means that for at least one constraint, the SHADOW PRICE can tell us about the new z-value for either an increase or decrease in the RHS, but not both. • Oddity 2: For a nonbasic variable to become positive, a nonbasic variable’s objective function coefficient may have to be improved by more than its REDUCED COST. • Oddity 3: Increasing a variable’s objective function coefficient by more than its AI or decreasing it by more than its AD may leave the optimal solution the same. Remember when performing analysis, always ask first if the current BFS is degenerate. If so follow the rules on this slide

Lecture summary • Using Excel to determine information • Shadow prices • Determining upper and lower bounds so that the shadow price remains valid. • Changes in cost coefficients. • Key Idea: never go into business with Jessica Simpson
