Automating Subversion with Bindings Ben Reser http svn

Automating Subversion with Bindings @Ben. Reser http: //svn. ms/autosvnslides

About Ben Subversion Committer working at WANdisco since 2012. Started working on Perl Bindings in 2003 to automate Subversion as a replacement for CVS. Never finished the project that inspired the work and ended up working on Subversion itself. My work isn’t limited to bindings anymore and has expanded across the different parts of Subversion including acting as the Release Manager. Automating Subversion with Bindings Slide 2

What are Bindings?

What is Subversion… An implementation of a Version Control System? Automating Subversion with Bindings Slide 4

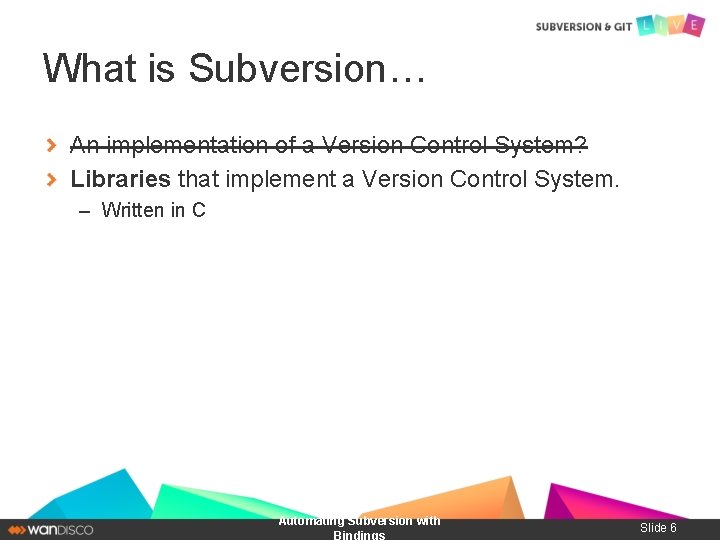

What is Subversion… An implementation of a Version Control System? Libraries that implement a Version Control System. Automating Subversion with Bindings Slide 5

What is Subversion… An implementation of a Version Control System? Libraries that implement a Version Control System. – Written in C Automating Subversion with Bindings Slide 6

Layered Library Design Automating Subversion with Bindings Slide 7

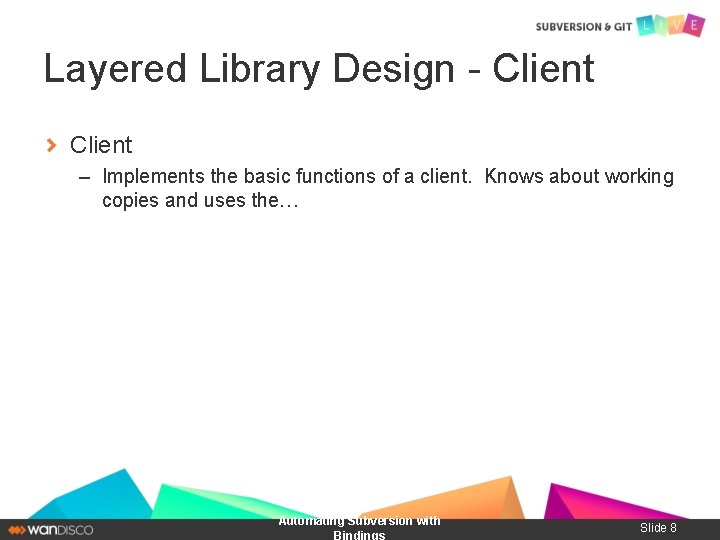

Layered Library Design - Client – Implements the basic functions of a client. Knows about working copies and uses the… Automating Subversion with Bindings Slide 8

Layered Library Design - Client – Implements the basic functions of a client. Knows about working copies and uses the… WC (Working Copy) – Implements the working copy Automating Subversion with Bindings Slide 9

Layered Library Design - Client – Implements the basic functions of a client. Knows about working copies and uses the… WC (Working Copy) – Implements the working copy RA (Repository Access) – Implements protocol to talk to (possibly remote) repository • Local (file: //) • Neon (http(s): // 1. 7. x and older was called DAV in 1. 4. x and older, gone in 1. 8. x) • Serf (http(s): // 1. 5. x and newer) • SVN (svn: //) Automating Subversion with Bindings Slide 10

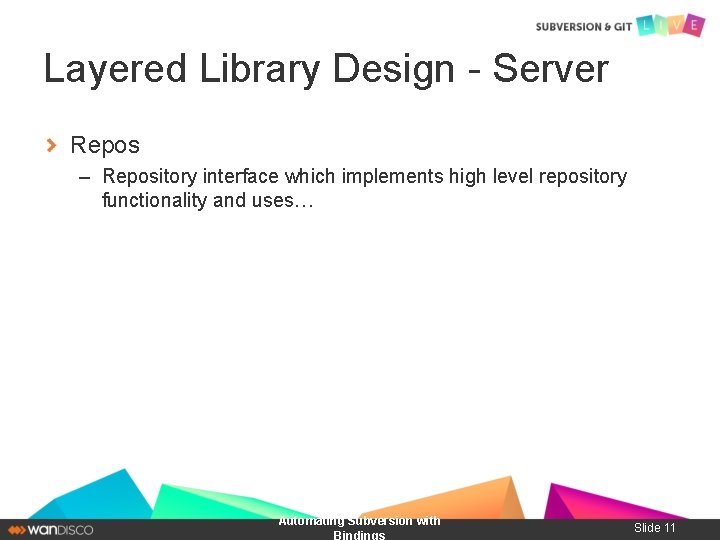

Layered Library Design - Server Repos – Repository interface which implements high level repository functionality and uses… Automating Subversion with Bindings Slide 11

Layered Library Design - Server Repos – Repository interface which implements high level repository functionality and uses… FS – File system implementation to store a repository • FS_Base (Berkeley DB) • FS_FS (non database implementation) Automating Subversion with Bindings Slide 12

Layered Library Design – Misc. Subr – Miscellaneous subroutines Automating Subversion with Bindings Slide 13

Layered Library Design – Misc. Subr – Miscellaneous subroutines Delta – Tree and byte-stream differencing routines Automating Subversion with Bindings Slide 14

Layered Library Design – Misc. Subr – Miscellaneous subroutines Delta – Tree and byte-stream differencing routines Diff – Contextual differencing and merge routines Automating Subversion with Bindings Slide 15

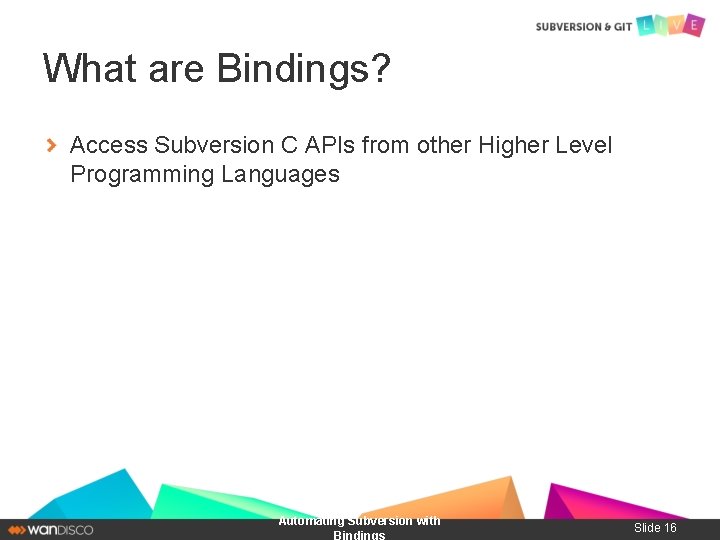

What are Bindings? Access Subversion C APIs from other Higher Level Programming Languages Automating Subversion with Bindings Slide 16

What are Bindings? Access Subversion C APIs from other Higher Level Programming Languages Somewhat easier to use than C Automating Subversion with Bindings Slide 17

What are Bindings? Access Subversion C APIs from other Higher Level Programming Languages Somewhat easier to use than C Provide an interface that somewhat matches the Higher Level Language’s idioms Automating Subversion with Bindings Slide 18

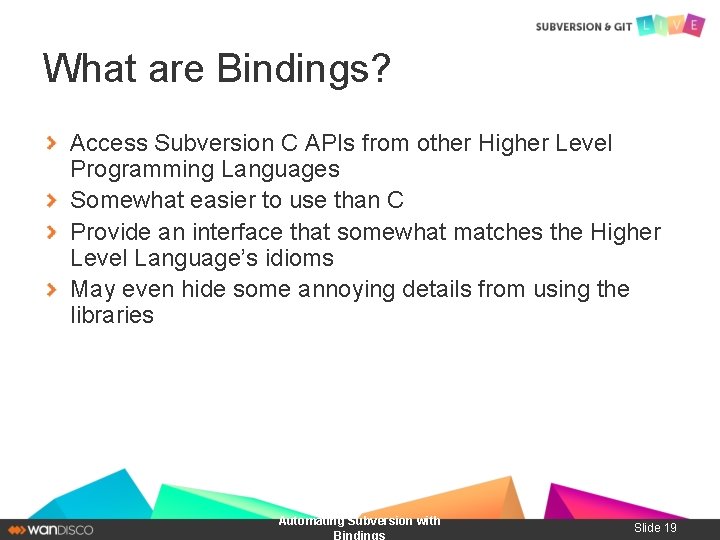

What are Bindings? Access Subversion C APIs from other Higher Level Programming Languages Somewhat easier to use than C Provide an interface that somewhat matches the Higher Level Language’s idioms May even hide some annoying details from using the libraries Automating Subversion with Bindings Slide 19

Why use Bindings?

Can’t I Just Script The Client? The client tries to have machine readable formats Automating Subversion with Bindings Slide 21

Can’t I Just Script The Client? The client tries to have machine readable formats I recently used something like this to try and find a bug in diff –summarize: (svn log $URL | grep -Eo '^r[0 -9]+ | ' | sed 's/[^0 -9]//g') | while read rev; do svn diff -summarize $URL -c $rev; done Automating Subversion with Bindings Slide 22

Can’t I Just Script The Client? It worked great until it ran into this output: svn log –c 933481 https: //svn. apache. org/repos/asf/subversion/trunk ------------------------------------r 933481 | gstein | 2010 -04 -12 21: 20: 50 -0700 (Mon, 12 Apr 2010) | 27 lines Add some new methods to the Sandbox class for performing simple, unverified operations. Also introduce deep magic with svntest. main. make_log_msg() to produce log messages that show the source of the command invocation. These automated log messages look like: ---r 2 | jrandom | 2010 -04 -12 23: 57: 10 -0400 (Mon, 12 Apr 2010) | 1 line File '. /schedule_tests. py', line 543, in status_add_deleted_directory ---- Automating Subversion with Bindings Slide 23

What about XML? The client supports XML output with --xml on most commands. Automating Subversion with Bindings Slide 24

What about XML? The client supports XML output with --xml on most commands. XML is hard to parse correctly – Regexps aren’t reliable – XSLT is a pain to write – XML parsers are far from easy to drive Automating Subversion with Bindings Slide 25

Command behavior changes We try to avoid changing the output and behavior of commands. Automating Subversion with Bindings Slide 26

Command behavior changes We try to avoid changing the output and behavior of commands. Automating Subversion with Bindings Slide 27

Command behavior changes We try to avoid changing the output and behavior of commands. svn mergeinfo prior to 1. 8. 0 behaved as though -show-revs=merged was passed if no --show-revs option was passed. In 1. 8. x this shows a graph. Automating Subversion with Bindings Slide 28

Greater capabilities We can implement functionality that the command line client doesn’t have. Examples: – View. VC – Subclipse – control-chars. py hook-script Automating Subversion with Bindings Slide 29

Why not use Bindings? Poor documentation Automating Subversion with Bindings Slide 30

Why not use Bindings? Poor documentation Need to install them Automating Subversion with Bindings Slide 31

Why not use Bindings? Poor documentation Need to install them Expose internal details that may be hard to understand Automating Subversion with Bindings Slide 32

Why not use Bindings? Poor documentation Need to install them Expose internal details that may be hard to understand Not always updated for the latest features Automating Subversion with Bindings Slide 33

Getting Started

What Bindings Are Available SWIG – Python – Perl – Ruby Java. HL ctypes-python SVNKit py. SVN Automating Subversion with Bindings Slide 35

What is SWIG? Simplified Wrapper and Interface Generator Automating Subversion with Bindings Slide 36

What is SWIG? Simplified Wrapper and Interface Generator – Partly automated generator Automating Subversion with Bindings Slide 37

What is SWIG? Simplified Wrapper and Interface Generator – Partly automated generator – Acts like a specialized C compiler Automating Subversion with Bindings Slide 38

What is SWIG? Simplified Wrapper and Interface Generator – Partly automated generator – Acts like a specialized C compiler Only needed at interface generation time Automating Subversion with Bindings Slide 39

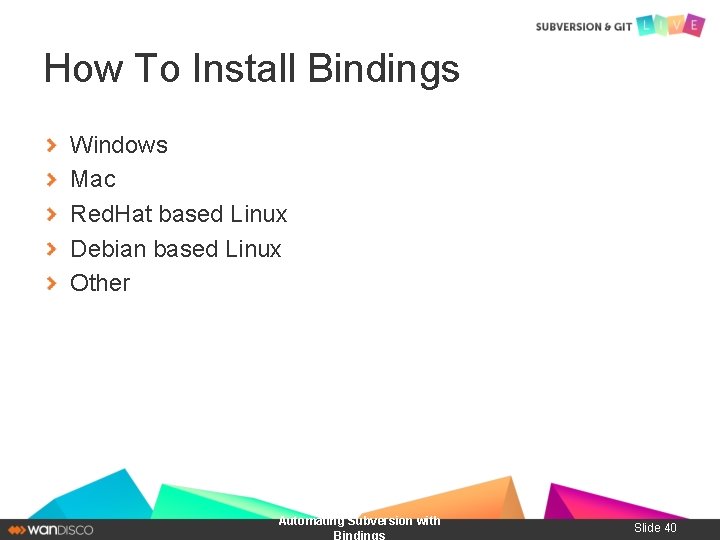

How To Install Bindings Windows Mac Red. Hat based Linux Debian based Linux Other Automating Subversion with Bindings Slide 40

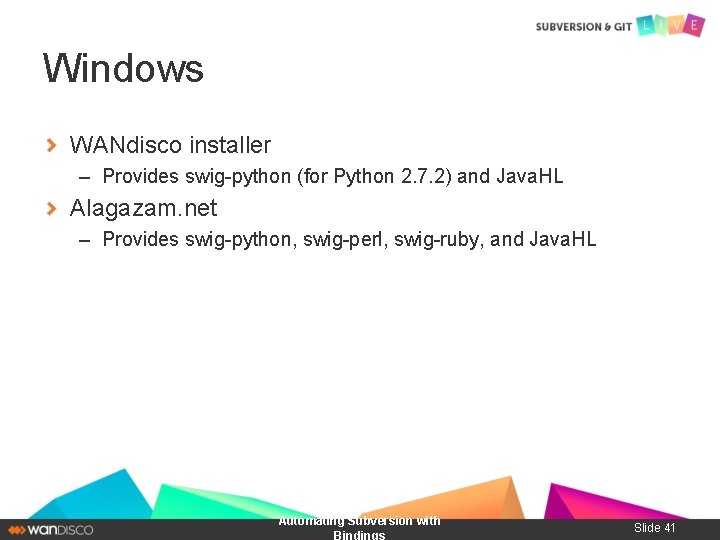

Windows WANdisco installer – Provides swig-python (for Python 2. 7. 2) and Java. HL Alagazam. net – Provides swig-python, swig-perl, swig-ruby, and Java. HL Automating Subversion with Bindings Slide 41

Red. Hat based Linux WANdisco packages – – subversion-python (SWIG) subversion-ruby (subversion 1. 8. x only) subversion-perl subversion-javahl OS Packages – Older but usually available and named same as above. Automating Subversion with Bindings Slide 42

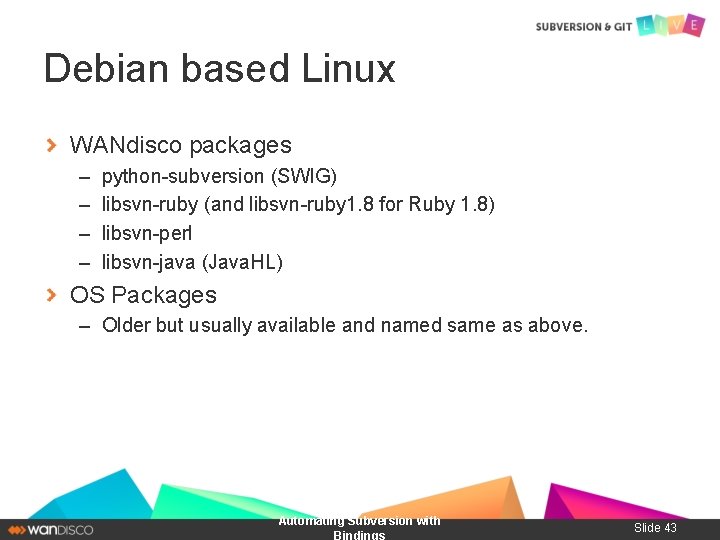

Debian based Linux WANdisco packages – – python-subversion (SWIG) libsvn-ruby (and libsvn-ruby 1. 8 for Ruby 1. 8) libsvn-perl libsvn-java (Java. HL) OS Packages – Older but usually available and named same as above. Automating Subversion with Bindings Slide 43

Mac WANdisco installer – Provides swig-python, swig-perl, swig-ruby and Java. HL Mac. Ports – – subversion-javahlbindings subversion-perlbindings-5. 16 (number is perl version) subversion-python 27 bindings (number is python version) subversion-rubybindings Homebrew – can provide Java. HL, swig-perl, swig-python, and swig-ruby Xcode – Command line tools – old but includes swig-python, swig-perl and swig-ruby Automating Subversion with Bindings Slide 44

Other WANdisco packages should have Bindings for most OSes *NIX platforms build it yourself by: – [usual Subversion build instructions] – make $binding – make check-$binding – make install-$binding where $binding can be: javahl swig-py swig-rb Don’t use do parallel builds of bindings (-j option to make) Automating Subversion with Bindings Slide 45

Build It Yourself - SWIG On the Mac you need to do this before the normal Subversion instructions due to a bug in our API that makes the bindings fail to compile (requires SWIG, libtool and autoconf): – make extraclean –. /autogen. sh Automating Subversion with Bindings Slide 46

Build It Yourself - SWIG On the Mac you need to do this before the normal Subversion instructions due to a bug in our API that makes the bindings fail to compile (requires SWIG, libtool and autoconf): – make extraclean –. /autogen. sh May need the same instructions on other platforms if you get an error about an undeclared symbol starting with SVN_AUTH Automating Subversion with Bindings Slide 47

Build It Yourself - SWIG On the Mac you need to do this before the normal Subversion instructions due to a bug in our API that makes the bindings fail to compile (requires SWIG, libtool and autoconf): – make extraclean –. /autogen. sh May need the same instructions on other platforms if you get an error about an undeclared symbol starting with SVN_AUTH To use Ruby 1. 9 need Subversion 1. 8. x Automating Subversion with Bindings Slide 48

Build It Yourself - SWIG On the Mac you need to do this before the normal Subversion instructions due to a bug in our API that makes the bindings fail to compile (requires SWIG, libtool and autoconf): – make extraclean –. /autogen. sh May need the same instructions on other platforms if you get an error about an undeclared symbol starting with SVN_AUTH To use Ruby 1. 9 need Subversion 1. 8. x Python 3 doesn’t work Automating Subversion with Bindings Slide 49

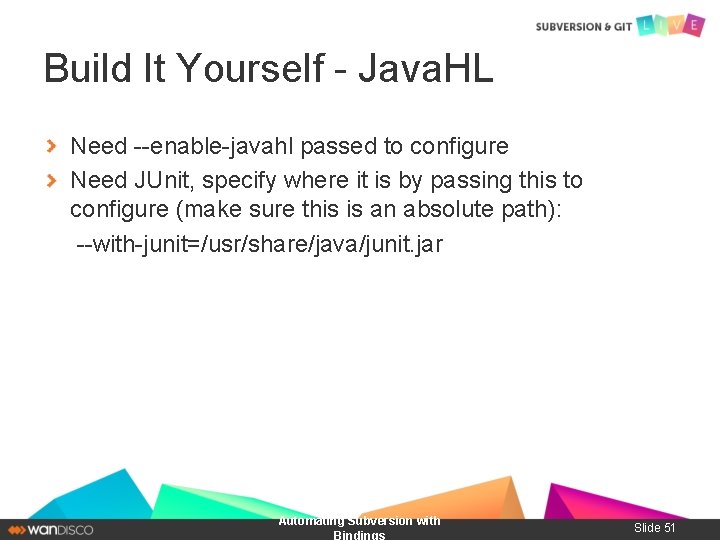

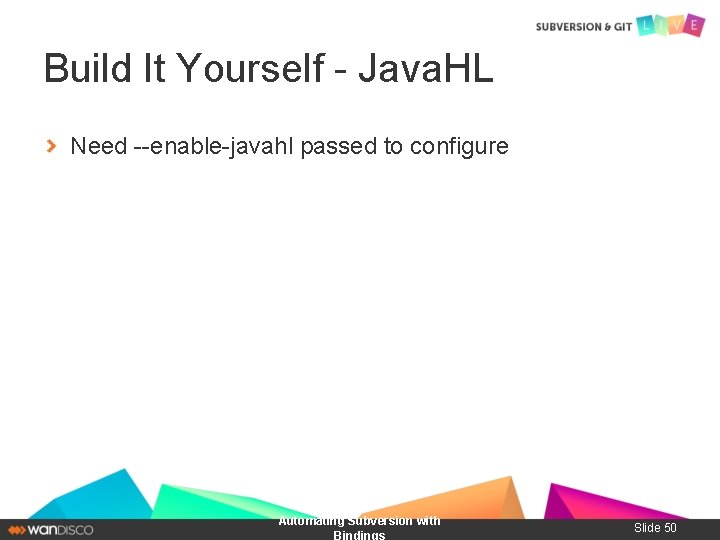

Build It Yourself - Java. HL Need --enable-javahl passed to configure Automating Subversion with Bindings Slide 50

Build It Yourself - Java. HL Need --enable-javahl passed to configure Need JUnit, specify where it is by passing this to configure (make sure this is an absolute path): --with-junit=/usr/share/java/junit. jar Automating Subversion with Bindings Slide 51

Build It Yourself - Java. HL Need --enable-javahl passed to configure Need JUnit, specify where it is by passing this to configure (make sure this is an absolute path): --with-junit=/usr/share/java/junit. jar Can specify which JDK to use by passing this to configure: --with-jdk=/usr/lib/jvm/java-6 -openjdk-amd 64 Automating Subversion with Bindings Slide 52

Using the Bindings

SWIG Bindings Thin layer over C API Automating Subversion with Bindings Slide 54

SWIG Bindings Thin layer over C API Perl and Ruby have more syntactic sugar to make it feel more like a normal Perl or Ruby program Automating Subversion with Bindings Slide 55

SWIG Bindings Thin layer over C API Perl and Ruby have more syntactic sugar to make it feel more like a normal Perl or Ruby program Python has very little syntactic sugar but is more complete Automating Subversion with Bindings Slide 56

SWIG Bindings Thin layer over C API Perl and Ruby have more syntactic sugar to make it feel more like a normal Perl or Ruby program Python has very little syntactic sugar but is more complete Not every language has everything completely wrapped. Automating Subversion with Bindings Slide 57

SWIG Modules Core – The things that don’t fit anywhere else, includes APR functions that are needed and libsvn_subr. Client Wc Diff Delta Ra Repos Fs Automating Subversion with Bindings Slide 58

APR Pools APR is Apache Portable Runtime Automating Subversion with Bindings Slide 59

APR Pools APR is Apache Portable Runtime Pools are used for memory management. Automating Subversion with Bindings Slide 60

APR Pools APR is Apache Portable Runtime Pools are used for memory management. Pools have a lifetime. Lifetime ends when pool or its parent is destroyed. Automating Subversion with Bindings Slide 61

APR Pools APR is Apache Portable Runtime Pools are used for memory management. Pools have a lifetime. Lifetime ends when pool or its parent is destroyed. Pools can be cleared to free memory and reuse the same pool (iteration) Automating Subversion with Bindings Slide 62

APR Pools APR is Apache Portable Runtime Pools are used for memory management. Pools have a lifetime. Lifetime ends when pool or its parent is destroyed. Pools can be cleared to free memory and reuse the same pool (iteration) SWIG bindings largely let you ignore pools by defaulting to a single global pool Automating Subversion with Bindings Slide 63

APR Pools APR is Apache Portable Runtime Pools are used for memory management. Pools have a lifetime. Lifetime ends when pool or its parent is destroyed. Pools can be cleared to free memory and reuse the same pool (iteration) SWIG bindings largely let you ignore pools by defaulting to a single global pool You can still use pools and may want to in some cases (iteration, long running programs) Automating Subversion with Bindings Slide 64

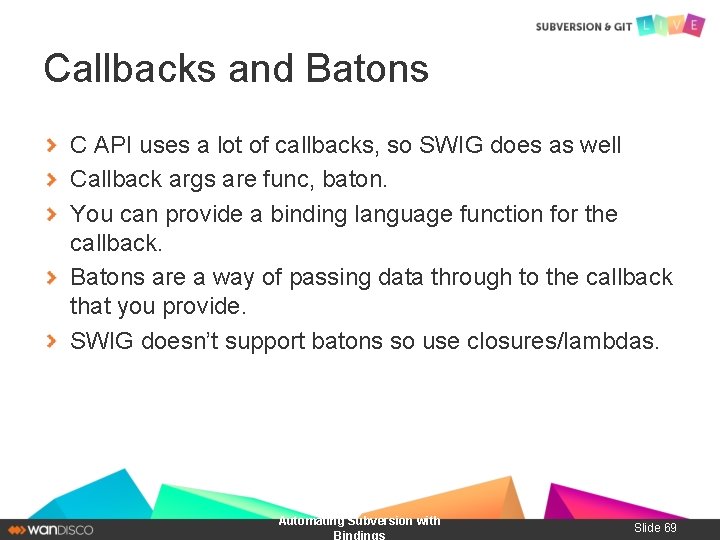

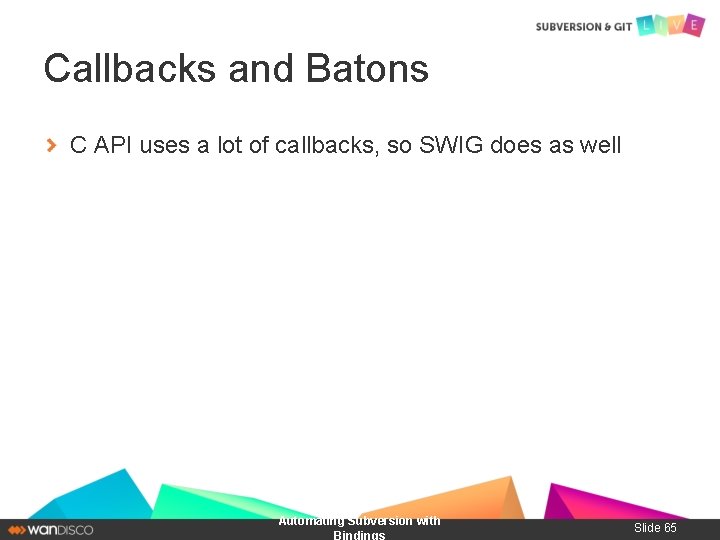

Callbacks and Batons C API uses a lot of callbacks, so SWIG does as well Automating Subversion with Bindings Slide 65

Callbacks and Batons C API uses a lot of callbacks, so SWIG does as well Callback args are func, baton. Automating Subversion with Bindings Slide 66

Callbacks and Batons C API uses a lot of callbacks, so SWIG does as well Callback args are func, baton. You can provide a binding language function for the callback. Automating Subversion with Bindings Slide 67

Callbacks and Batons C API uses a lot of callbacks, so SWIG does as well Callback args are func, baton. You can provide a binding language function for the callback. Batons are a way of passing data through to the callback that you provide. Automating Subversion with Bindings Slide 68

Callbacks and Batons C API uses a lot of callbacks, so SWIG does as well Callback args are func, baton. You can provide a binding language function for the callback. Batons are a way of passing data through to the callback that you provide. SWIG doesn’t support batons so use closures/lambdas. Automating Subversion with Bindings Slide 69

SWIG Types SWIG wraps the C types for you Automating Subversion with Bindings Slide 70

SWIG Types SWIG wraps the C types for you Structs have getters and setters (type_field_get/type_field_set), but syntactic sugar allows you to use structs like objects in binding language Automating Subversion with Bindings Slide 71

SWIG Types SWIG wraps the C types for you Structs have getters and setters (type_field_get/type_field_set), but syntactic sugar allows you to use structs like objects in binding language Structs can be allocated and freed (new_type/delete_type) e. g. new_svn_opt_revision_t() Automating Subversion with Bindings Slide 72

SWIG Types SWIG wraps the C types for you Structs have getters and setters (type_field_get/type_field_set), but syntactic sugar allows you to use structs like objects in binding language Structs can be allocated and freed (new_type/delete_type) e. g. new_svn_opt_revision_t() Ints, Hashes and Arrays are mapped to the binding languages equivalent types Automating Subversion with Bindings Slide 73

SWIG Types SWIG wraps the C types for you Structs have getters and setters (type_field_get/type_field_set), but syntactic sugar allows you to use structs like objects in binding language Structs can be allocated and freed (new_type/delete_type) e. g. new_svn_opt_revision_t() Ints, Hashes and Arrays are mapped to the binding languages equivalent types If a type hasn’t been mapped in SWIG you may have trouble using it Automating Subversion with Bindings Slide 74

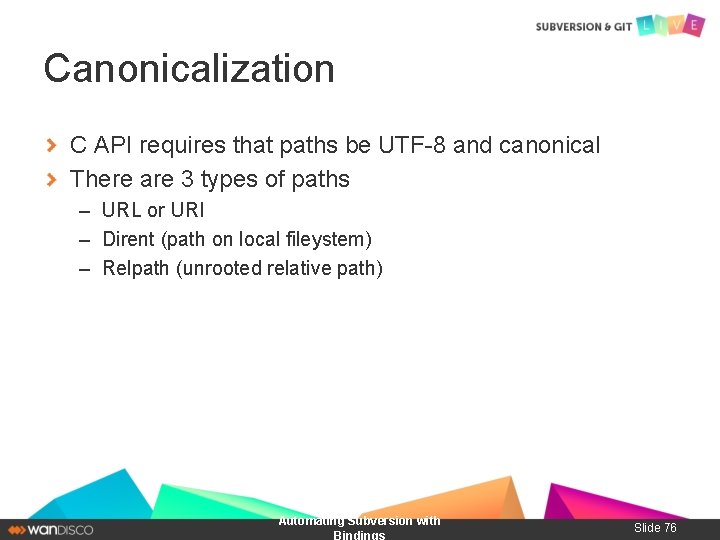

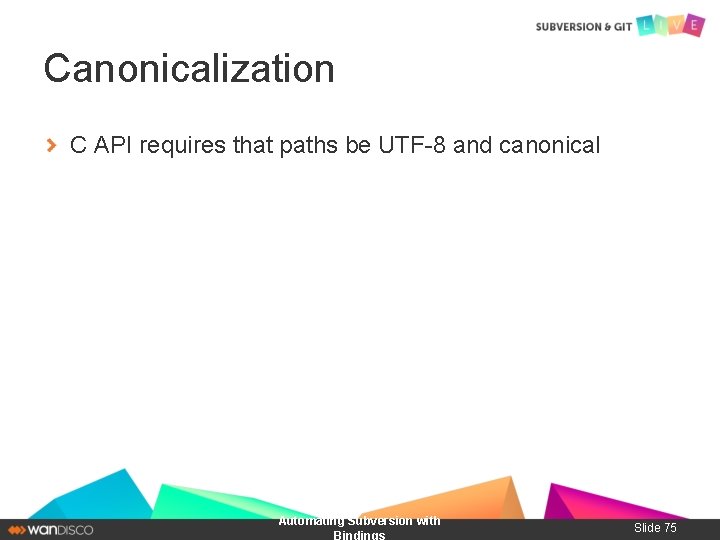

Canonicalization C API requires that paths be UTF-8 and canonical Automating Subversion with Bindings Slide 75

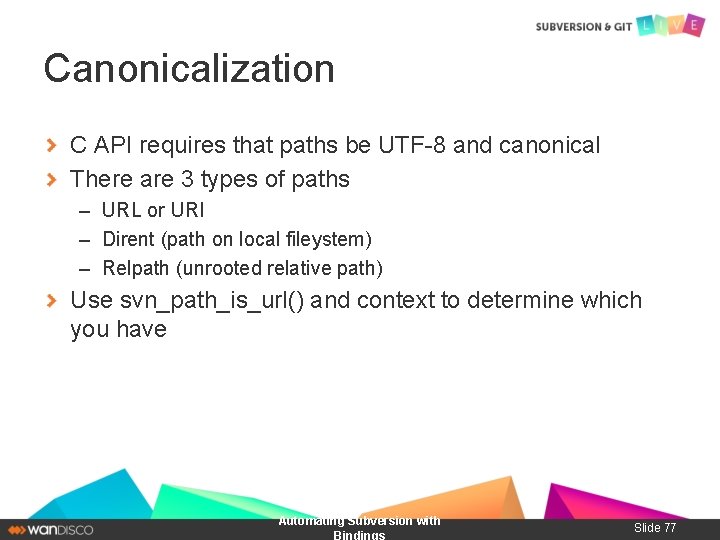

Canonicalization C API requires that paths be UTF-8 and canonical There are 3 types of paths – URL or URI – Dirent (path on local fileystem) – Relpath (unrooted relative path) Automating Subversion with Bindings Slide 76

Canonicalization C API requires that paths be UTF-8 and canonical There are 3 types of paths – URL or URI – Dirent (path on local fileystem) – Relpath (unrooted relative path) Use svn_path_is_url() and context to determine which you have Automating Subversion with Bindings Slide 77

Canonicalization C API requires that paths be UTF-8 and canonical There are 3 types of paths – URL or URI – Dirent (path on local fileystem) – Relpath (unrooted relative path) Use svn_path_is_url() and context to determine which you have Use svn_uri_canonicalize(), svn_dirent_canonicalize() or svn_relpath_canonicalize() to canonicalize a path. Automating Subversion with Bindings Slide 78

Canonicalization C API requires that paths be UTF-8 and canonical There are 3 types of paths – URL or URI – Dirent (path on local fileystem) – Relpath (unrooted relative path) Use svn_path_is_url() and context to determine which you have Use svn_uri_canonicalize(), svn_dirent_canonicalize() or svn_relpath_canonicalize() to canonicalize a path. Not doing this will cause assertions or crashes. Automating Subversion with Bindings Slide 79

Error Handling Python and Ruby have exceptions so errors are handled via that mechanism Automating Subversion with Bindings Slide 80

Error Handling Python and Ruby have exceptions so errors are handled via that mechanism Perl does not have exceptions – Uses an error handler callback $SVN: : Error: : handler – Default callback croaks with message provided by libraries. – See perldoc SVN: : Core and read the documentation on SVN: : Error for details Automating Subversion with Bindings Slide 81

Error Handling Python and Ruby have exceptions so errors are handled via that mechanism Perl does not have exceptions – Uses an error handler callback $SVN: : Error: : handler – Default callback croaks with message provided by libraries. – See perldoc SVN: : Core and read the documentation on SVN: : Error for details All have access to data from Subversion’s error struct svn_error_t – Errors can be chained, next error is in child field – apr_err is a numeric code for the error – message is a human readable string Automating Subversion with Bindings Slide 82

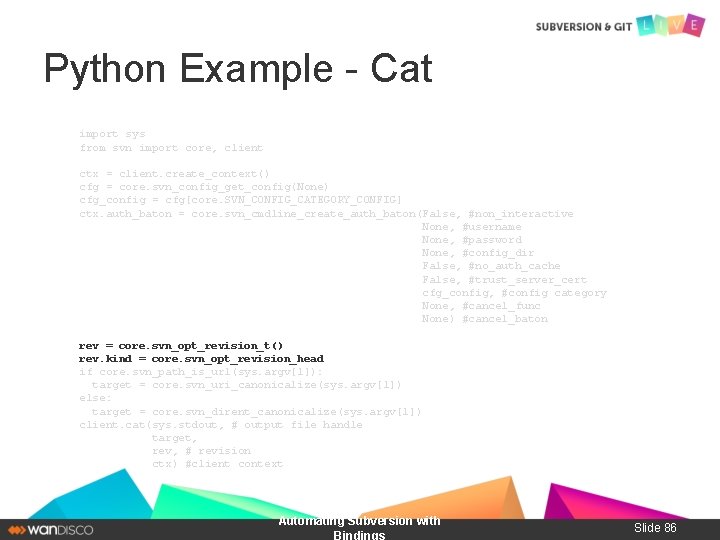

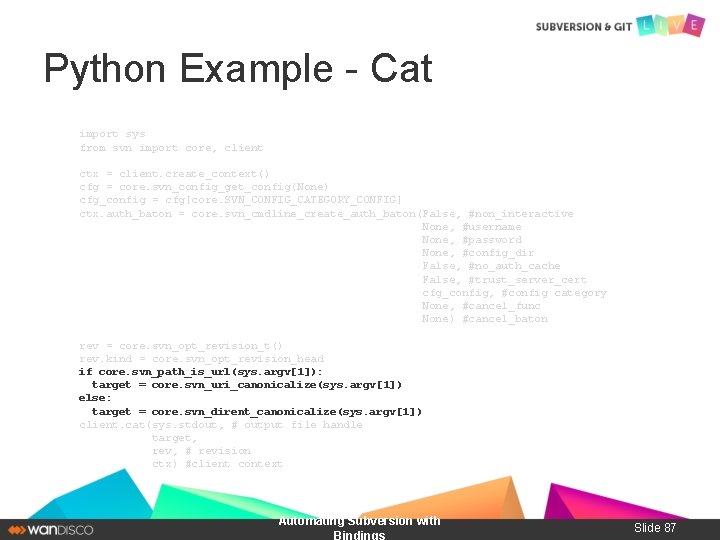

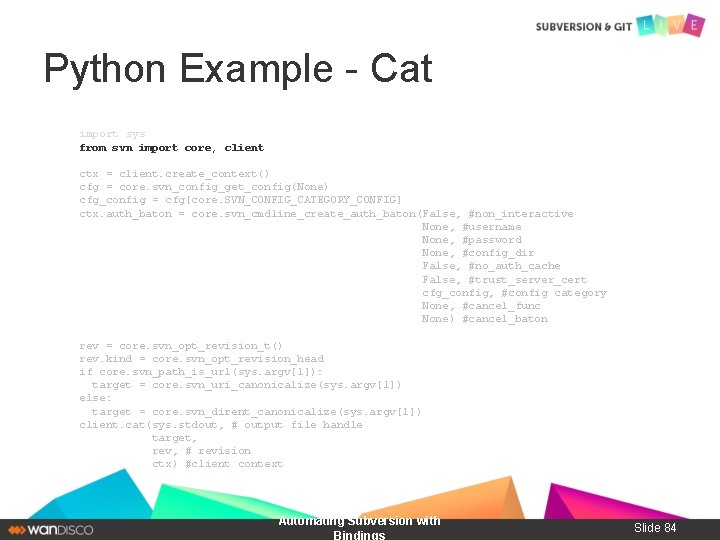

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 83

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 84

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 85

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 86

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 87

Python Example - Cat import sys from svn import core, client ctx = client. create_context() cfg = core. svn_config_get_config(None) cfg_config = cfg[core. SVN_CONFIG_CATEGORY_CONFIG] ctx. auth_baton = core. svn_cmdline_create_auth_baton(False, #non_interactive None, #username None, #password None, #config_dir False, #no_auth_cache False, #trust_server_cert cfg_config, #config category None, #cancel_func None) #cancel_baton rev = core. svn_opt_revision_t() rev. kind = core. svn_opt_revision_head if core. svn_path_is_url(sys. argv[1]): target = core. svn_uri_canonicalize(sys. argv[1]) else: target = core. svn_dirent_canonicalize(sys. argv[1]) client. cat(sys. stdout, # output file handle target, rev, # revision ctx) #client context Automating Subversion with Bindings Slide 88

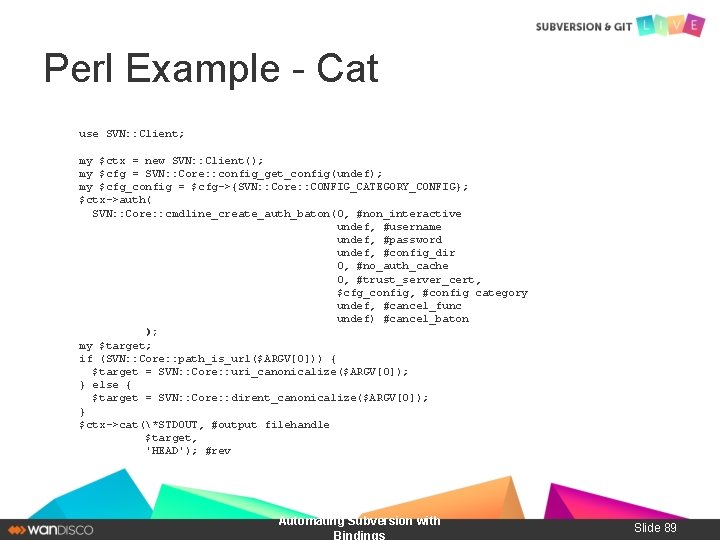

Perl Example - Cat use SVN: : Client; my $ctx = new SVN: : Client(); my $cfg = SVN: : Core: : config_get_config(undef); my $cfg_config = $cfg->{SVN: : Core: : CONFIG_CATEGORY_CONFIG}; $ctx->auth( SVN: : Core: : cmdline_create_auth_baton(0, #non_interactive undef, #username undef, #password undef, #config_dir 0, #no_auth_cache 0, #trust_server_cert, $cfg_config, #config category undef, #cancel_func undef) #cancel_baton ); my $target; if (SVN: : Core: : path_is_url($ARGV[0])) { $target = SVN: : Core: : uri_canonicalize($ARGV[0]); } else { $target = SVN: : Core: : dirent_canonicalize($ARGV[0]); } $ctx->cat(*STDOUT, #output filehandle $target, 'HEAD'); #rev Automating Subversion with Bindings Slide 89

Perl Example - Cat use SVN: : Client; my $ctx = new SVN: : Client(); my $cfg = SVN: : Core: : config_get_config(undef); my $cfg_config = $cfg->{SVN: : Core: : CONFIG_CATEGORY_CONFIG}; $ctx->auth( SVN: : Core: : cmdline_create_auth_baton(0, #non_interactive undef, #username undef, #password undef, #config_dir 0, #no_auth_cache 0, #trust_server_cert, $cfg_config, #config category undef, #cancel_func undef) #cancel_baton ); my $target; if (SVN: : Core: : path_is_url($ARGV[0])) { $target = SVN: : Core: : uri_canonicalize($ARGV[0]); } else { $target = SVN: : Core: : dirent_canonicalize($ARGV[0]); } $ctx->cat(*STDOUT, #output filehandle $target, 'HEAD'); #rev Automating Subversion with Bindings Slide 90

Perl Example - Cat use SVN: : Client; my $ctx = new SVN: : Client(); my $cfg = SVN: : Core: : config_get_config(undef); my $cfg_config = $cfg->{SVN: : Core: : CONFIG_CATEGORY_CONFIG}; $ctx->auth( SVN: : Core: : cmdline_create_auth_baton(0, #non_interactive undef, #username undef, #password undef, #config_dir 0, #no_auth_cache 0, #trust_server_cert, $cfg_config, #config category undef, #cancel_func undef) #cancel_baton ); my $target; if (SVN: : Core: : path_is_url($ARGV[0])) { $target = SVN: : Core: : uri_canonicalize($ARGV[0]); } else { $target = SVN: : Core: : dirent_canonicalize($ARGV[0]); } $ctx->cat(*STDOUT, #output filehandle $target, 'HEAD'); #rev Automating Subversion with Bindings Slide 91

Perl Example - Cat use SVN: : Client; my $ctx = new SVN: : Client(); my $cfg = SVN: : Core: : config_get_config(undef); my $cfg_config = $cfg->{SVN: : Core: : CONFIG_CATEGORY_CONFIG}; $ctx->auth( SVN: : Core: : cmdline_create_auth_baton(0, #non_interactive undef, #username undef, #password undef, #config_dir 0, #no_auth_cache 0, #trust_server_cert, $cfg_config, #config category undef, #cancel_func undef) #cancel_baton ); my $target; if (SVN: : Core: : path_is_url($ARGV[0])) { $target = SVN: : Core: : uri_canonicalize($ARGV[0]); } else { $target = SVN: : Core: : dirent_canonicalize($ARGV[0]); } $ctx->cat(*STDOUT, #output filehandle $target, 'HEAD'); #rev Automating Subversion with Bindings Slide 92

Perl Example - Cat use SVN: : Client; my $ctx = new SVN: : Client(); my $cfg = SVN: : Core: : config_get_config(undef); my $cfg_config = $cfg->{SVN: : Core: : CONFIG_CATEGORY_CONFIG}; $ctx->auth( SVN: : Core: : cmdline_create_auth_baton(0, #non_interactive undef, #username undef, #password undef, #config_dir 0, #no_auth_cache 0, #trust_server_cert, $cfg_config, #config category undef, #cancel_func undef) #cancel_baton ); my $target; if (SVN: : Core: : path_is_url($ARGV[0])) { $target = SVN: : Core: : uri_canonicalize($ARGV[0]); } else { $target = SVN: : Core: : dirent_canonicalize($ARGV[0]); } $ctx->cat(*STDOUT, #output filehandle $target, 'HEAD'); #rev Automating Subversion with Bindings Slide 93

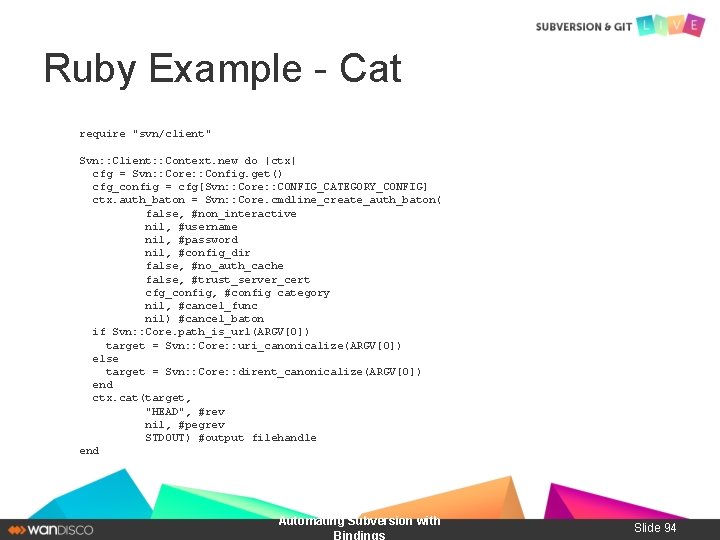

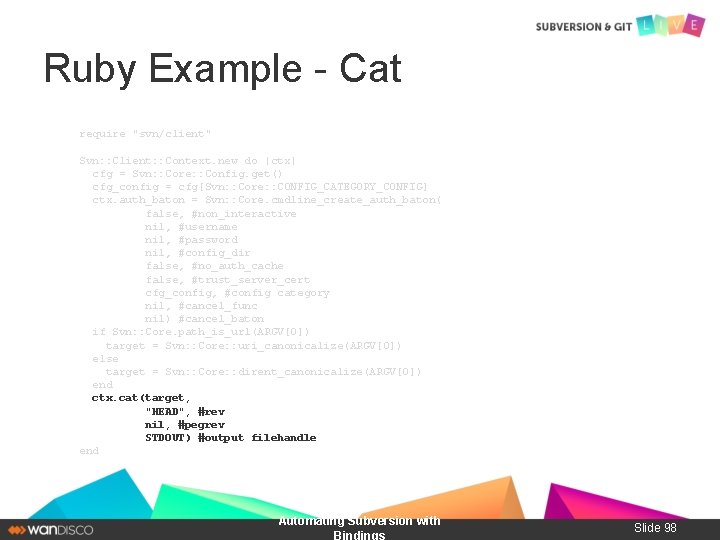

Ruby Example - Cat require "svn/client" Svn: : Client: : Context. new do |ctx| cfg = Svn: : Core: : Config. get() cfg_config = cfg[Svn: : Core: : CONFIG_CATEGORY_CONFIG] ctx. auth_baton = Svn: : Core. cmdline_create_auth_baton( false, #non_interactive nil, #username nil, #password nil, #config_dir false, #no_auth_cache false, #trust_server_cert cfg_config, #config category nil, #cancel_func nil) #cancel_baton if Svn: : Core. path_is_url(ARGV[0]) target = Svn: : Core: : uri_canonicalize(ARGV[0]) else target = Svn: : Core: : dirent_canonicalize(ARGV[0]) end ctx. cat(target, "HEAD", #rev nil, #pegrev STDOUT) #output filehandle end Automating Subversion with Bindings Slide 94

Ruby Example - Cat require "svn/client" Svn: : Client: : Context. new do |ctx| cfg = Svn: : Core: : Config. get() cfg_config = cfg[Svn: : Core: : CONFIG_CATEGORY_CONFIG] ctx. auth_baton = Svn: : Core. cmdline_create_auth_baton( false, #non_interactive nil, #username nil, #password nil, #config_dir false, #no_auth_cache false, #trust_server_cert cfg_config, #config category nil, #cancel_func nil) #cancel_baton if Svn: : Core. path_is_url(ARGV[0]) target = Svn: : Core: : uri_canonicalize(ARGV[0]) else target = Svn: : Core: : dirent_canonicalize(ARGV[0]) end ctx. cat(target, "HEAD", #rev nil, #pegrev STDOUT) #output filehandle end Automating Subversion with Bindings Slide 95

Ruby Example - Cat require "svn/client" Svn: : Client: : Context. new do |ctx| cfg = Svn: : Core: : Config. get() cfg_config = cfg[Svn: : Core: : CONFIG_CATEGORY_CONFIG] ctx. auth_baton = Svn: : Core. cmdline_create_auth_baton( false, #non_interactive nil, #username nil, #password nil, #config_dir false, #no_auth_cache false, #trust_server_cert cfg_config, #config category nil, #cancel_func nil) #cancel_baton if Svn: : Core. path_is_url(ARGV[0]) target = Svn: : Core: : uri_canonicalize(ARGV[0]) else target = Svn: : Core: : dirent_canonicalize(ARGV[0]) end ctx. cat(target, "HEAD", #rev nil, #pegrev STDOUT) #output filehandle end Automating Subversion with Bindings Slide 96

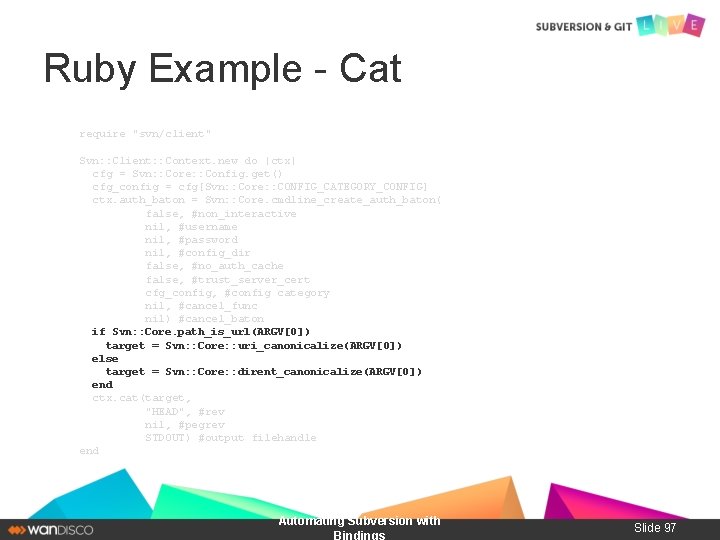

Ruby Example - Cat require "svn/client" Svn: : Client: : Context. new do |ctx| cfg = Svn: : Core: : Config. get() cfg_config = cfg[Svn: : Core: : CONFIG_CATEGORY_CONFIG] ctx. auth_baton = Svn: : Core. cmdline_create_auth_baton( false, #non_interactive nil, #username nil, #password nil, #config_dir false, #no_auth_cache false, #trust_server_cert cfg_config, #config category nil, #cancel_func nil) #cancel_baton if Svn: : Core. path_is_url(ARGV[0]) target = Svn: : Core: : uri_canonicalize(ARGV[0]) else target = Svn: : Core: : dirent_canonicalize(ARGV[0]) end ctx. cat(target, "HEAD", #rev nil, #pegrev STDOUT) #output filehandle end Automating Subversion with Bindings Slide 97

Ruby Example - Cat require "svn/client" Svn: : Client: : Context. new do |ctx| cfg = Svn: : Core: : Config. get() cfg_config = cfg[Svn: : Core: : CONFIG_CATEGORY_CONFIG] ctx. auth_baton = Svn: : Core. cmdline_create_auth_baton( false, #non_interactive nil, #username nil, #password nil, #config_dir false, #no_auth_cache false, #trust_server_cert cfg_config, #config category nil, #cancel_func nil) #cancel_baton if Svn: : Core. path_is_url(ARGV[0]) target = Svn: : Core: : uri_canonicalize(ARGV[0]) else target = Svn: : Core: : dirent_canonicalize(ARGV[0]) end ctx. cat(target, "HEAD", #rev nil, #pegrev STDOUT) #output filehandle end Automating Subversion with Bindings Slide 98

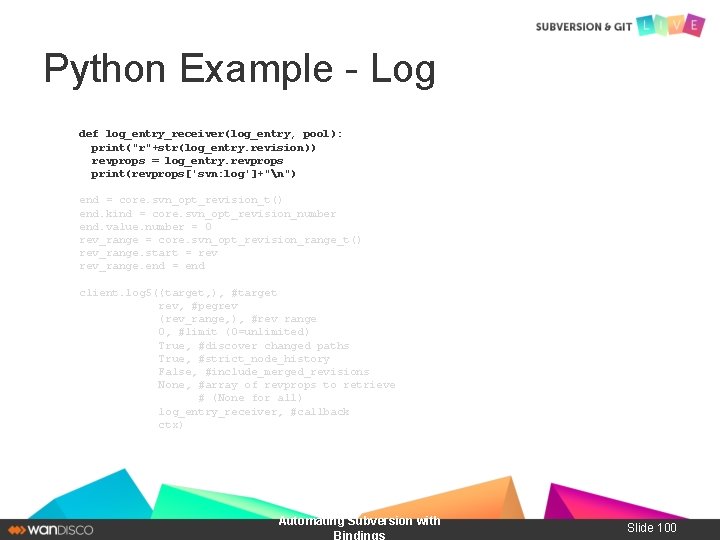

Python Example - Log def log_entry_receiver(log_entry, pool): print("r"+str(log_entry. revision)) revprops = log_entry. revprops print(revprops['svn: log']+"n") end = core. svn_opt_revision_t() end. kind = core. svn_opt_revision_number end. value. number = 0 rev_range = core. svn_opt_revision_range_t() rev_range. start = rev_range. end = end client. log 5((target, ), #target rev, #pegrev (rev_range, ), #rev range 0, #limit (0=unlimited) True, #discover changed paths True, #strict_node_history False, #include_merged_revisions None, #array of revprops to retrieve # (None for all) log_entry_receiver, #callback ctx) Automating Subversion with Bindings Slide 99

Python Example - Log def log_entry_receiver(log_entry, pool): print("r"+str(log_entry. revision)) revprops = log_entry. revprops print(revprops['svn: log']+"n") end = core. svn_opt_revision_t() end. kind = core. svn_opt_revision_number end. value. number = 0 rev_range = core. svn_opt_revision_range_t() rev_range. start = rev_range. end = end client. log 5((target, ), #target rev, #pegrev (rev_range, ), #rev range 0, #limit (0=unlimited) True, #discover changed paths True, #strict_node_history False, #include_merged_revisions None, #array of revprops to retrieve # (None for all) log_entry_receiver, #callback ctx) Automating Subversion with Bindings Slide 100

Python Example - Log def log_entry_receiver(log_entry, pool): print("r"+str(log_entry. revision)) revprops = log_entry. revprops print(revprops['svn: log']+"n") end = core. svn_opt_revision_t() end. kind = core. svn_opt_revision_number end. value. number = 0 rev_range = core. svn_opt_revision_range_t() rev_range. start = rev_range. end = end client. log 5((target, ), #target rev, #pegrev (rev_range, ), #rev range 0, #limit (0=unlimited) True, #discover changed paths True, #strict_node_history False, #include_merged_revisions None, #array of revprops to retrieve # (None for all) log_entry_receiver, #callback ctx) Automating Subversion with Bindings Slide 101

Python Example - Log def log_entry_receiver(log_entry, pool): print("r"+str(log_entry. revision)) revprops = log_entry. revprops print(revprops['svn: log']+"n") end = core. svn_opt_revision_t() end. kind = core. svn_opt_revision_number end. value. number = 0 rev_range = core. svn_opt_revision_range_t() rev_range. start = rev_range. end = end client. log 5((target, ), #target rev, #pegrev (rev_range, ), #rev range 0, #limit (0=unlimited) True, #discover changed paths True, #strict_node_history False, #include_merged_revisions None, #array of revprops to retrieve # (None for all) log_entry_receiver, #callback ctx) Automating Subversion with Bindings Slide 102

Perl Example - Log sub log_entry_receiver { my ($log_entry, $pool) = @_; my $revprops = $log_entry->revprops; print "r", $log_entry->revision; print "n$revprops->{'svn: log'}nn" } $ctx->log 5($target, 'HEAD', #pegrev ['HEAD', 0], #rev range 0, #limit (0=unlimited) 1, #discover_changed_paths 1, #strict_node_history 0, #include_merged_revisions undef, #array of revprops to retrive # (undef for all) &log_entry_receiver); #callback Automating Subversion with Bindings Slide 103

Perl Example - Log sub log_entry_receiver { my ($log_entry, $pool) = @_; my $revprops = $log_entry->revprops; print "r", $log_entry->revision; print "n$revprops->{'svn: log'}nn" } $ctx->log 5($target, 'HEAD', #pegrev ['HEAD', 0], #rev range 0, #limit (0=unlimited) 1, #discover_changed_paths 1, #strict_node_history 0, #include_merged_revisions undef, #array of revprops to retrive # (undef for all) &log_entry_receiver); #callback Automating Subversion with Bindings Slide 104

Perl Example - Log sub log_entry_receiver { my ($log_entry, $pool) = @_; my $revprops = $log_entry->revprops; print "r", $log_entry->revision; print "n$revprops->{'svn: log'}nn" } $ctx->log 5($target, 'HEAD', #pegrev ['HEAD', 0], #rev range 0, #limit (0=unlimited) 1, #discover_changed_paths 1, #strict_node_history 0, #include_merged_revisions undef, #array of revprops to retrive # (undef for all) &log_entry_receiver); #callback Automating Subversion with Bindings Slide 105

Ruby Example - Log args = [target, "HEAD", #start rev 0, #end rev 0, #limit true, #discover_changed_paths true] #strict node history ctx. log(*args) do |changed_paths, rev, author, date, message| print("r", rev, "n") print(message, "nn") end Automating Subversion with Bindings Slide 106

Ruby Example - Log args = [target, "HEAD", #start rev 0, #end rev 0, #limit true, #discover_changed_paths true] #strict node history ctx. log(*args) do |changed_paths, rev, author, date, message| print("r", rev, "n") print(message, "nn") end Automating Subversion with Bindings Slide 107

Ruby Example - Log args = [target, "HEAD", #start rev 0, #end rev 0, #limit true, #discover_changed_paths true] #strict node history ctx. log(*args) do |changed_paths, rev, author, date, message| print("r", rev, "n") print(message, "nn") end Automating Subversion with Bindings Slide 108

Ruby Example - Log args = [target, "HEAD", #start rev 0, #end rev 0, #limit true, #discover_changed_paths true] #strict node history ctx. log(*args) do |changed_paths, rev, author, date, message| print("r", rev, "n") print(message, "nn") end Automating Subversion with Bindings Slide 109

SWIG Advice Use the latest version Automating Subversion with Bindings Slide 110

SWIG Advice Use the latest version Refer to C API documentation to determine arguments Automating Subversion with Bindings Slide 111

SWIG Advice Use the latest version Refer to C API documentation to determine arguments Use the force Automating Subversion with Bindings Slide 112

SWIG Advice Use the latest version Refer to C API documentation to determine arguments Use the force source Automating Subversion with Bindings Slide 113

SWIG Advice Use the latest version Refer to C API documentation to determine arguments Use the source and examples under tools/examples, {tools, contrib}/{client-side, hook-scripts, server-side}, and the test suites for the bindings. Automating Subversion with Bindings Slide 114

SWIG Advice Use the latest version Refer to C API documentation to determine arguments Use the source and examples under tools/examples, {tools, contrib}/{client-side, hook-scripts, server-side}, and the test suites for the bindings. Errors about missing functions are often a sign of mismatched libraries. Check that the language path is correct and that the Subversion libraries being loaded match. Adding a sleep to your code and then using lsof against that process can be helpful here. Automating Subversion with Bindings Slide 115

SWIG Advice If you can, build your own with debug symbols by passing this to configure: --enable-maintainer-mode Automating Subversion with Bindings Slide 116

SWIG Advice If you can, build your own with debug symbols by passing this to configure: --enable-maintainer-mode Use the start. sh script included with my examples to use uninstalled bindings from a Subversion build to ease debugging/testing: SVN_BUILDDIR=$HOME/subversion-1. 8. 3 start. sh gdb –args perl cat. pl Automating Subversion with Bindings Slide 117

SWIG Advice If you can, build your own with debug symbols by passing this to configure: --enable-maintainer-mode Use the start. sh script included with my examples to use uninstalled bindings from a Subversion build to ease debugging/testing: SVN_BUILDDIR=$HOME/subversion-1. 8. 3 start. sh gdb -args perl cat. pl The start. sh script can be helpful in understanding what parameters are needed to point your language at the right libraries. Automating Subversion with Bindings Slide 118

Java. HL HL stands for High Level Automating Subversion with Bindings Slide 119

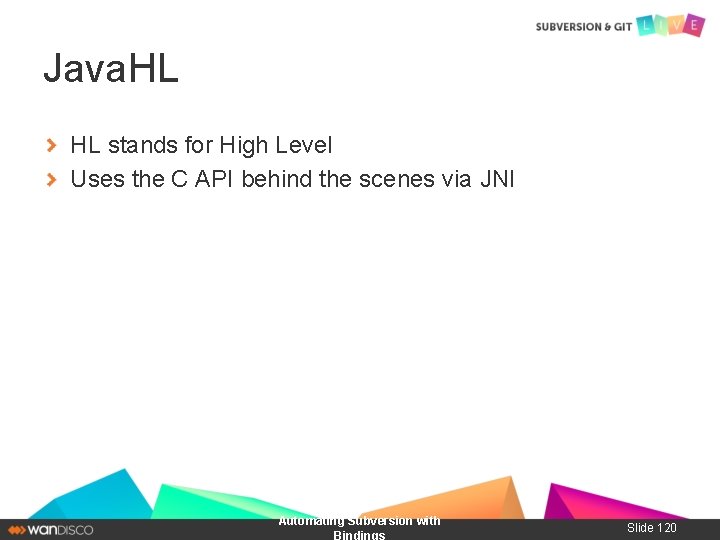

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Automating Subversion with Bindings Slide 120

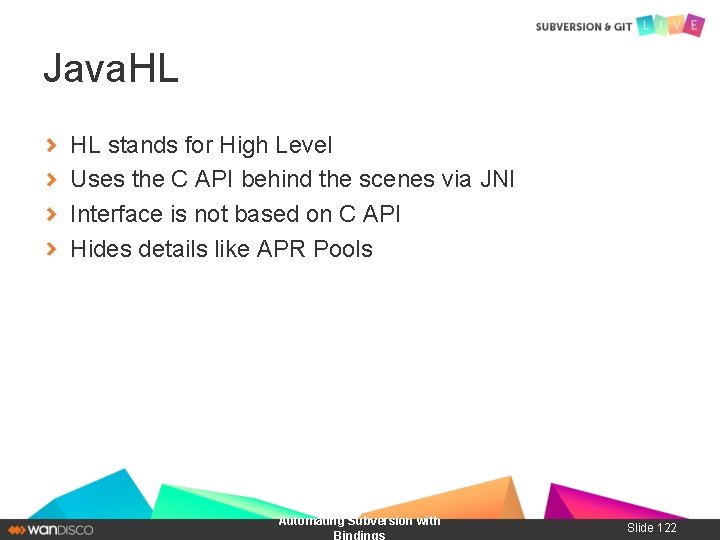

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Interface is not based on C API Automating Subversion with Bindings Slide 121

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Interface is not based on C API Hides details like APR Pools Automating Subversion with Bindings Slide 122

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Interface is not based on C API Hides details like APR Pools Interface is more Java like than SWIG bindings are to their languages Automating Subversion with Bindings Slide 123

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Interface is not based on C API Hides details like APR Pools Interface is more Java like than SWIG bindings are to their languages Don’t need to canonicalize Automating Subversion with Bindings Slide 124

Java. HL HL stands for High Level Uses the C API behind the scenes via JNI Interface is not based on C API Hides details like APR Pools Interface is more Java like than SWIG bindings are to their languages Don’t need to canonicalize Throws Subversion. Exception and Client. Exception Automating Subversion with Bindings Slide 125

Java. HL Example - Cat import org. apache. subversion. javahl. SVNClient; import org. apache. subversion. javahl. types. *; import org. apache. subversion. javahl. Client. Exception; public class cat { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); client. stream. File. Content(args[0], // target Revision. HEAD, // rev Revision. HEAD, // peg rev System. out); //output } } Automating Subversion with Bindings Slide 126

Java. HL Example - Cat import org. apache. subversion. javahl. SVNClient; import org. apache. subversion. javahl. types. *; import org. apache. subversion. javahl. Client. Exception; public class cat { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); client. stream. File. Content(args[0], // target Revision. HEAD, // rev Revision. HEAD, // peg rev System. out); //output } } Automating Subversion with Bindings Slide 127

Java. HL Example - Cat import org. apache. subversion. javahl. SVNClient; import org. apache. subversion. javahl. types. *; import org. apache. subversion. javahl. Client. Exception; public class cat { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); client. stream. File. Content(args[0], // target Revision. HEAD, // rev Revision. HEAD, // peg rev System. out); //output } } Automating Subversion with Bindings Slide 128

Java. HL Example - Cat import org. apache. subversion. javahl. SVNClient; import org. apache. subversion. javahl. types. *; import org. apache. subversion. javahl. Client. Exception; public class cat { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); client. stream. File. Content(args[0], // target Revision. HEAD, // rev Revision. HEAD, // peg rev System. out); //output } } Automating Subversion with Bindings Slide 129

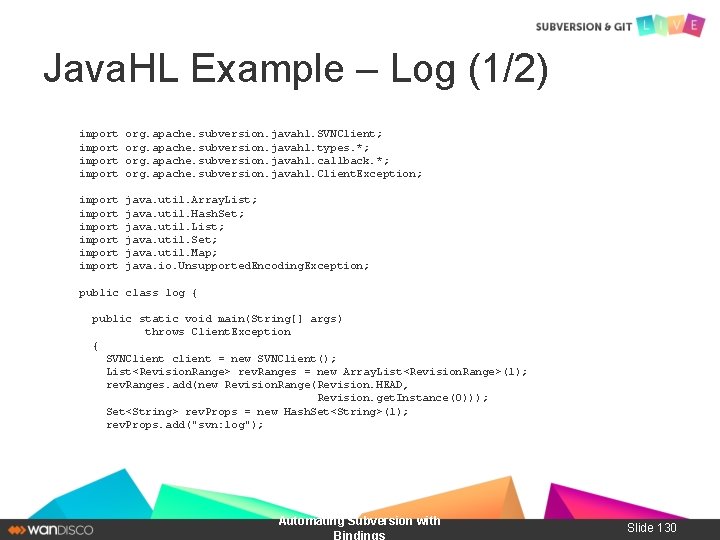

Java. HL Example – Log (1/2) import org. apache. subversion. javahl. SVNClient; org. apache. subversion. javahl. types. *; org. apache. subversion. javahl. callback. *; org. apache. subversion. javahl. Client. Exception; import import java. util. Array. List; java. util. Hash. Set; java. util. List; java. util. Set; java. util. Map; java. io. Unsupported. Encoding. Exception; public class log { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); List<Revision. Range> rev. Ranges = new Array. List<Revision. Range>(1); rev. Ranges. add(new Revision. Range(Revision. HEAD, Revision. get. Instance(0))); Set<String> rev. Props = new Hash. Set<String>(1); rev. Props. add("svn: log"); Automating Subversion with Bindings Slide 130

Java. HL Example – Log (1/2) import org. apache. subversion. javahl. SVNClient; org. apache. subversion. javahl. types. *; org. apache. subversion. javahl. callback. *; org. apache. subversion. javahl. Client. Exception; import import java. util. Array. List; java. util. Hash. Set; java. util. List; java. util. Set; java. util. Map; java. io. Unsupported. Encoding. Exception; public class log { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); List<Revision. Range> rev. Ranges = new Array. List<Revision. Range>(1); rev. Ranges. add(new Revision. Range(Revision. HEAD, Revision. get. Instance(0))); Set<String> rev. Props = new Hash. Set<String>(1); rev. Props. add("svn: log"); Automating Subversion with Bindings Slide 131

Java. HL Example – Log (1/2) import org. apache. subversion. javahl. SVNClient; org. apache. subversion. javahl. types. *; org. apache. subversion. javahl. callback. *; org. apache. subversion. javahl. Client. Exception; import import java. util. Array. List; java. util. Hash. Set; java. util. List; java. util. Set; java. util. Map; java. io. Unsupported. Encoding. Exception; public class log { public static void main(String[] args) throws Client. Exception { SVNClient client = new SVNClient(); List<Revision. Range> rev. Ranges = new Array. List<Revision. Range>(1); rev. Ranges. add(new Revision. Range(Revision. HEAD, Revision. get. Instance(0))); Set<String> rev. Props = new Hash. Set<String>(1); rev. Props. add("svn: log"); Automating Subversion with Bindings Slide 132

Java. HL Example – Log (2/2) client. log. Messages(args[0], // target Revision. HEAD, //peg rev. Ranges, // rev ranges true, // stop on copy true, // discover path false, // include merged revisions rev. Props, // revprops to get 0, // limit (0 = unlimited) new Log. Message. Callback () { public void single. Message(Set<Change. Path> changed. Paths, long revision, Map<String, byte[]> revprops, boolean has. Children) { byte[] message = revprops. get("svn: log"); System. out. println("r" + revision); if (message != null) { try { System. out. println(new String(message, "UTF-8")); } catch (Unsupported. Encoding. Exception e) { /* ignore */ } } System. out. println("n"); } } Automating Subversion with Bindings Slide 133

Java. HL Example – Log (2/2) client. log. Messages(args[0], // target Revision. HEAD, //peg rev. Ranges, // rev ranges true, // stop on copy true, // discover path false, // include merged revisions rev. Props, // revprops to get 0, // limit (0 = unlimited) new Log. Message. Callback () { public void single. Message(Set<Change. Path> changed. Paths, long revision, Map<String, byte[]> revprops, boolean has. Children) { byte[] message = revprops. get("svn: log"); System. out. println("r" + revision); if (message != null) { try { System. out. println(new String(message, "UTF-8")); } catch (Unsupported. Encoding. Exception e) { /* ignore */ } } System. out. println("n"); } } Automating Subversion with Bindings Slide 134

Java. HL Example – Log (2/2) client. log. Messages(args[0], // target Revision. HEAD, //peg rev. Ranges, // rev ranges true, // stop on copy true, // discover path false, // include merged revisions rev. Props, // revprops to get 0, // limit (0 = unlimited) new Log. Message. Callback () { public void single. Message(Set<Change. Path> changed. Paths, long revision, Map<String, byte[]> revprops, boolean has. Children) { byte[] message = revprops. get("svn: log"); System. out. println("r" + revision); if (message != null) { try { System. out. println(new String(message, "UTF-8")); } catch (Unsupported. Encoding. Exception e) { /* ignore */ } } System. out. println("n"); } } Automating Subversion with Bindings Slide 135

Resources

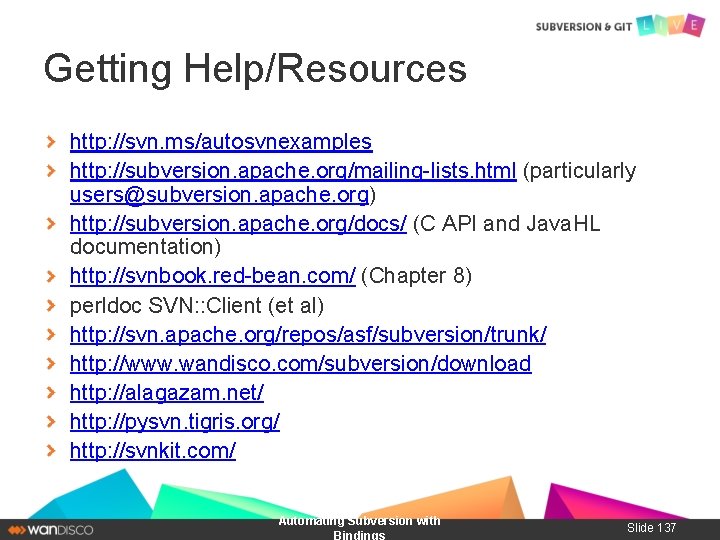

Getting Help/Resources http: //svn. ms/autosvnexamples http: //subversion. apache. org/mailing-lists. html (particularly users@subversion. apache. org) http: //subversion. apache. org/docs/ (C API and Java. HL documentation) http: //svnbook. red-bean. com/ (Chapter 8) perldoc SVN: : Client (et al) http: //svn. apache. org/repos/asf/subversion/trunk/ http: //www. wandisco. com/subversion/download http: //alagazam. net/ http: //pysvn. tigris. org/ http: //svnkit. com/ Automating Subversion with Bindings Slide 137

Contributing Found a Bug? Have a fix for a bug? Want to write documentation? Participate at dev@subversion. apache. org mailing list. Automating Subversion with Bindings Slide 138

Questions?
