Identifying The Problem Do you see it? Packet Loss, Computer Resources, Format Conflict Can you hear it? Packet Loss, Jitter, Distortion Do you feel it? Jitter, Latency, Audio/Video Issues

Common Video Issues Format Mismatch – ensure the format generated by the camera is the format the encoding device is expecting. (i. e. HD-SDI -> HD-SDI Out-Of-Sync – clock of encoding device is at odds with the camera signal.

Common Audio Issues Improper Gain Stage – distortion or high level of noise due to structure of amplification in signal. Buffer Saturation – hardware or software buffer is too small to handle data flow. Sampling Rate – mismatch in sampling rate from the source can result in audio anomalies.

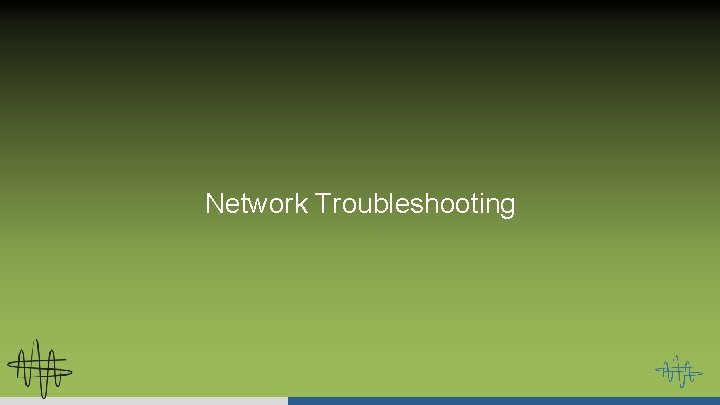

Network Troubleshooting

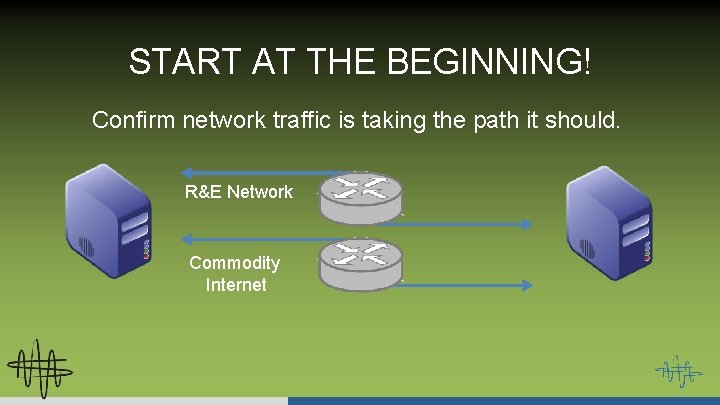

START AT THE BEGINNING! Confirm network traffic is taking the path it should. R&E Network Commodity Internet

START AT THE BEGINNING! Symmetry is not only beautiful, it makes for clean transmissions R&E Network Commodity Internet R&E Network

LOCAL HOST • Is the device operating with CPU/RAM headroom? • Is the network connection and configuration correct? • Are video and audio signals ingested without issue? • If a loopback test can be performed (127. 0. 0. 1), is the signal received without error?

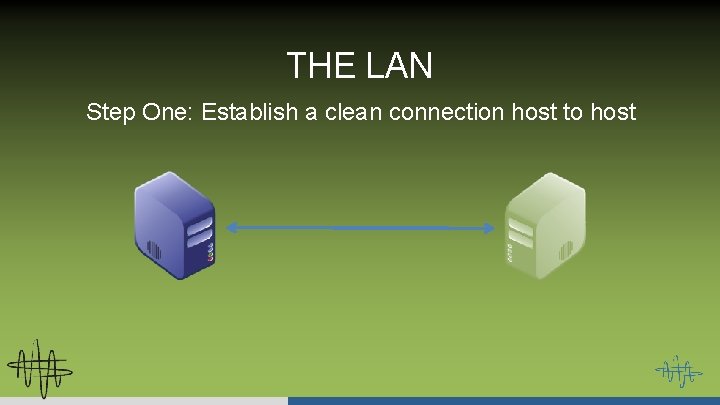

THE LAN Step One: Establish a clean connection host to host

THE LAN Step Two: Incrementally move through the network topology switch by switch Switch One Host A (Host B)

THE LAN Step Two: Incrementally move through the network topology switch by switch Switch One Switch Two Host A Host B

THE LAN Step Two: Incrementally move through the network topology switch by switch Switch One Switch Two Host A Switch Three (Host B)

THE LAN Step Two: Incrementally move through the network topology switch by switch Switch One Host A (Host B) Switch Two Router Switch Three

THE LAN Step Two: Incrementally move through the network topology switch by switch Switch One Host A Switch Two (Host B) Router Switch Three (Host B)

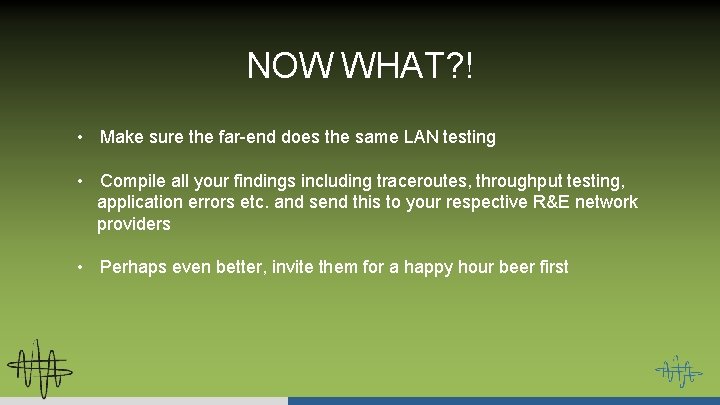

NOW WHAT? ! • Make sure the far-end does the same LAN testing • Compile all your findings including traceroutes, throughput testing, application errors etc. and send this to your respective R&E network providers • Perhaps even better, invite them for a happy hour beer first

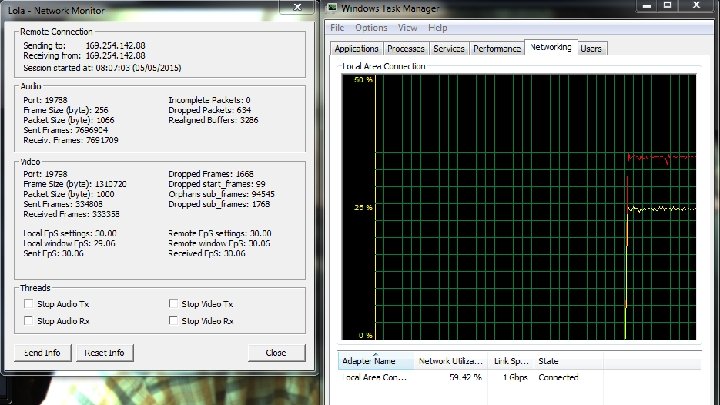

www. nws. edu

PERFSONAR perf. SONAR is a network measurement toolkit designed to provide federated coverage of paths, and help to establish end-to-end usage expectations. • Runs on a light version of Linux • Is configured to run regular tests against other perf. SONAR nodes to verify network connectivity • Uses accuracy instead of load testing to verify network links

NUTTCP Nuttcp is a cross-platform (Unix, Solaris, BSD, Windows) network diagnostic tool used to measure raw TCP and UDP throughput at the network layer.

IPERF i. Perf is tool for active measurements of the maximum achievable bandwidth on IP networks. It supports tuning of various parameters related to timing, buffers and protocols (TCP, UDP, SCTP with IPv 4 and IPv 6). For each test it reports the bandwidth, loss, and other parameters.
