With Chunghwa Telecom Co Ltd 8 12 Chunghwa

With Chunghwa Telecom Co. , Ltd. 8

國內外太陽光電案例 12 Chunghwa Telecom Co. , Ltd. With

With Chunghwa Telecom Co. , Ltd. 14

荷蘭� 15 Chunghwa Telecom Co. , Ltd. With

With Chunghwa Telecom Co. , Ltd. 16

西 班 牙 17 Chunghwa Telecom Co. , Ltd. With

With Chunghwa Telecom Co. , Ltd. 18

With Chunghwa Telecom Co. , Ltd. 19

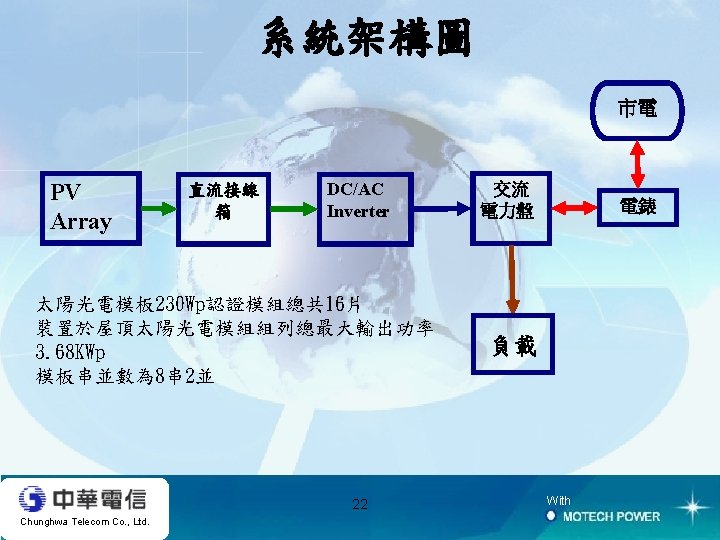

系統方塊圖 3. 68 k. Wp方塊圖 21 Chunghwa Telecom Co. , Ltd. With

太陽光電模板 v 本案選用TUV認證品，通過 IEC 61215、IEC 61730認證 v Lucky Power公司封裝之光 電板，每片230 Wp*16= 3. 68 k. Wp 23 Chunghwa Telecom Co. , Ltd. With

太陽光電模板 24 Chunghwa Telecom Co. , Ltd. With

IEC 61215 效能測試 陸地用晶體矽太陽能組性能測試 標準 (Crystalline Silicon Terrestrial Photovoltaic Modules - Design Qualification and Type Approval) 太陽能組件安全及性能測試標準 (Photovoltaic Module Safety Qualification) 25 Chunghwa Telecom Co. , Ltd. IEC 61730 With 安全測試

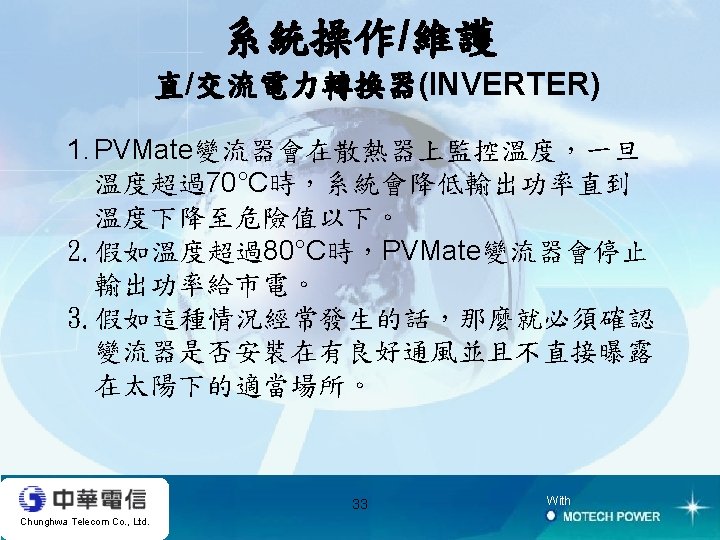

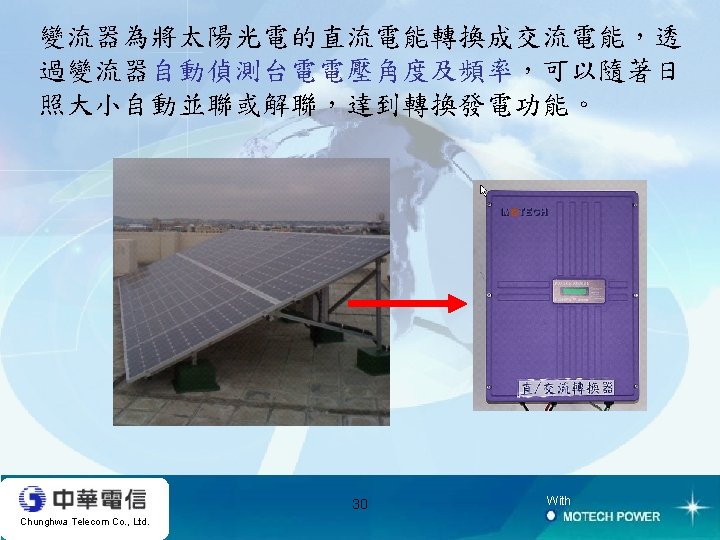

電力轉換器(Inverter) PVMate 3800 MS 26 Chunghwa Telecom Co. , Ltd. With

VDE V 0126 -1 -1 測試報告 VDE V 0126 -1 -1 Automatic disconnection device between a generator and the public low-voltage grid 27 Chunghwa Telecom Co. , Ltd. With 孤島效應

Motech PVMate 3800 MS 2組 獨立 最大功率追蹤輸入 MPPT(Maximum power point tracker) electric utility PVMate 3800 MS DC string A fuse box DC string B energy use AC grid connected solar inverter 28 Chunghwa Telecom Co. , Ltd. PV (Photovoltaic) array With

29 Chunghwa Telecom Co. , Ltd. With

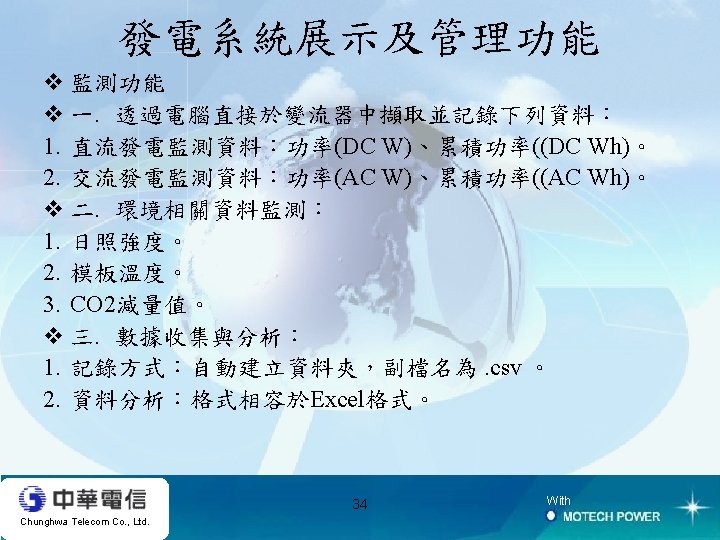

監測系統 變流器 Inverter 訊號轉換器 RS 485 RS 232 35 Chunghwa Telecom Co. , Ltd. 監測電腦 With

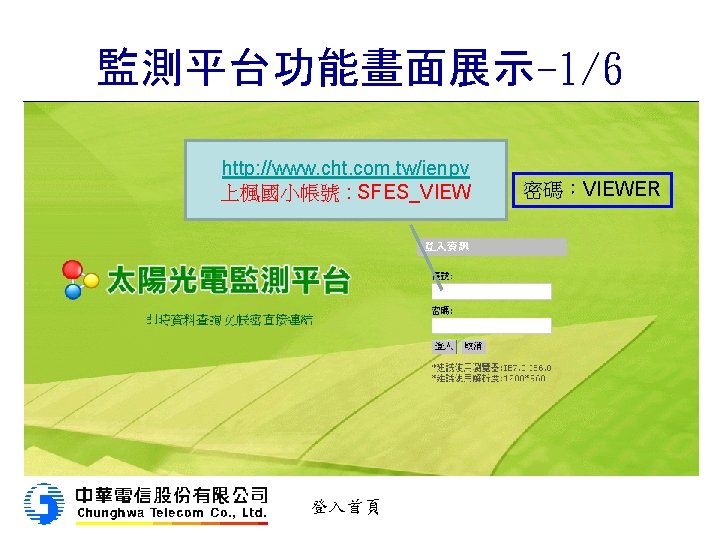

系統管理-主畫面(中 英 文) 36 Chunghwa Telecom Co. , Ltd. With

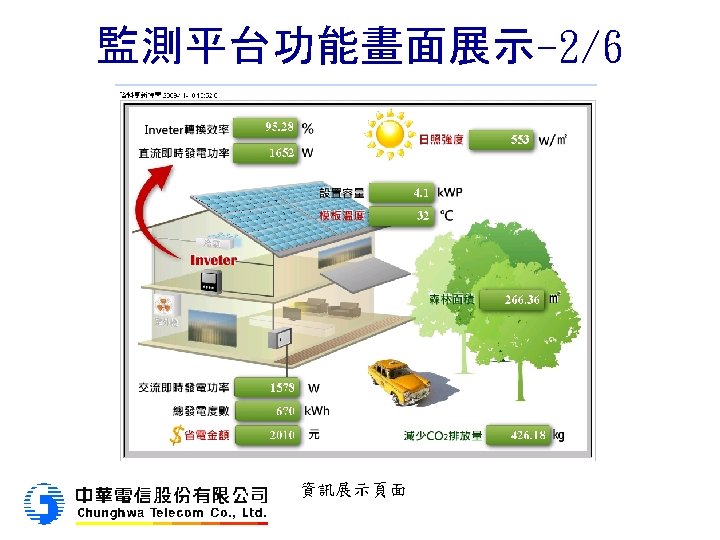

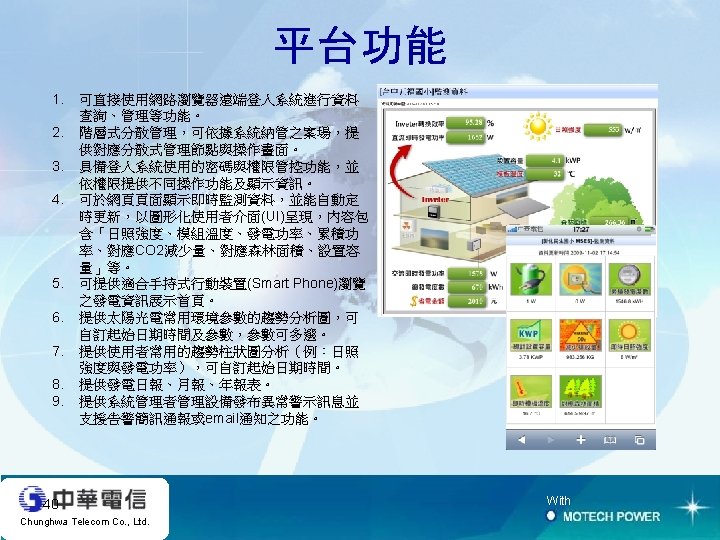

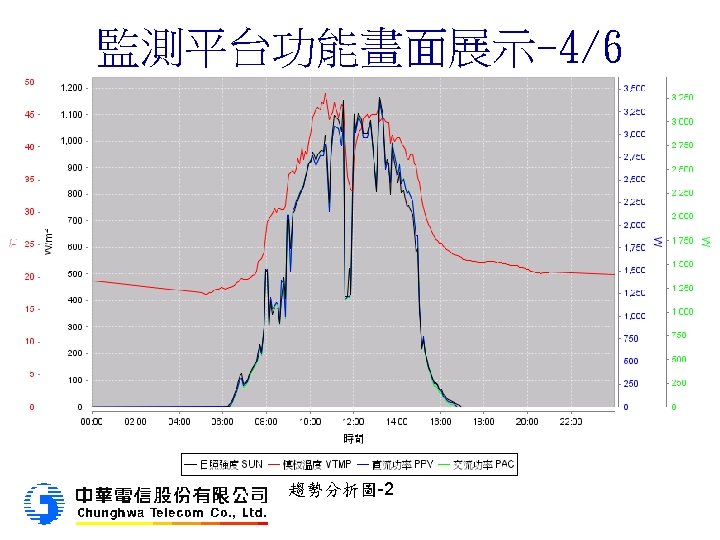

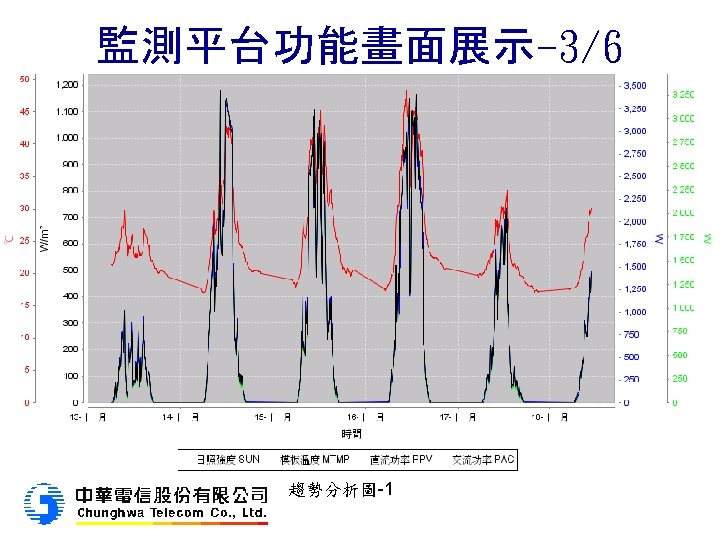

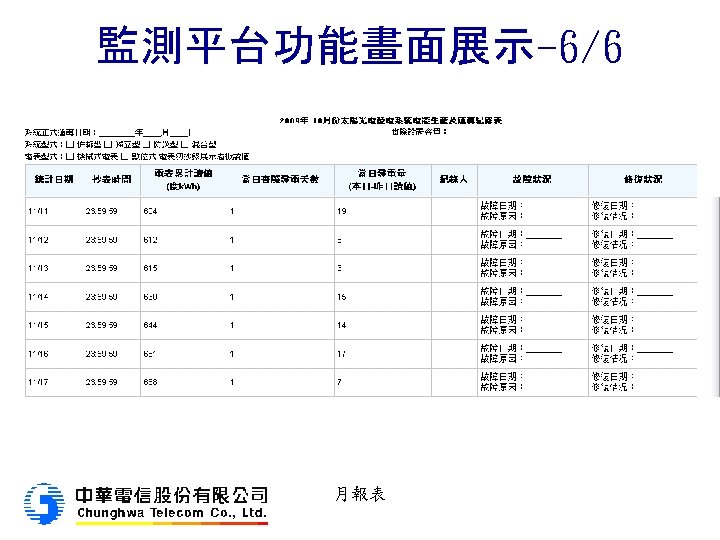

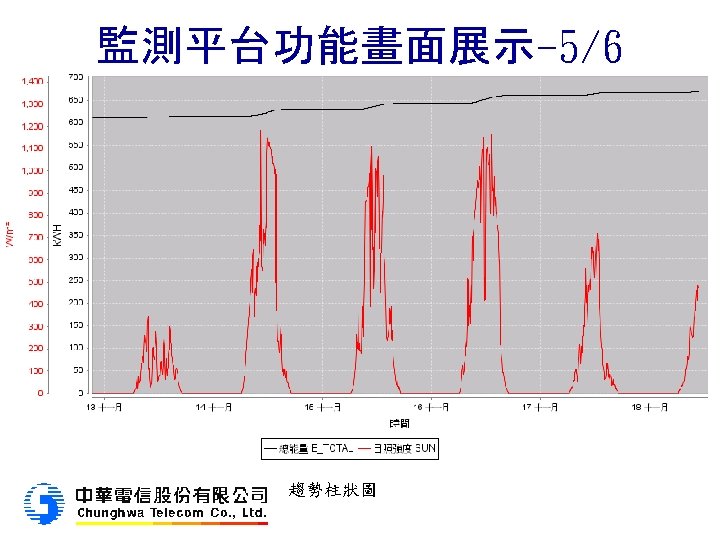

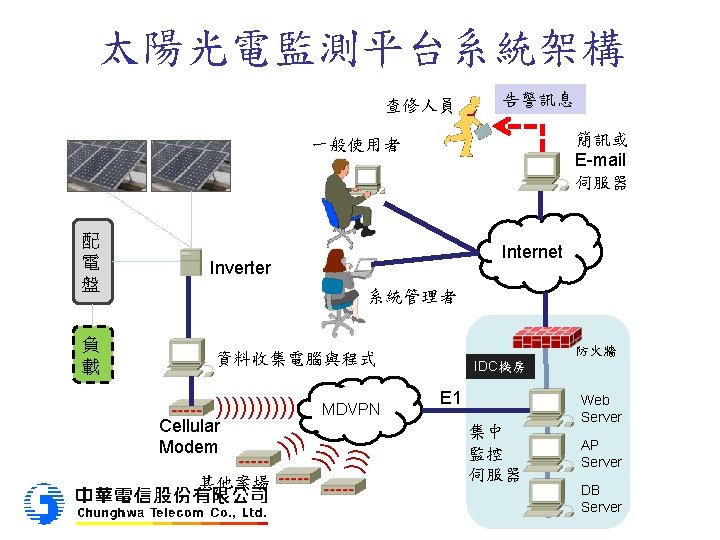

太陽光電監測平台 38 Chunghwa Telecom Co. , Ltd. With

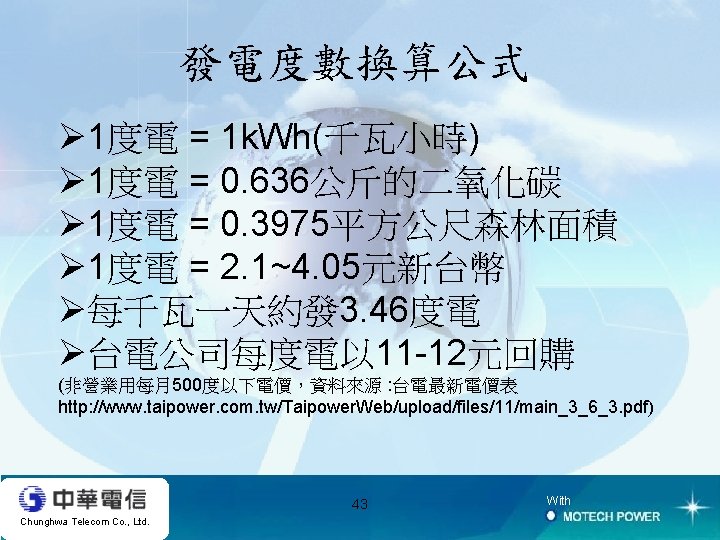

48 Chunghwa Telecom Co. , Ltd. With
