![MESIN MOORE FSA Finite State Automata yang telah dipelajari adalah FSA yang hanya MESIN MOORE • FSA (Finite State Automata) yang telah dipelajari adalah FSA yang hanya](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-3.jpg)
MESIN MOORE • FSA (Finite State Automata) yang telah dipelajari adalah FSA yang hanya dapat menerima atau menolak string yang di inputkan • String “aaabb” diterima atau tidak • FSA seperti itu disebut ACCEPTER
![MESIN MOORE A a B a b a D C String aa dan MESIN MOORE A a B a b a D C • String aa dan](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-4.jpg)
MESIN MOORE A a B a b a D C • String aa dan ba diterima oleh FSA tersebut, sedangkan string yang lain ditolak
![MESIN MOORE FSA Finite State Automata yang mempunyai keputusan sebagai output Automata ini MESIN MOORE • FSA (Finite State Automata) yang mempunyai keputusan sebagai output, Automata ini](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-5.jpg)
MESIN MOORE • FSA (Finite State Automata) yang mempunyai keputusan sebagai output, Automata ini disebut TRANSDUCER • Salah satu contoh FSA yang termasuk Transducer atau FSA yang mempunyai output adalah Mesin MOORE
![MESIN MOORE Pada Mesin Moore outputnya berasosiasi dengan state atau tertulis pada setiap MESIN MOORE • Pada Mesin Moore outputnya berasosiasi dengan state, atau tertulis pada setiap](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-6.jpg)
MESIN MOORE • Pada Mesin Moore outputnya berasosiasi dengan state, atau tertulis pada setiap state • Sehingga Jumlah State sama dengan jumlah Output
![MESIN MOORE MQ S Q S Himpunan State MESIN MOORE M={Q, , , S, , } Q S : Himpunan State :](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-7.jpg)
MESIN MOORE M={Q, , , S, , } Q S : Himpunan State : Himpunan Input : Fungsi Transisi : Simbol State Awal : Himpunan Output : Fungsi Output untuk setiap state
![MESIN MOORE Salah satu contoh penerapan mesin Moore adalah mesin untuk memperoleh sisa MESIN MOORE • Salah satu contoh penerapan mesin Moore adalah mesin untuk memperoleh sisa](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-8.jpg)
MESIN MOORE • Salah satu contoh penerapan mesin Moore adalah mesin untuk memperoleh sisa pembagian atau n MOD m • Contoh : Mesin Moore untuk menentukan n mod 2 dengan inputan berupa biner
![MESIN MOORE n mod 2 hasilnya hanya dua yaitu 0 dan 1 sehingga MESIN MOORE • n mod 2 hasilnya hanya dua yaitu 0 dan 1 sehingga](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-9.jpg)
MESIN MOORE • n mod 2 hasilnya hanya dua yaitu 0 dan 1 sehingga : M={Q, , , S, , } Q = {A, B} karena jumlah output 2 = {0, 1}, akan didapat S = A, = {0, 1}, (A) = 0, (B) = 1
![MESIN MOORE Input 0 State Output 0 Fungsi T A 0A 1 0 A MESIN MOORE Input 0 State Output 0 Fungsi T (A, 0)=A 1 0 (A,](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-10.jpg)

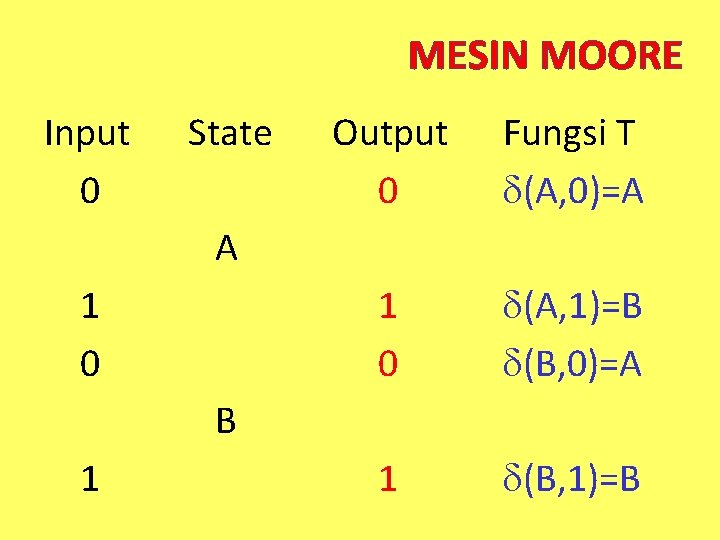

MESIN MOORE Input 0 State Output 0 Fungsi T (A, 0)=A 1 0 (A, 1)=B (B, 0)=A 1 (B, 1)=B A 1 0 B 1
![MESIN MOORE Sehingga didapat Q A B 0 1 A 0A MESIN MOORE Sehingga didapat : Q = {A, B}, = {0, 1}, (A, 0)=A,](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-11.jpg)
MESIN MOORE Sehingga didapat : Q = {A, B}, = {0, 1}, (A, 0)=A, (A, 1)=B, (B, 0)=A, (B, 1)=B, S = A, = {0, 1}, (A) = 0, (B) = 1 0 1 A/0 1 B/1 0
![MESIN MOORE Test 7 Mod 2 1 10 Mod 2 0 MESIN MOORE Test : 7 Mod 2 = 1 10 Mod 2 = 0](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-12.jpg)
MESIN MOORE Test : 7 Mod 2 = 1 10 Mod 2 = 0 7 binernya 0111 10 binernya 0 1 A/0 1 B/1 0
![MESIN MOORE Contoh 2 Buatlah mesin Moore untuk menentukan n mod 3 MESIN MOORE • Contoh 2 : Buatlah mesin Moore untuk menentukan n mod 3](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-13.jpg)
MESIN MOORE • Contoh 2 : Buatlah mesin Moore untuk menentukan n mod 3
![MESIN MOORE Contoh 3 Buatlah mesin Moore untuk menentukan n mod 4 MESIN MOORE • Contoh 3 : Buatlah mesin Moore untuk menentukan n mod 4](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-14.jpg)
MESIN MOORE • Contoh 3 : Buatlah mesin Moore untuk menentukan n mod 4
![MESIN MOORE Contoh 4 Buatlah mesin Moore untuk menentukan n mod 5 MESIN MOORE • Contoh 4 : Buatlah mesin Moore untuk menentukan n mod 5](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-15.jpg)

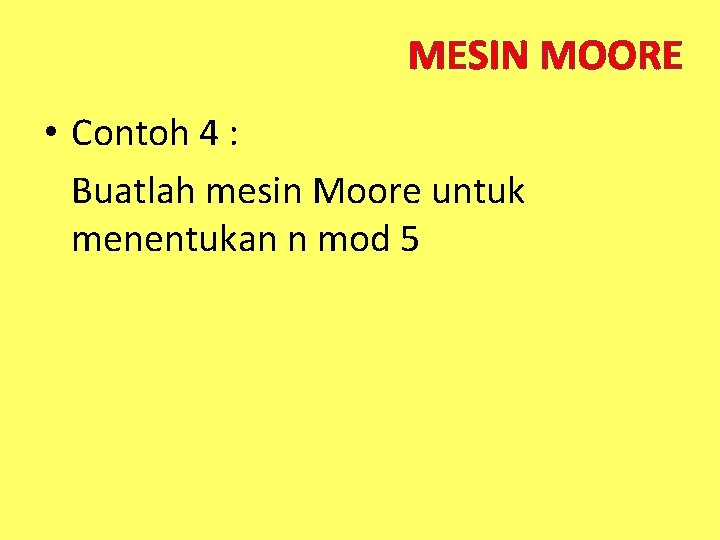

MESIN MOORE • Contoh 4 : Buatlah mesin Moore untuk menentukan n mod 5
![MESIN MEALY Mesin Mealy 6 tupel yaitu MQ S MESIN MEALY • Mesin Mealy 6 tupel, yaitu : • M={Q, , , S,](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-16.jpg)
MESIN MEALY • Mesin Mealy 6 tupel, yaitu : • M={Q, , , S, , } Q : Himpunan State : Himpunan Simbol Input : Fungsi Transisi S : Simbol State Awal : Himpunan Output : Fungsi Output untuk setiap state
![MESIN MEALY Pada Mesin Moore Output berasosiasi dengan State tetapi pada Mesin Mealy MESIN MEALY • Pada Mesin Moore Output berasosiasi dengan State, tetapi pada Mesin Mealy](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-17.jpg)
MESIN MEALY • Pada Mesin Moore Output berasosiasi dengan State, tetapi pada Mesin Mealy output berasosiasi dengan Input, sehingga dalam fungsi output : (State, Input)=Output • Tidak ada aturan yang jelas dalam membentuk graph transisinya
![MESIN MEALY Contoh Suatu mesin akan mengeluarkan OUTPUT Y jika suatu MESIN MEALY • Contoh : • Suatu mesin akan mengeluarkan OUTPUT “Y” jika suatu](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-18.jpg)
MESIN MEALY • Contoh : • Suatu mesin akan mengeluarkan OUTPUT “Y” jika suatu string memiliki akhiran 2 simbol yang sama yaitu 00 atau 11, dan sebaliknya “T”, mesin tersebut memiliki tiga state dengan inputan biner
![MESIN MEALY Diketahui QA B C 0 1 Y T SA syaratnya MESIN MEALY • Diketahui : Q={A, B, C} ={0, 1 ={Y, T} S=A syaratnya](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-19.jpg)
MESIN MEALY • Diketahui : Q={A, B, C} ={0, 1 ={Y, T} S=A syaratnya 00 atau 11 outputnya Y selain itu outputnya T
![MESIN MEALY Dari syaratnya 00 atau 11 outputnya Y dan selain itu outputnya MESIN MEALY • Dari syaratnya 00 atau 11 outputnya Y dan selain itu outputnya](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-20.jpg)
MESIN MEALY • Dari syaratnya 00 atau 11 outputnya Y dan selain itu outputnya T, diperoleh fungsi outputnya, yaitu : (A, 0)=T, (A, 1)=T, input 0 atau 1 (B, 0)=Y, (B, 1)=T, input 00, 11 (C, 0)=T, (C, 1)=Y, input 000, 111 diperoleh graph transisinya :
![MESIN MEALY Test W00100100 outputnya Y W01010 outputnya T W10001 outputnya T MESIN MEALY • Test : W=00100100 outputnya Y W=01010 outputnya T W=10001 outputnya T](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-21.jpg)
MESIN MEALY • Test : W=00100100 outputnya Y W=01010 outputnya T W=10001 outputnya T 0/Y B 1/T 0/T A 1/T C 1/Y
![EQI MESIN MOORE KE MEALY Eqivalensi mesin Moore ke mesin Mealy adalah merubah EQI MESIN MOORE KE MEALY • Eqivalensi mesin Moore ke mesin Mealy adalah merubah](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-22.jpg)
EQI MESIN MOORE KE MEALY • Eqivalensi mesin Moore ke mesin Mealy adalah merubah mesin Moore menjadi mesin Mealy dengan kemampuan yang sama • Caranya : 1. menghapus label Output pada setiap state 2. menambahkan label Output pada setiap Input
![EQI MESIN MOORE KE MEALY Moore Mealy 1 11 B1 B1 B 1B B EQI MESIN MOORE KE MEALY Moore Mealy 1 1/1 B/1 (B)=1 (B, 1)=B B](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-23.jpg)
EQI MESIN MOORE KE MEALY Moore Mealy 1 1/1 B/1 (B)=1 (B, 1)=B B FO FT (B, 1)=1 (B, 1)=B
![EQI MESIN MOORE KE MEALY Moore A0 1 B1 A0 B1 A 1B Mealy EQI MESIN MOORE KE MEALY Moore A/0 1 B/1 (A)=0, (B)=1 (A, 1)=B Mealy](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-24.jpg)
EQI MESIN MOORE KE MEALY Moore A/0 1 B/1 (A)=0, (B)=1 (A, 1)=B Mealy A 1/1 (A, 1)=1 (A, 1)=B B
![EQI MESIN MOORE KE MEALY Contoh Diketahui Mesin Moore n Mod 2 0 EQI MESIN MOORE KE MEALY Contoh : Diketahui Mesin Moore n Mod 2, 0](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-25.jpg)
EQI MESIN MOORE KE MEALY Contoh : Diketahui Mesin Moore n Mod 2, 0 1 A/0 1 B/1 0 Buat mesin Mealy yang eqivalen
![EQI MESIN MOORE KE MEALY Dari graph transisi ini 0 1 A0 1 B1 EQI MESIN MOORE KE MEALY Dari graph transisi ini 0 1 A/0 1 B/1](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-26.jpg)
EQI MESIN MOORE KE MEALY Dari graph transisi ini 0 1 A/0 1 B/1 0 Diketahui : (A, 0)=0, (A, 1)=1, (B, 0)=0, (B, 1)=1
![EQI MESIN MOORE KE MEALY Mesin Mealy yang Eqivalen 00 11 A 11 B EQI MESIN MOORE KE MEALY Mesin Mealy yang Eqivalen 0/0 1/1 A 1/1 B](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-27.jpg)
EQI MESIN MOORE KE MEALY Mesin Mealy yang Eqivalen 0/0 1/1 A 1/1 B 0/0
![EQI MESIN MEALY KE MOORE Eqivalensi mesin Mealy ke Moore adalah merubah mesin EQI MESIN MEALY KE MOORE • Eqivalensi mesin Mealy ke Moore adalah merubah mesin](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-28.jpg)

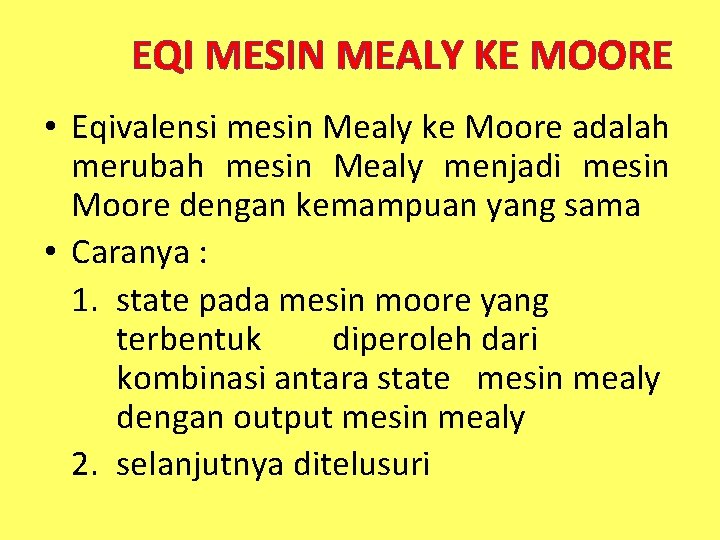

EQI MESIN MEALY KE MOORE • Eqivalensi mesin Mealy ke Moore adalah merubah mesin Mealy menjadi mesin Moore dengan kemampuan yang sama • Caranya : 1. state pada mesin moore yang terbentuk diperoleh dari kombinasi antara state mesin mealy dengan output mesin mealy 2. selanjutnya ditelusuri
![EQI MESIN MEALY KE MOORE Misalkan ada mesin Mealy QA B C dan EQI MESIN MEALY KE MOORE • Misalkan ada mesin Mealy Q={A, B, C} dan](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-29.jpg)
EQI MESIN MEALY KE MOORE • Misalkan ada mesin Mealy Q={A, B, C} dan ={0, 1} jadi jumlah state pada mesin moore yang akan terbentuk ada 3 x 2 = 6 buah state, yaitu : Q={A 0, A 1, B 0, B 1, C 0, C 1} sehingga : (A 0)=0, (A 1)=1, (B 0)=0, (B 1)=1, (C 0)=0, (C 1)=1,
![EQI MESIN MEALY KE MOORE Contoh Misalkan ada mesin Mealy 00 11 EQI MESIN MEALY KE MOORE • Contoh : Misalkan ada mesin Mealy 0/0 1/1](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-30.jpg)

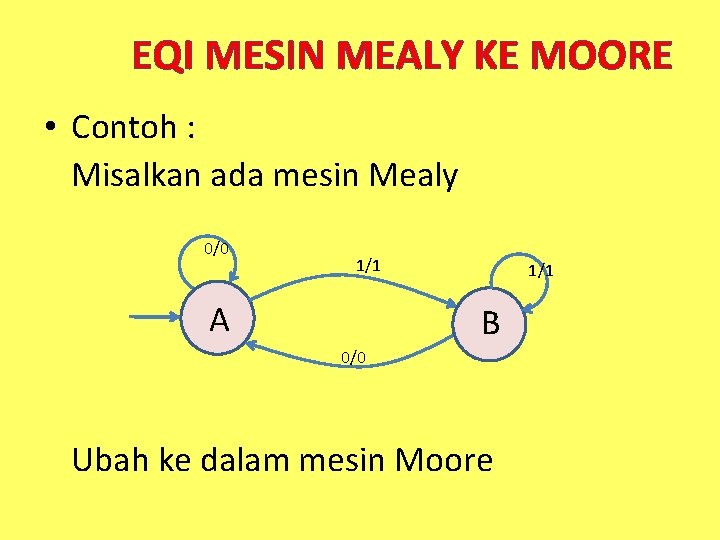

EQI MESIN MEALY KE MOORE • Contoh : Misalkan ada mesin Mealy 0/0 1/1 A 1/1 B 0/0 Ubah ke dalam mesin Moore
![EQI MESIN MEALY KE MOORE Diketahui QA B dan 0 1 maka state EQI MESIN MEALY KE MOORE • Diketahui Q={A, B} dan ={0, 1} maka state](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-31.jpg)
EQI MESIN MEALY KE MOORE • Diketahui Q={A, B} dan ={0, 1} maka state pada mesin moore : Q={A 0, A 1, B 0, B 1} catatan : A 0 dan A 1 berasal dari state A sehingga : (A 0)=0, (A 1)=1, (B 0)=0, (B 1)=1,
![EQI MESIN MEALY KE MOORE Didapat A 0 0 A 1 0A 0 EQI MESIN MEALY KE MOORE • Didapat (A 0, 0)= (A 1, 0)=A 0,](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-32.jpg)
EQI MESIN MEALY KE MOORE • Didapat (A 0, 0)= (A 1, 0)=A 0, (A 0, 1)= (A 1, 1)=B 1 (B 0, 0)= (B 1, 0)=A 0, (B 0, 1)= (B 1, 1)=B 1 0 0 A 0/0 0 A 1/1 1 0 1 B 0/0 1 1 B 1/1
![EQI MESIN MEALY KE MOORE Karena state A 1 dan B 0 tidak EQI MESIN MEALY KE MOORE • Karena state A 1 dan B 0 tidak](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-33.jpg)

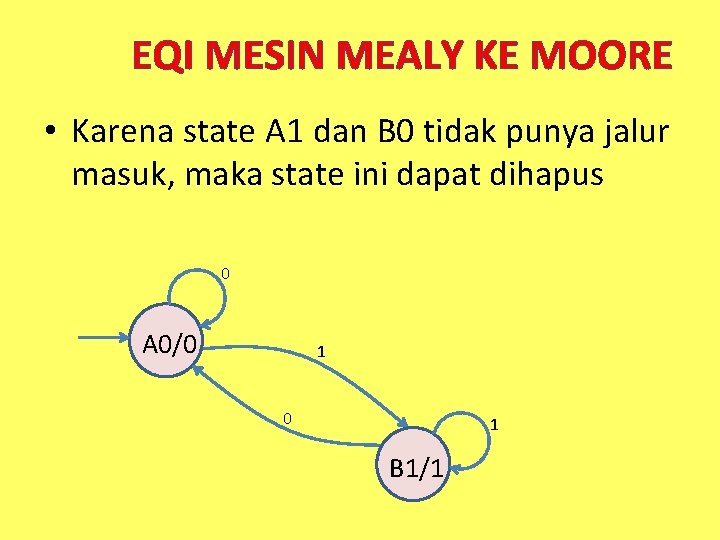

EQI MESIN MEALY KE MOORE • Karena state A 1 dan B 0 tidak punya jalur masuk, maka state ini dapat dihapus 0 A 0/0 1 B 1/1
![EQI MESIN MEALY KE MOORE Contoh 2 Diketahui Mesin Mealy tentukan mesin EQI MESIN MEALY KE MOORE • Contoh 2 : Diketahui Mesin Mealy tentukan mesin](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-34.jpg)
EQI MESIN MEALY KE MOORE • Contoh 2 : Diketahui Mesin Mealy tentukan mesin Moore yang Eqivalen 0/Y B 0/T 1/T 0/T A 1/T C 1/Y
![EQI MESIN MEALY KE MOORE Contoh 3 Diketahui Mesin Mealy tentukan mesin EQI MESIN MEALY KE MOORE • Contoh 3 : Diketahui Mesin Mealy tentukan mesin](https://slidetodoc.com/presentation_image/2c64e70b6ff85dbb97693b775a5da993/image-35.jpg)
EQI MESIN MEALY KE MOORE • Contoh 3 : Diketahui Mesin Mealy tentukan mesin Moore yang Eqivalen 0/0 1/1 A 1/0 1/2 0/2 B 0/1 C
