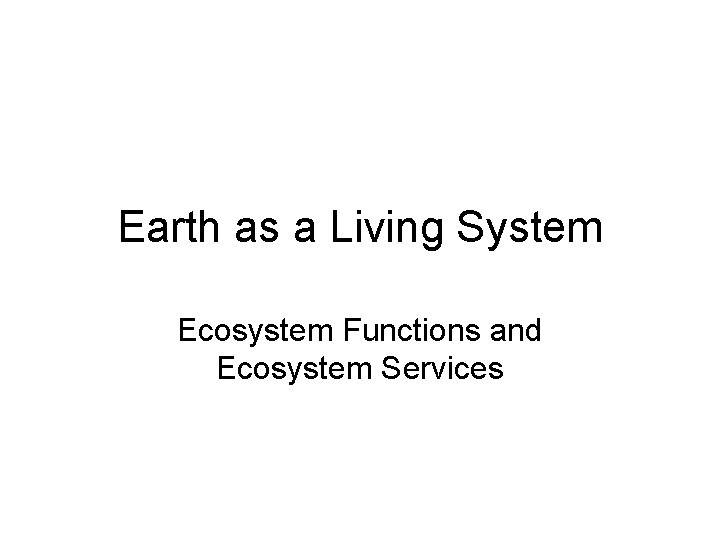

Earth as a Living System Ecosystem Functions and Ecosystem Services

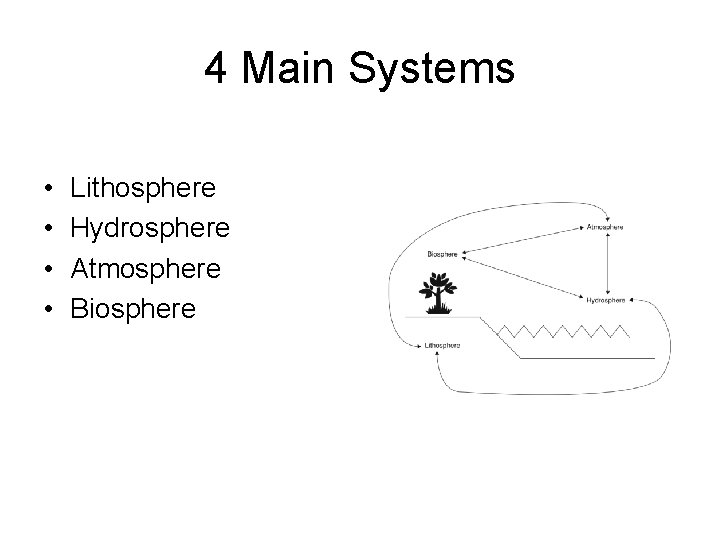

4 Main Systems • • Lithosphere Hydrosphere Atmosphere Biosphere

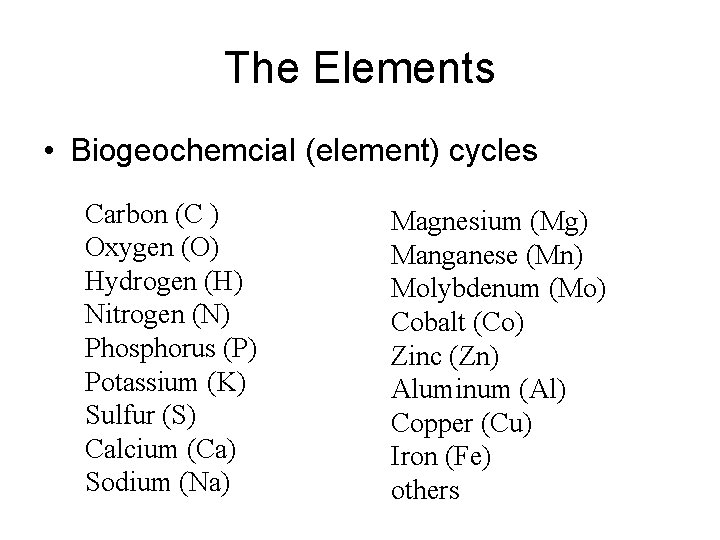

The Elements Carbon (C) • Biogeochemcial (element) cycles Carbon (C ) Oxygen (O) Hydrogen (H) Nitrogen (N) Phosphorus (P) Potassium (K) Sulfur (S) Calcium (Ca) Sodium (Na) Magnesium (Mg) Manganese (Mn) Molybdenum (Mo) Cobalt (Co) Zinc (Zn) Aluminum (Al) Copper (Cu) Iron (Fe) others

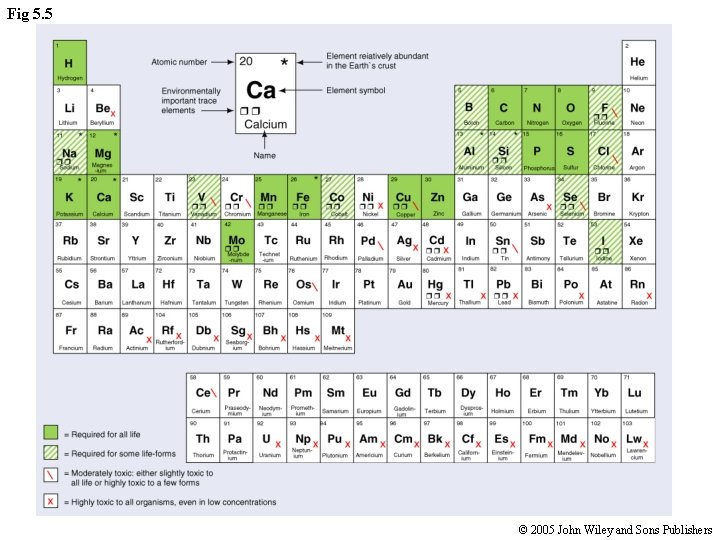

Fig 5. 5 © 2005 John Wiley and Sons Publishers

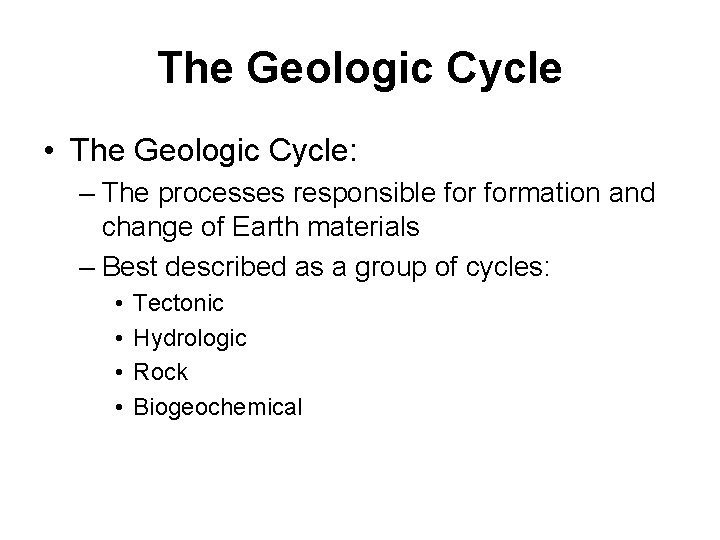

The Geologic Cycle • The Geologic Cycle: – The processes responsible formation and change of Earth materials – Best described as a group of cycles: • • Tectonic Hydrologic Rock Biogeochemical

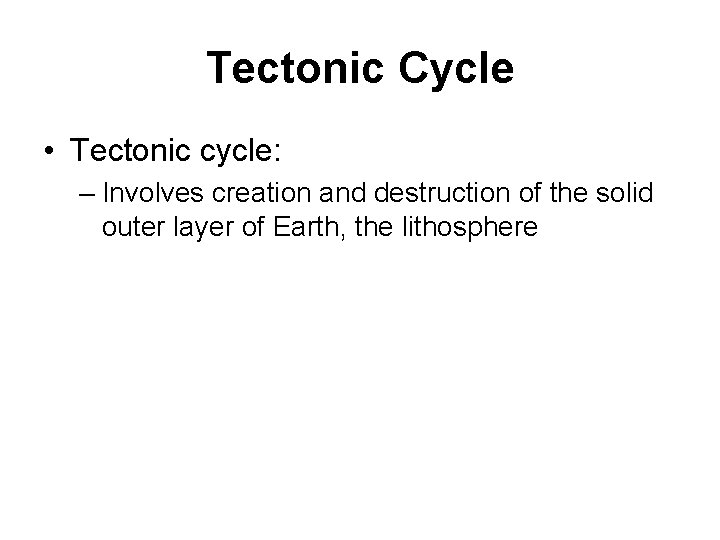

Tectonic Cycle • Tectonic cycle: – Involves creation and destruction of the solid outer layer of Earth, the lithosphere

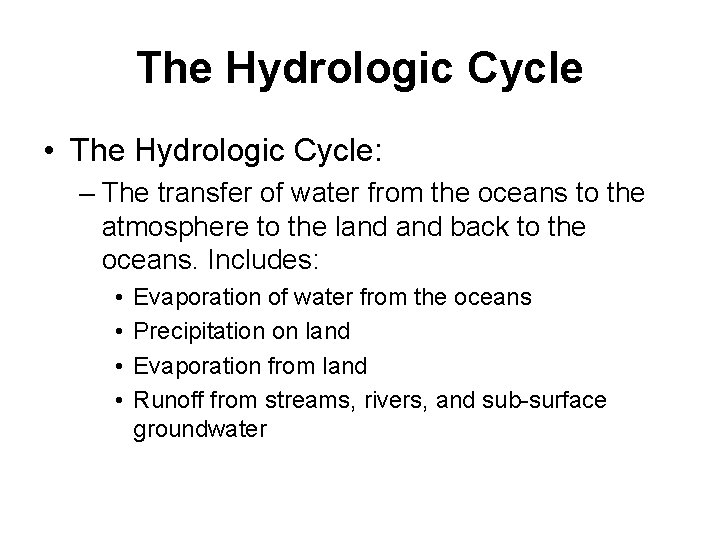

The Hydrologic Cycle • The Hydrologic Cycle: – The transfer of water from the oceans to the atmosphere to the land back to the oceans. Includes: • • Evaporation of water from the oceans Precipitation on land Evaporation from land Runoff from streams, rivers, and sub-surface groundwater

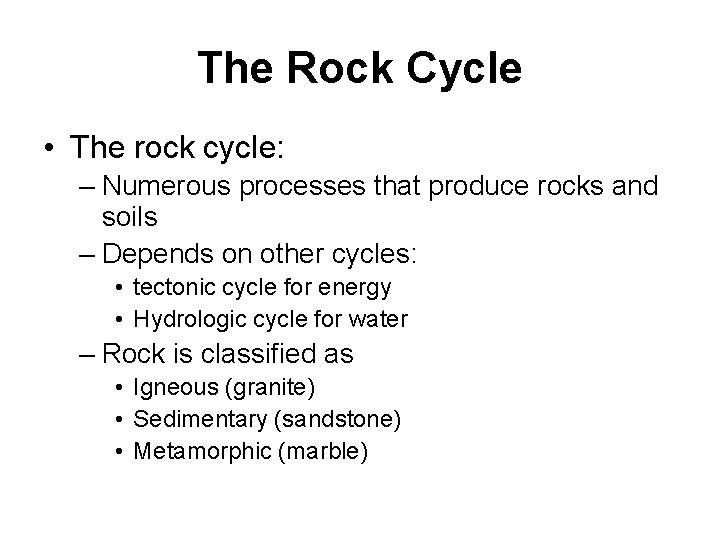

The Rock Cycle • The rock cycle: – Numerous processes that produce rocks and soils – Depends on other cycles: • tectonic cycle for energy • Hydrologic cycle for water – Rock is classified as • Igneous (granite) • Sedimentary (sandstone) • Metamorphic (marble)

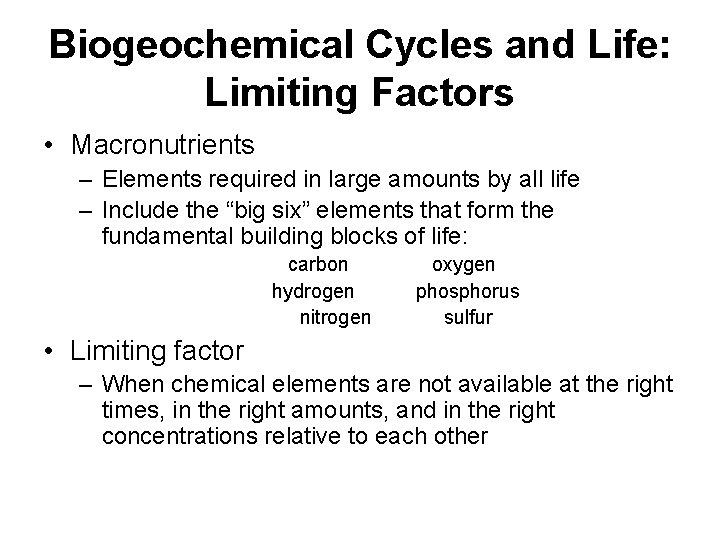

Biogeochemical Cycles and Life: Limiting Factors • Macronutrients – Elements required in large amounts by all life – Include the “big six” elements that form the fundamental building blocks of life: carbon hydrogen nitrogen oxygen phosphorus sulfur • Limiting factor – When chemical elements are not available at the right times, in the right amounts, and in the right concentrations relative to each other

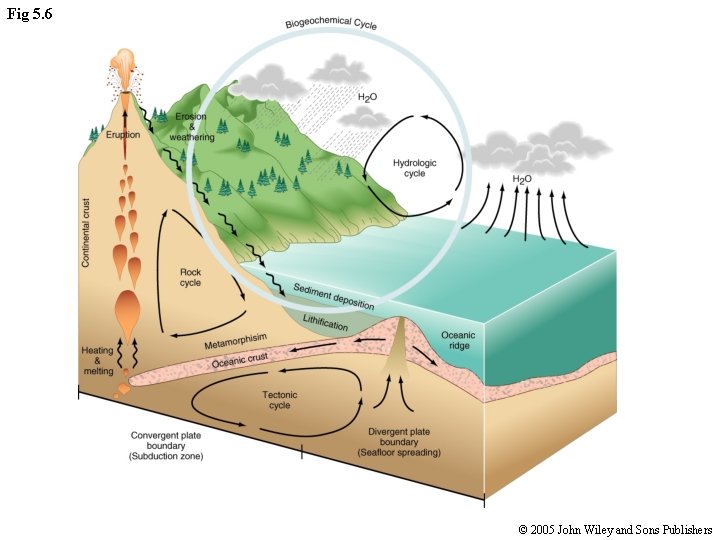

Fig 5. 6 © 2005 John Wiley and Sons Publishers

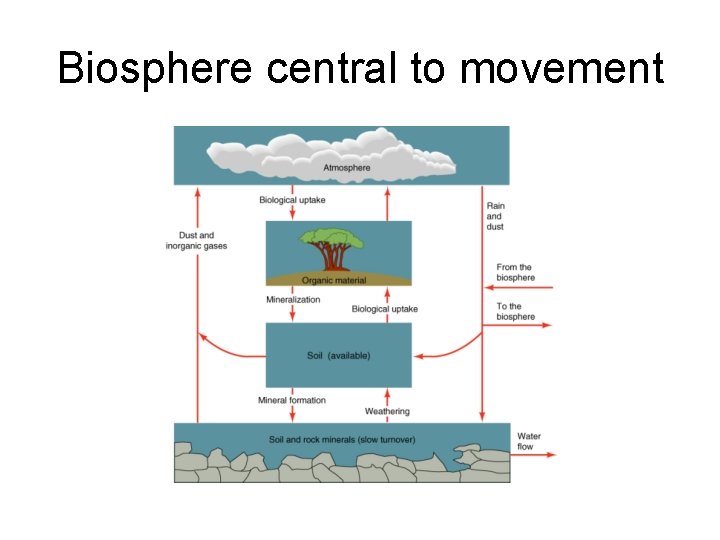

Biosphere central to movement

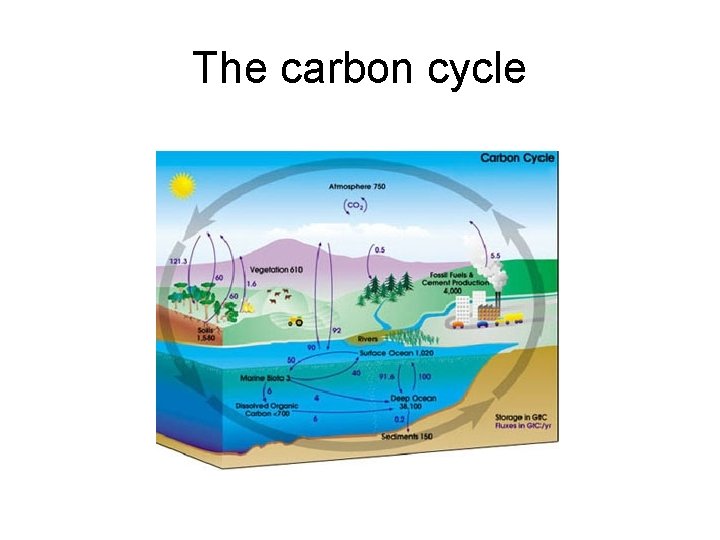

The carbon cycle

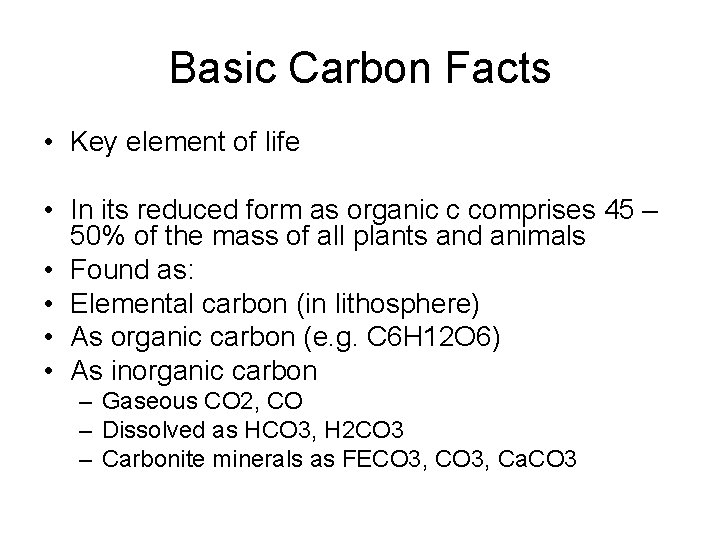

Basic Carbon Facts • Key element of life • In its reduced form as organic c comprises 45 – 50% of the mass of all plants and animals • Found as: • Elemental carbon (in lithosphere) • As organic carbon (e. g. C 6 H 12 O 6) • As inorganic carbon – Gaseous CO 2, CO – Dissolved as HCO 3, H 2 CO 3 – Carbonite minerals as FECO 3, Ca. CO 3

The carbon cycle

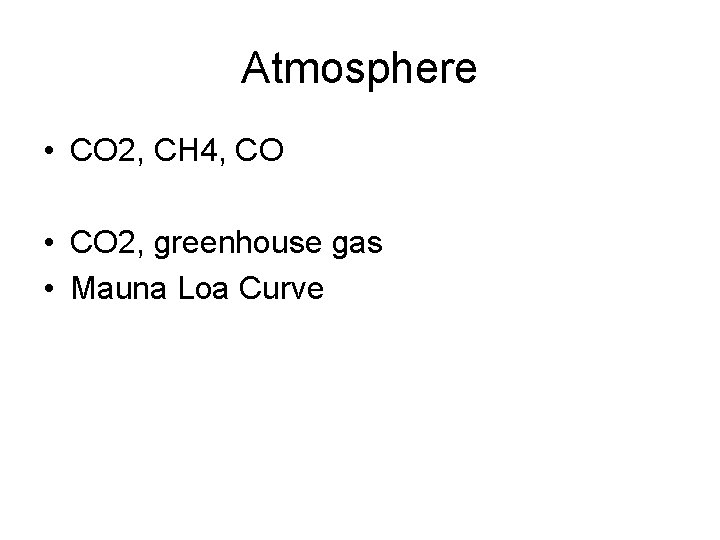

Atmosphere • CO 2, CH 4, CO • CO 2, greenhouse gas • Mauna Loa Curve

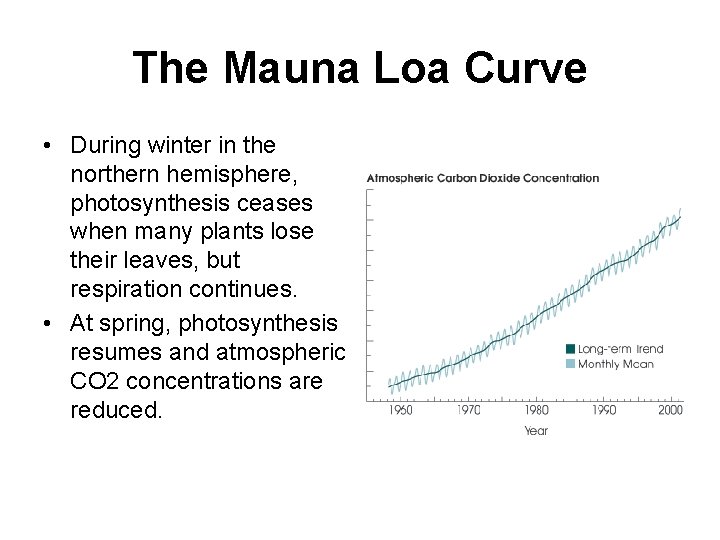

The Mauna Loa Curve • During winter in the northern hemisphere, photosynthesis ceases when many plants lose their leaves, but respiration continues. • At spring, photosynthesis resumes and atmospheric CO 2 concentrations are reduced.

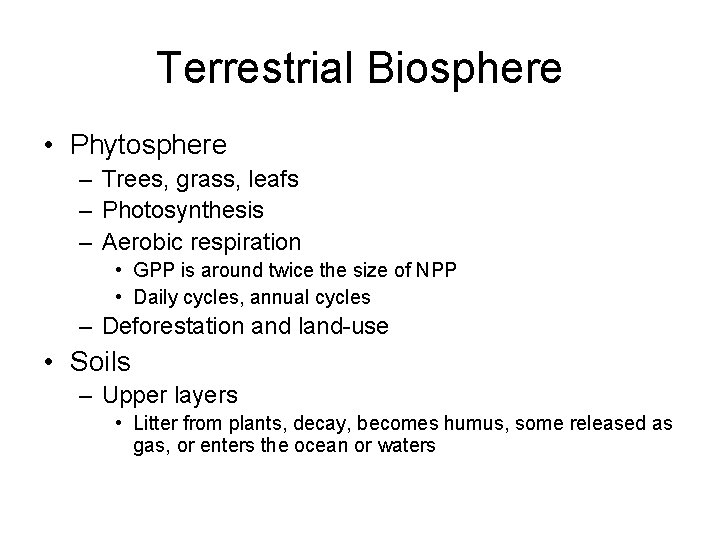

Terrestrial Biosphere • Phytosphere – Trees, grass, leafs – Photosynthesis – Aerobic respiration • GPP is around twice the size of NPP • Daily cycles, annual cycles – Deforestation and land-use • Soils – Upper layers • Litter from plants, decay, becomes humus, some released as gas, or enters the ocean or waters

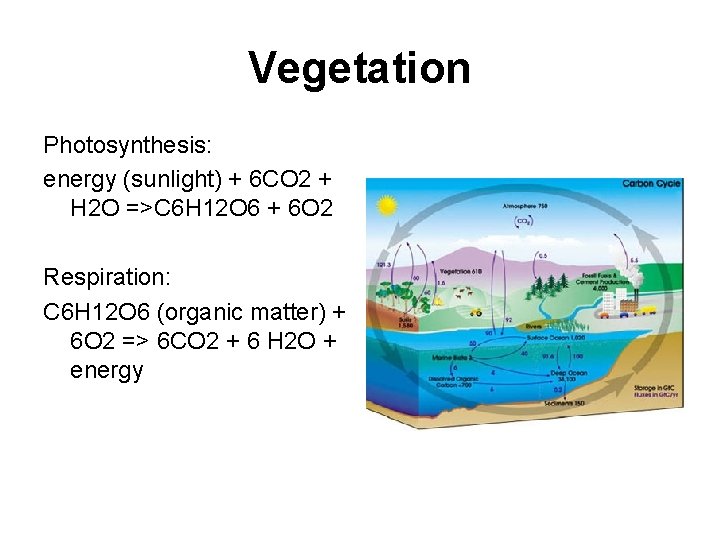

Vegetation Photosynthesis: energy (sunlight) + 6 CO 2 + H 2 O =>C 6 H 12 O 6 + 6 O 2 Respiration: C 6 H 12 O 6 (organic matter) + 6 O 2 => 6 CO 2 + 6 H 2 O + energy

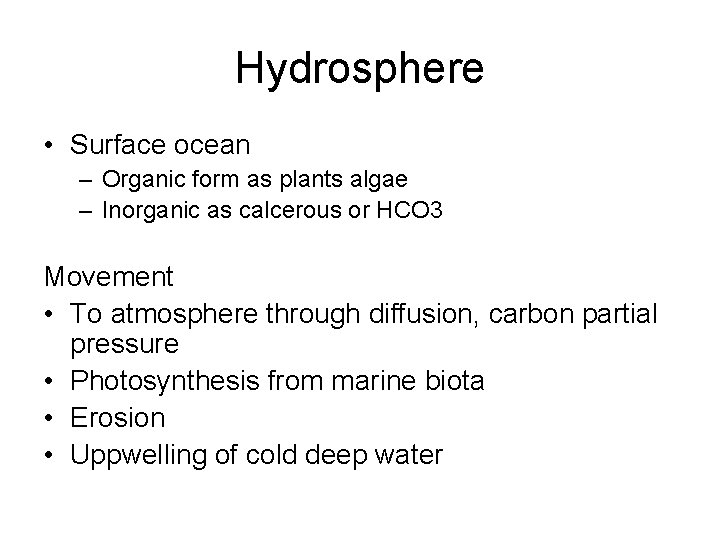

Hydrosphere • Surface ocean – Organic form as plants algae – Inorganic as calcerous or HCO 3 Movement • To atmosphere through diffusion, carbon partial pressure • Photosynthesis from marine biota • Erosion • Uppwelling of cold deep water

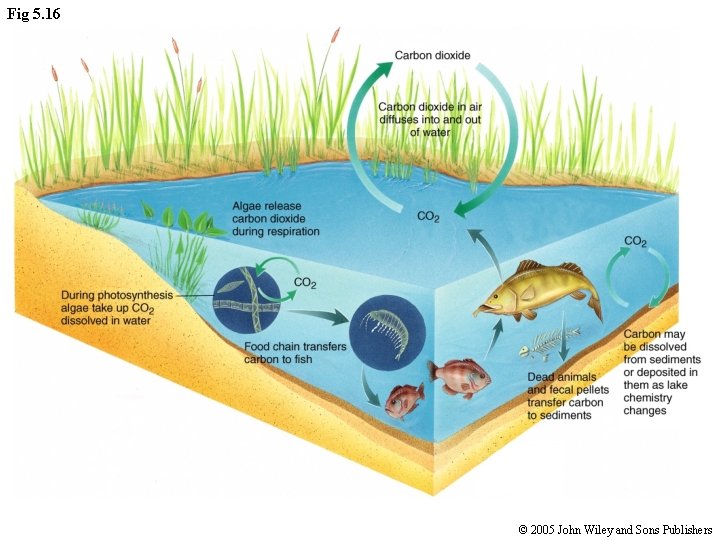

Fig 5. 16 © 2005 John Wiley and Sons Publishers

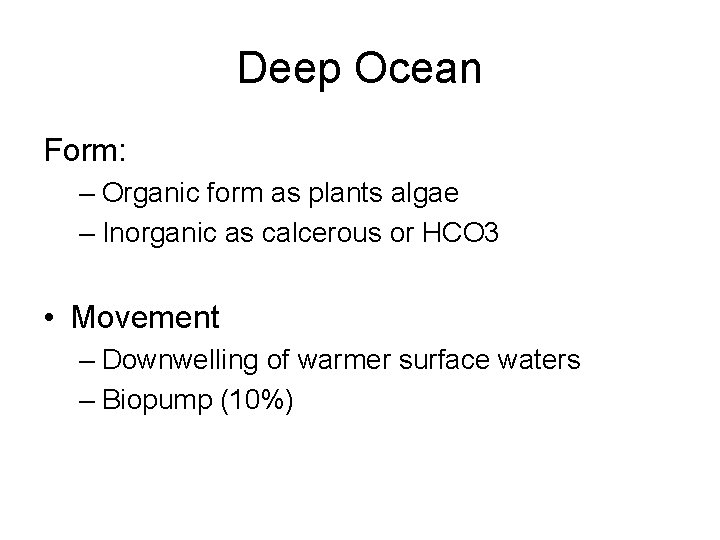

Deep Ocean Form: – Organic form as plants algae – Inorganic as calcerous or HCO 3 • Movement – Downwelling of warmer surface waters – Biopump (10%)

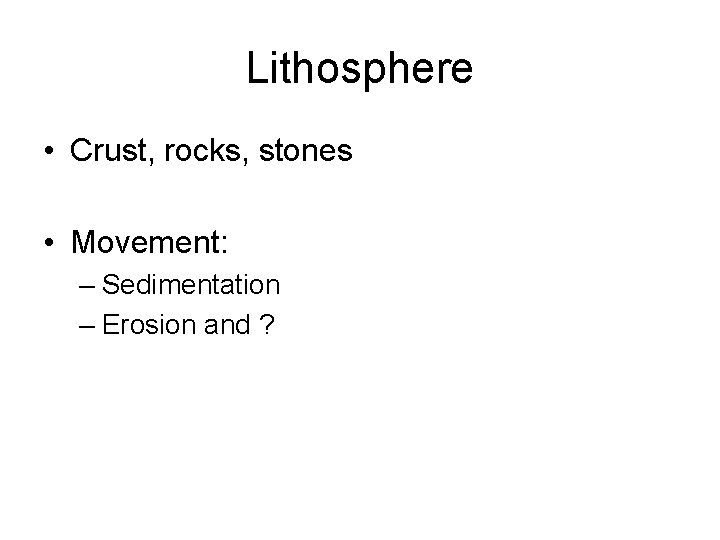

Lithosphere • Crust, rocks, stones • Movement: – Sedimentation – Erosion and ?

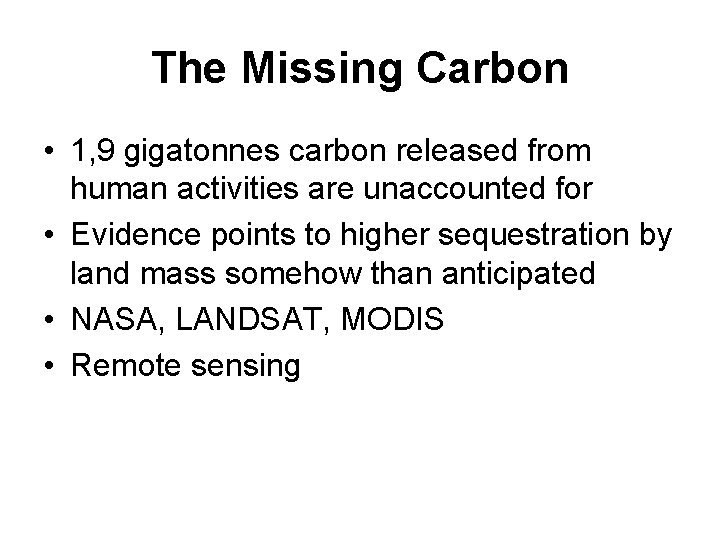

The Missing Carbon • 1, 9 gigatonnes carbon released from human activities are unaccounted for • Evidence points to higher sequestration by land mass somehow than anticipated • NASA, LANDSAT, MODIS • Remote sensing

The carbon cycle

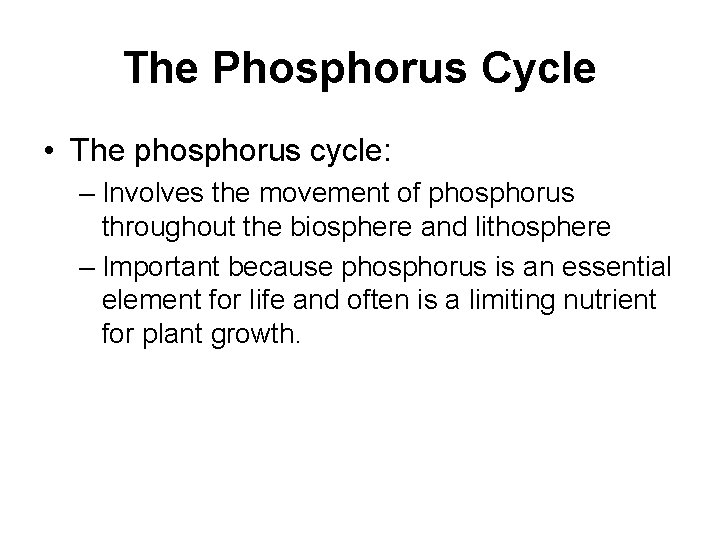

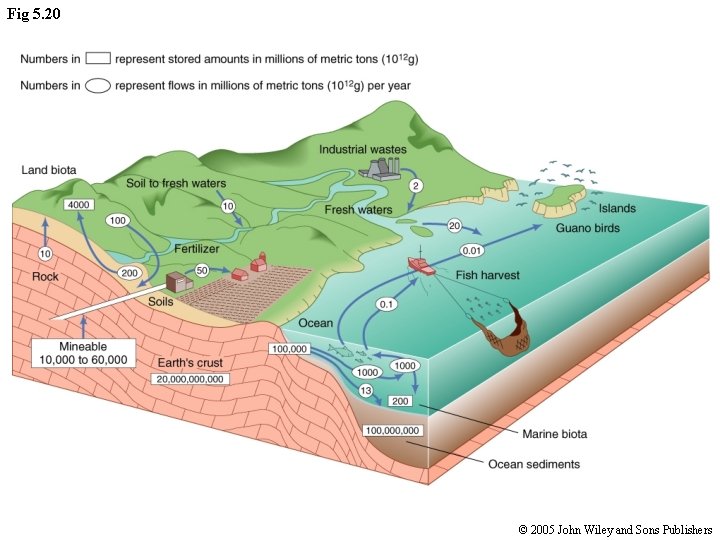

The Phosphorus Cycle • The phosphorus cycle: – Involves the movement of phosphorus throughout the biosphere and lithosphere – Important because phosphorus is an essential element for life and often is a limiting nutrient for plant growth.

Fig 5. 20 © 2005 John Wiley and Sons Publishers

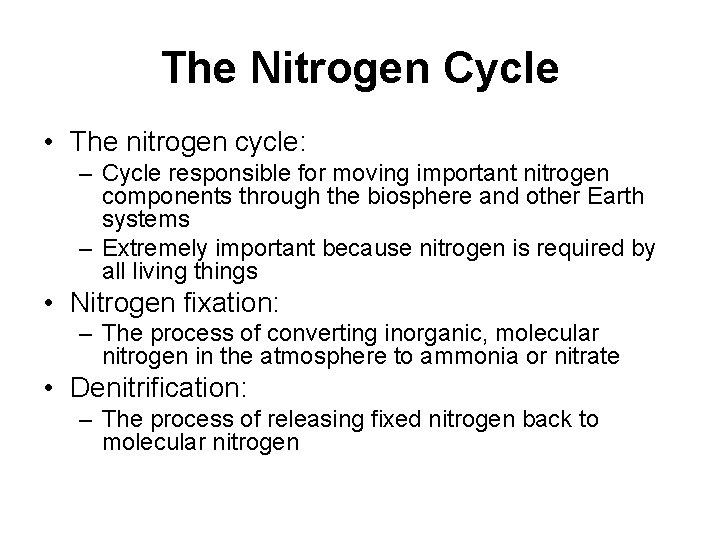

The Nitrogen Cycle • The nitrogen cycle: – Cycle responsible for moving important nitrogen components through the biosphere and other Earth systems – Extremely important because nitrogen is required by all living things • Nitrogen fixation: – The process of converting inorganic, molecular nitrogen in the atmosphere to ammonia or nitrate • Denitrification: – The process of releasing fixed nitrogen back to molecular nitrogen

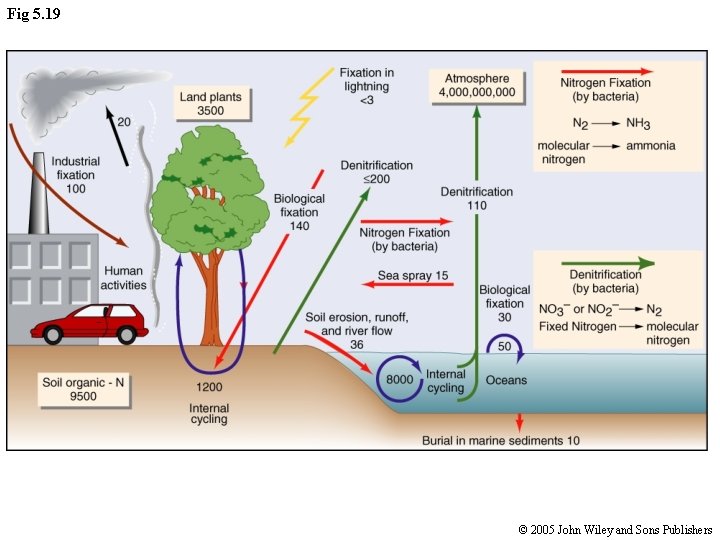

Fig 5. 19 © 2005 John Wiley and Sons Publishers

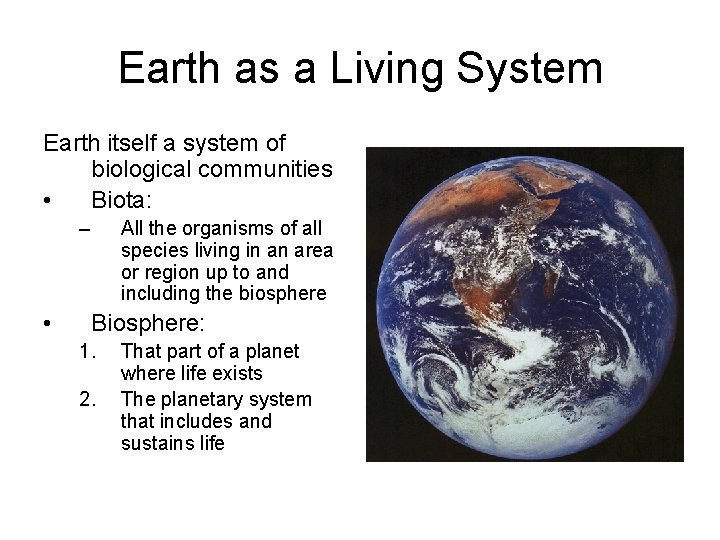

Earth as a Living System Earth itself a system of biological communities • Biota: – • All the organisms of all species living in an area or region up to and including the biosphere Biosphere: 1. 2. That part of a planet where life exists The planetary system that includes and sustains life

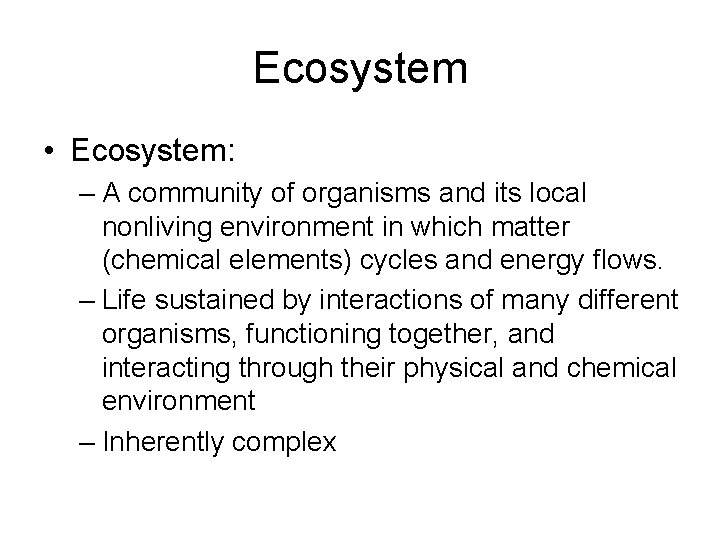

Ecosystem • Ecosystem: – A community of organisms and its local nonliving environment in which matter (chemical elements) cycles and energy flows. – Life sustained by interactions of many different organisms, functioning together, and interacting through their physical and chemical environment – Inherently complex

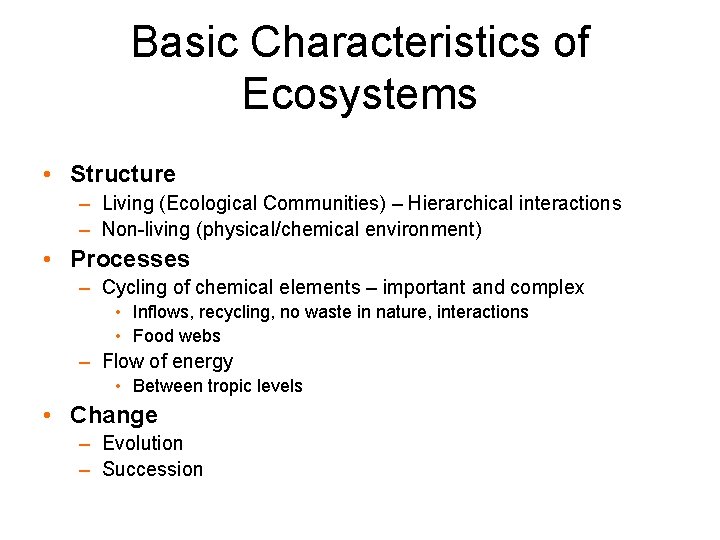

Basic Characteristics of Ecosystems • Structure – Living (Ecological Communities) – Hierarchical interactions – Non-living (physical/chemical environment) • Processes – Cycling of chemical elements – important and complex • Inflows, recycling, no waste in nature, interactions • Food webs – Flow of energy • Between tropic levels • Change – Evolution – Succession

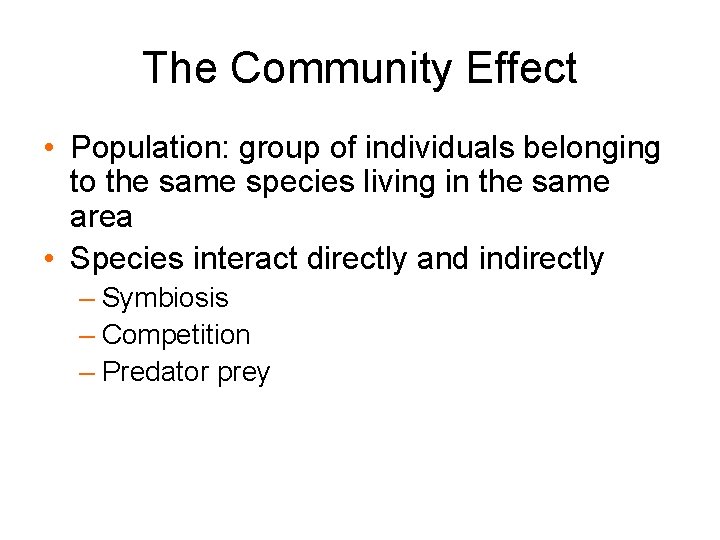

The Community Effect • Population: group of individuals belonging to the same species living in the same area • Species interact directly and indirectly – Symbiosis – Competition – Predator prey

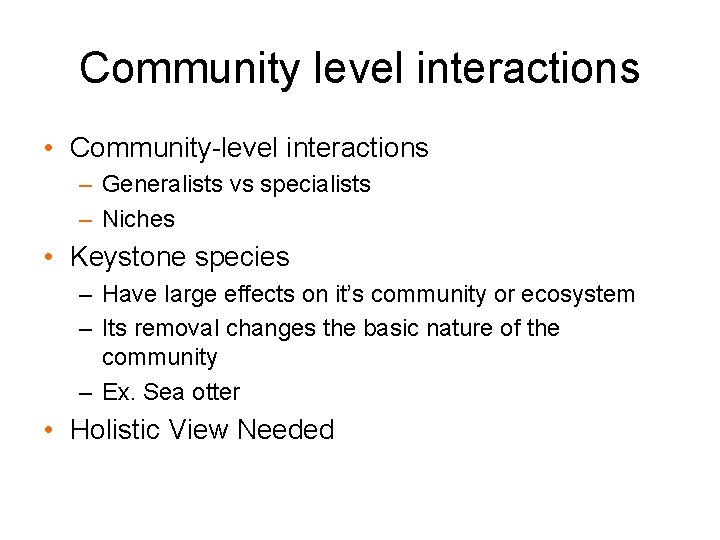

Community level interactions • Community-level interactions – Generalists vs specialists – Niches • Keystone species – Have large effects on it’s community or ecosystem – Its removal changes the basic nature of the community – Ex. Sea otter • Holistic View Needed

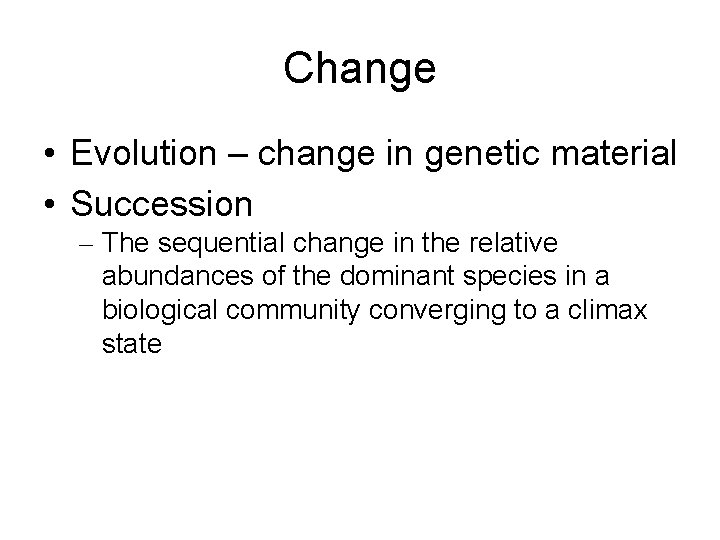

Change • Evolution – change in genetic material • Succession – The sequential change in the relative abundances of the dominant species in a biological community converging to a climax state

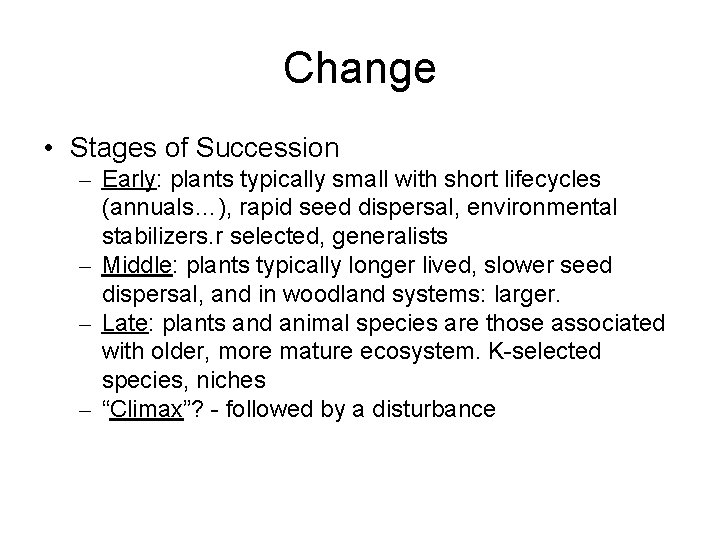

Change • Stages of Succession – Early: plants typically small with short lifecycles (annuals…), rapid seed dispersal, environmental stabilizers. r selected, generalists – Middle: plants typically longer lived, slower seed dispersal, and in woodland systems: larger. – Late: plants and animal species are those associated with older, more mature ecosystem. K-selected species, niches – “Climax”? - followed by a disturbance

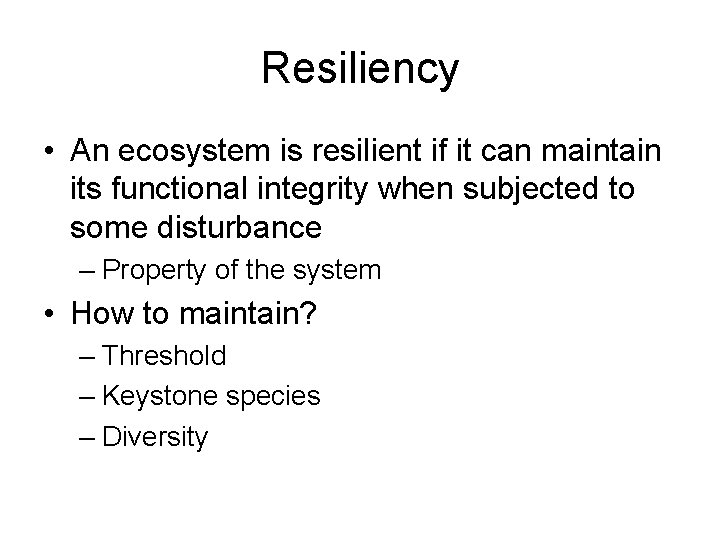

Resiliency • An ecosystem is resilient if it can maintain its functional integrity when subjected to some disturbance – Property of the system • How to maintain? – Threshold – Keystone species – Diversity

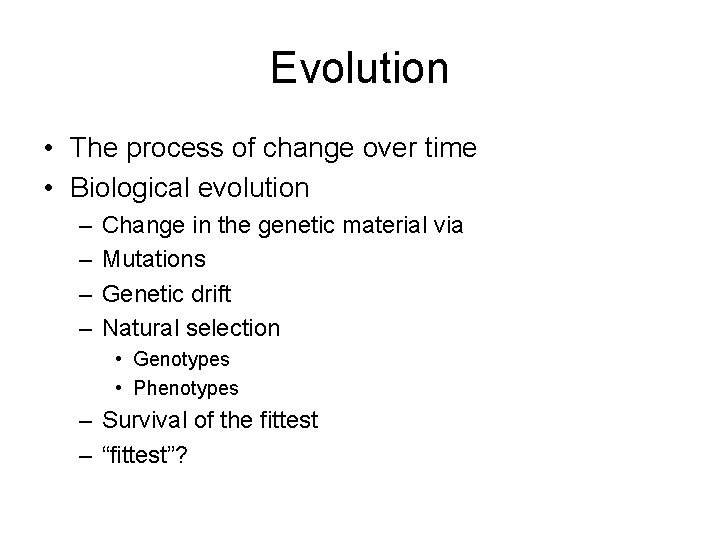

Evolution • The process of change over time • Biological evolution – – Change in the genetic material via Mutations Genetic drift Natural selection • Genotypes • Phenotypes – Survival of the fittest – “fittest”?

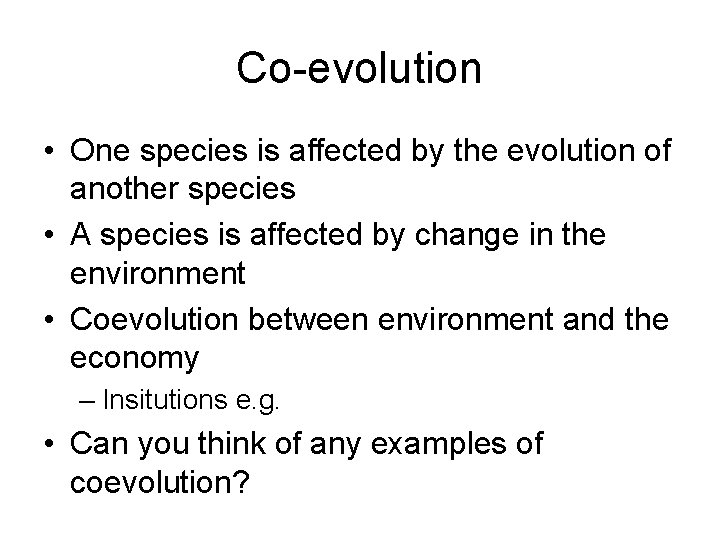

Co-evolution • One species is affected by the evolution of another species • A species is affected by change in the environment • Coevolution between environment and the economy – Insitutions e. g. • Can you think of any examples of coevolution?

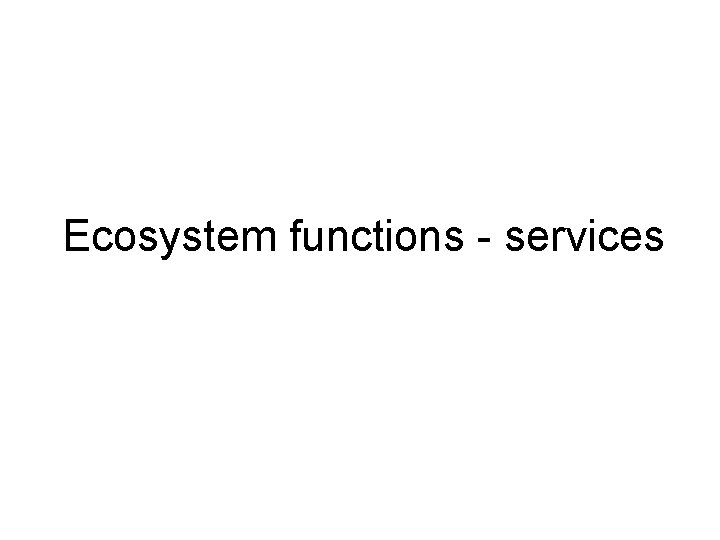

Ecosystem functions - services

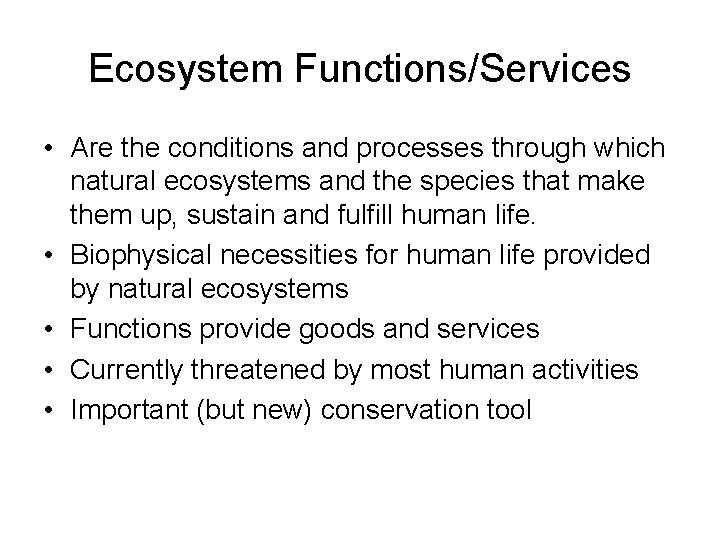

Ecosystem Functions/Services • Are the conditions and processes through which natural ecosystems and the species that make them up, sustain and fulfill human life. • Biophysical necessities for human life provided by natural ecosystems • Functions provide goods and services • Currently threatened by most human activities • Important (but new) conservation tool

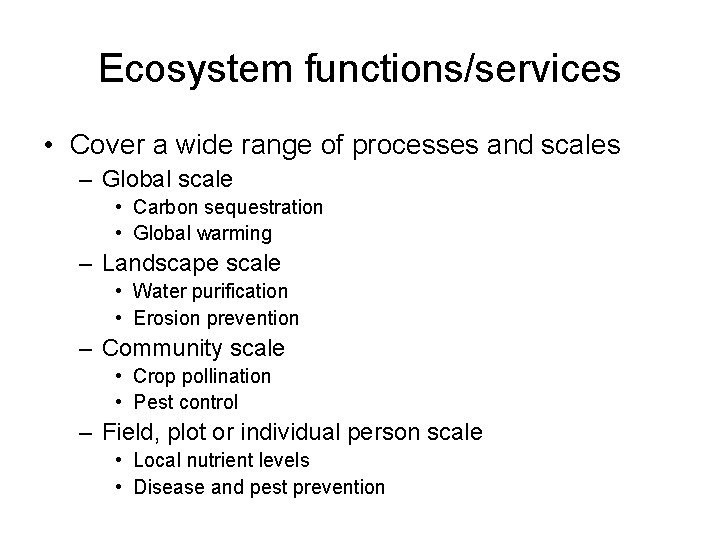

Ecosystem functions/services • Cover a wide range of processes and scales – Global scale • Carbon sequestration • Global warming – Landscape scale • Water purification • Erosion prevention – Community scale • Crop pollination • Pest control – Field, plot or individual person scale • Local nutrient levels • Disease and pest prevention

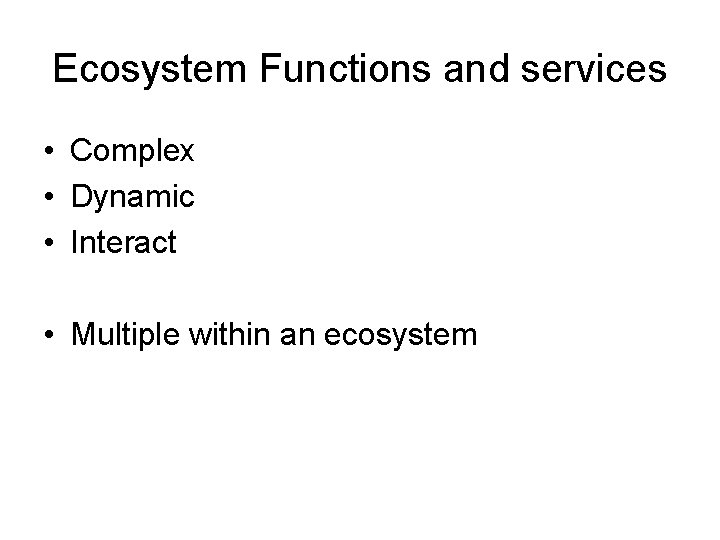

Ecosystem Functions and services • Complex • Dynamic • Interact • Multiple within an ecosystem

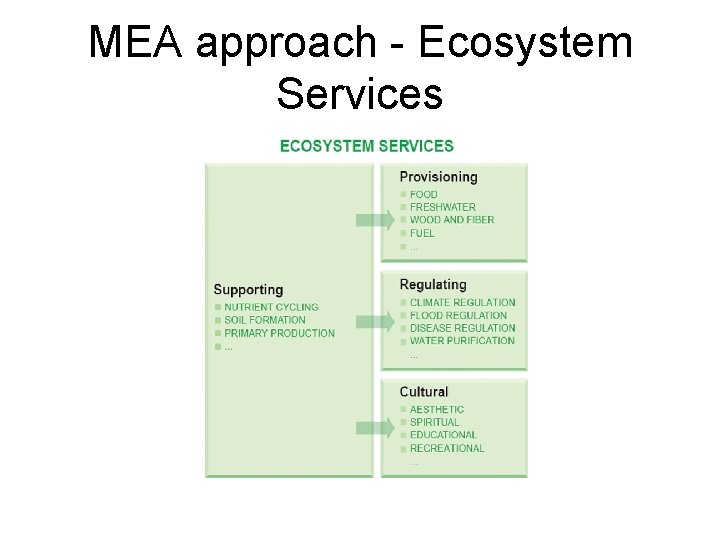

MEA approach - Ecosystem Services

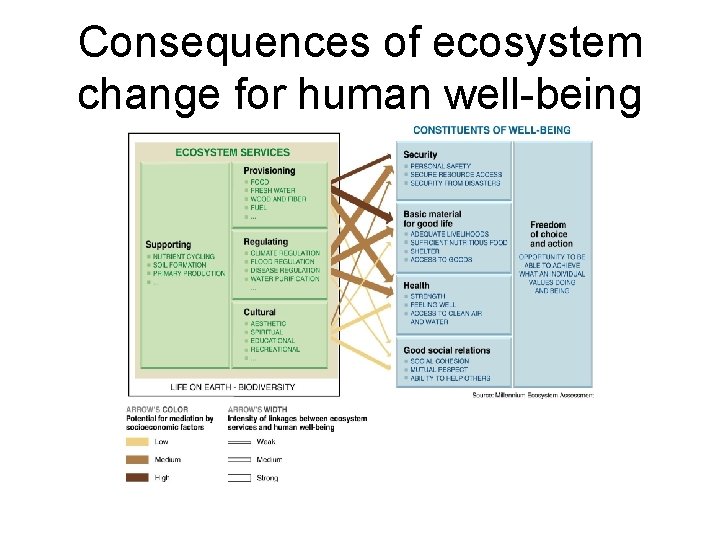

Consequences of ecosystem change for human well-being

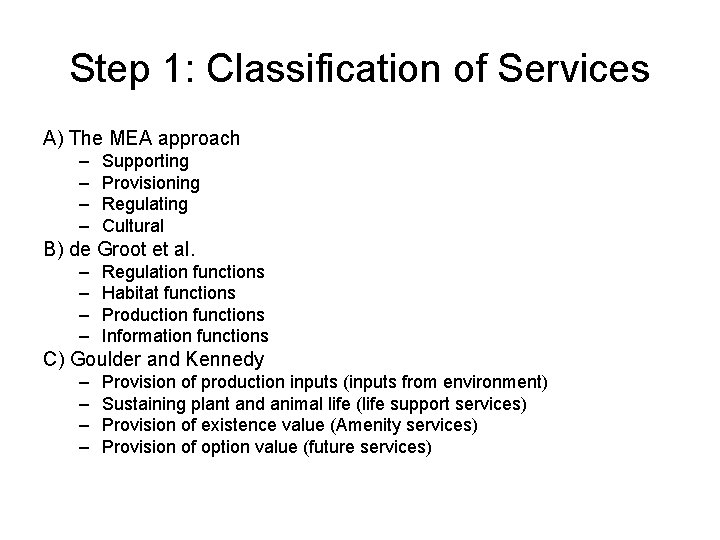

Step 1: Classification of Services A) The MEA approach – – Supporting Provisioning Regulating Cultural B) de Groot et al. – – Regulation functions Habitat functions Production functions Information functions C) Goulder and Kennedy – – Provision of production inputs (inputs from environment) Sustaining plant and animal life (life support services) Provision of existence value (Amenity services) Provision of option value (future services)

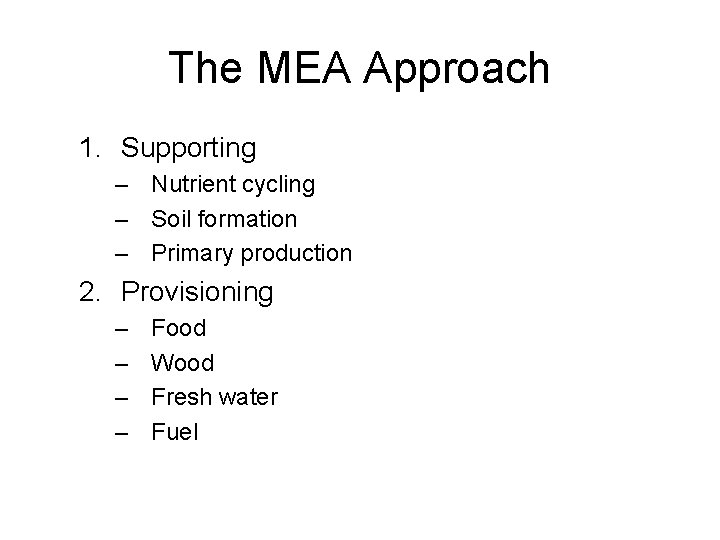

The MEA Approach 1. Supporting – Nutrient cycling – Soil formation – Primary production 2. Provisioning – – Food Wood Fresh water Fuel

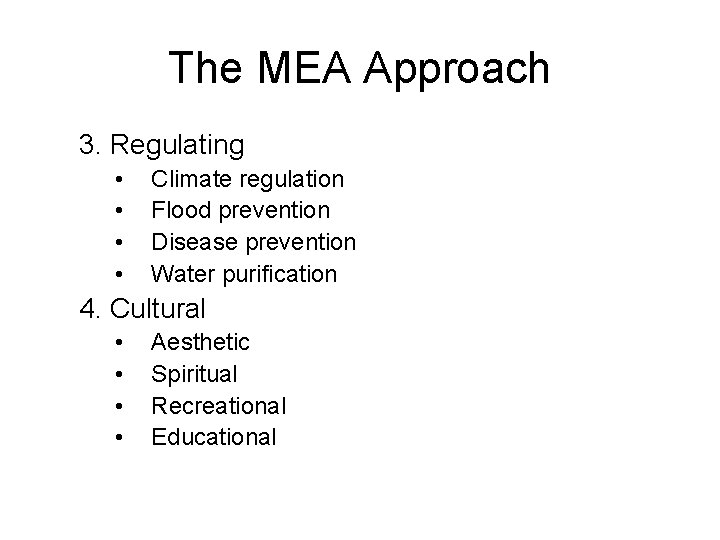

The MEA Approach 3. Regulating • • Climate regulation Flood prevention Disease prevention Water purification 4. Cultural • • Aesthetic Spiritual Recreational Educational

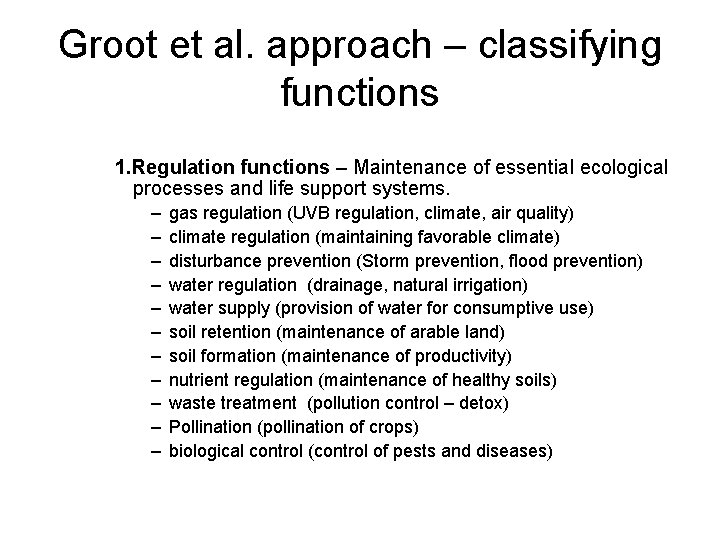

Groot et al. approach – classifying functions 1. Regulation functions – Maintenance of essential ecological processes and life support systems. – – – gas regulation (UVB regulation, climate, air quality) climate regulation (maintaining favorable climate) disturbance prevention (Storm prevention, flood prevention) water regulation (drainage, natural irrigation) water supply (provision of water for consumptive use) soil retention (maintenance of arable land) soil formation (maintenance of productivity) nutrient regulation (maintenance of healthy soils) waste treatment (pollution control – detox) Pollination (pollination of crops) biological control (control of pests and diseases)

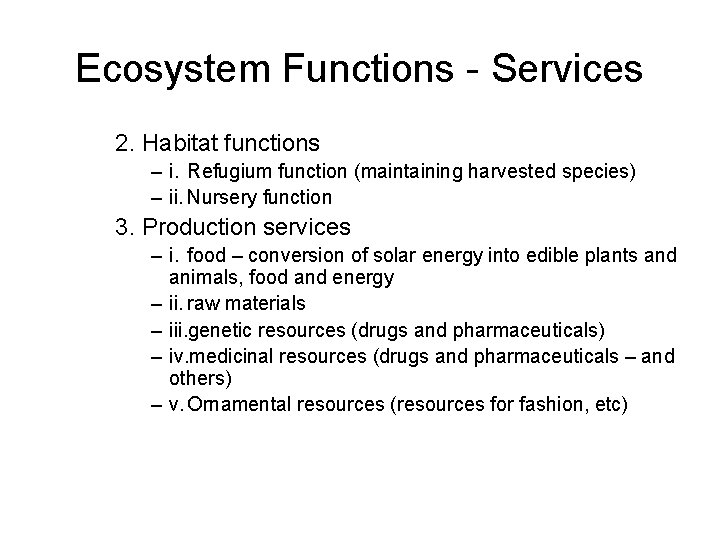

Ecosystem Functions - Services 2. Habitat functions – i. Refugium function (maintaining harvested species) – ii. Nursery function 3. Production services – i. food – conversion of solar energy into edible plants and animals, food and energy – ii. raw materials – iii. genetic resources (drugs and pharmaceuticals) – iv. medicinal resources (drugs and pharmaceuticals – and others) – v. Ornamental resources (resources for fashion, etc)

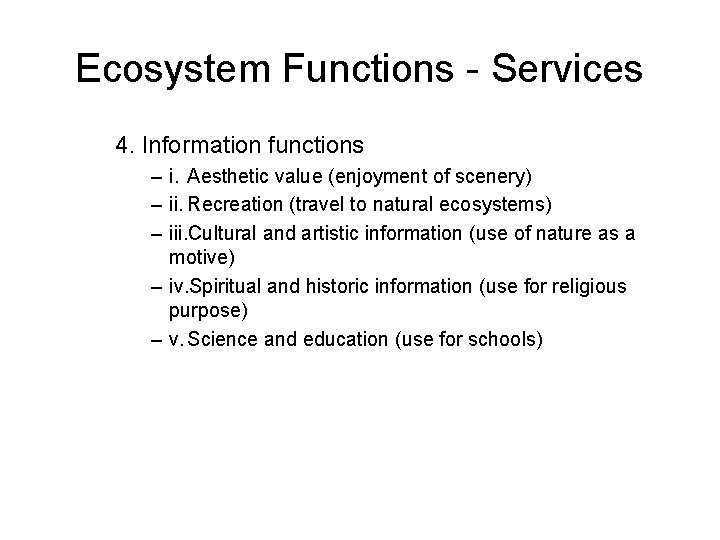

Ecosystem Functions - Services 4. Information functions – i. Aesthetic value (enjoyment of scenery) – ii. Recreation (travel to natural ecosystems) – iii. Cultural and artistic information (use of nature as a motive) – iv. Spiritual and historic information (use for religious purpose) – v. Science and education (use for schools)

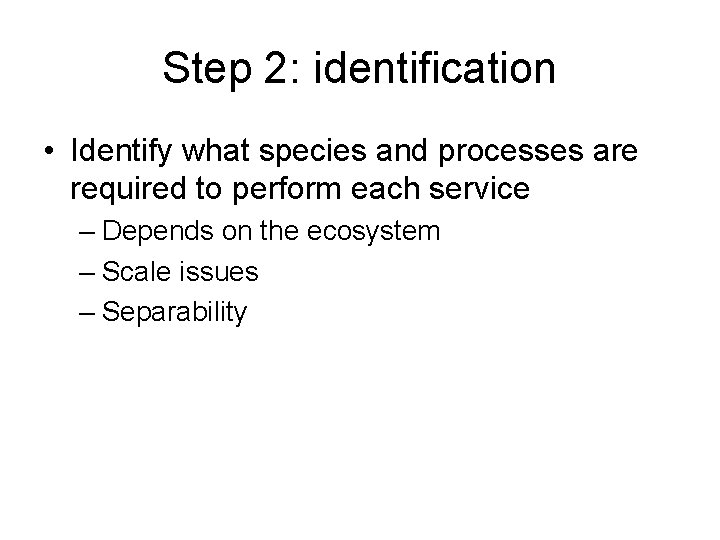

Step 2: identification • Identify what species and processes are required to perform each service – Depends on the ecosystem – Scale issues – Separability

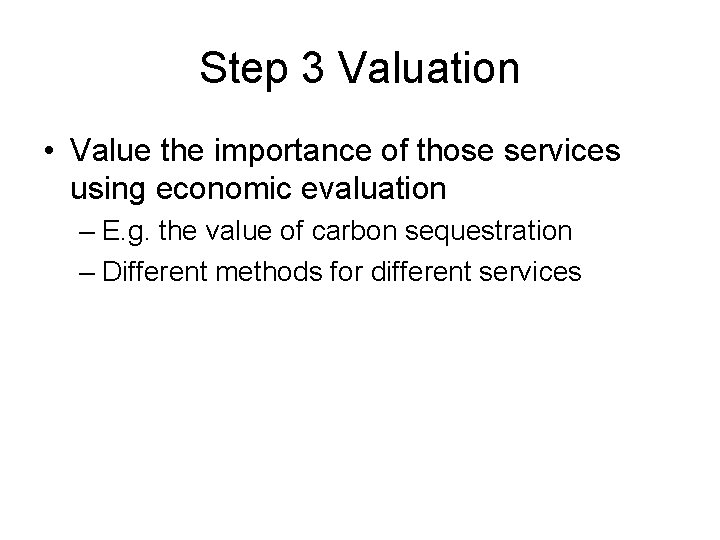

Step 3 Valuation • Value the importance of those services using economic evaluation – E. g. the value of carbon sequestration – Different methods for different services
