Cascading Style Sheets Purpose Cascading Style Sheets CSS
- Slides: 24
Cascading Style Sheets
Purpose • Cascading Style Sheets (CSS) – specify the presentation of elements • e. g. , font, position, … – separate from the document's structure • Three types – Inline Styles – Embedded Style Sheets – External Style Sheets • CSS validator jigsaw. w 3. org/css-validator/
Inline Styles • Inline style – declared using the style attribute • within in the element’s start tag • good only for this element • The value of the style attribute: – semicolon-separated list of properties – form: property-name : property-value – e. g. , • <p style = "font-size: 12 pt; color: #ff 0000"> – Inline Styles don't separate content and layout
Inline Styles: Example • <html …><head> <title>Inline Styles</title> </head><body> <p style = "font-size: 20 pt; color: #ff 00 ff"> The text in this paragraph has the font-size 20 pt. and is rendered in magenta color. </p> </body></html>
Embedded Style Sheets • Define styles for an entire document • Can associate a set of style properties – with a particular XHTML element • e. g. , with <p>, with <h 1>, with <span>, with … • will be applied to each such element – independent of any elements • identified by (class) name • can be applied to an arbitrary element
Embedded CSS: Form • <style> element – within <head> – attribute type="text/css" • the MIME type (encoding format) – inner text must follow syntax: • • • list of rules a rule consist of a name and set of properties name is either an element name or a class name (see next) set of properties is enclosed in {and } a property is specified as in Inline Styles
Style Classes • Class name – arbitrary letters and • no spaces • In style definition – preceded by. – can be combined with an element • form: element-name. class-name • e. g. , a. nodec {text-decoration: none} – applies only to <a class="nodec">
Embedded CSS: Sample • <head> <style type = "text/css"> em { font-weight: bold; color: purple } h 1 { font-family: helvetica, sans-serif } p { font-size: 12 pt; font-family: arial, sans-serif }. blue { color: #6666 ff } </style> <head> • Meaning: – – every text within <em> will be bold and black text within <h 1> will be in Helvetica or sans-serif font text within <p> will be in Arial or sans-serif font element with class="blue" will be in color #6666 ff (light blue)
• Embedded CSS: Example <html …><head> <style type = "text/css"> … </style> <!-– as in previous slide --> </head><body> <h 1>Embedded CSS</h 1> <p>Let me <em>emphasize this</em> and <span class="blue">color this</span>. </p> <p>And <em>do it</em> also in <span class="blue">this section</span>. </p> <p>And in <span class="blue">another section</span> <em>again</em>. </p> </body></html>
• Embedded CSS: Example 2 <head> <style type = "text/css"> em { font-weight: bold; color: red } h 1 { font-family: courier, monospaced } p { font-size: 10 pt; font-family: garamond, serif }. blue { color: blue } </style> <head>
Precedence of Styles • If there are several styles for one element, which one will be applied? • precedence: 1. user 2. author (you) 3. "user agent" (=browser) • within document: – the more specific wins – the innermost wins
Font Properties • font-family – comma–separated list (in order left-to-right) of • font names, e. g. , times-roman, helvetica, courier • generic fonts: serif, sans-serif, monospace, cursive • font-style – normal, italic, oblique • font-weight – relative: normal, bolder, lighter – absolute: 100, 200, 300, …, 900 • font-size – relative: n%, xx-small, smaller, medium, larger, large, x-large, xx-large – absolute: npt, nem, nex, … (see next slide)
Unit Values • Absolute – – – pt: points px: pixels in: inches cm: centimeters mm: milimeters pc: picas • Relative (to default font size) – %: percent – em: height of the letter M – ex: height of the letter x
Font Properties: Guidelines • font-family – always end the list with a generic font • serif, sans-serif, monospace, … • font-weight, font-size – use relative rather than absolute values – accessibility!
Text Properties • text-align – left, right, center, justify • text-indent – length or percent (see previous slide) – indentation of the 1 st line • text-decoration – underline, overline, blink, line-through • color – see next slide
Color Values • Predefined colors: – black, white, gray, red, green, blue, yellow, aqua, fuchsia, lime, maroon, navy, olive, purple, silver, teal • Colors in hex – start with # – then 6 hex digits, 2 for each red, green, blue – e. g. #ff 00 ff: • ff red, 00 green and ff blue = magenta
Background Properties • background-color – see previous slide • background-image – URL – laid over background-color • background-repeat – repeat, repeat-x, repeat-y, no-repeat – whether and in which dimension to repeat the image

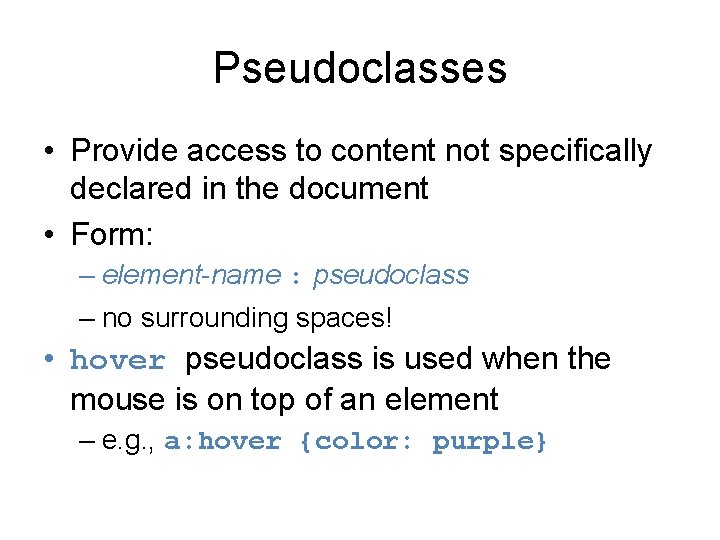

Pseudoclasses • Provide access to content not specifically declared in the document • Form: – element-name : pseudoclass – no surrounding spaces! • hover pseudoclass is used when the mouse is on top of an element – e. g. , a: hover {color: purple}
External Style Sheets • A separate document with only CSS rules • Complete separation of contents and style • Used to create websites with uniform look – several (all) pages can use the same styles – change in a single style-sheet file changes styles across the entire website
Link to an External Style Sheet • <link> element – within the <head> element – rel="stylesheet" attribute • relation to linked document – type="text/css" attribute • MIME type – href attribute • URL of the external style sheet – e. g. , <link rel="stylesheet" type="text/css" href="315. css" />
External Style Sheets: Form • simply a list of CSS rules – see Embedded Style Sheets • e. g. , – em { font-weight: bold; color: purple } h 1 { font-family: helvetica, sans-serif } p { font-size: 12 pt; font-family: arial, sans-serif }. blue { color: #6666 ff }
External Style Sheets: Example • E. g. , several pages, one style
Another External Style Sheet • Same pages, only the single external CSS changed
Guidelines • Always use external style sheet for a website! – consistent look-and-feel – faster development – faster browsing • downloaded once, stored, applied to all pages • Test your CSS in all common browsers – Firefox, I-Explorer, Opera, Safari, Google Chrome • Run your CSS through W 3 C CSS Validator
