Chapter 8 Programming Counters

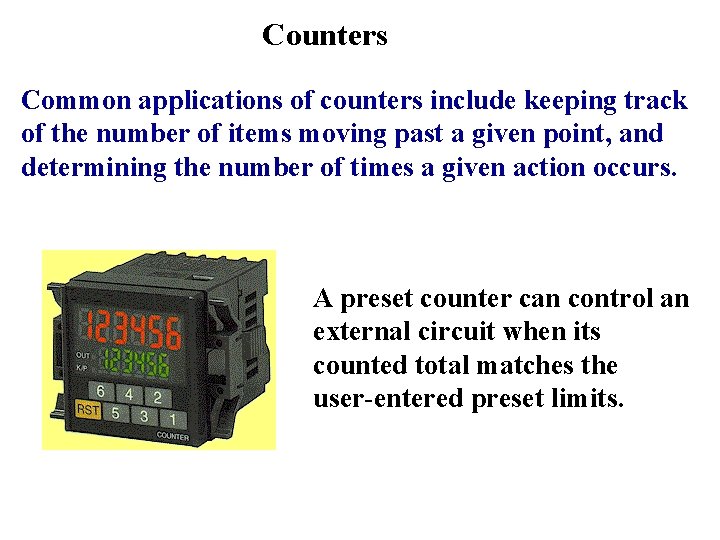

Counters Common applications of counters include keeping track of the number of items moving past a given point, and determining the number of times a given action occurs. A preset counter can control an external circuit when its counted total matches the user-entered preset limits.

Mechanical Counters Programmed counters can serve the same functions as mechanical counters. Every time the actuating lever is moved over the counter adds one number, while the actuating lever returns automatically to its original position. Resetting to zero is done with a pushbutton located on the side of the unit.

Electronic Counters Electronic counters can count up, count down, or be combined to count up and down. They are dependent on external sources, such as parts traveling past a sensor or actuating a limit switch for counting. Counter Applications

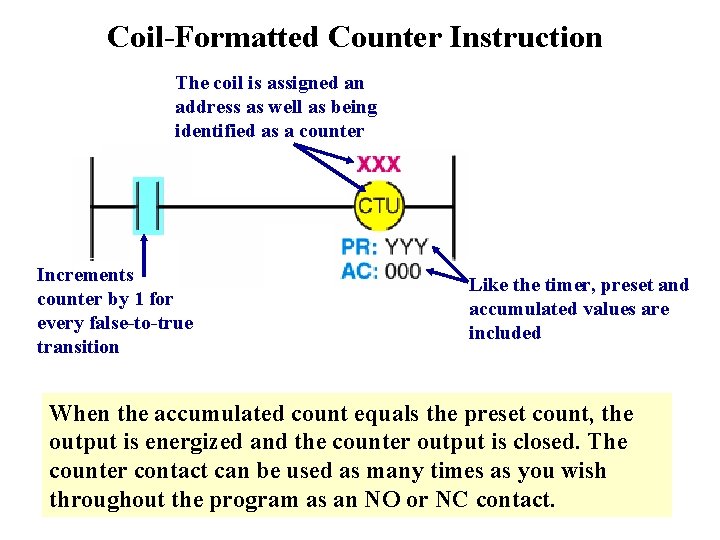

Coil-Formatted Counter Instruction The coil is assigned an address as well as being identified as a counter Increments counter by 1 for every false-to-true transition Like the timer, preset and accumulated values are included When the accumulated count equals the preset count, the output is energized and the counter output is closed. The counter contact can be used as many times as you wish throughout the program as an NO or NC contact.

Coil-Formatted Counter And Reset Instruction Same address Resets counter when true

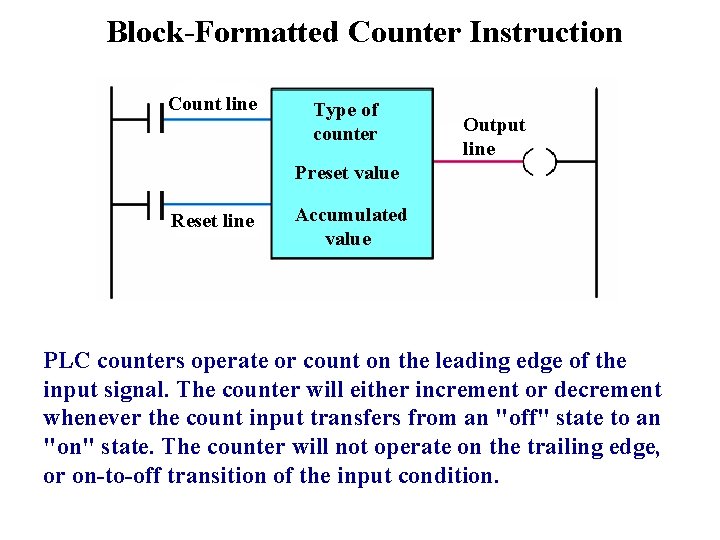

Block-Formatted Counter Instruction Count line Type of counter Output line Preset value Reset line Accumulated value PLC counters operate or count on the leading edge of the input signal. The counter will either increment or decrement whenever the count input transfers from an "off" state to an "on" state. The counter will not operate on the trailing edge, or on-to-off transition of the input condition.

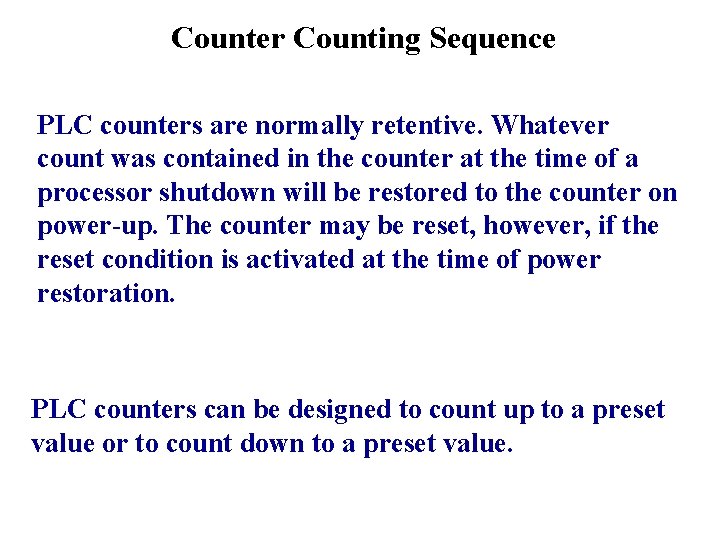

Counter Counting Sequence PLC counters are normally retentive. Whatever count was contained in the counter at the time of a processor shutdown will be restored to the counter on power-up. The counter may be reset, however, if the reset condition is activated at the time of power restoration. PLC counters can be designed to count up to a preset value or to count down to a preset value.

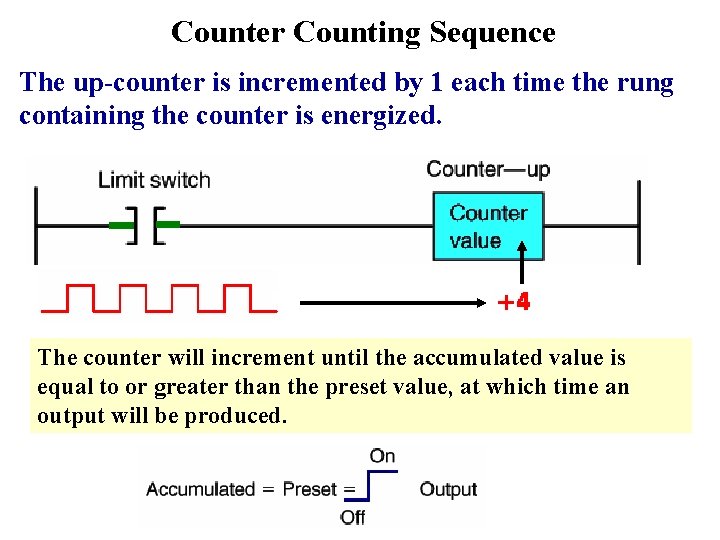

Counter Counting Sequence The up-counter is incremented by 1 each time the rung containing the counter is energized. The counter will increment until the accumulated value is equal to or greater than the preset value, at which time an output will be produced.

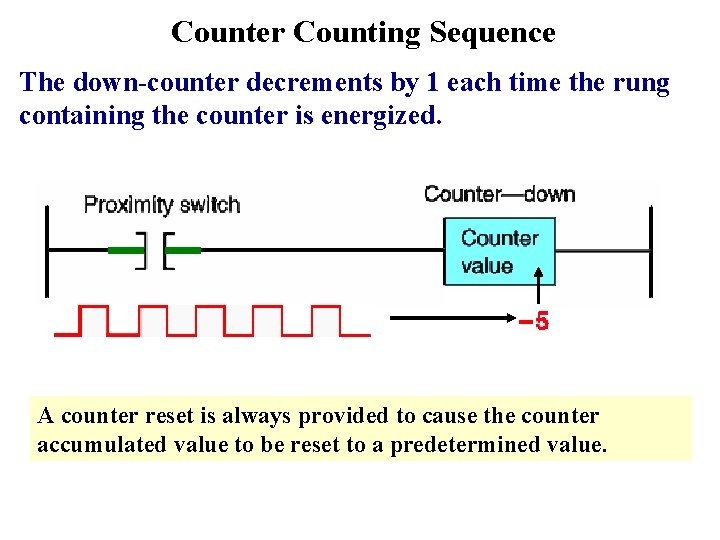

Counter Counting Sequence The down-counter decrements by 1 each time the rung containing the counter is energized. A counter reset is always provided to cause the counter accumulated value to be reset to a predetermined value.

Simple Up-counter Program 7

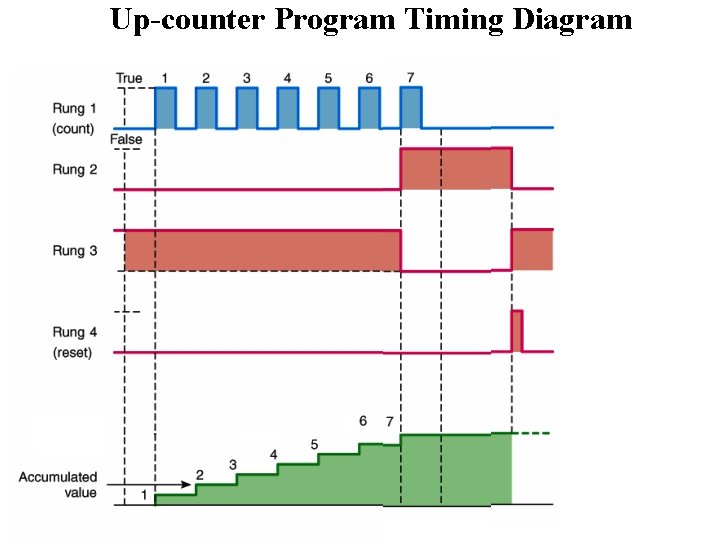

Up-counter Program Timing Diagram

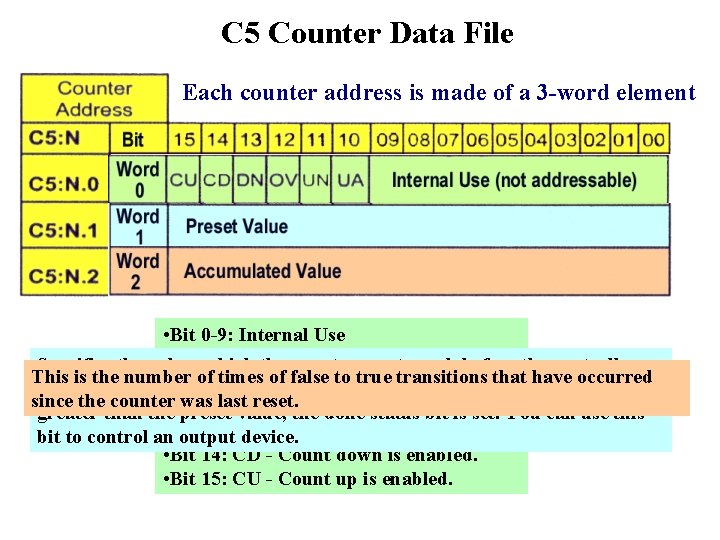

C 5 Counter Data File Each counter address is made of a 3 -word element • Bit 0 -9: Internal Use • Bit 10: UA - Update accumulation value. Specifies the value, which the counter must reach before the controller This is the number of times of false to true transitions that have occurred • Bit 11: UN - Underflow bit. sets the done bit. When the accumulated value becomes equal to or since the counter was last reset. • Bit 12: OV - Overflow bit. greater than the preset value, the done status bit is set. You can use this • Bit 13: DN - Done bit to control an output device. • Bit 14: CD - Count down is enabled. • Bit 15: CU - Count up is enabled.

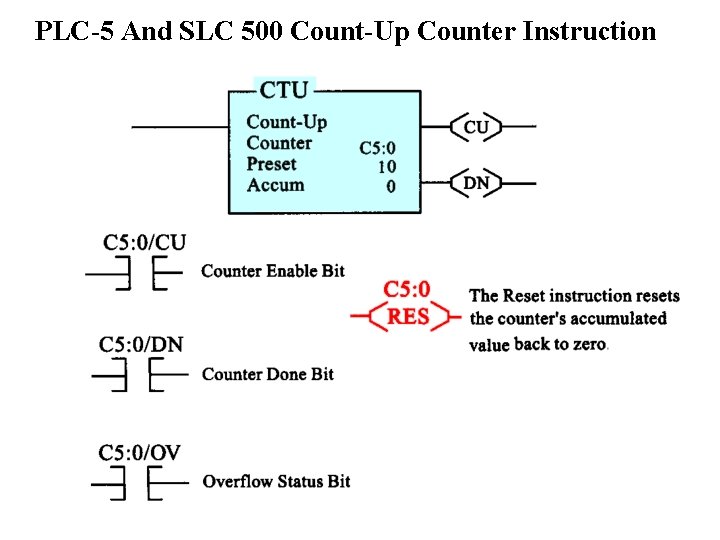

PLC-5 And SLC 500 Count-Up Counter Instruction

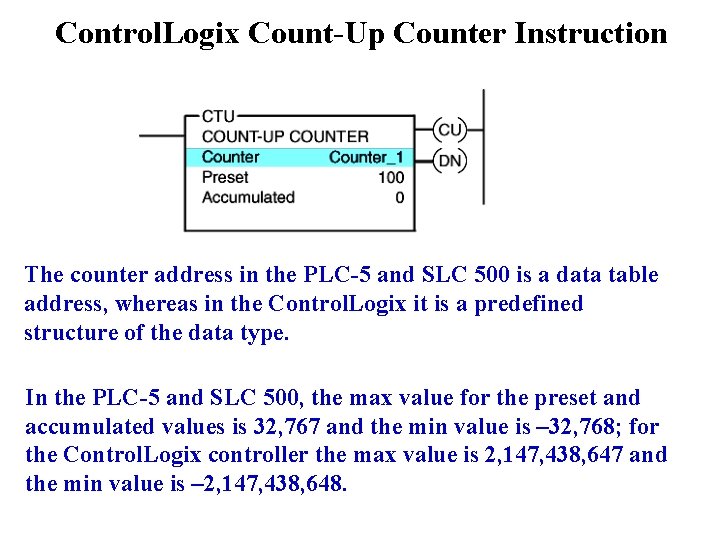

Control. Logix Count-Up Counter Instruction The counter address in the PLC-5 and SLC 500 is a data table address, whereas in the Control. Logix it is a predefined structure of the data type. In the PLC-5 and SLC 500, the max value for the preset and accumulated values is 32, 767 and the min value is – 32, 768; for the Control. Logix controller the max value is 2, 147, 438, 647 and the min value is – 2, 147, 438, 648.

RSLogic Counter Commands Command Name Description RES HSC CTD CTU Decrements the accumulated Increments the accumulated Resets the accumulated Counts high-speed pulses Count-Down Count-Up value at each false-to-true High-Speed Reset value and status bit of from a fixed controller transition and retains the Counter the counter high-speed input accumulated value when power cycle occurs

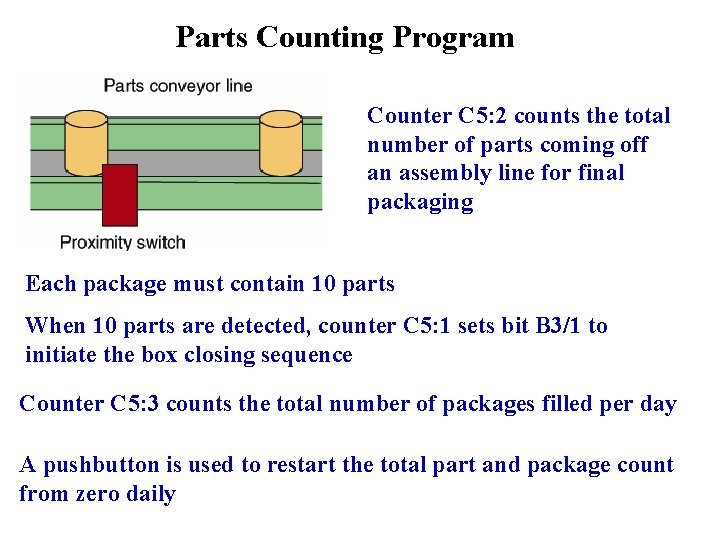

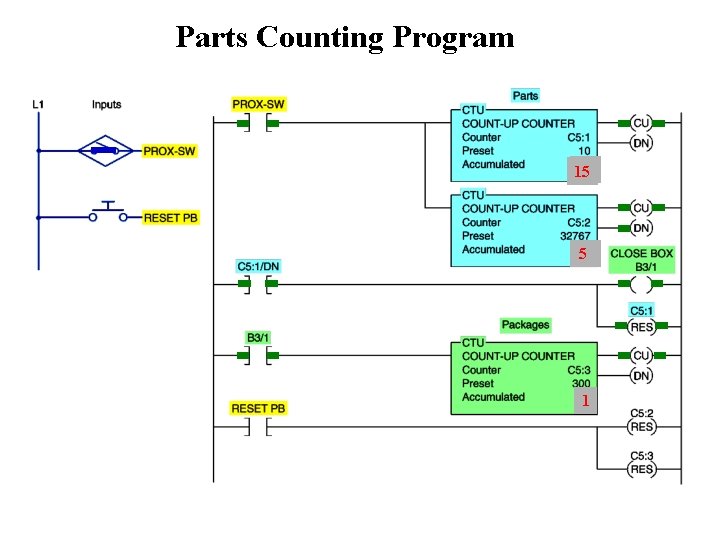

Parts Counting Program Counter C 5: 2 counts the total number of parts coming off an assembly line for final packaging Each package must contain 10 parts When 10 parts are detected, counter C 5: 1 sets bit B 3/1 to initiate the box closing sequence Counter C 5: 3 counts the total number of packages filled per day A pushbutton is used to restart the total part and package count from zero daily

Parts Counting Program 9 10 15 10 59 1

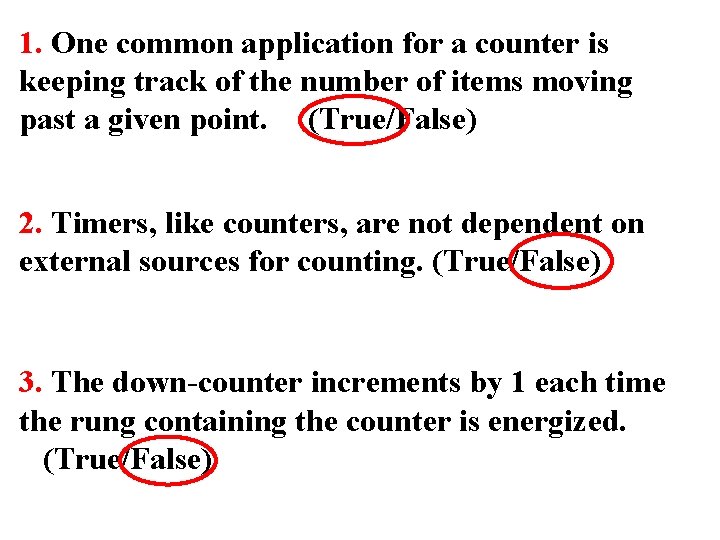

1. One common application for a counter is keeping track of the number of items moving past a given point. (True/False) 2. Timers, like counters, are not dependent on external sources for counting. (True/False) 3. The down-counter increments by 1 each time the rung containing the counter is energized. (True/False)

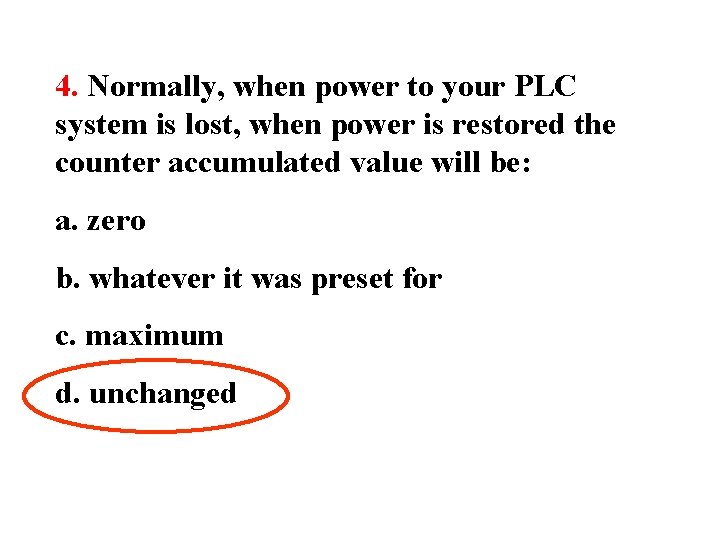

4. Normally, when power to your PLC system is lost, when power is restored the counter accumulated value will be: a. zero b. whatever it was preset for c. maximum d. unchanged

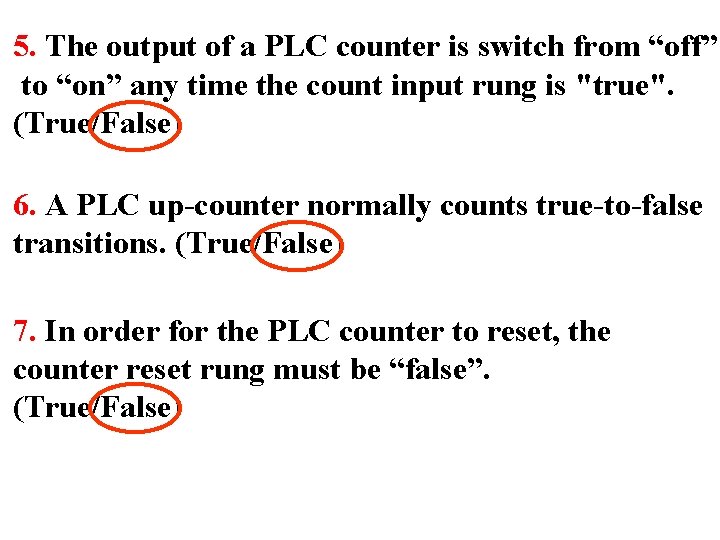

5. The output of a PLC counter is switch from “off” to “on” any time the count input rung is "true". (True/False) 6. A PLC up-counter normally counts true-to-false transitions. (True/False) 7. In order for the PLC counter to reset, the counter reset rung must be “false”. (True/False)

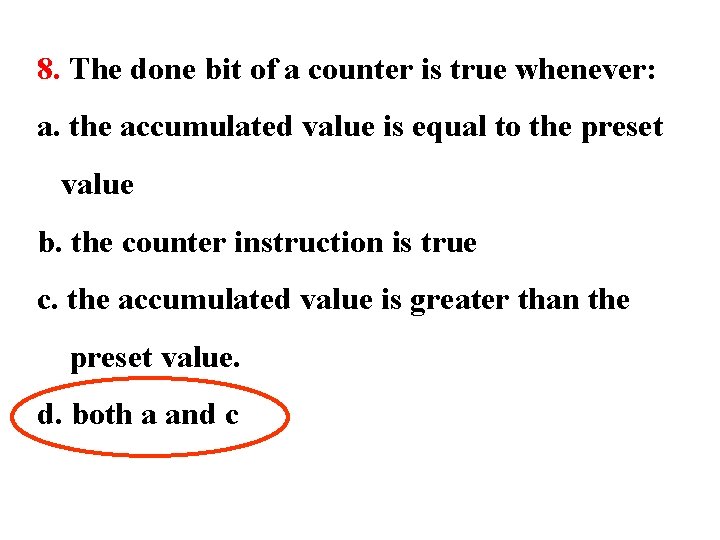

8. The done bit of a counter is true whenever: a. the accumulated value is equal to the preset value b. the counter instruction is true c. the accumulated value is greater than the preset value. d. both a and c

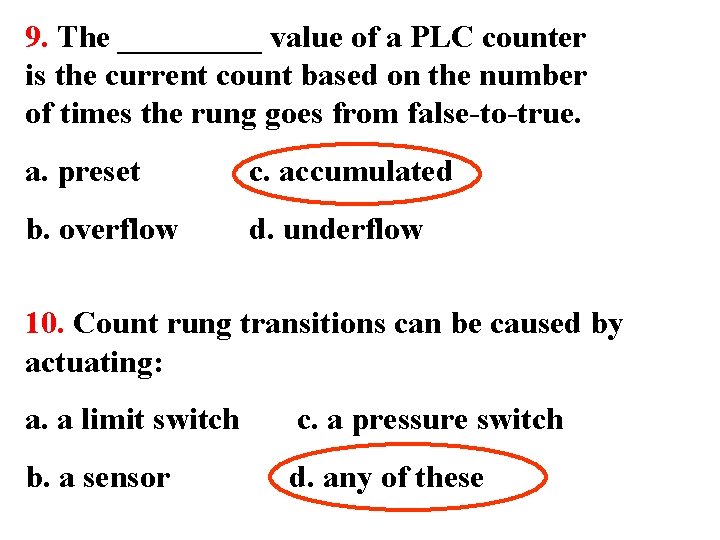

9. The _____ value of a PLC counter is the current count based on the number of times the rung goes from false-to-true. a. preset c. accumulated b. overflow d. underflow 10. Count rung transitions can be caused by actuating: a. a limit switch c. a pressure switch b. a sensor d. any of these

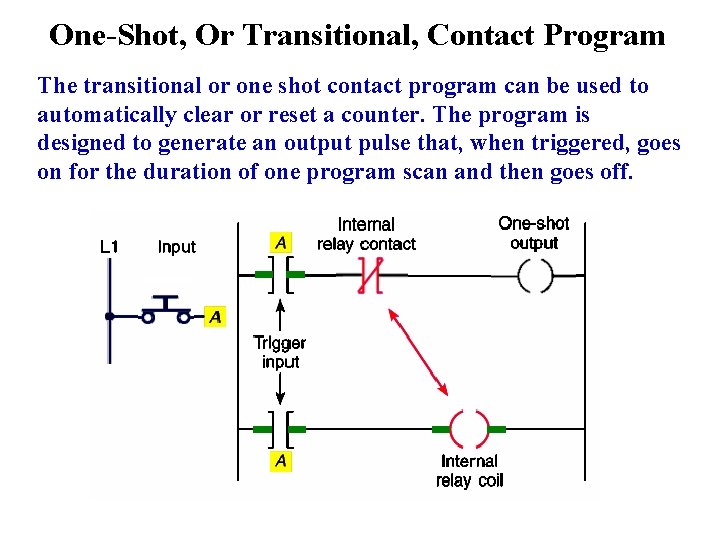

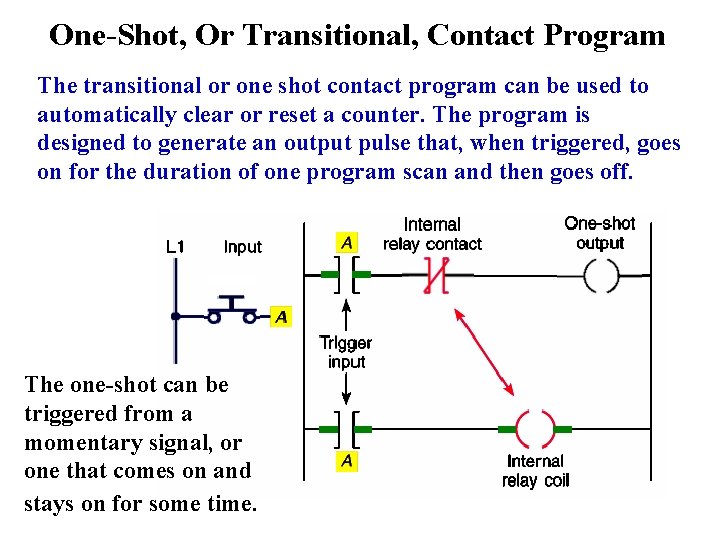

One-Shot, Or Transitional, Contact Program The transitional or one shot contact program can be used to automatically clear or reset a counter. The program is designed to generate an output pulse that, when triggered, goes on for the duration of one program scan and then goes off.

One-Shot, Or Transitional, Contact Program The transitional or one shot contact program can be used to automatically clear or reset a counter. The program is designed to generate an output pulse that, when triggered, goes on for the duration of one program scan and then goes off. The one-shot can be triggered from a momentary signal, or one that comes on and stays on for some time.

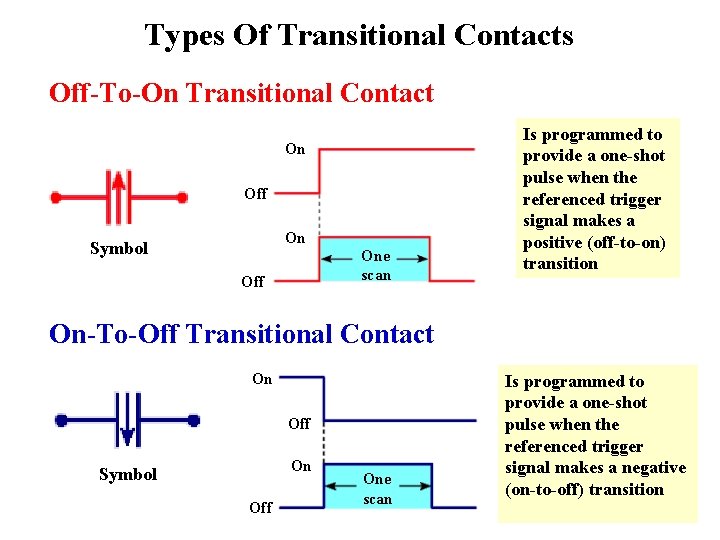

Types Of Transitional Contacts Off-To-On Transitional Contact On Off On Symbol One scan Off Is programmed to provide a one-shot pulse when the referenced trigger signal makes a positive (off-to-on) transition On-To-Off Transitional Contact On Off On Symbol Off One scan Is programmed to provide a one-shot pulse when the referenced trigger signal makes a negative (on-to-off) transition

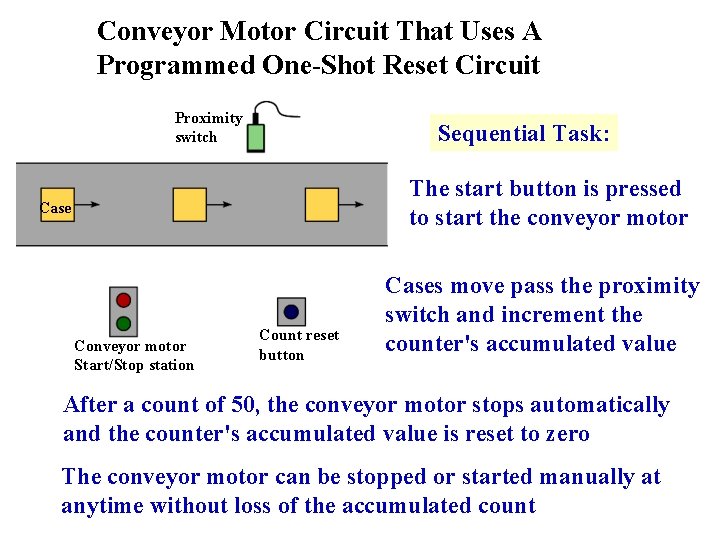

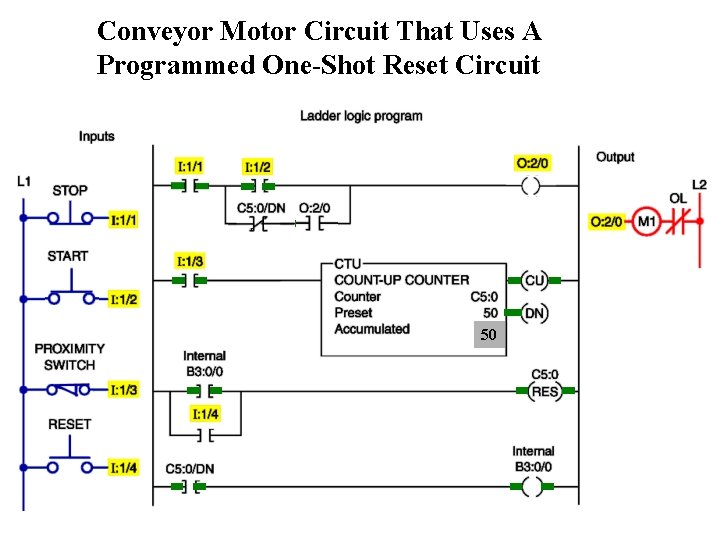

Conveyor Motor Circuit That Uses A Programmed One-Shot Reset Circuit Proximity switch Sequential Task: The start button is pressed to start the conveyor motor Case Conveyor motor Start/Stop station Count reset button Cases move pass the proximity switch and increment the counter's accumulated value After a count of 50, the conveyor motor stops automatically and the counter's accumulated value is reset to zero The conveyor motor can be stopped or started manually at anytime without loss of the accumulated count

Conveyor Motor Circuit That Uses A Programmed One-Shot Reset Circuit 50

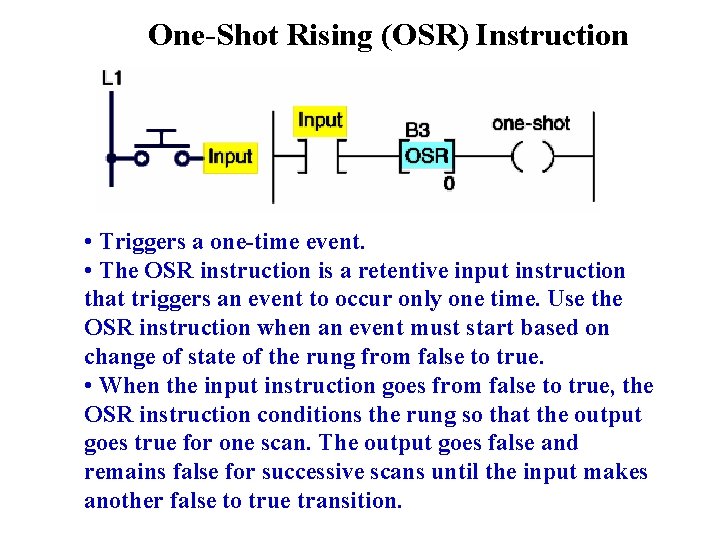

One-Shot Rising (OSR) Instruction • Triggers a one-time event. • The OSR instruction is a retentive input instruction that triggers an event to occur only one time. Use the OSR instruction when an event must start based on change of state of the rung from false to true. • When the input instruction goes from false to true, the OSR instruction conditions the rung so that the output goes true for one scan. The output goes false and remains false for successive scans until the input makes another false to true transition.

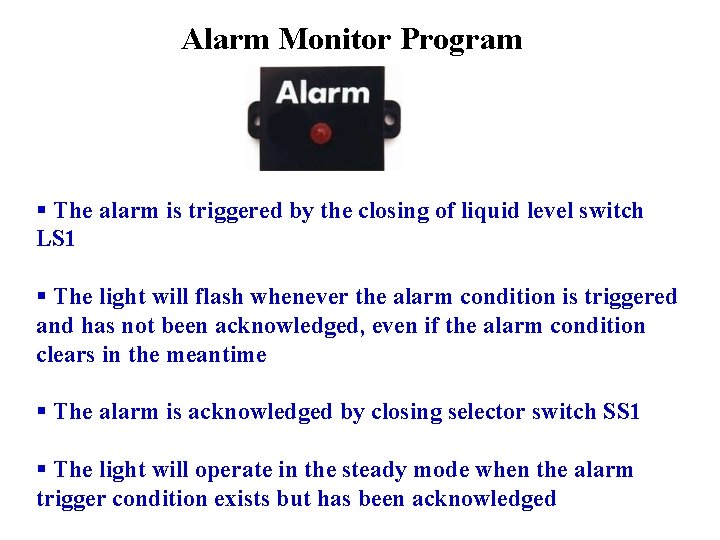

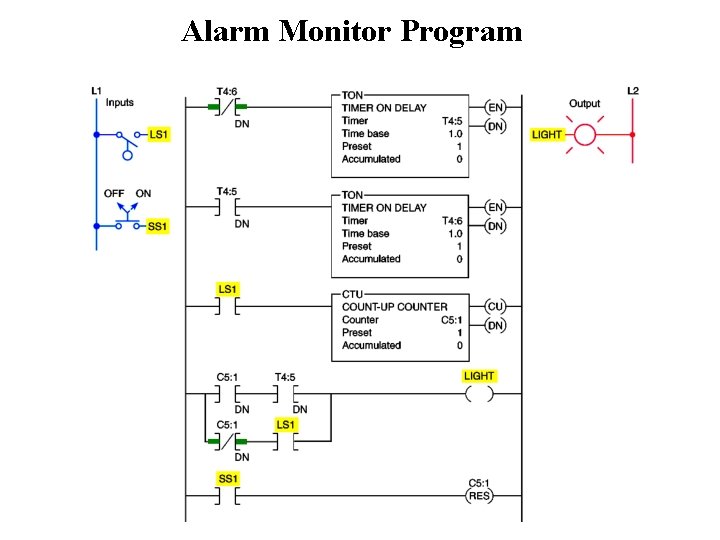

Alarm Monitor Program § The alarm is triggered by the closing of liquid level switch LS 1 § The light will flash whenever the alarm condition is triggered and has not been acknowledged, even if the alarm condition clears in the meantime § The alarm is acknowledged by closing selector switch SS 1 § The light will operate in the steady mode when the alarm trigger condition exists but has been acknowledged

Alarm Monitor Program

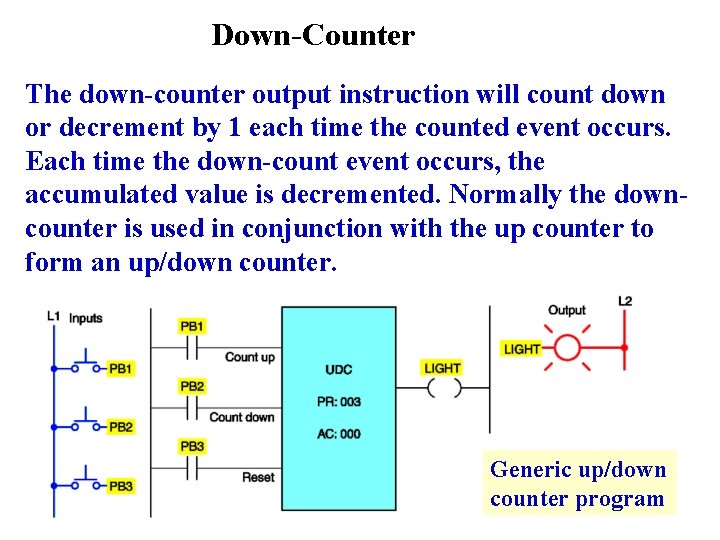

Down-Counter The down-counter output instruction will count down or decrement by 1 each time the counted event occurs. Each time the down-count event occurs, the accumulated value is decremented. Normally the downcounter is used in conjunction with the up counter to form an up/down counter. Generic up/down counter program

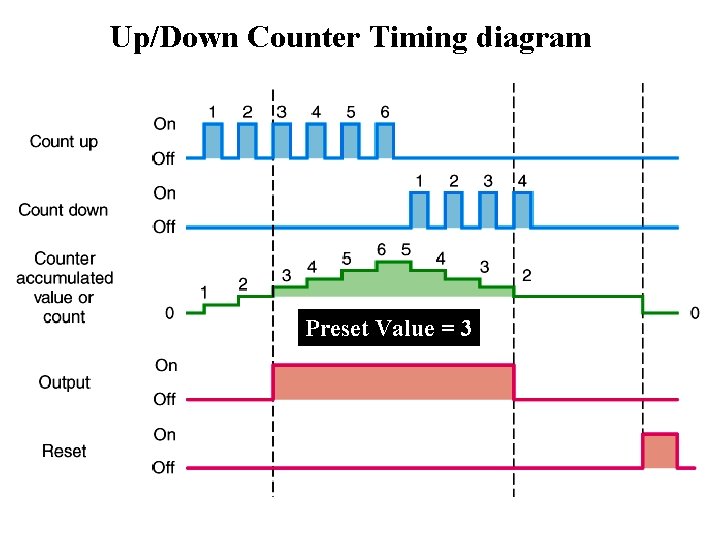

Up/Down Counter Timing diagram Preset Value = 3

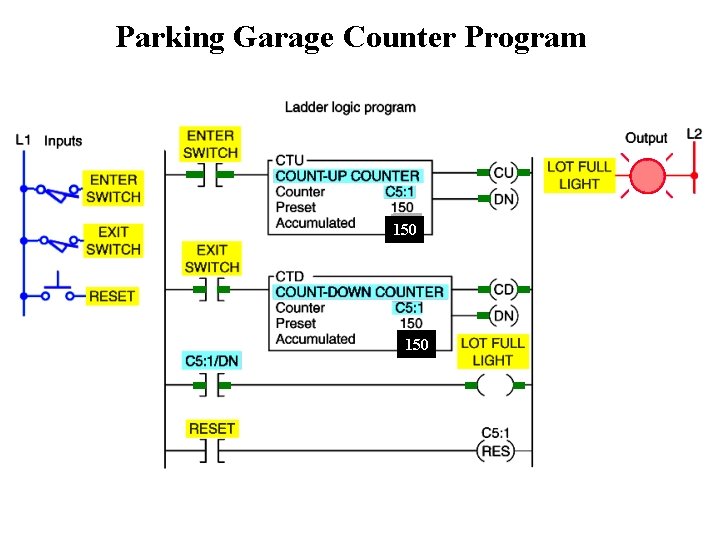

Parking Garage Counter Program Ø As a car enters, it triggers the up-counter output instruction and increments the accumulated count by 1. Ø As a car leaves, it triggers the down-counter output instruction and decrements the accumulated count by 1. Ø Since both the up- and down-counters have the same address, the accumulated value will be the same in both. Ø Whenever the accumulated value equals the preset value, the counter output is energized to light up the Lot Full sign.

Parking Garage Counter Program 50 38 150 50 150 38

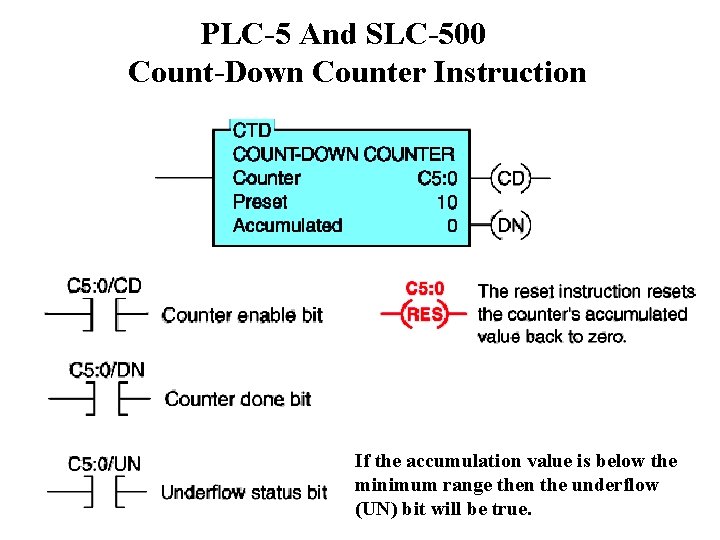

PLC-5 And SLC-500 Count-Down Counter Instruction If the accumulation value is below the minimum range then the underflow (UN) bit will be true.

Up/Down-Counter Program 1 10 When the CTU instruction When the CTD instruction When the accumulated value is true, C 5: 2/CU will be true is true, C 5: 2/CD will be true Input C going true will cause is greater than or equal to the causing output A to be true causing output B to be true both counter instructions to preset value, C 5: 2/DN will be reset true, causing output C to be true

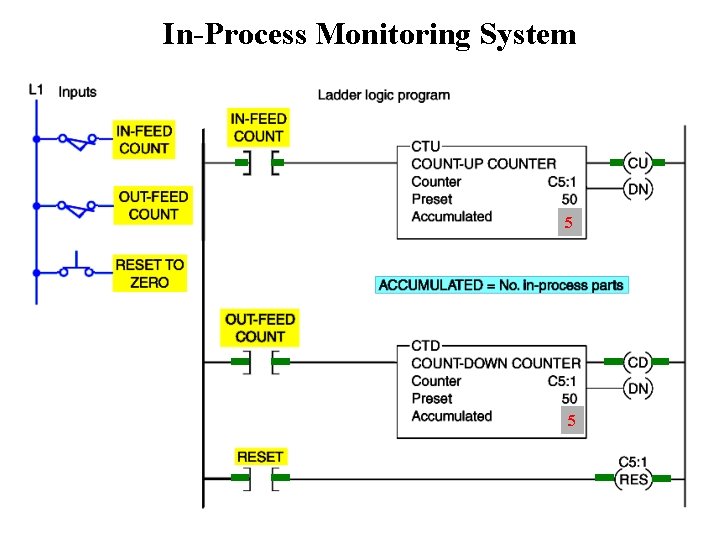

In-Process Monitoring System After processing, finished parts appearing at the out-feed sensor Before start-up, the system is completely empty of parts, and When the operation begins, raw parts move through the in-feed generate down counts, so the accumulated count of the counter is reset manually to zero. sensor, with each part generating an up count. continuously indicates the number of in-process parts.

In-Process Monitoring System 58 58

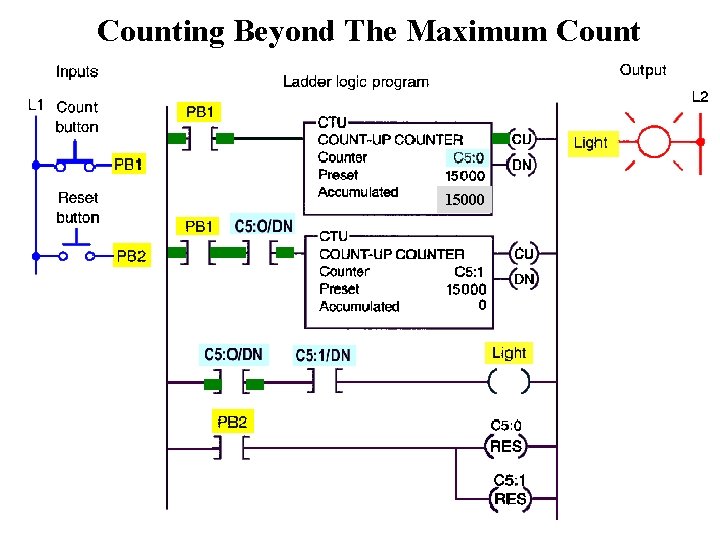

Counting Beyond The Maximum Count 15000

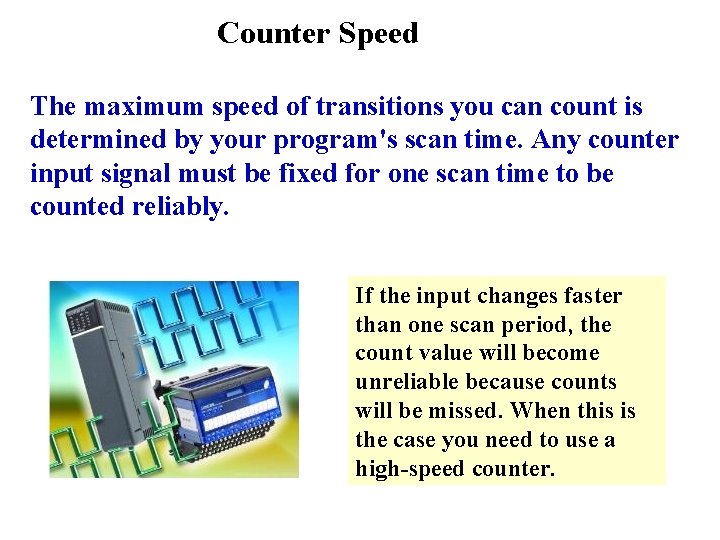

Counter Speed The maximum speed of transitions you can count is determined by your program's scan time. Any counter input signal must be fixed for one scan time to be counted reliably. If the input changes faster than one scan period, the count value will become unreliable because counts will be missed. When this is the case you need to use a high-speed counter.

Cascading Counters Depending on the application, it may be necessary to count events that exceed the maximum number allowable per counter instruction. One way of accomplishing this is by interconnection, or cascading, two counters.

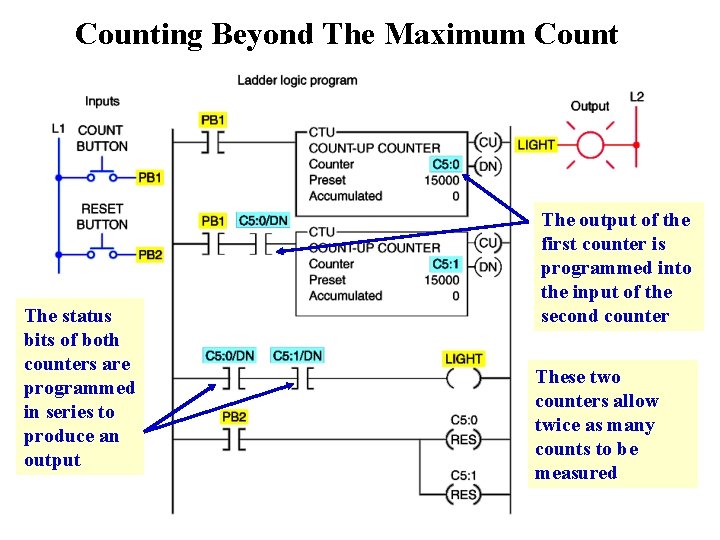

Counting Beyond The Maximum Count The status bits of both counters are programmed in series to produce an output The output of the first counter is programmed into the input of the second counter These two counters allow twice as many counts to be measured

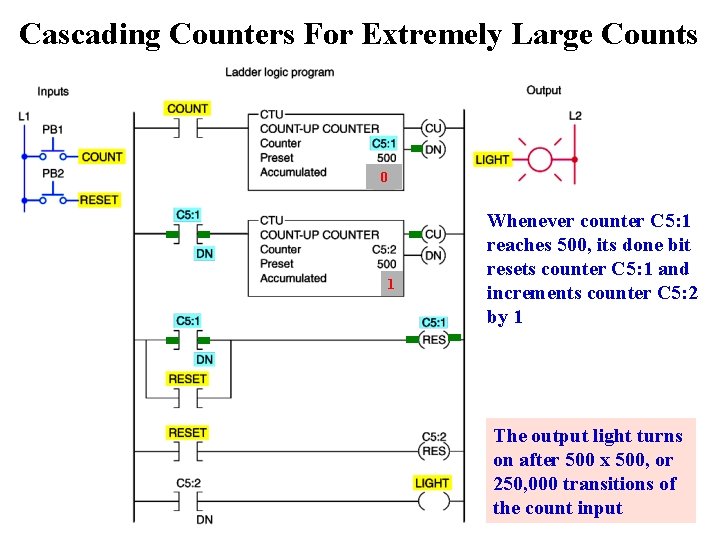

Cascading Counters For Extremely Large Counts 500 0 1 Whenever counter C 5: 1 reaches 500, its done bit resets counter C 5: 1 and increments counter C 5: 2 by 1 The output light turns on after 500 x 500, or 250, 000 transitions of the count input

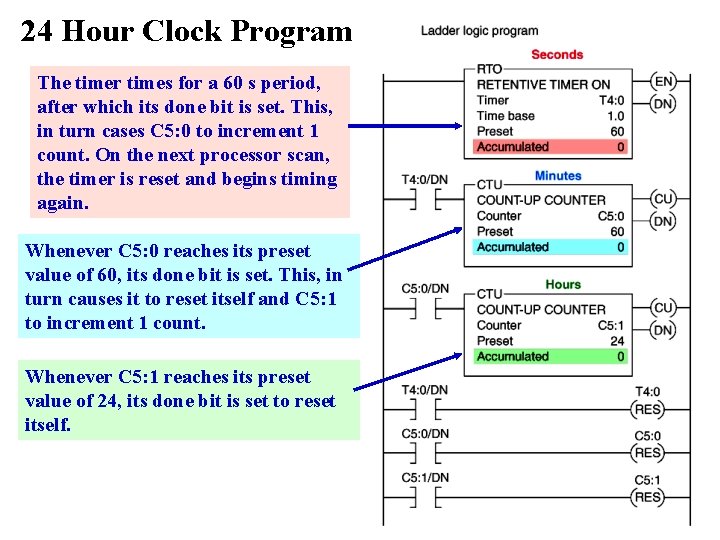

24 Hour Clock Program The timer times for a 60 s period, after which its done bit is set. This, in turn cases C 5: 0 to increment 1 count. On the next processor scan, the timer is reset and begins timing again. Whenever C 5: 0 reaches its preset value of 60, its done bit is set. This, in turn causes it to reset itself and C 5: 1 to increment 1 count. Whenever C 5: 1 reaches its preset value of 24, its done bit is set to reset itself.

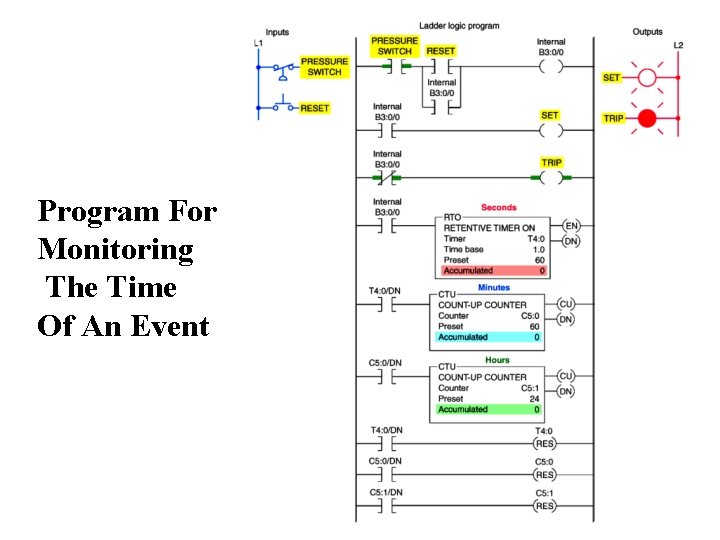

Program For Monitoring The Time Of An Event

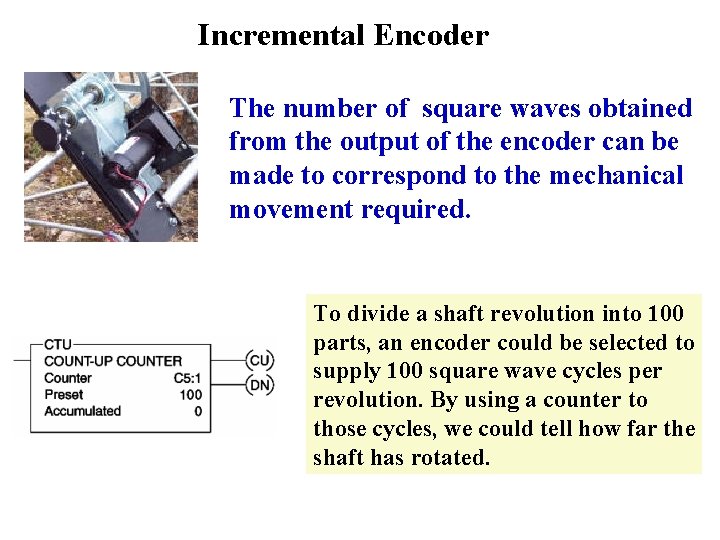

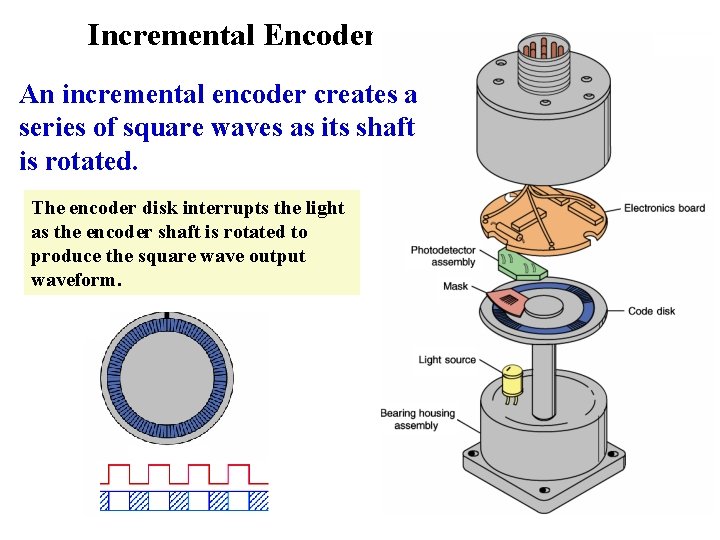

Incremental Encoder An incremental encoder creates a series of square waves as its shaft is rotated. The encoder disk interrupts the light as the encoder shaft is rotated to produce the square wave output waveform.

Incremental Encoder The number of square waves obtained from the output of the encoder can be made to correspond to the mechanical movement required. To divide a shaft revolution into 100 parts, an encoder could be selected to supply 100 square wave cycles per revolution. By using a counter to those cycles, we could tell how far the shaft has rotated.

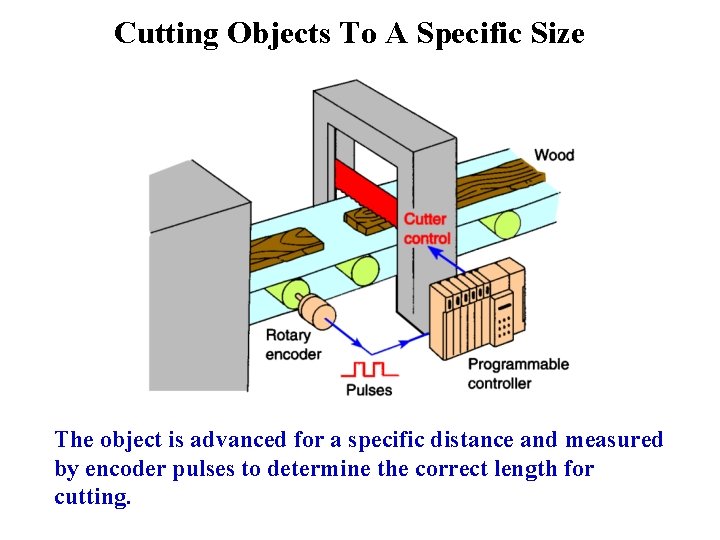

Cutting Objects To A Specific Size The object is advanced for a specific distance and measured by encoder pulses to determine the correct length for cutting.

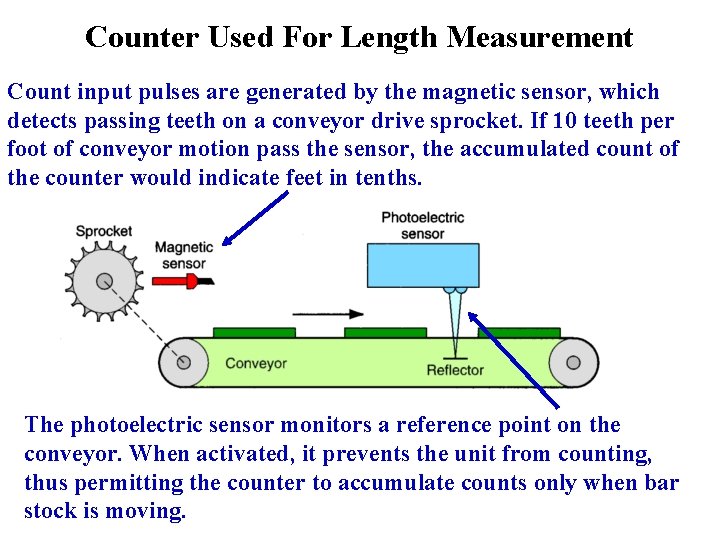

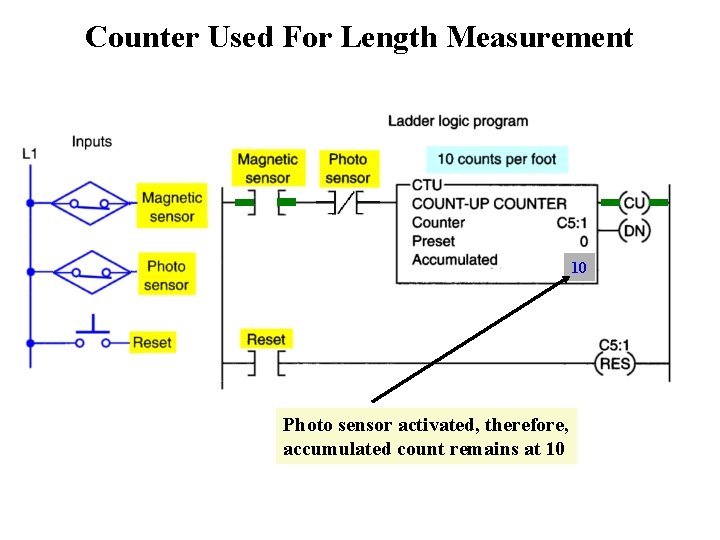

Counter Used For Length Measurement Count input pulses are generated by the magnetic sensor, which detects passing teeth on a conveyor drive sprocket. If 10 teeth per foot of conveyor motion pass the sensor, the accumulated count of the counter would indicate feet in tenths. The photoelectric sensor monitors a reference point on the conveyor. When activated, it prevents the unit from counting, thus permitting the counter to accumulate counts only when bar stock is moving.

Counter Used For Length Measurement 10 Photo sensor activated, therefore, accumulated count remains at 10

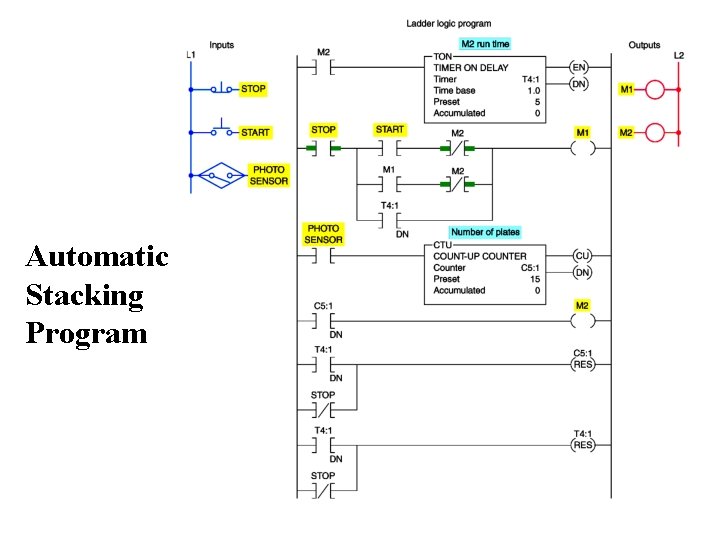

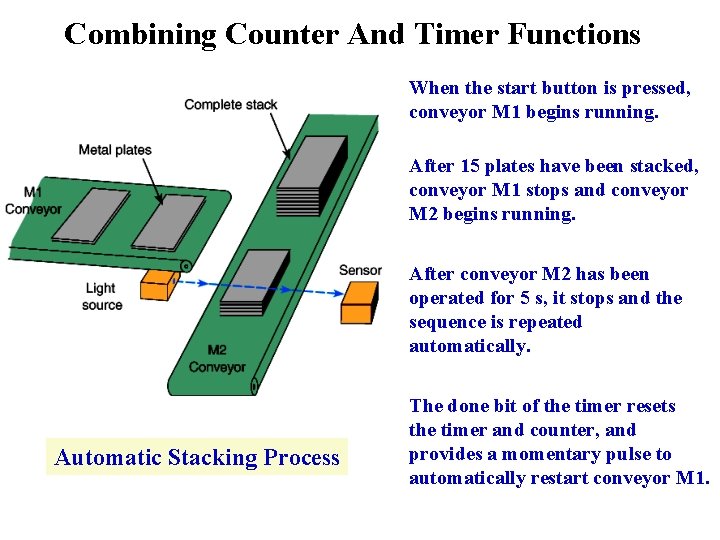

Combining Counter And Timer Functions When the start button is pressed, conveyor M 1 begins running. After 15 plates have been stacked, conveyor M 1 stops and conveyor M 2 begins running. After conveyor M 2 has been operated for 5 s, it stops and the sequence is repeated automatically. Automatic Stacking Process The done bit of the timer resets the timer and counter, and provides a momentary pulse to automatically restart conveyor M 1.

Automatic Stacking Program

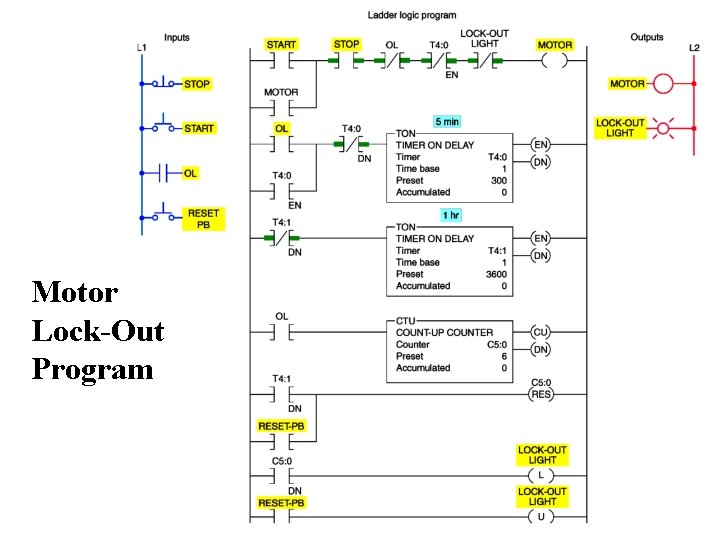

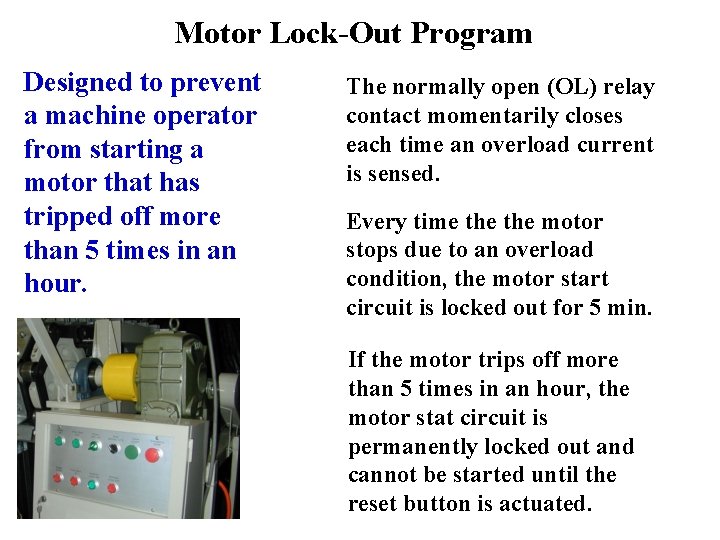

Motor Lock-Out Program Designed to prevent a machine operator from starting a motor that has tripped off more than 5 times in an hour. The normally open (OL) relay contact momentarily closes each time an overload current is sensed. Every time the motor stops due to an overload condition, the motor start circuit is locked out for 5 min. If the motor trips off more than 5 times in an hour, the motor stat circuit is permanently locked out and cannot be started until the reset button is actuated.

Motor Lock-Out Program

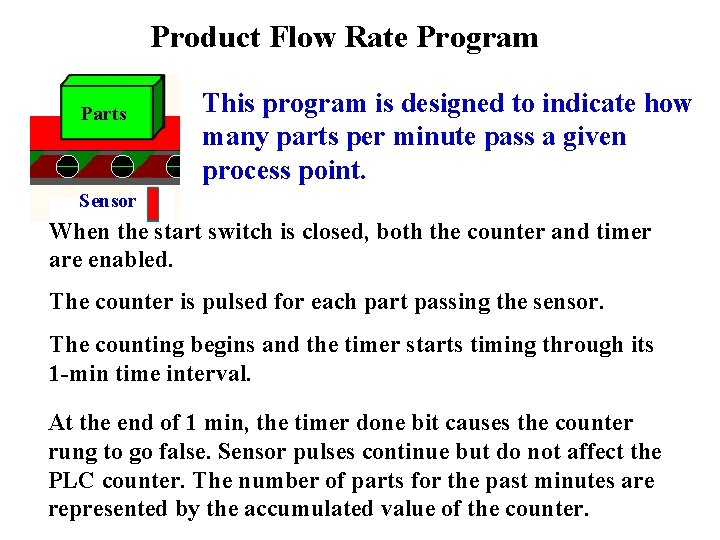

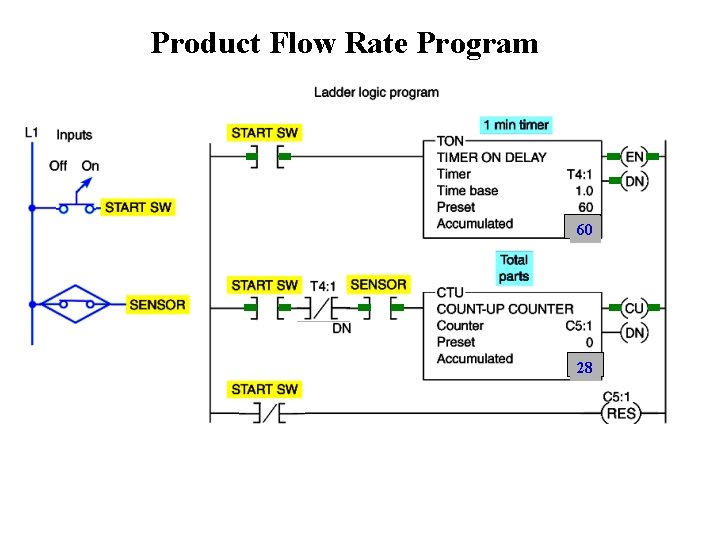

Product Flow Rate Program Parts This program is designed to indicate how many parts per minute pass a given process point. Sensor When the start switch is closed, both the counter and timer are enabled. The counter is pulsed for each part passing the sensor. The counting begins and the timer starts timing through its 1 -min time interval. At the end of 1 min, the timer done bit causes the counter rung to go false. Sensor pulses continue but do not affect the PLC counter. The number of parts for the past minutes are represented by the accumulated value of the counter.

Product Flow Rate Program 60 28

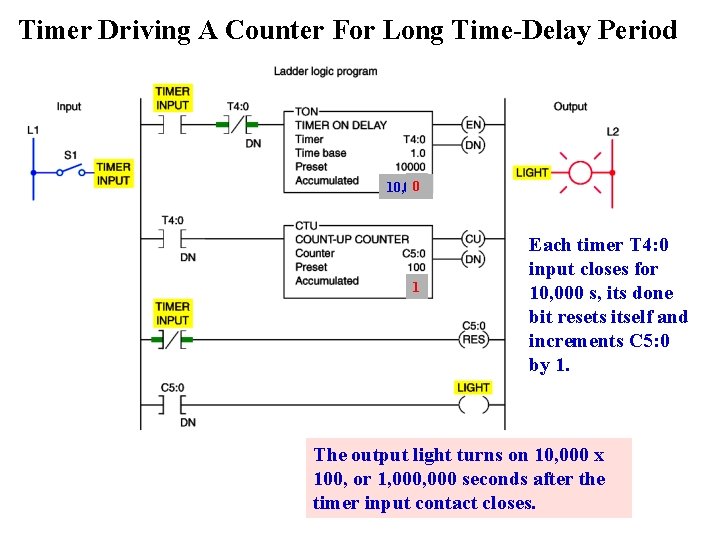

Timer Driving A Counter For Long Time-Delay Period 0 10, 000 1 Each timer T 4: 0 input closes for 10, 000 s, its done bit resets itself and increments C 5: 0 by 1. The output light turns on 10, 000 x 100, or 1, 000 seconds after the timer input contact closes.

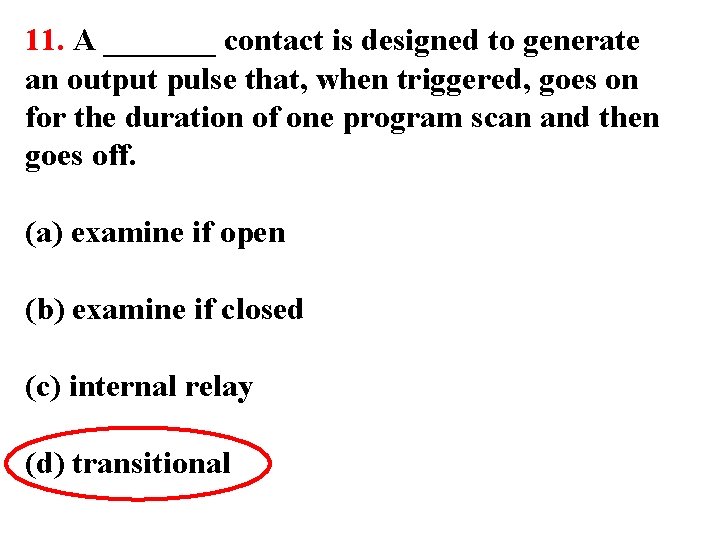

11. A _______ contact is designed to generate an output pulse that, when triggered, goes on for the duration of one program scan and then goes off. (a) examine if open (b) examine if closed (c) internal relay (d) transitional

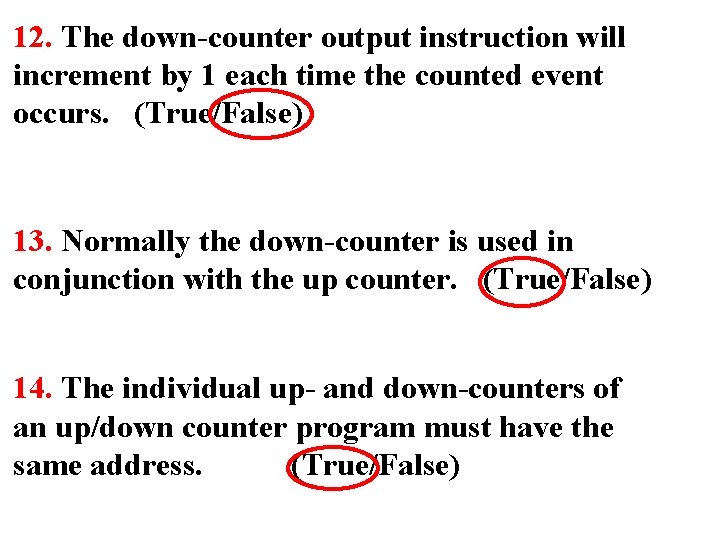

12. The down-counter output instruction will increment by 1 each time the counted event occurs. (True/False) 13. Normally the down-counter is used in conjunction with the up counter. (True/False) 14. The individual up- and down-counters of an up/down counter program must have the same address. (True/False)

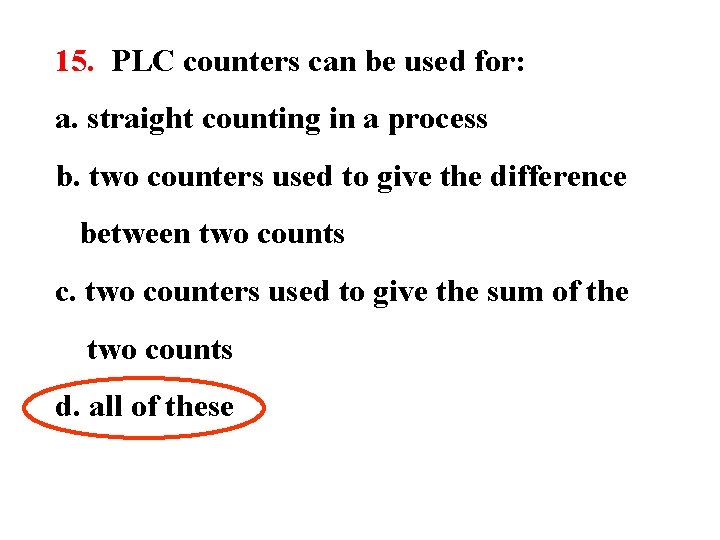

15. PLC counters can be used for: a. straight counting in a process b. two counters used to give the difference between two counts c. two counters used to give the sum of the two counts d. all of these

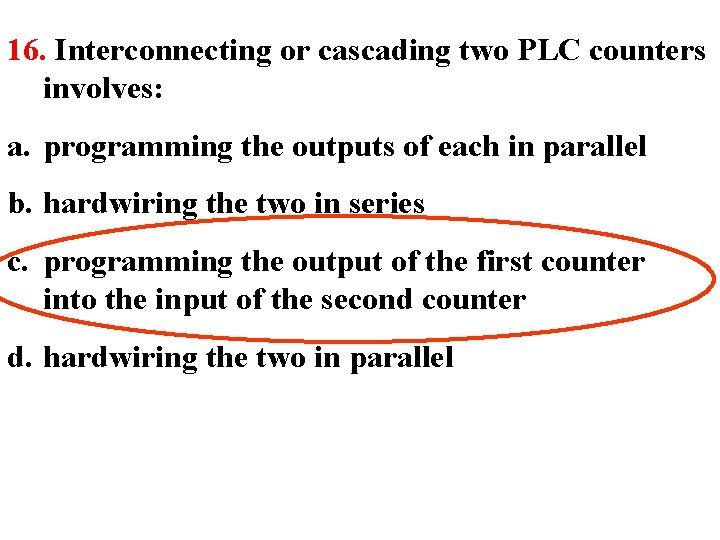

16. Interconnecting or cascading two PLC counters involves: a. programming the outputs of each in parallel b. hardwiring the two in series c. programming the output of the first counter into the input of the second counter d. hardwiring the two in parallel

17. The incremental encoder creates: a. a pure dc waveform b. a sawtooth waveform c. an ac sine waveform d. a series of square waves

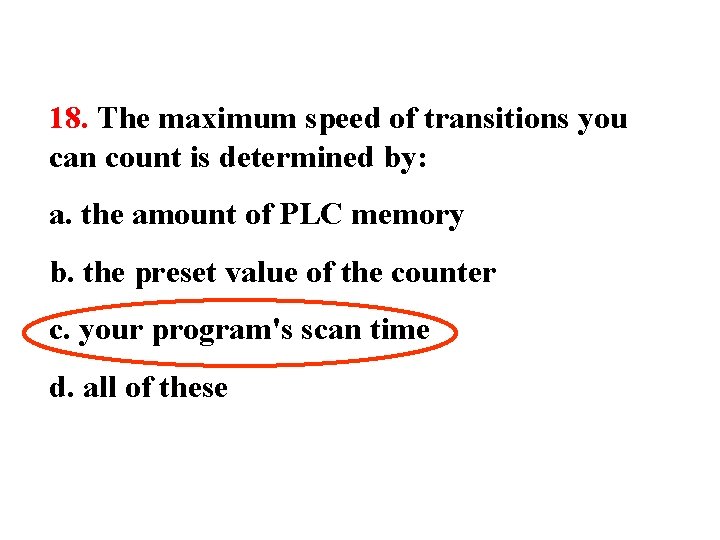

18. The maximum speed of transitions you can count is determined by: a. the amount of PLC memory b. the preset value of the counter c. your program's scan time d. all of these

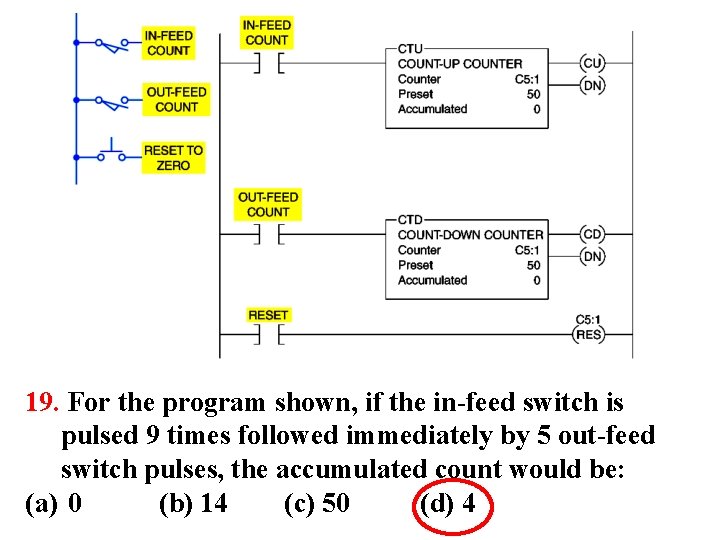

19. For the program shown, if the in-feed switch is pulsed 9 times followed immediately by 5 out-feed switch pulses, the accumulated count would be: (a) 0 (b) 14 (c) 50 (d) 4

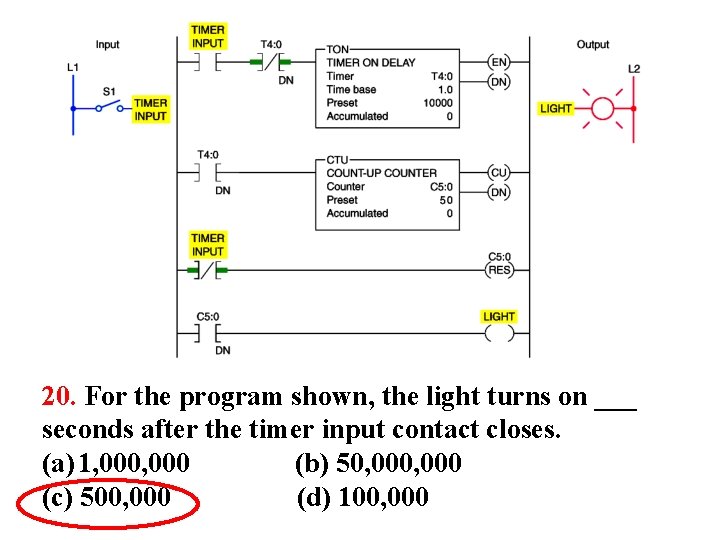

20. For the program shown, the light turns on ___ seconds after the timer input contact closes. (a) 1, 000 (b) 50, 000 (c) 500, 000 (d) 100, 000
