A polynomial time primal network simplex algorithm for minimum cost flows James B. Orlin

A polynomial time primal network simplex algorithm for minimum cost flows James B. Orlin Presented by Tal Kaminker

Reminder – minimum cost flow •

Reminder – minimum cost flow •

overview •

overview •

Non-degeneracy assumption •

Non-degeneracy assumption •

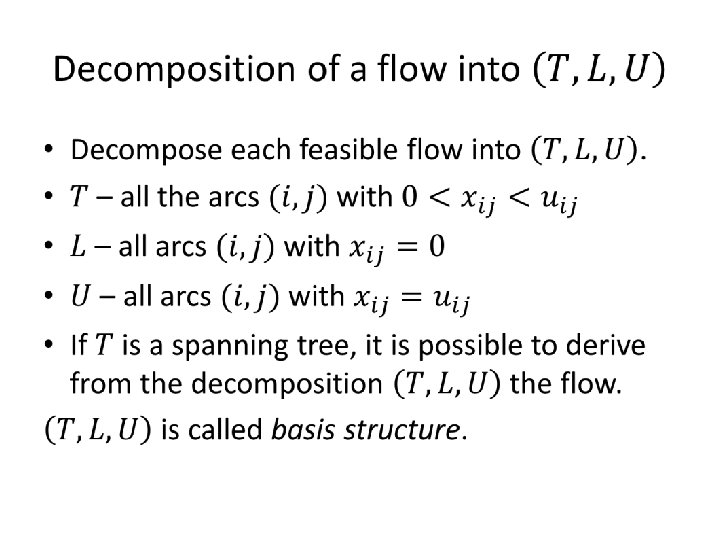

notations •

notations •

The regular network simplex algorithm •

The regular network simplex algorithm •

Potential - reminder •

Potential - reminder •

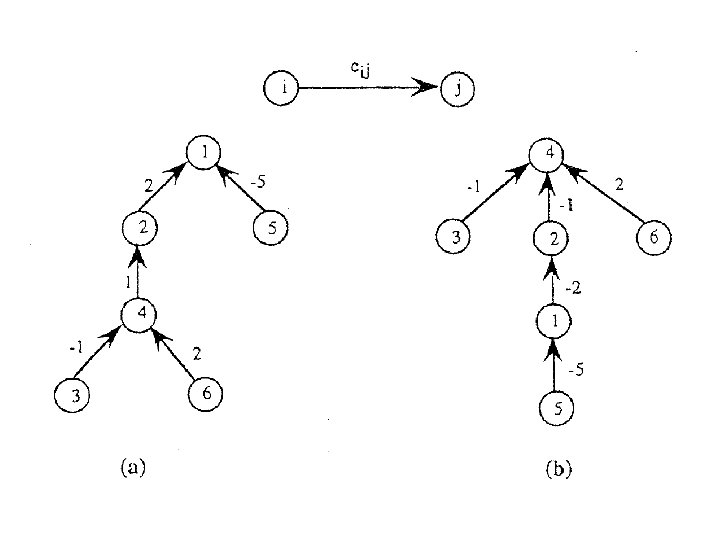

rooted in-tree •

rooted in-tree •

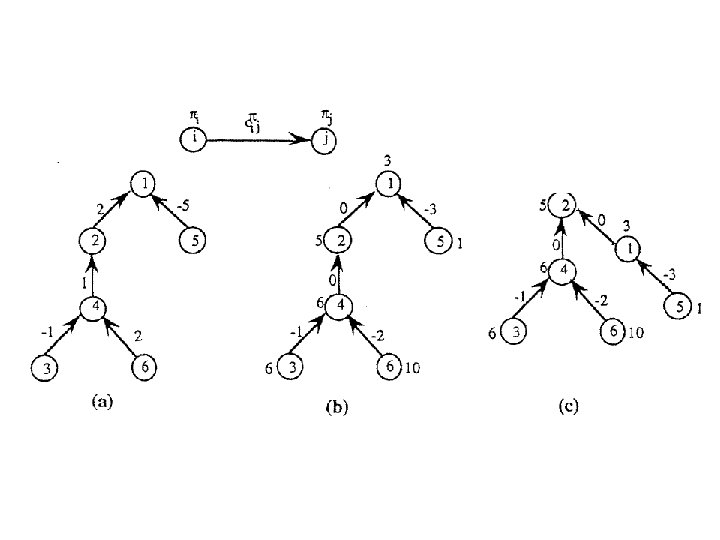

premultipliers •

premultipliers •

premultipliers •

premultipliers •

premultipliers •

premultipliers •

premultipliers •

premultipliers •

premultipliers network simplex algorithm •

premultipliers network simplex algorithm •

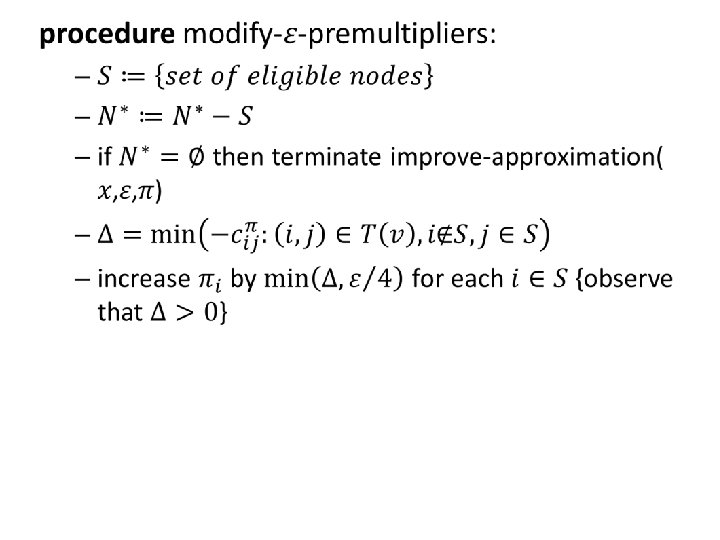

modify-premultipliers •

modify-premultipliers •

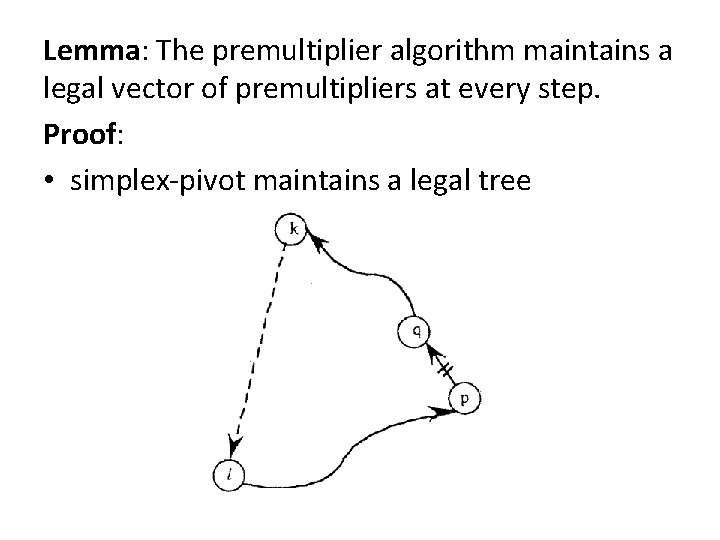

Lemma: The premultiplier algorithm maintains a legal vector of premultipliers at every step. Proof:

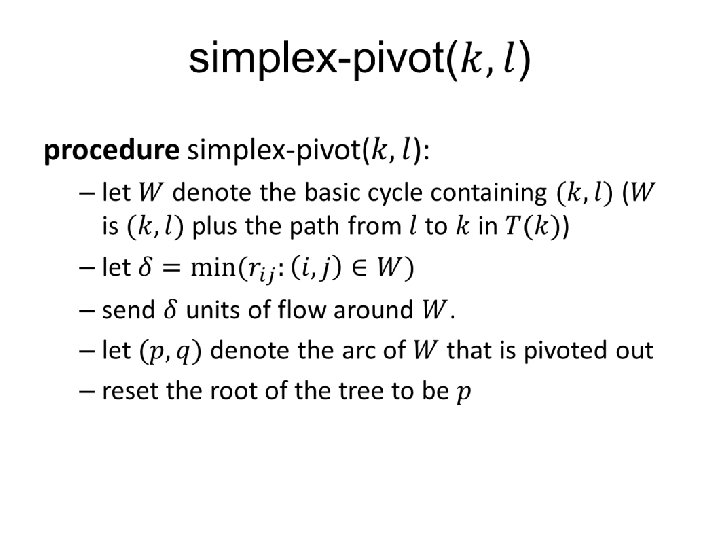

Lemma: The premultiplier algorithm maintains a legal vector of premultipliers at every step. Proof: • simplex-pivot maintains a legal tree

Proof cont. •

Proof cont. •

Proof cont. •

Proof cont. •

premultipliers network simplex algorithm Lemma: Each call of modify-premultipliers strictly increases the number of

premultipliers network simplex algorithm Lemma: Each call of modify-premultipliers strictly increases the number of eligible nodes. Theorem: The premultiplier algorithm is a special case of the network simplex algorithm. As such, it solves the minimum cost flow problem in a finite number iterations.

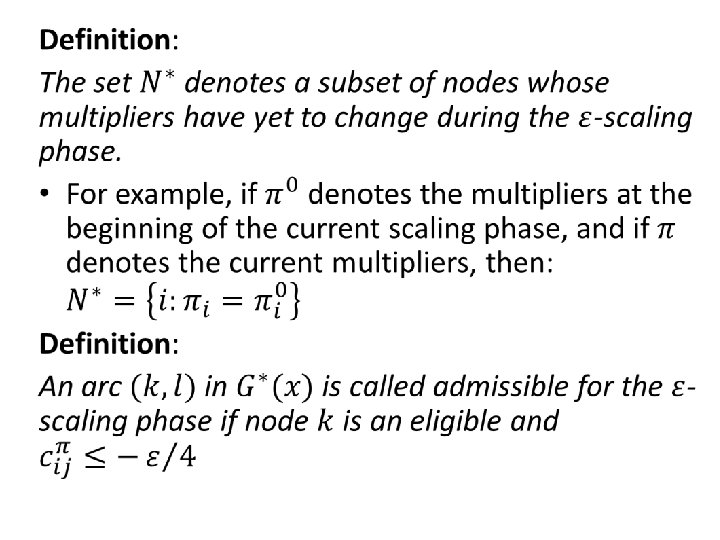

cost-scaling version of premultipliers alg. •

cost-scaling version of premultipliers alg. •

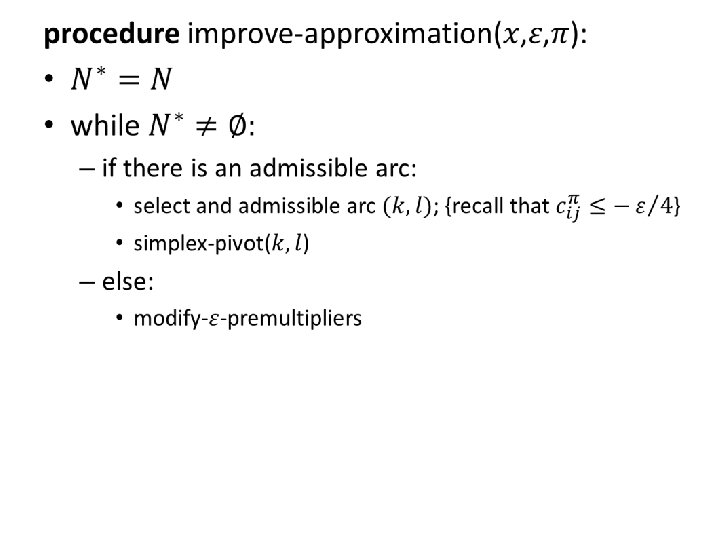

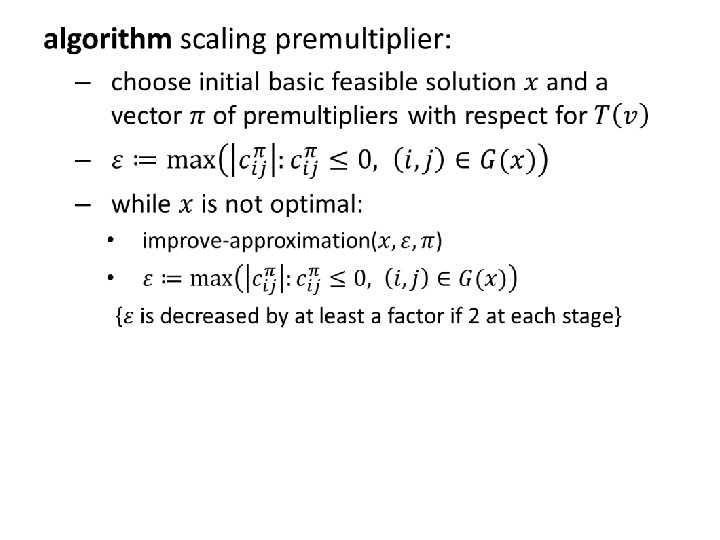

• cost-scaling algorithm

• cost-scaling algorithm

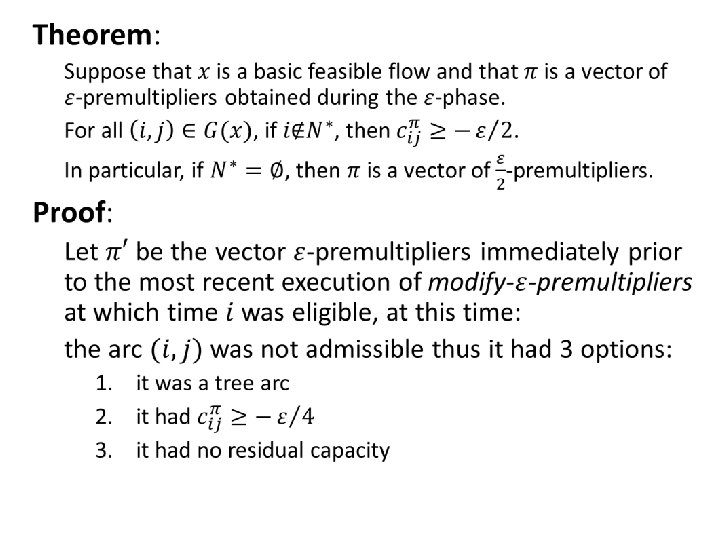

correctness Theorem: The algorithm stops after finite amount of iterations and at the end

correctness Theorem: The algorithm stops after finite amount of iterations and at the end yields the optimal flow Proof: Almost the same as the regular premultiplier algorithm

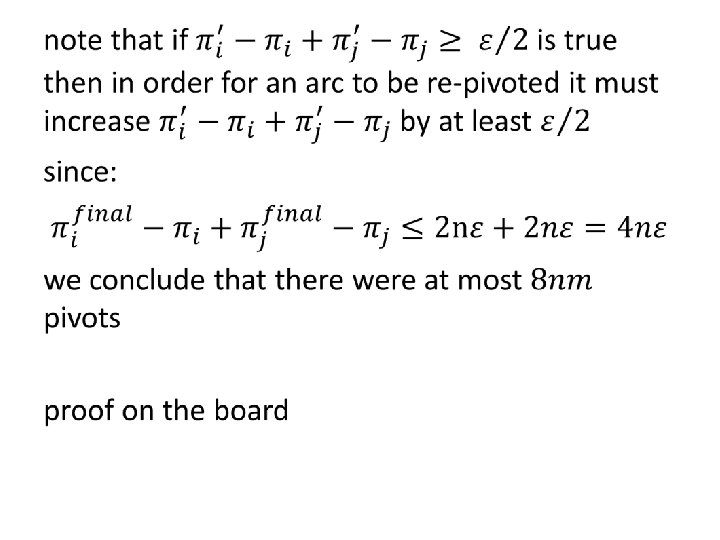

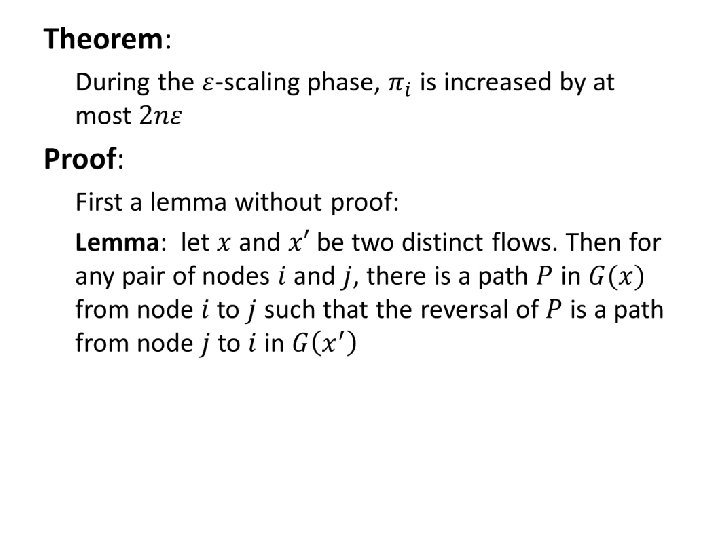

Differences between the two algorithms •

Differences between the two algorithms •

outline •

outline •

Thank you Questions?

Thank you Questions?
