The Metacircular Evaluator Chapter 4 Section 4 1

The Metacircular Evaluator Chapter 4 Section 4. 1 We will not cover every little detail in the lectures, so you MUST read Section 4. 1 in full. http: //mitpress. mit. edu/sicp/fulltext/book-Z-H-26. html 1

High level to Low-level reduction The Programmer The Computer Transformation Program in High Level Language T Command Processing Unit Program in Low Level Machine Language 2

A Compiler Inputs High Level Program C Machine Level Program The Compiler turns the high CPU level program instructions to Instructions understood by the machine. Outputs 3

An Interpreter Inputs I High Level Program CPU Outputs The Interpreter is a machine level program, which interprets and executes the high level program line after line… 4

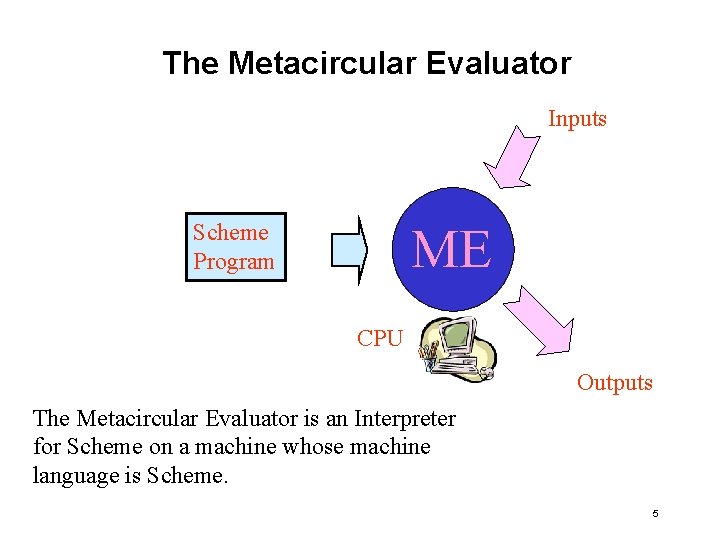

The Metacircular Evaluator Inputs Scheme Program ME CPU Outputs The Metacircular Evaluator is an Interpreter for Scheme on a machine whose machine language is Scheme. 5

The Environment Evaluation Model 1. To evaluate a combination (a compound expression other than a special form), evaluate the subexpressions and then apply the value of the operator subexpression to the values of the operand subexpressions. 2. To apply a compound procedure to a set of arguments, evaluate the body of the procedure in a new environment. To construct this environment, extend the environment part of the procedure object by a frame in which the formal parameters of the procedure are bound to the arguments to which the procedure is applied. 6

The Eval/Apply Cycle 7

The Meta-Circular Evaluator: Eval Special forms (define (eval exp env) (cond ((self-evaluating? exp) ((variable? exp) (lookup-variable-value exp env)) ((quoted? exp) (text-of-quotation exp)) ((assignment? exp) (eval-assignment exp env)) ((definition? exp) (eval-definition exp env)) ((if? exp) (eval-if exp env)) ((lambda? exp) (make-procedure (lambda-parameters exp) (lambda-body exp) env)) ((begin? exp) (eval-sequence (begin-actions exp) env)) ((cond? exp) (eval (cond->if exp) env)) ((application? exp) (apply (eval (operator exp) env) (list-of-values (operands exp) env))) (else (error "Unknown expression type -- EVAL" exp)))) 8

The Meta-Circular Evaluator: Apply (define (apply procedure arguments) (cond ((primitive-procedure? procedure) (apply-primitive-procedure arguments)) ((compound-procedure? procedure) (eval-sequence (procedure-body procedure) (extend-environment (procedure-parameters procedure) arguments (procedure-environment procedure)))) (else (error "Unknown procedure type" procedure)))) 9

3. environment How the Environment Worksmanipulation E 1 • Abstractly – in our environment diagrams: x: 10 E 2 plus: (procedure. . . ) • Concretely – our implementation (as E 2 in SICP) list of variables x plus frame enclosingenvironment list of values 10 procedure 10

Extending the Environment Abstractly • (extend-environment '(x y) (list 4 5) E 2) Concretely E 2 E 3 E 1 E 2 x: 10 plus: (procedure. . . ) E 3 x: y: 4 5 E 1 frame list of variables x y list of values 4 5 11

Extending the environment (define (extend-environment vars vals base-env) (if (= (length vars) (length vals)) (cons (make-frame vars vals) base-env) (if (< (length vars) (length vals)) (error "Too many arguments supplied" vars vals) (error "Too few arguments supplied" vars vals)))) 12

"Scanning" the environment • Look for a variable in the environment. . . • Look for a variable in a frame. . . – loop through the list of vars and list of vals in parallel – detect if the variable is found in the frame • If not found in frame (out of variables in the frame), look in enclosing environment 13

Scanning the environment (define (lookup-variable-value var env) (define (env-loop env) (define (scan vars vals) (cond ((null? vars) (env-loop (enclosing-environment env))) ((eq? var (car vars)) (car vals)) (else (scan (cdr vars) (cdr vals))))) (if (eq? env the-empty-environment) (error "Unbound variable" var) (let ((frame (first-frame env))) (scan (frame-variables frame) (frame-values frame))))) (env-loop env)) (define (enclosing-environment env) (cdr env)) (define (frame-variables frame) (car frame)) (define (frame-values frame) (cdr frame)) 14

If predicate (define (eval-if exp) (if (true? (eval (if-predicate exp))) (eval (if-consequent exp)) (eval (if-alternative exp)))) (define (if-predicate exp) (cadr exp)) (define (if-consequent exp) (caddr exp)) (define (if-alternative exp) (if (not (null? (cdddr exp))) (cadddr exp) 'false)) (define (true? x) (not (eq? x #f))) (define (false? x) (eq? x #f)) 15

Eval-definition (define-variable! var val env) (let ((frame (first-frame env))) (define (scan vars vals) (cond ((null? vars) (add-binding-to-frame! var val frame)) ((eq? var (car vars)) (set-car! vals val)) (else (scan (cdr vars) (cdr vals))))) (scan (frame-variables frame) (frame-values frame)))) (define (eval-definition exp env) (let ((name (cadr exp)) (defined-to-be (eval (caddr exp) env))) (define-variable! name defined-to-be env) ‘undefined)) 16

Defining New Procedures Want to add new procedures For example, a scheme program: (define twice (lambda (x) (+ x x))) (twice 4) (define (lambda? exp) (tag-check exp 'lambda)) (define (eval exp env) (cond … ((lambda? exp) (eval-lambda exp env)) … (else (error "unknown expression " exp)))) 17

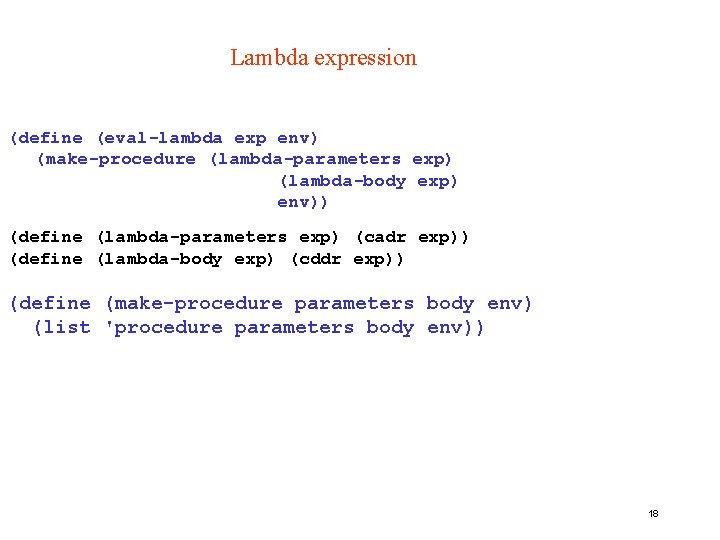

Lambda expression (define (eval-lambda exp env) (make-procedure (lambda-parameters exp) (lambda-body exp) env)) (define (lambda-parameters exp) (cadr exp)) (define (lambda-body exp) (cddr exp)) (define (make-procedure parameters body env) (list 'procedure parameters body env)) 18

Implementation of lambda (eval '(define twice (lambda (x) (+ x x))) GE) (eval '(lambda (x) (+ x x)) GE) (eval-lambda '(lambda (x) (+ x x)) GE) (make-procedure '(x) ’((+ x x)) GE) (list ’procedure '(x) ’((+ x x)) GE symbol procedure symbol + This data symbol structure is x a procedure! 19

Naming the procedure (eval '(define twice (lambda (x) (+ x x))) GE) z 9 true #t + symbol primitive scheme procedure + twice symbol procedure symbol + symbol x 20

Selctors for procedure type (define (compound-procedure? exp) (tag-check exp ‘procedure)) (define (procedure-parameters compound) (cadr compound)) (define (procedure-body compound) (caddr compound)) (define (procedure-env compound) (cadddr compound)) 21

Eval sequence (define (eval-sequence exps env) (cond ((last-exp? exps) (eval (first-exp exps) env)) (else (eval (first-exp exps) env) (eval-sequence (rest-exps) env)))) (define (last-exp? seq) (null? (cdr seq))) (define (first-exp seq) (car seq)) (define (rest-exps seq) (cdr seq)) 22

The Meta-Circular Evaluator: Apply (define (apply procedure arguments) (cond ((primitive-procedure? procedure) (apply-primitive-procedure arguments)) ((compound-procedure? procedure) (eval-sequence (procedure-body procedure) (extend-environment (procedure-parameters procedure) arguments (procedure-environment procedure)))) (else (error "Unknown procedure type" procedure)))) 23

Implementation of apply (1) (eval '(twice 4) GE) (apply (eval 'twice GE) (map (lambda (e) (eval e GE)) '(4))) (apply (list 'procedure '(x) ’((+ x x)) GE) '(4)) (eval-seq ’((+ x x)) (extend-environment '(x) '(4) GE)) (eval '(+ x x) E 1) A E 1 GE names x values 4 24

Implementation of apply (2) (eval '(+ x x) E 1) (apply (eval + E 1) (map (lambda (e) (eval e E 1)) '(x x))) (apply '(primitive #[add]) (list (eval 'x E 1))) (apply '(primitive #[add]) '(4 4)) (scheme-apply #[add] '(4 4)) 8 A E 1 GE names x values 4 25

We Implemented Lexical Scoping Free variables in an application of procedure f get their values from the procedure where f was defined (by the appropriate lambda special form). Also called static binding (define (foo x y) (lambda (z) (+ x y z))) (define bar (foo 1 2)) bar : (lambda (z) (+ 1 2 z)) (bar 3) 26

Lexical Scoping Environment Diagram (define (foo x y) (lambda (z) (+ x y z))) (define bar (foo 1 2)) (bar 3) GE foo: p: x y body: (l (z) (+ x y z)) Will always evaluate (+ x y z) in a new environment inside the surrounding lexical environment. bar: E 1 x: 1 y: 2 p: z body: (+ x y z) E 2 z: 3 (+ x y z) | E 2 => 6 27

Alternative Model: Dynamic Scoping • Dynamic scope: – Look up free variables in the caller's environment rather than the surrounding lexical environment • Example: (define x 11) (define (pooh x) (bear 20)) (define bear (lambda (y) (+ x y))) (pooh 9) => 29 28

Dynamic Scoping Environment Diagram (define x 11) (define (pooh x) (bear 20)) Will evaluate (+ x y) in an environment that extends the caller's environment. (define (bear y) (+ x y)) (pooh 9) GE x: 11 pooh: bear: E 1 p: x body: (bear 20) E 2 x: 9 y: 20 (+ x y) | E 2 => 29 p: y body: (+ x y) 29

A "Dynamic" Version of Scheme (define (d-eval exp env) (cond ((self-evaluating? exp) ((variable? exp) (lookup-variable-value exp env)). . . ((lambda? exp) (make-procedure (lambda-parameters exp) (lambda-body exp) '*no-environment*)) ; CHANGE: no env. . . ((application? exp) (d-apply (d-eval (operator exp) env) (list-of-values (operands exp) env)) ; CHANGE: add env (else (error "Unknown expression -- M-EVAL" exp)))) 30

A "Dynamic" Scheme – d-apply (define (d-apply procedure arguments calling-env) (cond ((primitive-procedure? procedure) (apply-primitive-procedure arguments)) ((compound-procedure? procedure) (eval-sequence (procedure-body procedure) (extend-environment (procedure-parameters procedure) arguments calling-env))) ; CHANGE: use calling env (else (error "Unknown procedure" procedure)))) 31
