Switch Design a unified view of microarchitecture and

Switch Design a unified view of micro-architecture and circuits Giorgos Dimitrakopoulos Electrical and Computer Engineering Democritus University of Thrace (DUTH) Xanthi, Greece dimitrak@ee. duth. gr http: //utopia. duth. gr/~dimitrak

System abstraction Algorithms-Applications Operating System Instruction Set Architecture Processors Memory Microarchitecture Network Register-Transfer Level Logic design Circuits IO Devices • • Processors for computation Memories for storage IO for connecting to the outside world Network for communication and system integration G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 2

Logic, State and Memory • Datapath functions – Controlled by FSMs – Can be pipelined • Mapped on silicon chips – Gate-level netlist from a cell library – Cells built from transistors after custom layout • Memory macros store large chunks of data – Multi-ported register files for fast local storage and access of data G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 3

On-Chip Wires • Passive devices that connect transistors • Many layers of wiring on a chip • Wire width, spacing depends on metal layer – High density local connections, Metal 1 -5 – Upper metal layers > 6 are wider and used for less dense low-delay global connections G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 4

Future of wires: 2. 5 D – 3 D integration Evolution G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 5

Optical wiring • Optical connections will be integrated on chip – Useful when the power of electrical connections will limit the available chip IO bandwidth • A balanced solution that involves both optical and electrical components will probably win G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 6

Let’s send a word on a chip • Sender and receiver on the same clock domain • Clock-domain crossing just adds latency • Any relation of the senderreceiver clocks is exploited – Mesochronous interface – Tightly coupled synchronizers G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 [AMD Zacate] 7

Point-to-point links: Flow control • Synchronous operation – Data on every cycle • Sender can stall Data S S – Data valid signal • Receiver can stall R Data Valid R Data – Stall (back-pressure) signal • Either can stall S S Stall Data Valid R R Stall – Valid and Stall backpressure – Partially decouple Sender and Receiver by adding a buffer at the receive side G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 8

Sender and Receiver decoupled by a buffer • Receiver accepts some of the sender’s traffic even if the transmitted words are not consumed – When to stop? How is buffer overflow avoided? • Let’s see first how to build a buffer • Clock-domain crossing can be tightly coupled within the buffer G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 9

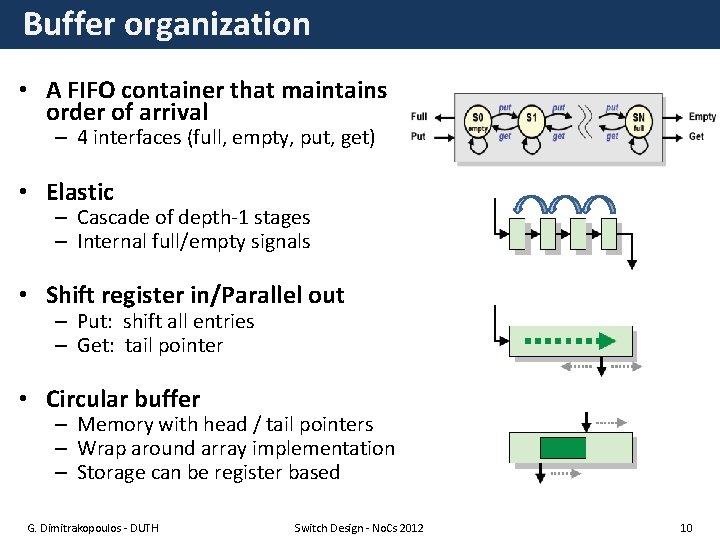

Buffer organization • A FIFO container that maintains order of arrival – 4 interfaces (full, empty, put, get) • Elastic – Cascade of depth-1 stages – Internal full/empty signals • Shift register in/Parallel out – Put: shift all entries – Get: tail pointer • Circular buffer – Memory with head / tail pointers – Wrap around array implementation – Storage can be register based G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 10

Buffer implementation Elastic Shift In/Parallel Out Circular array • The same basic structure evolves with extra read/write flexibility • Multiplexers and head/tail pointers handle data movement and addressing G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 11

Link-level flow control: Backpressure • Link-level flow control provides a closed feedback loop to control the flow of data from a sender to a receiver • Explicit flow control (stall-go) – Receiver notifies the sender when to stop/resume transmission • Implicit flow control (credits) – Sender knows when to stop to avoid buffer overflow • For unreliable channels we need extra mechanisms for detecting and handling transmission errors G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 12

STALL-GO flow control Stall • One signal STALL/GO is sent back to the receiver – STALL=0 (G 0) means that the sender is allowed to send – STALL=1 (STALL) means that the sender should stop – The sender changes its behavior the moment it detects a change to the backpressure signal • Data valid (not shown) is asserted when new data are available G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 13

STALL-GO flow control: example Stall • In-flight words will be dropped or they will replace the ones that wait to be consumed – In every case data are lost • STALL and GO should be connected with the buffer availability of the receiver’s queue – The example assumes that the receiver is stalled or released for other network reasons G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 14

Buffering requirements of STALL&GO Stall If not available the link remains idle • STALL should be asserted early enough – Not drop words in-flight – Timing of STALL assertion guarantees lossless operation • GO should be asserted late enough – Have words ready-to-consume before new words arrive – Correct timing guarantees high throughput • Minimum buffering for full throughput and lossless operation should cover both STALL&GO re-action cycles G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 15

STALL&GO on pipelined and elastic links • Traffic is “blind” during a time interval of Round-trip Time (RTT) – the source will only learn about the effects of its transmission RTT after this transmission has started – the (corrective) effects of a contention notification will only appear at the site of contention RTT after that occurrence G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 16

Credit-based flow control • Sender keeps track of the available buffer slots of the receiver – The number of available slots is called credits – The available credits are stored in a credit counter • If #credits > 0 sender is allowed to send a new word – Credits are decremented by 1 for each transmitted word • When one buffer slot is made free in the receive side, the sender is notified to increase the credit count – An example where credit update signal is registered first at the receive side G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 17

Credit-based flow control: Example Available Credits Credit Update 0* means that credit counter is incremented and decremented at the same cycle (ways and stays at 0) G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 18

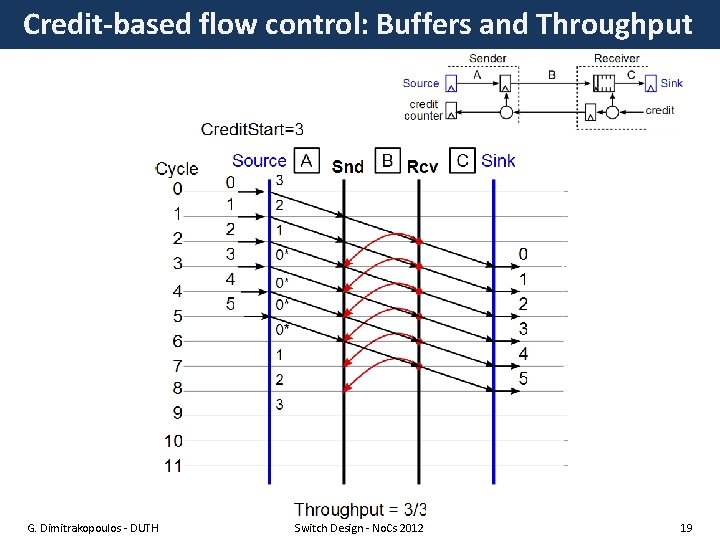

Credit-based flow control: Buffers and Throughput G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 19

Condition for 100% throughput Credit loop • The number of registers that the data and the credits pass through define the credit loop – 100% throughput is guaranteed only when the number of available buffer slots at the receive side equals the registers of the credit loop • Changing the available number of credits can reconfigure maximum throughput at runtime – Credit-based FC is lossless with any buffer size > 0. – Stall and Go FC requires at least one loop extra buffer space than credit-based FC G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 20

Link-level flow control enhancements • Reservation based flow control – Separate control and data functions – Control links race ahead of the data to reserve resources – When data words arrive, they can proceed with little overhead • Speculative flow control – The sender can transmit cells even without sufficient credits • Speculative transmissions occur when no other words with available credits is eligible for transmission – The receiver drops an incoming cell if its buffer is full • For every dropped word a NACK is returned to the sender • Each cell remains stored at the sender until it is positively acknowledged – Each cell may be speculatively transmitted at most once • All retransmissions must be performed when credits are available – The sender consumes credit for every cell sent, i. e. , for speculative as well as credited transmissions. G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 21

Send a large message(packet) • Send long packet of 1 Kbit over a 32 -bit-wire channel – Serialize the message to 16 words of 32 bits – Need 16 cycles for packet transmission • Each packet is transmitted word-by-word – When the output port is free, send the next word immediately – Old fashioned Store-and-forward required the entire packet to reach node before initiating next transmission G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 22

Buffer allocation policies • Each transmitted word needs a free downstream buffer slot – When the output of the downstream node is blocked the buffer will hold the arriving words • How much free buffering is guaranteed before sending the first word of a packet? – Virtual Cut Through (VCT): The available buffer slots equal the words of the packet • Each blocked packet stays together and consumes the buffers of only one node – Wormhole: Just a few are enough • Packet inevitably occupies the buffers of more nodes • Nothing is lost due to flow control backpressure policy G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 23

VCT and Wormhole in graphics G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 24

Link sharing • The number of wires of the link does not increase – One word can be sent on each clock cycle – The channel should be shared • A multiplexer is needed at the output port of the sender • Each packet is sent un-interrupted – Wormhole, and VCT behave this way – Connection is locked for a packet until the tail of the packet passes the output port G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 25

Who drives the select signals? • The arbiter is responsible for selecting which packet will gain access to the output channel – A word is sent if buffer slots are available downstream • It receives requests from the inputs and grants only one of them – Decisions are based on some internal priority state G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 26

Arbitration for Wormhole and VCT • In wormhole and VCT the words of each packet are not mixed with the words of other packets • Arbitration is performed once per packet and the decision is locked at the output for all packet duration • Even if a packet is blocked downstream the connection does not change until the tail of the packet leaves the output port – Buffer utilization managed by flow control mechanism G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 27

How can I place my buffers? G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 28

Let’s add some complexity: Networks Switch Source/Sink Terminal Node • A network of terminal nodes – Each node can be a source or a sink • Multiple point-to-point links connected with switches • Parallel communication between components G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 29

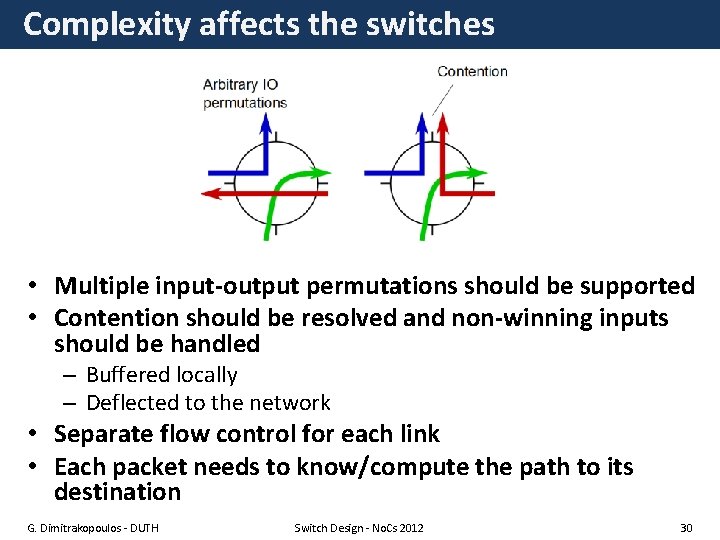

Complexity affects the switches • Multiple input-output permutations should be supported • Contention should be resolved and non-winning inputs should be handled – Buffered locally – Deflected to the network • Separate flow control for each link • Each packet needs to know/compute the path to its destination G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 30

How are the terminal nodes connected to the switch? • More than one terminal nodes can connect per switch – Concentration good for bursty traffic – Local switch isolates local traffic from the main network G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 31

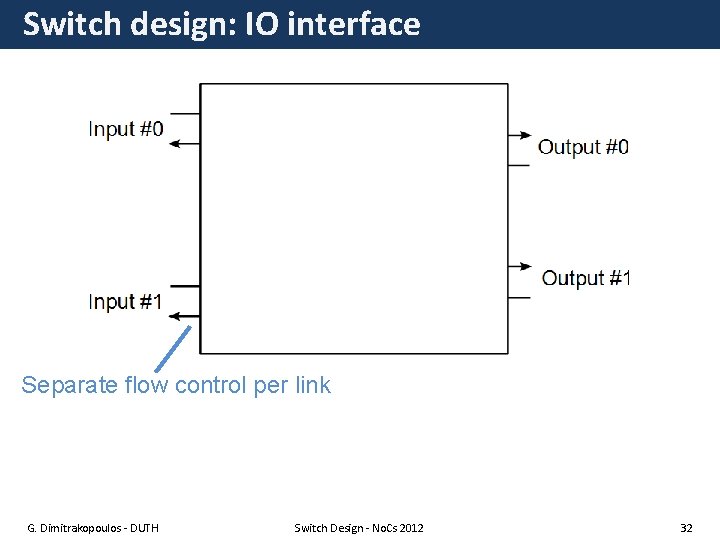

Switch design: IO interface Separate flow control per link G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 32

Switch design: One output port per-output requests Let’s reuse the circuit we already have for one output port G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 33

Switch design: Input buffers Data from input#1 Requests for output #0 • Move buffers to the inputs G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 34

Switch design: Complete output ports • How are the output requests computed? G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 35

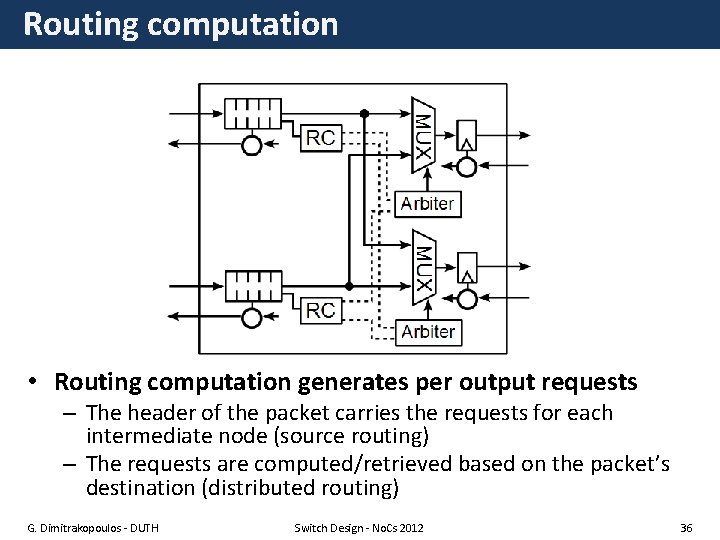

Routing computation • Routing computation generates per output requests – The header of the packet carries the requests for each intermediate node (source routing) – The requests are computed/retrieved based on the packet’s destination (distributed routing) G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 36

Routing logic • Routing logic translates a global destination address to a local output port request – To reach node X from node Y should use output port #2 of Y • A Lookup-table is enough for holding the request vector that corresponds to each destination G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 37

Switch building blocks G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 38

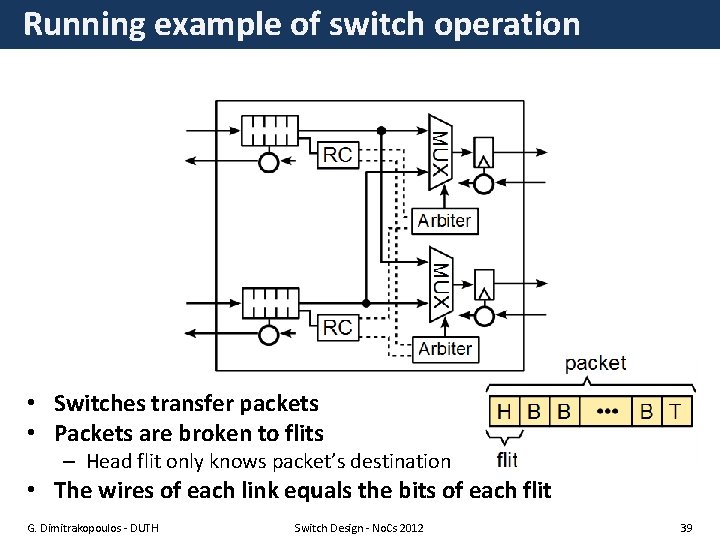

Running example of switch operation • Switches transfer packets • Packets are broken to flits – Head flit only knows packet’s destination • The wires of each link equals the bits of each flit G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 39

Buffer access • Buffer incoming packets per link • Read the destination of the head of each queue G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 40

Routing Computation/Request Generation • Compute output requests and drive the output arbiters G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 41

Arbitration-Multiplexer path setup • Arbitrate per output • The grant signals – Drive the output multiplexers – Notify the inputs about the arbitration outcome G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 42

Switch traversal • Words H will leave the switch on the next clock edge provided they have at least one credit G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 43

Link traversal • Words going to a non-blocked output leave the switch • The grants of a blocked output (due to flow control) are lost – An output arbiter can also stall in case of blocked output G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 44

Head-Of-Line blocking: performance limiter • The FIFO order of the input buffers limit the throughput of the switch – The flit is blocked by the Head-of-Line that lost arbitration – A memory throughput problem G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 45

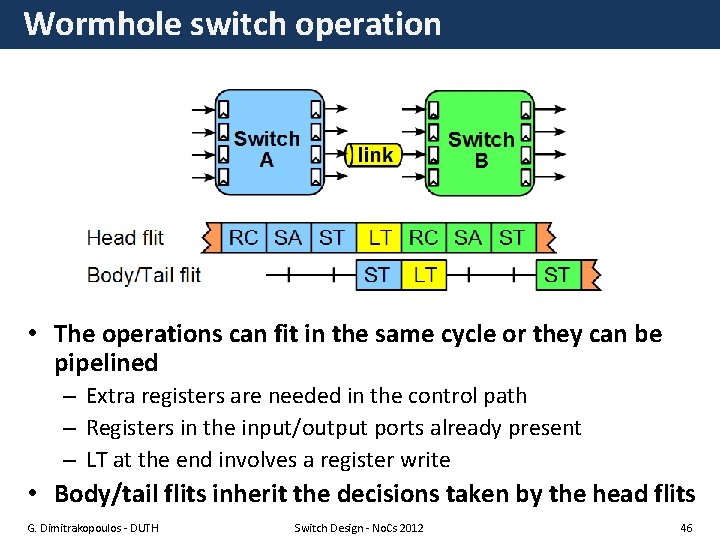

Wormhole switch operation • The operations can fit in the same cycle or they can be pipelined – Extra registers are needed in the control path – Registers in the input/output ports already present – LT at the end involves a register write • Body/tail flits inherit the decisions taken by the head flits G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 46

Look-ahead routing • Routing computation is based only on packet’s destination – Can be performed in switch A and used in switch B • Look-ahead routing computation (LRC) G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 47

Look-ahead routing • The LRC is performed in parallel to SA • LRC should be completed before the ST stage in the same switch – The head flit needs the output port requests for the next switch G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 48

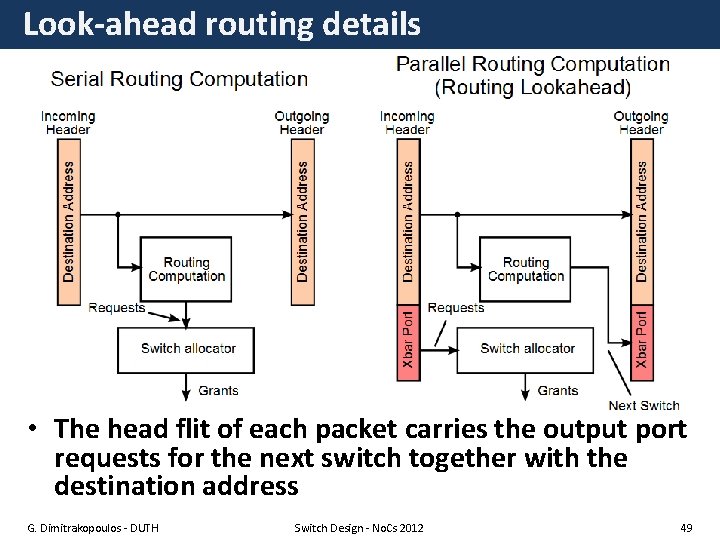

Look-ahead routing details • The head flit of each packet carries the output port requests for the next switch together with the destination address G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 49

Low-latency organizations • Baseline – SA precedes ST (no speculation) • SA decoupled from ST – Predict or Speculate arbiter’s decisions – When prediction is wrong replay all the tasks (same as baseline) • Do in different phases – Circuit switching – Arbitration and routing at setup phase – At transmit only ST is needed since contention is already resolved SA ST LT LRC SA ST LRC LT SA ST LT LRC Setup ST LT Xmit • Bypass switches – Reduce latency under certain criteria – When bypass not enabled same as baseline G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 ST LT 50

Prediction-based ST: Hit Idle state: Output port X+ is selected and reserved 1 st cycle: Incoming flit is transferred to X+ without RC and SA 1 st cycle: RC is performed The prediction is correct! 2 nd cycle: Next flit is transferred to X+ without RC and SA PREDICTOR X+ X- ARBITER Correct X+ Buffer Crossbar is reserved X- Y+ Y+ Y- YCrossbar G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 51

Prediction-based ST: Miss Idle state: Output port X+ is selected and reserved 1 st cycle: Incoming flit is transferred to X+ without RC and SA 1 st cycle: RC is performed The prediction is wrong! (X- is correct) Kill signal to X+ is asserted 2 nd/3 rd cycle: Dead flit is removed; retransmission to the correct port KILL PREDICTOR X+ ARBITER Buffer Dead flit X+ X- X-Correct Y+ Y+ Y- @Miss: tasks replayed as the baseline case Y- Crossbar G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 52

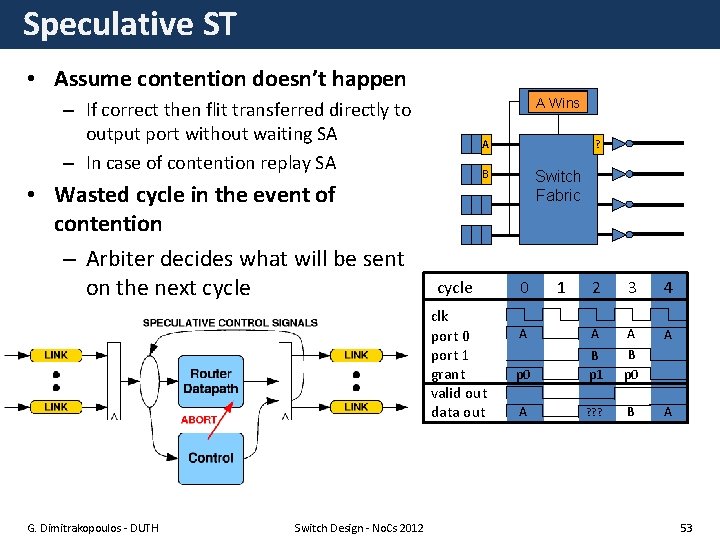

Speculative ST • Assume contention doesn’t happen Control B Wins A – If correct then flit transferred directly to output port without waiting SA – In case of contention replay SA • Wasted cycle in the event of contention – Arbiter decides what will be sent on the next cycle A B cycle clk port 0 port 1 grant valid out data out G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 ? Switch Fabric 0 1 2 3 4 A A p 0 B p 1 B p 0 A ? ? ? B A 53

XOR-based ST • Assume contention never happens – If correct then flit transferred directly to output port – If not then bitwise=XOR all the competing flits and send the encoded result to the link – At the same time arbitrate and mask cycle (set to 0) the winning input clk – Repeat on the next cycle port 0 • In the case of contention encoded outputs (due to contention) are resolved at the receiver – Can be done at the output port of the switch too G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 B Wins Control A A^B B Switch Fabric 0 port 1 grant valid out data out 1 2 3 A A A p 0 B p 1 A B^A No Contention 4 A Contention 54

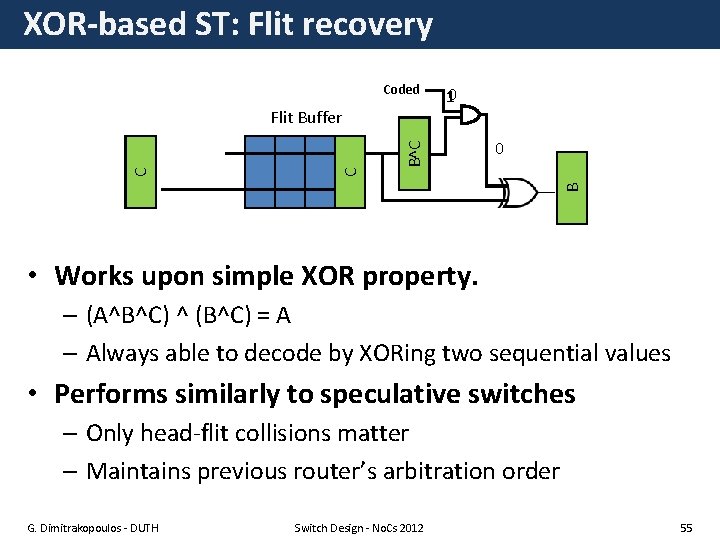

XOR-based ST: Flit recovery B^C A^B^C B^C A C Flit Buffer 10 0 A B Coded • Works upon simple XOR property. – (A^B^C) ^ (B^C) = A – Always able to decode by XORing two sequential values • Performs similarly to speculative switches – Only head-flit collisions matter – Maintains previous router’s arbitration order G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 55

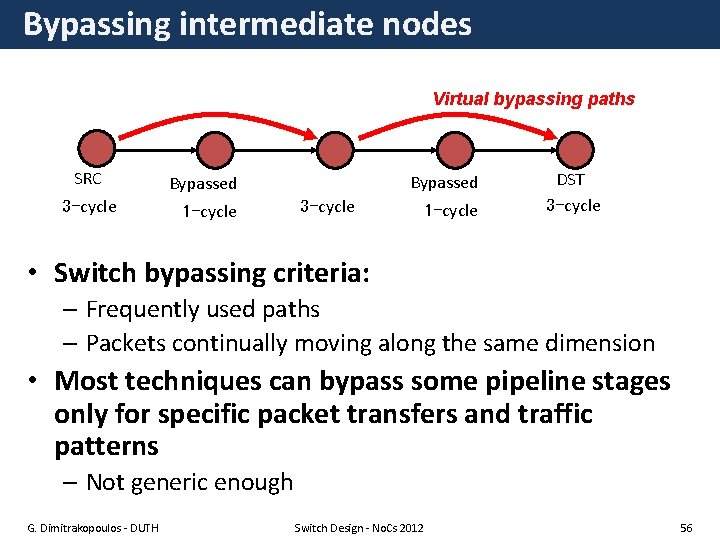

Bypassing intermediate nodes Virtual bypassing paths SRC 3 -cycle Bypassed 3 -cycle 1 -cycle DST 3 -cycle • Switch bypassing criteria: – Frequently used paths – Packets continually moving along the same dimension • Most techniques can bypass some pipeline stages only for specific packet transfers and traffic patterns – Not generic enough G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 56

Circuit switching • Network traversal done in phases • Path reservation (multiple switch allocations) is done all at once • Switch traversal finds no contention – Data buffers are avoided • Part of the reserved and unutilized path is needlessly blocked G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 57

Speculation-free low-latency switches • Prediction and speculation drawbacks – On miss-prediction(speculation) the tasks should be replayed – Latency not always saved. Depends on network conditions • Merged Switch allocation and Traversal (SAT) – Latency always saved – no speculation – Delay of SAT smaller than SA and ST in series G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 58

Arbitration and Multiplexing • Stop thinking arbitration and multiplexing separately • One new algorithm that fits every policy – Generic priority-based solution that works even when arbitration and multiplexing are done separately G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 59

Round-robin arbitration • Round-robin arbitration – Most commonly used – Start from the High-Priority position and grant the first active request you find after searching all cyclically all requests – Granted input becomes lowest-priority for the next arbitration • Cyclic search found in many other algorithms G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 60

Let’s think out of the box • Transform each request and priority bit to a 2 bit unsigned arithmetic symbol – The request is the MSBit • Round-robin arbitration is equivalent to finding the maximum symbol that lies in the rightmost position • Cyclic search disappears G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 61

Working examples • Maximum selection is done via a tree structure – The rightmost maximum symbol always wins • Direction flags (L, R) always point to the direction of the winning input – Direction flags form the path to the winning input G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 62

Why not switch data in parallel? G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 63

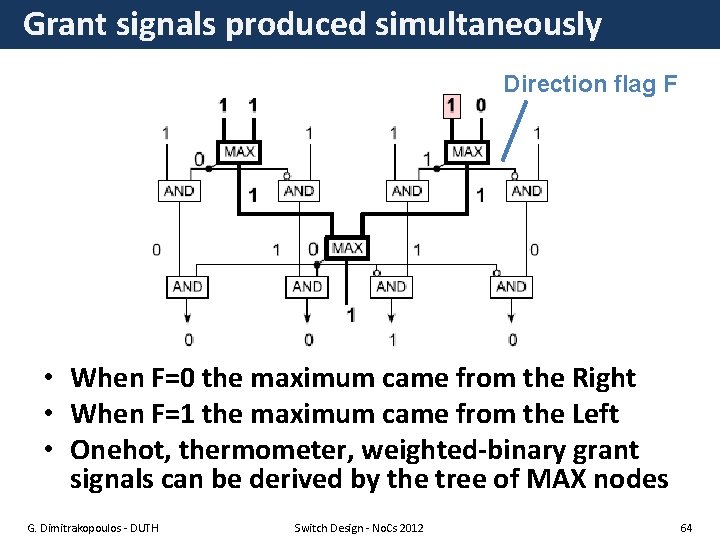

Grant signals produced simultaneously Direction flag F • When F=0 the maximum came from the Right • When F=1 the maximum came from the Left • Onehot, thermometer, weighted-binary grant signals can be derived by the tree of MAX nodes G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 64

Wormhole/VCT MARX-based switches G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 65

SRAM-based input buffers • Buffer reads and writes are treated as separate tasks – Buffer write occurs always after link traversal • A separate read and write port is required for maximum performance G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 66

Speculative Buffer Read • Buffer read occurs after SA for Head flits (no speculation) • Buffer read can occur in parallel to SA (speculation) – HOL Head flit is read out before knowing if it received a grant – Once SA has finished speculation is removed for the rest flits G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 67

Pipelining and credits • Credit loop begins from upstream SA stage • Deep pipelining increases the buffering requirements for 100% throughput – Elastic pipeline stages that can stall independently can partially alleviate the problem G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 68

Bufferless • Assume there are no buffers – When a packet loses switch allocation it is: • Dropped • Deflected to any free output • Deflection spreads contention in space (in the network) – Allocation solves contention at each time slot but spreads it in time (next time slots) • Deflection (or misrouting) can occur in buffered switches too – Rotary router G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 69

Slicing Dimension slicing Port slicing • Introduces hierarchy inside the switch • When traffic is concentrated to certain outputs the switch suffers high performance penalties • Intermediate buffers partially alleviate the loss G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 70

How can we increase throughput? Green flow is blocked until red passes the switch. Physical channel left idle G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 71

Virtual Channels • Decouple output port allocation from next-hop buffer allocation • Contention present on: – Output links (crossbar output port) – Input port of the crossbar • Contention is resolved by time sharing the resources – Mixing words of two packets on the same channel – The words are on different virtual channels – Separate buffers at the end of the link guarantee no interference between the packets G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 72

Virtual channels • Virtual-channel support does not mean extra links – They act as extra street lanes – Traffic on each lane is time shared on a common channel • Provide dedicated buffer space for each virtual channel – Decouple channels from buffers – Interleave flits from different packets • “The Swiss Army Knife for Interconnection Networks” – Prevent deadlocks – Reduce head-of-line blocking – Provide Qo. S G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 73

Datapath of a VC-based switch • Separate buffer for each VC • Separate flow control signals (credits) for each VC • The radix of the crossbar can stay the same • Input VCs can share a common input port of the crossbar – On each cycle at most one VC will receive a new word G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 74

Per-packet operation of a VC-based switch • A switch connects input VCs to output VCs Output VCs Input VCs • Routing computation (RC) determines the output port – May restrict the output VCs that can be used • An input VC should allocate first an output VC – Allocation is performed by the VC allocator (VA) • RC and VA are done per packet on the head flits and inherited to the rest flits of the packet G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 75

Per-flit operation of a VC-based switch • Flits with an allocated output VC Output VCs fight for an output port Input VCs – Output port allocated by switch allocator – The VCs of the same input share a common input port of the crossbar – Each input has multiple requests (equal to the #input VCs) • The flit leaves the switch provided that credits are available downstream – Credits are counted per output VC G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 76

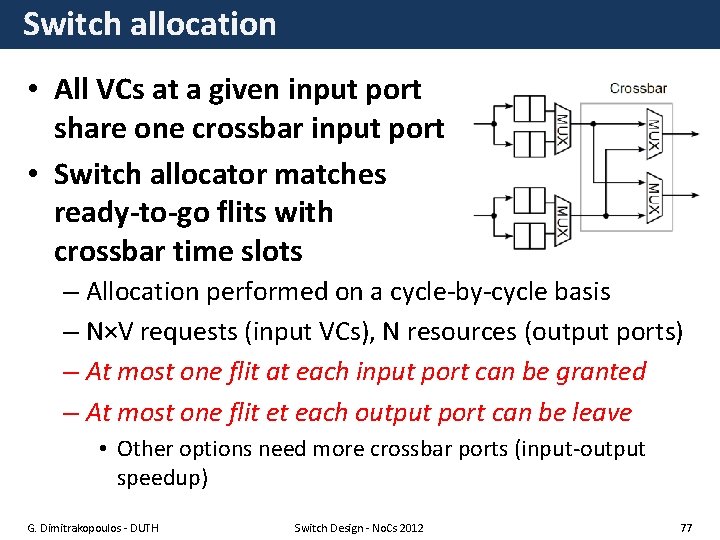

Switch allocation • All VCs at a given input port share one crossbar input port • Switch allocator matches ready-to-go flits with crossbar time slots – Allocation performed on a cycle-by-cycle basis – N×V requests (input VCs), N resources (output ports) – At most one flit at each input port can be granted – At most one flit et each output port can be leave • Other options need more crossbar ports (input-output speedup) G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 77

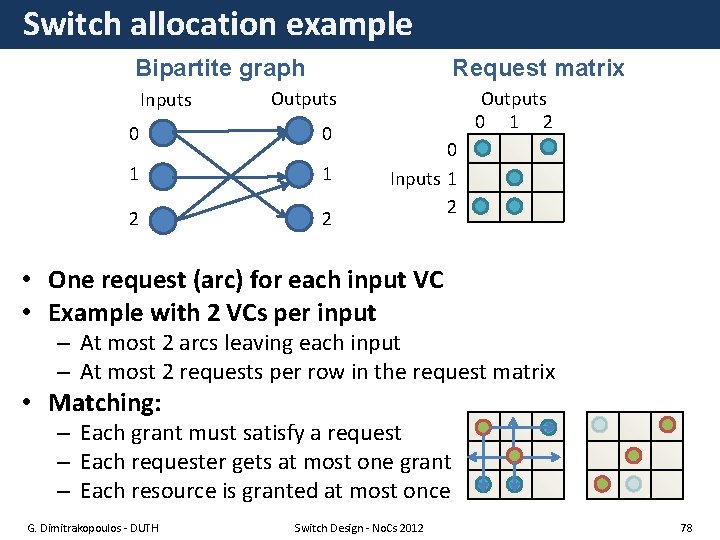

Switch allocation example Bipartite graph Inputs Request matrix Outputs 0 0 1 1 2 2 Outputs 0 1 2 0 Inputs 1 2 • One request (arc) for each input VC • Example with 2 VCs per input – At most 2 arcs leaving each input – At most 2 requests per row in the request matrix • Matching: – Each grant must satisfy a request – Each requester gets at most one grant – Each resource is granted at most once G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 78

Separable allocation • Matchings have at most one grant per row and per column • Two phases of arbitration Input-first: – Column-wise and row-wise – Perform in either order – Arbiters in each stage are independent • But the outcome of each one affects the quality of the overall match • Fast and cheap • Bad choices in first phase can prevent second stage from generating a good matching Output-first: – Multiple iterations required for a good match G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 79

Implementation Output first allocation Input first allocation G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 80

Multi-cycle separable allocators • Allocators produce better results if they run for many cycles – On each cycle they try to fill the input-output match with new edges • We don’t have the time to wait more than one cycle • Run two or more allocators in parallel and interleave their grants to the switch G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 81

Centralized allocator • Wavefront allocation – Pick initial diagonal – Grant all requests on each diagonal • Never conflict! – For each grant, delete requests in same row, column – Repeat for next diagonal G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 82

Switch allocation for adaptive routing • Input VCs can request more than one output ports – Called the set of Admissible Output Ports (AOP) – This adds an extra selection step (not arbitration) – Selection mostly tries to load balance the traffic • Input-first allocation – For each input VC select one request of the AOP – Arbitrate locally per input and select one input VC – Arbitrate globally per output and select one VC from all fighting inputs • Output-first allocation – Send all requests of the AOP of each input VC to the outputs – Arbitrate globally per output and grant one request – Arbitrate locally per input and grant an input VC – For this input VC select one out of the possibly multiple grants of the AOP set G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 83

VC allocation Input VCs Output VCs • Virtual channels (VCs) allow multiple packet flows to share physical resources (buffers, channels) • Before packets can proceed through router, need to claim ownership of VC buffer at next router – VC acquired by head flit, is inherited by body & tail flits • VC allocator assigns waiting packets at inputs to output VC buffers that are not currently in use – N×V inputs (input VCs), N×V outputs (output VCs) – Once assigned, VC is used for entire packet’s duration in the switch G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 84

VC allocation example Inputs VCs 0 In#0 1 In#2 Requests Output VCs 0 1 2 2 3 3 4 4 5 5 Out#0 Out#1 Out#2 Inputs VCs 0 In#0 1 In#2 Grants Output VCs 0 1 2 2 3 3 4 4 5 5 Out#0 Out#1 Out#2 • Input VC match to an output VC simultaneously with the rest – Even if it belongs to the same input – No port constraint as in switch allocators • VC allocation refers to allocating buffer id (output VC) on the next router – Allocation can be both separable (2 arbitration steps) or centralized G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 85

Input – output VC mapping • Any-to-any flexibility in VC allocator is unnecessary – Partition set of VCs to restrict legal requests • Different use cases for VCs restrict possible transitions: – Message class never changes – Resource classes are traversed in order • VCs within a packet class are functionally equivalent • Can take advantage of these properties to reduce VC allocator complexity! G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 86

VA single cycle or pipelined organization • Header flits see longer latency than body/tail flits – RC, VA decisions taken for head flits and inherited to the rest of the packet – Every flit fights for SA • Can we parallelize SA and VA? G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 87

The order of VC and switch allocation • VA first SA follows – Only packets will an allocated output VC fight for SA • VA and SA can be performed concurrently: – Speculate that waiting packets will successfully acquire a VC – Prioritize non-speculative requests over speculative ones – Speculation holds only for the head flits (The body/tail flits always know their output VC) VA SA Description Win Everything OK!! Leave the switch Win Lose Allocated a VC Retry SA (not speculative - high priority next cycle) Lose Win Does not know the output VC Allocated output port (grant lost – output idle) Lose Retry both VA and SA G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 88

Speculative switch allocation • Perform switch allocation in parallel with VC allocation – Speculate that the latter will be successful – If so, saves delay, otherwise try again – Reduces zero-load latency, but adds complexity • Prioritize non-speculative requests – Avoid performance degradation due to miss-speculation • Usually implemented through secondary switch allocator – But need to prioritize non-speculative grants G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 89

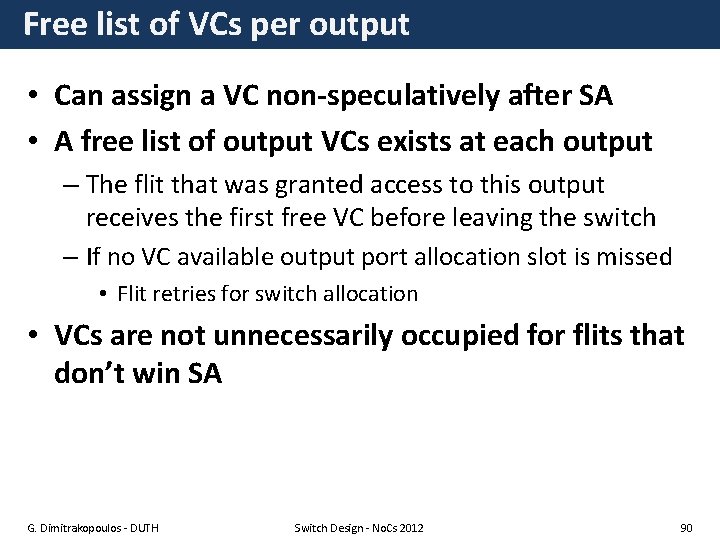

Free list of VCs per output • Can assign a VC non-speculatively after SA • A free list of output VCs exists at each output – The flit that was granted access to this output receives the first free VC before leaving the switch – If no VC available output port allocation slot is missed • Flit retries for switch allocation • VCs are not unnecessarily occupied for flits that don’t win SA G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 90

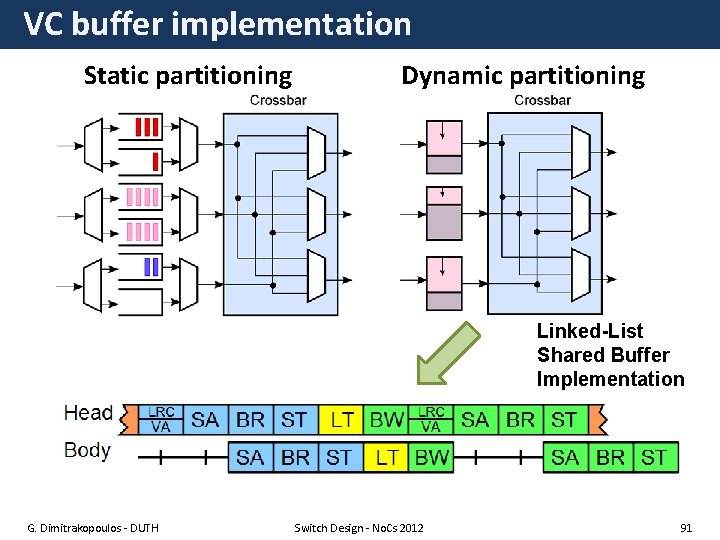

VC buffer implementation Static partitioning Dynamic partitioning Linked-List Shared Buffer Implementation G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 91

VC-based switches with MARX units • Merged Switch Allocation and Traversal can be applied to VC-based switches too • VA can be run before or in parallel to SAT G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 92

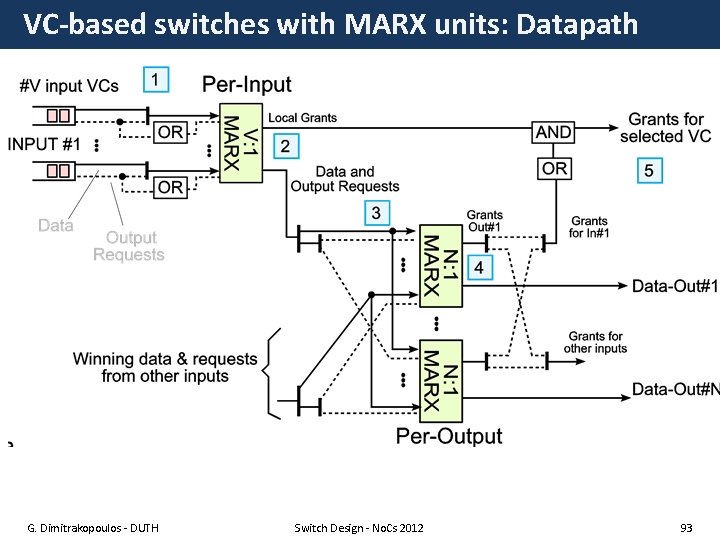

VC-based switches with MARX units: Datapath G. Dimitrakopoulos - DUTH Switch Design - No. Cs 2012 93
