This is a very basic 3 view Orthographic

This is a very basic 3 -view, Orthographic Projection TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Date: Scale: 1: 1 Period:

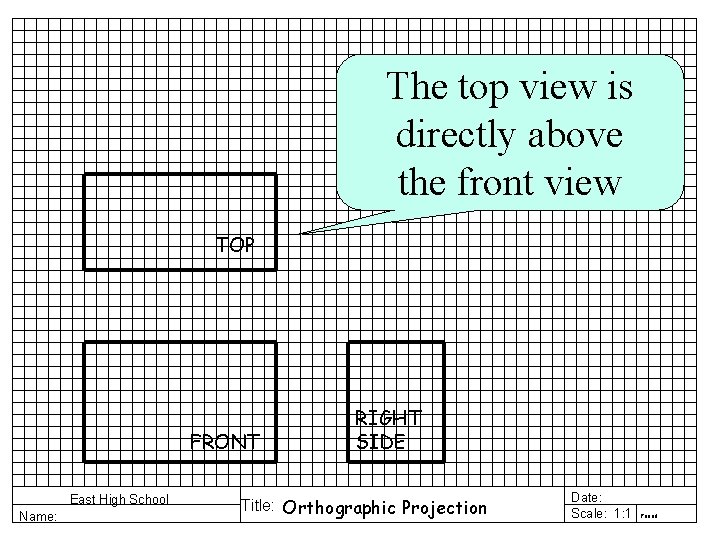

The top view is directly above the front view TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Date: Scale: 1: 1 Period:

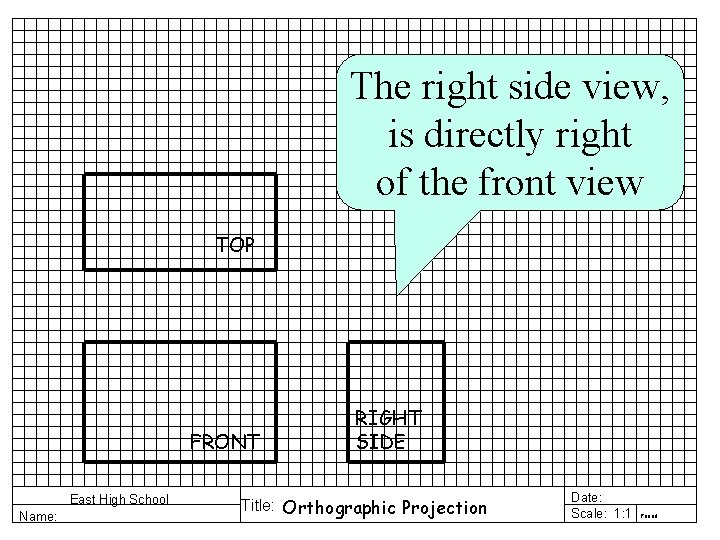

The right side view, is directly right of the front view TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Date: Scale: 1: 1 Period:

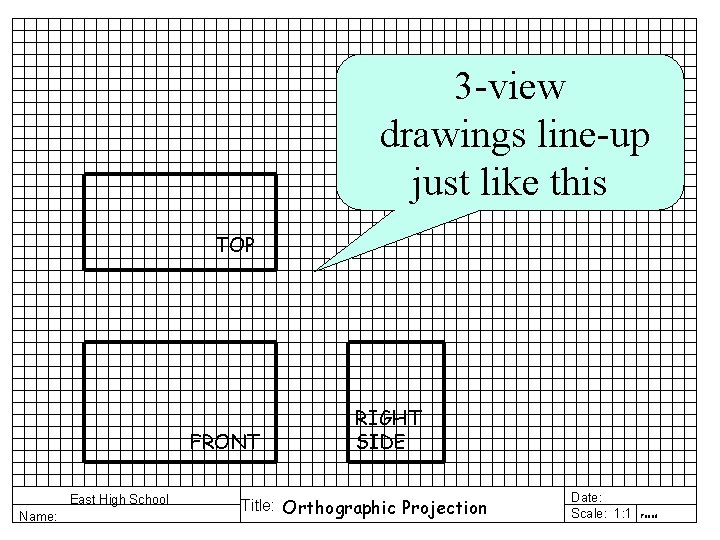

3 -view drawings line-up just like this TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Date: Scale: 1: 1 Period:

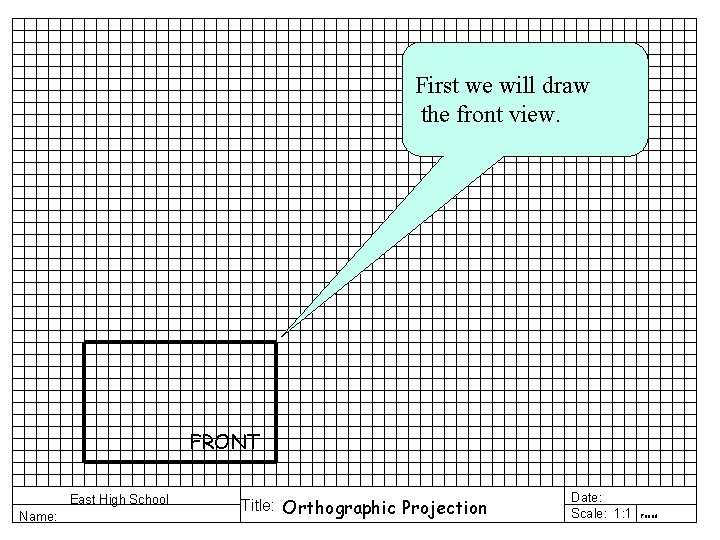

First we will draw the front view. FRONT East High School Name: Title: Orthographic Projection Date: Scale: 1: 1 Period:

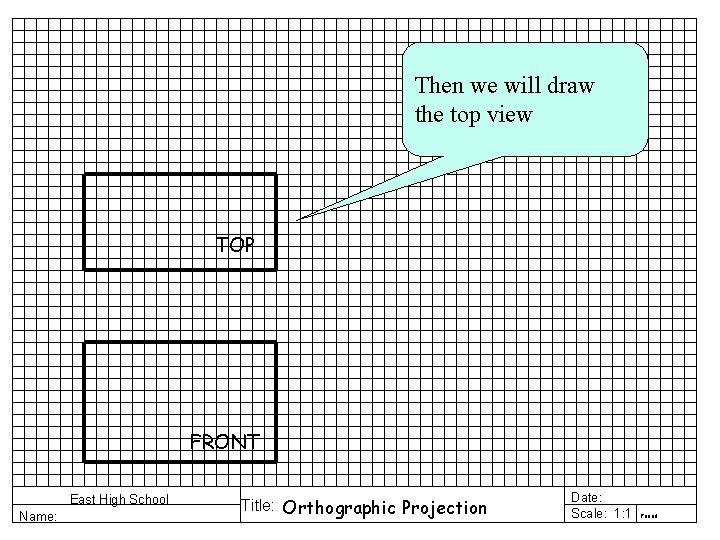

Then we will draw the top view TOP FRONT East High School Name: Title: Orthographic Projection Date: Scale: 1: 1 Period:

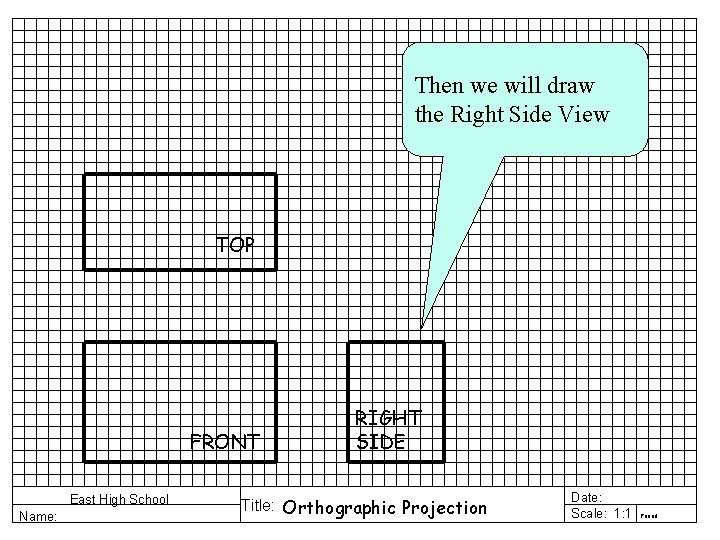

Then we will draw the Right Side View TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Date: Scale: 1: 1 Period:

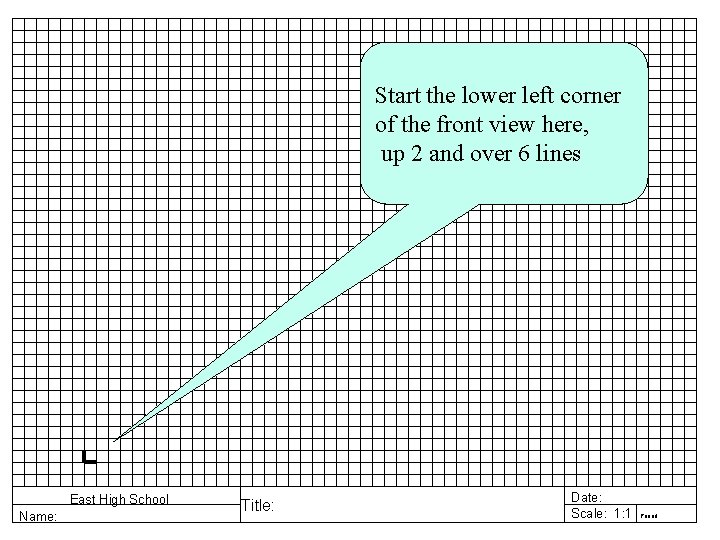

Start the lower left corner of the front view here, up 2 and over 6 lines East High School Name: Title: Date: Scale: 1: 1 Period:

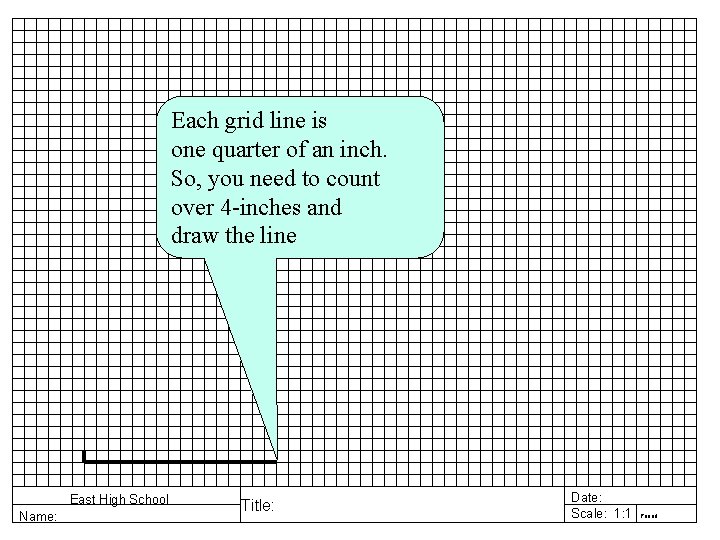

Each grid line is one quarter of an inch. So, you need to count over 4 -inches and draw the line East High School Name: Title: Date: Scale: 1: 1 Period:

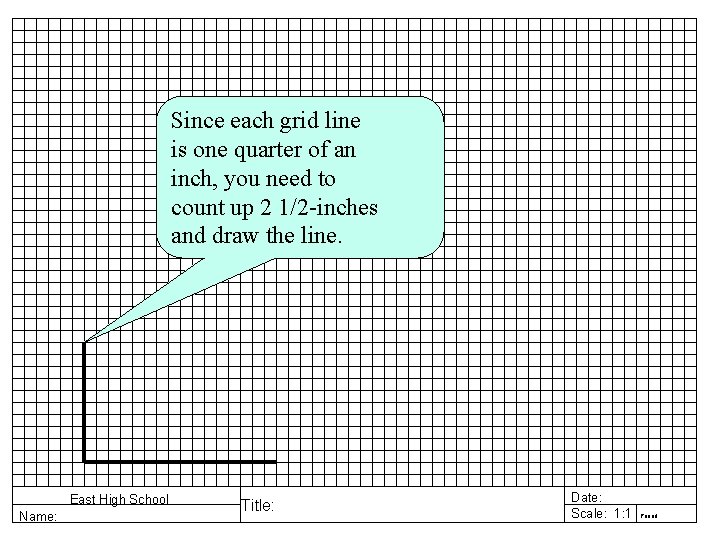

Since each grid line is one quarter of an inch, you need to count up 2 1/2 -inches and draw the line. East High School Name: Title: Date: Scale: 1: 1 Period:

Since the left side is 2 1/2 tall, count up 2 1/2 -inches and draw the line for the right side of the rectangle. East High School Name: Title: Date: Scale: 1: 1 Period:

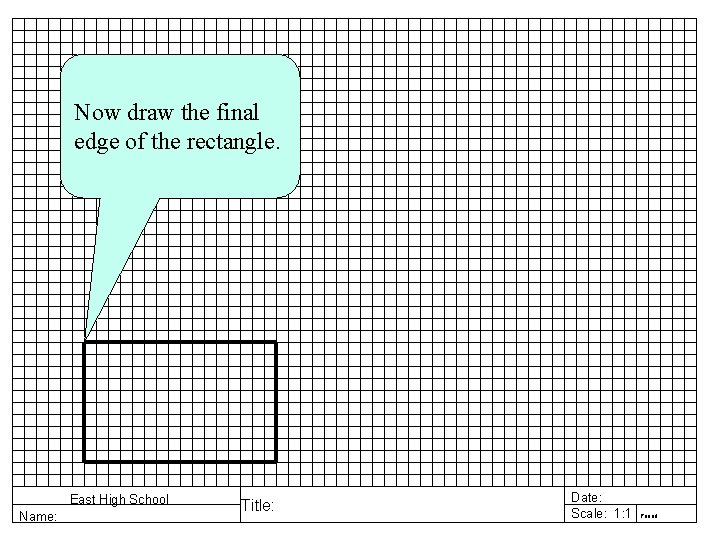

Now draw the final edge of the rectangle. East High School Name: Title: Date: Scale: 1: 1 Period:

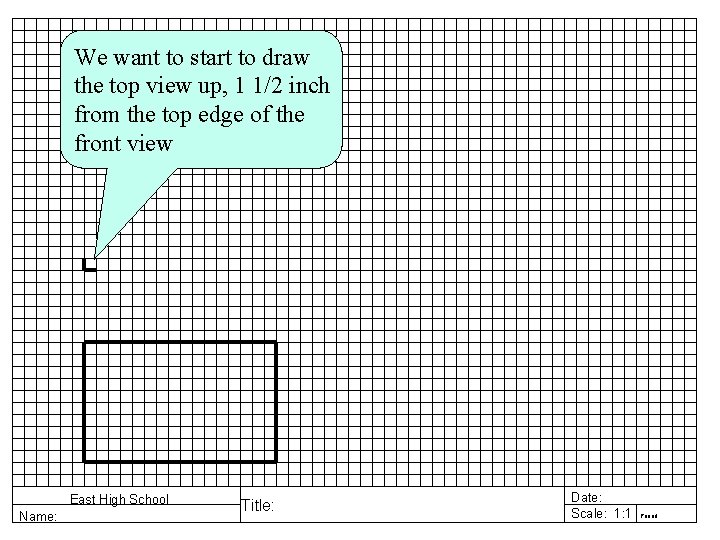

We want to start to draw the top view up, 1 1/2 inch from the top edge of the front view East High School Name: Title: Date: Scale: 1: 1 Period:

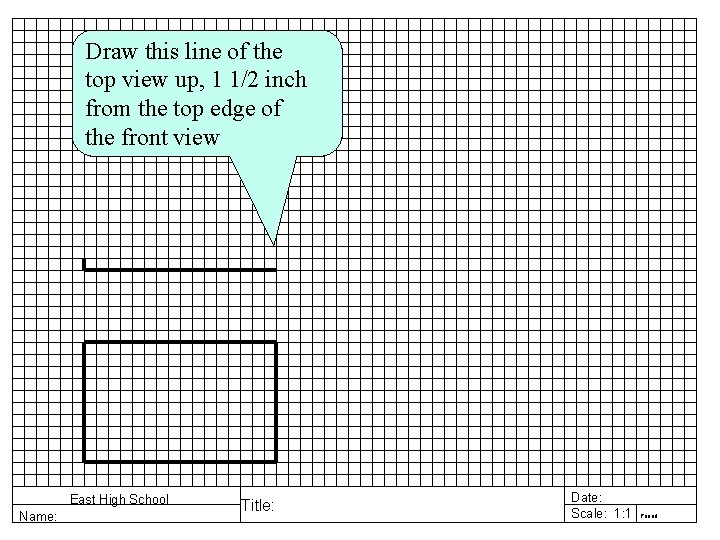

Draw this line of the top view up, 1 1/2 inch from the top edge of the front view East High School Name: Title: Date: Scale: 1: 1 Period:

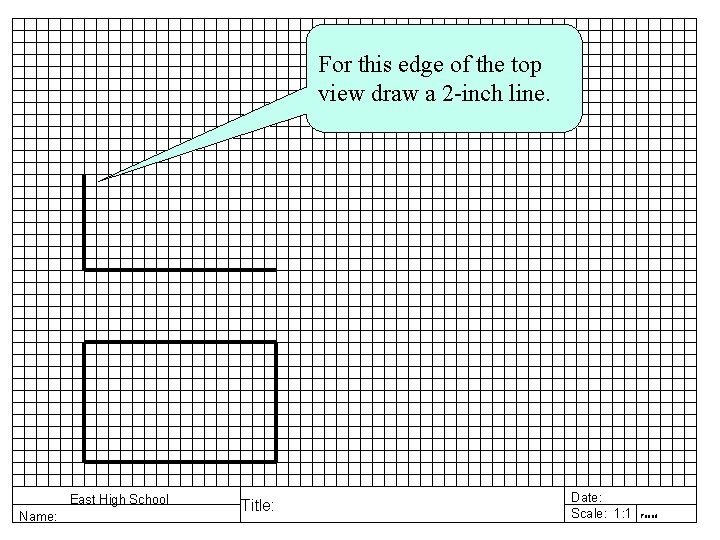

For this edge of the top view draw a 2 -inch line. East High School Name: Title: Date: Scale: 1: 1 Period:

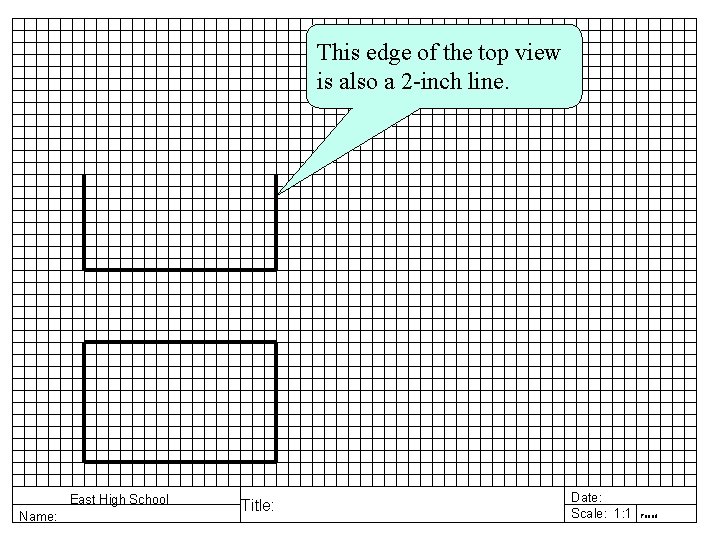

This edge of the top view is also a 2 -inch line. East High School Name: Title: Date: Scale: 1: 1 Period:

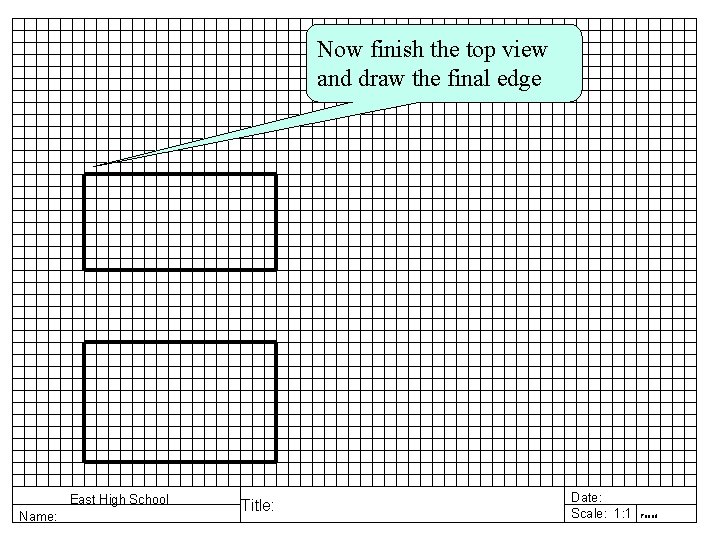

Now finish the top view and draw the final edge East High School Name: Title: Date: Scale: 1: 1 Period:

Also we begin the Right Side View 1 1/2 -inch from the front view East High School Name: Title: Date: Scale: 1: 1 Period:

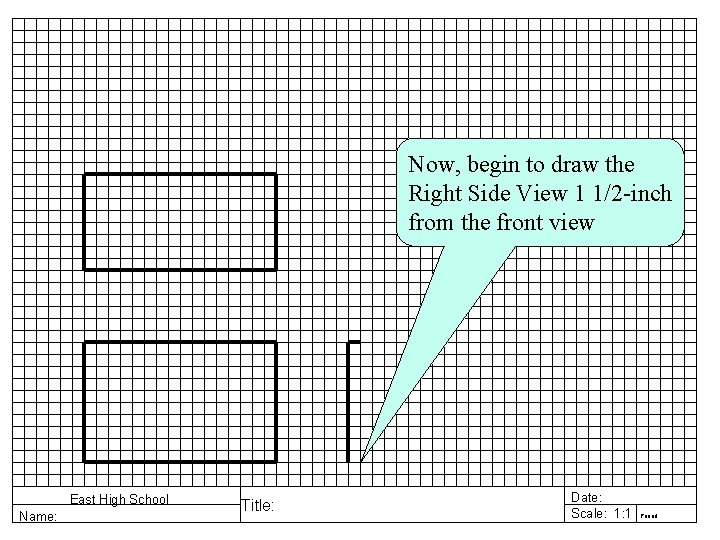

Now, begin to draw the Right Side View 1 1/2 -inch from the front view East High School Name: Title: Date: Scale: 1: 1 Period:

Now, begin to draw this edge of the Right Side View 1 1/2 -inch from the front view. It is 2 -inches long. East High School Name: Title: Date: Scale: 1: 1 Period:

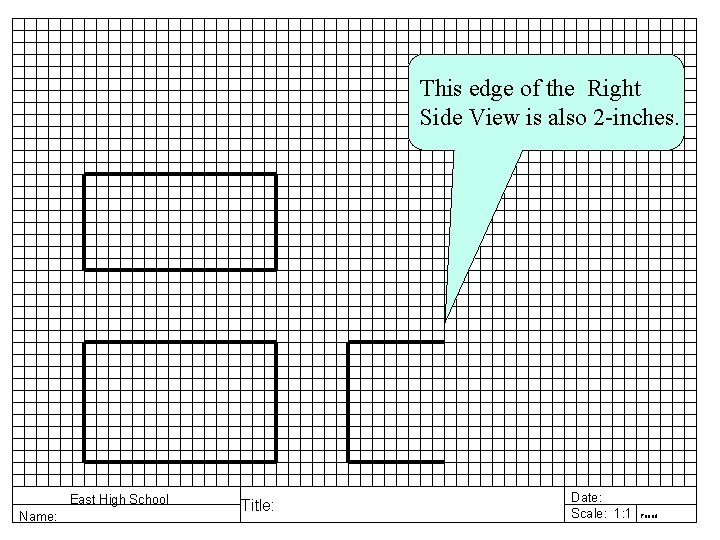

This edge of the Right Side View is also 2 -inches. East High School Name: Title: Date: Scale: 1: 1 Period:

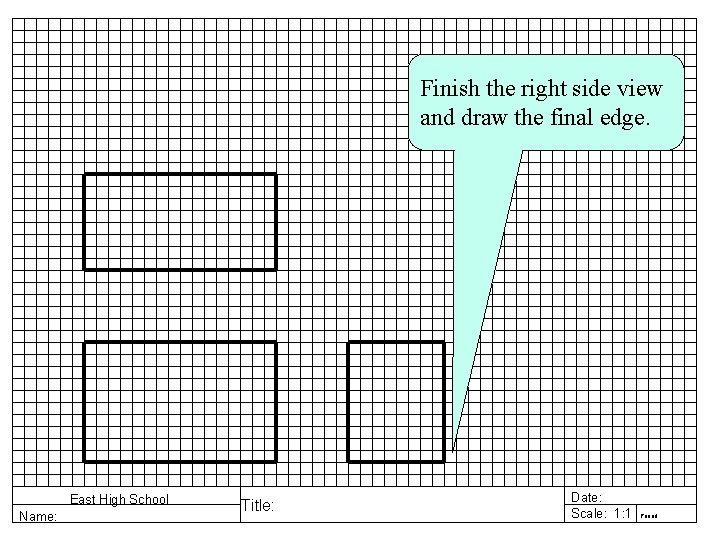

Finish the right side view and draw the final edge. East High School Name: Title: Date: Scale: 1: 1 Period:

Now, If we want a hole in the front, we need to draw the hole, 3/4–inch in from each edge East High School Name: Title: Date: Scale: 1: 1 Period:

And we need to draw hidden lines to show the hole goes all the way through in the top view East High School Name: Title: Date: Scale: 1: 1 Period:

And we want to draw hidden lines to show the hole goes all the way through in the right side view East High School Name: Title: Date: Scale: 1: 1 Period:

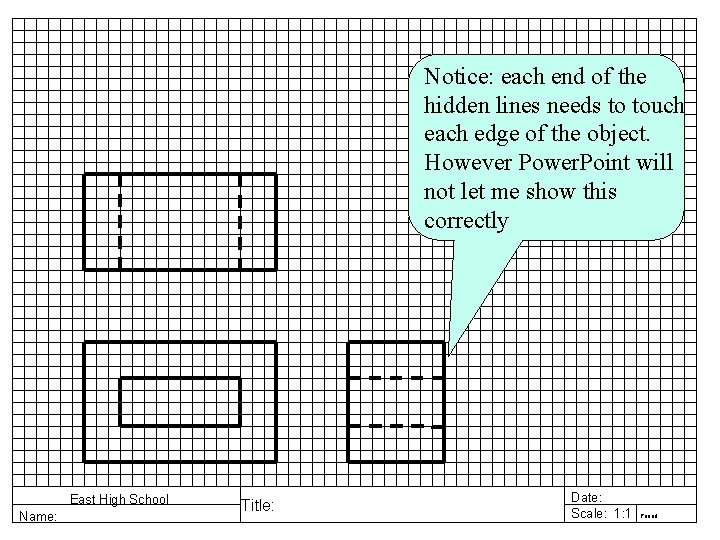

Notice: each end of the hidden lines needs to touch each edge of the object. However Power. Point will not let me show this correctly East High School Name: Title: Date: Scale: 1: 1 Period:

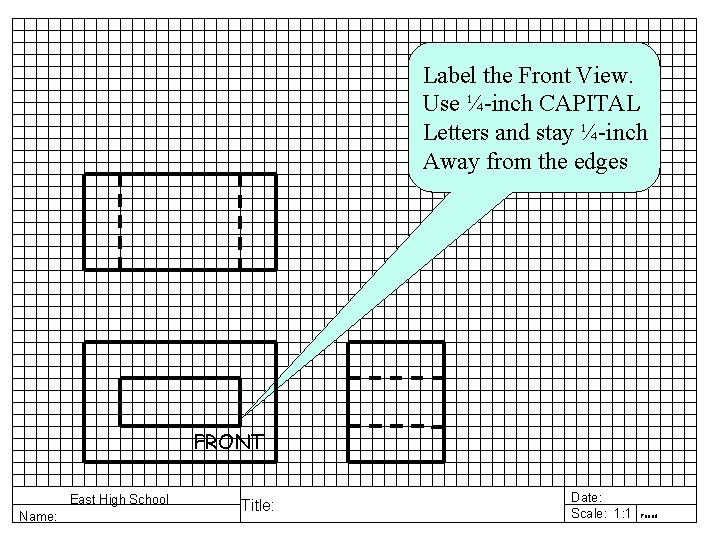

Label the Front View. Use ¼-inch CAPITAL Letters and stay ¼-inch Away from the edges FRONT East High School Name: Title: Date: Scale: 1: 1 Period:

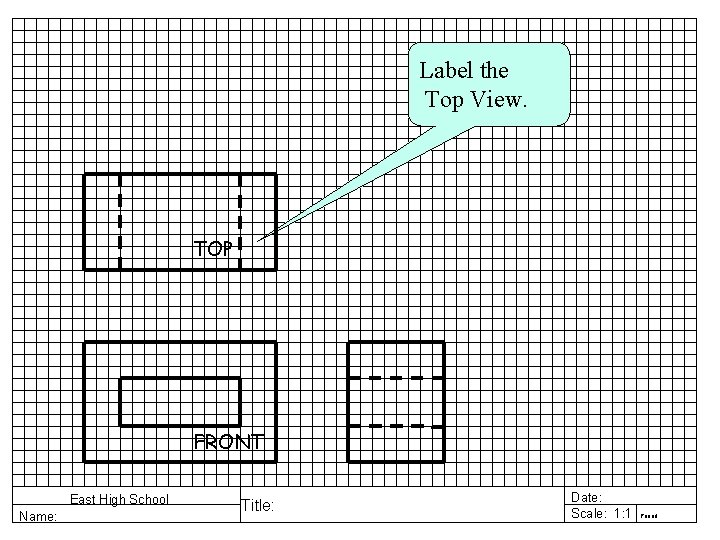

Label the Top View. TOP FRONT East High School Name: Title: Date: Scale: 1: 1 Period:

And, label the Right Side View. Keep ¼-inch spacing between the two words. TOP FRONT East High School Name: Title: RIGHT SIDE Date: Scale: 1: 1 Period:

Write the title on your finished drawing TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

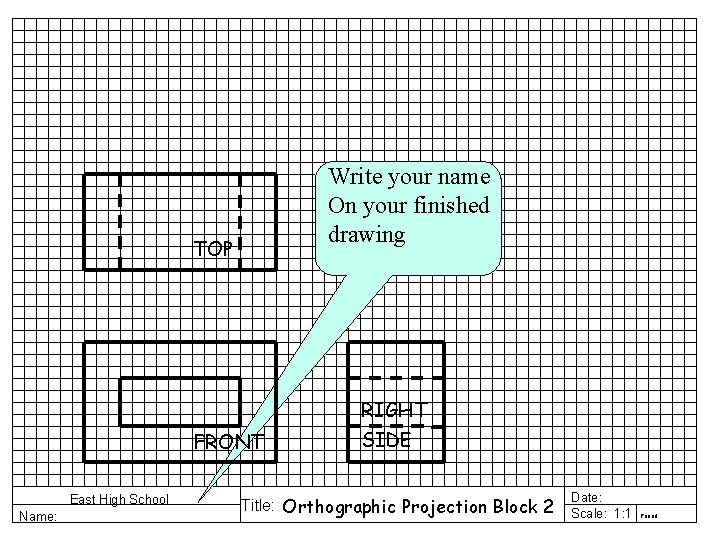

Write your name On your finished drawing TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

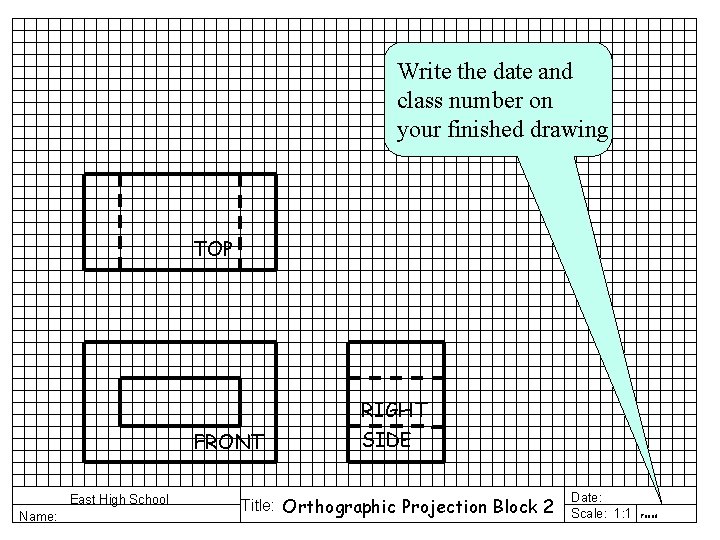

Write the date and class number on your finished drawing TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

Your finished drawing should look like this. TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

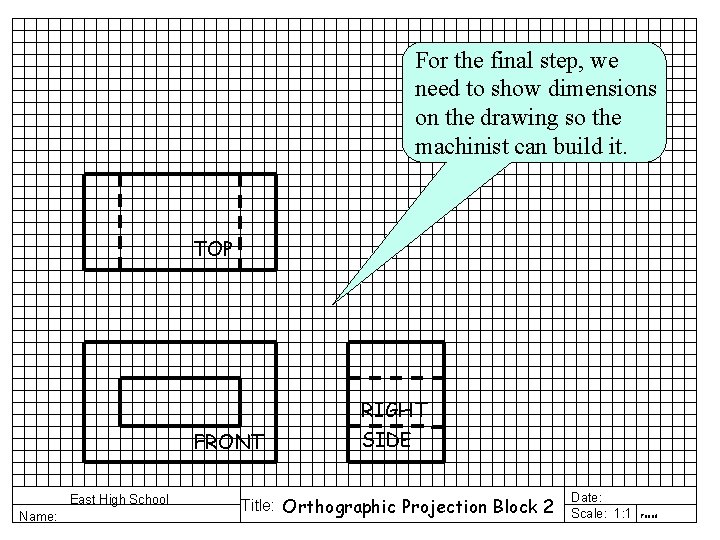

For the final step, we need to show dimensions on the drawing so the machinist can build it. TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

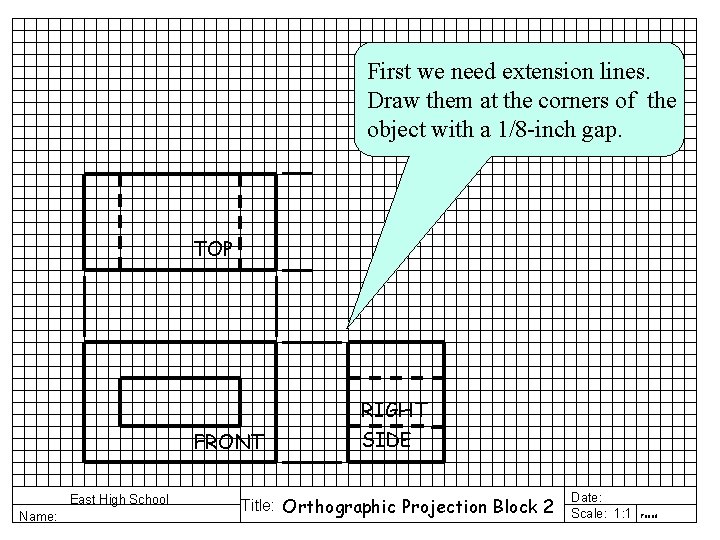

First we need extension lines. Draw them at the corners of the object with a 1/8 -inch gap. TOP FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

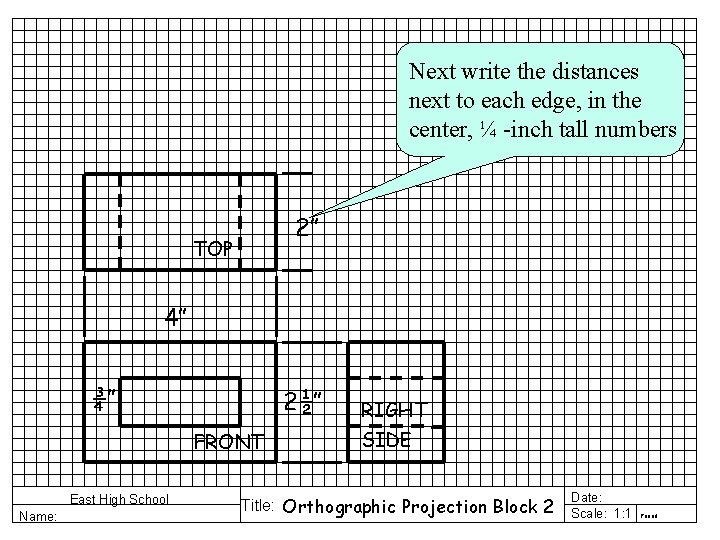

Next write the distances next to each edge, in the center, ¼ -inch tall numbers 2” TOP 4” ¾” 2½” FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

Next we need dimension lines with nice, neat arrows. The arrowheads are long and skinny 2” TOP 4” ¾” 2½” FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

Notice that the arrowhead tips all touch the extension lines. 2” TOP 4” ¾” 2½” FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

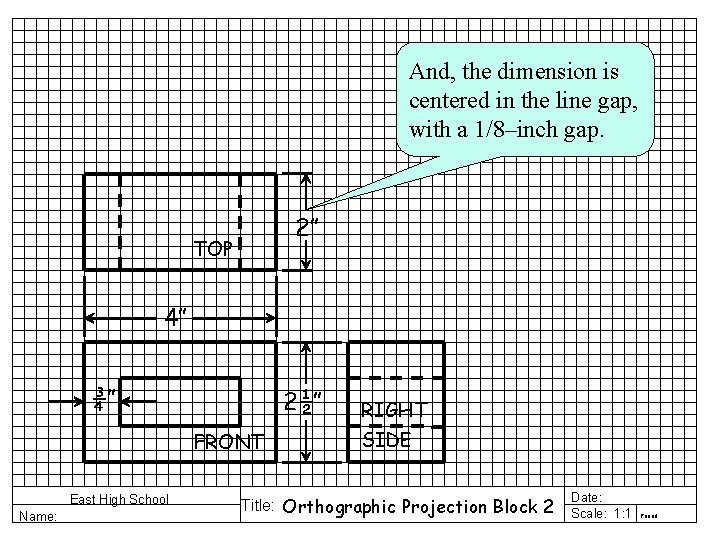

And, the dimension is centered in the line gap, with a 1/8–inch gap. 2” TOP 4” ¾” 2½” FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:

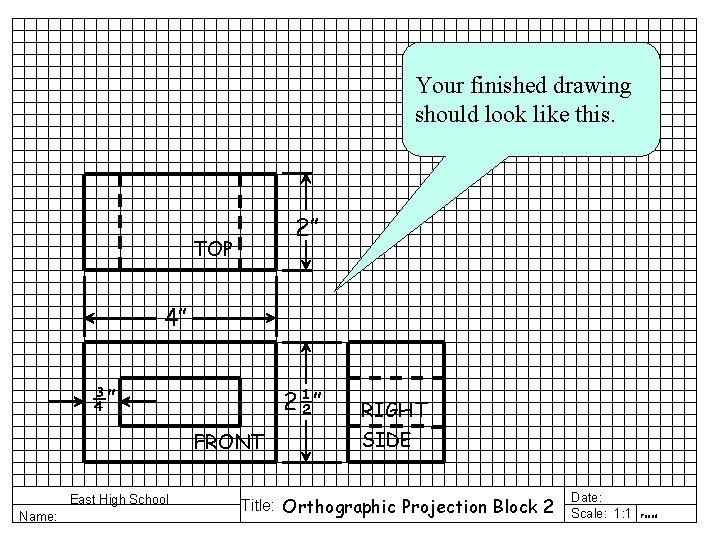

Your finished drawing should look like this. 2” TOP 4” ¾” 2½” FRONT East High School Name: RIGHT SIDE Title: Orthographic Projection Block 2 Date: Scale: 1: 1 Period:
