Software Release Note by KX-NSX Maintenance Console Product Specifications March 29, 2018 Panasonic Business Communication BU Specifications are subject to be changed without a notice.

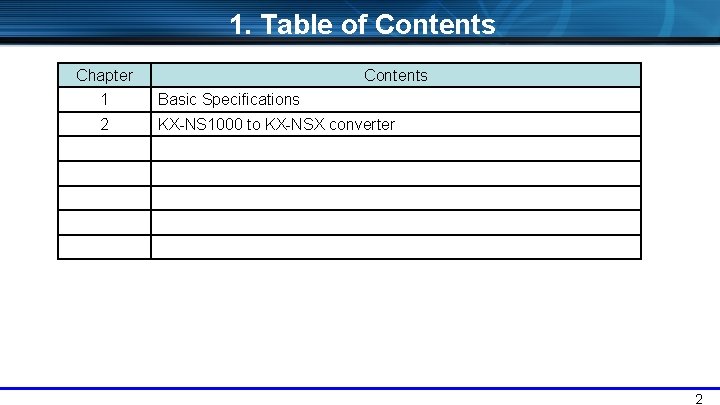

1. Table of Contents Chapter Contents 1 Basic Specifications 2 KX-NS 1000 to KX-NSX converter 2

Chapter 1 Basic Specifications 3

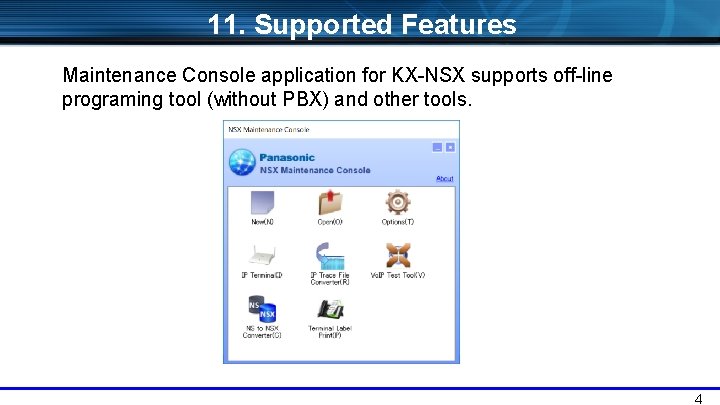

11. Supported Features Maintenance Console application for KX-NSX supports off-line programing tool (without PBX) and other tools. 4

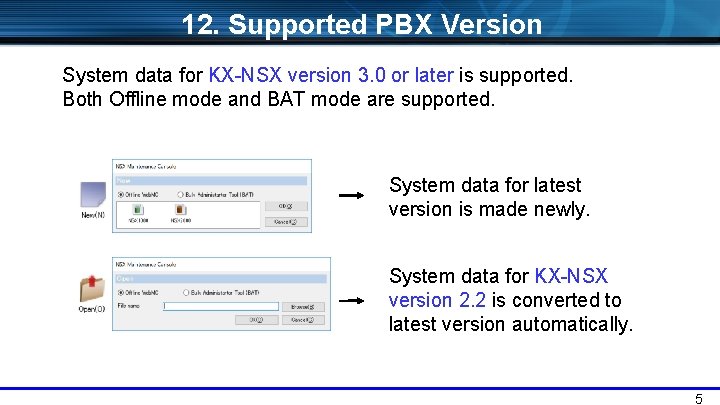

12. Supported PBX Version System data for KX-NSX version 3. 0 or later is supported. Both Offline mode and BAT mode are supported. System data for latest version is made newly. System data for KX-NSX version 2. 2 is converted to latest version automatically. 5

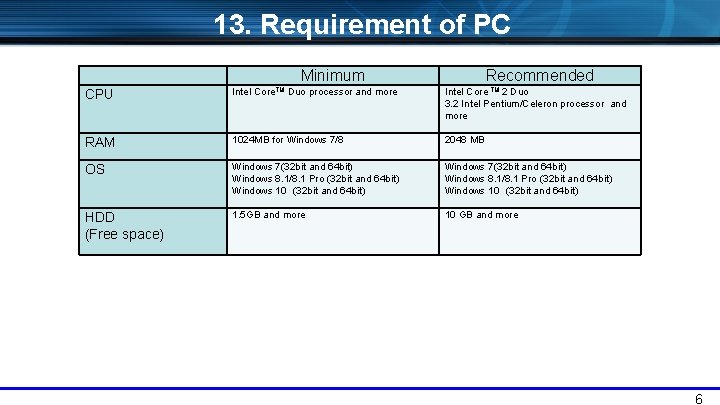

13. Requirement of PC Minimum Recommended CPU Intel Core. TM Duo processor and more Intel Core TM 2 Duo 3. 2 Intel Pentium/Celeron processor and more RAM 1024 MB for Windows 7/8 2048 MB OS Windows 7(32 bit and 64 bit) Windows 8. 1/8. 1 Pro (32 bit and 64 bit) Windows 10 (32 bit and 64 bit) HDD (Free space) 1. 5 GB and more 10 GB and more 6

Chapter 2 NS to NSX Converter 7

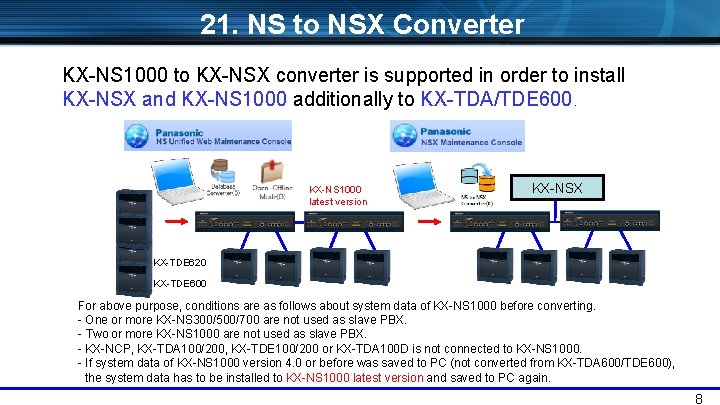

21. NS to NSX Converter KX-NS 1000 to KX-NSX converter is supported in order to install KX-NSX and KX-NS 1000 additionally to KX-TDA/TDE 600. KX-NS 1000 latest version KX-NSX KX-TDE 620 KX-TDE 600 For above purpose, conditions are as follows about system data of KX-NS 1000 before converting. - One or more KX-NS 300/500/700 are not used as slave PBX. - Two or more KX-NS 1000 are not used as slave PBX. - KX-NCP, KX-TDA 100/200, KX-TDE 100/200 or KX-TDA 100 D is not connected to KX-NS 1000. - If system data of KX-NS 1000 version 4. 0 or before was saved to PC (not converted from KX-TDA 600/TDE 600), the system data has to be installed to KX-NS 1000 latest version and saved to PC again. 8

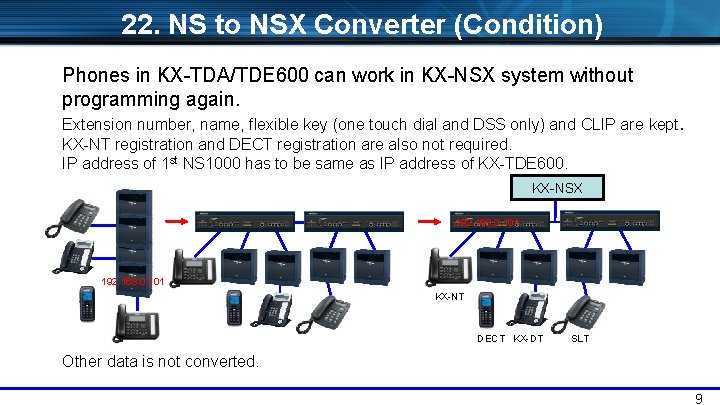

22. NS to NSX Converter (Condition) Phones in KX-TDA/TDE 600 can work in KX-NSX system without programming again. Extension number, name, flexible key (one touch dial and DSS only) and CLIP are kept. KX-NT registration and DECT registration are also not required. IP address of 1 st NS 1000 has to be same as IP address of KX-TDE 600. KX-NSX 192. 168. 0. 101 KX-NT DECT KX-DT SLT Other data is not converted. 9
