Programming for Engineers in Python Recitation 3 Plan
- Slides: 44
Programming for Engineers in Python Recitation 3
Plan Modules / Packages Tuples Mutable / Imutable Dictionaries Functions: Scope Call by Ref / Call by Val Frequency Counter
Python Code Hierarchy Statement function Module Package
Modules All modules and their contents (functions, constants) can be found at http: //docs. python. org/modindex. html >>> import math # mathematical functions >>> dir(math) ['__doc__', '__name__', '__package__', 'acosh', 'asinh', 'atan 2', 'atanh', 'ceil', 'copysign', 'cosh', 'degrees', 'erf', 'erfc', 'expm 1', 'fabs', 'factorial', 'floor', 'fmod', 'frexp', 'fsum', 'gamma', 'hypot', 'isinf', 'isnan', 'ldexp', 'lgamma', 'log 10', 'log 1 p', 'modf', 'pi', 'pow', 'radians', 'sinh', 'sqrt', 'tanh', 'trunc'] >>> math. pi # a constant 3. 141592653589793 >>> math. sqrt(16) # a function 4. 0 >>> math. log(8, 2) 3. 0
Modules – Cont. >>> import os #operating system interfaces >>> os. rename(‘my_file. txt’, ‘your_file. txt’) >>> os. mkdir(‘new_dir’) >>> for root, dirs, files in os. walk('lib/email'): print root, "consumes", print sum(getsize(join(root, name)) for name in files), print "bytes in", len(files), "non-directory files" >>> os. times()[0] # user time 10. 1244649
Packages Num. Py support for large, multi-dimensional arrays and matrices high-level mathematical functions Sci. Py Optimization linear algebra integration special functions signal and image processing And more
Installing Packages Download Num. Py: http: //sourceforge. net/projects/numpy/files/Num. Py/ Choose Download numpy-1. 6. 1 -win 32 -superpackpython 2. 7. exe Sci. Py: http: //sourceforge. net/projects/scipy/files/ Choose Download scipy-0. 9. 0 -win 32 -superpackpython 2. 6. exe
Mutable vs. Immutable Can we change lists? >>> a_list = [1, 2, 3] >>> a_list[2] 3 >>> a_list[2] = ‘Inigo Montoya’ >>> a_list [1, 2, ’Inigo Montoya’] The assignment has mutated the list!
Mutable vs. Immutable What about strings? >>> name = ‘Inigo Montoya’ >>> name[0] ' I' >>> name[5] ' ' >>> name[3] = ‘t’ Traceback (most recent call last): File "<pyshell#14>", line 1, in <module> name[3] = 't' Type. Error: 'str' object does not support item assignment Immutable!
Assignments to List Variables >>> orig_list = [1, 2, 3] >>> copy_list = orig_list >>> orig_list = [6, 7, 8, 9] >>> copy_list [1, 2, 3] >>> orig_list [6, 7, 8, 9] So far - no surprises
Assignments to List Variables >>> copy_list = orig_list >>> orig_list[0] = 1000 >>> orig_list [1000, 7, 8, 9] >>> copy_list [1000, 7, 8, 9] Surprise!
Assignments to List Variables Memory [6, 7, 8, 9] orig_list Memor y List assignment orig_list = [6, 7, 8, 9] creates: § a list object, [6, 7, 8, 9] § a reference from the variable name, orig_list, to this object.
Assignments to List Variables The assignment copy_list = orig_list does not create a new object, just a new variable name, copy_list, which now refers to the same object. Memory orig_list [6, 7, 8, 9] copy_list
Assignments to List Variables Mutating list elements, orig_list[0] = 1000, does not create a new object and does not change existing references. Memory orig_list [1000, 7, 8, 9] copy_list
Tuples A tuple is just like a list, only it is immutable. Syntax: note the parentheses! >>> t = (‘don’t’, ’worry’, ’be’, ’happy’) # definition >>> t (‘dont’, ’worry’, ’be’, ’happy’) >>> t[0] # indexing 'dont' >>> t[-1] # backwords indexing ‘worry' >>> t[1: 3] # slicing (’worry’, ’be’)
Tuples >>> t[0] = ‘do’ # try to change Traceback (most recent call last): File "<pyshell#2>", line 1, in <module> t[0]=‘do’ Type. Error: 'tuple' object does not support item assignment No append / extend / remove in Tuples!
Tuples So what are tuples good for? § Faster than lists § Safe code § When immutable types are required (coming next).
Dictionaries A dictionary is a set of key-value pairs. >>> dict_name = {key 1: val 1, key 2: val 2, …} Keys are unique and immutable, values are not. Example: Map names to heights: >>> heights = {‘Alan Harper’: 1. 76, ‘John Smith’: 1. 83, ‘Walden Schmidt’: 1. 90} >>> heights {'Walden Schmidt': 1. 9, 'John Smith': 1. 83, 'Alan Harper': 1. 76} Note: The pairs order changed
Dictionaries Add a new person: >>> heights[‘Lyndsey Makelroy’] = 1. 70 >>> heights {'Lyndsey Makelroy': 1. 7, 'Walden Schmidt': 1. 9, ‘John Smith': 1. 83, 'Alan Harper': 1. 76} What happens when the key already exists? >>> heights[‘John Smith’] = 2. 02 >>> heights {'Lyndsey Makelroy': 1. 7, 'Walden Schmidt': 1. 9, 'John Smith': 2. 02, 'Alan Harper': 1. 76} Solutions?
Dictionaries Idea: Add address to the key >>> heights = {[‘Alan Harper’, ‘Malibu’]: 1. 76} Traceback (most recent call last): File "<pyshell#46>", line 1, in <module> heights = {['Alan Harper', 'Malibu']: 1. 76} Type. Error: unhashable type: 'list‘ What’s the problem? Fix: >>> heights = {(‘Alan Harper’, ‘Malibu’): 1. 76} >>> heights {('Alan Harper', 'Malibu'): 1. 76}
Dictionaries Useful methods: § D. get(k[, d]) - D[k] if k in D, else d (default – None). § D. has_key(k) - True if D has a key k, else False § D. items() - list of (key, value) pairs, as 2 -tuples § D. keys() - list of D's keys § D. values() - list of D's values § D. pop(k[, d]) - remove specified key and return the value. If key is not found, d is returned.
Functions – Scope Consider the following function, operating on two arguments: def linear_combination(x, y): y=2*y return (x+y) The formal parameters x and y are local, and their “life time" is just the execution of the function. They disappear when the function is returned. 3, 4 linear_combination x, y 11
Functions – Scope >>> a=3 >>> b=4 >>> linear combination(a, b) 11 # this is the correct value >>> a 3 >>> b 4 # b has NOT changed The change in y is local - inside the body of the function.
Functions – Scope >>> x=3 >>> y=4 >>> linear_combination(x, y) 11 # this is the correct value >>> x 3 >>> y 4 The y in the calling environment and the y in the function are not the same variable!
Functions – Call by Val / Call by Ref Functions have arguments that appear in their prototype: def linear_combination(x, y): When you call a function, you must assign values to the function’s arguments: >>> linear_combination(3, 4) What happens when you pass variables? >>> linear_combination(a, b)
Functions – Call by Val / Call by Ref What is the difference? Run ta 3_switch. py to find out!
Functions – Call by Val / Call by Ref What is the difference? Run ta 3_add. py to find out!
Functions – Call by Val / Call by Ref There are two possibilities: § Call by Value – pass a’s value to x and b’s value to y a, b a=3 A_function x=3 b=4 y=4 § Call by Reference – pass a’s address to x and b’s address to y a, b a=[1, 2] b=[3, 4] Another_function x y
Functions – Call by Reference In Python – Call by reference A function can mutate its parameters. When the address does not change, the mutations effect the original caller's environment. Remember: Assignment changes the address! That explains why y=2*y is not visible in the caller's environment.
Functions – Call by Reference def increment(lst): for i in range(len(lst)): lst[i] = lst[i] +1 # no value returned Now let us execute it in the following manner >>> list 1=[0, 1, 2, 3] >>> increment(list 1) >>> list 1 [1, 2, 3, 4] # list 1 has changed! lst was mutated inside the body of increment(lst). Such change occurs only for mutable objects.
Functions – Call by Reference Consider the following function: def nullify(lst): lst=[ ] # no value returned Now let us execute it in the following manner >>> list 1=[0, 1, 2, 3] >>> nullify(list 1) >>> list 1 [0, 1, 2, 3] # list 1 has NOT changed! Why?
Functions - Information Flow To conclude, we saw two ways of passing information from a function back to its caller: § Using return value(s) § Mutating a mutable parameter
Frequency Counter § Assume you want to learn about the frequencies of English letters. § You find a long and representative text and start counting. § Which data structure will you use to keep your findings? supercalifragilisticexpialidocio us
Frequency Counter str 1 = 'supercalifragilisticexpialidocious‘ # count letters char. Count = {} for char in str 1: char. Count[char] = char. Count. get(char, 0) + 1 # sort alphabetically sorted. Char. Tuples = sorted(char. Count. items())
Frequency Counter # print for char. Tuple in sorted. Char. Tuples: print char. Tuple[0] , ‘ = ‘, char. Tuple[1] a=3 c=3 d=1 e=2 f= 1 g=1 …
Simulation – Reminder In class: Simulated a rare disease by: Generating its distribution in the entire population, assume we received 2% Generating a sample of 1000 people. For every person – “toss a coin” with 2% chance of “heads” (have the disease) and 98% of “tails” (don’t have the disease) Check whether the number of sick people is significantly higher then expected (20 people) Repeat for 100 diseases

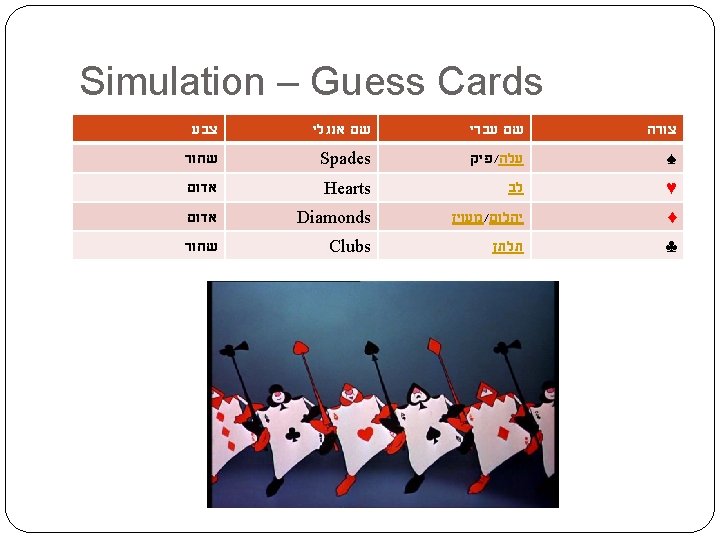

Simulation - Cards Scenario: Generate 25 playing cards. Guess which series every card belongs to. One card - there is an equal chance that the card belongs to each of the four series, hence - 25% chance for being correct. Two cards – 16 options with equal chance 6. 25% chance n cards – 4 n options, 1/ 4 n chance of being correct in all guesses. For 25 cards the chance of being always correct drops to almost 0.
Simulation - Comparison Role Diseases Cards Number of Guesses 100 diseases 1000 people Number of Observations 1000 people 25 cards Rate (Expectation) Generated per each disease 25% per series
Exercise - Dice Odds In backgammon, there are 36 combinations of rolling the dice. We are interested in the sum of the two dice. Therefore: § count the number of combinations for every possible sum § find the chance of getting it.
Exercise - Dice Odds Create the following data structure: § Each combination of two dice is a tuple. § All combinations are held in a dictionary, where the key is the sum of the combination. § Each value in the dictionary is a list of tuples – that is, all combinations that sum to key Keys Values 2 [ (1 , 1) ] 3 [ (1 , 2) , (2, 1) ] 4 [ (1 , 3) , (2 , 2) , (3 , 1) ]
Exercise - Dice Odds The general outline is: rolls = {} Loop with d 1 from 1 to 6 Loop with d 2 from 1 to 6 new. Tuple ← ( d 1, d 2 ) # create the tuple old. List ← dictionary entry for d 1+d 2 new. List ← old. List + new. Tuple update dictionary entry Loop over all keys in the dictionary print key, length of the list Let’s Play!
Exercise - Dice Odds rolls = {} for d 1 in range(1, 7): # first dice for d 2 in range(1, 7): # second dice t = (d 1, d 2) key = d 1+d 2 val = rolls. get(key, []) # update list val. append(t) rolls[key] = val for key in rolls. keys(): print key, len( rolls[key] ) # print result
Exercise - Dice Odds >>> 2 1 3 2 4 3 5 4 6 5 7 6 8 5 9 4 10 3 11 2 12 1
