Processor Design 5 Z 032 Processor: Datapath and Control Chapter 5 Henk Corporaal Eindhoven University of Technology 2009 TU/e Processor Design 5 Z 032
Topics n Building a datapath u n A single cycle processor datapath u n n n all instruction actions in one (long) cycle A multi-cycle processor datapath u n support a subset of the MIPS-I instruction-set each instructions takes multiple (shorter) cycles Control: microprogramming Exception support Real stuff: Pentium Pro/II/III implementation TU/e Processor Design 5 Z 032 2
Datapath and Control FSM or Microprogramming Registers & Memories Multiplexors Buses ALUs Control TUE Dig. Sys. Arch Datapath 3
The Processor: Datapath & Control n n We're ready to look at an implementation of the MIPS Simplified to contain only: u u u n lw, sw add, sub, and, or, beq, j Generic Implementation: u u n memory-reference instructions: arithmetic-logical instructions: slt control flow instructions: use the program counter (PC) to supply instruction address get the instruction from memory read registers use the instruction to decide exactly what to do All instructions use the ALU after reading the registers Why? memory-reference? F arithmetic? F TUE Dig. Sys. Arch 4

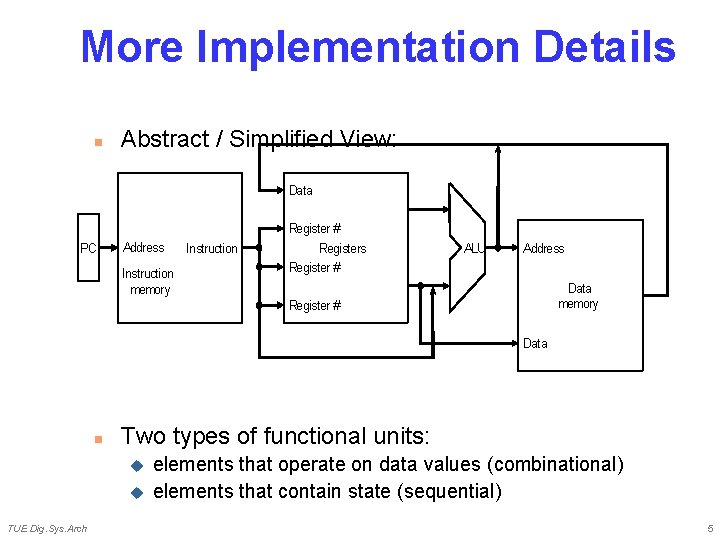

More Implementation Details n Abstract / Simplified View: Data PC Address Instruction memory Instruction Register # Registers Register # ALU Address Data memory Register # Data n Two types of functional units: u u TUE Dig. Sys. Arch elements that operate on data values (combinational) elements that contain state (sequential) 5
State Elements n n Unclocked vs. Clocked Clocks used in synchronous logic u when should an element that contains state be updated? falling edge cycle time rising edge TUE Dig. Sys. Arch 6

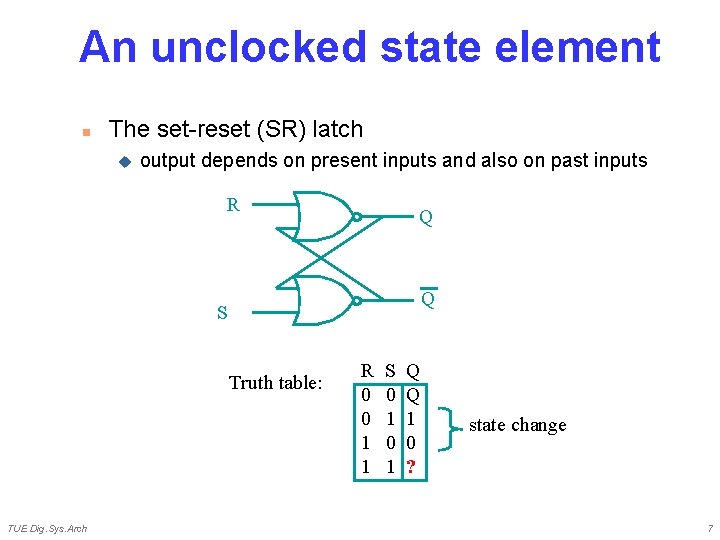

An unclocked state element n The set-reset (SR) latch u output depends on present inputs and also on past inputs R Q Q S Truth table: TUE Dig. Sys. Arch R 0 0 1 1 S 0 1 Q Q 1 0 ? state change 7
Latches and Flip-flops n n Output is equal to the stored value inside the element (don't need to ask for permission to look at the value) Change of state (value) is based on the clock u u Latches: whenever the inputs change, and the clock is asserted Flip-flop: state changes only on a clock edge (edge-triggered methodology) A clocking methodology defines when signals can be read and written — wouldn't want to read a signal at the same time it was being written TUE Dig. Sys. Arch 8

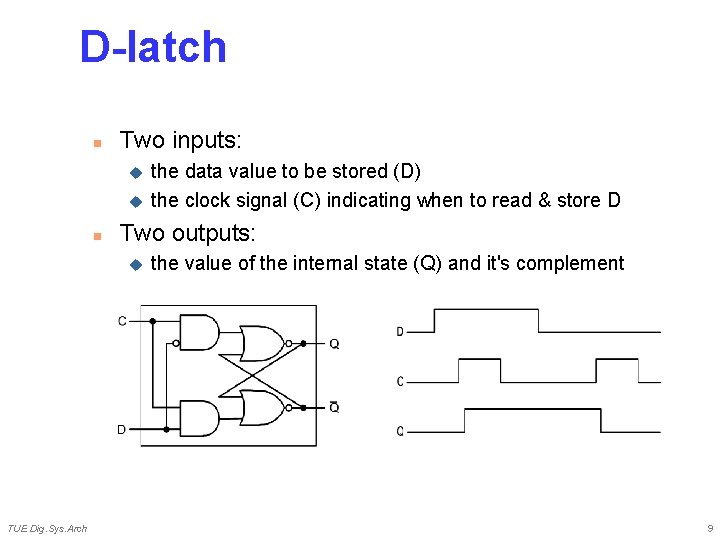

D-latch n Two inputs: u u n Two outputs: u TUE Dig. Sys. Arch the data value to be stored (D) the clock signal (C) indicating when to read & store D the value of the internal state (Q) and it's complement 9
D flip-flop n Output changes only on the clock edge D D C D latch Q D latch _ C Q Q _ Q C TUE Dig. Sys. Arch 10
Our Implementation n n An edge triggered methodology Typical execution: u u u read contents of some state elements, send values through some combinational logic, write results to one or more state elements State element 1 Combinational logic State element 2 Clock cycle TUE Dig. Sys. Arch 11

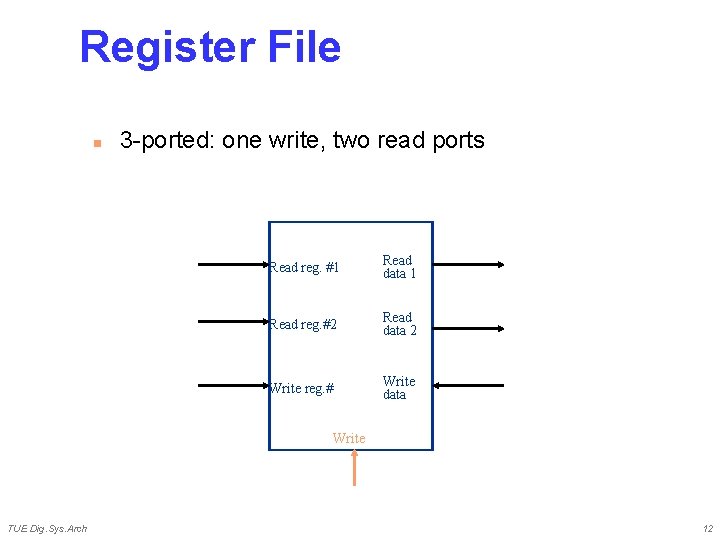

Register File n 3 -ported: one write, two read ports Read reg. #1 Read data 1 Read reg. #2 Read data 2 Write reg. # Write data Write TUE Dig. Sys. Arch 12
Register file: read ports • Register file built using D flip-flops Read register number 1 Register 0 Register 1 M Register n – 1 u x Read data 1 Register n Read register number 2 M u Read data 2 x Implementation of the read ports TUE Dig. Sys. Arch 13
Register file: write port n Note: we still use the real clock to determine when to write W r ite 0 1 R e g is te r n u m b e r n -to -1 C R e g iste r 0 D C d e co d e r n – 1 R e g iste r 1 D n C R e g is te r n – 1 D C R e g iste r n R e g iste r d a ta TUE Dig. Sys. Arch D 14
Simple Implementation Include the functional units we need for each instruction n Instruction address Mem. Write PC Instruction Add Sum Instruction memory Address a. Instruction memory 5 Register numbers 5 5 Data b. Program counter 3 Read register 1 Read register 2 Registers Write register Write data c. Adder ALU control Write data Read data Data memory Data Sign extend 32 Mem. Read a. Data memory unit Read data 1 16 b. Sign-extension unit Zero ALU result Read data 2 Reg. Write a. Registers TUE Dig. Sys. Arch b. ALU Why do we need this stuff? 15
Building the Datapath n Use multiplexors to stitch them together PCSrc M u x Add ALU result 4 Shift left 2 Registers PC Read address Instruction memory Read register 1 Read data 1 register 2 Write register Write data Reg. Write 16 TUE Dig. Sys. Arch ALUSrc Read data 2 Sign extend M u x 32 3 ALU operation Zero ALU result Mem. Write Memto. Reg Address Read data Data Write memory data M u x Mem. Read 16
Our Simple Control Structure n n n All of the logic is combinational We wait for everything to settle down, and the right thing to be done u ALU might not produce “right answer” right away u we use write signals along with clock to determine when to write Cycle time determined by length of the longest path S tate elem ent 1 Com binational logic State elem ent 2 Clock cycle We are ignoring some details like setup and hold times ! TUE Dig. Sys. Arch 17
Control n Selecting the operations to perform (ALU, read/write, etc. ) n Controlling the flow of data (multiplexor inputs) n Information comes from the 32 bits of the instruction n Example: add $8, $17, $18 000000 op n Instruction Format: 10001 rs 10010 rt 01000 rd 00000 100000 shamt funct ALU's operation based on instruction type and function code TUE Dig. Sys. Arch 18
Control: 2 level implementation 31 6 Control 2 26 instruction register Opcode bit 00: lw, sw 01: beq 10: add, sub, and, or, slt Control 1 Funct. TUE Dig. Sys. Arch 2 ALUop 5 6 3 ALUcontrol 000: and 001: or 010: add 110: sub 111: set on less than ALU 0 19
Datapath with Control 0 M u x Add 4 Instruction [31– 26] PC Instruction [31– 0] Instruction memory Instruction [15– 11] Instruction [15– 0] Fig. 5. 19 TUE Dig. Sys. Arch Read register 1 Instruction [20– 16] 0 M u x 1 1 Zero ALU result Address Shift left 2 Reg. Dst Branch Mem. Read Memto. Reg Control ALUOp Mem. Write ALUSrc Reg. Write Instruction [25– 21] Read address ALU Add result Read data 1 Read register 2 Registers Read Write data 2 register 0 M u x 1 Write data 16 Sign extend Write data Read data Data memory 1 M u x 0 32 ALU control Instruction [5– 0] 20

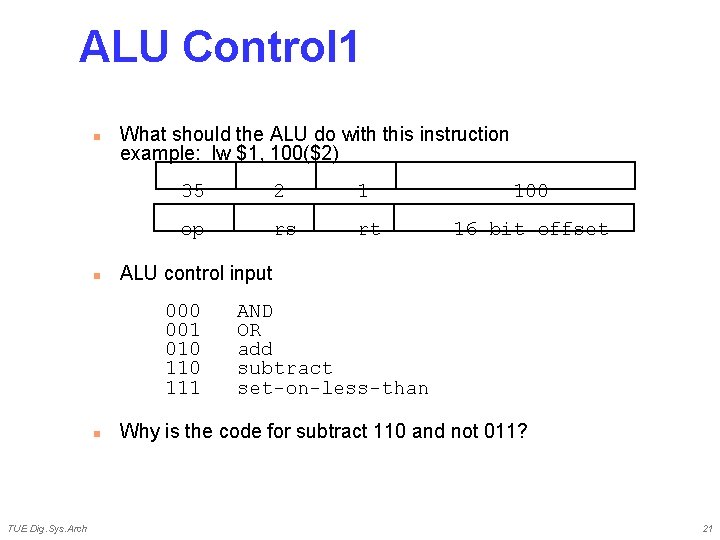

ALU Control 1 n n What should the ALU do with this instruction example: lw $1, 100($2) 35 2 1 op rs rt TUE Dig. Sys. Arch 16 bit offset ALU control input 000 001 010 111 n 100 AND OR add subtract set-on-less-than Why is the code for subtract 110 and not 011? 21
ALU Control 1 n Must describe hardware to compute 3 -bit ALU control input u u n given instruction type 00 = lw, sw 01 = beq, 10 = arithmetic function code for arithmetic ALU Operation class, computed from instruction type Describe it using a truth table (can turn into gates): TUE Dig. Sys. Arch 22
ALU Control 1 n TUE Dig. Sys. Arch Simple combinational logic (truth tables) 23
Deriving Control 2 signals Input 9 control (output) signals Determine these control signals directly from the opcodes: R-format: 0 lw: 35 sw: 43 beq: 4 TUE Dig. Sys. Arch 24
Control 2 n PLA example implementation TUE Dig. Sys. Arch 25
Single Cycle Implementation n Calculate cycle time assuming negligible delays except: u memory (2 ns), ALU and adders (2 ns), register file access (1 ns) PCSrc Add 4 Reg. Write Instruction [25– 21] PC Read address Instruction [31– 0] Instruction memory Instruction [20– 16] 1 M u Instruction [15– 11] x 0 Reg. Dst Instruction [15– 0] Read register 1 Read register 2 Read data 1 Read Write data 2 register Write Registers data 16 Sign 32 extend Shift left 2 ALU Add result 1 M u x 0 Mem. Write ALUSrc 1 M u x 0 ALU control Zero ALU result Memto. Reg Address Write data Read data Data memory 1 M u x 0 Mem. Read Instruction [5– 0] ALUOp TUE Dig. Sys. Arch 26
Single Cycle Implementation n Memory (2 ns), ALU & adders (2 ns), reg. file access (1 ns) Fixed length clock: longest instruction is the ‘lw’ which requires 8 ns Variable clock length (not realistic, just as exercise): u u u n TUE Dig. Sys. Arch R-instr: Load: Store: Branch: Jump: 6 ns 8 ns 7 ns 5 ns 2 ns Average depends on instruction mix (see pg 374) 27

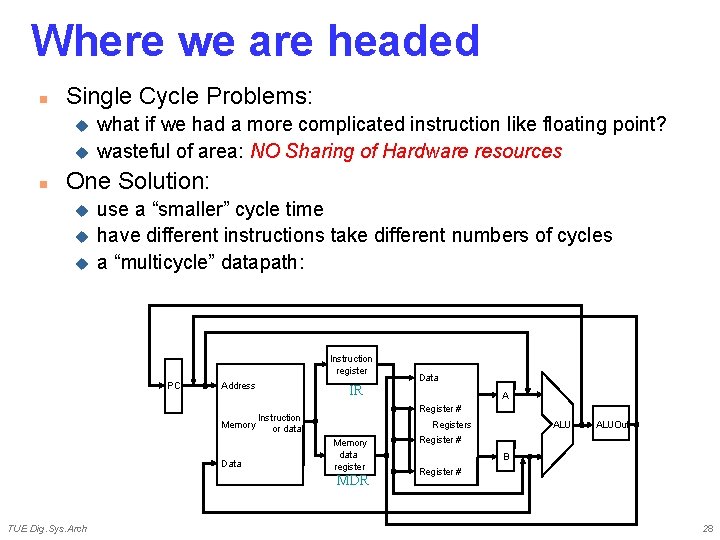

Where we are headed n Single Cycle Problems: u u n what if we had a more complicated instruction like floating point? wasteful of area: NO Sharing of Hardware resources One Solution: u use a “smaller” cycle time have different instructions take different numbers of cycles a “multicycle” datapath: Instruction register PC Address IR ALU Registers Memory data register MDR TUE Dig. Sys. Arch A Register # Instruction Memory or data Data ALUOut Register # B Register # 28
Multicycle Approach n We will be reusing functional units u u n n Add registers after every major functional unit Our control signals will not be determined solely by instruction u n TUE Dig. Sys. Arch ALU used to compute address and to increment PC Memory used for instruction and data e. g. , what should the ALU do for a “subtract” instruction? We’ll use a finite state machine (FSM) or microcode for control 29
Review: finite state machines n Finite state machines: u u u a set of states and next state function (determined by current state and the input) output function (determined by current state and possibly input) Current state Inputs Next-state function Clock Output function u TUE Dig. Sys. Arch Next state Outputs We’ll use a Moore machine (output based only on current state) 30
Review: finite state machines n Example: B. 21 A friend would like you to build an “electronic eye” for use as a fake security device. The device consists of three lights lined up in a row, controlled by the outputs Left, Middle, and Right, which, if asserted, indicate that a light should be on. Only one light is on at a time, and the light “moves” from left to right and then from right to left, thus scaring away thieves who believe that the device is monitoring their activity. Draw the graphical representation for the finite state machine used to specify the electronic eye. Note that the rate of the eye’s movement will be controlled by the clock speed (which should not be too great) and that there are essentially no inputs. TUE Dig. Sys. Arch 31
Multicycle Approach n Break up the instructions into steps, each step takes a cycle u u n At the end of a cycle u u n store values for use in later cycles (easiest thing to do) introduce additional “internal” registers Notice: we distinguish u u TUE Dig. Sys. Arch balance the amount of work to be done restrict each cycle to use only one major functional unit processor state: programmer visible registers internal state: programmer invisible registers (like IR, MDR, A, B, and ALUout) 32
Multicycle Approach PC 0 M u x 1 Address Memory Mem. Data Write data Instruction [25– 21] Read register 1 Instruction [20– 16] Read data 1 register 2 Registers Write Read register data 2 Instruction [15– 0] Instruction [15– 11] Instruction register Instruction [15– 0] Memory data register TUE Dig. Sys. Arch 0 M u x 1 A B Sign extend 32 Zero ALU result ALUOut 0 4 Write data 16 0 M u x 1 1 M u 2 x 3 Shift left 2 33
Multicycle Approach n Note that previous picture does not include: u u u branch support jump support Control lines and logic n For complete picture see fig 5. 33 page 383 n Tclock > max (ALU delay, Memory access, Regfile access) TUE Dig. Sys. Arch 34
Five Execution Steps n Instruction Fetch n Instruction Decode and Register Fetch n Execution, Memory Address Computation, or Branch Completion n Memory Access or R-type instruction completion n Write-back step INSTRUCTIONS TAKE FROM 3 - 5 CYCLES! TUE Dig. Sys. Arch 35
Step 1: Instruction Fetch n n n Use PC to get instruction and put it in the Instruction Register Increment the PC by 4 and put the result back in the PC Can be described succinctly using RTL "Register. Transfer Language" IR = Memory[PC]; PC = PC + 4; Can we figure out the values of the control signals? What is the advantage of updating the PC now? TUE Dig. Sys. Arch 36
Step 2: Instruction Decode and Register Fetch n n Read registers rs and rt in case we need them Compute the branch address in case the instruction is a branch Previous two actions are done optimistically!! RTL: A = Reg[IR[25 -21]]; B = Reg[IR[20 -16]]; ALUOut = PC+(sign-extend(IR[15 -0])<< 2); n We aren't setting any control lines based on the instruction type (we are busy "decoding" it in our control logic) TUE Dig. Sys. Arch 37
Step 3 (instruction dependent) n ALU is performing one of four functions, based on instruction type n Memory Reference: ALUOut = A + sign-extend(IR[15 -0]); n R-type: ALUOut = A op B; n Branch: if (A==B) PC = ALUOut; n Jump: PC = PC[31 -28] || (IR[25 -0]<<2) TUE Dig. Sys. Arch 38

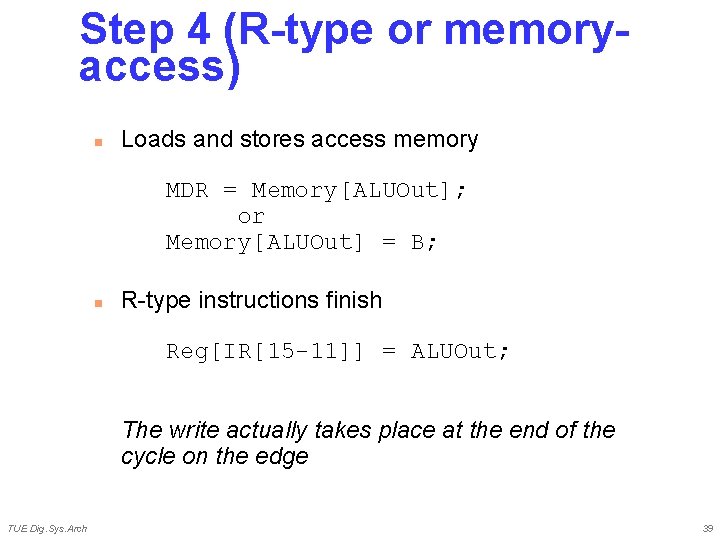

Step 4 (R-type or memoryaccess) n Loads and stores access memory MDR = Memory[ALUOut]; or Memory[ALUOut] = B; n R-type instructions finish Reg[IR[15 -11]] = ALUOut; The write actually takes place at the end of the cycle on the edge TUE Dig. Sys. Arch 39

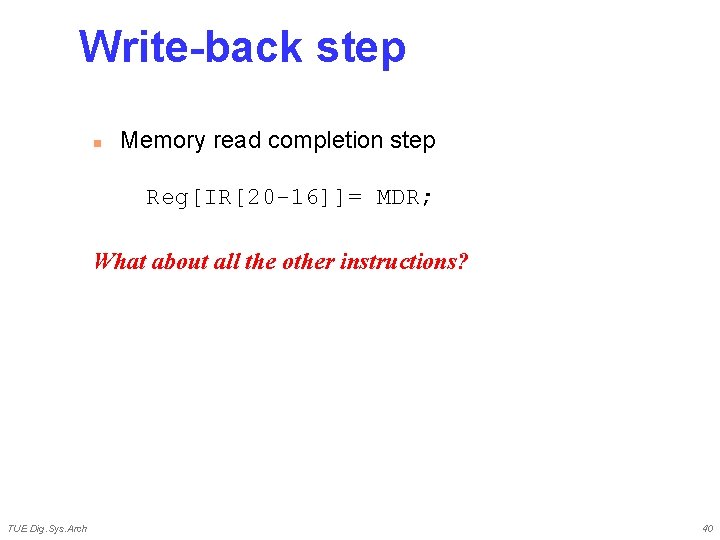

Write-back step n Memory read completion step Reg[IR[20 -16]]= MDR; What about all the other instructions? TUE Dig. Sys. Arch 40
Summary execution steps Steps taken to execute any instruction class TUE Dig. Sys. Arch 41
Simple Questions n How many cycles will it take to execute this code? lw $t 2, 0($t 3) lw $t 3, 4($t 3) beq $t 2, $t 3, L 1 add $t 5, $t 2, $t 3 sw $t 5, 8($t 3) L 1: . . . n n #assume not taken What is going on during the 8 th cycle of execution? In what cycle does the actual addition of $t 2 and $t 3 takes place? TUE Dig. Sys. Arch 42
Implementing the Control n Value of control signals is dependent upon: u u n Use the information we have accumulated to specify a finite state machine (FSM) u u n what instruction is being executed which step is being performed specify the finite state machine graphically, or use microprogramming Implementation can be derived from specification TUE Dig. Sys. Arch 43
FSM: high level view Start/reset Instruction fetch, decode and register fetch Memory access instructions TUE Dig. Sys. Arch R-type instructions Branch instruction Jump instruction 44

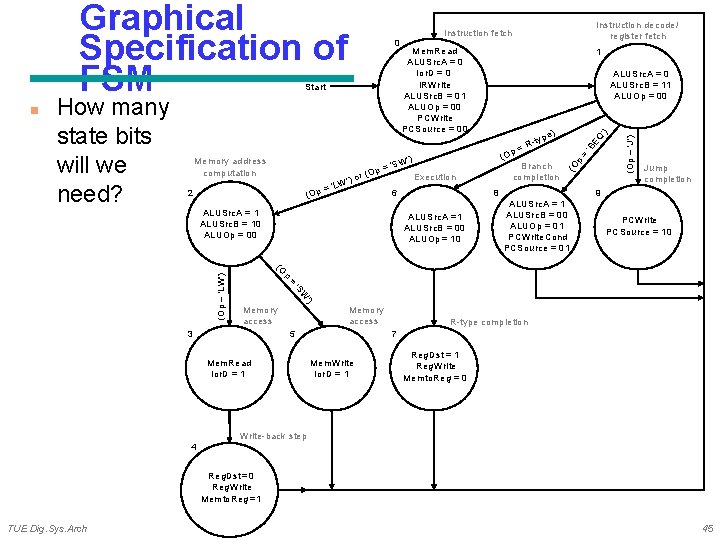

(Op 2 = 'L W' (O ) or 'S p= Branch completion Execution EQ ') e) 'B = yp R -t 8 ALUSrc. A = 1 ALUSrc. B = 00 ALUOp = 10 Jump completion 9 ALUSrc. A = 1 ALUSrc. B = 00 ALUOp = 01 PCWrite. Cond PCSource = 01 PCWrite PCSource = 10 (O p = 'S W ') (Op = 'LW') (O p W ') 6 ALUSrc. A = 1 ALUSrc. B = 10 ALUOp = 00 ALUSrc. A = 0 ALUSrc. B = 11 ALUOp = 00 = Memory address computation 1 p How many state bits will we need? Mem. Read ALUSrc. A = 0 Ior. D = 0 IRWrite ALUSrc. B = 01 ALUOp = 00 PCWrite PCSource = 00 (O 0 Start n Instruction decode/ register fetch Instruction fetch (Op = 'J') Graphical Specification of FSM Memory access 3 Memory access 5 Mem. Read Ior. D = 1 R-type completion 7 Mem. Write Ior. D = 1 Reg. Dst = 1 Reg. Write Memto. Reg = 0 Write-back step 4 Reg. Dst = 0 Reg. Write Memto. Reg = 1 TUE Dig. Sys. Arch 45
Finite State Machine for Control Implementation: TUE Dig. Sys. Arch 46

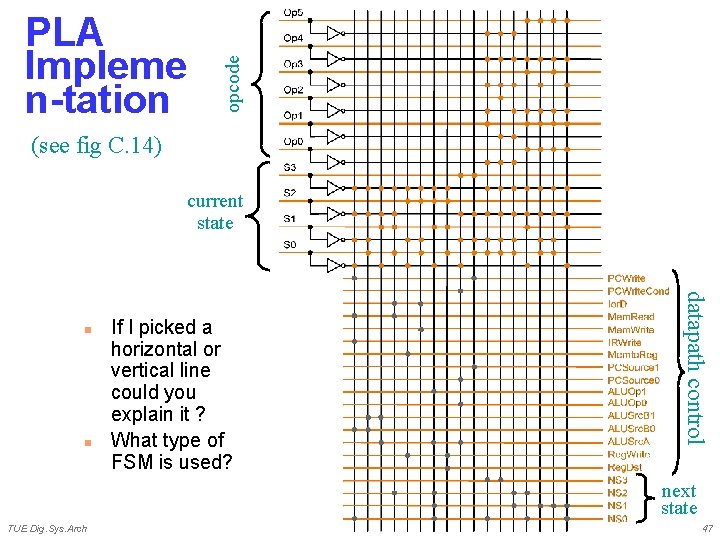

opcode PLA Impleme n-tation (see fig C. 14) current state n If I picked a horizontal or vertical line could you explain it ? What type of FSM is used? datapath control n next state TUE Dig. Sys. Arch 47

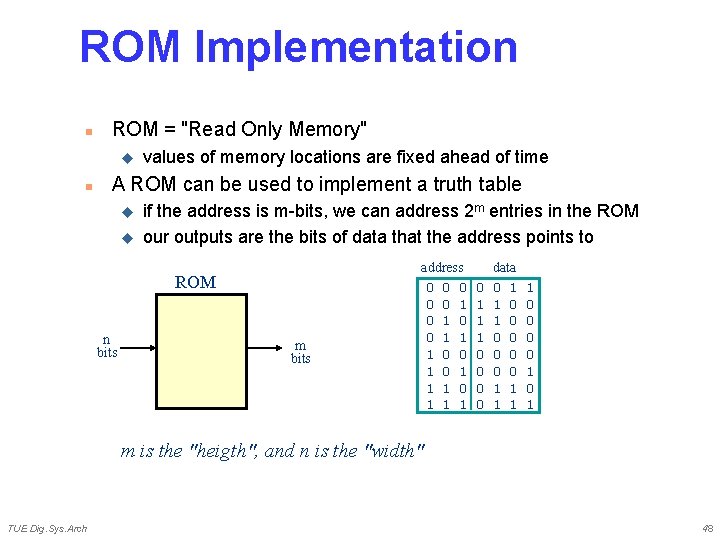

ROM Implementation n ROM = "Read Only Memory" u n values of memory locations are fixed ahead of time A ROM can be used to implement a truth table u u if the address is m-bits, we can address 2 m entries in the ROM our outputs are the bits of data that the address points to ROM n bits m bits address 0 0 0 1 1 1 0 0 1 1 1 0 0 data 0 1 1 0 0 0 0 1 1 1 0 0 1 0 1 m is the "heigth", and n is the "width" TUE Dig. Sys. Arch 48

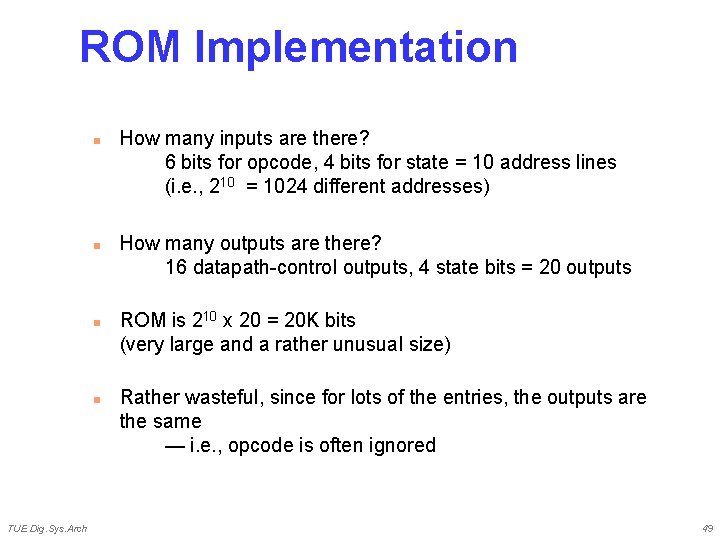

ROM Implementation n n TUE Dig. Sys. Arch How many inputs are there? 6 bits for opcode, 4 bits for state = 10 address lines (i. e. , 210 = 1024 different addresses) How many outputs are there? 16 datapath-control outputs, 4 state bits = 20 outputs ROM is 210 x 20 = 20 K bits (very large and a rather unusual size) Rather wasteful, since for lots of the entries, the outputs are the same — i. e. , opcode is often ignored 49
ROM Implementation Cheaper implementation: n n Exploit the fact that the FSM is a Moore machine ==> u Control outputs only depend on current state and not on other incoming control signals ! u Next state depends on all inputs Break up the table into two parts — 4 state bits tell you the 16 outputs, 24 x 16 bits of ROM — 10 bits tell you the 4 next state bits, 210 x 4 bits of ROM — Total number of bits: 4. 3 K bits of ROM TUE Dig. Sys. Arch 50
ROM vs PLA n n PLA is much smaller u can share product terms (ROM has an entry (=address) for every product term u only need entries that produce an active output u can take into account don't cares Size of PLA: (#inputs ´ #product-terms) + (#outputs ´ #productterms) u n For this example: (10 x 17)+(20 x 17) = 460 PLA cells usually slightly bigger than the size of a ROM cell TUE Dig. Sys. Arch 51
Another Implementation Style n Real machines have many instructions => complex FSM with many states u n Specify control as an instruction u u n microinstructions built out of separate fields (for controlling ALU, SRC 1, SCR 2, etc) Exploit the fact that usually the next state is the next microinstruction (just like in a sequential programming language) u u TUE Dig. Sys. Arch Graphical specification becomes cumbersome default sequencing use micro program counter (indicating next state = next instr. ) 52
Another Implementation Style n Complex instructions: the "next state" is often current state + 1 TUE Dig. Sys. Arch 53
Microprogrammi ng What are the “microinstructions” ? TUE Dig. Sys. Arch 54
Microinstruction format n Each microinstruction contains 7 fields TUE Dig. Sys. Arch 55
Microinstruction format TUE Dig. Sys. Arch 56
Microprogramming n A specification methodology u u TUE Dig. Sys. Arch appropriate if hundreds of opcodes, modes, cycles, etc. signals specified symbolically using microinstructions 57
Details PLA or R OM 1 State Adder 3 M ux 2 1 A ddr. Ctl 0 0 Dispatch R OM 2 Dispatch RO M 1 Op Address select logic Instruction register opcode field TUE Dig. Sys. Arch 58
Details TUE Dig. Sys. Arch 59

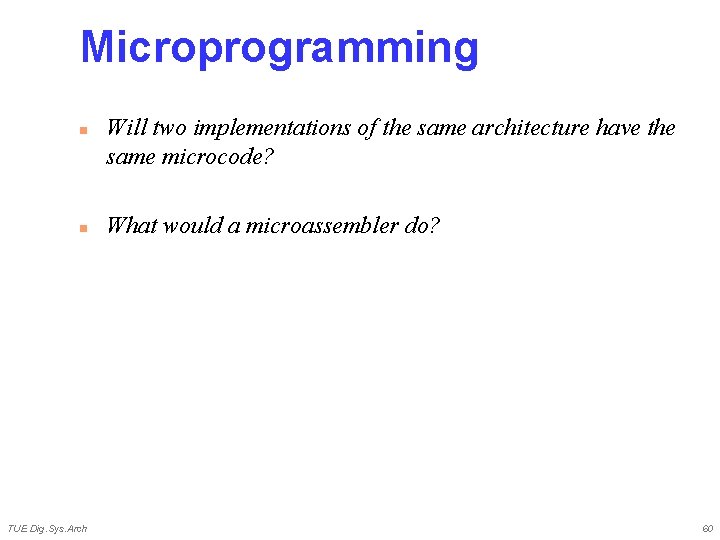

Microprogramming n n TUE Dig. Sys. Arch Will two implementations of the same architecture have the same microcode? What would a microassembler do? 60
Maximally vs. Minimally Encoded n n n No encoding (also called horizontal encoding, or 1 -hot encoding): u 1 bit for each datapath operation u faster, requires more memory (logic) u used for Vax 780 — an astonishing 400 K of memory! Lots of encoding (also called vertical encoding): u send the microinstructions through logic to get control signals u uses less memory, slower Historical context of CISC: u Too much logic to put on a single chip with everything else u Use a ROM (or even RAM) to hold the microcode u It’s easy to add new instructions TUE Dig. Sys. Arch 61

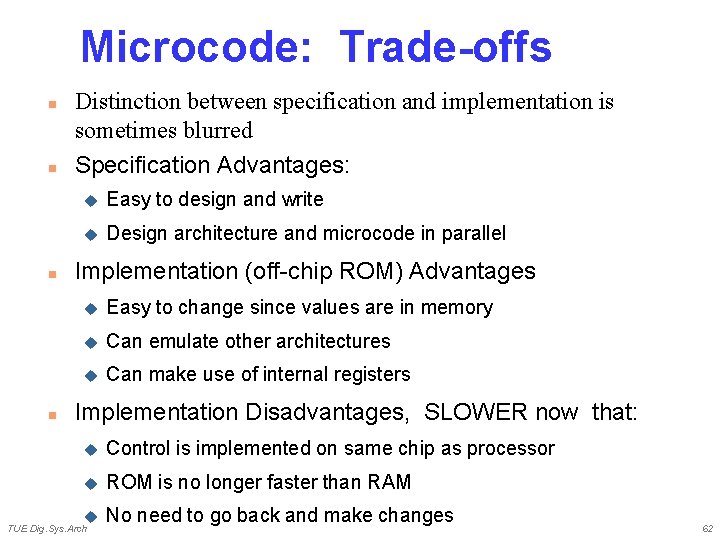

Microcode: Trade-offs n n Distinction between specification and implementation is sometimes blurred Specification Advantages: u Easy to design and write u Design architecture and microcode in parallel Implementation (off-chip ROM) Advantages u Easy to change since values are in memory u Can emulate other architectures u Can make use of internal registers Implementation Disadvantages, SLOWER now that: u Control is implemented on same chip as processor u ROM is no longer faster than RAM u No need to go back and make changes TUE Dig. Sys. Arch 62
Exceptions n n Unexpected events External: interrupt u n Internal: exception u n e. g. Overflow, Undefined instruction opcode, Software trap, Page fault How to handle exception? u u u TUE Dig. Sys. Arch e. g. I/O request Jump to general entry point (record exception type in status register) Jump to vectored entry point Address of faulting instruction has to be recorded ! 63
Exceptions Changes needed: see fig. 5. 48 / 5. 49 / 5. 50 n n Extend PC input mux with extra entry with fixed address: “C 000000 hex” Add EPC register containing old PC (we’ll use the ALU to decrement PC with 4) u n Cause register (one bit in our case) containing: u u n 0: undefined instruction 1: ALU overflow Add 2 states to FSM u u TUE Dig. Sys. Arch extra input ALU src 2 needed with fixed value 4 undefined instr. state #10 overflow state #11 64
Exceptions Legend: Int. Cause =0/1 Cause. Write ALUSrc. A = 0 ALUSrc. B = 01 ALUOp = 01 EPCWrite PCSource =11 type of exception write Cause register select PC select constant 4 subtract operation write EPC register with current PC write PC with exception address select exception address: C 000000 hex 2 New states: #10 undefined instruction Int. Cause =0 Cause. Write ALUSrc. A = 0 ALUSrc. B = 01 ALUOp = 01 EPCWrite PCSource =11 #11 overflow Int. Cause =1 Cause. Write ALUSrc. A = 0 ALUSrc. B = 01 ALUOp = 01 EPCWrite PCSource =11 To state 0 (begin of next instruction) TUE Dig. Sys. Arch 65
Pentium Pro / III n n n Use multicycle data path for 80 x 86 instructions Combine hardwired (FSM) control for simple instructions with microcoded control for complex instructions (since 80486) Pentium Pro: u u u TUE Dig. Sys. Arch internal RISC engine executing micro-operations (of 72 bit) multiple FUs up to four 80 x 86 instructions issued per cycle and translated into micro-operations (by set of PLAs generating 1200 different micro-operations) complex 80 x 86 instructions are handled by micro-code (8000 micro-instructions) four micro-operations issued per cycle (4 x 72 bits expand into 120 Int and 285 FP control lines) 66
The Big Picture TUE Dig. Sys. Arch Initial representation Finite state diagram Microprogram Sequencing control Explicit next state function Microprogram counter + dispatch ROMS Logic representation Logic equations Truth tables Implementation technique Programmable logic array Read only memory 67
Exercises From Chapter five: n n TUE Dig. Sys. Arch 5. 1, 5. 3 5. 5, 5. 6 5. 9 5. 12 68
