ECE 526 Network Processing Systems Design Network Processor

ECE 526 – Network Processing Systems Design Network Processor Tradeoffs and Examples Chapter: D. E. Comer

Outline • Network Processor design tradeoffs • Sample Network Processor Ning Weng ECE 526 2

NP Architecture • Numerous different design goals ─ ─ Performance Cost Functionality Programmability • Numerous different system choices ─ ─ Use of parallelism Types of memories Types of interfaces Etc. • We consider ─ Design tradeoffs on high level (qualitative tradeoffs) ─ Commercial Network Processors Ning Weng ECE 526 3

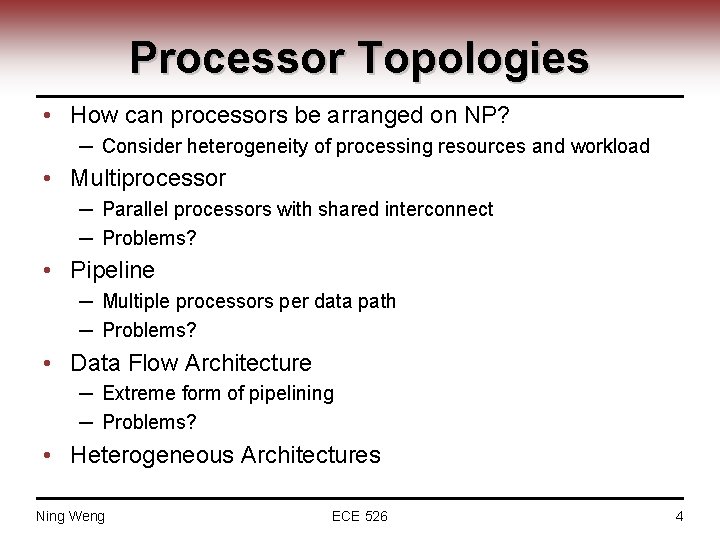

Processor Topologies • How can processors be arranged on NP? ─ Consider heterogeneity of processing resources and workload • Multiprocessor ─ Parallel processors with shared interconnect ─ Problems? • Pipeline ─ Multiple processors per data path ─ Problems? • Data Flow Architecture ─ Extreme form of pipelining ─ Problems? • Heterogeneous Architectures Ning Weng ECE 526 4

Design Tradeoffs (1) • Low development cost vs. performance ─ ASICs give higher performance, but take time to develop ─ NPs allow faster development, but might give lower performance • Programmability vs. processing speed ─ Similar to tradeoff between ASIC and NP ─ Co-processors pose the same tradeoffs ─ Complexity of instruction set • Performance: packet rate, data rate, and bursts ─ Difficult to assess the performance of a system ─ Even more difficult to compare different systems • Per-interface rate vs. aggregate data rate ─ NP usually limited to one port Ning Weng ECE 526 5

Design Tradeoffs (2) • NP speed vs. bandwidth ─ How much processing power per bandwidth is necessary? ─ Depends on application complexity • Coprocessor design: look aside vs. flow-through ─ Look aside: “called” from main processor, need state transfer ─ Flow-through: all traffic streams through coprocessor • Pipelining: uniform vs. synchronized ─ Pipeline stages can take different times ─ Tradeoff between slowing down or synchronization • Explicit parallelism vs. cost and programmability ─ Hidden parallelism is easier to program ─ Explicit parallelism is cheaper to implement Ning Weng ECE 526 6

Design Tradeoffs (3) • Parallelism: scale vs. packet ordering ─ Why is packet order important? ─ Giving up packet order constraint gives better throughput • Parallelism: speed vs. stateful classification ─ Shared state requires synchronization ─ Limits parallelism • Memory: speed vs. programmability ─ Different types of memories give performance ─ Increases difficulty in programming • I/O performance vs. pin count ─ Packaging can be major cost factor ─ More pins give higher performance Ning Weng ECE 526 7

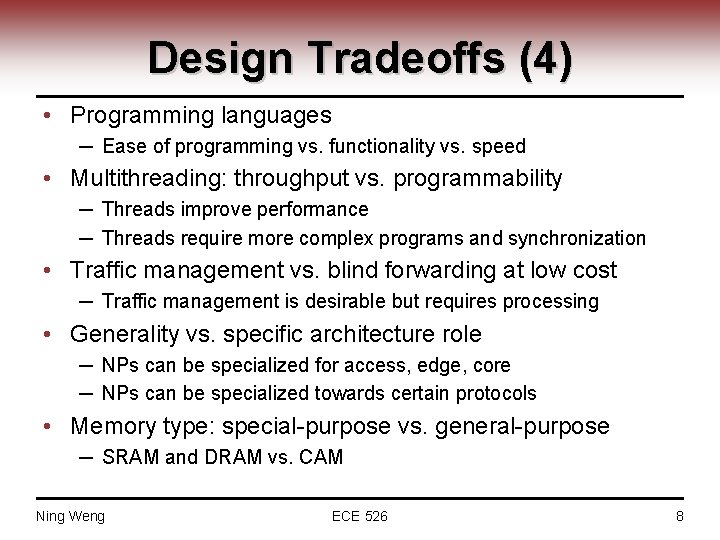

Design Tradeoffs (4) • Programming languages ─ Ease of programming vs. functionality vs. speed • Multithreading: throughput vs. programmability ─ Threads improve performance ─ Threads require more complex programs and synchronization • Traffic management vs. blind forwarding at low cost ─ Traffic management is desirable but requires processing • Generality vs. specific architecture role ─ NPs can be specialized for access, edge, core ─ NPs can be specialized towards certain protocols • Memory type: special-purpose vs. general-purpose ─ SRAM and DRAM vs. CAM Ning Weng ECE 526 8

Design Tradeoffs (5) • Backward compatibility vs. architectural advances ─ On component level: e. g. , memories DDR DRAM ─ On system level: NP needs to fit into overall router system • Parallelism vs. pipelining ─ Depends on usage of NP • Summary: ─ Lots of choices ─ Most decisions require some insight in expected NP usage ─ Tradeoffs are all qualitative • Lets look at the commercial design Ning Weng ECE 526 9

Novel Areas of NP Use • • TCP/IP offloading on high-performance servers Security processing: SSL offloading Storage area networks Many others: IDSs and etc. Ning Weng ECE 526 10

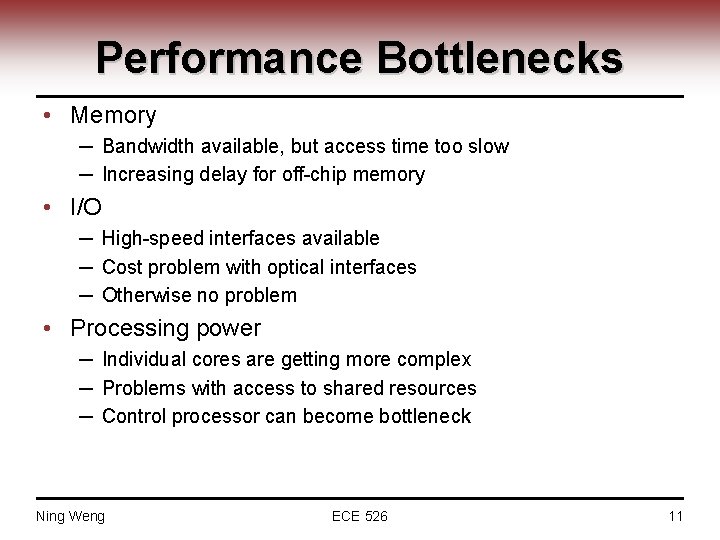

Performance Bottlenecks • Memory ─ Bandwidth available, but access time too slow ─ Increasing delay for off-chip memory • I/O ─ High-speed interfaces available ─ Cost problem with optical interfaces ─ Otherwise no problem • Processing power ─ Individual cores are getting more complex ─ Problems with access to shared resources ─ Control processor can become bottleneck Ning Weng ECE 526 11

Limitations on Scalability • What are the limitations on how fast NPs need to get? ─ Link rates (optical bandwidth limits) ─ Application complexity (core vs. edge) • What are the limitations on how fast NPs can get? ─ Parallelism in networks ─ Power consumption ─ Chip area Ning Weng ECE 526 12

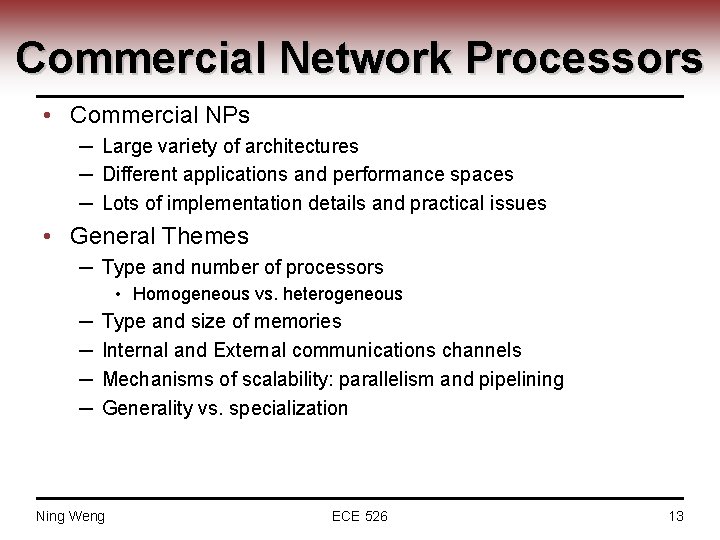

Commercial Network Processors • Commercial NPs ─ Large variety of architectures ─ Different applications and performance spaces ─ Lots of implementation details and practical issues • General Themes ─ Type and number of processors • Homogeneous vs. heterogeneous ─ ─ Type and size of memories Internal and External communications channels Mechanisms of scalability: parallelism and pipelining Generality vs. specialization Ning Weng ECE 526 13

Intel IXP 1200: external connection Ning Weng ECE 526 14

Intel IXP 1200: internal architecture Ning Weng ECE 526 15

Cisco PXF Ning Weng ECE 526 16

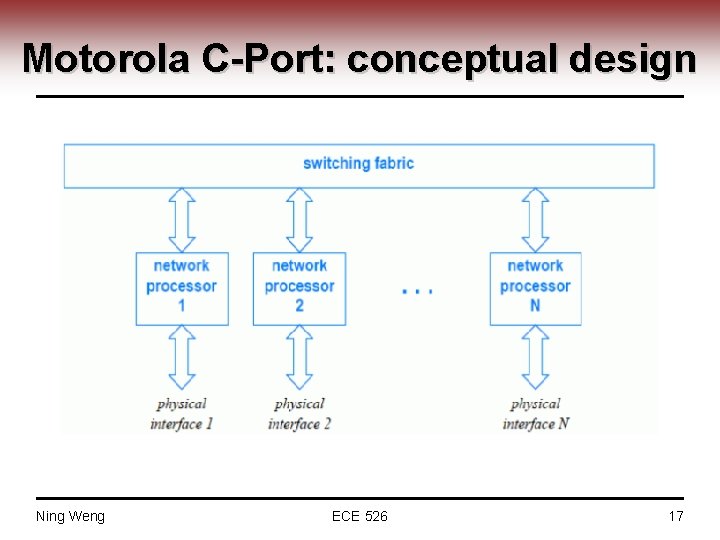

Motorola C-Port: conceptual design Ning Weng ECE 526 17

Motorola C-Port: internal architecture Ning Weng ECE 526 18

Motorola C-Port: channel processor Ning Weng ECE 526 19

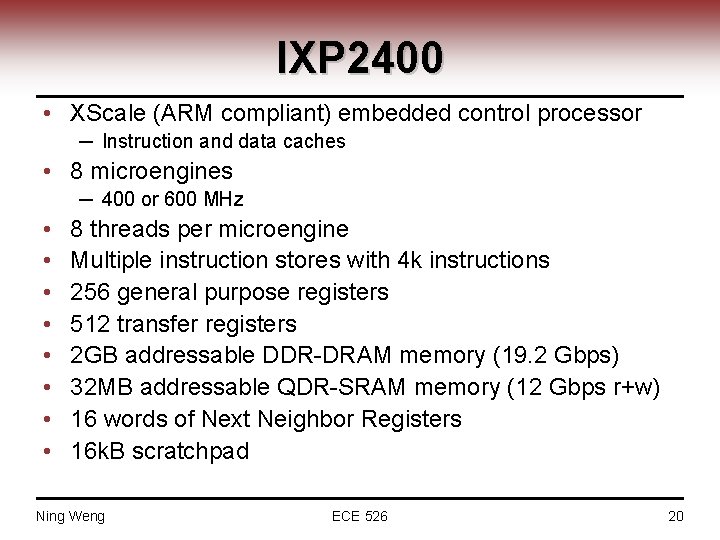

IXP 2400 • XScale (ARM compliant) embedded control processor ─ Instruction and data caches • 8 microengines ─ 400 or 600 MHz • • 8 threads per microengine Multiple instruction stores with 4 k instructions 256 general purpose registers 512 transfer registers 2 GB addressable DDR-DRAM memory (19. 2 Gbps) 32 MB addressable QDR-SRAM memory (12 Gbps r+w) 16 words of Next Neighbor Registers 16 k. B scratchpad Ning Weng ECE 526 20

IXP 2400 • Interconnects ─ Coprocessor bus added (incl. access to T-CAM) ─ Flow control bus for two-chip configurations (e. g. , ingress and egress) • Switch Fabrics ─ ─ No IX bus Utopia 1, 2, 3 CSIX-L 1 SPI-3 (POS-PHY 2/3) Ning Weng ECE 526 21

Two-Chip Configurations • Flow control needed between ingress and ─ 1 Gbps over flow control bus (not shown) Ning Weng ECE 526 22

IXP 2400 Internal Architecture Ning Weng ECE 526 23

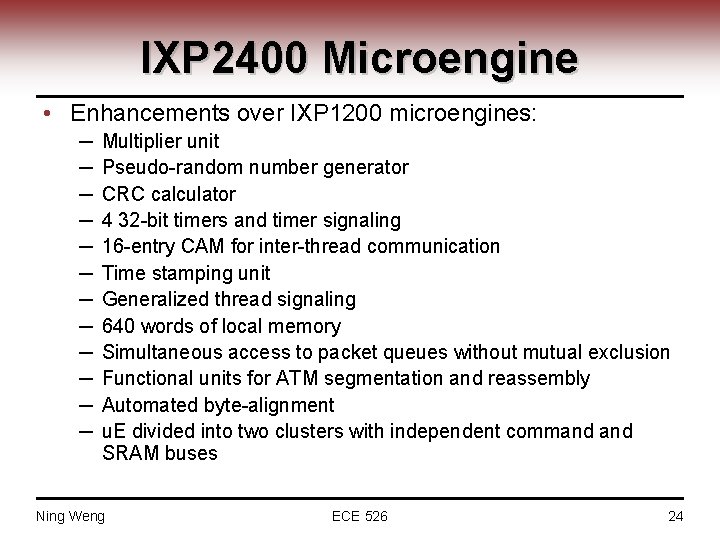

IXP 2400 Microengine • Enhancements over IXP 1200 microengines: ─ ─ ─ Multiplier unit Pseudo-random number generator CRC calculator 4 32 -bit timers and timer signaling 16 -entry CAM for inter-thread communication Time stamping unit Generalized thread signaling 640 words of local memory Simultaneous access to packet queues without mutual exclusion Functional units for ATM segmentation and reassembly Automated byte-alignment u. E divided into two clusters with independent command SRAM buses Ning Weng ECE 526 24

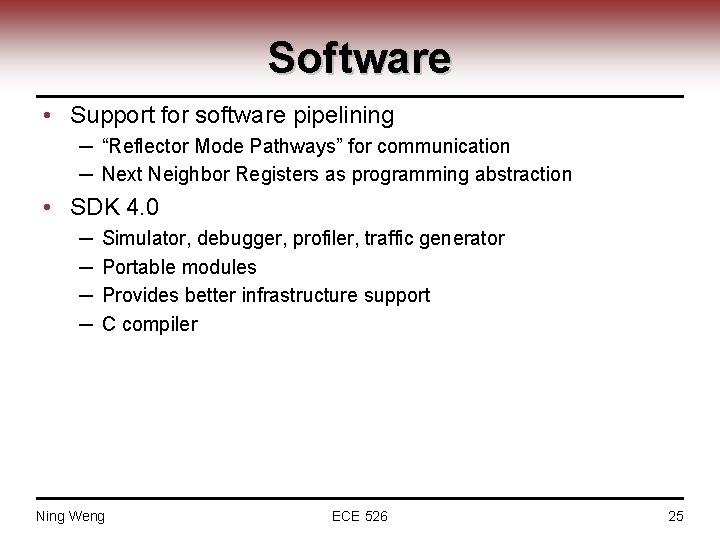

Software • Support for software pipelining ─ “Reflector Mode Pathways” for communication ─ Next Neighbor Registers as programming abstraction • SDK 4. 0 ─ ─ Simulator, debugger, profiler, traffic generator Portable modules Provides better infrastructure support C compiler Ning Weng ECE 526 25

Summary • Network Processor design space is big due to ─ Varying design goals ─ Varying implementation choices • • • Qualitative tradeoffs Survey commercial NPs Network processors are getting more features Main architecture characteristic is still parallelism Software support is becoming more important Ning Weng ECE 526 26
