OSE OSE Ericsson Nokia Phillips Lucent Alcatel Sagem
- Slides: 39
新一代实时多任务操作系统—— OSE发展历程及性能特点介绍 OSE的客户遍及全球 电信 数据传输 汽车电子 Ericsson, Nokia Phillips, Lucent, Alcatel Sagem, Philips, Sony Mercedes, SAAB, Volvo 消费类电子 Sony, Sagem 石油化 ICS Triplex, Triconex 医疗 业 Siemens, Medtronic, GE Medical, Gambro, Phillips Medical Landis & Gyr, ABB Atlas Copco, Fisher Controls, Fisher Rosemount 国防 业 无线通信 Racal, British Aerospace, SAAB, Lockheed Martin Ericsson, Nokia, Lucent, R&S
新一代实时多任务操作系统—— OSE分布式系统特点之一 同时支持多CPU和DSP • Lucent Technologies: DSP 16000 4 • Texas Instruments: TMS 320 C 54 x TMS 320 C 62 x TMS 320 C 67 x 4 • Motorola 68 K family: 68302, 68331, 68332, 68340, 68360 • • • 4 Motorola Power. PC Family: 4 5 XX , 6 XX, 7400 , 8 XX , 82 XX, M-Core, Coldfire 4 IBM Power. PC 4 XX : 403, 405 7 XX : 750, 750 CX Atmel AVR 4 ARM Consortium Family: ARM 4 T : ARM 720, ARM 740, ARM 920, and ARM 940 Intel Strong. ARM family: Strong. ARM : SA 110, SA 1100 and SA 1110 ARM 5 T : Intel XScale MIPS Consortium family: MIPS 3000 : IDT RC 36100 and Toshiba TX 3904. Lucent Technologies: Star. Pro 2000 Texas Instruments: TMS 320 C 55 x (09 -01) TMS 320 C 64 x Analog Devices Tiger. SHARC (09 -01) LSI Logic ZSP 400 (09 -01) Infineon C 166, E-Gold, Tri. Core STMicroelectronics ST 100 (09 -01) NEC V 850 Motorola MSC 8101 ( 8101 pitch pack ) MSC 8102 Mitsubishi M 16 C
新一代实时多任务操作系统—— OSE分布式系统特点之二 支持全方位网络协议 ftp | telnet | bootp | http | WAP | l 2 tp | DNS | DHCP | OSPF | RIP | SSL | NAT | NTP | SNTP | IPsec | Radius | IKE | IPv 6|Etc. . . SNMP Sockets UDP OSE High Efficiency Single Copy TCP IP/ICMP/IGMP ARP/RARP Ethernet PPP Serial
新一代实时多任务操作系统—— OSE基本概念 进程与信号 进程:Processes – functions with a context 信号:Signals – Information carriers Application High Level Approach Ease of Use Modular Design Supervised IPC Transparent IPC Error detection Memory management Functionality Application Conventional RTOS OSE

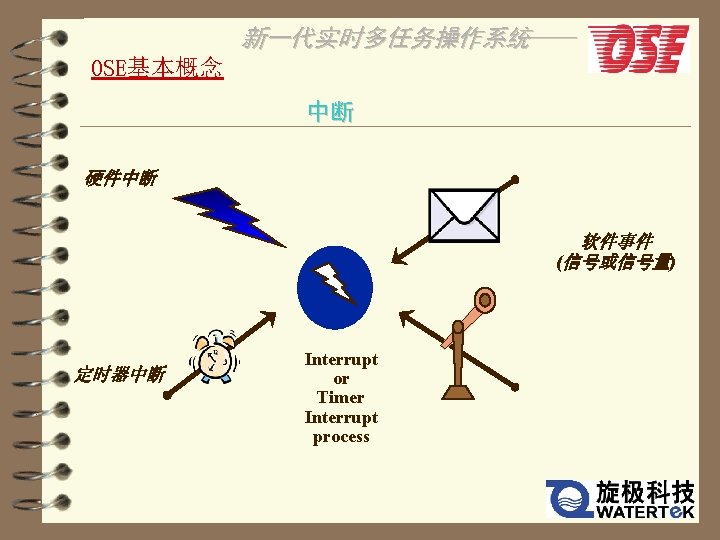

新一代实时多任务操作系统—— OSE基本概念 进程的分类 Ø Interrupt processes 中断 response-time critical task Ø Timer interrupt processes 定时器中断 high priority cyclic task Ø Prioritised processes 区分优先级的进程 longer task than interrupt processes, not directly tied to some external events Ø Background processes 后台进程 lowest level processes, used to spend leftover CPU time Ø Phantom processes 影象进程 special purpose, used mainly by OSE LNH as images of remote processes

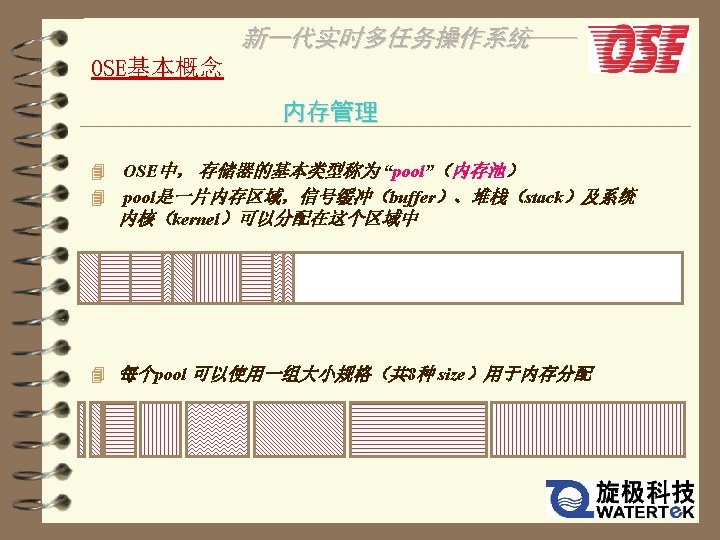

新一代实时多任务操作系统—— OSE基本概念 内存管理 stack HIGH signals LOW SIZE 1 SIZE 2 SIZE 3 SIZE 4 SIZE 5 SIZE 6 SIZE 7 SIZE 8 用户 pool - stacks and signals 系统 pool - stacks, signals, PCB (from low mem), Uarea and supervisor stacks
新一代实时多任务操作系统—— OSE基本概念 错误处理 传统 RTOS Process 1 Process 2 Application Error code Conventional Kernel OSE Process 1 Application Process 2 SYSTEM ERROR HANDLER Application BLOCK ERROR HANDLER PROCESS ERROR HANDLER OSE Kernel 3 -Layer Error Handler 4 如果内核检测到错误, 将转入出错处理“error handler”, 允许用户集中处 理。错误处理分3层:系统(system)、块(block)、进程(progress) 4 这种方式使代码确认非常容易,因为所有的错误都以相同的方法处理

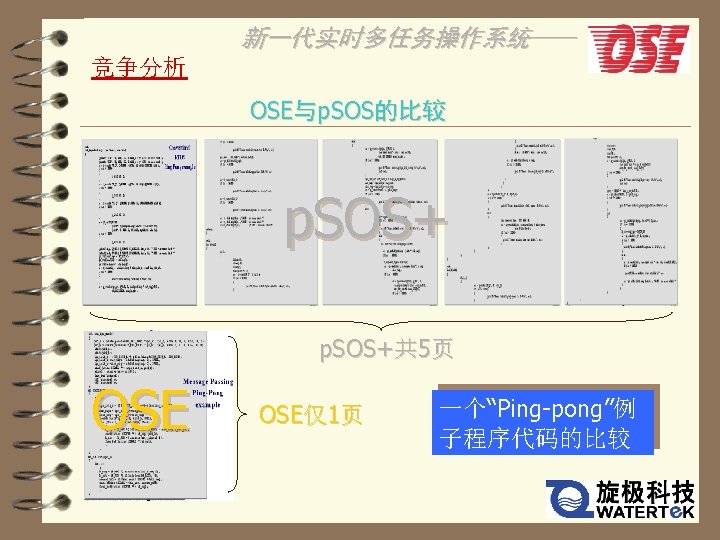

新一代实时多任务操作系统—— 竞争分析 OSE与p. SOS性能的比较 资料来源: New OSE customer Product Evaluation,February 1998 测试条件:Processor: Power. PC 860,Clock: 40 MHz OSE 3. 0 OSE 执行2级错误检测 (最高级): x=100 1, 000 10, 000 20, 000 40 ms 296 ms 2. 856 s 5. 704 s OSE 执行0级错误检测: x=100 1, 000 10, 000 20 ms 208 ms 2. 04 s 4. 07 s 注:OSE中,信息量的大小没有影响。 p. SOS+ 5. 3. 1 PSOS+ 发送10 byte 信息: x=100 1, 000 100 ms 430 ms 3. 75 s p. SOS+ 发送100 byte信息: x=100 1, 000 10, 000 110 ms 480 ms 4. 15 s p. SOS+ 发送1, 000 byte信息: x=100 1, 000 10, 000 130 ms 870 ms 8. 01 s OSE 的性能指标最高时是 p. SOS+的6倍(平均为 2 -4倍) 20, 000 7. 49 s 20, 000 8. 24 s 20, 000 15. 96 s

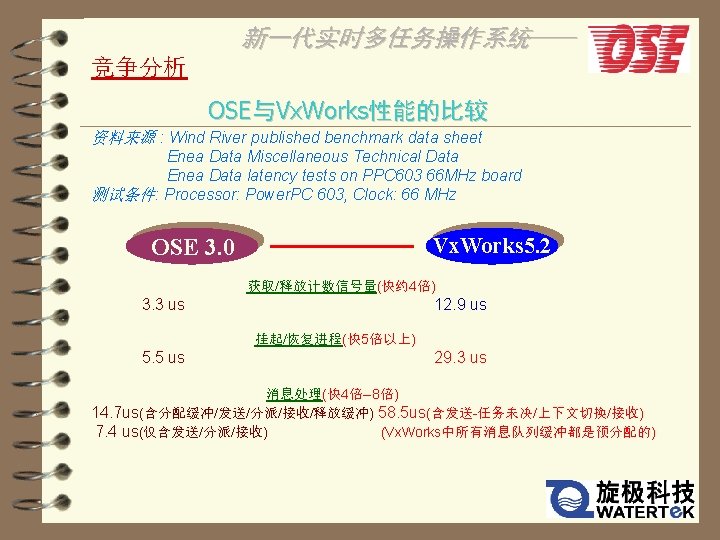

新一代实时多任务操作系统—— 竞争分析 OSE与Vx. Works性能的比较 资料来源 : Wind River published benchmark data sheet Enea Data Miscellaneous Technical Data Enea Data latency tests on PPC 603 66 MHz board 测试条件: Processor: Power. PC 603, Clock: 66 MHz Vx. Works 5. 2 OSE 3. 0 中断总响应时间(快 54%--4倍) 6. 7 us(最坏时) ,2. 7 us(最好时) 10. 3 us 内存分配(快 4倍以上) 3. 8 us (确定) 16. 9 us(不确定) 内存释放(快约 11倍) 2. 7 us (确定) 29. 3 us (不确定) 上下文切换时间(快 62%) 2. 4 us 3. 9 us
