ITU Telecommunications System Management Alcatel-Lucent Telecommunication Technologies İkbal Çam Alcatel-Lucent Teletaş İkbal. cam@alcatel-lucent. com September 2010

1 2 | Technical Sales Forum | May 2008 Alcatel-Lucent Teletaş Türkiye © Alcatel-Lucent

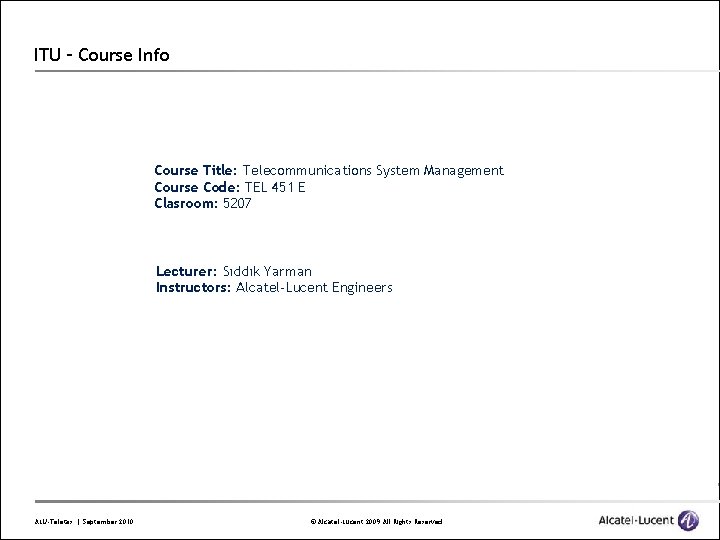

ITU – Course Info Course Title: Telecommunications System Management Course Code: TEL 451 E Clasroom: 5207 Lecturer: Sıddık Yarman Instructors: Alcatel-Lucent Engineers ALU-Teletas | September 2010 © Alcatel-Lucent 2009 All Rights Reserved

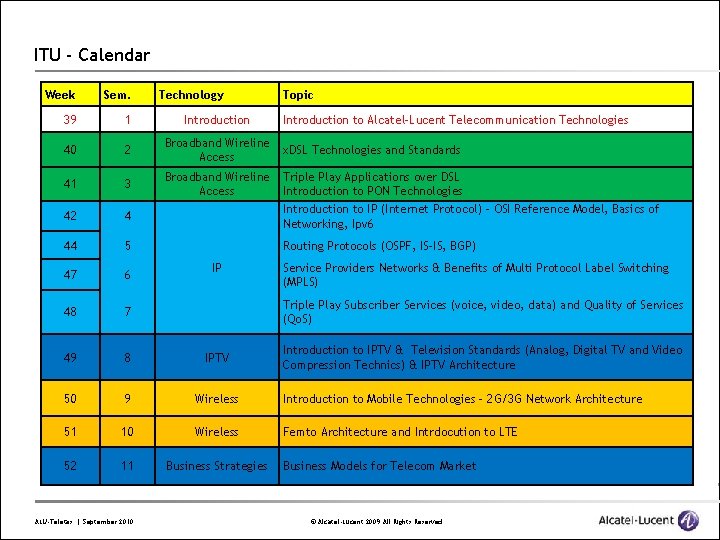

ITU - Calendar Week Sem. 39 1 Introduction 40 2 Broadband Wireline Access 41 3 Broadband Wireline Access 42 4 44 5 47 6 48 7 49 8 IPTV 50 9 Wireless Introduction to Mobile Technologies - 2 G/3 G Network Architecture 51 10 Wireless Femto Architecture and Intrdocution to LTE 52 11 Business Strategies ALU-Teletas | September 2010 Technology Topic Introduction to Alcatel-Lucent Telecommunication Technologies x. DSL Technologies and Standards Triple Play Applications over DSL Introduction to PON Technologies Introduction to IP (Internet Protocol) - OSI Reference Model, Basics of Networking, Ipv 6 Routing Protocols (OSPF, IS-IS, BGP) IP Service Providers Networks & Benefits of Multi Protocol Label Switching (MPLS) Triple Play Subscriber Services (voice, video, data) and Quality of Services (Qo. S) Introduction to IPTV & Television Standards (Analog, Digital TV and Video Compression Technics) & IPTV Architecture Business Models for Telecom Market © Alcatel-Lucent 2009 All Rights Reserved

ITU – Calendar – Days Off + Exams Week Date Info 43 29 th Oct 45 Planned on 12 th Nov Mid Term Exam 46 19 th Nov Kurban Bayrami X TBD ALU-Teletas | September 2010 Cumhuriyet Bayrami Final Exam © Alcatel-Lucent 2009 All Rights Reserved

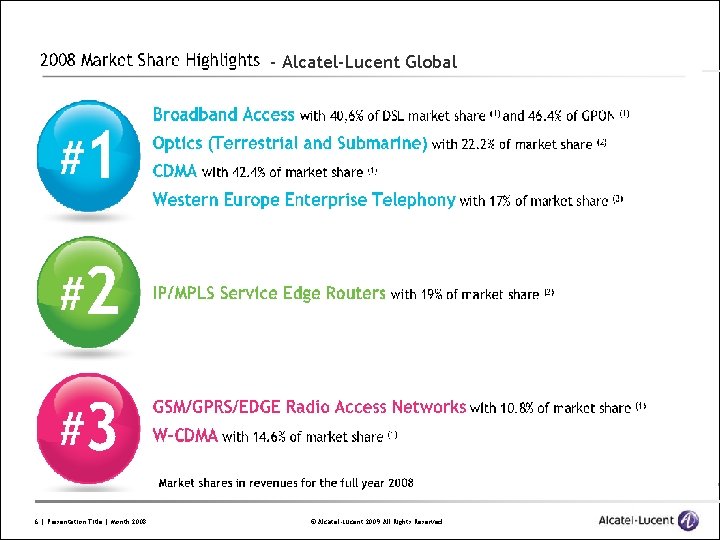

“ 6 | Presentation Title | Month 2008 - Alcatel-Lucent Global © Alcatel-Lucent 2009

Alcatel-Lucent Global (ALU) q Electrics, Electronics, Transportation and Telecommunication Industries q 1 st foreign company in China q In 2000, the world’s leading ATM compny Newbridge acquired q In 2006, Nortel UMTS unit was acquired. Same year, Alcatel and Lucent Technologies merges to form a new company Alcatel-Lucent (ALU). q The lab of innovations Bell Laboratuaries owned by ALU q 130 countries q 70000 + employess q Annual Income 17 billion € (2008), 2. 5 billion € R&D budget. q 7 Nobel prizes, 26. 000+ patents. (In 2008, more than 2700 patents) 7 | EPC update for EMEA | March 2009 © Alcatel-Lucent 2009 All Rights Reserved

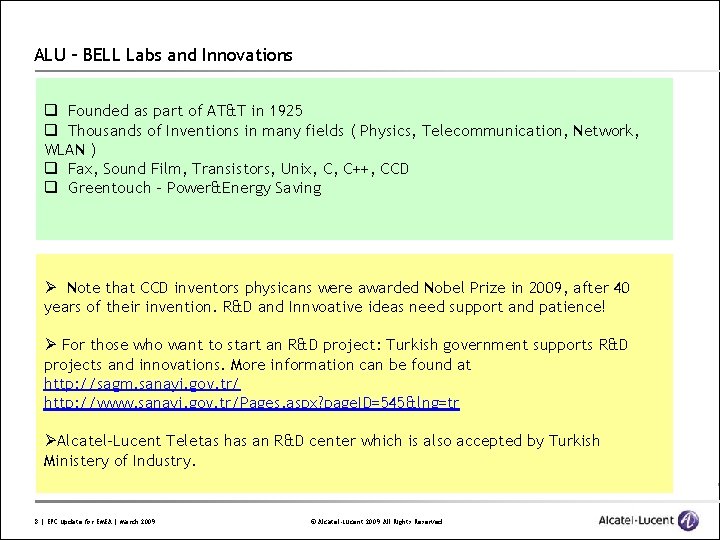

ALU – BELL Labs and Innovations q Founded as part of AT&T in 1925 q Thousands of Inventions in many fields ( Physics, Telecommunication, Network, WLAN ) q Fax, Sound Film, Transistors, Unix, C, C++, CCD q Greentouch – Power&Energy Saving Ø Note that CCD inventors physicans were awarded Nobel Prize in 2009, after 40 years of their invention. R&D and Innvoative ideas need support and patience! Ø For those who want to start an R&D project: Turkish government supports R&D projects and innovations. More information can be found at http: //sagm. sanayi. gov. tr/ http: //www. sanayi. gov. tr/Pages. aspx? page. ID=545&lng=tr ØAlcatel-Lucent Teletas has an R&D center which is also accepted by Turkish Ministery of Industry. 8 | EPC update for EMEA | March 2009 © Alcatel-Lucent 2009 All Rights Reserved

Alcatel-Lucent Teletaş Türkiye q In 1965, R&D Lab founded as part of PTT. Named ARLA. (Remember Bell Labs) q In 1984, Became Public Corporate and named as Teletaş Telekomünikasyon Endüstri A. S. Same year, System-12 digital exchange licenses were bought from Alcatel Bell and System-12 R&D & Manufacturing activities started in Teletas. q In 1988 Alcatel Teletas was the first Turkish company in IMKB stock exchange. q In 1993, Teletaş became an important R&D unit of Alcatel’s telecom activities. q Alcatel Lucent Teletas has %35' share at IMKB stock exchange. The rest -% 65 is owned by Alcatel N. V. § IP (Service Routers) § 400+ Engineers § Wireline Access (ISAM, GPON) § Domestic / International Technical Support § Wireless (3 G/4 G, Femto, Wimax, LTE) § TAC / TEC Centers - EMEA § Converged Networks (NGN / IMS ) § Tiger Teams !!! § Optics (SDH, WDM, WT) § Not only, developing the technology, but also delivering the solutions § Application Development (SW) § World-wide projects § IPTV & IPTC Competence Centers 9 | EPC update for EMEA | March 2009 © Alcatel-Lucent 2009 All Rights Reserved

Alcatel-Lucent Teletaş – Uluslarası Destek Merkezi – Avustralya 10 | Presentation Title | Month

Alcatel-Lucent Teletaş – Uluslarası Destek Merkezi – Yeni Zelanda IP/MPLS Project 11 | Presentation

Alcatel-Lucent Teletaş – Uluslarası Destek Merkezi – Italya 12 | Presentation Title | Month

Alcatel-Lucent Teletaş – Uluslarası Destek Merkezi – Burkina Faso 13 | Presentation Title |

Impsat, AT&T / USA FT, PSN, CEGETEL, Orange VTG, Monaco Telecom / France Teleonor / Norway Telecom Austria, H 3 G / Austria KPN / Netherlands Telefonica / Spain Telmex, Avantel, Maxcom / Mexico Belgacom / Belgium PT, Vodafone / Portugal BT, Isle of Man / England Lattelecom / Latvia TT, Telcom, Sabanci T. , Doruknet, Atlas. Online, Eser T. / Turkey Slovak Telecom / Slovakia Net COLOGNE, EWETEL, MNET, TSI, Deutsche Telecom / Germany HIPCC / India Combelga, USI / Russia PTK/Kosovo WIND / Italy Maroc Telecom, Maroc Connect / Morocco OND OPTICS – AND_DSL – IPD – CONV_FIX_NGN Globacom / Nigeria UTS / Caribbean Entel / Chile Quality. NET / Kuwait CTE Telecom / El Salvador Brasil Telecom, Impsat / Brasil Jordan Telecom / Jordan Impsat / Peru Copaco / Paraguay Bezeq / Israel Titan / Australia © Alcatel-Lucent 2009 All Rights Reserved Impsat, T 2 / Argentina Antel / Uruguay China Telecom / China Singtel, Telstra / Singapore TNZ / New Zealand

Alcatel-Lucent - IP/MPLS Technologies Ø IP/MPLS: Based on Label switching : MPLS combines OSI L 2 switching and L 3 routing layers Ø Turk Telekom – Turkey national network backbone> 750 POPs & 1000+ routers. Ø VPN, IPTV, internet services Ø AVEA Mobile Packet Based Network Ø IP/MPLS network transformation project Ø Turkcell Mobile Backhauling Network Ø 3 G transport network, Ready for 4 G Internet Vo. IP IPTV VPNs © Alcatel-Lucent 2009 All Rights Reserved

Alcatel-Lucent - Femto Ø Femtocell: Indoor base stations Ø Femto Management Systems (FMS) R&D Ø Femto R&D Center in ALU Istanbul Ø World-wide Femtocell Trials and Project support Ø HDM : Platform for Management of Home Base Stations Ø HDM R&D Unit © Alcatel-Lucent 2009 All Rights Reserved

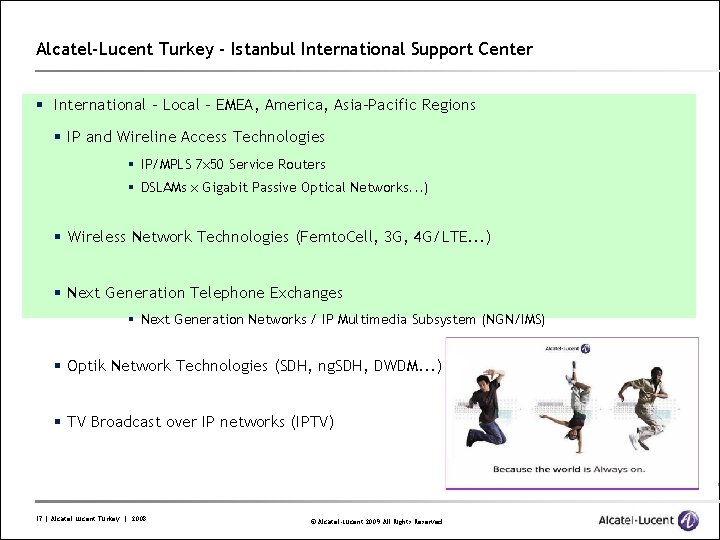

Alcatel-Lucent Turkey - Istanbul International Support Center § International – Local – EMEA, America, Asia-Pacific Regions § IP and Wireline Access Technologies § IP/MPLS 7 x 50 Service Routers § DSLAMs x Gigabit Passive Optical Networks. . . ) § Wireless Network Technologies (Femto. Cell, 3 G, 4 G/LTE. . . ) § Next Generation Telephone Exchanges § Next Generation Networks / IP Multimedia Subsystem (NGN/IMS) § Optik Network Technologies (SDH, ng. SDH, DWDM. . . ) § TV Broadcast over IP networks (IPTV) 17 | Alcatel Lucent Turkey | 2008 © Alcatel-Lucent 2009 All Rights Reserved

Regional Product Expertise Center & Level 2/3 Global Support Teams 2 LS, 3 LS Teams in Istanbul: (Ticket/Customer Problem Solution Center) § Level 2: EMEA Region Support (escalations from field engineers) § IP & ATM § Wireline Access (DSL) § Optics (transmission systems) § NGN (Next Generation Networks) § Business Access (TDM based equipments) § Level 3: All Regions Support (escalations from Level 2 teams) § NGN § RPEC – Regional Product Expertise Center (IP, Wireline Access, Femto) § Global Product/Solution Industrialization House § Support the Engineering & Installation & Integration (E&I&I) services as part of the New Product Introduction (NPI) § Design Activities: identify & address any product design issue that can be improved to reduce cost, time & effort required to install/engineer the products 18 | © Alcatel-Lucent 2009 All Rights Reserved
