Message Passing On Tightly Interconnected MultiCore Processors James
- Slides: 39
Message Passing On Tightly. Interconnected Multi-Core Processors James Psota and Anant Agarwal MIT CSAIL

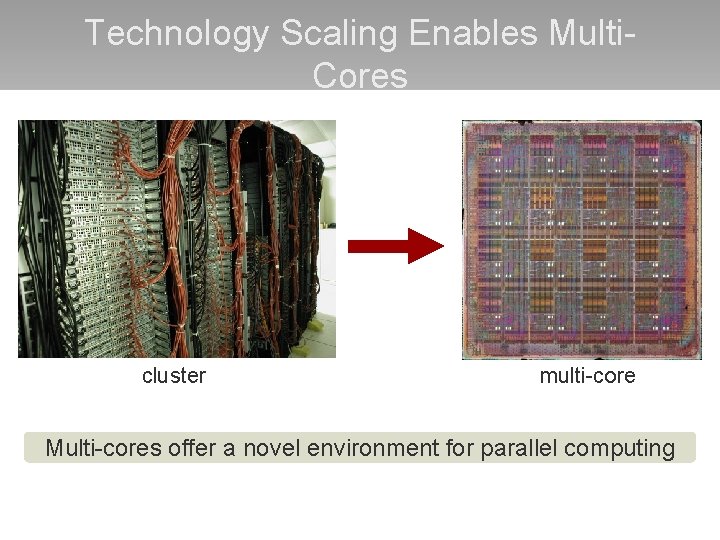

Technology Scaling Enables Multi. Cores cluster multi-core Multi-cores offer a novel environment for parallel computing
Traditional Communication On Multi-Processors Interconnects Shared Memory – Ethernet TCP/IP – Myrinet – Scalable Coherent Interconnect (SCI) – Shared caches or memory – Remote DMA (RDMA) Beowulf Cluster AMD Dual-Core Opteron
On-Chip Networks Enable Fast Communication • Some multi-cores offer… – tightly integrated on-chip networks – direct access to hardware resources (no OS layers) – fast interrupts MIT Raw Processor used for experimentation and validation
Parallel Programming is Hard • Must orchestrate of computation and communication • Extra resources present both opportunity and challenge • Trivial to deadlock • Constraints on message sizes • No operating system support
r. MPI’s Approach Goals – robust, deadlock-free, scalable programming interface – easy to program through high-level routines Challenge – exploit hardware resources for efficient communication – don’t sacrifice performance
Outline • • • Introduction Background Design Results Related Work
The Raw Multi-Core Processor • 16 identical tiles – processing core – network routers • 4 register-mapped on -chip networks • Direct access to hardware resources • Hardware fabricated in ASIC process Raw Processor
Raw’s General Dynamic Network • Handles run-time events – interrupts, dynamic messages • Network guarantees atomic, in-order messages • Dimension-ordered wormhole routed • Maximum message length: 31 words • Blocking sends/receives • Minimal network buffering
MPI: Portable Message Passing API • Gives programmers high-level abstractions for parallel programming – send/receive, scatter/gather, reductions, etc. • MPI is a standard, not an implementation – many implementations for many HW platforms – over 200 API functions • MPI applications portable across MPIcompliant systems • Can impose high overhead
MPI Semantics: Cooperative Communication process 0 send(dest=1, tag=17) • Data exchanged cooperatively via explicit send and receive • Receiving process’s memory only modified with its explicit participation • Combines communication and synchronization send(dest=1, tag=42) private address tag=17 space tag=42 process 1 recv(src=0, tag=42) recv(src=0, tag=17) temp interrupt communication channel private address space
Outline • • • Introduction Background Design Results Related Work
r. MPI System Architecture

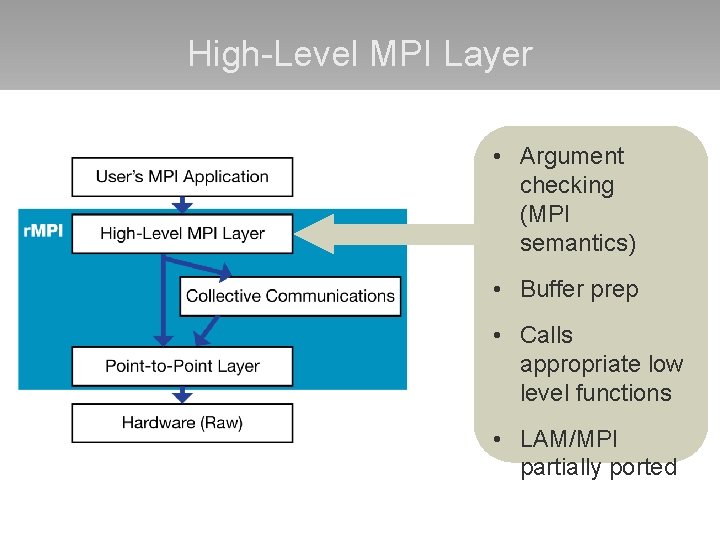

High-Level MPI Layer • Argument checking (MPI semantics) • Buffer prep • Calls appropriate low level functions • LAM/MPI partially ported
Collective Communications Layer • Algorithms for collective operations – Broadcast – Scatter/Gather – Reduce • Invokes low level functions
Point-to-Point Layer • Low-level send/receive routines • Highly optimized interrupt-driven receive design • Packetization and reassembly
Outline • • • Introduction Background Design Results Related Work
r. MPI Evaluation • How much overhead does high-level interface impose? – compare against hand-coded GDN • Does it scale? – with problem size and number of processors? – compare against hand-coded GDN – compare against commercial MPI implementation on cluster
End-to-End Latency Overhead vs. Hand-Coded (1) • Experiment measures latency for: – sender: load message from memory – sender: break up and send message – receiver: receive message – receiver: store message to memory
End-to-End Latency Overhead vs. Hand. Coded (2) 1 word: 481% 1000 words: 33% packet management complexity overflows cache
Performance Scaling: Jacobi 16 x 16 input matrix 2048 input matrix
Performance Scaling: Jacobi, 16 processors sequential version cache capacity overflow
Overhead: Jacobi, r. MPI vs. Hand. Coded many small messages memory access synchronization 16 tiles: 5% overhead
Matrix Multiplication: r. MPI vs. LAM/MPI many smaller messages; smaller message length has less effect on LAM
Trapezoidal Integration: r. MPI vs. LAM/MPI

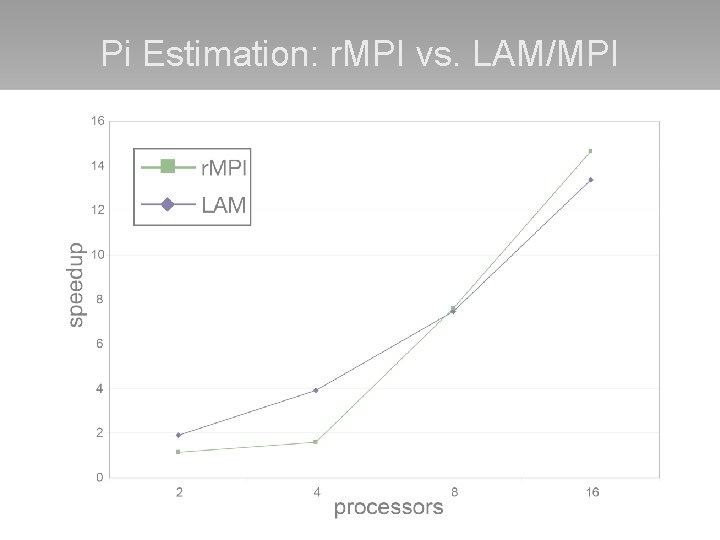

Pi Estimation: r. MPI vs. LAM/MPI
Related Work • Low-latency communication networks – i. Warp, Alewife, INMOS • Multi-core processors – VIRAM, Wavescalar, TRIPS, POWER 4, Pentium D • Alternatives to programming Raw – scalar operand network, CFlow, rawcc • MPI implementations – Open. MPI, LAM/MPI, MPICH
Summary • r. MPI provides easy yet powerful programming model for multi-cores • Scales better than commercial MPI implementation • Low overhead over hand-coded applications
Thanks! For more information, see Master’s Thesis: http: //cag. lcs. mit. edu/~jim/publications/ms. pdf
r. MPI messages broken into packets r. MPI sender process 1 • GDN messages have a max length of 31 words • Receiver buffers 21 and demultiplexes • r. MPI packet format for interrupt 65 [payload] word MPI message packets from r. MPI different sources receiver process • Messages received upon interrupt, and buffered until user-level receive 23 1 r. MPI sender process 2
r. MPI: enabling MPI programs on Raw r. MPI… • is compatible with current MPI software • gives programmers already familiar with MPI an easy interface to program Raw • gives programmers fine-grain control over their programs when trusting automatic parallelization tools are not adequate • gives users a robust, deadlock-free, and highperformance programming model with which to program Raw ► easily write programs on Raw without overly sacrificing performance
Packet boundary bookkeeping • Receiver must handle packet interleaving across multiple interrupt handler invocations
Receive-side packet management • Global data structures accessed by interrupt handler and MPI Receive threads • Data structure design minimizes pointer chasing for fast lookups • No memcpy for receivebefore-send case

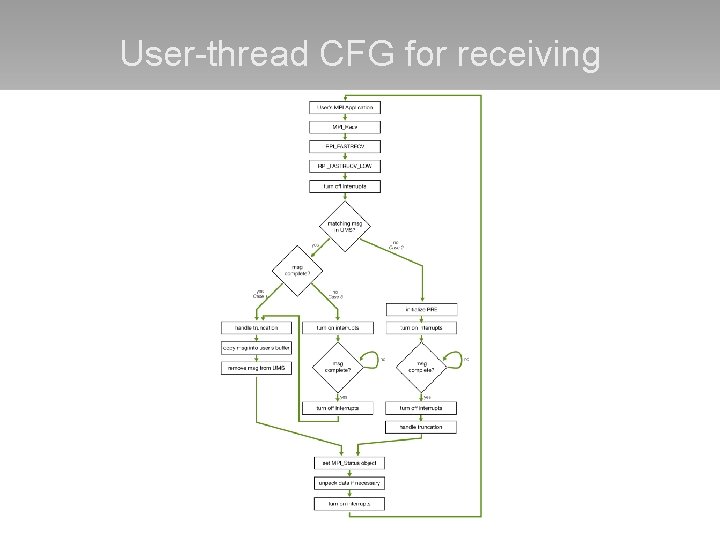

User-thread CFG for receiving
Interrupt handler CFG • logic supports MPI semantics and packet construction
Future work: improving performance • Comparison of r. MPI to standard cluster running off-the-shelf MPI library • Improve system performance – further minimize MPI overhead – spatially-aware collective communication algorithms – further Raw-specific optimizations • Investigate new APIs better suited for TPAs
Future work: HW extensions • Simple hardware tweaks may significantly improve performance – larger input/output FIFOs – simple switch logic/demultiplexing to handle packetization could drastically simplify software logic – larger header words (64 bit? ) would allow for much larger (atomic) packets • (also, current header only scales to 32 x 32 tile fabrics)
Conclusions • MPI standard was designed for “standard” parallel machines, not for tiled architectures – MPI may no longer make sense for tiled designs • Simple hardware could significantly reduce packet management overhead increase r. MPI performance
