Mechanical Power Presses 1 Part Revolution Clutch 2
- Slides: 54
Mechanical Power Presses 1
Part Revolution Clutch 2
Part revolution bench top press 3
Bench top press (cont’d) rd a u d. G a e h r e Ov Light Curtain 4
Hydraulic Press Light curtain Foot control 5
Foot treadle Canopy guard Removable foot pedal Treadle 6
Foot Control Protection from unintended objects Manufactures Specifications Compression type spring Applicable Safety Warnings 7
Two-Hand Trips/Controls Note: Red stop button normally not present 8
Two-Hand Trips/Controls 9

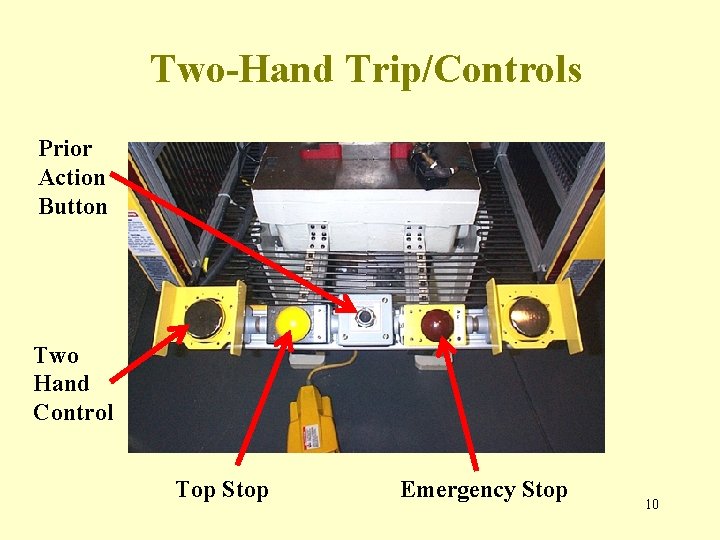

Two-Hand Trip/Controls Prior Action Button Two Hand Control Top Stop Emergency Stop 10
Two-Hand Controls Key Selector capable of being supervised Top Stop Emergency Stop Indicator Light 11
Light Curtain - Presence Sensing Device Features * Meets industry standards * Self-checking circuitry * Strobe-light and weld flash immunity without increasing response time * Detects objects 1” or larger * Channel blanking * 50’ max operating range Control box Receiver Transmitter 20” Cables 12

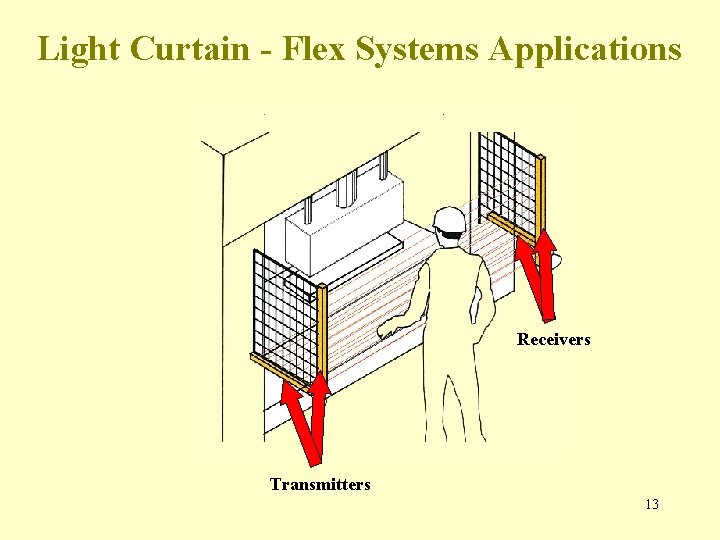

Light Curtain - Flex Systems Applications Receivers Transmitters 13
Presence sensing device Control box Light curtain 14
Presence sensing device Top guard assembly Light curtain 15

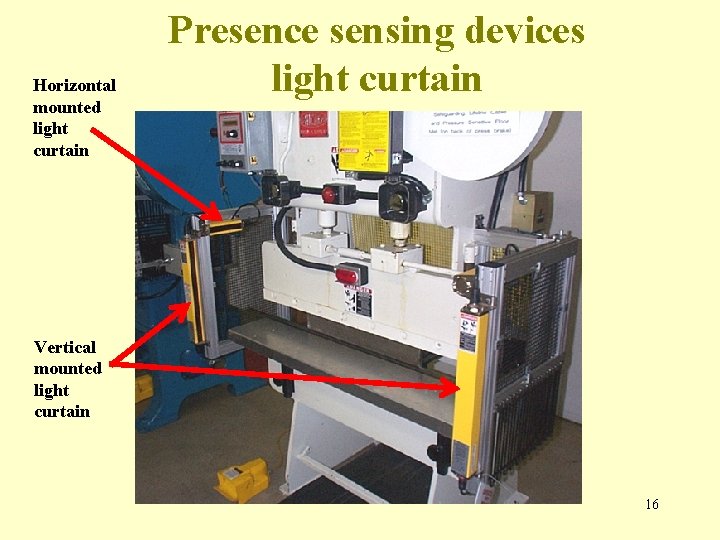

Horizontal mounted light curtain Presence sensing devices light curtain Vertical mounted light curtain 16
Arm-Type Pullback 17
Overhead. Type Pullback 18
Two-Man Operation 19
Wristlets and Cables 20
Point-of Operation Devices Protect Hands Ram Up - Die Open Ram Descending - Die Closing 21
Point-of-Operation Devices Protect Hands (cont’d) Ram Down - Die is Closed 22

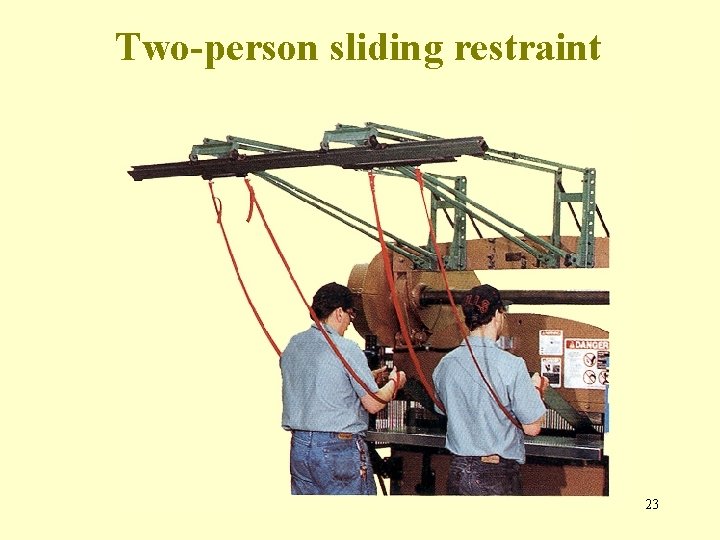

Two-person sliding restraint 23
Side Guard Fixed Panel Adjustable guard 24

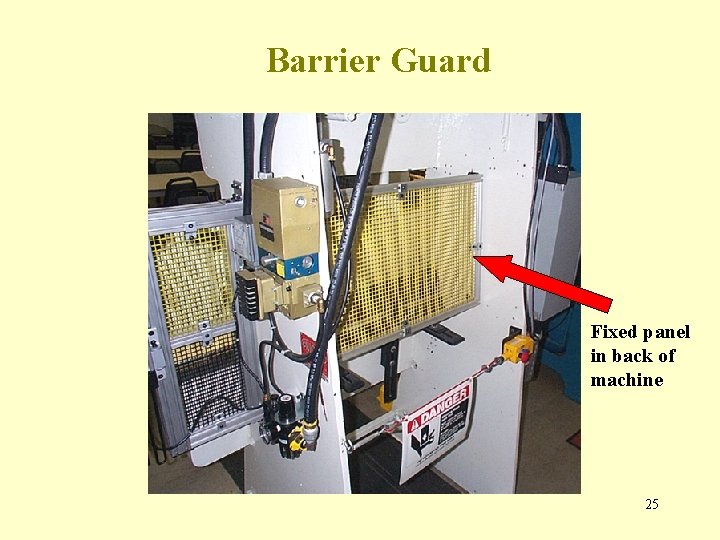

Barrier Guard Fixed panel in back of machine 25
Expanded metal lexan guarding materials Adjustable guarding sections 26
Various Guards 27
Various guards (cont’d) 28
Various guards (cont’d) 29
Spring lift guard Mechanical motor springs Black square mesh Adjustable hairpins 30
Tonnage, stroke and weight designation Model number Tonnage Stroke 31

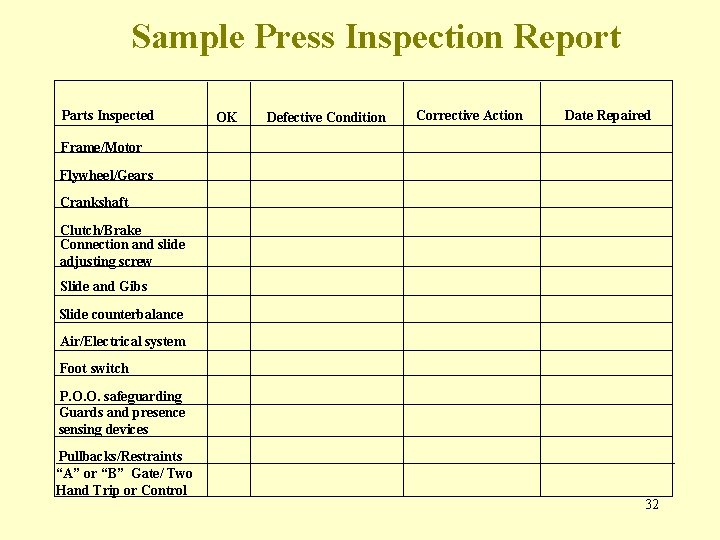

Sample Press Inspection Report Parts Inspected OK Defective Condition Corrective Action Date Repaired Frame/Motor Flywheel/Gears Crankshaft Clutch/Brake Connection and slide adjusting screw Slide and Gibs Slide counterbalance Air/Electrical system Foot switch P. O. O. safeguarding Guards and presence sensing devices Pullbacks/Restraints “A” or “B” Gate/ Two Hand Trip or Control 32
Hand feeding and retrieving tools 33
Two-speed air-clutch press brake Light curtain on floor stands Custom control box Two operator stations Barriers 34
Hydraulic press brake Light curtain Control box Side guards and mounting brackets Interface box Foot switch 35
Hydramechanical press brake Control box Hydraulic valve Light curtain 36
37
Press brake Light curtain Side shield 38
Press brake bending metal 39
Two-hand control Two-Hand Controls 40

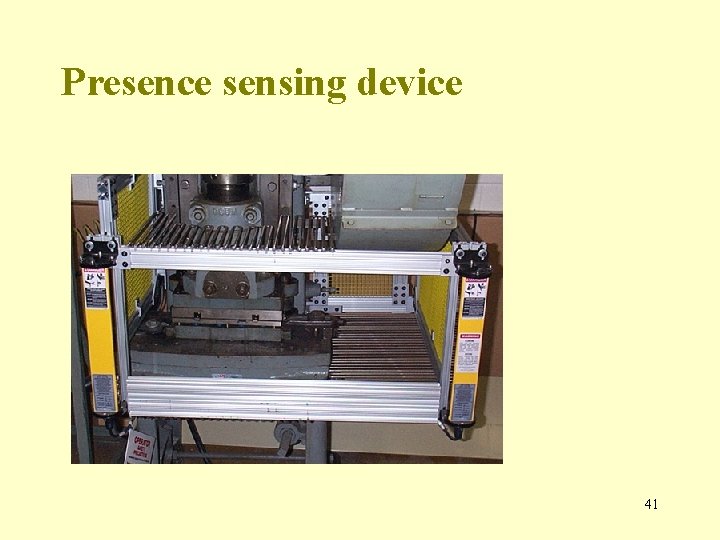

Presence sensing device 41
Part Revolution Power Press Top Stop Emergency Stop Two-hand Control Light curtain 42
Two-Hand Controls 43
Two-hand Control with Emergency Stop Two Hand Control Light Curtain Top Stop Emergency Stop 44
45
46
Pressure sensitive mat 47
Side Guard 48
Hand tools 49
Lathe - guards open 50
Guards closed 51

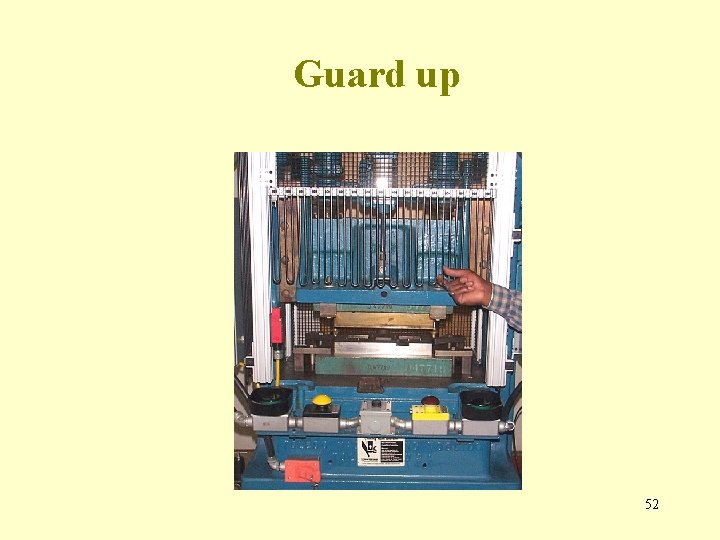

Guard up 52

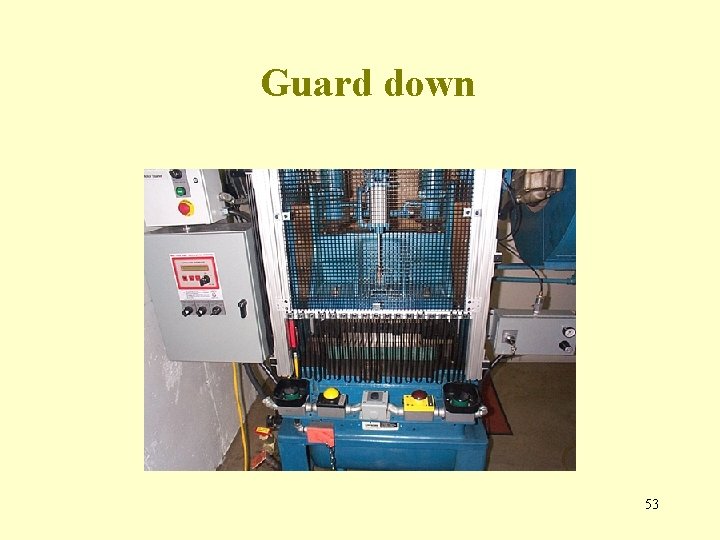

Guard down 53
Perimeter area light curtain 54
