Grotzinger Jordan Understanding Earth Sixth Edition Chapter 12
- Slides: 74
Grotzinger • Jordan Understanding Earth Sixth Edition Chapter 12: VOLCANOES © 2011 by W. H. Freeman and Company
Chapter 12 Volcanoes
About Volcanoes • Volcanoes are windows through which we can see the interior of the Earth. • Volcanoes help us understand the plate tectonic process and mantle convection. • Volcanoes are also connected to Earth’s atmosphere and hydrosphere.
Lecture Outline 1. Volcanoes as geosystems 2. 2. Lavas and other volcanic deposits 3. 3. Eruptive styles and landforms 4. 4. Interactions of volcanoes with other geosystems 5. 5. The global pattern of volcanism
Lecture Outline 6. Volcanism and human affairs
1. Volcanoes as Geosystems ● Parts of the volcano ● hill or mountain made of: ● lavas ● other erupted materials
1. Volcanoes as Geosystems ● Parts of the geosystem ● rocks ● magmas and lavas ● processes of melting and eruption
Pipe Central vent Lava flows Side vent Dike Si ll Magma chamber Lithosphere Volcanic geosystem
Pipe Central vent Volcanic geosystem Lava flows Side vent Dike Si ll Magma chamber Lithosphere Magma, which originates in the asthenosphere. . .
Pipe Central vent Volcanic geosystem Lava flows Side vent Dike Si ll Magma chamber Lithosphere . . . rises through the lithosphere to form a crustal magma chamber. Magma, which originates in the asthenosphere. . .
Pipe Central vent Volcanic geosystem Lava flows Side vent Dike Si Lavas erupt through a central vent and side vents, . . . ll Magma chamber Lithosphere . . . rises through the lithosphere to form a crustal magma chamber. Magma, which originates in the asthenosphere. . .
Pipe Central vent Lava flows Side vent Dike Si Volcanic geosystem. . . accumulating on the surface to form a volcano. Lavas erupt through a central vent and side vents, . . . ll Magma chamber Lithosphere . . . rises through the lithosphere to form a crustal magma chamber. Magma, which originates in the asthenosphere. . .
1. Volcanoes as Geosystems ● Functions of the geosystem ● volcanic plumbing systems ● volcanoes as chemical factories
Thought questions for this chapter Give a few examples of what geologists have learned about Earth’s interior by studying volcanoes and volcanic rocks.
2. Lavas and Other Volcanic Deposits ● Types of lava ● basaltic lavas (1000 1200ºC) ● aa ● pahoehoe ● pillow lavas
Pillow lavas on the sea floor
2. Lavas and Other Volcanic Deposits ● Types of lava (continued) ● andesitic lavas (<1000ºC) ● rhyolitic lavas (600 800ºC)
Mt. St. Helens’ andesitic cone
2. Lavas and Other Volcanic Deposits ● Texture of volcanic rocks ● reflect conditions under which they crystallized or formed ● vesicles (bubble holes) ● glassy texture (no crystals) ● pyroclasts (broken pieces)
Vesicles in basalt
2. Lavas and Other Volcanic Deposits ● Texture of volcanic rocks ● pyroclastic deposits ● volcanic ejecta (ash, bombs) ● pyroclastic flows (volcanic tuffs and breccias)
Arenal, Costa Rica: pyroclastic eruption
Volcanic ejecta bomb
Volcanic tuff
Volcanic breccia
Mt. Uzen, Japan: pyroclastic ash flow

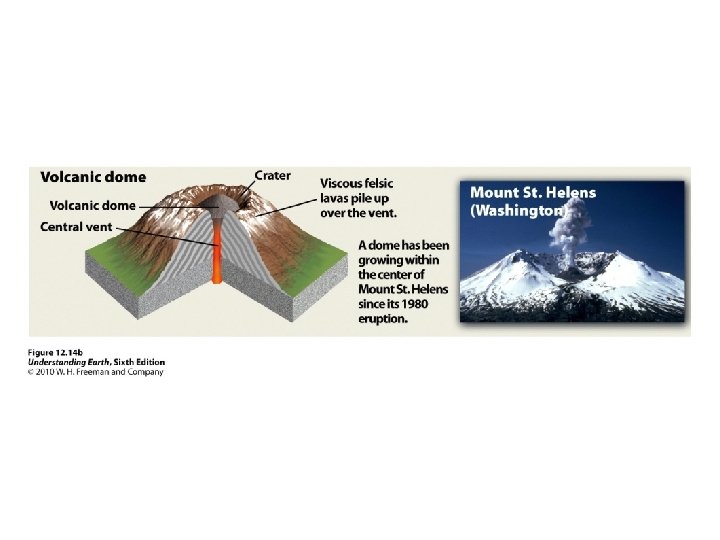

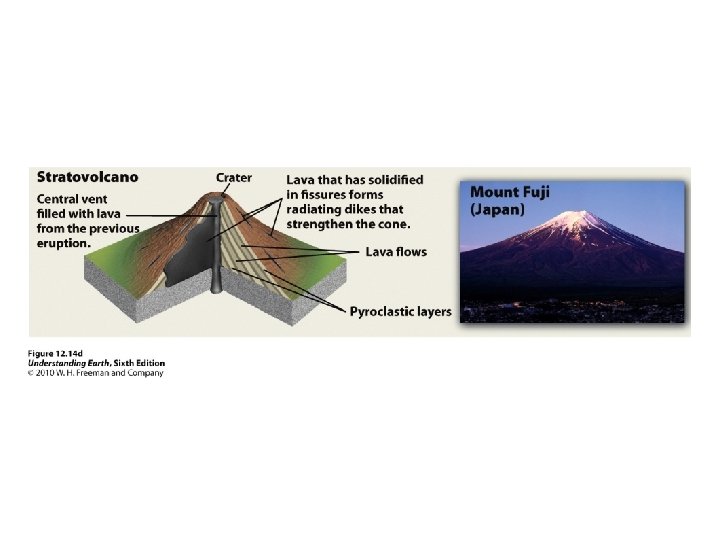

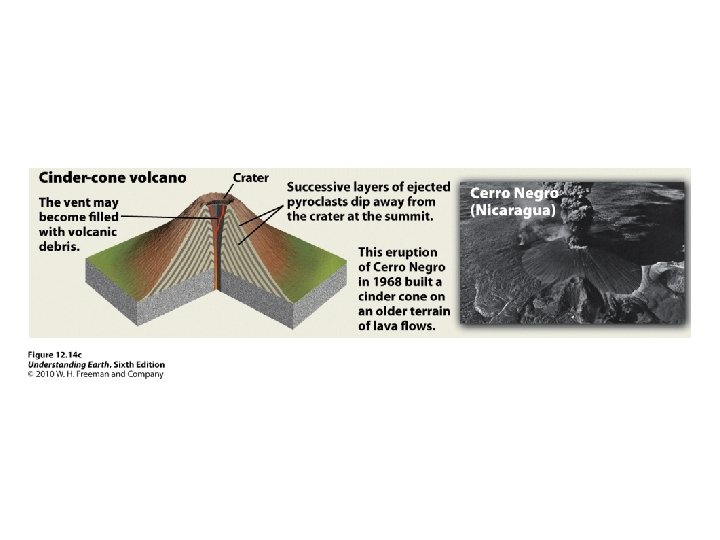

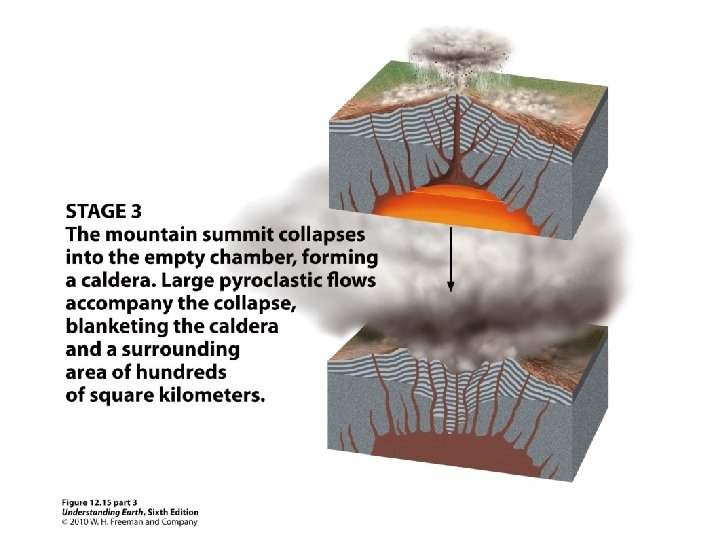

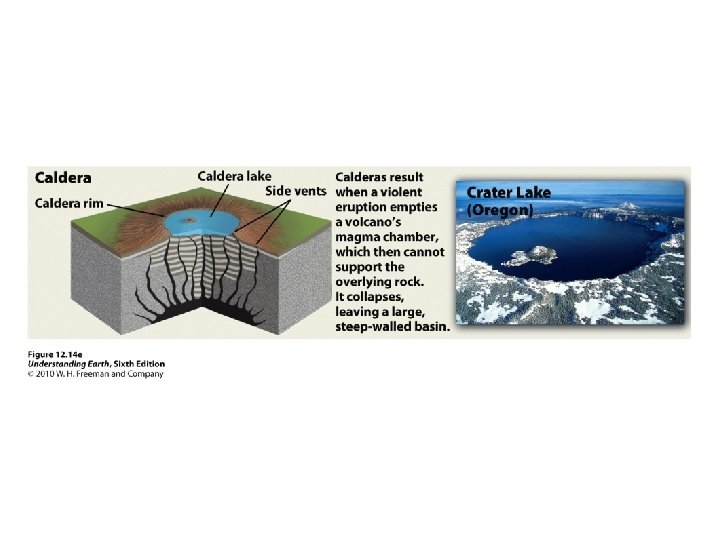

2. Lavas and Other Volcanic Deposits ● Eruptive styles and landforms ● central eruptions ● shield volcanoes ● volcanic domes ● cinder cones ● stratovolcanoes ● volcanic craters ● calderas ● diatremes
Eruptive styles
Eruptive styles

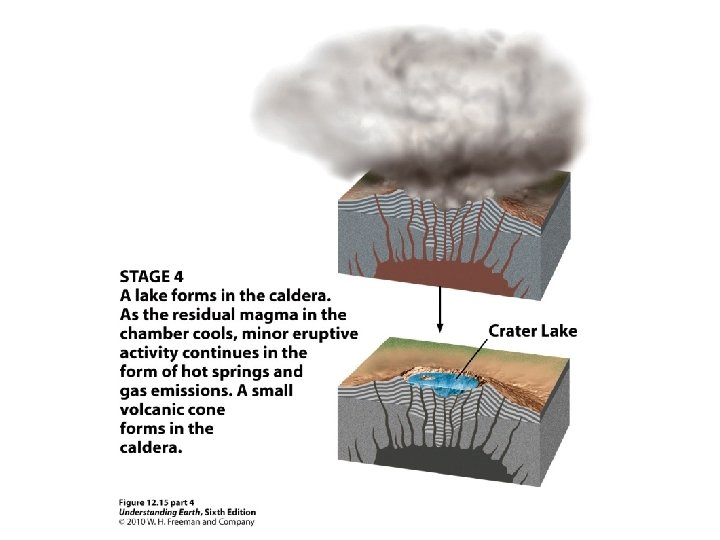

Crater Lake, Oregon
Ship Rock, New Mexico Diatreme
Diatreme (Ship Rock)
2. Lavas and Other Volcanic Deposits ● Eruptive styles and landforms ● eruptions from linear cracks ● fissure eruptions ● flood basalts ● ash-flow deposits
Fissure eruption: Laki fissure, Iceland
Sequence of events: formation of a fissure eruption
Flood basalts: Columbia Plateau, Washington
Thought questions for this chapter Why are eruptions of stratovolcanoes generally more explosive than those of shield volcanoes? While on a field trip, you come across a volcanic formation that resembles a field of sandbags. The individual ellipsoid forms have a smooth, glassy surface texture. What type of lava is this, and what information does this give you about its history?
3. Interactions of Volcanoes with Other Geosystems ● Volcanism and the hydrosphere ● fumaroles and geysers ● Volcanism and the atmosphere ● aerosols and ash
Fumarole: Merapi volcano, Indonesia
Old Faithful geyser: Yellowstone National Park

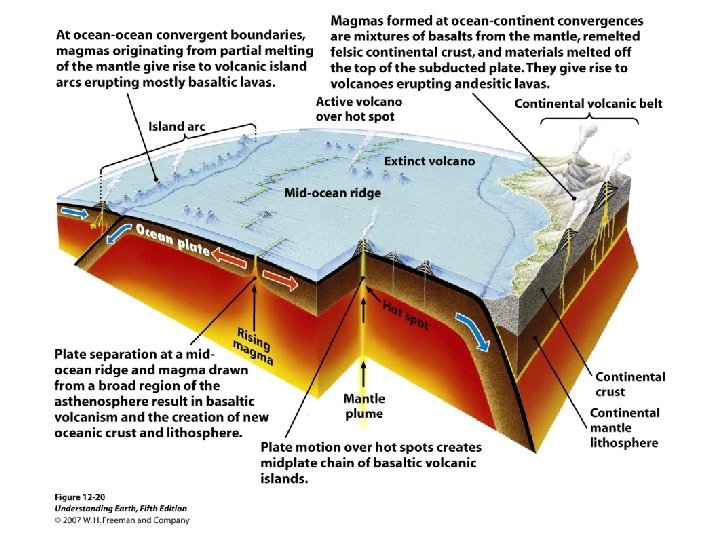

4. Global Pattern of Volcanism
4. Global Pattern of Volcanism ● Basalt-producing spreading centers ● mantle source for lava (decompression melting) ● axial volcanoes of mid-ocean ridge
4. Global Pattern of Volcanism
4. Global Pattern of Volcanism ● Volcanism in subduction zones ● chains of volcanoes ● island arcs ● formation of new continental crust

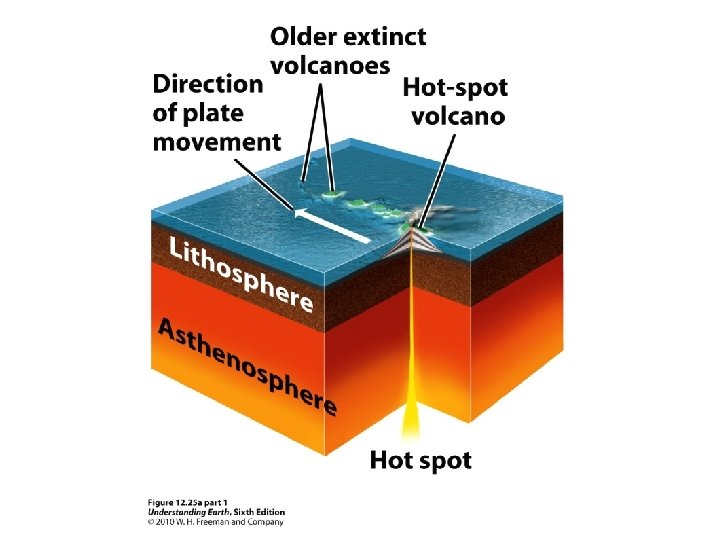

4. Global Pattern of Volcanism ● Intraplate volcanism: the mantle plume hypothesis ● hot spots and mantle plumes ● sea mounts and island chains ● large igneous provinces
4. Global Pattern of Volcanism
4. Global Pattern of Volcanism: Hawaiian Island Chain / Emperor Seamounts
4. Global Pattern of Volcanism: Yellowstone Volcanic Tracks
4. Global Pattern of Volcanism: Large Igneous Provinces
4. Global Pattern of Volcanism: Large Igneous Provinces
Thought questions for this chapter Why are the volcanoes on the northwest side of the Hawaiian Islands dormant whereas those on the southeast side are more active?

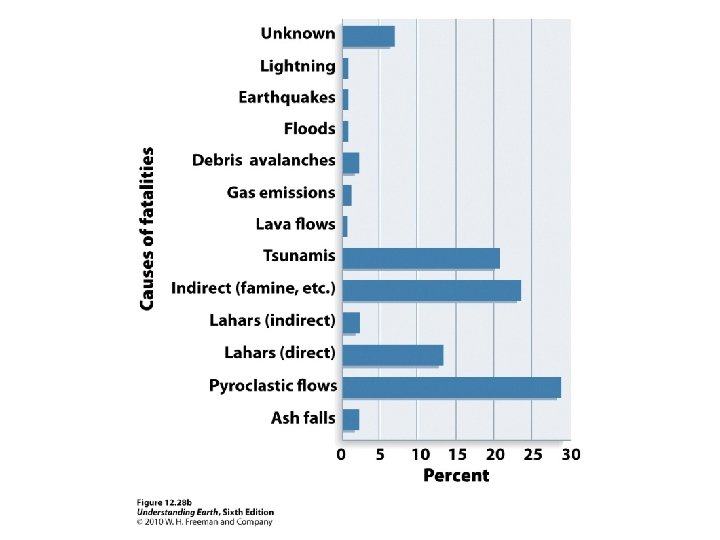

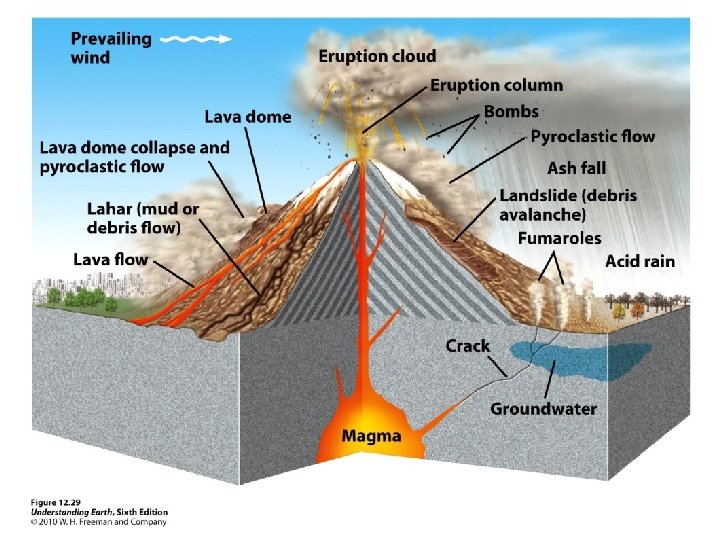

5. Volcanism and Human Affairs ● Volcanic hazards ● lahars ● flank collapse ● caldera collapse ● eruption clouds
5. Volcanism and Human Affairs ● Mantle-plume hypothesis ● predicting eruptions ● controlling eruptions
5. Volcanism and Human Affairs ● Natural resources ● volcanic soils ● industrial materials ● ore formation ● heat energy
5. Volcanism and Human Affairs

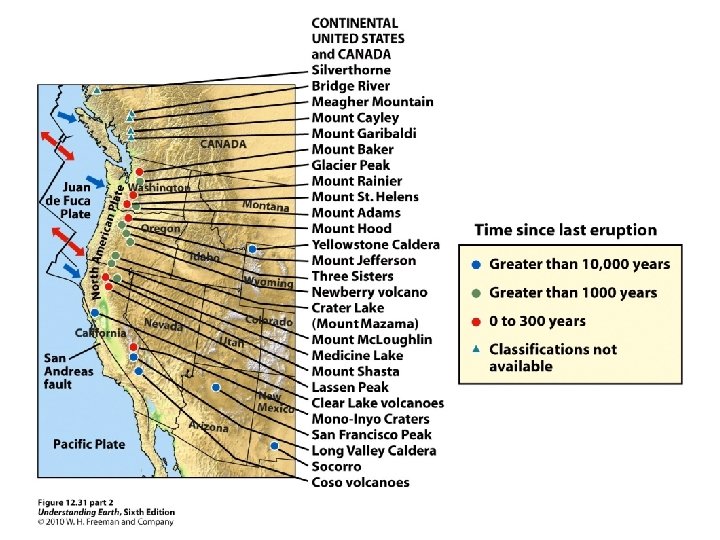

5. Volcanism and Human Affairs: Potentially Hazardous Volcanoes
5. Volcanism and Human Affairs: Geothermal Energy
Thought questions for this chapter What might be the effects on civilization of a Yellowstonetype caldera eruption, such as the one described at the beginning of this chapter? How do interactions between volcanic geosystems and the climate system increase volcanic hazards?
Key terms and concepts Andesitic lava Ash-flow deposit Basaltic lava Caldera Crater Diatreme Fissure eruption Flood basalt Geothermal energy Hot spot Hydrothermal activity Lahar Large igneous province Mantle plume Pyroclastic flow
Key terms and concepts Rhyolitic lava Shield volcano Stratovolcano Tuff Volcanic geosystem Volcano
