Fast Approximation to Spherical Harmonics Rotation Jaroslav Kivnek
- Slides: 47
Fast Approximation to Spherical Harmonics Rotation Jaroslav Křivánek Jaakko Konttinen Czech Technical University of Central Florida Sumanta Pattanaik Kadi Bouatouch Jiří Žára University of Central Florida IRISA / INRIA Rennes Czech Technical University Computer Graphics Group Improved Radiance Gradient Computation
Presentation Topic 2 n Goal Rotate a spherical function represented by Spherical Harmonics n Proposed method Approximation through a truncated Taylor expansion Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Spherical Harmonics n 3 Basis functions on the sphere Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Spherical Harmonics + + + + 4 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Spherical Harmonics Image Robin Green, Sony computer Entertainment 5 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Spherical Harmonics represented by a vector of coefficients: 6 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Spherical Harmonics n Basis functions on the sphere l=0 l=1 l=2 7 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
SH Rotation – Problem Definition n Given coefficients , representing a spherical function n 8 find coefficients for coefficients . directly from Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Our Contribution n n 9 Novel, fast, approximate rotation Based on a truncated Taylor Expansion of the SH rotation matrix 4 -6 times faster than [Kautz et al. 2002] O(n 2) complexity instead of O(n 3) Two applications n Global illumination (radiance interpolation) n Real-time shading (normal mapping) Jaroslav Křivánek – Fast Spherical Harmonics Rotation

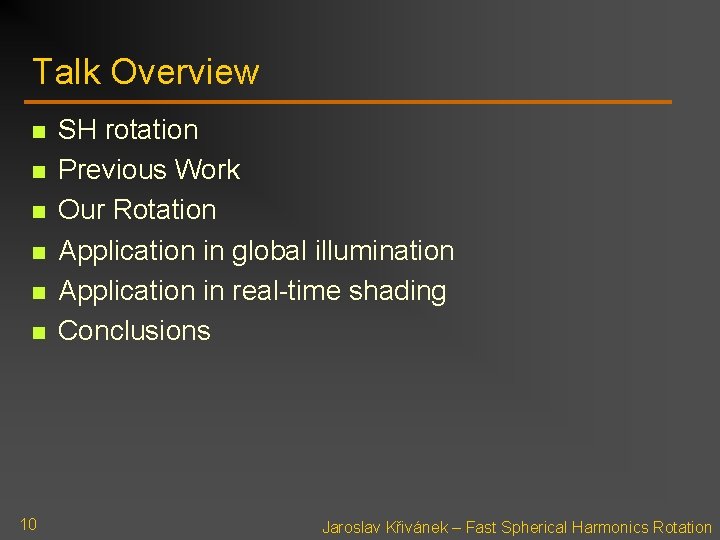

Talk Overview n n n 10 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusions Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 11 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusions Jaroslav Křivánek – Fast Spherical Harmonics Rotation
SH Rotation – Problem Definition n Given coefficients , representing a spherical function n 12 find coefficients for coefficients . directly from Jaroslav Křivánek – Fast Spherical Harmonics Rotation
SH Rotation Matrix n 13 Rotation = linear transformation: Jaroslav Křivánek – Fast Spherical Harmonics Rotation
SH Rotation n 14 Given the desired 3 D rotation, find the matrix R Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 15 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusions Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Previous Work – Molecular Chemistry n [Ivanic and Ruedenberg 1996] n Recurrent relations: Rl = f(R 1, Rl-1) n [Choi et al. 1999] n Through complex spherical harmonics n Fast for complex harmonics n Slow conversion to the real form 16 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Previous Work – Computer Graphics n 17 [Kautz et al. 2002] n zxzxz-decomposition n By far the fastest previous method Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Previous Work – Summary n n n 18 O(n 3) complexity Slow Bottleneck in rendering applications Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 19 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusions Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Our Rotation n Fast, approximate rotation n Based on replacing the SH rotation matrix by its Taylor expansion n 4 -6 times faster than [Kautz et al. 2002] 20 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Rotation Decomposition n 21 Decompose the 3 D rotation into ZYZ Euler angles: R = RZ(a) RY(b) RZ(g) Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Rotation Decomposition n R = RZ(a) RY(b) RZ(g) n Rotation around Z is simple and fast n Rotation around Y still a problem 22 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Rotation Around Y n [Kautz et al. 2002] n Decomposition of Y into X(+90˚), Z, and X(90˚) n R = RZ(a) RX(+90˚) RZ(b) RX(-90˚) RZ(g) n n Rotation around Z is simple and fast Rotation around X is fixed-angle n n 23 can be tabulated The RXRZRX-part can still be improved… Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Rotation Around Y – Our Approach n 24 Second order truncated Taylor expansion of RY(b) Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Taylor Expansion of RY(b) 25 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Rotation Procedure – Taylor Expansion 26 Jaroslav Křivánek – Fast Spherical Harmonics Rotation

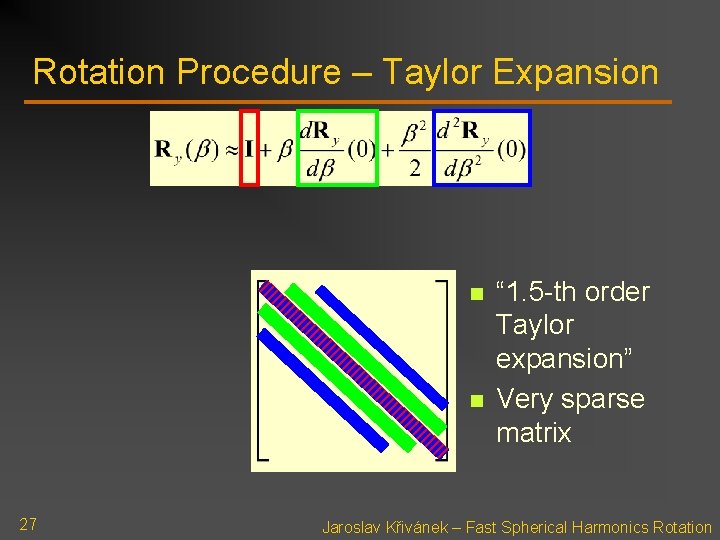

Rotation Procedure – Taylor Expansion n n 27 “ 1. 5 -th order Taylor expansion” Very sparse matrix Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Full Rotation Procedure 1. Decompose the 3 D rotation into ZYZ Euler angles: R = RZ(a) RY(b) RZ(g) 2. Rotate around Z by a 3. Use the “ 1. 5 -th order” Taylor expansion to rotate around Y by b 4. Rotate around Z by g 28 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
SH Rotation – Results n 29 L 2 error for a unit length input vector Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 30 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusion Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Application in GI - Radiance Caching n n n 31 Sparse computation of indirect illumination Interpolation Enhanced with gradients Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Incoming Radiance Interpolation p p 2 p 1 n 32 Interpolate coefficient vectors 1 and 2 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Interpolation on Curved Surfaces 33 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Interpolation on Curved Surfaces n Align coordinate frames in interpolation R p 1 p 34 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Results in Radiance Caching 35 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Results in Radiance Caching 36 Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 37 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusion Jaroslav Křivánek – Fast Spherical Harmonics Rotation
GPU-based Real-time Shading n Original method by [Kautz et al. 2002] n Arbitrary BRDFs n n represented by SH in the local coordinate frame Environment Lighting n represented by SH in the global coordinate frame Lout = 38 ( Incident Radiance BRDF ) = coeff. dot product Jaroslav Křivánek – Fast Spherical Harmonics Rotation

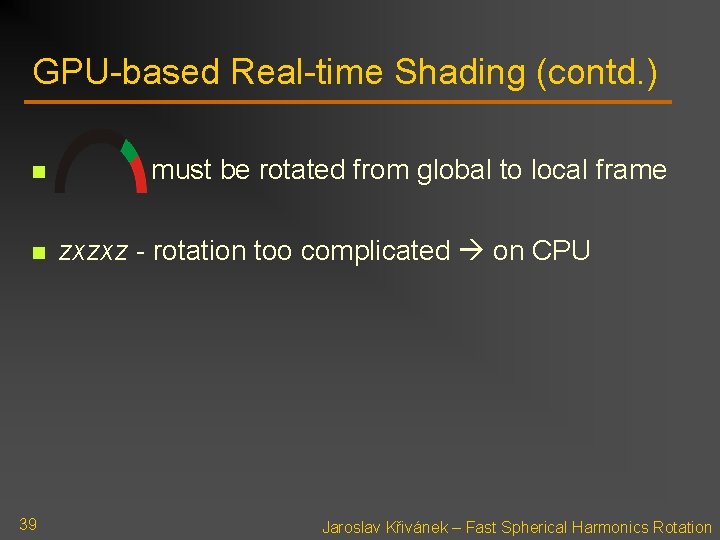

GPU-based Real-time Shading (contd. ) n n 39 must be rotated from global to local frame zxzxz - rotation too complicated on CPU Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Our Extension – Normal Mapping n n 40 Normal modulated by a texture Our rotation approximation n Rotation from the un-modulated to the modulated coordinate frame n Small rotation angle good accuracy Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Normal Mapping Results Rotation Ignored 41 Our Rotation Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Normal Mapping Results Rotation Ignored 42 Our Rotation Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Normal Mapping Results Rotation Ignored 43 Our Rotation Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Talk Overview n n n 44 SH rotation Previous Work Our Rotation Application in global illumination Application in real-time shading Conclusion Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Conclusion and Future Work n n 45 Summary n Fast, approximate rotation n Truncated Taylor Expansion of the SH rotation matrix n 4 -6 times faster than [Kautz et al. 2002] n O(n 2) complexity instead of O(n 3) n Applications in global illumination and real-time shading Future Work n Rotation for Wavelets n Normal mapping for pre-computed radiance transfer Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Thank You for your Attention ? 46 ? Jaroslav Křivánek – Fast Spherical Harmonics Rotation
Appendix – Bibliography n n 47 [Křivánek et al. 2005] Jaroslav Křivánek, Pascal Gautron, Sumanta Pattanaik, and Kadi Bouatouch. Radiance caching for efficient global illumination computation. IEEE Transactions on Visualization and Computer Graphics, 11(5), September/October 2005. [Ivanic and Ruedenberg 1996] Joseph Ivanic and Klaus Ruedenberg. Rotation matrices for real spherical harmonics. direct determination by recursion. J. Phys. Chem. , 100(15): 6342– 6347, 1996. Joseph Ivanic and Klaus Ruedenberg. Additions and corrections : Rotation matrices for real spherical harmonics. J. Phys. Chem. A, 102(45): 9099– 9100, 1998. [Choi et al. 1999] Cheol Ho Choi, Joseph Ivanic, Mark S. Gordon, and Klaus Ruedenberg. Rapid and stable determination of rotation matrices between spherical harmonics by direct recursion. J. Chem. Phys. , 111(19): 8825– 8831, 1999. [Kautz et al. 2002] Jan Kautz, Peter-Pike Sloan, and John Snyder. Fast, arbitrary BRDF shading for low-frequency lighting using spherical harmonics. In Proceedings of the 13 th Eurographics workshop on Rendering, pages 291 – 296. Eurographics Association, 2002. Jaroslav Křivánek – Fast Spherical Harmonics Rotation
