A Solution to Assignment #5 o Sort a linked list with mergesort. o Mergesort is ideal for sorting a linked list. o Does not require random, direct access to any list elements. o I used my own linked list class, not Java’s built-in class. o No get() and set() calls. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 2

A Solution to Assignment #5, cont’d o Take advantage of the capabilities of a linked list. n n n o You can split apart a list into two sublists. You can splice together (concatenate) two sublists. Count two moves. Minimize the number of move operations. n Concatenate two sublists with only one move. n The head of one sublist joins up with the tail of the other sublist. The other nodes of the two sublists don’t move. n Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 3

Split a Linked List into Two Sublists public My. Linked. List<Any. Type>[] split() My. Linked. List. java { int half. Length 1 = size/2; int half. Length 2 = size%2 == 0 ? half. Length 1 : half. Length 1 + 1; My. Linked. List<Any. Type>[] lists = (My. Linked. List<Any. Type>[]) new My. Linked. List[2]; // Get to the node at the midpoint. My. Node<Any. Type> mid = head; for (int i = 1; i < half. Length 1; i++) mid = mid. next; My. Node<Any. Type> mid. Next = mid. next; // Create the two sublists[0] = new My. Linked. List<Any. Type>(this. head, mid, half. Length 1); lists[1] = new My. Linked. List<Any. Type>(mid. Next, this. tail, half. Length 2); return lists; } o Chasing links to the midpoint is faster than creating two sublists from scratch with alternating elements. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 4

Concatenate Two Sublists public void concatenate(My. Node<Any. Type> other. Node, My. Linked. List<Any. Type> other. List) { // Splice the other list to the end of this list. if (other. Node != null) { this. tail. next = other. Node; other. Node. prev = this. tail; this. tail = other. List. tail; } // Update this list's size. do { size++; other. Node = other. Node. next; } while (other. Node != null); } o My. Linked. List. java Join the “other” linked list to the end of “this” one. n n Attach using any node of the “other” list. Need to chase links to update the size of “this” list. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 5

Mergesort private Stats merge. Sort(My. Linked. List<Integer> list) { Stats stats 1 = new Stats(); Stats stats 2 = new Stats(); Stats stats 3 = new Stats(); int moves = 0; Merge. Sort. Linked. List. java if (list. size() > 1) { // Split the list roughly in half. My. Linked. List<Integer> lists[] = list. split(); moves += 2; // Sort each sublist and merge. stats 1 = merge. Sort(lists[0]); stats 2 = merge. Sort(lists[1]); stats 3 = merge(list, lists[0], lists[1]); } Pass the original list and the two sublists. return new Stats(moves + stats 1. moves + stats 2. moves + stats 3. moves, stats 1. compares + stats 2. compares + stats 3. compares); } Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 6

Merge Linked Lists private Stats merge(My. Linked. List<Integer> list, My. Linked. List<Integer> list 1, My. Linked. List<Integer> list 2) { My. Node<Integer> node 1 = list 1. head(); My. Node<Integer> node 2 = list 2. head(); long moves = 0; long compares = 0; list. empty(); // Choose which node from sublist to add to the merged sublist. while((node 1 != null) && (node 2 != null)) { if (node 1. data. compare. To(node 2. data) <= 0) { My. Node<Integer> next. Node = node 1. next; list. add(node 1); node 1 = next. Node; } else { My. Node<Integer> next. Node = node 2. next; list. add(node 2); node 2 = next. Node; } moves++; compares++; } Computer. . . Science Dept. Summer 2015: July 28 } CS 146: Data Structures and Algorithms © R. Mak Merge. Sort. Linked. List. java 7

Merge Linked Lists, cont’d private Stats merge(My. Linked. List<Integer> list, My. Linked. List<Integer> list 1, My. Linked. List<Integer> list 2) {. . . Merge. Sort. Linked. List. java // Choose which node from sublist to add to the merged sublist. while((node 1 != null) && (node 2 != null)) {. . . } // Concatenate the rest of the first sublist to list. if (node 1 != null) { list. concatenate(node 1, list 1); moves++; } // Concatenate the rest of the second sublist to list. if (node 2 != null) { list. concatenate(node 2, list 2); moves++; } return new Stats(moves, compares); } Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 8

Mergesort with a Linked List, cont’d private static boolean check. Sorted(Integer a[]) { It doesn’t hurt to be a for (int i = 1; i < a. length; i++) { paranoid programmer! if (a[i-1] > a[i]) return false; } return true; } private static void print. Stats(Integer a[], Stats stats) { if (!check. Sorted(a)) { System. out. println(" *** SORT ERROR ***"); } else { System. out. printf("%15 s%15 sn", Number. Format. get. Integer. Instance(). format(stats. moves), Number. Format. get. Integer. Instance(). format(stats. compares), Number. Format. get. Integer. Instance(). format(stats. time)); } } Computer Science Dept. CS 146: Data Structures and Algorithms 9 Count. Sort. java Summer 2015: July 28 © R. Mak

Mergesort with a Linked List N = 10, 000 ALGORITHM Insertion sort Shellsort suboptimal Shellsort Knuth Heap sort Merge sort array Merge sort linked list Quicksort MOVES 25, 133, 596 208, 811 220, 569 148, 167 267, 232 150, 466 77, 154 COMPARES 25, 133, 592 265, 559 241, 482 292, 365 120, 510 120, 469 138, 626 MILLISECONDS 3, 656 140 125 94 125 172 47 o Unsorted list: The number of comparisons and the timing should be similar to mergesort with an array. o The number of moves is significantly lower. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 10

Mergesort with a Linked List N = 10, 000 Sorted ALGORITHM Insertion sort Shellsort suboptimal Shellsort Knuth Heap sort Merge sort array Merge sort linked list Quicksort MOVES 0 0 0 156, 953 267, 232 94, 605 17, 711 COMPARES 9, 999 120, 005 75, 243 304, 386 69, 008 64, 608 122, 912 MILLISECONDS 0 15 31 63 94 78 16 MOVES 50, 004, 999 124, 592 93, 666 136, 693 267, 232 99, 005 46, 733 COMPARES 49, 995, 000 172, 578 120, 190 277, 845 64, 608 69, 008 193, 965 MILLISECONDS 6, 359 63 31 47 78 78 31 N = 10, 000 Reverse sorted ALGORITHM Insertion sort Shellsort suboptimal Shellsort Knuth Heap sort Merge sort array Merge sort linked list Quicksort Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 11

Mergesort with a Linked List N = 10, 000 All zeroes ALGORITHM Insertion sort Shellsort suboptimal Shellsort Knuth Heap sort Merge sort array Merge sort linked list Quicksort Computer Science Dept. Summer 2015: July 28 MOVES 0 0 0 19, 998 267, 232 94, 605 118, 747 CS 146: Data Structures and Algorithms © R. Mak COMPARES 9, 999 120, 005 75, 243 29, 994 69, 008 64, 608 120, 316 MILLISECONDS 0 31 16 15 78 79 31 12

String Algorithms: Important Applications o Information processing o Communications o Word processors and editors o Programming systems o Genomics n Computational biologists encode strands of DNA as strings over the characters A, C, G, and T (base molecules adenine, cytosine, guanine, and thymine). Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 13

Longest Common Subsequence o Find the longest common subsequence (LCS) of two strings. o In genomics, the longer a common subsequence we can find between two stands of DNA, the more similar they are. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 14

String Subsequence o o A subsequence Z of a string X is X, possibly with some characters removed. Subsequences of the string “GAC” n n n n “GAC” (no characters removed) “GA” (C removed) A string of length n “GC” (A removed) has 2 n subsequences. “AC” (G removed) “G” (A and C removed) “A” (G and C removed) “C” (G and A removed) empty string (all characters removed) Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 15

Longest Common Subsequence, cont’d o If X and Y are strings, then Z is a common subsequence of X and Y if it is a subsequence of both strings. o Example: X = “CATCGA” Y = “GTACCGTCA” n n n “CCA” is a common subsequence A longest common subsequence (LCS) is “CTCA” But it is not unique: “TCGA” is another LCS. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 16

Length of the LCS o A recursive algorithm to compute the length of the LCS of two strings. private static int lcs. Length(String X, String Y, int m, int n) { Initially: if ((m == 0) || (n == 0)) { m = X. length() return 0; n = Y. lengfth() } else if (X. char. At(m-1) == Y. char. At(n-1)) { return 1 + lcs. Length(X, Y, m-1, n-1); } else { return Math. max(lcs. Length(X, Y, m, n-1), lcs. Length(X, Y, m-1, n)); } Recursive. LCS. java } Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak Demo 17

Length of the LCS, cont’d o A recursive solution is not recommended! n o Worst case: O(2 n) An alternative to recursion? n n Dynamic programming Use a table instead Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 18

LCS with Dynamic Programming o What is a subproblem to finding the LCS of two strings X and Y? o Consider X = x 1 x 2 x 3…xm and Y = y 1 y 2 y 3…yn o Let Xi = x 1 x 2 x 3…xi for i = 1…m be a prefix of string X. n o Similar notation for a prefix of Y. X and Y have an LCS Z = z 1 z 2 z 3…zk for some length k from 0 through the smaller of m and n. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 19

LCS with Dynamic Programming, cont’d o o X = x 1 x 2 x 3…xm , Y = y 1 y 2 y 3…yn , Z = z 1 z 2 z 3…zk If the last characters of xm and yn are equal: n n o Then zk must also be that character. Prefix Zk-1 must be the LCS of prefixes Xm-1 and Yn-1 Last characters xm and yn are not equal: n n Then zk might equal xm or yn, but not both. Or zk might equal neither xm nor yn If zk doesn’t equal xm, ignore the last character of X, and Z must be an LCS of prefix Xm-1 and string Y. If zk doesn’t equal yn, ignore the last character of Y, and Z must be an LCS of string X and prefix Yn-1. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 20

LCS with Dynamic Programming, cont’d o If the last characters xm and yn are equal: n n n o We have one subproblem to solve. Find the LCS of prefixes Xm-1 and Yn-1. Append the last character to the LCS. If the last characters xm and yn are unequal: n n We have two subproblems to solve. Find an LCS of Xm-1 and Y. Find an LCS of X and Yn-1. Use the longer of the two common subsequences as an LCS of X and Y. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 21

LCS with Dynamic Programming, cont’d o Generation of table L: n n Compute the lengths of the longest common subsequences of all prefixes of X and Y. L[i, j ] = the length of the LCS of prefixes Xi and Yj. Then L[m, n ] = the length of the LCS of X and Y. For X = “CATCGA” Y = “GTACCGTCA” Z = “TCGA” Length of Z is 4. Computer Science Dept. Summer 2015: July 28 0 1 2 3 4 5 6 C A T C G A 0 1 2 3 4 5 6 7 8 9 G T A C C G T C A +----------| 0 0 0 0 0 | 0 0 1 1 1 | 0 0 0 1 1 1 2 | 0 0 1 1 1 2 2 2 | 0 0 1 1 2 2 3 3 | 0 1 1 2 2 2 3 3 3 4 CS 146: Data Structures and Algorithms © R. Mak 22

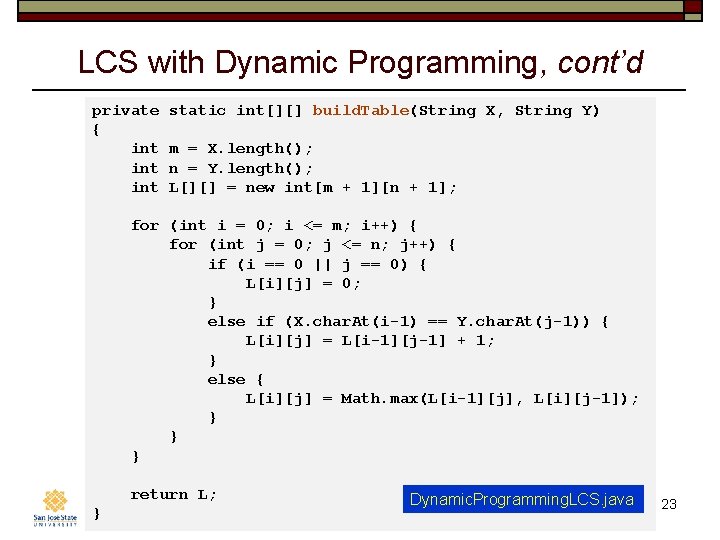

LCS with Dynamic Programming, cont’d private { int int static int[][] build. Table(String X, String Y) m = X. length(); n = Y. length(); L[][] = new int[m + 1][n + 1]; for (int i = 0; i <= m; i++) { for (int j = 0; j <= n; j++) { if (i == 0 || j == 0) { L[i][j] = 0; } else if (X. char. At(i-1) == Y. char. At(j-1)) { L[i][j] = L[i-1][j-1] + 1; } else { L[i][j] = Math. max(L[i-1][j], L[i][j-1]); } } } return L; Computer Science Dept. Summer 2015: July 28 } Dynamic. Programming. LCS. java CS 146: Data Structures and Algorithms © R. Mak 23

LCS with Dynamic Programming, cont’d private static String lcs(int L[][], String X, String Y) { int m = X. length(); int n = Y. length(); String lcs = new String(); int i = m; int j = n; Start from the rightmost bottommost corner and one by one store characters backwards in lcs. while (i > 0 && j > 0) { if (X. char. At(i-1) == Y. char. At(j-1)) { lcs = X. char. At(i-1) + lcs; i--; The current characters in X and Y are the same: j--; Prepend that common character to the LCS. } } else if (L[i-1][j] > L[i][j-1]) i--; Not the same: else j--; Go in the direction of the larger table value. return lcs; Computer Science Dept. Summer 2015: July 28 } CS 146: Data Structures and Algorithms © R. Mak Demo Dynamic. Programming. LCS. java 24

Break Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 25

String Pattern Matching Algorithms o Problem: Given a text string, find the index of the first occurrence of a pattern string within the text. n Example: o o Text = “bacbabacaca” Pattern = “ababaca” The pattern occurs in the text: “bacbabacaca” and the index is 6. How many character-by-character comparisons are required? Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 26

String Pattern Matching Algorithms, cont’d o “Find” command of a text editor. o Look for one strand of DNA within another. o Two algorithms today: n n Brute search Knuth-Morris-Pratt Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 27

Brute Search Pattern Matching, cont’d o Line up the start of the pattern to find with the start of the text to search. n o Compare character-by-character the pattern with the text. n o Set text index i = 0 and pattern index j = 0; Increment i and j together. As soon as there’s a mismatch, stop the comparisons and shift the pattern over one character to the right. n n Backtrack the text after a “false start”. Set i back j-1 characters and then j to 0. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 28

Brute Search Pattern Matching, cont’d o Start the character-by-character comparisons again at the backtracked text position. o Repeat until a match is found, or you until reach the end of the text. o Brute search makes O(MN) character comparisons. n n M = pattern length N = text length Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 29

Brute Search Pattern Matching, cont’d Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms 30 © R. Mak http: //algs 4. cs. princeton. edu/lectures/53 Substring. Search. pdf

Brute Search Pattern Matching, cont’d Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms 31 © R. Mak http: //algs 4. cs. princeton. edu/lectures/53 Substring. Search. pdf

Brute Search Pattern Matching, cont’d Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms 32 © R. Mak http: //algs 4. cs. princeton. edu/lectures/53 Substring. Search. pdf

Brute Search Pattern Matching, cont’d public int match() Brute. Search. java { if ((text == null) || (text. length() == 0)) return -1; int i = 0; int j = 0; do { if (pattern. char. At(j) == text. char. At(i)) { i++; j++; } else { i = i - j + 1; j = 0; } Matching so far. Not a match. Backtrack i and reset j. compares++; } while ((j < pattern. length()) && (i < text. length())); return j >= pattern. length() ? i - pattern. length() : -1; }Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak Return the index of the match, or -1 if no match. Demo 33

Knuth-Morris-Pratt Algorithm o The Knuth-Morris-Pratt string pattern matching algorithm reduces the number of character comparisons. o Eliminates backtracking the text. o When a character mismatch is detected, the “false start” consists of characters we already know. n n The characters are in the pattern. Can we take advantage of this knowledge? Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 34

Knuth-Morris-Pratt Algorithm o Use a precomputed next[] array. o The array stores knowledge about how the pattern matches against itself. o Look for similar subpatterns. o This knowledge allows us to avoid useless shifts of the pattern when we match it against the text. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 35

Knuth-Morris-Pratt Algorithm o When a subpattern fails after a partial match of the text: n n o If there is another similar subpattern … We can realign the pattern to the other similar subpattern and try matching it against the text. The next[] array enables us to realign the pattern and prevent backtracking the text. n This should remind us of the state transition matrix that we used to search for names in Assignment #1. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 36

Knuth-Morris-Pratt Algorithm o KMT never backtracks. n o Index i of the text never decrements. KMT never makes more than M+N comparisons. n n M = pattern length N = text length Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 37

Computing KMP next[] private int[] compute. Next() { int next[] = new int[pattern. length()]; int i = 1; int j = 0; next[0] = 0; while (i < pattern. length()) { if (pattern. char. At(i) == pattern. char. At(j)) { next[i] = j+1; i++; Match the pattern to j++; itself (similar subpattern). } else if (j > 0) { j = next[j-1]; } else { next[i] = 0; i++; } Size of the matching subpattern. No matching subpattern. } i j next[i] 1 0 0 2 3 4 5 6 return next; 0 1 2 3 0 Knuth. Morris. Pratt. java } Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak 0 1 2 3 4 5 6 Pattern a b a b a c a next[] 0 0 1 2 3 0 1 2 3 4 5 6 Pattern a b a b a c a next[] 0 0 1 2 3 0 1 38

KMP Pattern Matching public int match() { if ((text == null) || (text. length() == 0)) return -1; int i = 0; int j = 0; while (i < text. length()) { if (pattern. char. At(j) == text. char. At(i)) { if (j == pattern. length()-1) { return i - j; Found a complete match! } else { i++; j++; } } else if (j > 0) { j = next[j-1]; } else { i++; } Pattern characters are matching the text. Reset j from next[]. Shift pattern 1 right. } Computer Science Dept. return -1; Summer 2015: July 28 } CS 146: Data Structures and Algorithms © R. Mak Knuth. Morris. Pratt. java 39

KMP Pattern Matching next = [ 0 0 1 2 3 0 1 ] i = 0, j=0, no match Shift pattern 1 right Text i = 1, j=0, match Text Pattern a b a c a Pattern i = 2, j=1, no match Reset j = next[0] = 0 Text i = 2, j=0, no match Shift pattern 1 right Text Computer Science Dept. Summer 2015: July 28 b a c b a b a c a Pattern b a c b a b a c a c a a b a b a c b a b a c a CS 146: Data Structures and Algorithms © R. Mak 40

KMP Pattern Matching next = [ 0 0 1 2 3 0 1 ] i = 3, j=0, no match Shift pattern 1 right Text i = 4. . 8, j=0. . 4, matches Text Pattern i = 9, j=5, no match Reset j = next[4] = 3 i = 9. . 12, j=3. . 6, matches Pattern found in text. Text Pattern Text b a c b a b a c a c a a b a b a c a b a c b a b a c a Pattern a b a c a Character matching in the text always moves forward. Text index i never decrements. Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms © R. Mak Demo 41

History of KMT Computer Science Dept. Summer 2015: July 28 CS 146: Data Structures and Algorithms 42 © R. Mak http: //algs 4. cs. princeton. edu/lectures/53 Substring. Search. pdf
