IIT Bombay Data Structures and Algorithms Prof. Ajit A. Diwan Prof. Ganesh Ramakrishnan Prof. Deepak B. Phatak Department of Computer Science and Engineering IIT Bombay Session: Graphs Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 1

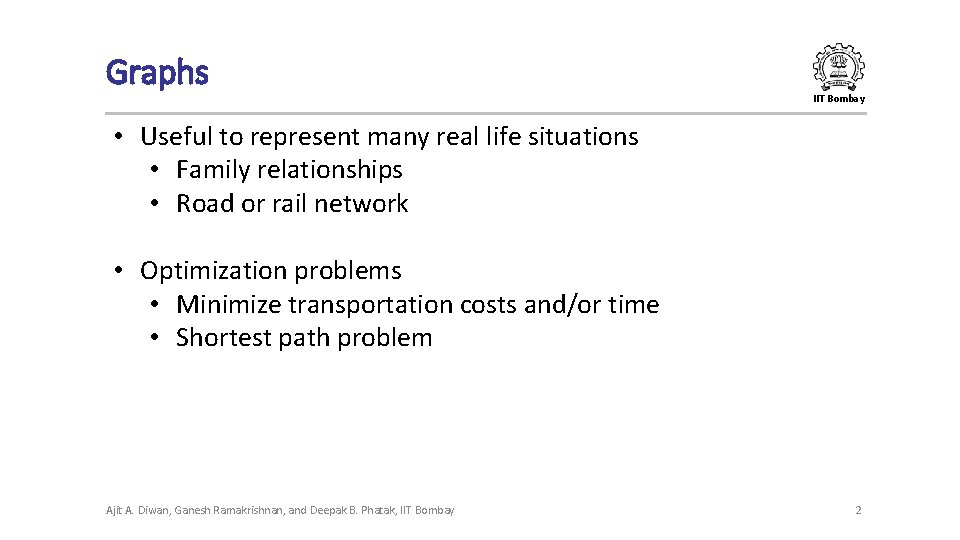

Graphs IIT Bombay • Useful to represent many real life situations • Family relationships • Road or rail network • Optimization problems • Minimize transportation costs and/or time • Shortest path problem Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2
Graphs IIT Bombay • Vertex • Each element / node in the graph • A, B, C, D, E are vertices of graph • Edge • Connection between two vertices • e. g. There is an edge between • A and B • A and C • B and D etc. • But, there is no edge for vertex E Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay A C E B V E R T E X E D G E D V E R T E X 3
Undirected Graphs IIT Bombay • Undirected edges • There is an edge from • A to B and B to A • A to C and C to A • B to D and D to B • … Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay A C E B D 4
Directed Graphs IIT Bombay • Directed edges • There is an edge from • A to B, but, • not from B to A • A to C and also from C to A • C to D, but • not from D to C Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay A C E B D 5

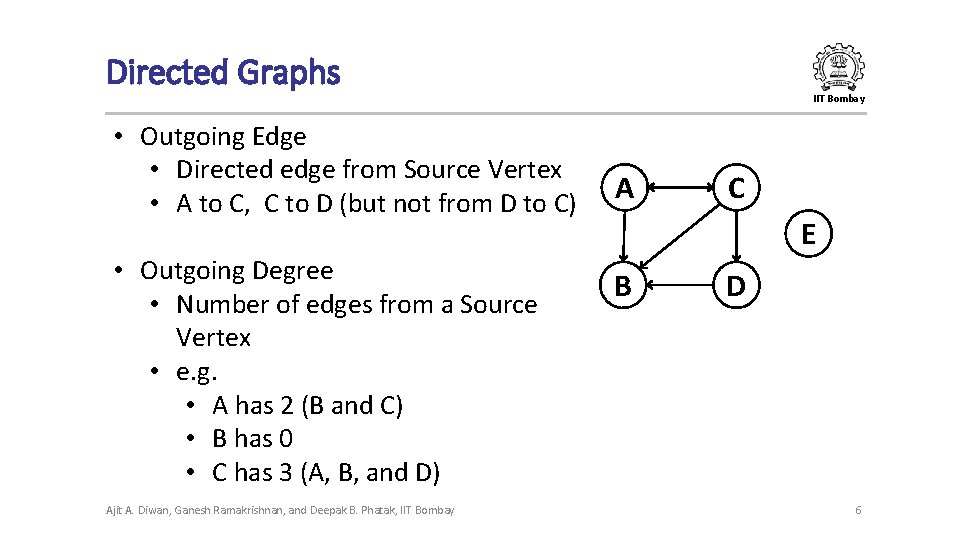

Directed Graphs IIT Bombay • Outgoing Edge • Directed edge from Source Vertex • A to C, C to D (but not from D to C) • Outgoing Degree • Number of edges from a Source Vertex • e. g. • A has 2 (B and C) • B has 0 • C has 3 (A, B, and D) Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay A C E B D 6

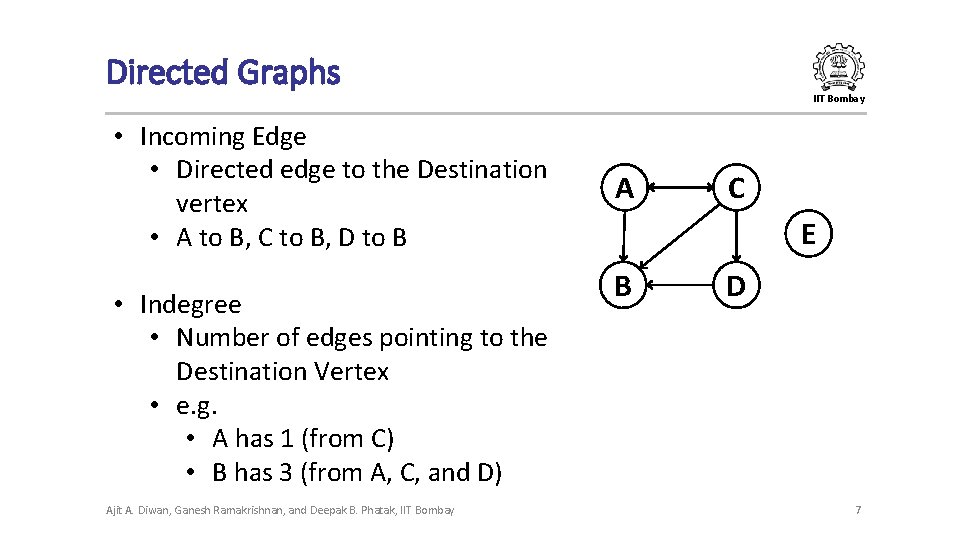

Directed Graphs IIT Bombay • Incoming Edge • Directed edge to the Destination vertex • A to B, C to B, D to B • Indegree • Number of edges pointing to the Destination Vertex • e. g. • A has 1 (from C) • B has 3 (from A, C, and D) Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay A C E B D 7
IIT Bombay Thank you Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 8
