Breadth-First Search IIT Bombay • • Algorithm for traversing through (graph/tree) Traverses breadth wards Uses queue to implement it Applications • Shortest Path First Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2

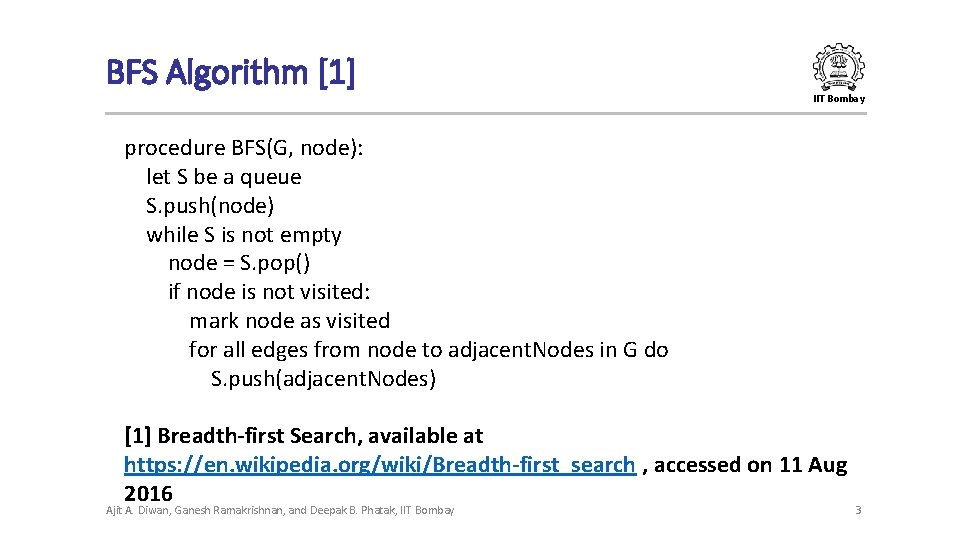

BFS Algorithm [1] IIT Bombay procedure BFS(G, node): let S be a queue S. push(node) while S is not empty node = S. pop() if node is not visited: mark node as visited for all edges from node to adjacent. Nodes in G do S. push(adjacent. Nodes) [1] Breadth-first Search, available at https: //en. wikipedia. org/wiki/Breadth-first_search , accessed on 11 Aug 2016 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 3

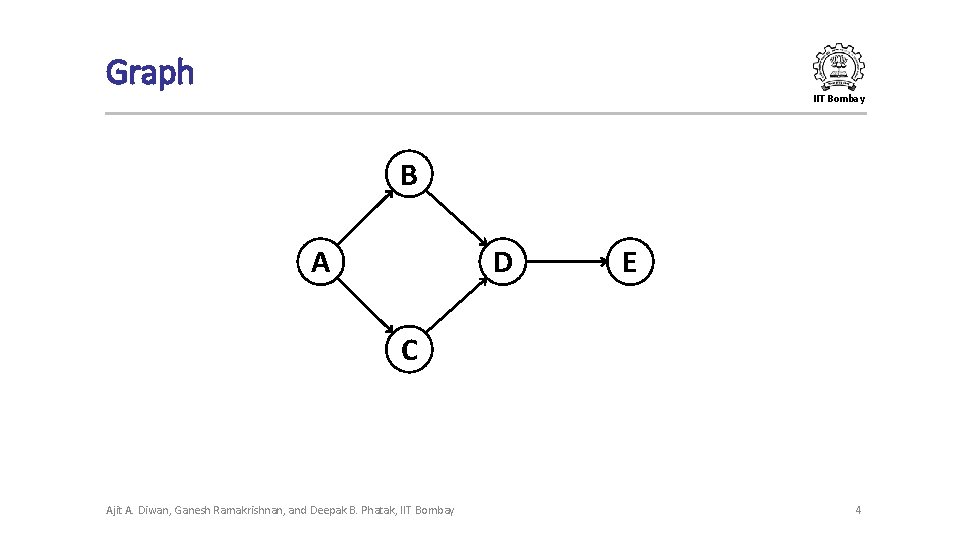

Graph IIT Bombay B D A E C Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 4

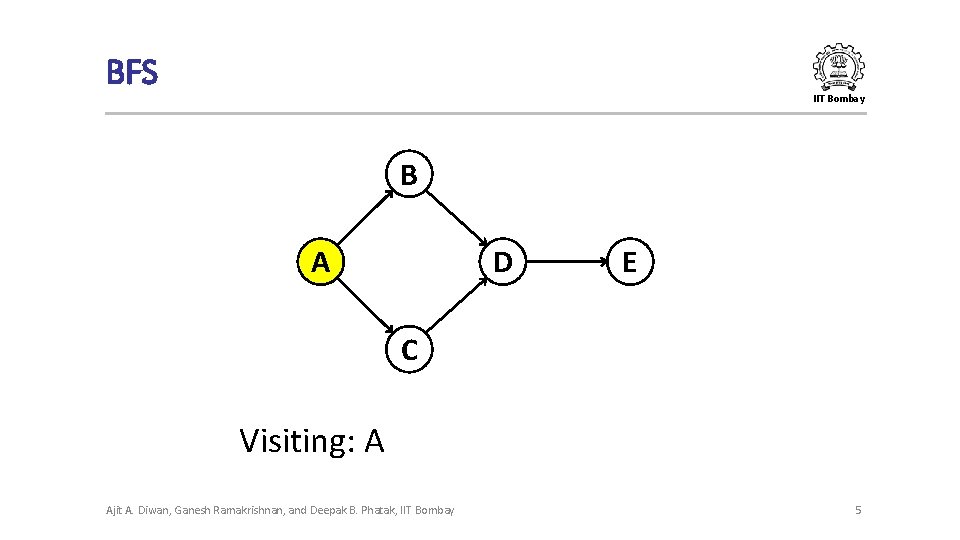

BFS IIT Bombay B D A E C Visiting: A Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 5

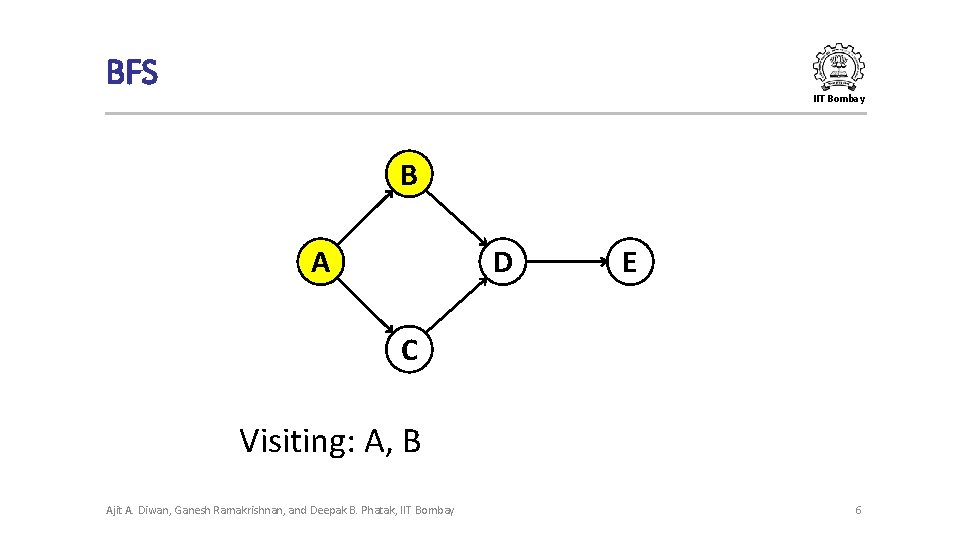

BFS IIT Bombay B D A E C Visiting: A, B Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 6

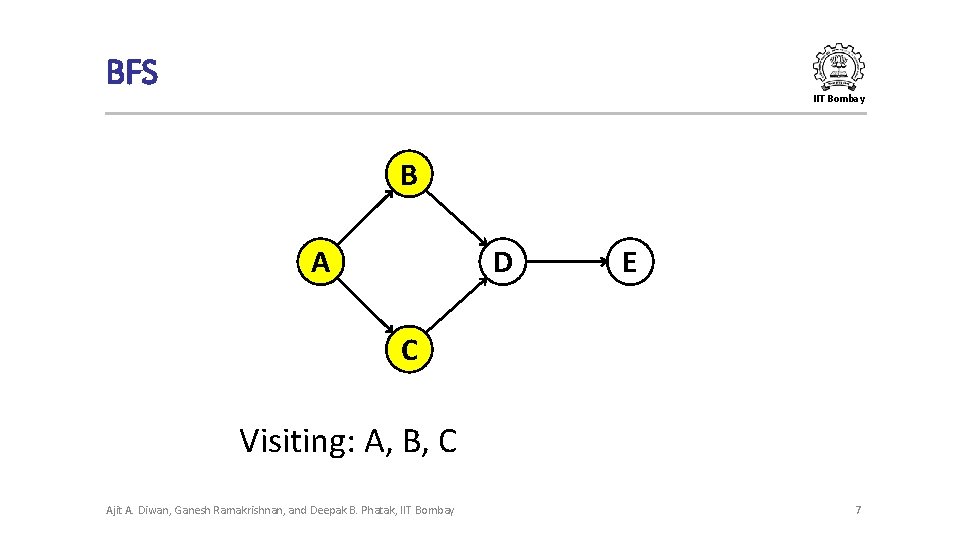

BFS IIT Bombay B D A E C Visiting: A, B, C Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 7

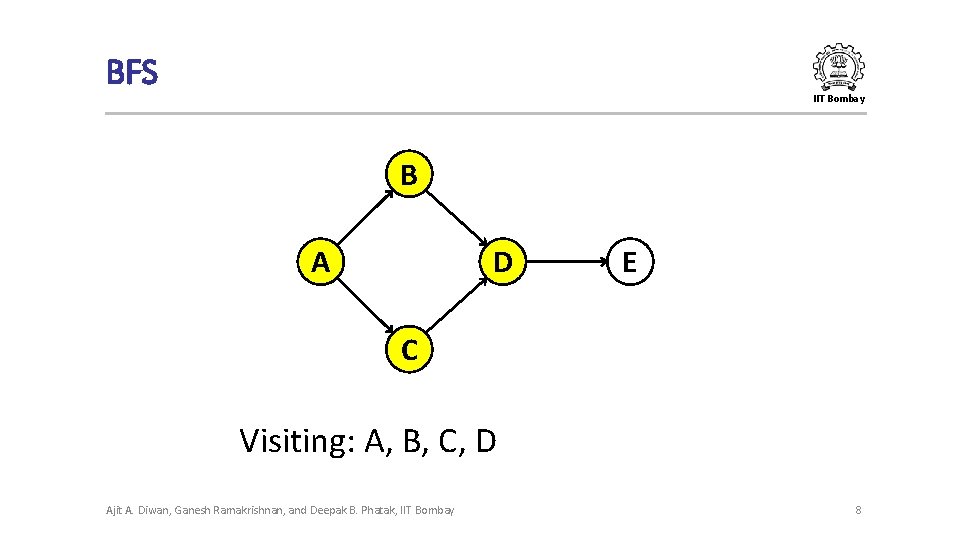

BFS IIT Bombay B D A E C Visiting: A, B, C, D Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 8

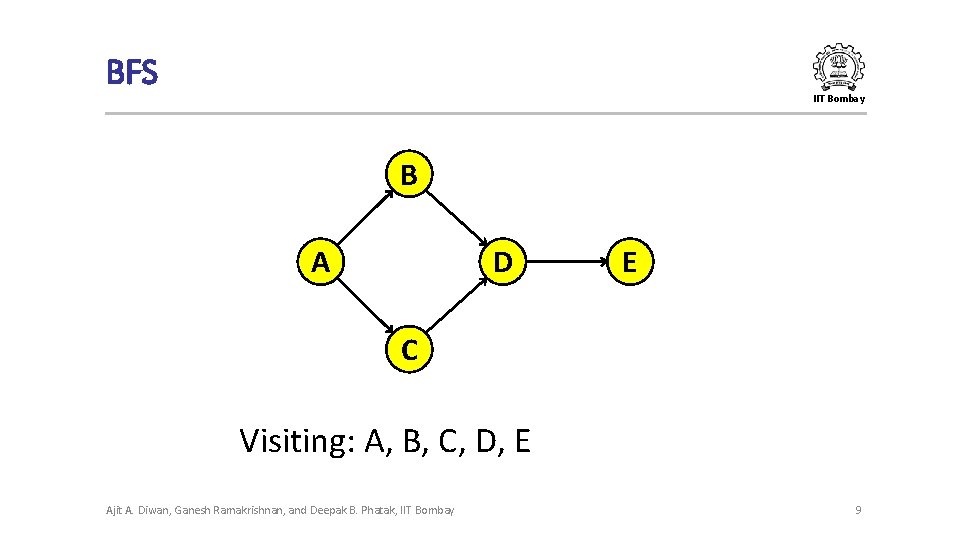

BFS IIT Bombay B D A E C Visiting: A, B, C, D, E Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 9
