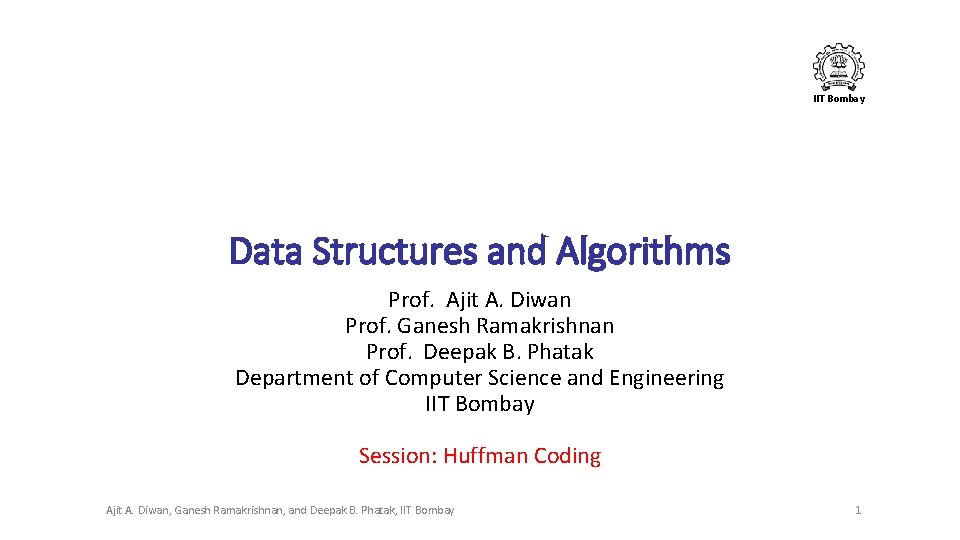

IIT Bombay Data Structures and Algorithms Prof. Ajit A. Diwan Prof. Ganesh Ramakrishnan Prof. Deepak B. Phatak Department of Computer Science and Engineering IIT Bombay Session: Huffman Coding Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 1

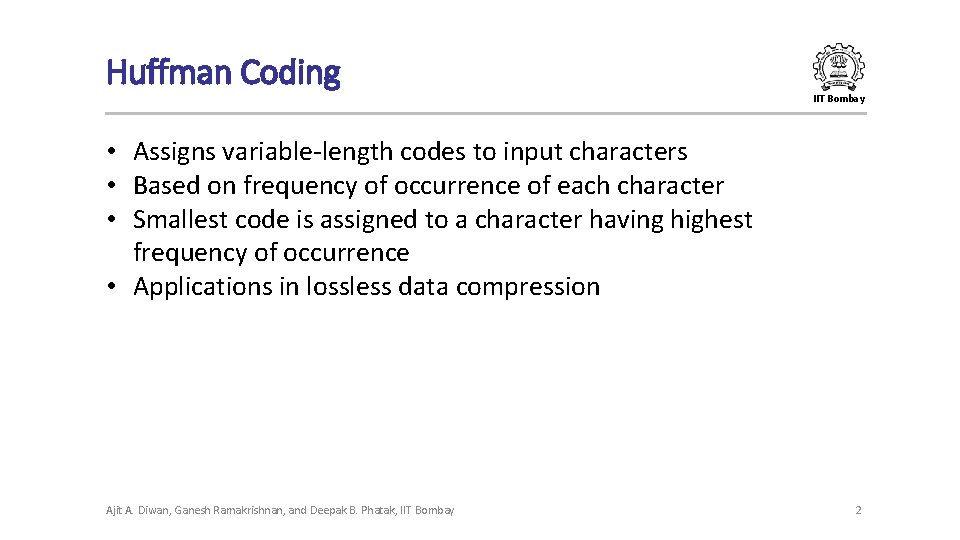

Huffman Coding IIT Bombay • Assigns variable-length codes to input characters • Based on frequency of occurrence of each character • Smallest code is assigned to a character having highest frequency of occurrence • Applications in lossless data compression Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 2

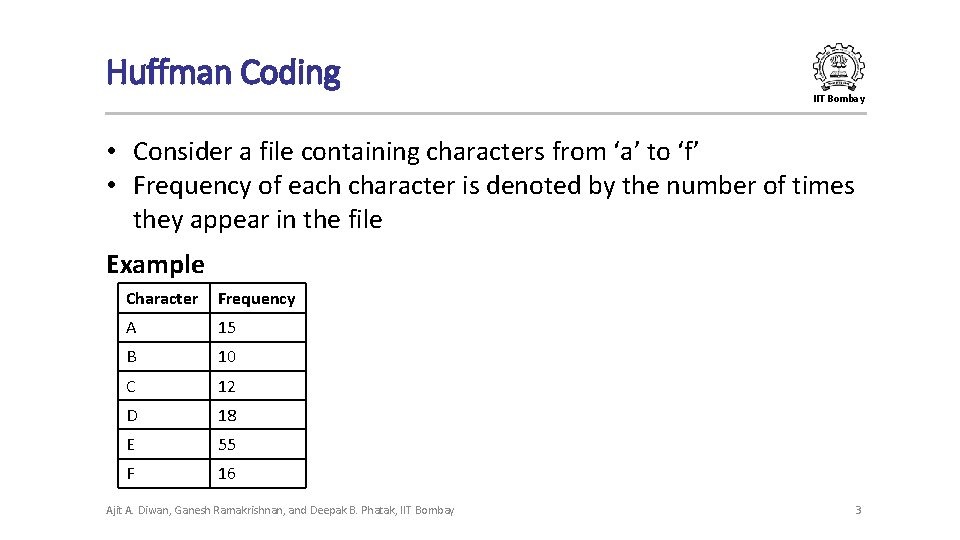

Huffman Coding IIT Bombay • Consider a file containing characters from ‘a’ to ‘f’ • Frequency of each character is denoted by the number of times they appear in the file Example Character Frequency A 15 B 10 C 12 D 18 E 55 F 16 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 3

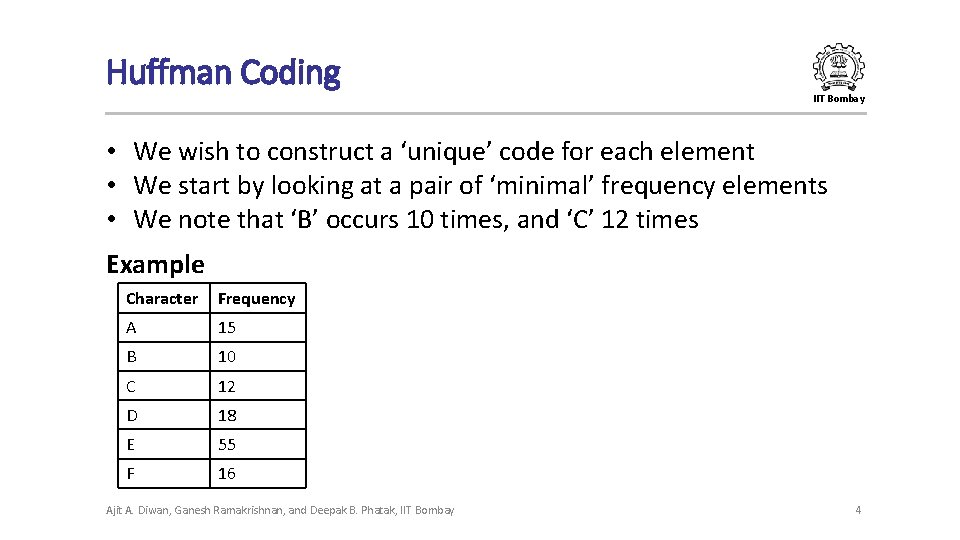

Huffman Coding IIT Bombay • We wish to construct a ‘unique’ code for each element • We start by looking at a pair of ‘minimal’ frequency elements • We note that ‘B’ occurs 10 times, and ‘C’ 12 times Example Character Frequency A 15 B 10 C 12 D 18 E 55 F 16 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 4

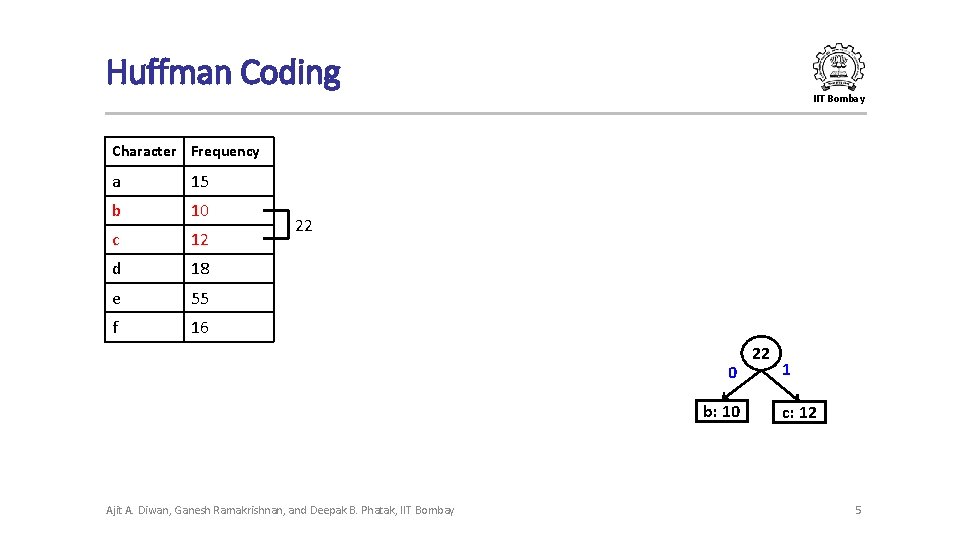

Huffman Coding IIT Bombay Character Frequency a 15 b 10 c 12 d 18 e 55 f 16 22 0 b: 10 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 22 1 c: 12 5

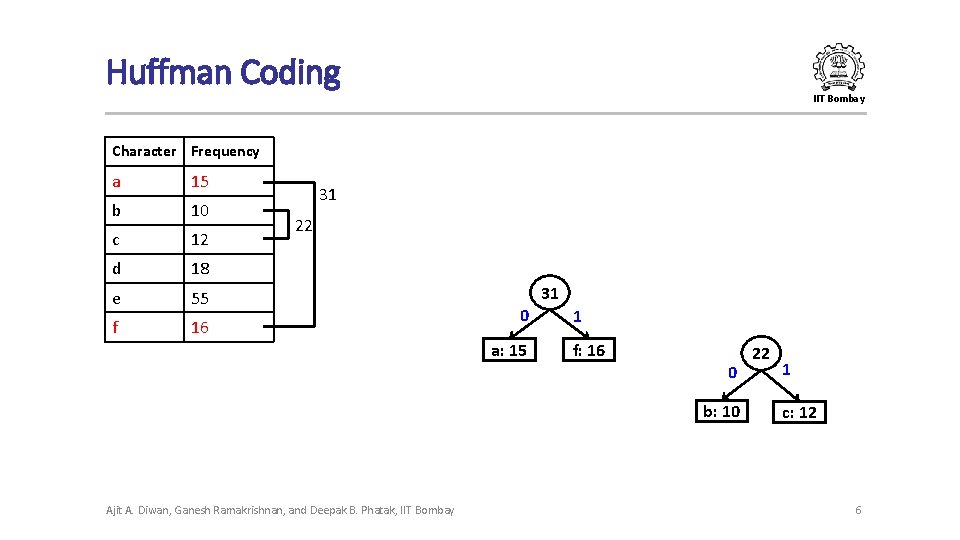

Huffman Coding IIT Bombay Character Frequency a 15 b 10 c 12 d 18 e 55 f 16 31 22 31 0 a: 15 1 f: 16 0 b: 10 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 22 1 c: 12 6

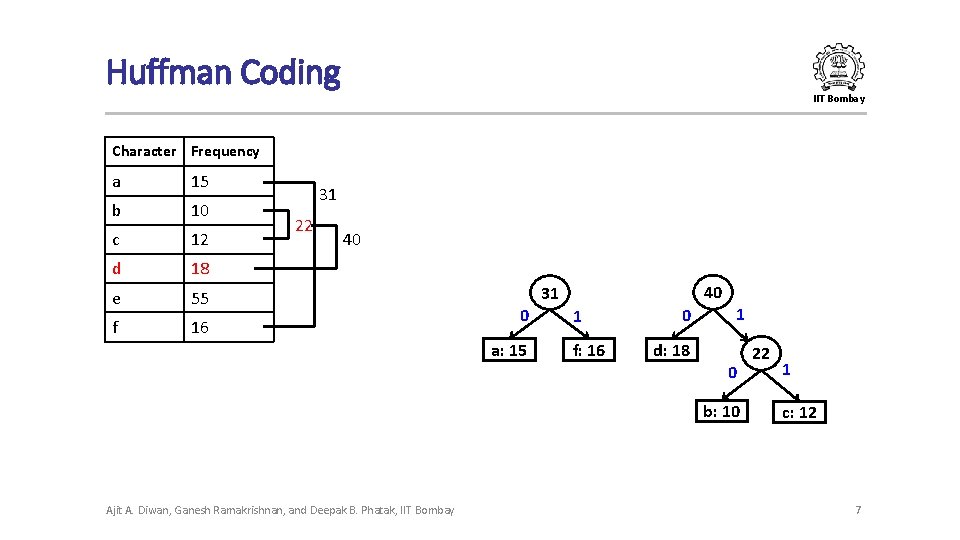

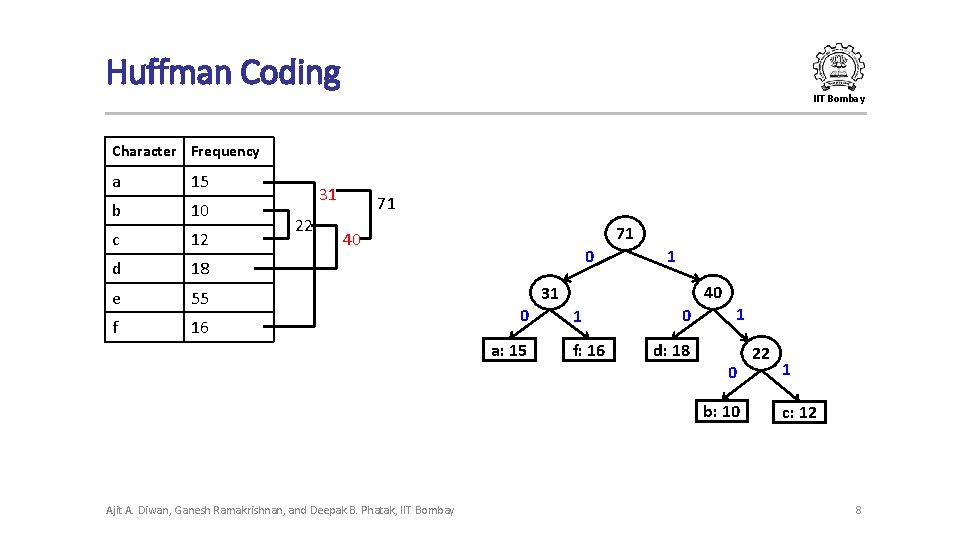

Huffman Coding IIT Bombay Character Frequency a 15 b 10 c 12 d 18 e 55 f 16 31 22 40 40 31 0 a: 15 1 f: 16 0 1 d: 18 0 b: 10 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 22 1 c: 12 7

Huffman Coding IIT Bombay Character Frequency a 15 b 10 c 12 d 18 e 55 f 16 31 22 71 71 40 0 1 40 31 0 a: 15 1 f: 16 0 1 d: 18 0 b: 10 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 22 1 c: 12 8

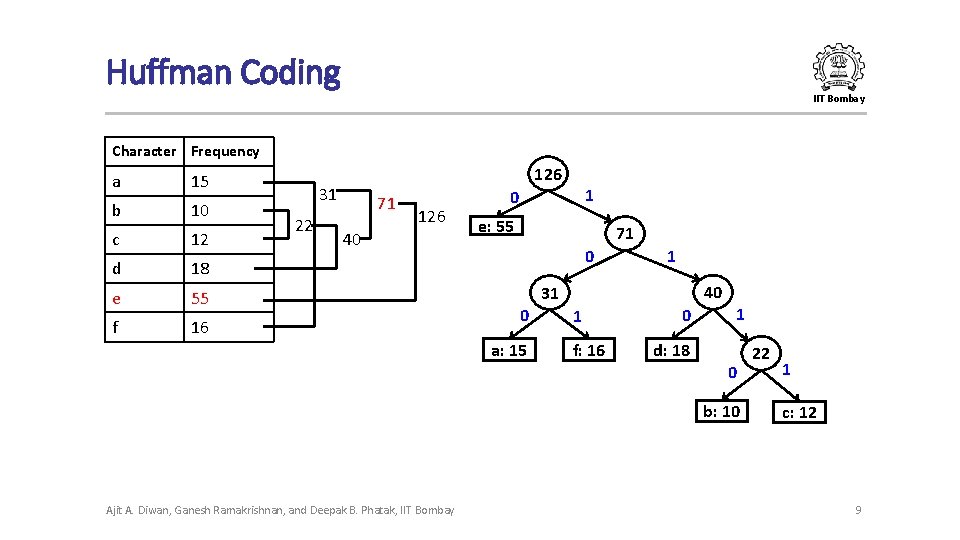

Huffman Coding IIT Bombay Character Frequency a 15 b 10 c 12 d 18 e 55 f 16 126 31 22 71 126 40 1 0 e: 55 71 0 1 40 31 0 a: 15 1 f: 16 0 1 d: 18 0 b: 10 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 22 1 c: 12 9

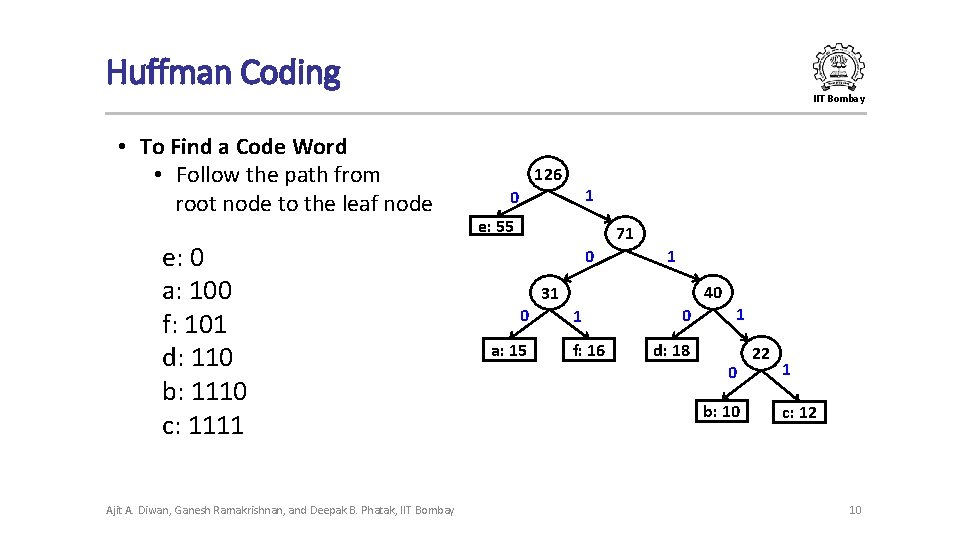

Huffman Coding IIT Bombay • To Find a Code Word • Follow the path from root node to the leaf node e: 0 a: 100 f: 101 d: 110 b: 1110 c: 1111 Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 126 1 0 e: 55 71 0 1 40 31 0 a: 15 1 f: 16 0 1 d: 18 0 b: 10 22 1 c: 12 10

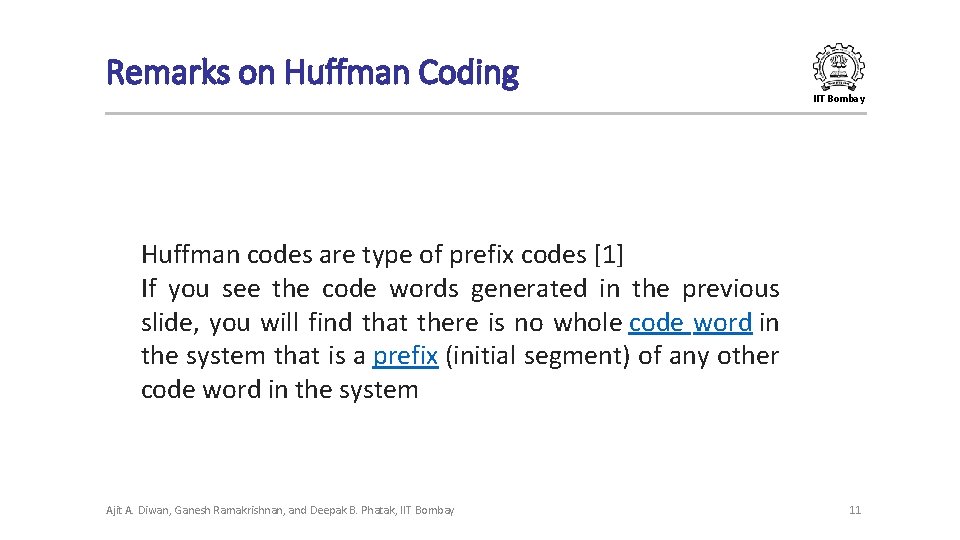

Remarks on Huffman Coding IIT Bombay Huffman codes are type of prefix codes [1] If you see the code words generated in the previous slide, you will find that there is no whole code word in the system that is a prefix (initial segment) of any other code word in the system Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 11

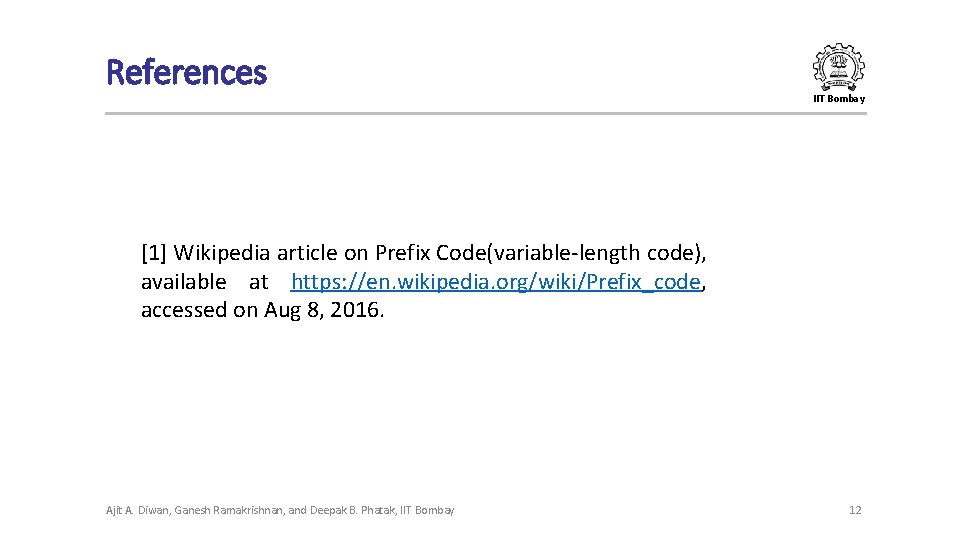

References IIT Bombay [1] Wikipedia article on Prefix Code(variable-length code), available at https: //en. wikipedia. org/wiki/Prefix_code, accessed on Aug 8, 2016. Ajit A. Diwan, Ganesh Ramakrishnan, and Deepak B. Phatak, IIT Bombay 12
