Cryptography Lecture 2 Arpita Patra Arpita Patra Recall

Cryptography Lecture 2 Arpita Patra © Arpita Patra

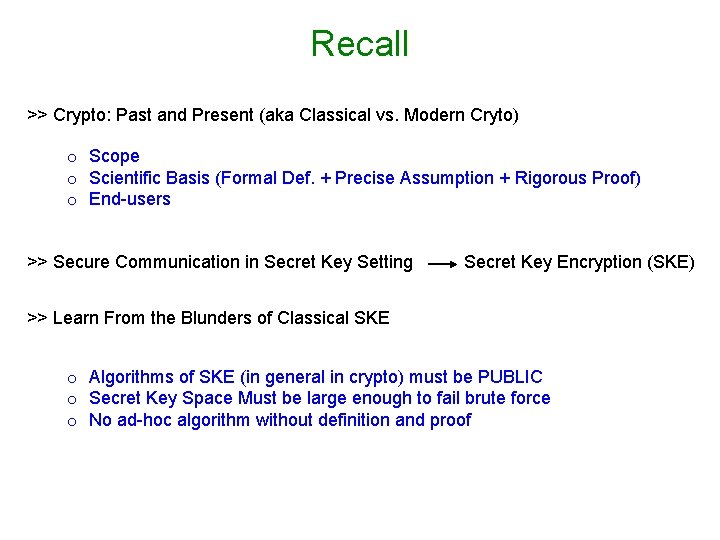

Recall >> Crypto: Past and Present (aka Classical vs. Modern Cryto) o Scope o Scientific Basis (Formal Def. + Precise Assumption + Rigorous Proof) o End-users >> Secure Communication in Secret Key Setting Secret Key Encryption (SKE) >> Learn From the Blunders of Classical SKE o Algorithms of SKE (in general in crypto) must be PUBLIC o Secret Key Space Must be large enough to fail brute force o No ad-hoc algorithm without definition and proof

Today’s Goal - Do Secure Communication in a ‘modern’ way ditching the ‘classic’ approach o Formulate a formal definition (threat + break model) o Identify assumptions needed and build a construction o Prove security of the construction relative to the definition and assumption

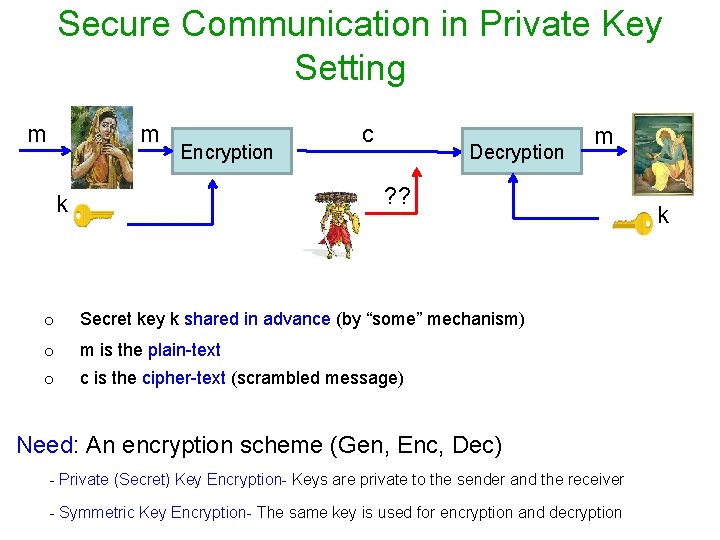

Secure Communication in Private Key Setting m m Encryption c Decryption m ? ? k o Secret key k shared in advance (by “some” mechanism) o m is the plain-text o c is the cipher-text (scrambled message) Need: An encryption scheme (Gen, Enc, Dec) - Private (Secret) Key Encryption- Keys are private to the sender and the receiver - Symmetric Key Encryption- The same key is used for encryption and decryption k

Syntax of Secret Key Encryption (SKE) 1. Key-generation Algorithm: Gen() > Outputs a key k chosen according to some probability distribution. > MUST be a Randomized algorithm 2. Encryption Algorithm: Enck(m) > c Enck(m) when randomized and c: =Enck(m) when deterministic > Deterministic/Randomized algorithm 3. Decryption Algorithm: Deck(c) > Outputs m: = Deck(c) > Usually deterministic

Syntax of SKE 1. Key space (K): > Set of all possible keys output by algorithm Gen 2. Plaintext / message space (M): > Set of all possible “legal” message (i. e. those supported by Enc) 3. Ciphertext space (C): > Set of all cipher-texts output by algorithm Enc SKE is specified using (Gen, Enc, Dec) and M

Formal Definition of Security Two components of a security definition: Threat: >> Who is your threat? >> Who do you want to protect from? >> Cultivate your enemy a. k. a adversary in crypto language. >> Look out in practical scenarios / be an adversary >> Unless you know your adv, no hope of defeating him Break: >> What are you afraid of losing? >> What do you want to protect? >> If you don’t know what to protect then how to do you when or if you are protecting it?

Threat Model computationally? - How powerful > Best is to have no assumption on the computing power of the adv. a. k. a unbounded powerful adversary > Give him any so-called hard problem (factoring etc), he solves in no time > Strongest adversary that we can think of in terms of computing power - What are his capabilities (in terms of attacking a secure communication protocol)? m Enc c ? ? k k > Attacker/adv. can eavesdrop/tap the ciphertext during transit- Passive or Eavesdropper > Ciphertext Only Attack (COA) Can you think of a smarter attack?

Threat Model - Can sample random coins? (deterministic or randomized) > Randomness is absolute necessity in Crypto; it is practical and Good guys use randomness often. Why not adversary? > Good to be liberal in terms of giving more power to adversary - Randomized - Unbounded Powerful - COA

Break Model Attempt I>> Secret key ? Then Enc(m) = m is secure Attempt II>> Entire Message? Then Enc(m) leaking most significant 10 bits is secure; m: bank password| amazon password| Attempt III>> No additional info about the message irrespective of prior information? Right Notion How to formalise? Need basics of Discrete Probability Theory

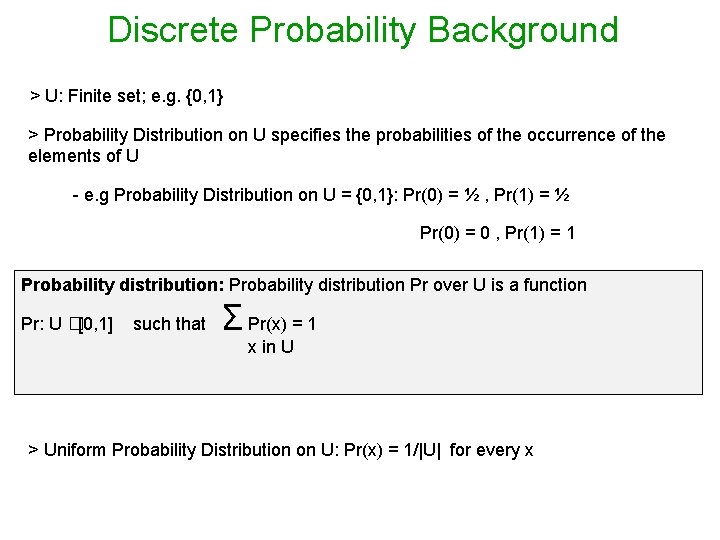

Discrete Probability Background > U: Finite set; e. g. {0, 1} > Probability Distribution on U specifies the probabilities of the occurrence of the elements of U - e. g Probability Distribution on U = {0, 1}: Pr(0) = ½ , Pr(1) = ½ Pr(0) = 0 , Pr(1) = 1 Probability distribution: Probability distribution Pr over U is a function Pr: U �[0, 1] such that Σ Pr(x) = 1 x in U > Uniform Probability Distribution on U: Pr(x) = 1/|U| for every x

Discrete Probability Background Event: Occurrence of one or more elements of U is called an event - e. g Consider Uniform Distribution on U = {0, 1}4 - Let A = occurrence of elements of U with msb two bits as 01 - Pr(A) = 1/4 Union Bound: For events A 1 and A 2 Pr[ A 1 ∪ A 2 ] ≤ Pr[A 1] + Pr[A 2] (extend for more than 2) Conditional probability: probability that one event occurs, assuming some other event occurred.

Discrete Probability Background Random Variable: variable that takes on (discrete) values from a finite set with certain probabilities (defined with respect to a finite set) Probability distribution for a random variable: specifies the probabilities with which the variable takes on each possible value of a finite set - Each probability must be between 0 and 1 - The probabilities must sum to 1 Done!!

Formulating Definition for SKE=(Gen, Enc, Dec) All the s distribution o t n w o n k e ar ilu ihu M Random Variable M . Prob. Dist K Of M and are nt independe K K . Prob. Dist Of C n depends o M C dist. of and K C Prob. Dist. - Determined by external factors Pr(M = ilu) =. 7 Pr(M = ihu) =. 3 - Depends on Gen Pr(K = k) = Pr(Gen outputs k) - Choose a message m, according to the given dist. - Generate a key k using Gen - Compute c Enck(m)

Numerical Example M = {a b c d} 1 3 3 3 -4 10 - 20 - 10 - K = {k 1 k 2 k 3} 1 -4 1 -2 1 -4 C = {1 2 3 4}. 26. 26. 21 Enc q What is the probability distribution on the cipher-text space C ? Pr [C = 1] : Pr [M = b] Pr [K = k 2] + Pr [M = c] Pr [K = k 3] + Pr [M = d] Pr [K = k 1] = 0. 2625 Pr [C = 2] : Pr [M = c] Pr [K = k 1] + Pr [M = d] Pr [K = k 2] + Pr [M = d] Pr [K = k 3] = 0. 2625 Pr [C = 3] : Pr [M = a] Pr [K = k 1] + Pr [M = a] Pr [K = k 2] + Pr [M = b] Pr [K = k 3] = 0. 2625 Pr [C = 4] : Pr [M = a] Pr [K = k 3] + Pr [M = b] Pr [K = k 1] + Pr [M = c] Pr [K = k 2] = 0. 2125

Threat & Break Model What is the point in tapping over channel. I better watch the cricket match today - Randomized Unbounded Powerful COA q No additional info about the message should be leaked from the ciphertext irrespective of the prior information that the adv has What captures the prior information of the attacker about m ? erfe. Mct - Probability distribution on the plain-text P space ! - The probability distribution {Pr[M = m]}Security!!! q Observing the cipher-text c should not change the attacker’s knowledge about the distribution of the plaintext - Mathematically, Pr[M = m | C = c] = Pr[M = m]

Perfectly-secure Encryption : Formal Definition (Perfectly-secure Encryption): An encryption scheme (Gen, Enc, Dec) over a plaintext space M is perfectly-secure if for every probability distribution over M, every plain-text m M and every cipher-text c C, the following holds: Pr [M = m | C = c] = Pr [M = m] Posteriori probability that m is encrypted in c a priori probability that m might be communicated q Probably the first formal definition of security - C. E. Shannon. Communication theory of secrecy systems. Bell Systems Technical Journal, 28(4): 656 -715, 1949.

What have we done so far. . o Formulate a formal definition (threat + break model) o Identify assumptions needed and build a construction o Prove security of the construction relative to the definition and assumption No assumption!!

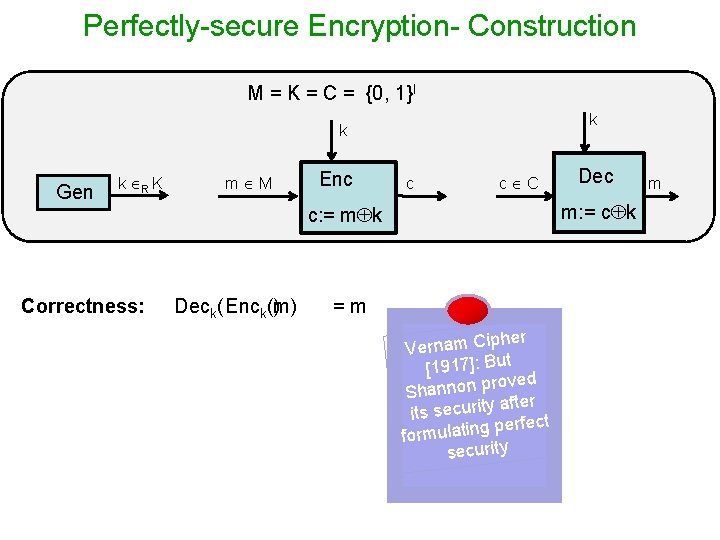

Perfectly-secure Encryption- Construction M = K = C = {0, 1}l k k Gen k R K m M Enc c c C m: = c k c: = m k Correctness: Deck( Enck(m) ) Dec =m her Vernam Cip [1917]: But roved Shannon p after its security erfect p g in t la u form security m

Perfectly-secure Encryption- Construction M = K = C = {0, 1}l k k Gen k R K m M Enc c C c Dec m m: = c k c: = m k Theorem (Security): Vernam Cipher is perfectly-secure Proof: To prove Pr[M = m | C = c] = Pr[M = m] For arbitrary c and m, Pr[C = c | M = m] Pr[C = c] = Σ Pr[C = c | M = m] Pr[M = m] m in M = 1/2 l Σ Pr[M = m] m in M = 1/2 l = Pr[K = c m] = 1/2 l (irrespective of p. d. over M)

Perfectly-secure Encryption- Construction M = K = C = {0, 1}l k k Gen k R K m M Enc c c: = m k Pr[M = m | C = c] = Pr[C = c | M = m ] Pr[M = m] = Pr[M = m] Pr[C = c] c C Dec m m: = c k (Bayes' Theorem) se of Historical U her: ip C m a n r e V tween Redline be se & White Hou ring Kremlin du Cold war.

What have we done so far. . o Formulate a formal definition (threat + break model) o Identify assumptions needed and build a construction o Prove security of the construction relative to the definition and assumption

Vernam Cipher is not all that nice because. . o How long is the key? length is as long as the message - For long messages hard to agree on long key - What happens the parties cannot predict the message size in advance o Can we reuse the keys for multiple messages? No!! ime One-t -rocje=ctm k, c’ = m’ k : P) T VENONA P O ( d a P Adversary learns the difference! US & U-Kc c’ = m m’ Russian d e t p y r c e d security breaks down xt Plaint-e. Perfect he use exploiting t ey to of same k pad many Let us design another scheme that overcomes the drawbacks. . messages Alas! Inherent problems. .

Chalk & Talk Assignment o Various Perfect Security Definitions and their Equivalence Definition I: Definition II: Pr [C = c | M = m] = Pr [C = c | M = m’] Pr [M = m | C = c] = Pr [M = m] Definition III: KL Chapter 2 Define it

Next class… o Various Perfect Security Definitions and their Equivalence Definition I: Definition II: Pr [C = c | M = m] = Pr [C = c | M = m’] Pr [M = m | C = c] = Pr [M = m] Definition III: KL Chapter 2 Define it Definition IV:
