Completion and Disposition of FAA form 337, & Field Approvals

US. Department of Transportation Federal Aviation Administration

Completion and Disposition of FAA form 337, & Field Approvals

Introduction ¶FAA Form 337`s, & when to complete them ·Procedures for completion & disposition ¸Use of acceptable and/or approved Data ¹Major Alterations º Applying for a Field Approval- MAJOR 4 ALTERATIONS

REFERENCE MATERIAL (AC 43. 9 -1 E, INSTRUCTIONS FOR COMPLETING FAA FORM 337 (FAR PART 43 APPENDIX “A” Par. (a) (FAR PART 43 APPENDIX “B” ( FAA ORDER 8300. 10, (FIELD APPROVALS) ( FSAW 98 -03 - FSAW 98 -18 (LAACO & AWP-200 WORKING AGREEMENT GUIDANCE FOR FIELD APPROVALS (AC 65 -19 G, INSPECTION AUTHORIZATION KNOWLEDGE TEST GUIDE 5

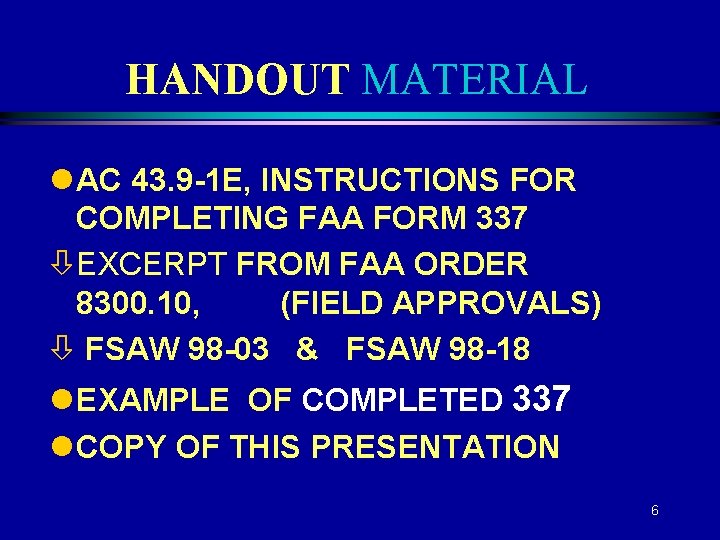

HANDOUT MATERIAL l AC 43. 9 -1 E, INSTRUCTIONS FOR COMPLETING FAA FORM 337 òEXCERPT FROM FAA ORDER 8300. 10, (FIELD APPROVALS) ò FSAW 98 -03 & FSAW 98 -18 l EXAMPLE OF COMPLETED 337 l COPY OF THIS PRESENTATION 6

TEST ! THERE WILL BE A SERIES OF VERBAL QUESTIONS Hopefully at the end of this presentation you will better understand the use and disposition of FAA form 337`s, and when, and how you need to apply for a field approval.

Block 8 . 337. DOC The Back side This is the hard Part, or at least it seems to be for SOME mechanics and repair stations

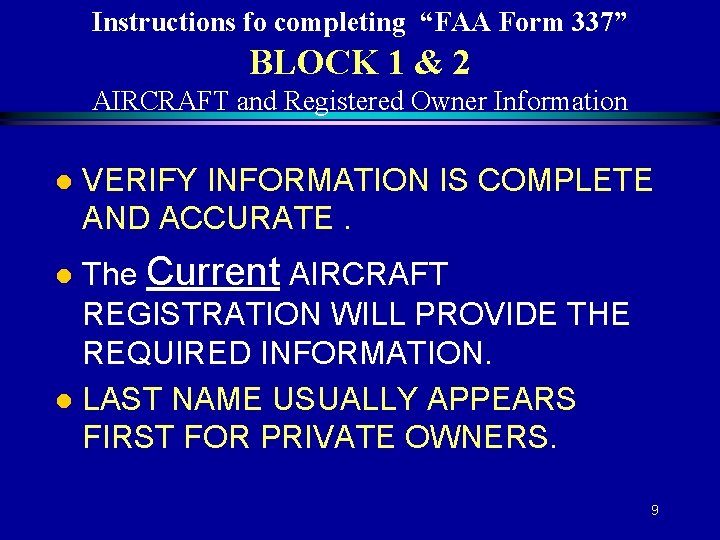

Instructions fo completing “FAA Form 337” BLOCK 1 & 2 AIRCRAFT and Registered Owner Information l VERIFY INFORMATION IS COMPLETE AND ACCURATE. The Current AIRCRAFT REGISTRATION WILL PROVIDE THE REQUIRED INFORMATION. l LAST NAME USUALLY APPEARS FIRST FOR PRIVATE OWNERS. l 9

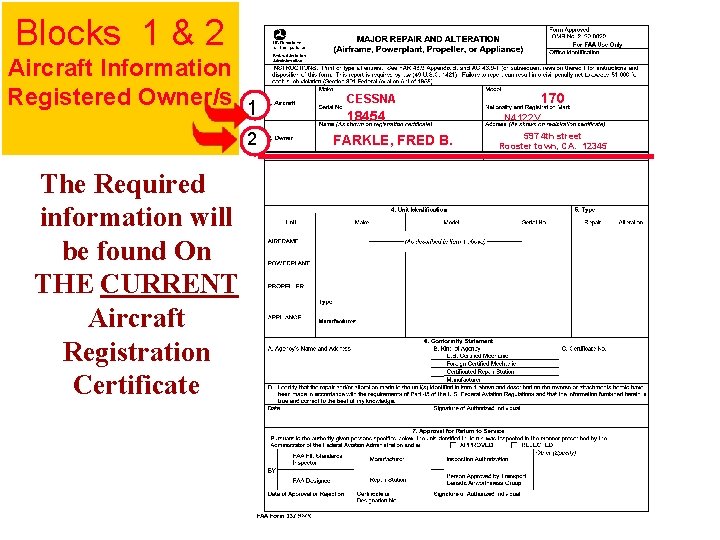

Blocks 1 & 2 Aircraft Information Registered Owner/s 1. 2 The Required information will be found On THE CURRENT Aircraft Registration Certificate 170 CESSNA 18454 FARKLE, FRED B. N 4122 V 597 4 th street Rooster town, CA. 12345

UNITED STATES OF AMERICA DEPARTMENT OF TRANSPORTATION - FEDERAL AVIATION ADMINISTRATION CERTIFICATE OF AIRCRAFT REGISTRATION NATIONALITY AND REGISTRATION MARKS N AIRCRAFT SERIAL NO. 4122 V This Certificate must be in the aircraft when operated. 18454 MANUFACTURER AND MANUFACTURER’S DESIGNATION OF AIRCRAFT CESSNA I S S U E D 170 FARKLE, FRED B. 597 4 TH STREET ROOSTER TOWN, CA 12345 T O INDIVIDUAL It is certified that the above described aircraft has been entered on the register of the Federal Aviation Administration, United States of America, in accordance with the convention on International Civil Aviation dated December 7, 1944, and with the Federal Aviation Act of 1958, and regulations issued thereunder. DATE OF ISSUE APRIL 03, AC Form 8050 -3 (5 -77) 1978 Foghorn Leghorn Administrator This certificate is issued for registration purposes only and is not a cerrtificate of title. The Federal Aviation Administration does not determine rights of ownership as between private persons.

. BLOCK 3 FAA USE ONLY WHEN FIELD APPROVAL IS REQUIRED 3 FAA Stamp Here

QUESTION # 1 How many different types of Field approvals are there ? One hundred ? l Two hundred ? l Only Three ? l Forty ? l l I don't Know 3 13

QUESTION # 1 How many different types of Field approval are there ? l There are 3 Types of field approvals. 14

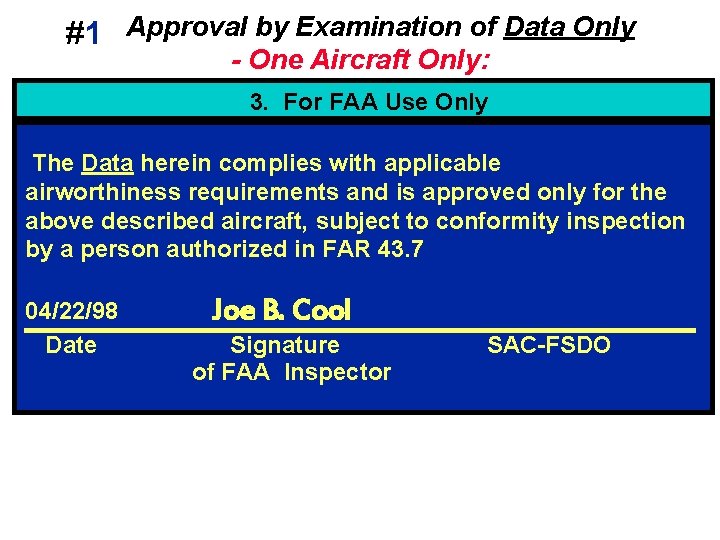

#1 Approval by Examination of Data Only - One Aircraft Only: 3. For FAA Use Only The Data herein complies with applicable airworthiness requirements and is approved only for the above described aircraft, subject to conformity inspection by a person authorized in FAR 43. 7 04/22/98 Date Joe B. Cool Signature of FAA Inspector SAC-FSDO

#2 Approval by physical Inspection Demonstration, Testing, etc. . . , 3. For FAA Use Only The Alteration (or repair) identified herein complies with applicable airworthiness requirements and is approved only for the above described aircraft, subject to conformity inspection by a person authorized in FAR 43. 7 04/22/98 Joe B. Cool Date Signature SAC-FSDO of FAA Inspector of The Data and Aircraft - One Aircraft Only:

#3 Approval by Examination of Data Only 3. For FAA Use Only The Alteration identified herein complies with applicable airworthiness requirements and is approved for duplication on identical aircraft, make, model, and altered configuration by the original modifier. 04/22/98 Date Joe B. Cool Signature of FAA Inspector SAC-FSDO Duplication on Identical Aircraft Multiple Field Approval

Block 4 Unit Identification EXAMPLE Installation of a different model Engine or Prop on an aircraft would be an Airframe Alteration Reference the block for the unit being repaired or altered 4

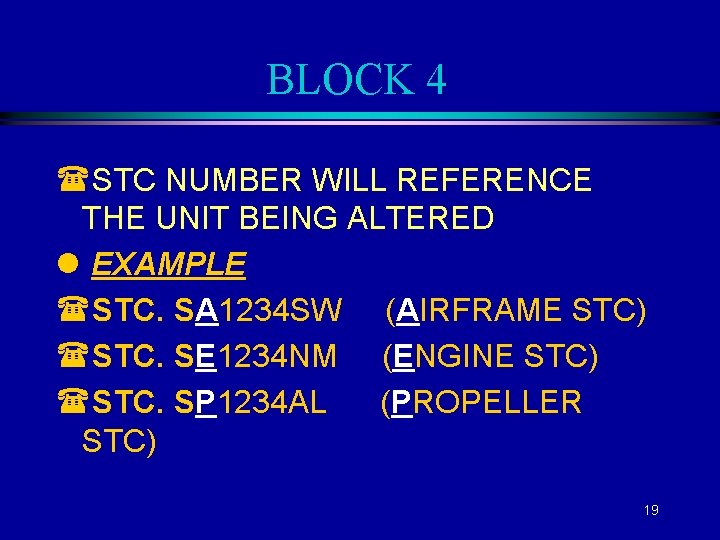

BLOCK 4 (STC NUMBER WILL REFERENCE THE UNIT BEING ALTERED l EXAMPLE (STC. SA 1234 SW (AIRFRAME STC) (STC. SE 1234 NM (ENGINE STC) (STC. SP 1234 AL (PROPELLER STC) 19

Question #2 Major Repairs and Alterations are defined in - - - A. l B. l C. l D. l E. l Websters Dictionary The Bible FAR 43 Appendix A FAR 43. 13 I'm not sure C 20

Question #2 Major Repairs and Alterations are defined in - - - l C. FAR 43 Appendix A C 21

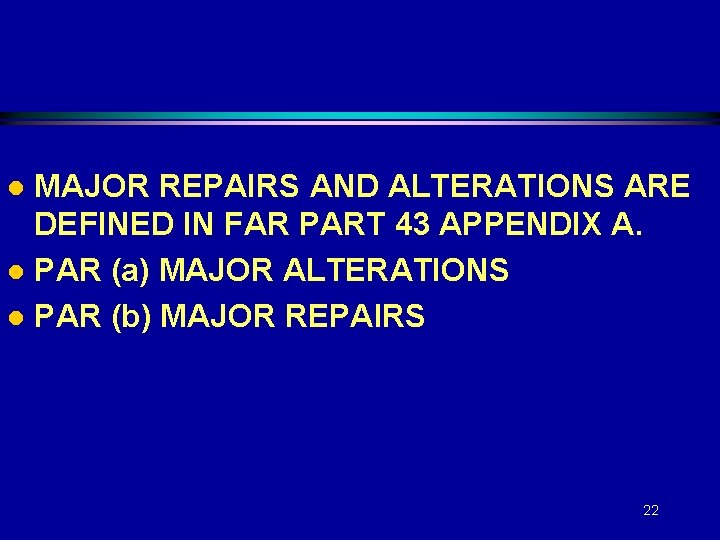

MAJOR REPAIRS AND ALTERATIONS ARE DEFINED IN FAR PART 43 APPENDIX A. l PAR (a) MAJOR ALTERATIONS l PAR (b) MAJOR REPAIRS l 22

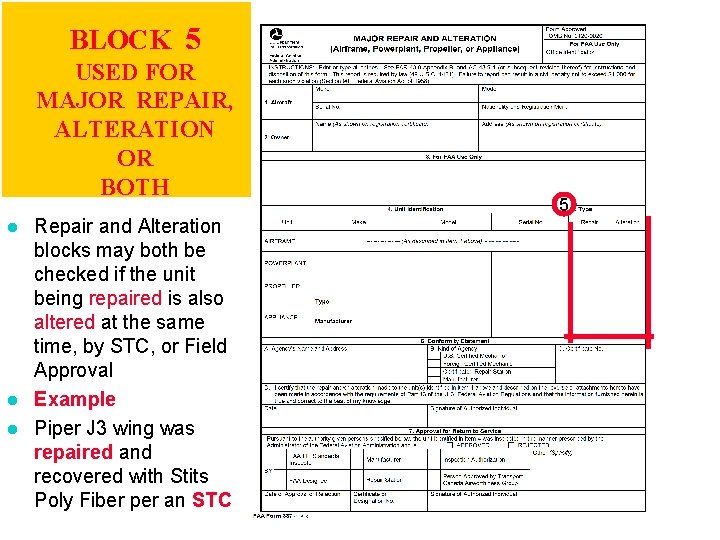

BLOCK 5 USED FOR MAJOR REPAIR, ALTERATION OR BOTH l l l Repair and Alteration blocks may both be checked if the unit being repaired is also altered at the same time, by STC, or Field Approval Example Piper J 3 wing was repaired and recovered with Stits Poly Fiber per an STC 5

Block 6 Conformity Statement A Agency's Name and address, Mechanics name and permanent mailing address MANUFACTURER'S AND REPAIR STATIONS NAME AND ADDRESS UNDER WHICH BUSINESS IS DONE A 6 ART FARKLE A&P 12345678 594 SIXTH AVE. ANYTOWN, USA 12345 MAY 16, 1998 Art Farkle ART FARKLE

Block 6 Conformity Statement B B Kind of Agency, CHECK THE APPROPRIATE BOX TO INDICATE CERTIFICATED MECHANIC OR TYPE ORGANIZATION THAT PERFORMED THE WORK, SUCH AS REPAIR STATION 6 Art Farkle someplace, USA 12345 B A&P 123456789

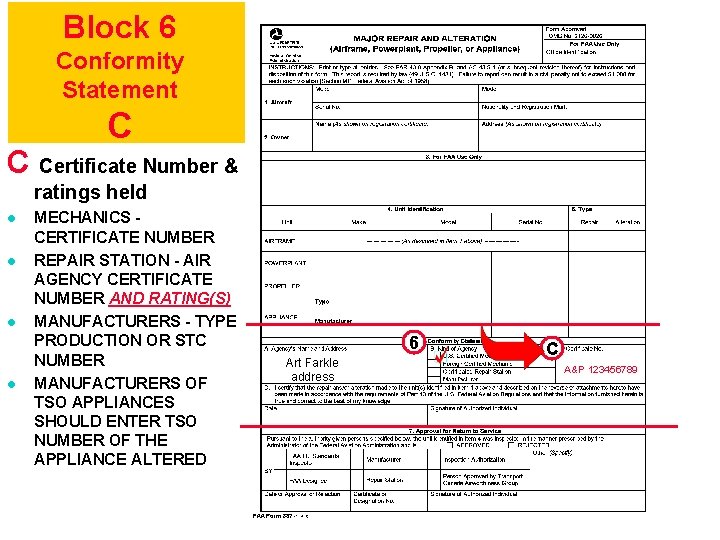

Block 6 Conformity Statement C C Certificate Number & ratings held l l MECHANICS CERTIFICATE NUMBER REPAIR STATION - AIR AGENCY CERTIFICATE NUMBER AND RATING(S) MANUFACTURERS - TYPE PRODUCTION OR STC NUMBER MANUFACTURERS OF TSO APPLIANCES SHOULD ENTER TSO NUMBER OF THE APPLIANCE ALTERED 6 Art Farkle address C A&P 123456789

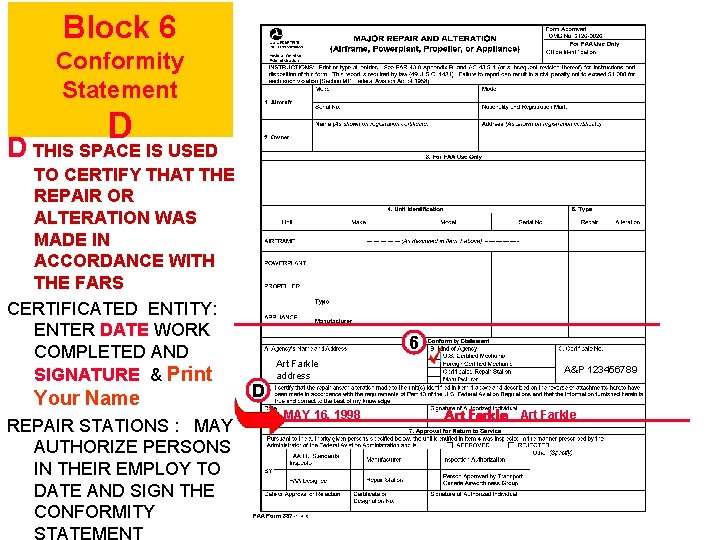

Block 6 Conformity Statement D D THIS SPACE IS USED TO CERTIFY THAT THE REPAIR OR ALTERATION WAS MADE IN ACCORDANCE WITH THE FARS CERTIFICATED ENTITY: ENTER DATE WORK COMPLETED AND SIGNATURE & Print Your Name REPAIR STATIONS : MAY AUTHORIZE PERSONS IN THEIR EMPLOY TO DATE AND SIGN THE CONFORMITY STATEMENT 6 Art Farkle address A&P 123456789 D MAY 16, 1998 Art Farkle

Block 7 APPROVAL FOR RETURN TO SERVICE 4 REMEMBER THE APPROVED AND REJECTED BOXES. 4 CHECK APPROVING AUTHORITY 4 ENTER CERTIFICATE NUMBER AS IT APPEARS ON ENTITIES CERTIFICATE 28

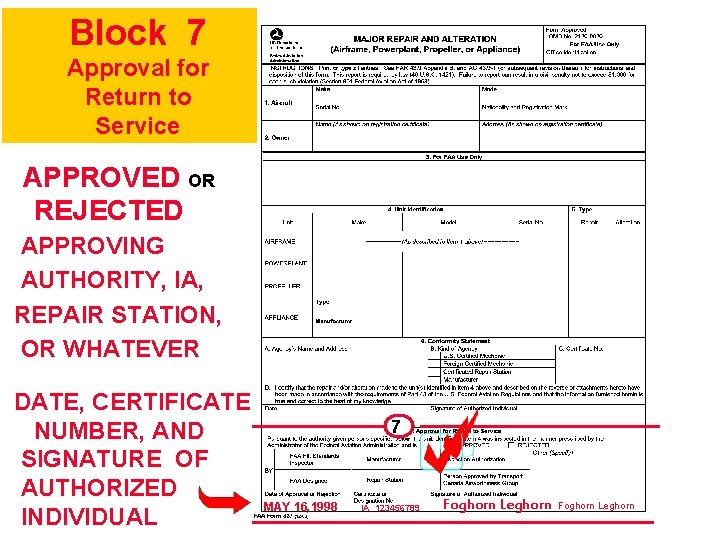

Block 7 Approval for Return to Service APPROVED OR REJECTED APPROVING AUTHORITY, IA, REPAIR STATION, OR WHATEVER DATE, CERTIFICATE NUMBER, AND SIGNATURE OF AUTHORIZED INDIVIDUAL 7 MAY 16, 1998 IA 123456789 Foghorn Leghorn

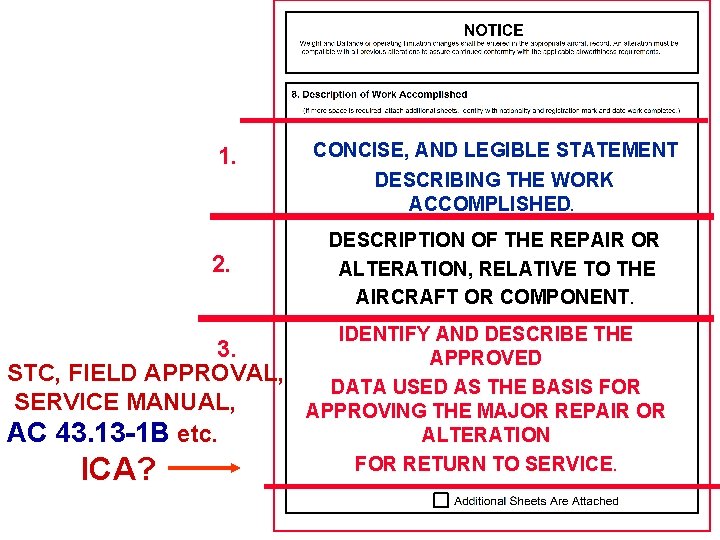

. 337. DOC 1. CONCISE, AND LEGIBLE STATEMENT DESCRIBING THE WORK ACCOMPLISHED. 2. 3. STC, FIELD APPROVAL, SERVICE MANUAL, AC 43. 13 -1 B etc. ICA? DESCRIPTION OF THE REPAIR OR ALTERATION, RELATIVE TO THE AIRCRAFT OR COMPONENT. IDENTIFY AND DESCRIBE THE APPROVED DATA USED AS THE BASIS FOR APPROVING THE MAJOR REPAIR OR ALTERATION FOR RETURN TO SERVICE.

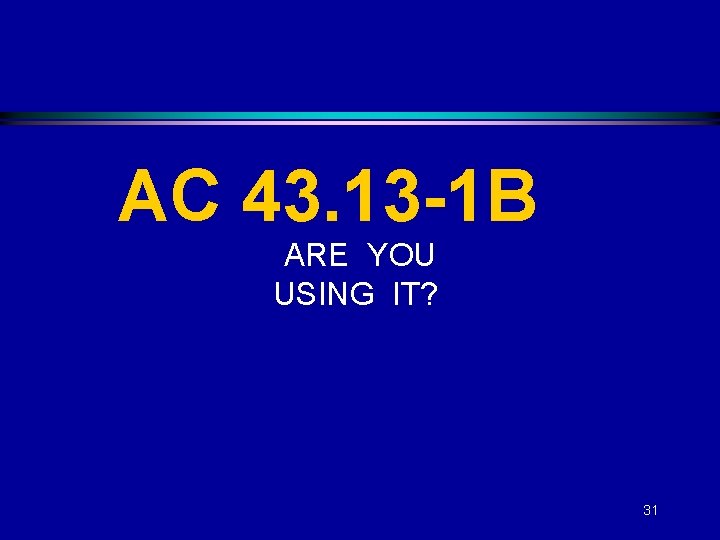

AC 43. 13 -1 B ARE YOU USING IT? 31

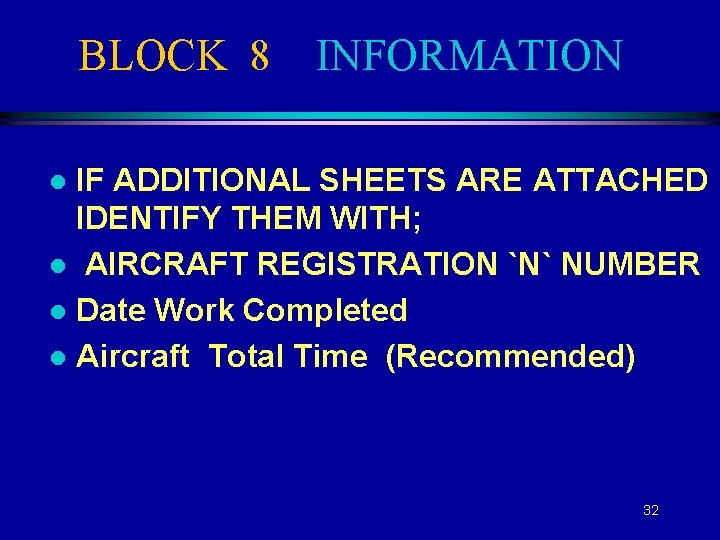

BLOCK 8 INFORMATION IF ADDITIONAL SHEETS ARE ATTACHED IDENTIFY THEM WITH; l AIRCRAFT REGISTRATION `N` NUMBER l Date Work Completed l Aircraft Total Time (Recommended) l 32

l DIAGRAMS AND DRAWINGS MAY BE INCLUDED IF REQUIRED TO ADEQUATELY EXPLAIN LOCATION AND DETAILS OF THE REPAIR OR ALTERATION l REMEMBER TO CHECK THE BOX on Bottom OF BLOCK 8 IF ADDITIONAL SHEETS ARE ATTACHED 33

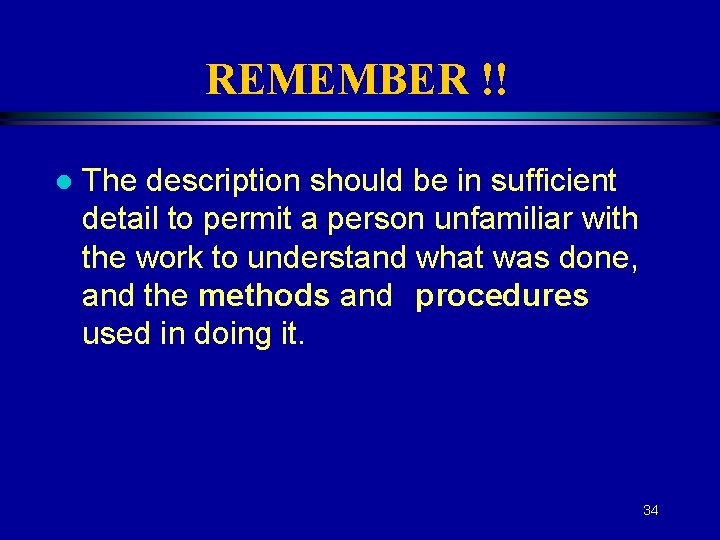

REMEMBER !! l The description should be in sufficient detail to permit a person unfamiliar with the work to understand what was done, and the methods and procedures used in doing it. 34

DISPOSITION OF 337 AFTER REPAIR OR ALTERATION OF COMPONENTS NOT CURRENTLY INSTALLED ON AIRCRAFT ENGINES, PROPELLERS, SPARE PARTS, OR COMPONENTS 35

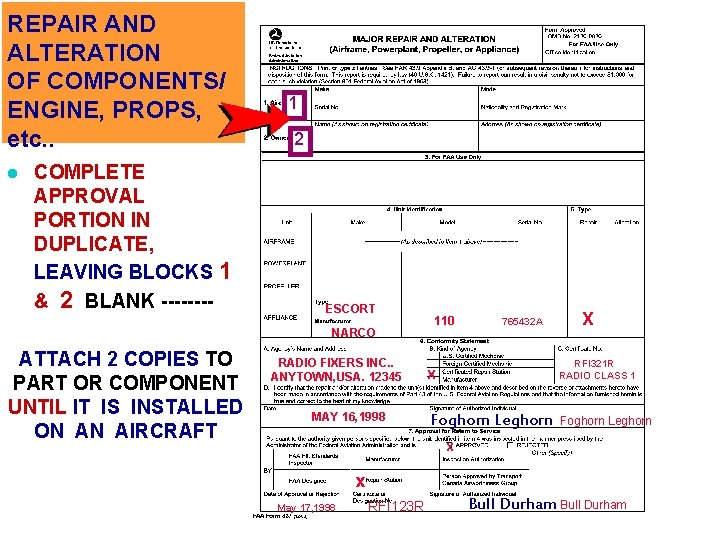

REPAIR AND ALTERATION OF COMPONENTS/ ENGINE, PROPS, etc. . l COMPLETE APPROVAL PORTION IN DUPLICATE, LEAVING BLOCKS 1 & 2 BLANK ---- 1 2 ESCORT NARCO ATTACH 2 COPIES TO PART OR COMPONENT UNTIL IT IS INSTALLED ON AN AIRCRAFT RADIO FIXERS INC. . ANYTOWN, USA. 12345 MAY 16, 1998 110 765432 A X X RFI 321 R RADIO CLASS 1 Foghorn Leghorn x x May 17, 1998 RFI 123 R Bull Durham

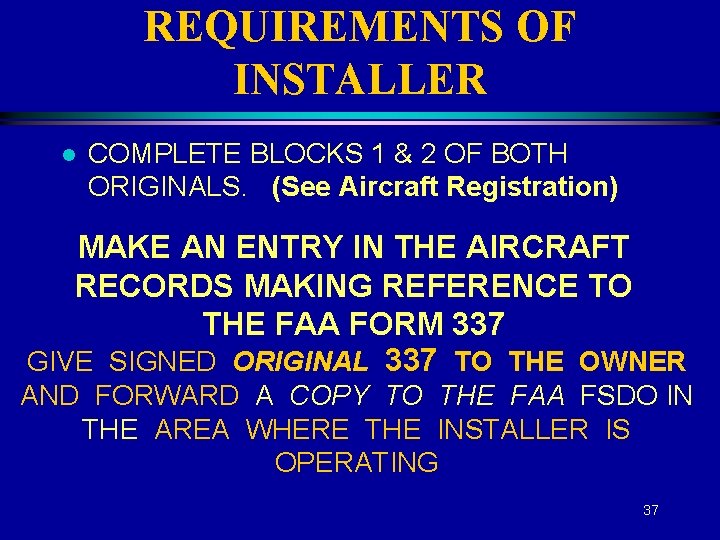

REQUIREMENTS OF INSTALLER l COMPLETE BLOCKS 1 & 2 OF BOTH ORIGINALS. (See Aircraft Registration) MAKE AN ENTRY IN THE AIRCRAFT RECORDS MAKING REFERENCE TO THE FAA FORM 337 GIVE SIGNED ORIGINAL 337 TO THE OWNER AND FORWARD A COPY TO THE FAA FSDO IN THE AREA WHERE THE INSTALLER IS OPERATING 37

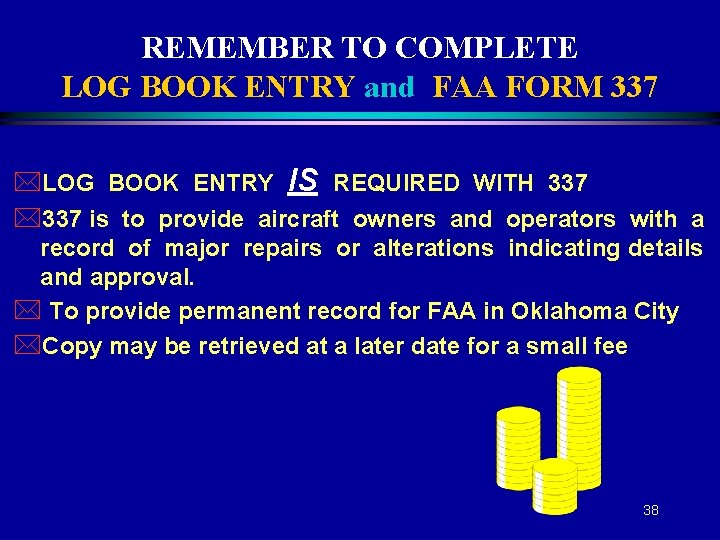

REMEMBER TO COMPLETE LOG BOOK ENTRY and FAA FORM 337 *LOG BOOK ENTRY IS REQUIRED WITH 337 *337 is to provide aircraft owners and operators with a record of major repairs or alterations indicating details and approval. * To provide permanent record for FAA in Oklahoma City *Copy may be retrieved at a later date for a small fee 38

DISPOSITION AFTER COMPLETION (1 SIGNED ORIGINAL TO OWNER/OPERATOR (1 COPY TO FAA FSDO WITHIN 48 HOURS 39

EXTENDED RANGE FUEL TANKS INSTALLED IN PASSENGER OR BAGGAGE COMPARTMENT. FAA FORM 337 AT LEAST IN TRIPLICATE. . 1 SIGNED ORIGINAL TO THE OWNER. 1 COPY ABOARD THE AIRCRAFT, (FAR 91. 417). 1 COPY TO FAA 40

APPROVED DATA 41

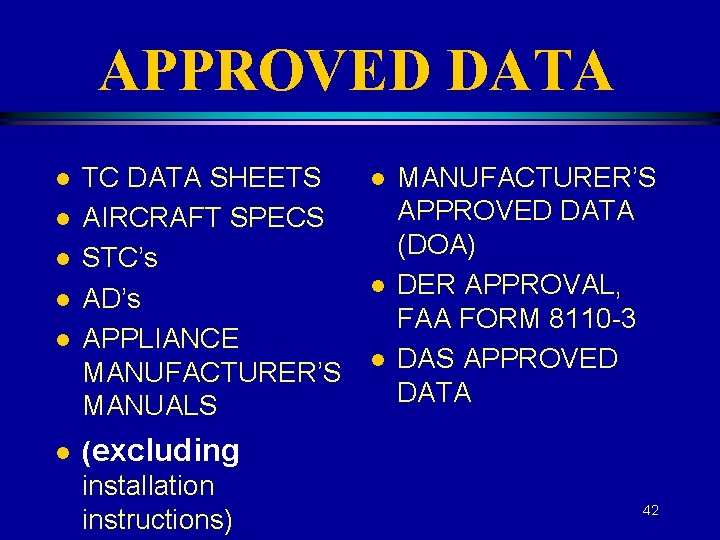

APPROVED DATA l l l TC DATA SHEETS AIRCRAFT SPECS STC’s AD’s APPLIANCE MANUFACTURER’S MANUALS (excluding installation instructions) l l l MANUFACTURER’S APPROVED DATA (DOA) DER APPROVAL, FAA FORM 8110 -3 DAS APPROVED DATA 42

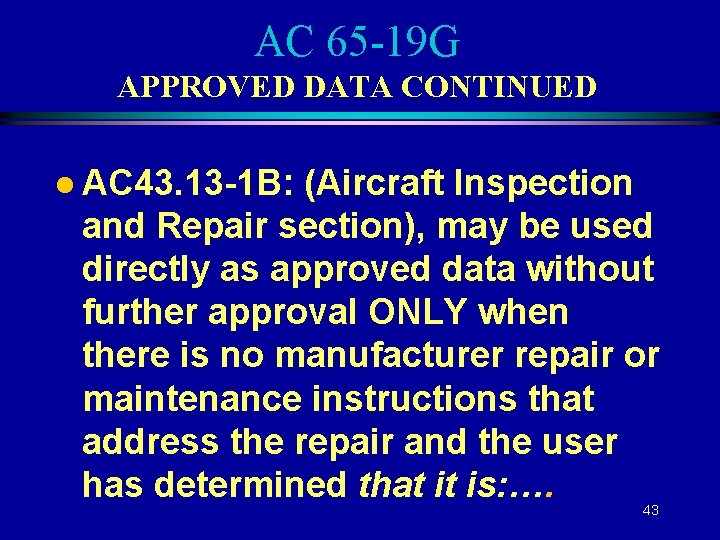

AC 65 -19 G APPROVED DATA CONTINUED l AC 43. 13 -1 B: (Aircraft Inspection and Repair section), may be used directly as approved data without further approval ONLY when there is no manufacturer repair or maintenance instructions that address the repair and the user has determined that it is: …. 43

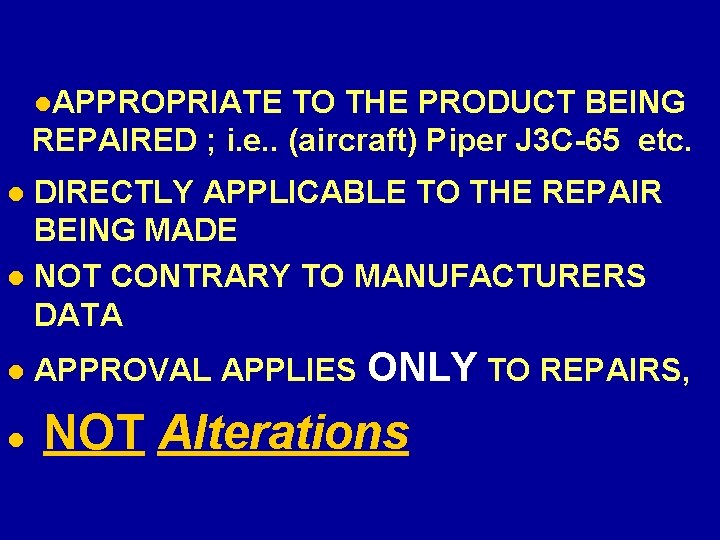

l. APPROPRIATE TO THE PRODUCT BEING REPAIRED ; i. e. . (aircraft) Piper J 3 C-65 etc. DIRECTLY APPLICABLE TO THE REPAIR BEING MADE l NOT CONTRARY TO MANUFACTURERS DATA l l l APPROVAL APPLIES ONLY TO REPAIRS, NOT Alterations

ACCEPTABLE DATA 45

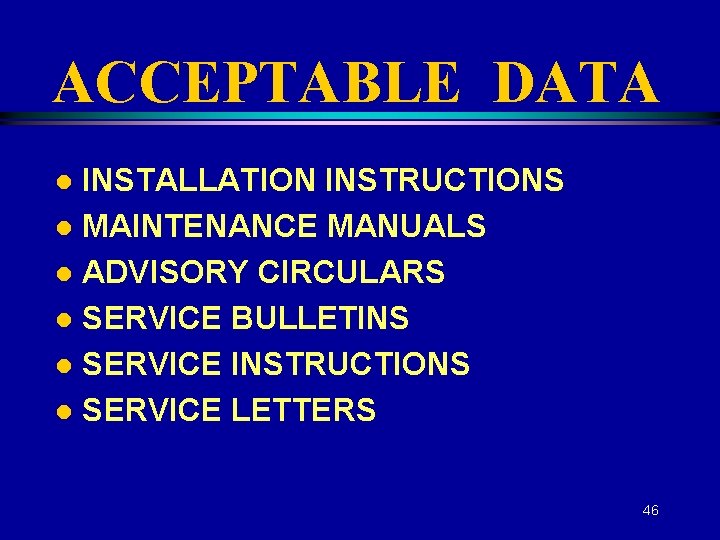

ACCEPTABLE DATA INSTALLATION INSTRUCTIONS l MAINTENANCE MANUALS l ADVISORY CIRCULARS l SERVICE BULLETINS l SERVICE INSTRUCTIONS l SERVICE LETTERS l 46

WHAT IS A MAJOR ALTERATION ? How and When do I Apply for a Field Approval ?

FAR Part I, “MAJOR ALTERATION” (DEFINITION) l “Major Alteration” means an alteration not listed in the aircraft, aircraft engine, or propeller specifications -

“Major Alteration” cont. 1. That might appreciably affect weight, balance, structural strength, performance, Powerplant operation, flight characteristics, or other qualities affecting airworthiness; or 49

“Major Alteration” cont. 2. That is not done according to accepted practices or cannot be done by elementary operations. 50

“Major Alteration” cont. Major alterations are to be recorded on FAA form 337. (FAR 43 Appendix B) l Give the signed original of that form to the aircraft owner. l Forward a copy of that form to the local FSDO within 48 HOURS after the approval for return to service. l l Don't forget the Log Book Entry 51

Field Approval What is it ? How do I apply for a Field Approval ? 52

What is a field Approval ? l l l (7) Field approval: An approval by an authorized Airworthiness Aviation Safety Inspector (ASI) of a major repair or major alteration that is accomplished by one or more of the following, as appropriate: * Examination of data only - one aircraft · Physical inspection, demonstration, testing, etc. - one aircraft · Examination of data only - duplication on identical aircraft 53

FAA Order 8300. 10 What is Needed l l l (8) Data: Information that supports and/or describes the alteration or repair, -including the following: Drawings, sketches, and/or photographs Stress analysis Service Bulletins Engineering Orders Operating limitations 54

to substantiate major repairs/major alterations, derived from the following: • Type Certificate Data Sheets • ·Supplemental Type Certificate (STC) data, provided that it specifically applies to the item being repaired/altered & Airworthiness Directives (AD) • Airframe, engine, and propeller manufacturer's "FAAapproved" maintenance manuals or instructions • Appliance manufacturer's manuals or instruction, unless specifically not approved by the Administrator or resulting, in an alteration to the airframe, engine, and/or propeller 55

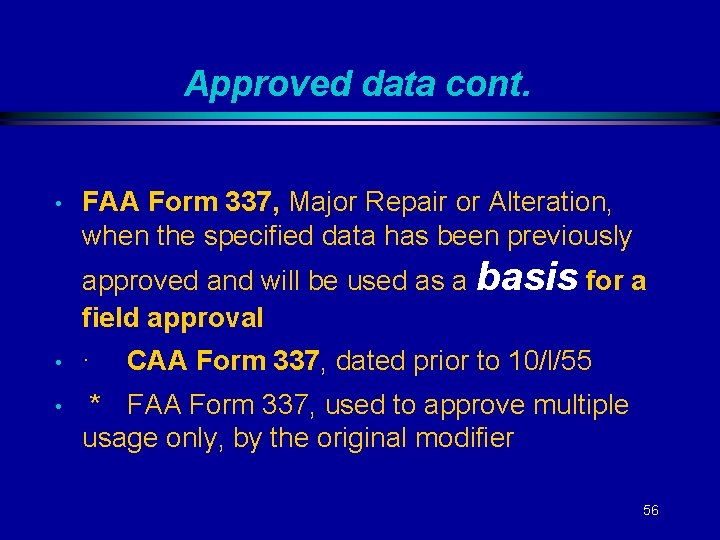

Approved data cont. • FAA Form 337, Major Repair or Alteration, when the specified data has been previously approved and will be used as a basis for a field approval • · CAA Form 337, dated prior to 10/l/55 • * FAA Form 337, used to approve multiple usage only, by the original modifier 56

Apply for Field Approval l l FAA ORDER 8300. 10 Chapter 1, section 1. Perform Field Approval of Major Repairs and Major Alterations LAACO & AWP-200 WORKING AGREEMENT n GUIDANCE FOR FIELD APPROVALS 57

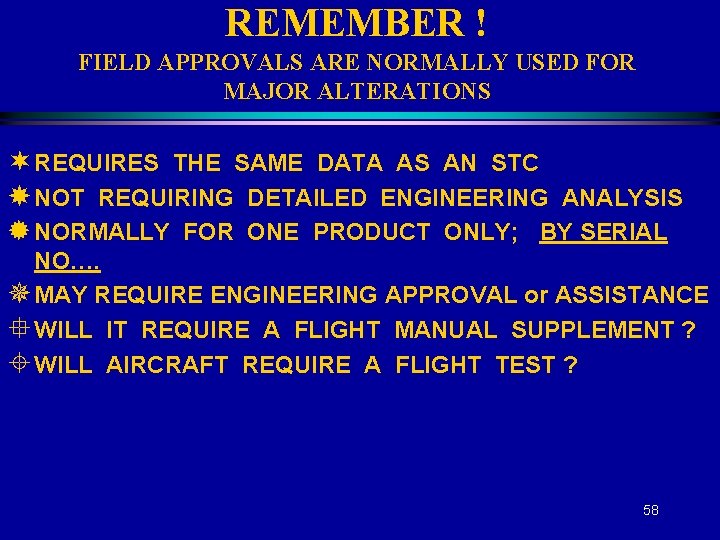

REMEMBER ! FIELD APPROVALS ARE NORMALLY USED FOR MAJOR ALTERATIONS ¬ REQUIRES THE SAME DATA AS AN STC NOT REQUIRING DETAILED ENGINEERING ANALYSIS ® NORMALLY FOR ONE PRODUCT ONLY; BY SERIAL NO…. ¯ MAY REQUIRE ENGINEERING APPROVAL or ASSISTANCE ° WILL IT REQUIRE A FLIGHT MANUAL SUPPLEMENT ? ± WILL AIRCRAFT REQUIRE A FLIGHT TEST ? 58

YOUR RESPONSIBILITIES ¶ CONTACT FSDO PRIOR TO INCORPORATING A MAJOR CHANGE · COORDINATE WITH AIRCRAFT OWNER AND FAA ¸ DETERMINE IF ALL DATA IS APPROVED ¹ SUBMIT YOUR PROPOSAL AND DATA TO FSDO FOR EVALUATION º WAIT FOR APPROVAL BY ASI BEFORE CONTINUING » YOU MAY NEED TO SUBMIT ADDITIONAL INFORMATION 59

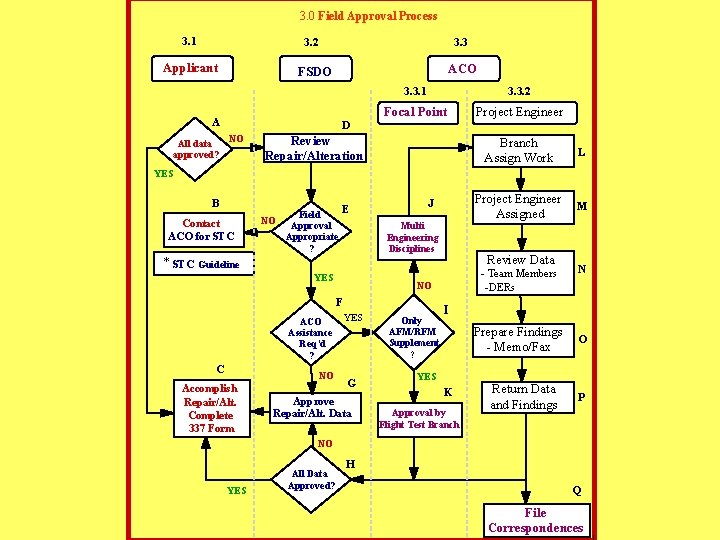

3. 0 Field Approval Process 3. 1 3. 3 3. 2 Applicant ACO FSDO A 3. 3. 1 3. 3. 2 Focal Point Project Engineer D NO All data approved? Review Repair/Alteration Branch Assign Work L Project Engineer Assigned M YES B Contact ACO for STC * STC NO Field Approval Appropriate ? E J Multi Engineering Disciplines Review Data Guideline YES NO F ACO Assistance Req’d ? C NO Accomplish Repair/Alt. Complete 337 Form - Team Members -DERs YES G Approve Repair/Alt. Data Only AFM/RFM Supplement ? N I Prepare Findings - Memo/Fax O YES K Approval by Flight Test Branch Return Data and Findings P NO YES All Data Approved? H Q File Correspondences

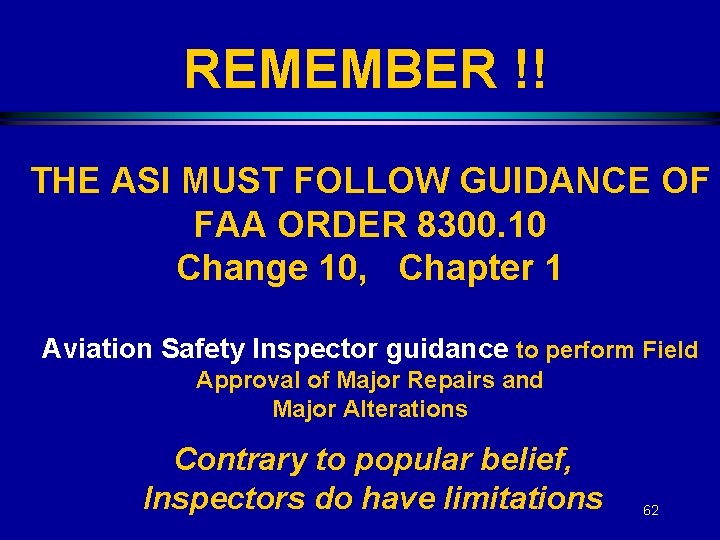

REMEMBER !! THE ASI MUST FOLLOW GUIDANCE OF FAA ORDER 8300. 10 Change 10, Chapter 1 Aviation Safety Inspector guidance to perform Field Approval of Major Repairs and Major Alterations Contrary to popular belief, Inspectors do have limitations 62

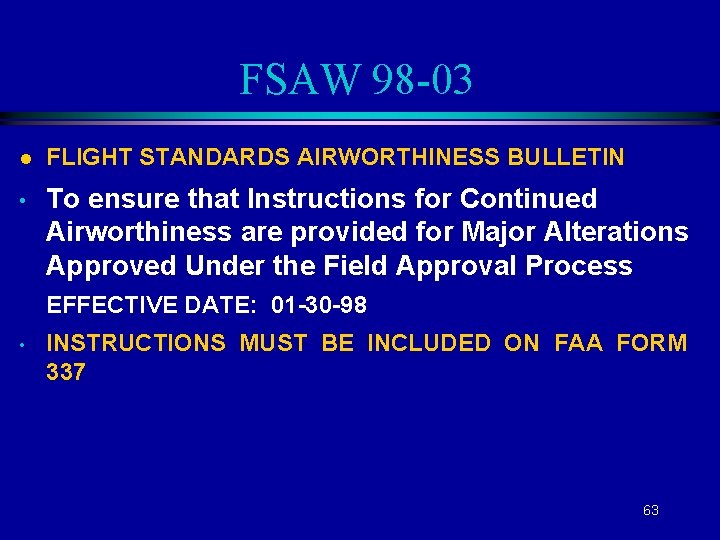

FSAW 98 -03 l FLIGHT STANDARDS AIRWORTHINESS BULLETIN • To ensure that Instructions for Continued Airworthiness are provided for Major Alterations Approved Under the Field Approval Process EFFECTIVE DATE: 01 -30 -98 • INSTRUCTIONS MUST BE INCLUDED ON FAA FORM 337 63

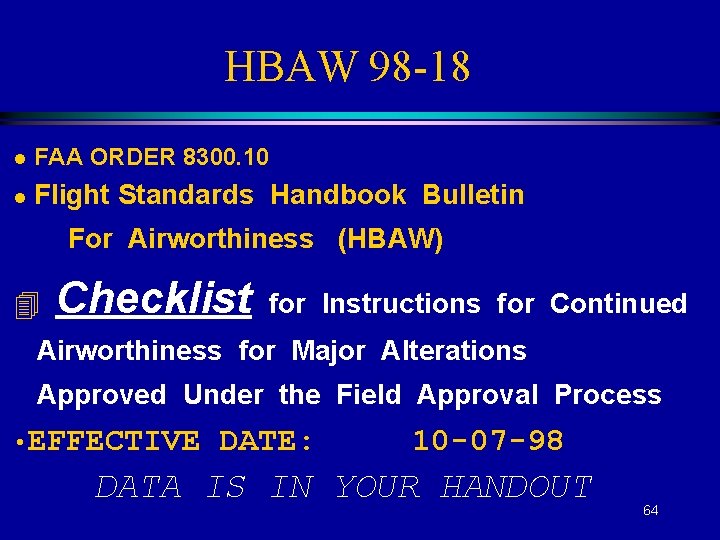

HBAW 98 -18 l FAA ORDER 8300. 10 l Flight Standards Handbook Bulletin For Airworthiness (HBAW) 4 Checklist for Instructions for Continued Airworthiness for Major Alterations Approved Under the Field Approval Process • EFFECTIVE DATE: 10 -07 -98 DATA IS IN YOUR HANDOUT 64

HBAW 98 -18 l l Checklist contains 16 items Instructions for Continued Airworthiness for Major Alterations Approved Under the Field Approval Process Applicable Procedures must be attached to - FAA Form 337 65

Summary l How to complete FAA form 337 l APPROVED and ACCEPTABLE DATA l MAJOR ALTERATIONS l APPLYING FOR A FIELD APPROVAL l YOUR Responsibilities l NEW item… HBAW 98 -18 ICA 66
